Легкая Установка Солнечной Обструкции вспышка для высоковольтного электрического провода/Солнечная сигнальная лампа проводника

Сохранить в закладки 1600929262128:


Цена:22 074,58 ₽ - 25 402,40 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


 Solar Warning Light For Conductor




Model type:TX-FZD-01



Product Overviews


Product Overviews


TX-FZD-01 Solar Anti-collision Obstruction Light, Made of high strength marine grade engineering materials by injection molding; The light source adopts high efficiency LED with Fresnel optical structure, which has the characteristics of high brightness and long life. The control circuit has strong anti-lightning ability and anti-surge protection device, which can be applied to harsh working environment. It has 2.4G automatic synchronous flashing function, which can realize synchronous flashing and better play the role of aircraft anti-collision.





Product Details














































































































Model



TX-FZD-01



Vertical Divergence



>10°



Power supply



Solar power supply



Horizontal Out-put



360°



Power frequency



DC



Overall Size



295*118*238mm



Average power



≤0.5W



Installation size



Universal clamp



Working mode



Flash 30times/min



Ambient Temperature



-40℃~+55℃



Emitted color



Red



Weight



0.7kg(Installation clamp not included)



Light source



LED



Wind load



80km/h



Shell material



ASA Marine grade engineering plastics



Luminous mirror material



Optical PC



Installing structure



Rink rod installation



Energy efficiency



≥95%



Light Source Life



≥200000h



Protection grade



IP67



Surge protection rating



0.5KA



Relative humidity






0%~95%



Get wet in the rain



Can be exposed to rain in any wind direction



Salt spray



Can be exposed to salt spray



Radiation



Can be exposed to solar radiation



Insulation characteristic



Between the shell and the ground: 1.414KVdc, 10S does not break down



Seismic resistance



10~500Hz,2G 10min/cycle,XYZ 60 minutes for each axis



EMC standards



Emitted:EN55022(CISPR22) class A harmonic wave:EN61000-3-2,-3



Mean Time Between Failure



50000h,MIL-HDBK-217F(25℃)



Leakage current



/



Electric shock protection



/



Altitude



≥5500m



Effective intensity



night:>15cd



Photocell ambient brightness



50/100Lux

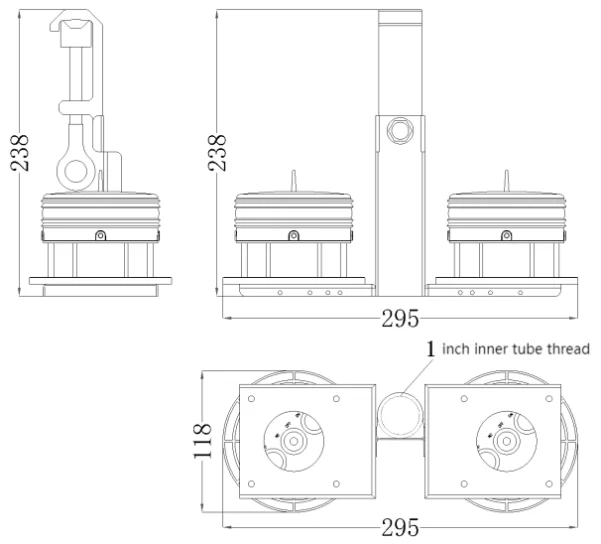

Dimension Drawing


Dimension Drawing




case


_20200109165611


lvyou_04


Feedback



2





FAQ


FAQ


Q1:Can I have a sample order for your products?


A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2: What about the lead time?


A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.


Q3:Do you have any MOQ limit order?


A:No limit, 1pc for sample checking is avaiable.


Q4:How do you ship the goods and how long does it take to arrive?


A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.


Q5:How to procced an order?


A:Firstly let us know your requirement or appliction.


   Secondly we will quote according to your requirement or suggested appropriate products.


   Thirdly you confirm prices and check the samples.


   Fourthly you confrim order and place deposit for formal order.


   Then we will arrange the mass production for you.


Just feel free to contact us, we will effectively serve you and satisfy you.
