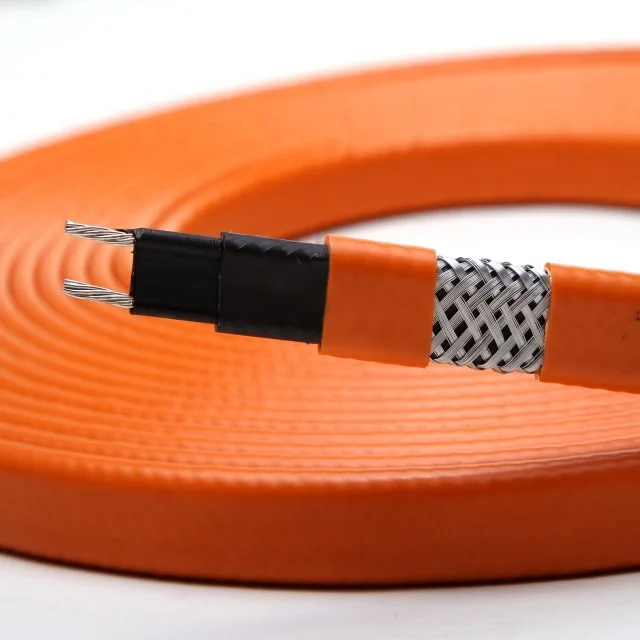

RSR electric heating cable provides the most versatility in heat trace designs and applications. Constructed of a semiconductor heater matrix extruded between parallel bus wires, a self-regulating cable adjusts its output to independently respond to ambient temperatures all along its length. As temperature increasing, the heater’s resistance increases which lower the output wattage. Conversely, as the temperature decreasing, the resistance decreases and the cable produces more heat. So thermostat is not nessary in some applications. It will never overheat or burnout even when wrapped by itself (overlapped). It can also be cut to any length. As a result, we got an energy efficient heating cable.

1.Long life time: PTC semi-conductive matrix with high quality and excellent technology.
2.Low energy consumption: Due to unique PTC property, the cable adjust the output power respond to ambient temperature.
3.Excellent heat resistance: PTC semi-conductive matrix is treated by irradiation crosslinking reaction. High insulation resistance.
4.Cut to length: PTC semi-conductive matrix is composed of the infinite parallel connection of carbon particles, allowing it to be cut to the exact length required.
5.Easy for installation: Linear cable, complex installation available, never overheat when overlapped.
6.Low starting current: PTC 3 layer co-extruded technology, low starting current and low Attenuation rate.
7.Cable durable: UV protection, high and low temperature resistant, weather resistant.

RSR electric heating cable is ideally used for process temperature maintenance and frost protection of regular diameter pipelines, tanks, valves, flanges, roof & gutter de-icing and other application where low temperature is needed. It is suitable for hazardous area, also non-hazardous area and corrosive area with fluoropolymer outer jacket.

MOQ 1000 meters
OEM and ODM available
