Product Description

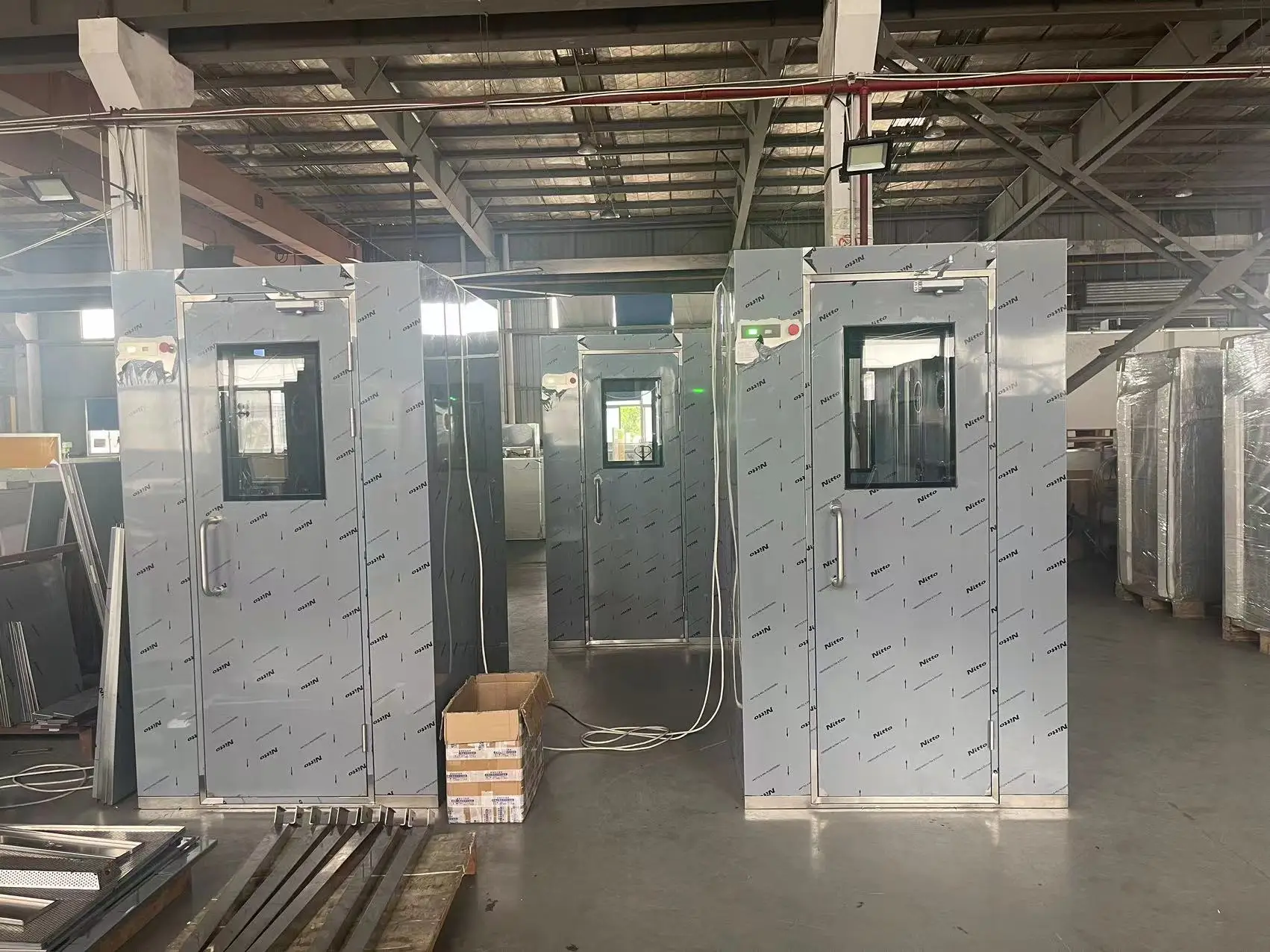

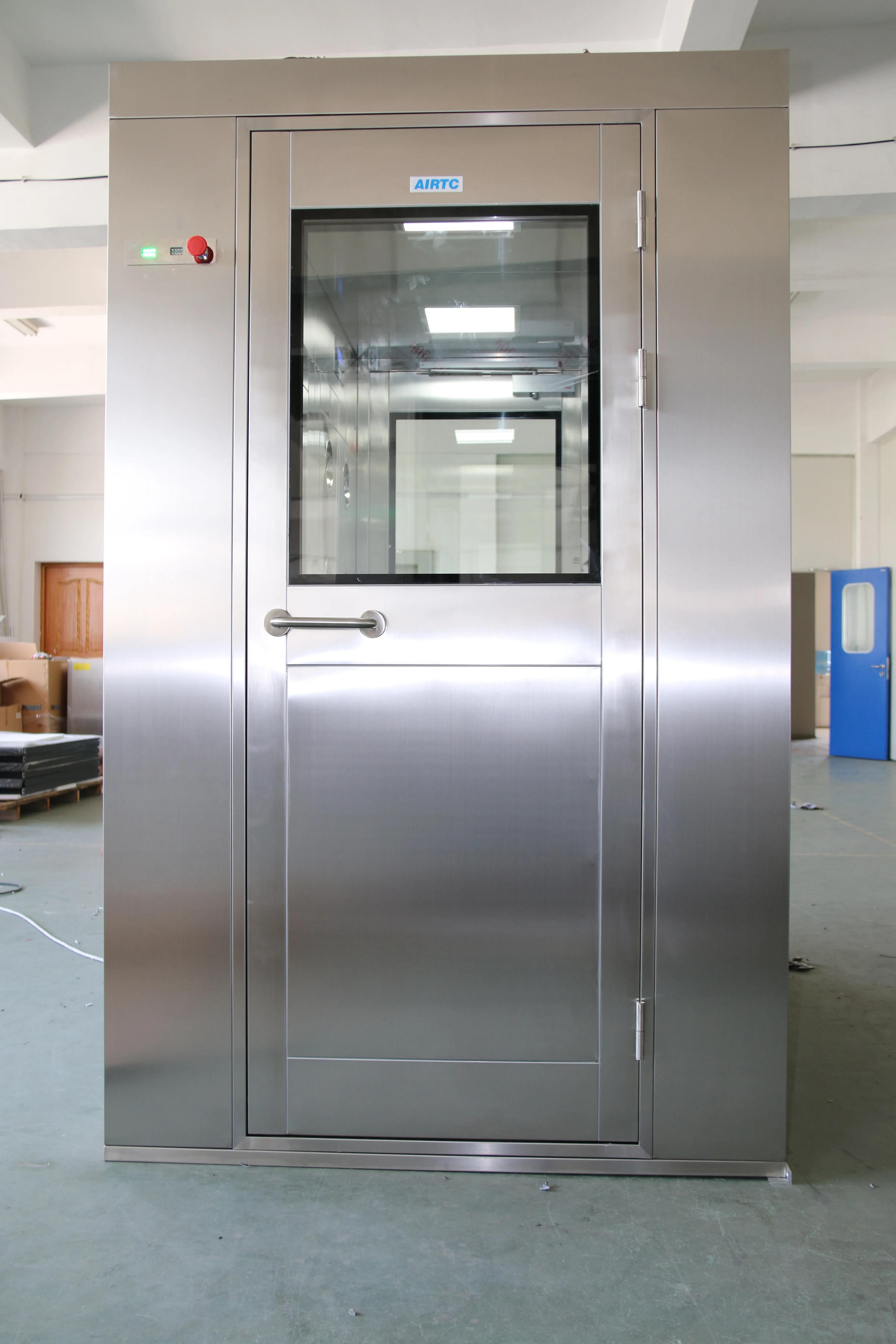

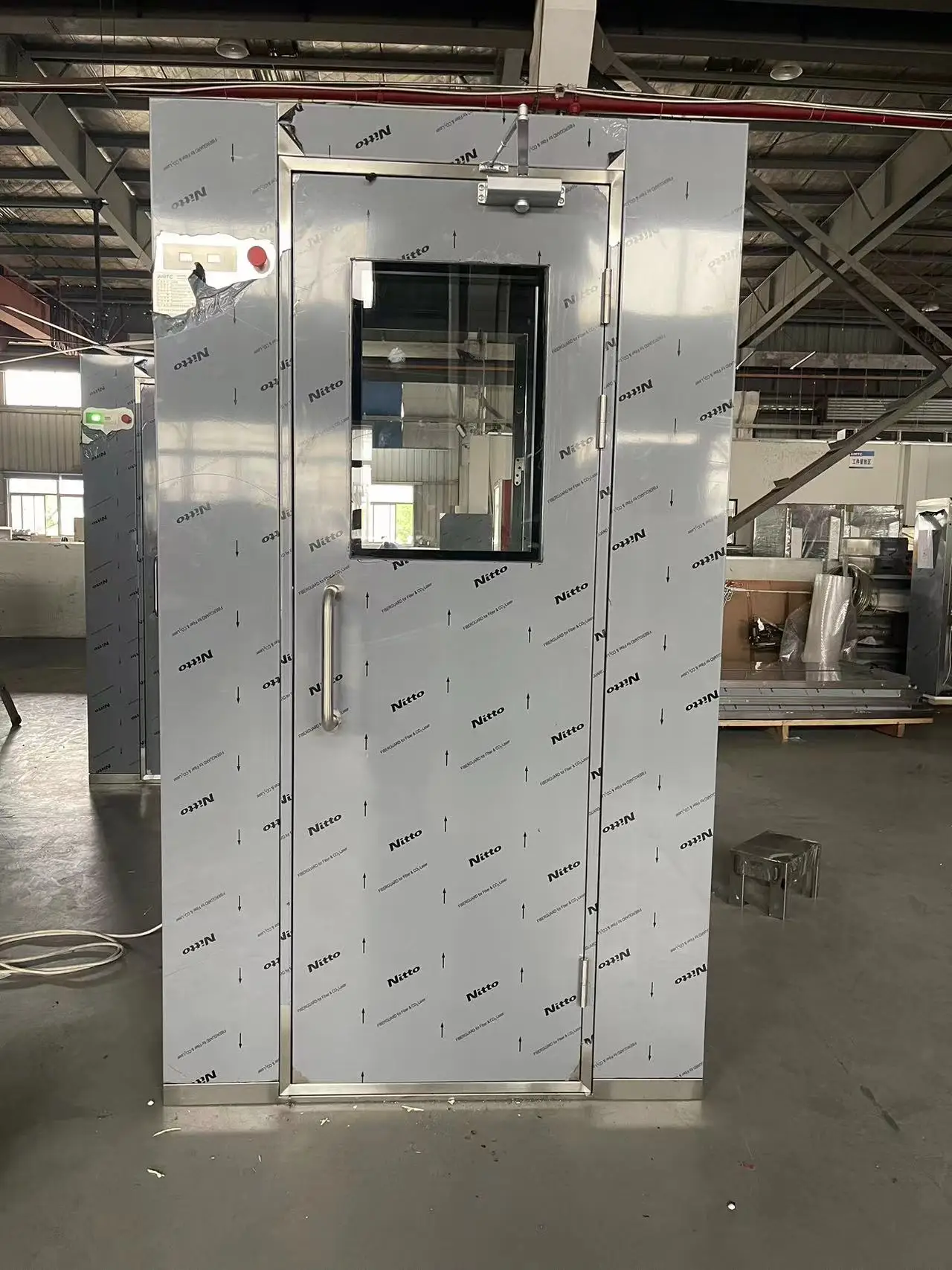

The air shower is mainly installed between the clean room and the unclean room. When people or goods enter the clean area, they
must first go through the air shower. The clean air blown by it can remove the dust carried by people and goods, and effectively block or reduce the dust source into the clean area. The air shower can also act as an airlock to prevent unpurified air from entering the clean area.
01 control panel
Integrated microcomputer controller, LED liquid crystal display, infrared electronic interlocking
Automatic infrared sensing switch
304 stainless steel material
Wind speed ≥ 25m/s
Wind speed ≥ 25m/s
Philips or other well-known brands
05 Air shower room door
Made of aluminum alloy profiles, the upper part is made of glass and the lower part is made of aluminum gusset plates
06 Status indicator
Status indication during operation

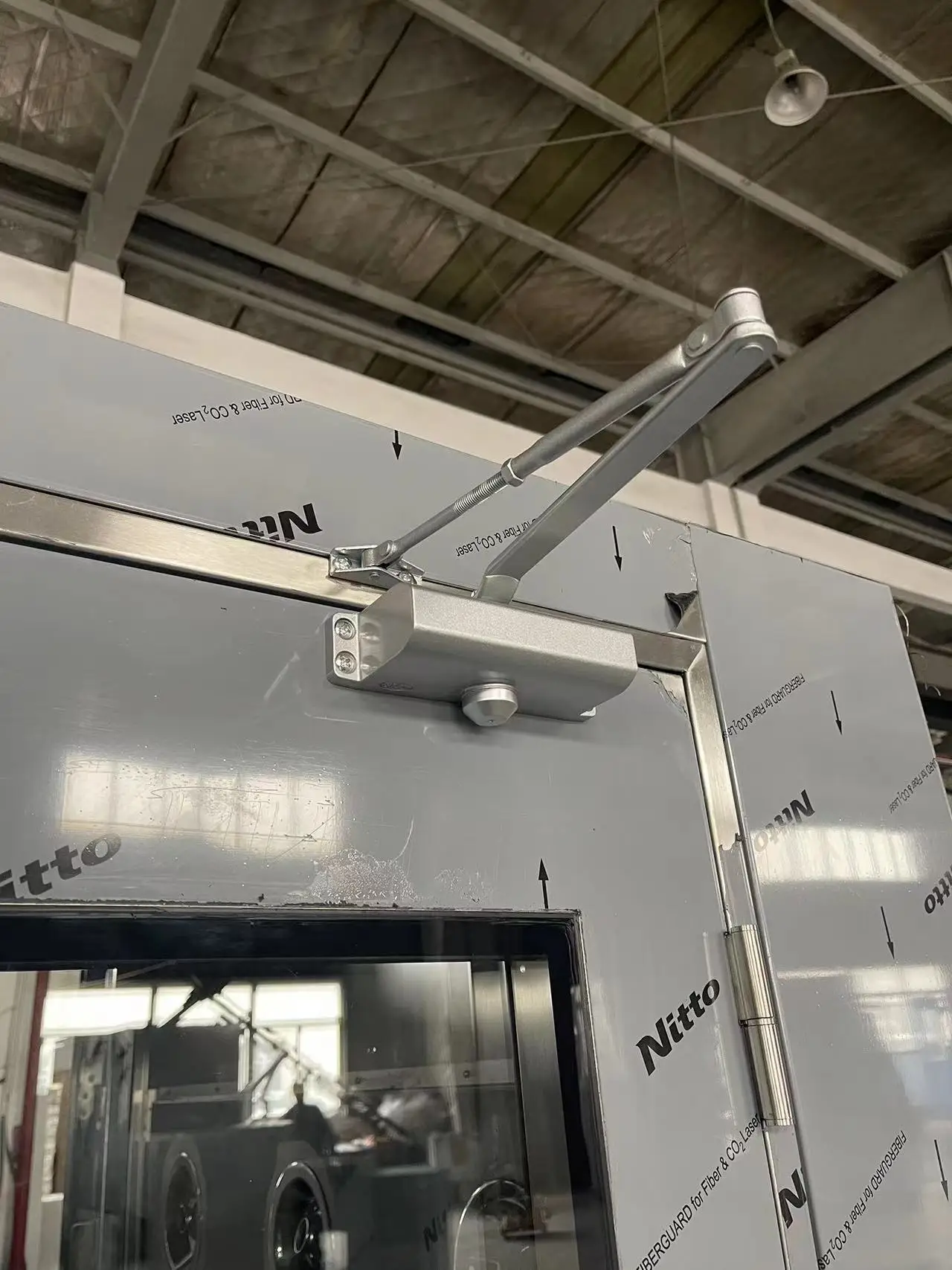

Specially designed durable hinges Anti corrosive, rust resistant, clean and aesthetically pleasing, not prone to dust accumulation
08 handle
Stainless steel alloy material
Match the installation position of the handle according to the height of the door
Match the installation position of the handle according to the height of the door
09 Optoelectronic sensing
Simple and easy to operate
High quality door Electric mortise lock system to prevent cross contamination
Characteristic

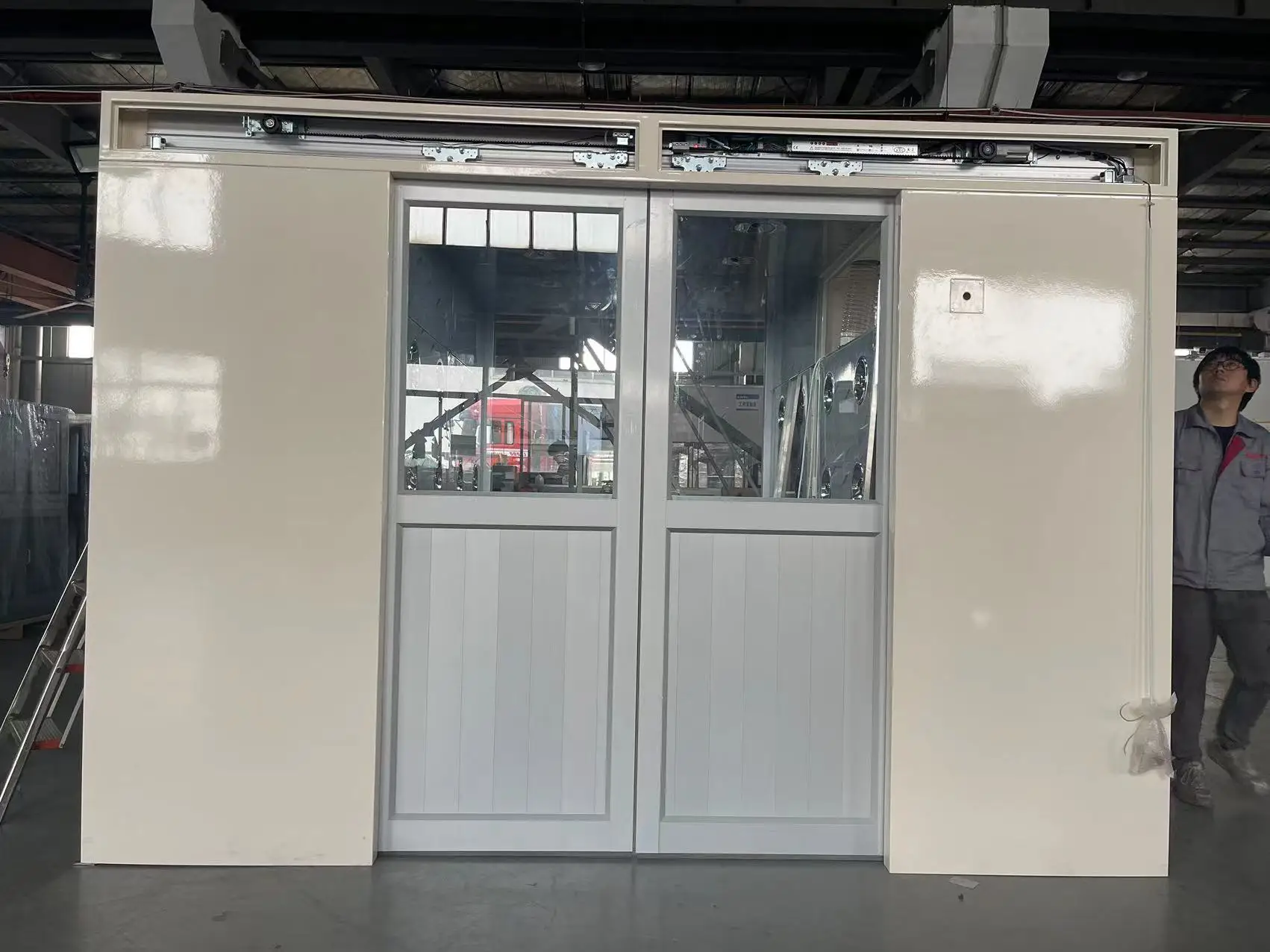

1.Air shower room includes: human air shower series, wide channel air shower series; The blowing methods are: single side blowing, double side blowing, top blowing and other combinations; Air shower door has: manual flat door, automatic sliding door, fast shutter door and other options. Can accept user special design.
2.The air shower box material is steel spray plastic, or the external steel spray internal work area stainless steel, all stainless steel, etc. The inner surface of the chassis is stainless steel; The conventional air shower door is made of stainless steel, the upper part is double-layer toughened glass with black edge, and the lower part is double-layer stainless steel plate aluminum honeycomb sandwich.
3.Equipped with aluminum alloy frame without partition ultra-high pressure high efficiency filter, filtration efficiency ≥99.99%@0.5um; The selection of special air shower fan can make the box of the air shower controlled within 200mm; Stainless steel nozzle with diameter of medium 30 is used to ensure the wind speed is above 25m/s.
4.Control system: The integrated intelligent controller is adopted, and the LCD screen on the control panel can correctly display the operating state of the air shower, the interlock state of the double door and the delayed opening state, and the photoelectric sensor is provided. Multiple operating procedures can be set to facilitate flexible use by users.
5.Intelligent voice prompt system, people in the shower by the control system automatically issued voice prompt to complete the entire shower dust removal process in order, humanized language prompt gives people a kind of friendly feeling.
custom design
Custom Designed Air shower
of Various Sizes, Shapes and Materials
Air Shower Performance parameters
Parameter model | AR-850 | AR-800D | AR-850-nL | ||
Filtering efficiency | Efficiency ≥ 99.99%, (particle size ≥ 0.3 μ M) | ||||
Nozzle wind speed | >22m/s | ||||
Wind drenching time | 0-99s（Adjustable） | ||||
Power supply | AC,3N，380V/50Hz | ||||
Quota power | 1000W | 500W | (1000*n）W | ||
Weight | 300KG | 250KG | （300*n）KG | ||
Overall dimensions | 1300*1000*2120 | 1100*1000*2120 | 1300*（1000*n）*2120 | ||
Wind drenching area size | 850*900*1980 | 800*900*1980 | 850*（900*n）*1980 | ||
Number of nozzles | 12 | 6 | 12*n | ||
Top blowing (optional) | 2 | None | 12*n | ||
Base plate material | 304 stainless steel | 304 stainless steel | 304 stainless steel | ||
Specification and quantity of high-efficiency filters | 610*610*50*2 | 610*610*50*1 | 610*610*50*（2n） | ||
Specification and quantity of primary filterpower supply | 600*30*2 | 600*300*1 | 600*300*（2n) | ||
