Гибридный инвертор Deye 5 кВт 6 8 10 12 3 фазы 14 15 16 18 20 трехфазный BatterySUN 10 низкого напряжения/12K SG04LP3 EU

Сохранить в закладки 1600929904301:


Цена:70 011,78 ₽ - 164 090,10 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description






Specification

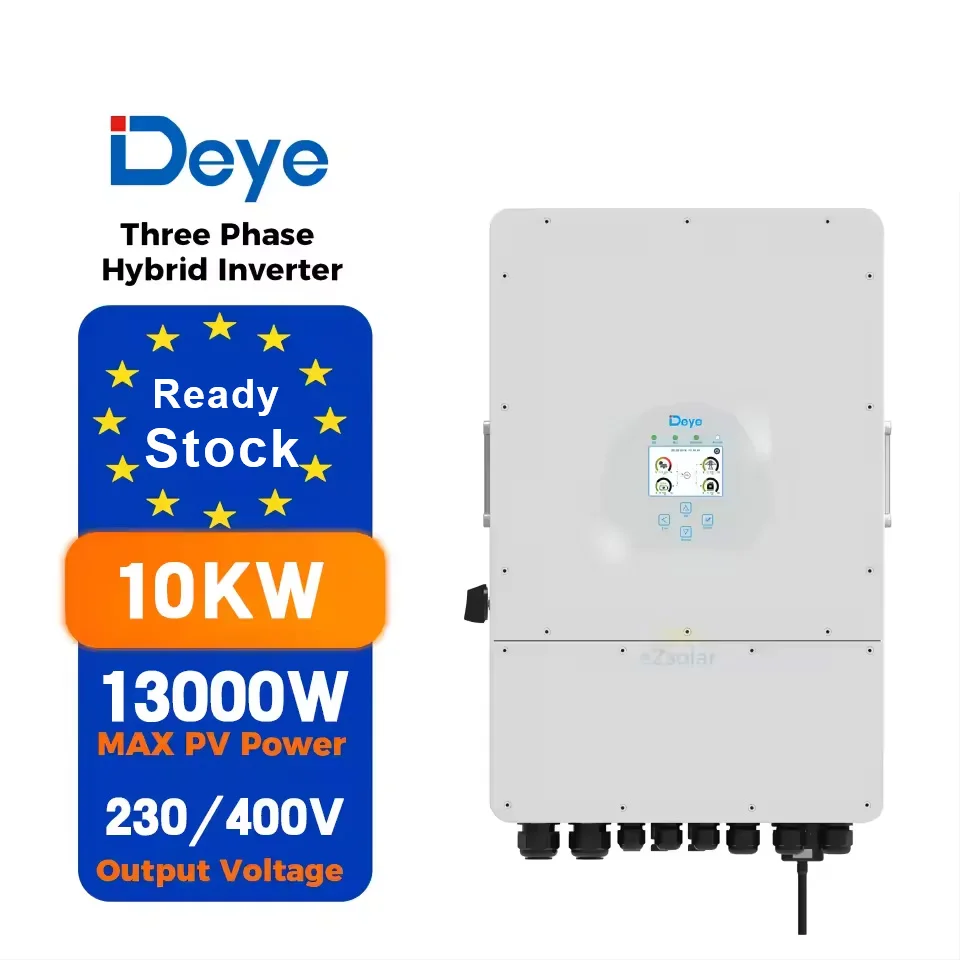

3-Phase Model
SUN-5K-SG04LP3-EU
SUN-6K-SG04LP3-EU
SUN-8K-SG04LP3-EU
SUN-10K-SG04LP3-EU
SUN-12K-SG04LP3-EU
Battery Input Data
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range(V)
40-60
Max.Charging Current(A)
120
150
190
210
240
Max.Discharging Current(A)
120
150
190
210
240
Charging Strategy for Li-ion Battery
Self-adaption to BMS
Number of battery input
1
PV String Input Data
Max. PV Access Power (W)
10000
12000
16000
20000
24000
Max PV Input Power(W)
6500
7800
10400
13000
15600
MaxPV Input Voltage(V)
800
Start-up Voltage(V)
160
MPPT Voltage Range(V)
200-650
Rated PV Input Voltage(V)
550
Max. Operating PV Input Current (A)
13+13
26+13
Max. Input Short-Circuit Current (A)
17+17
34+17
No.of MPP Trackers/No.of String Per MPP Tracker
2/1+1
2/2+1
AC Input/Output Data
Rated AC Input/Output Active Power(W)
5000
6000
8000
10000
12000
Max AC Input/Output Apparent Power (VA)
5500
6600
8800
11000
13200
Peak Power (off-grid)(W)
2 times of rated power, 10s
Rated AC Input/Output Current(A)
7.6/7.2
9.1/8.7
12.1/11.6
15.2/14.5
18.2/17.4
Max AC Input/Output Current(A)
8.4/8
10/9.6
13.4/12.8
16.7/15.9
20/19.1
Max Continuous AC Passthrough (grid to load)(A)
45
Rated Input/Output Voltage/Range(V)
220/380V,230/400V 0.85Un-1.1Un
Grid Connection Form
3L+N+PE
Rated Input/Output Grid Frequency/Range
50/45-55, 60/55-65
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
Total Current Harmonic Distortion THDi
<3% (of nominal power)
DC Injection Current
<0.5%ln
Efficiency
Max Efficiency
97.6%
Euro Efficiency
97.0%
MPPT Efficiency
>99%
Equipment Protection
Integrated
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,
Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),
Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,
DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level
TYPE II(DC), TYPE II(AC)
Interface
Communication Interface
RS485/RS232/CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range
-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity
0-100%
Permissible Altitude
2000m
Noise
≤ 55 dB(A)
Ingress Protection(IP) Rating
IP 65
Inverter Topology
Non-Isolated
Over Voltage Category
OVC II(DC),OVC III(AC)
Cabinet size(W*H*D)[mm]
422×658×254(Excluding connectors and brackets)
Weight[kg]
38
Warranty
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling
Intelligent air cooling
Grid Regulation
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

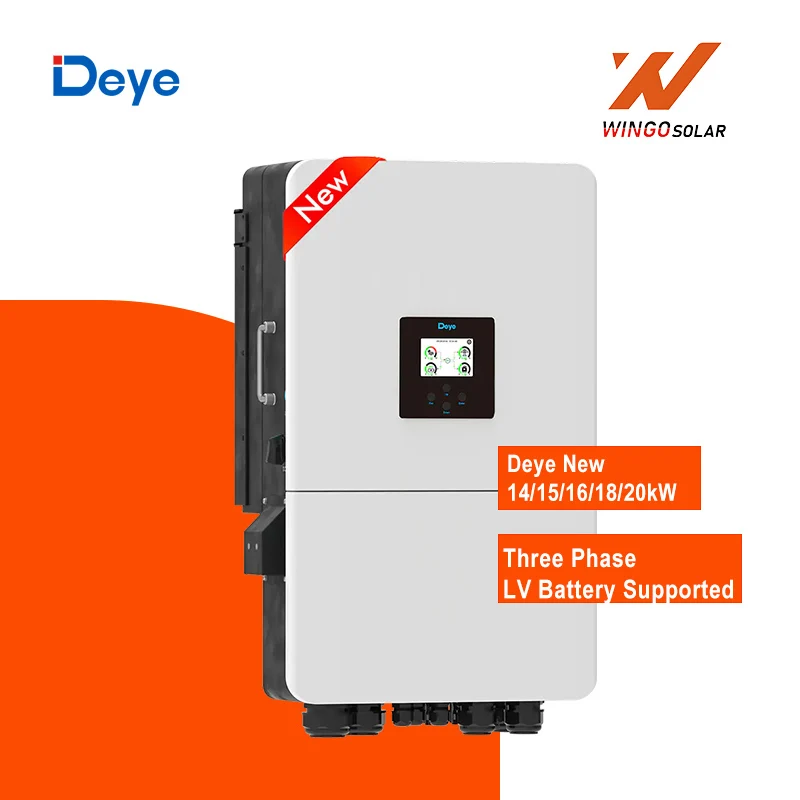

NEW DEYE 3-PHASE
(MIX 50PCS)
SUN-14K-SG05LP3
-EU-SM2
SUN-15K-SG05LP3
-EU-SM2
SUN-16K-SG05LP3
-EU-SM2
SUN-18K-SG05LP3
-EU-SM2
SUN-20K-SG05LP3
-EU-SM2
Battery Input Data
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range (V)
40-60
Max. Charging Current (A)
260
280
300
330
350
Max. Discharging Current (A)
260
280
300
330
350
Charging Strategy forLi-ion Battery
Self-adaption to BMS
Number of Battery Input
1
PV String Input Data
Max. PV Access Power (W)
28000
30000
32000
36000
40000
Max. DC Input Power (W)
21000
22500
24000
27000
30000
Max. DC Input Voltage (V)
800
Start-up Voltage (V)
160
MPPT Voltage Range (V)
160-650
Rated DC Input Voltage (V)
550
Max. Operating PV Input Current (A)
36+20
Max. Input Short-Circuit Current (A)
54+30
No.of MPPT Trackers/
No.of String PerMPPT Tracker
2/2+1
AC Input/Output Data
Rated AC Input/Output Active Power (W)
14000
15000
16000
18000
20000
Max. AC Input/Output Apparent Power (VA)
15400
16500
17600
19800
22000
Rated AC Input/Output Current (A)
21.3/20.3
22.8/21.8
24.3/23.2
27.3/26.1
30.4/29
Max. AC Input/Output Current (A)
21.3/20.3
22.8/21.8
24.3/23.2
27.3/26.1
30.4/29
Max. Continuous AC Passthrough (grid to load) (A)
70
Peak Power (off-grid) (W)
2 times of rated power, 10s
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)
220/380V, 230/400V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)
50/45-55, 60/55-65
Grid Connection Form
3L+N+PE
Total Current Harmonic Distortion THDi
<3% (of nominal power)
DC Component of Grid
<0.5% In
Efficiency
Max. Efficiency
97.6%
Euro Efficiency
97.0%
MPPTEfficiency
>99%
Equipment Protection
Integrated
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,
Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),
Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,
DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level


Surge Protection Level
TYPE II(DC),TYPE II(AC)
Interface
Communication Interface
RS485/RS232/CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (℃)
-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity
0-100%
Permissible Altitude
3000m
Noise
≤60
Ingress Protection(IP) Rating
IP 65
Inverter Topology
Non-Isolated
Over Voltage Category
OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)
456×750×268.5 (Excluding Connectors and Brackets)
Weight (kg)
50.6
Type of Cooling
Intelligent Air Cooling
Warranty
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulation
IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99,VDE-AR-N 4105
Safety / EMC Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2


1-Phase Deye Model
SUN-3.6K-SG03LP1-EU
SUN-5K-SG03LP1-EU
SUN-6K-SG03LP1-EU
Battery Input Data
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range(V)
40-60
Max.Charging Current(A)
90
120
135
Max.Discharging Current(A)
90
120
135
Charging Strategy for Li-ion Battery
Self-adaption to BMS
Number of battery input
1
PV String Input Data
Max. PV Access Power (W)
7200
10000
12000
Max PV Input Power(W)
4680
6500
7800
Max PV Input Voltage(V)
500
Start-up Voltage(V)
125
MPPT Voltage Range(V)
150-425
Rated PV Input Voltage(V)
370
Max Input Short-Circuit Current(A)
17+17
Max Operating PV Input Current(A)
13+13
No.of MPP Trackers/No.of String Per MPP Tracker
2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power(W)
3600
5000
6000
Max AC Input/Output Apparent Power (VA)
3960
5500
6600
Peak Power (off-grid)(W)
2 times of rated power,10s
Rated AC Input/Output Current(A)
16.4/15.7
22.7/21.7
27.3/26.1
Max AC Input/Output Current(A)
18/17.2
25/23.9
30/28.7
Max Continuous AC Passthrough (grid to load)(A)
35
40
Rated Input/Output Voltage/Range(V)
220V/230 0.85Un-1.1Un
Grid Connection Form
L+N+PE
Rated Input/Output Grid Frequency/Range
50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Power Factor Adjustment Range
0.8 leading-0.8lagging
Total Current Harmonic Distortion THDi
<3% (of nominal power)
DC Injection Current
<0.5%ln
Efficiency
Max Efficiency
97.6%
Euro Efficiency
96.5%
MPPT Efficiency
>99%
Equipment Protection
Integrated
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,
Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),
Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,
DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level
TYPE II(DC),TYPE II(AC)
Interface
Communication Interface
RS485/RS232/CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range
-40 to+60℃,>45℃ Derating
Permissible Ambient Humidity
0~100%
Permissible Altitude
2000m
Noise
<30 dB(A)
Ingress Protection(IP) Rating
IP 65
Inverter Topology
Non-Isolated
Over Voltage Category
OVC II(DC),OVC III(AC)
Cabinet size(W*H*D)[mm]
330×580×232 (Excluding Connectors and Brackets)
Weight[kg]
25
Warranty
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling
Intelligent air cooling
Grid Regulation
IEC 61727,IEC 62116,CEI 0-21,EN 50549,NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105
Safety EMC/Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2


Model
SUN-8K-SG01LP1-EU
Battery Input Data
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range(V)
40-60
Max.Charging Current(A)
190
Max.Discharging Current(A)
190
Charging Strategy for Li-ion Battery
Self-adaption to BMS
Number of battery input
1
PV String Input Data
Max. PV Access Power (W)
16000
Max. PV Input Power (W)
10400
Max. PV Input Voltage (V
500
Start-up Voltage(V)
125
MPPT Voltage Range(V)
150-425
Rated PV Input Voltage (V)
370
Max Input Short-Circuit Current(A)
34+34
Max Operating PV Input Current(A)
26+26
No.of MPP Trackers/No.of String Per MPP Tracker
2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power(W)
8000
Max AC Input/Output Apparent Power (VA)
8800
Peak Power (off-grid)(W)
2 times of rated power,10s
Rated AC Input/Output Current(A)
36.4/34.8
Max AC Input/Output Current(A)
40/38.3
Max Continuous AC Passthrough (grid to load)(A)
50
Rated Input/Output Voltage/Range(V)
220/230 0.85Un-1.1Un
Grid Connection Form
L+N+PE
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
Rated Input/Output Grid Frequency/Range(Hz)
50/45-55, 60/55-65
Total Current Harmonic Distortion THDi
<3% (of nominal power)
DC Injection Current
<0.5%ln
Efficiency
Max Efficiency
97.6%
Euro Efficiency
96.5%
MPPT Efficiency
>99%
Equipment Protection
Integrated
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,
Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),
Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,
DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level
TYPE II(DC),TYPE II(AC)
Interface
Communication Interface
RS485/RS232/CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range
-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity
0~100%
Permissible Altitude
2000m
Noise
<30 dB(A)
Ingress Protection(IP) Rating
IP 65
Inverter Topology
Non-Isolated
Over Voltage Category
OVC II(DC),OVC IV(AC)
Cabinet size(W*H*D)[mm]
420×670×233(Excluding connectors and brackets)
Weight[kg]
30
Warranty
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling
Intelligent air cooling
Grid Regulation
IEC 61727, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

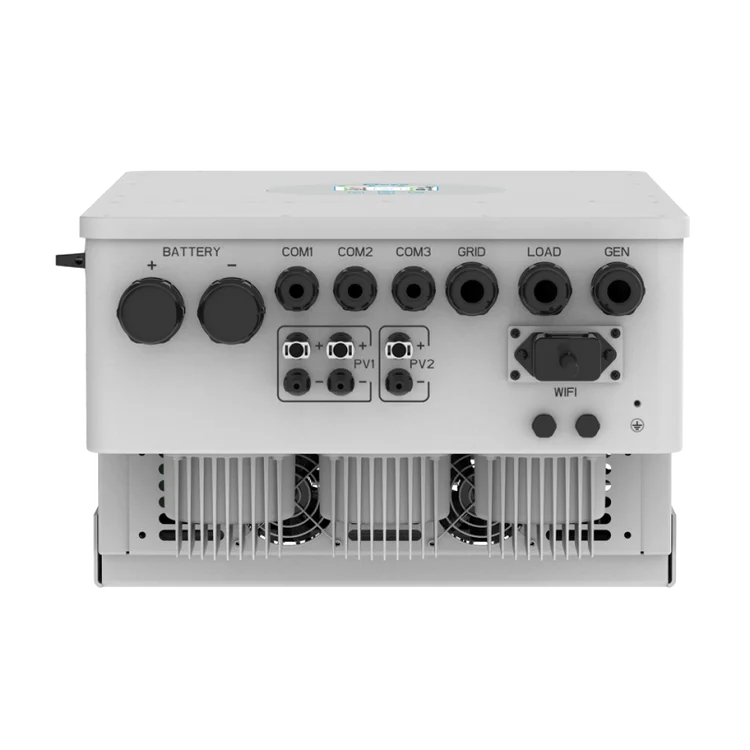

1-Phase Deye Hybrid Inverter Model
SUN-10K-SG02LP1-EU-AM3
SUN-12K-SG02LP1-EU-AM3
Battery Input Data
Battery Type
Lead-acid or Lithium-ion
Max.Charging Current(A)
220
250
Max.Discharging Current(A)
220
250
Charging Strategy for Li-ion Battery
Self-adaption to BMS
Number of battery input
1
PV String Input Data
Max. PV Access Power (W)
20000
24000
Max DC Input Power(W)
15000
18000
Max DC Input Voltage(V)
500
Start-up Voltage(V)
125
MPPT Voltage Range(V)
150-425
Rated DC Input Voltage(V)
370
Max. Operating PV Input Current (A)
26+26+26
Max. Input Short-Circuit Current (A)
44+44+44
No.of MPP Trackers/No.of String Per MPP Tracker
3/2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power(W)
10000
12000
Max AC Input/Output Apparent Power (VA)
11000
13200
Peak Power (off-grid)(W)
2 times of rated power,10s
Rated AC Input/Output Current(A)
45.5/43.5
54.6/52.2
Max AC Input/Output Current(A)
45.5/43.5
54.6/52.2
Max Continuous AC Passthrough (grid to load)(A)
60
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)
220/230 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)
50/45-55, 60/55-65
Grid Connection Form
L+N+PE
Total Current Harmonic Distortion THDi
<3% (of nominal power)
DC Injection Current
<0.5%ln
Efficiency
Max Efficiency
97.6%
Euro Efficiency
96.5%
MPPT Efficiency
>99%
Equipment Protection
Integrated
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,
Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),
Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,
DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level
TYPE II(DC),TYPE II(AC)
Interface
Communication Interface
RS485/RS232/CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range
-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity
0~100%
Permissible Altitude
2000m
Noise
<45
Ingress Protection(IP) Rating
IP 65
Inverter Topology
Non-Isolated
Over Voltage Category
OVC II(DC),OVC IV(AC)
Cabinet size(W*H*D)[mm]
420×670×233(Excluding connectors and brackets)
Weight[kg]
35.6
Warranty
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling
Intelligent air cooling
Grid Regulation
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,
G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC/Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2


Packing & Delivery








Company Profile






Anhui Wingo Technology Co., Ltd. is a company integrating R&D, production and sales. It's located in Hefei, the capital city of Anhui province, China. There are about 150 employees, including 20 R&D personnel.The company's main business scope is the production of electric bicycles, which can realize OEM production for customers and also meet the customized needs of them.We are an authorized agent of some well-known brands.Anhui Wingo Technology Co,. Ltd. has always pursued the corporate culture and business philosophy of " integrity, win-win, efficiency, and gratitude", and will consistently provide global customers with the best products and best services, and become the most trusted cross-board service company for customers.




FAQ


1. who are we?
We are based in Anhui, China, start from 2020,sell to Western Europe(30.00%),South America(20.00%),Southeast Asia(20.00%),North America(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solar Panels, Solar Inverters, Solar Mounting Bracket, Energy Storage Battery, Solar Energy System

4. why should you buy from us not from other suppliers?
Brand agent, stable product supply chain and transportation logistics partner, rich export experience

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;


Похожие товары

Новые поступления

Новинки товаров от производителей по оптовым ценам
