220 В потолочная система рекуперации энергии вентиляция свежего воздуха гибридная домашняя hvac с рекуперацией тепла
389,00-428,00 $
220 В 50 Гц 60 250 см потолочный домашний рекуператор воздуха Система вентиляции с охлаждением и отоплением
- Категория: >>>
- Поставщик: Sichuan Guigu Renju Technology Co. Ltd.Sichuan Ltd.
Сохранить в закладки 1600930015226:
Описание и отзывы
Характеристики
About us
1.Have 2 plants meet the capacity demands 2.Possess 80 patents certificates
3. 11 years experience HVAC industry 4. Have strong R&D and HVAC design team
5. Free installation plan design service 6.A full set of ventilation system installation pipe fitting supply
7.Have 2 laboratories(national approved enthanlpy and 30m³ laboratory
8. Duilt a sound certificate system of ISO9001, ISO 14001， ISO45001， CE certificate and other product certification system.
Product feature
Product feature:
• Use heat pump hot/cold water heating/cooling input air.
• Smart defrost mode

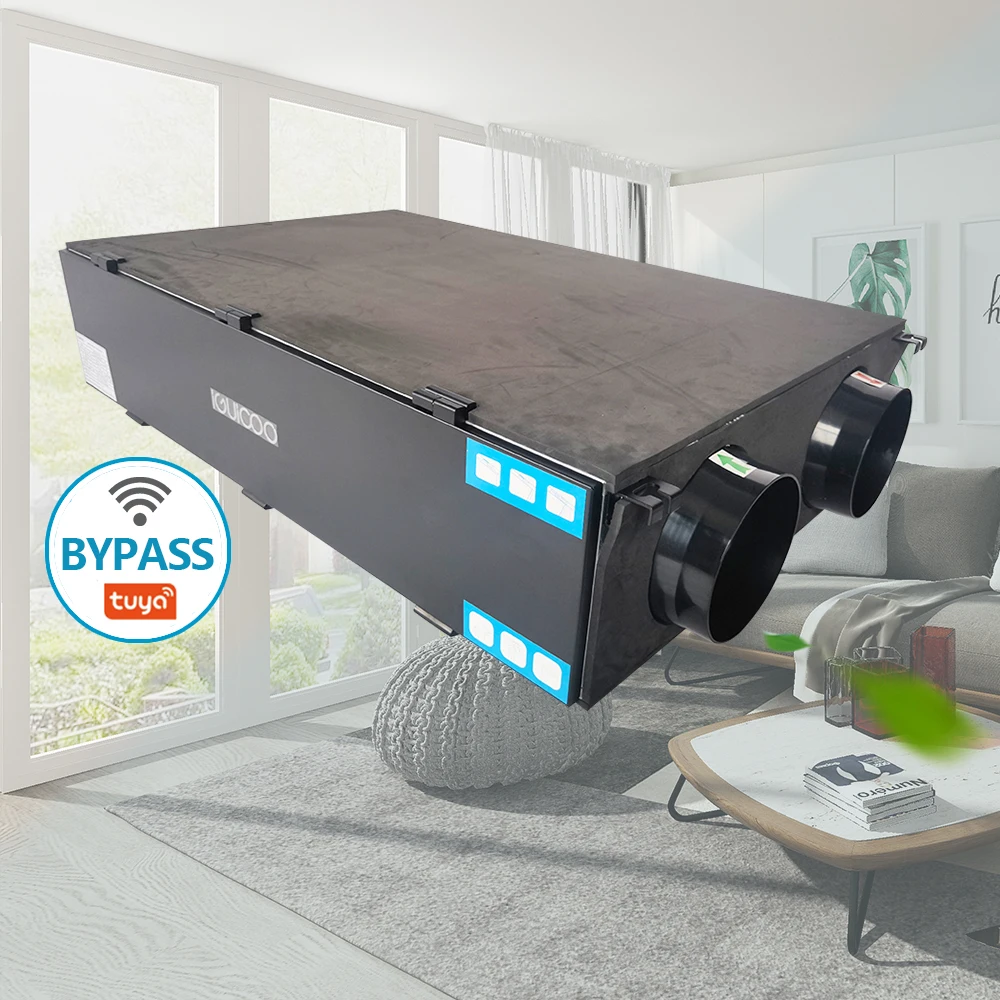

• With bypass function
• Provide RS485 communication interface
• Wifi module,APP control
How does the device work？
1: Heat pump air conditioning external unit 2: Floor heating
3: Water tank 4: ERV controller 5: Hot pump water coil ERV
3: Water tank 4: ERV controller 5: Hot pump water coil ERV

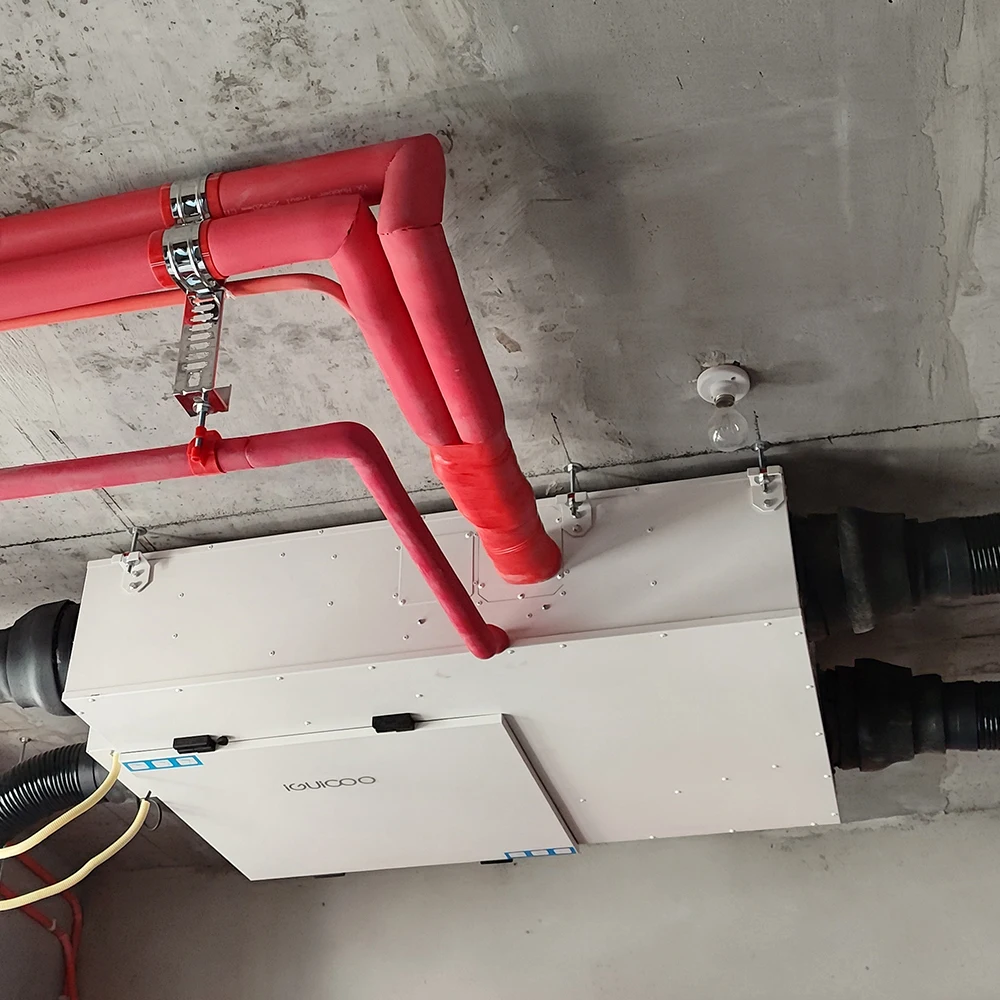

The installation location is only for reference. Perform the installation according to the design diagram, We also sale heat pump, more detail you can contact us
Product parameter of 2 type water coil ventilation system
Preheating/Precooling (optional) energy recovery ventilation system
Air to water Heat pump ventilation system

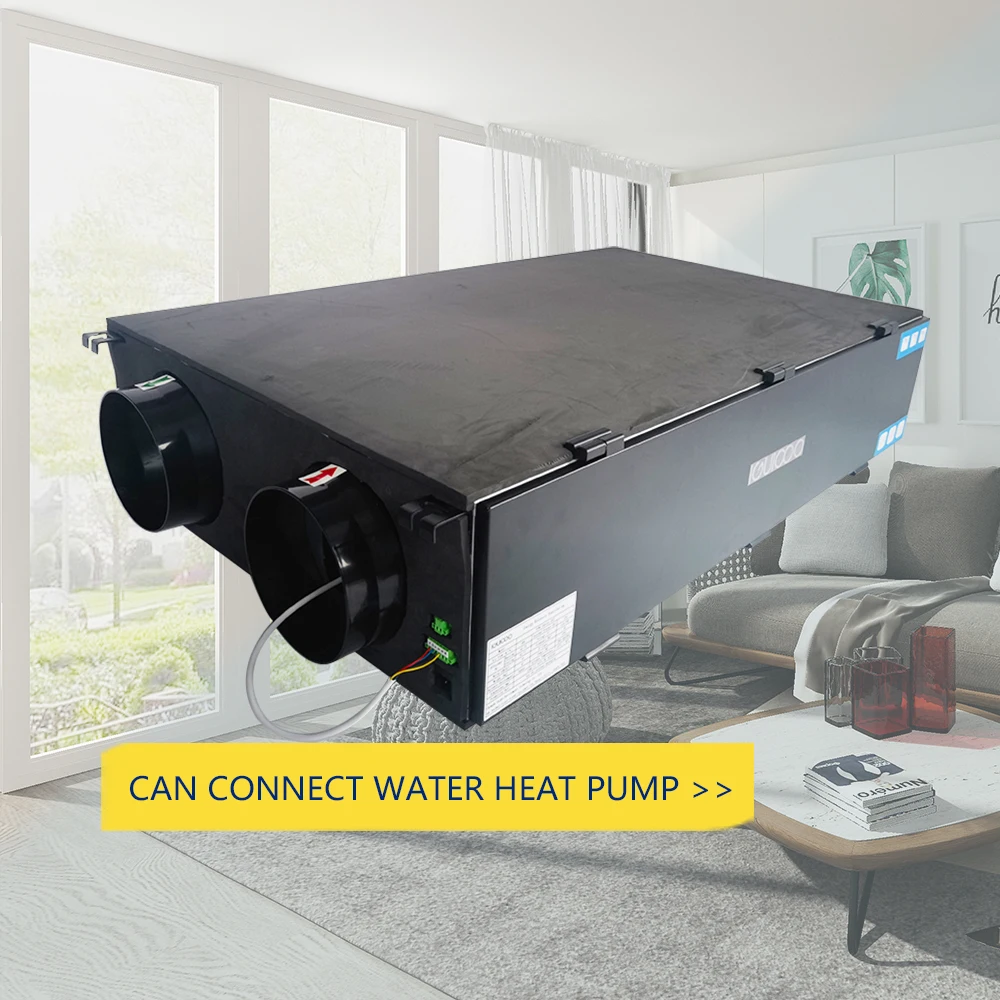

This heat recovery system can be connected to the heat pump of the water system. The water in the collector pipe connect the ERV can heat the out door inlet air , improve the temperature of the fresh air entering the room and improve the comfort of the indoor environment.
DC motor
Higher Energy Efficiency and Ecology by Powerful Motors.The high-efficiency brushless DC motor is built into the smart energy recovery ventilator, which can reduce the power consumption by 70% and save energy significantly. VSD control is suitable for most engineering air volume and ESP requirements
Higher Energy Efficiency and Ecology by Powerful Motors.The high-efficiency brushless DC motor is built into the smart energy recovery ventilator, which can reduce the power consumption by 70% and save energy significantly. VSD control is suitable for most engineering air volume and ESP requirements
High Efficiency Enthalpy Exchanger
High efficiency enthalpy heat recovery, more energy efficient, more comfortable indoor climate. Effective air exchange rate above 98%
,Using polymer membrane material, with high total heat recovery efficiency, with long-term antibacterial and mildew prevention function, washable, life span up to 3~10 years.
,Using polymer membrane material, with high total heat recovery efficiency, with long-term antibacterial and mildew prevention function, washable, life span up to 3~10 years.
Double purification protection：

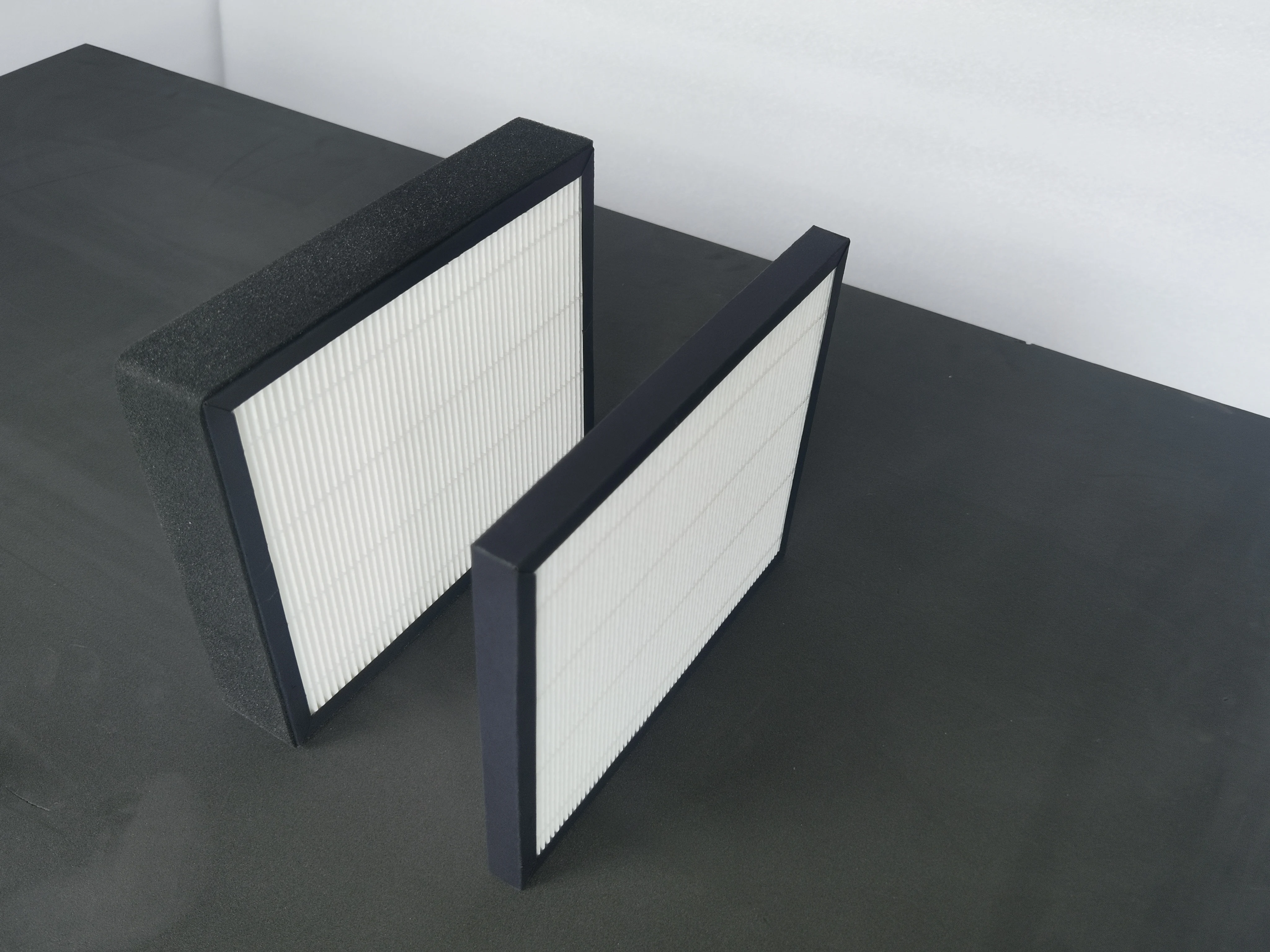

Primary filter+ high efficiency filter can filter 0.3um particles, and the filtration efficiency is as high as 99.9%.
Air to water Heat pump positive pressure ventilation
positive pressure ventilation size
Basic ventilation system, for the existing heat pump refrigeration and heating of the house, through the micro positive pressure to promote indoor and outdoor air circulation, it is a very economical and affordable ventilation choice.
Test result
Preheating coil load calculation (inquire standard Yinchuan in China atmospheric pressure value: 88390pa) | ||||||||||||||
Wind speed | Coil inlet Temperature (℃)/RH (%) | Inlet enthalpy of coil (KJ/KG) | Coil inlet Temperature (℃)/relative humidity (%) | Inlet enthalpy of coil (KJ/KG) | Airflow（m³/h) | Air density (kg/m³） | Preheating load (W) | |||||||
High | 1.93/43.01 | 7.2 | 20.40/13.78 | 26.5 | 300 | 1.117 | 1797 | |||||||
Mid | 1.93/43.01 | 7.2 | 21.77/13.34 | 28.3 | 250 | 1.117 | 1637 | |||||||
Low | 1.93/43.01 | 7.2 | 23.17/10.76 | 28.9 | 200 | 1.117 | 1347 | |||||||
1, test site coil water inlet temperature: 32.3℃, outlet temperature: 22.1℃;
2. According to the enthalpy difference of the inlet and outlet air of the coil, the heat load of the coil is calculated.
3. Inquire the standard Yinchuan atmospheric pressure value: 88390pa
2. According to the enthalpy difference of the inlet and outlet air of the coil, the heat load of the coil is calculated.
3. Inquire the standard Yinchuan atmospheric pressure value: 88390pa
Conclusion:
When the municipal hot water heating is not lower than 30℃, the preheating capacity of the three-pipe new fan (with preheating coil) at high/medium/low speed is:
High speed 1797W, medium speed 1637W, low speed 1347W,Meet the preheating requirements of fresh air.
When the municipal hot water heating is not lower than 30℃, the preheating capacity of the three-pipe new fan (with preheating coil) at high/medium/low speed is:
High speed 1797W, medium speed 1637W, low speed 1347W,Meet the preheating requirements of fresh air.
Controller
UI is continuously updated, and the specific information is subject to the received product description
- Various fan speed control to offer different supply air volume and ESP
- Temperature display to monitor indoor and outdoor temperature constantly
- Power to auto restart allow ventilator recover automatically from power cut down
- CO2 concentration control
- Humidity sensor to control indoor humidity
- RS485 connectors available for BMS central control
- External control and on/error signal output to allow administrator monitor and control the ventilator easily
- Filter alarm to remind user cleaning the filter in time
- Working status and fault display-Tuya APP control.
- Temperature display to monitor indoor and outdoor temperature constantly
- Power to auto restart allow ventilator recover automatically from power cut down
- CO2 concentration control
- Humidity sensor to control indoor humidity
- RS485 connectors available for BMS central control
- External control and on/error signal output to allow administrator monitor and control the ventilator easily
- Filter alarm to remind user cleaning the filter in time
- Working status and fault display-Tuya APP control.
Company Profile
Improve the certification system
ISO9001，ISO14001，ISO45001
Quick ability to assemble goods
AHU,ERV,VRF
System Solution
Professional R & D, HVAC team
Product packaging
Exhibition
FAQ
Q1: How could I get a sample?
A:We do not provide free sample, if you are interested in our products please contact our customer
service, she can tell you the details of the sample.
Q2: Sample time?
A: Existing products: Within 15~35 days;
Q3: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.
Q5: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
service, she can tell you the details of the sample.
Q2: Sample time?
A: Existing products: Within 15~35 days;
Q3: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.
Q5: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
