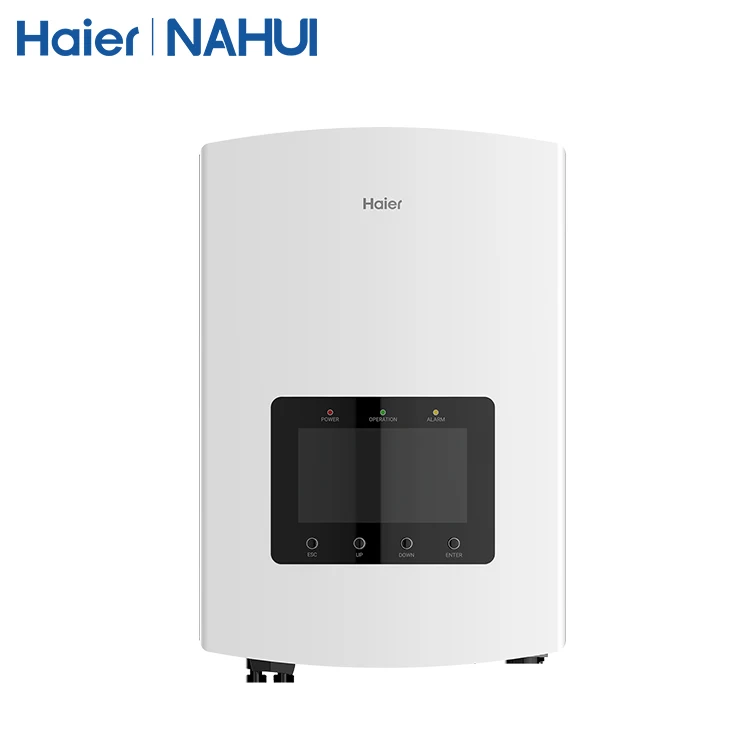

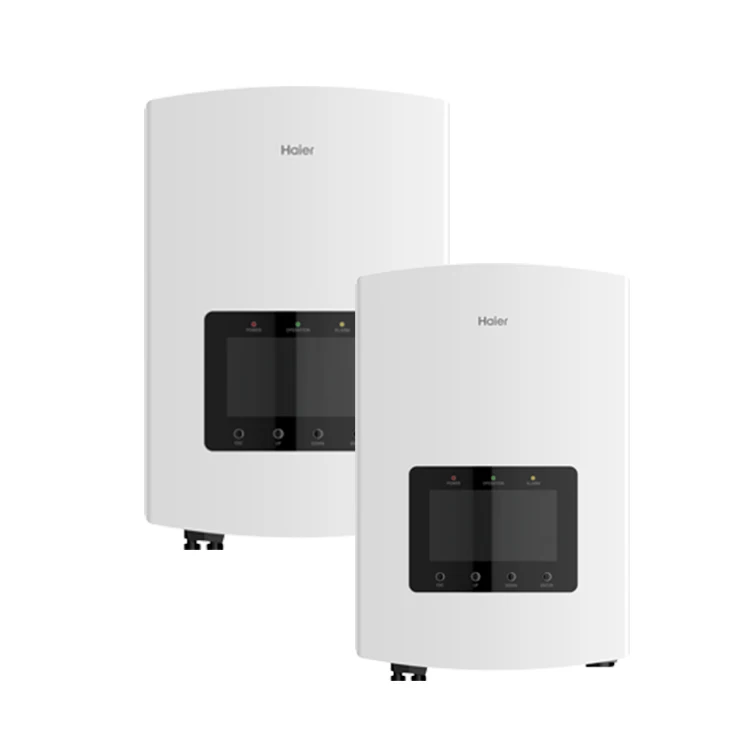

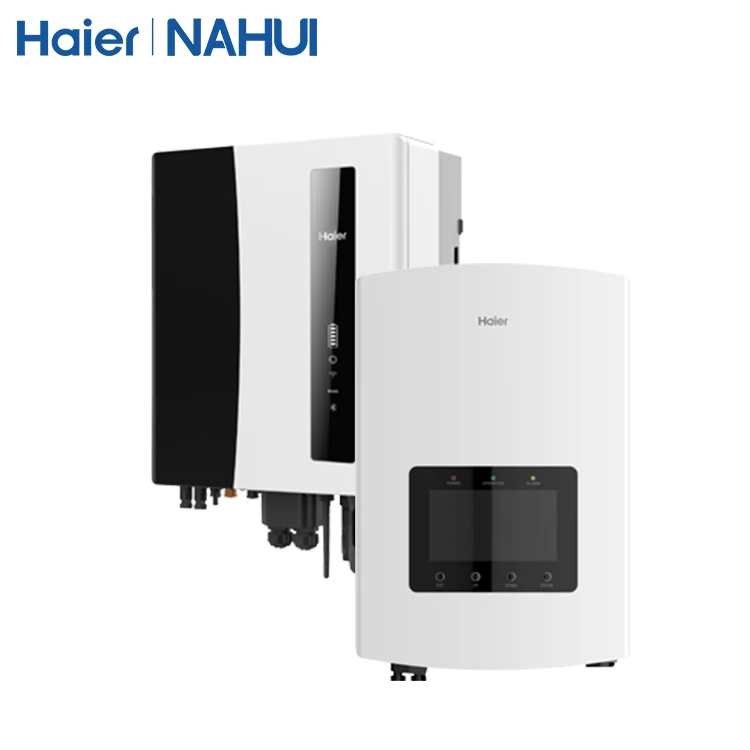

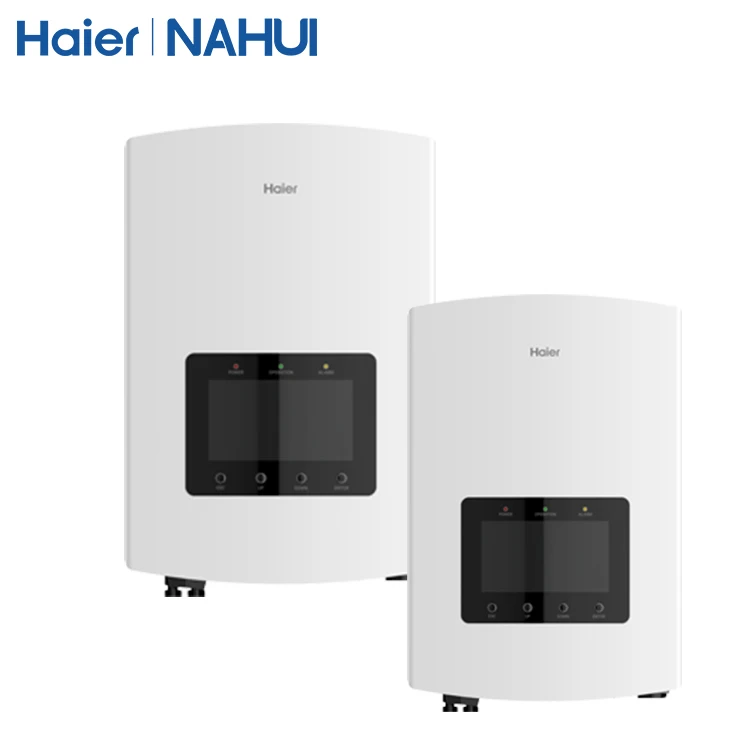

AlpSolarr однофазный Гибридный инвертор ROSA G2 8 кВт 10 кВт 12 кВт
1 100,00 $ - 1 200,00 $
Солнечный инвертор солнечный гибридный Инвертор чистый синусоидальный для солнечной системы с солнечным зарядным устройством
- Категория: >>>
- Поставщик: Qingdao Nahui Energy Technology Co. Ltd.
Сохранить в закладки 1600930332829:
Описание и отзывы
Характеристики
Product Description
Specification
Model | H1PL-1J3K-EU | H1PL-1J3.6K-EU | H1PL-1J5K-EU | H1PL-1J6K-EU | ||||
Input DC (PV side) | ||||||||
Recommended max. PV power | 4.8 kW | 5.7 kW | 8 kW | 9.6 kW | ||||
Max. input voltage | 600 V | |||||||
Rated voltage | 330 V | |||||||
Start-up voltage | 90 V | |||||||
MPPT voltage range | 90-520 V | |||||||
Max. input current | 16 A / 16 A | |||||||
Max. short circuit current | 24 A / 24 A | |||||||
MPPT number | 2 | |||||||
Max. input strings number per MPPT | 1 | |||||||
Battery | ||||||||
Battery type | Li-ion / Lead-acid | |||||||
Battery voltage range | 42 - 58 V | |||||||
Max. charge / discharge power | 3 kW | 3.6 kW | 5 kW | 6 kW | ||||
Max. charge / discharge current | 62.5 A | 75 A | 105 A | 125 A | ||||
Communication | CAN / RS485 | |||||||
Output AC (Grid side) | ||||||||
Rated output power | 3 kW | 3.6 kW | 5kW | 6kW | ||||
Max. apparent output power | 3kVA | 3.6kVA | 5 kVA | 6 kVA | ||||
Operation phase | 1 / N / PE | |||||||
Rated grid voltage | 220 V / 230 V | |||||||
Rated grid frequency | 50 Hz / 60 Hz | |||||||
Rated grid output current | 13.6 A / 13 A | 16.4 A / 15.7 A | 22.7 A / 21.7 A | 27.3 A / 26.1 A | ||||
Max. output current | 15 A | 18.2 A | 25 A | 30A | ||||
Power factor | > 0.99 ( 0.8 leading - 0.8 lagging ) | |||||||
THDi | < 2 % | |||||||
Input AC (Grid side) | ||||||||
Input voltage range | 187 - 253 V | |||||||
Max. input current | 20.5 A | 24.6 A | 34.1 A | 40 A | ||||
Frequency range | 45 - 55 Hz / 55 - 65 Hz | |||||||
Output AC (Back-up) | ||||||||
Rated output power | 3 kW | 3.6 kW | 5 kW | 6 kW | ||||
Max. apparent output power | 4.2 kVA, 60 sec | 5 kVA, 60 sec | 7 kVA, 60 sec | 8 kVA, 60 sec | ||||

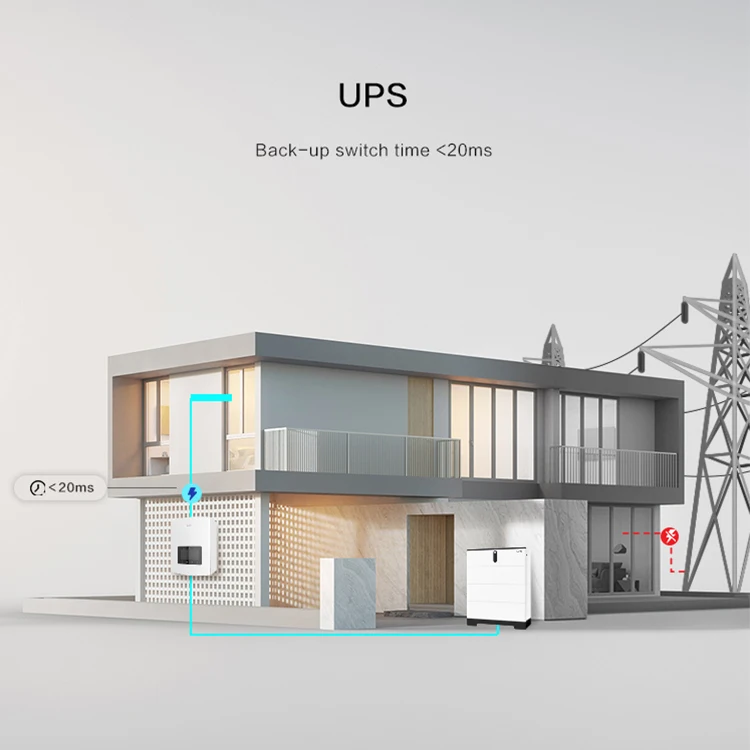

Back-up switch time | < 10 ms | |||||||
Rated output voltage | 1 / N / PE, 220 V / 230 V | |||||||
Rated frequency | 50 Hz / 60 Hz | |||||||
Max. output current | 21.8 A | 26.2 A | 36.5 A | 40 A | ||||
THDv (@linear load) | < 2 % | |||||||
Efficiency | ||||||||
Max. efficiency | > 97.5% | |||||||
EU efficiency | > 96.2% | |||||||
Protection | ||||||||
DC reverse-polarity protection | Yes | |||||||
Ground fault monitoring | Yes | |||||||
Residual current mornitoring | Yes | |||||||
Integrated AFCI (DC arc-fault circuit protection) | Yes | |||||||
Protection class/Over voltage category | I / II | |||||||
General Data | ||||||||
Dimensions (W * H * D) | 405 * 480 * 205 mm | |||||||
Weight | 24.2 kg | |||||||
Topology | High frequency isolation ( for battery ) | |||||||
Operating ambient temperature range | -25 ~ +60°C | |||||||
Protection rating | IP66 | |||||||
Cooling concept | Natural convection | |||||||
Max. operation altitude | 4000 m | |||||||
Grid connection standard | EN 50549-1, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21 | |||||||
Safety / EMC standard | IEC/EN 62109-1/-2, EN 61000-6-1/-2/-3/-4 | |||||||
Features | ||||||||
DC connection | MC4 connector | |||||||
AC connection | Quick connection plug | |||||||
Display | LED + APP | |||||||
Communication | RS485, CAN, Wi-Fi, LAN; Optional: GPRS | |||||||
All rights reserved. Subject to change without notice. | ||||||||
Recommend Products
Company Profile
Why Choose Us
Application
Packing & Delivery
FAQ
Photovoltaic
Distributed photovoltaic power generation refers to photovoltaic power generation facilities built near the user site, which are characterized by spontaneous self-use on the user side, excess electricity online, and balanced adjustment in the distribution system. Distributed photovoltaic power generation follows the principles of local conditions, clean and efficient, decentralized layout,and nearby utilization, making full use of local solar resources, replacing and reducing fossil energy consumption.
It advocates generating electric power nearby home, nearby conversion, and nearby use, which effectively solves the problem of power loss in voltage boost and long-distance transportation.
Q: What are the advantages of photovoltaic power generation?
A: Economy and energy saving: generally self-use, excess power can be sold to the power supply company through the national grid, insufficient power supply by the grid, from now on to save electricity can also get subsidies;
A: Every module is 5kWh, it can be extended to 15/20/25/30/40/45kWh as your need
Q2: Does your products have requested certificate to sell and install?
A: Yes we have all requested certificate including CB CE-RED CE-EMC UN all requested certificates
Q3: Do you have local warehouse ？
A: Yes we have local warehouse. You can pick up goods from our local warehouse
Q4: Does Haier or Nahui brand Residential ESS can connect to other brand inverters?
A: Our Residential ESS and inverter can connect to global almost famous mainstream brands
Q: What are the advantages of photovoltaic power generation?
A: Economy and energy saving: generally self-use, excess power can be sold to the power supply company through the national grid, insufficient power supply by the grid, from now on to save electricity can also get subsidies;
Heat insulation and cooling: it can heat insulation and cooling 3-6 degrees in summer, and reduce heat transfer in winter;
Green environmental protection: Distributed photovoltaic power generation projects will be no light pollution in the power generation process，it is the true sense of zero emissions, zero pollution static power generation;
Beautiful personality: The perfect combination of architecture or aesthetics and photovoltaic technology, so that the whole roof looks beautiful atmosphere, strong sense of science and technology, and enhance the value of the property itself.
Beautiful personality: The perfect combination of architecture or aesthetics and photovoltaic technology, so that the whole roof looks beautiful atmosphere, strong sense of science and technology, and enhance the value of the property itself.
Energy storage
Q1:What's the capacity of every battery module of your high voltage stack model ?A: Every module is 5kWh, it can be extended to 15/20/25/30/40/45kWh as your need
Q2: Does your products have requested certificate to sell and install?
A: Yes we have all requested certificate including CB CE-RED CE-EMC UN all requested certificates
Q3: Do you have local warehouse ？
A: Yes we have local warehouse. You can pick up goods from our local warehouse
Q4: Does Haier or Nahui brand Residential ESS can connect to other brand inverters?
A: Our Residential ESS and inverter can connect to global almost famous mainstream brands
