Product Description


Features:
■ Adopt photoelectric sensor imported from the United States, with independent intellectual property rights.
■ Differential photoelectric sensor accurately detects the position of the motor rotor, with good linearity, small drift,
High resolution and repeatability.
■ Precise load design for 30mm lens, high motor assembly accuracy, reasonable structure and quiet
The small coefficient of friction and zero offset ensure the best dynamic characteristics of the system.
■ The driver has advance detection function of position and speed, which greatly improves the dynamics of the entire system Responsive performance and scan speed.
■ The entire system adopts electromagnetic compatibility optimization design, high signal-to-noise ratio and strong anti-interference ability.
■ Solve the common problems of galvanometer motor temperature drift, signal interference and zero drift.






Scanning motor parameters

Working temperature
0℃ ~ 45 ℃
Linearity
99.9%
Small step response time
≤1.2ms
Proportional drift
<40PPM / ℃
Zero drift
<15μRad. / ℃
Long-term drift (continuous working for 8 hours)
<0.5mRad.
Average working current
3.5A
Peak current
25A (max)
Scanning angle
± 15 °
Storage temperature
-10 ~ +60℃
Resolution
12μRad
Complex precision
8μRad
Input aperture
30.0mm
Beam shift
35.5mm
Weight
750g
Frequency
≤300Hz
Servo drive board parameters

Input voltage
± 15VDC

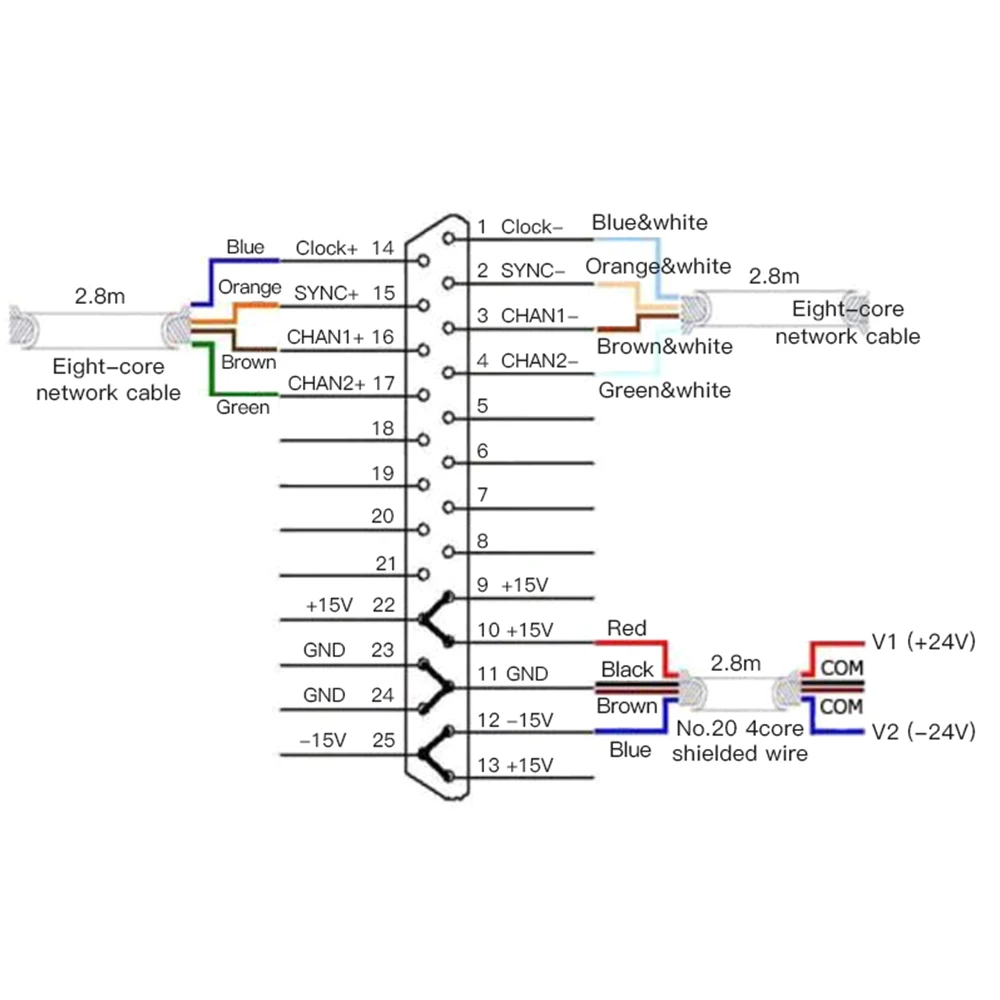

Signal interface
digital (XY2-100)
Signal interface
analog ± 5V, ± 10V
Analog signal input impedance
200KΩ ± 1% (differential input)
Position signal input impedance
1KΩ ± 1%
Position signal input scaling factor
0.33V / °
Position signal output example coefficient
0.33V / °
Working temperature
0℃ ~ 45℃
Servo drive board size (LxWxH)
90x65x34mm
