Воздух для того чтобы закрыть мульти Весна Линейный диафрагмы пневматический привод
299,00-399,00 $

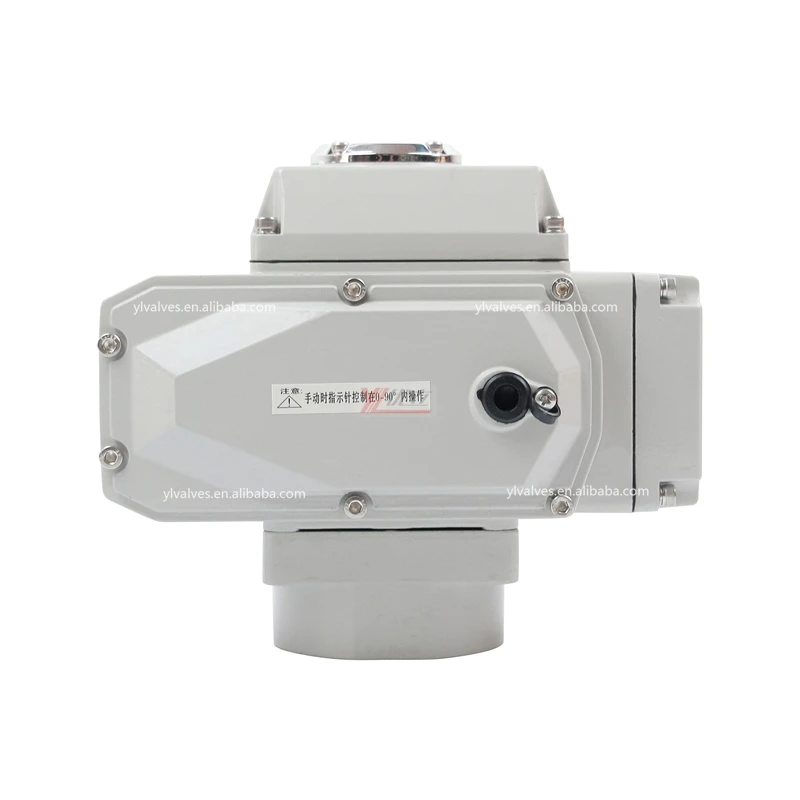

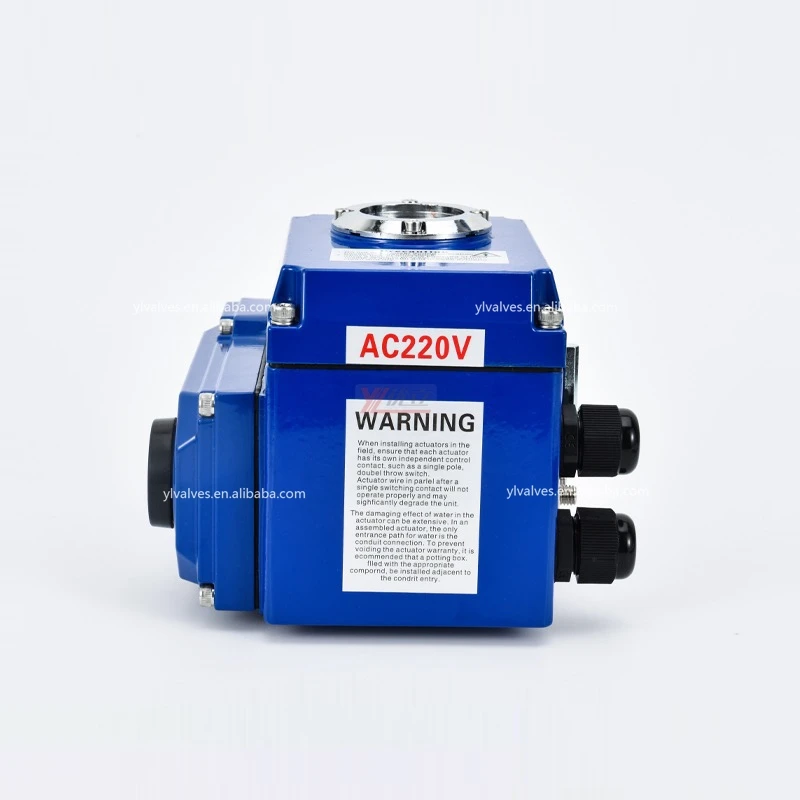

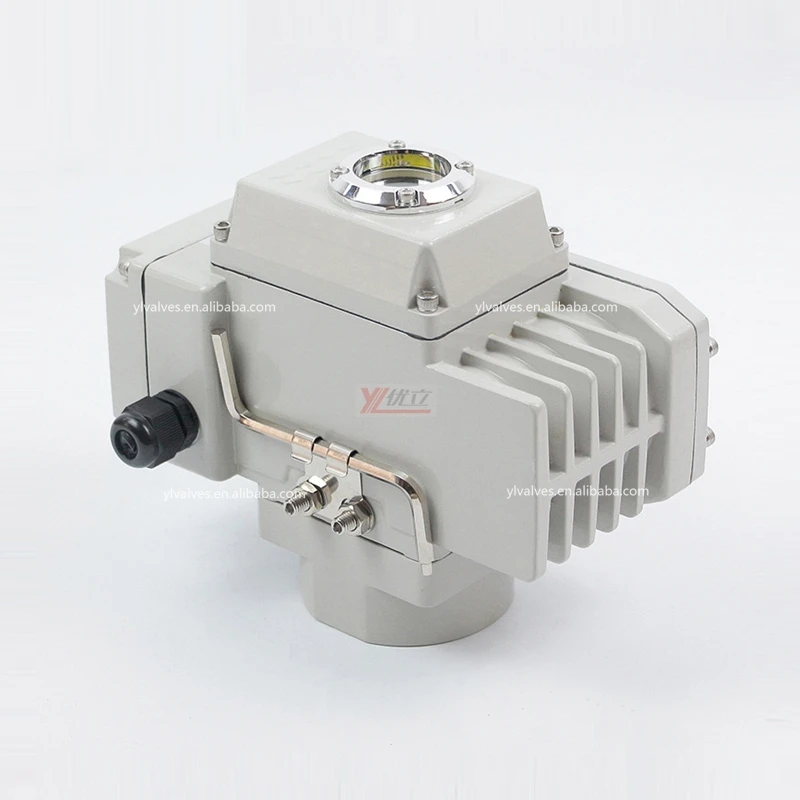

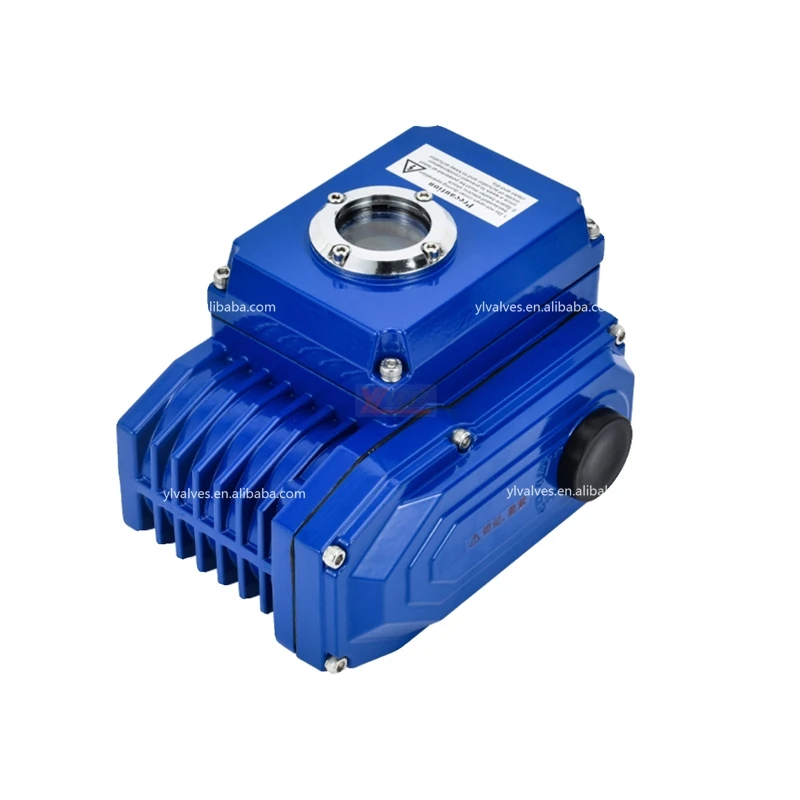

DC24V AC220V с использованием маховика клапан бабочка шаровой клапан запорный взрывозащищенный Электропривод
- Категория: >>>
- Поставщик: Wenzhou Youli Machinery Co. Ltd.Wenzhou Ltd.
Сохранить в закладки 1600930581804:
Описание и отзывы
Характеристики
Product Description
Body material | Aluminium alloy,Plastic etc. |
Electric actuator | 03-Type,05-Type,10-Type,20-Type,200-Type |
Voltage | DC24V,DC220V,AC24V,AC110V,AC220V,AC380V |
Application | Butterfly valve,Ball valve |
No/Off type | Yes |
ISO 5211 Direct mounting pad | Yes |
Run time | 30s,option(5s/8s/15s/50s/100s) |
Waterproof level | IP-66,option(IP-67,IP-68) |
Rotation angle | 0-90℃,option(0-180℃,0-360℃) |
Regulation type | option(4-20ma,0-10V,RS485) |
Explosion proof | option(Ex db IIC T4/T6 Gb:Ex tb IIIC T130℃/T80'℃ Db) |
Electriad connection | 2-M201. explosion-proot plug, users should install corresponding explosion-prootcable joints according to the selected cable during use |
Environment temperature | -20°C~60°C |
Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
Capacity to produce | 10000PCS/Mouth |
Certification | CE, ISO, our factory has been inspected by leyon and TUV |
MOQ | 1PC |
HS Code | 8481804090 |
Trademark | YOULI |
Application | Suitable for water, oil, air and some corrosive liquid etc |
Buyer's drawings or designs are available | |
Package | Cartons without pallet |
Cartons with pallet | |
Or as buyer's requirements | |
Delivery details | According to the quantities and specifications of each order |
Normal delivery time is from 10 to 15 days after receiving the deposit |
Operating Principle.
Electric actuators are used to control 0-90° rotation valve and other similar productssuch as butterfly valve, ball valve, throttle, plug valves, louver valve, etc. lt uses AC415V,380v,240v, 110 ,DC12V,24 V and 220V voltage to be the driving source ,and the actuator can be reset itself (with power down reset function ) ,4-20mA current signal or 0 -10VDC voltage signal to be the controling signal, driving the valve to the required position, sothat realize the automation control. The biggest output torgue is 2000N.m, they can be widely apply to petroleum, chemical industry, electric power, metallurgy, pharmaceutical papermaking, energy, water treatment, ship, textile, food processing, building automation and other fields.Meanwhile , which with small volume, light weight, elegant appearance,unique and compact structure, rapid in opening and closing ,easy installation, small operation torque, easy operating, digital display for valve location, no need in maintenance and safe using and convenient, and many other advantages
Product Appliction
Suitable for water, oil, air and some corrosive liquid etc
Product Paramenters
Related Products
Details Images
Company Profile
Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Service
On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
On After Sales | Free replacement if there is any quality problem |
On Delivery | Never delay delivery time |
On Materials | Ensure material pure |
Ensure material pure | Welcome to order our products |
FAQ
Q: Why would I choose you?
Wenzhou Youli Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and service.
With a people-oriented approach, technology as the core, market-oriented strategy, and quality assurance, the company is committedto providing better fluid system solutions.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers
themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
Wenzhou Youli Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and service.
With a people-oriented approach, technology as the core, market-oriented strategy, and quality assurance, the company is committedto providing better fluid system solutions.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers
themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
Похожие товары
Высококачественный прямой латунный электромагнитный клапан 2-ходовой для HVAC
5,30 $
Привод амортизатора возвратной пружины огня и дыма
28,10-30,48 $
Привод для воздушного демпферного клапана 220 В ± 10% Электрический воздушный воздуховод моторизованный демпфер Dkj-3100Db электропривод Hyundai
619,00-639,00 $
Привод амортизатора возвратной пружины огня и дыма
28,82-31,25 $
Высокое качество пневматический алюминиевый электромагнитный клапан airtac контроля уровня воды

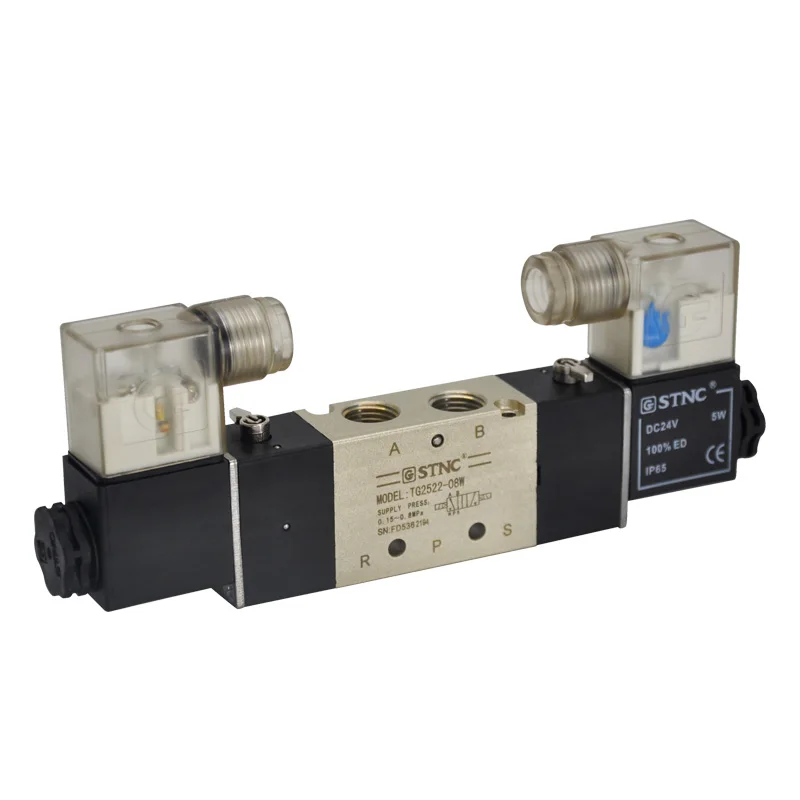

Airtac Типа серии 4A Sono бренд TG2522-08w- AC220V для газа с пневматическим управлением воздушный клапан
9,20-9,90 $

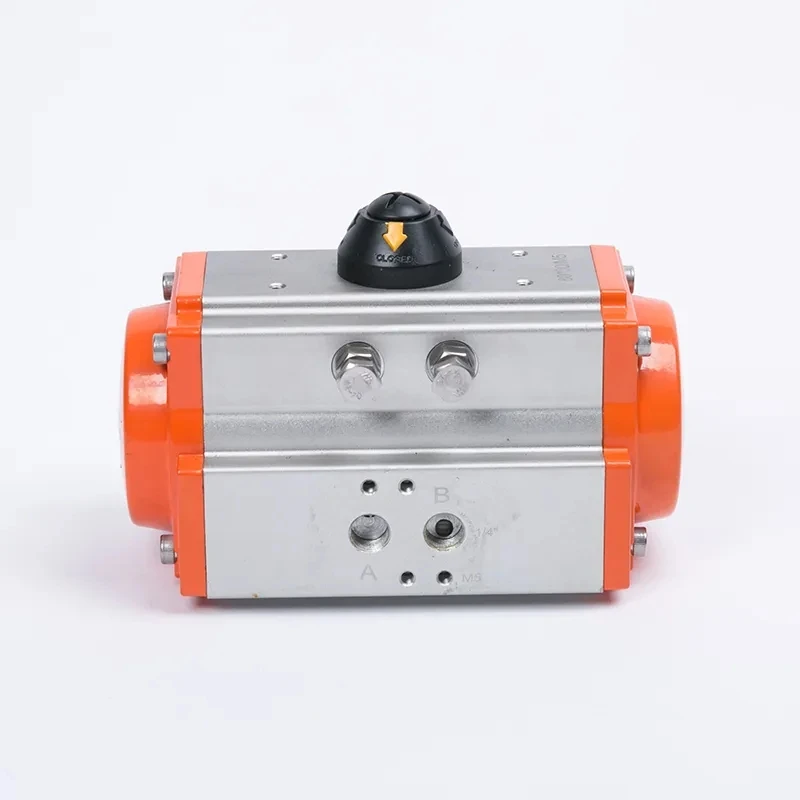

Высококачественный пневматический привод двойного действия AT25/32/40 для шарового клапана
