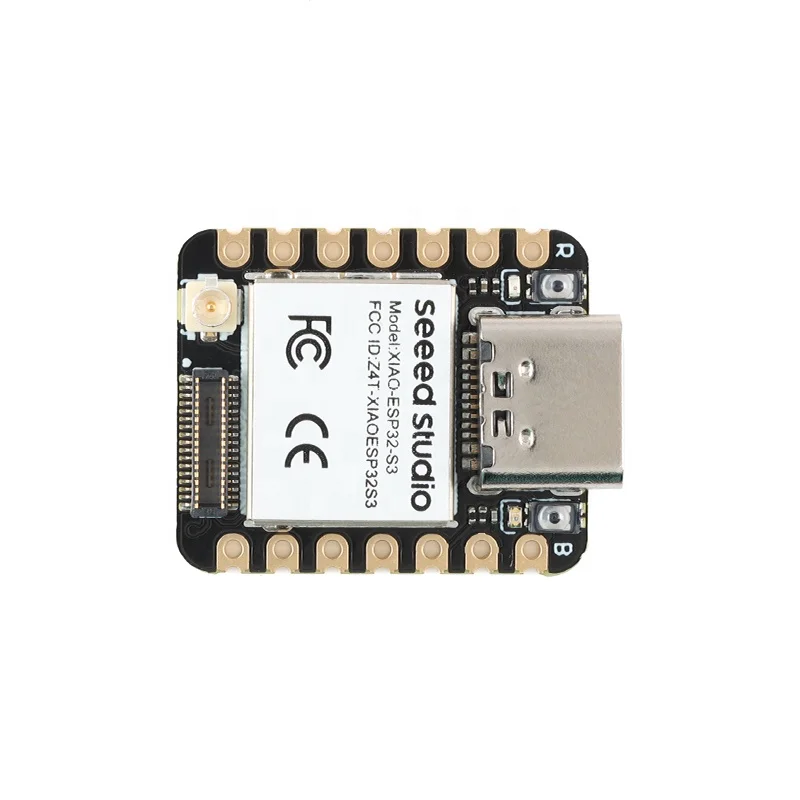

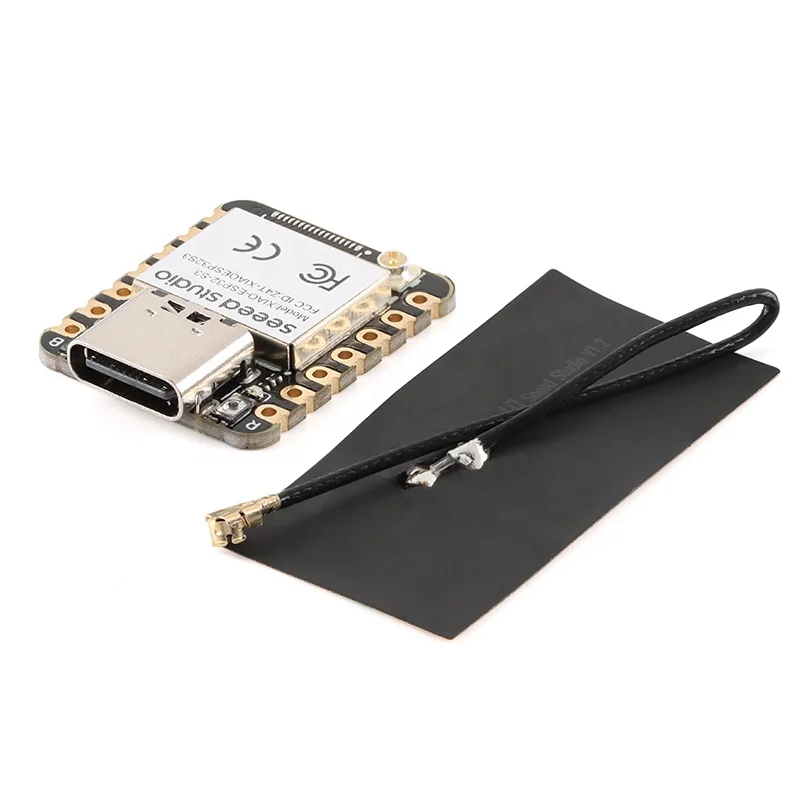

Seeeduino Seeed Studio XIAO ESP32S3 Sense 2 4G Wi Fi сетка 5 0 8MB OV2640 камера развивающая плата для Arduino
- Категория: >>>
- Поставщик: Shenzhen Youxin Electronic Technology Co. Ltd.
Сохранить в закладки 1600933246791:
Описание и отзывы
Характеристики
Product Description

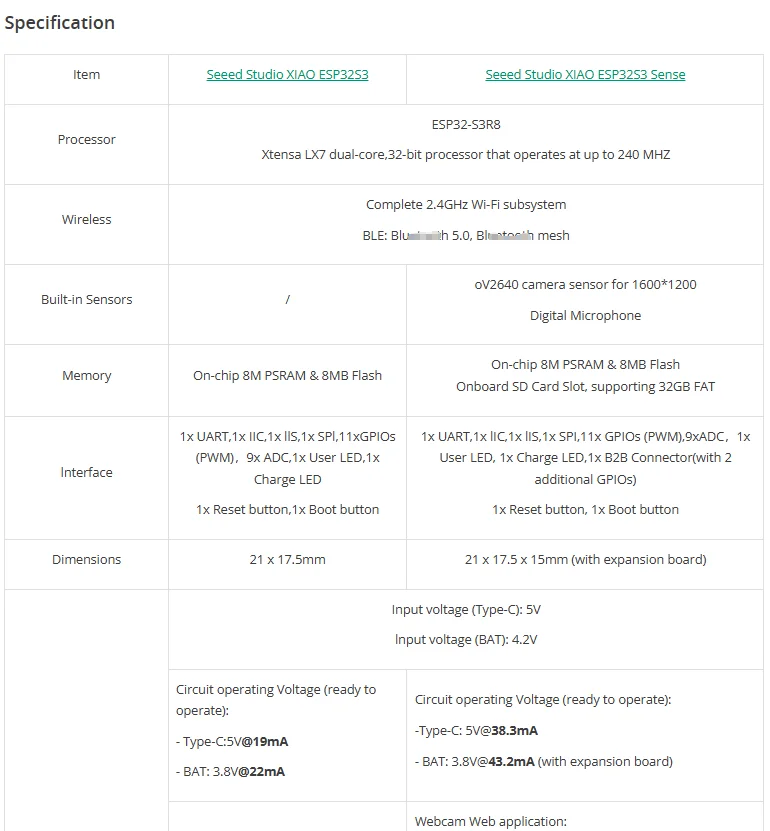

Specification
Product Name | Seeed Studio XIAO ESP32S3/Sense |
Chip | ESP32-S3 |
Input voltage (Type-C) | 5V |
Input voltage (BAT) | 4.2V |
On-chip Memory | 8M PSRAM & 8MB Flash |

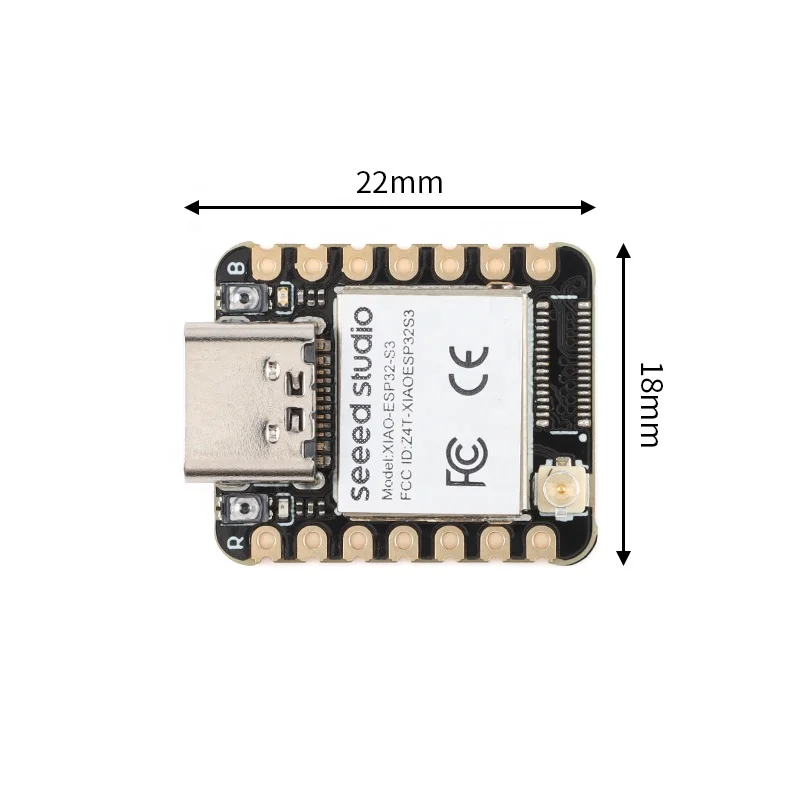

Dimensions | 21 x 17.5mm x15mm |
Service | Support BOM |
Introduction
Seeed Studio XIAO Series are diminutive development boards, sharing a similar hardware structure, where the size is literally thumb-sized. The code name "XIAO" here represents its half feature "Tiny", and the other half will be "Puissant". Seeed Studio XIAO ESP32S3 Sense integrates camera sensor, digital microphone and SD card supporting. Combining embedded ML computing power and
photography capability, this development board can be your great tool to get started with intelligent voice and vision AI.
Seeed Studio XIAO Series are diminutive development boards, sharing a similar hardware structure, where the size is literally thumb-sized. The code name "XIAO" here represents its half feature "Tiny", and the other half will be "Puissant". Seeed Studio XIAO ESP32S3 Sense integrates camera sensor, digital microphone and SD card supporting. Combining embedded ML computing power and
photography capability, this development board can be your great tool to get started with intelligent voice and vision AI.
Features
* Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor chip operating up to 240 MHz, mounted multiple development ports, Arduino / MicroPython supported

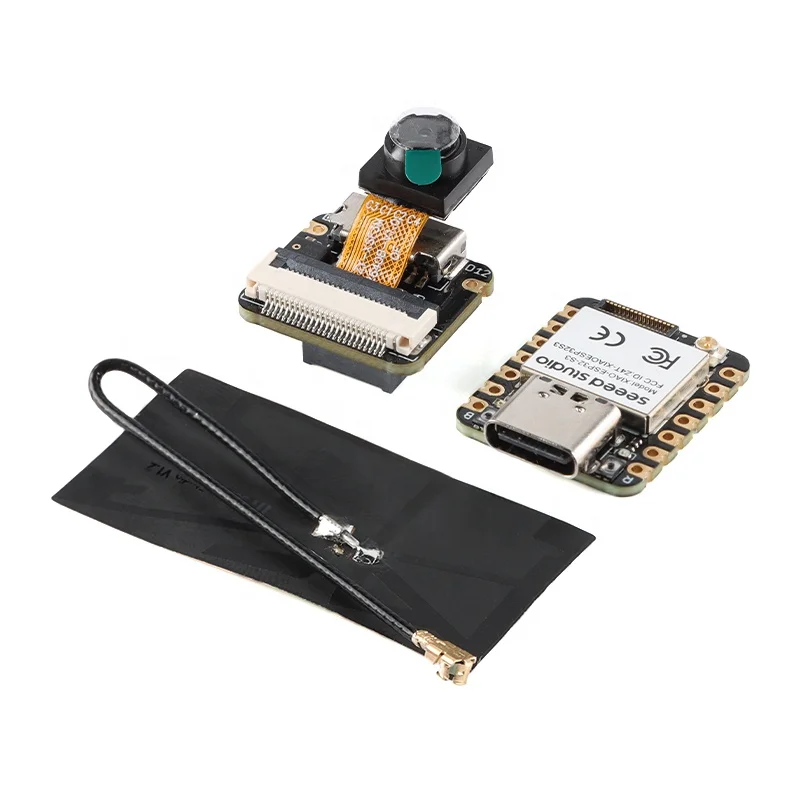

* Advanced Functionality (for Sense): Detachable OV2640 camera sensor for 1600*1200 resolution, compatible with OV5640 camera sensor, intergating additional digital microphone
* Elaborate Power Design: Lithium battery charge management capability, offer 4 power consumption model which allows for deep sleep mode with power consumption as low as 14μA
* Great Memory for more Possibilities: Offer 8MB PSRAM and 8MB FLASH, supporting SD card slot for external 32GB FAT memory
* Outstanding RF performance: Support 2.4GHz Wi-Fi and BLE dual wireless communication, support 100m+ remote communication when connected with U.FL antenna

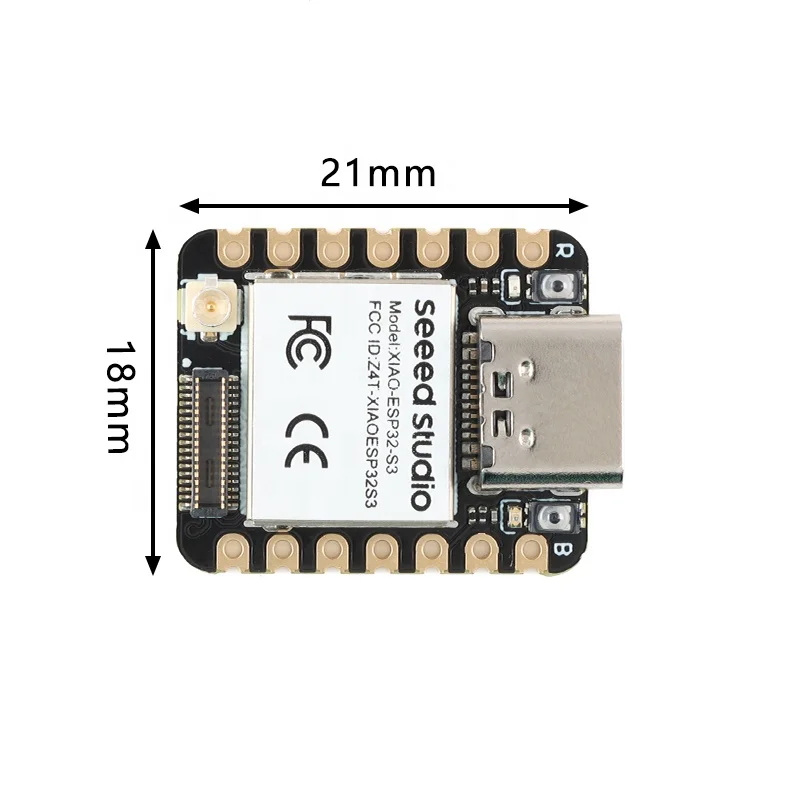

* Thumb-sized Compact Design: 21 x 17.5mm, adopting the classic form factor of XIAO, suitable for space limited projects like wearable devices
* Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor chip operating up to 240 MHz, mounted multiple development ports, Arduino / MicroPython supported
* Advanced Functionality (for Sense): Detachable OV2640 camera sensor for 1600*1200 resolution, compatible with OV5640 camera sensor, intergating additional digital microphone
* Elaborate Power Design: Lithium battery charge management capability, offer 4 power consumption model which allows for deep sleep mode with power consumption as low as 14μA
* Great Memory for more Possibilities: Offer 8MB PSRAM and 8MB FLASH, supporting SD card slot for external 32GB FAT memory
* Outstanding RF performance: Support 2.4GHz Wi-Fi and BLE dual wireless communication, support 100m+ remote communication when connected with U.FL antenna
* Thumb-sized Compact Design: 21 x 17.5mm, adopting the classic form factor of XIAO, suitable for space limited projects like wearable devices

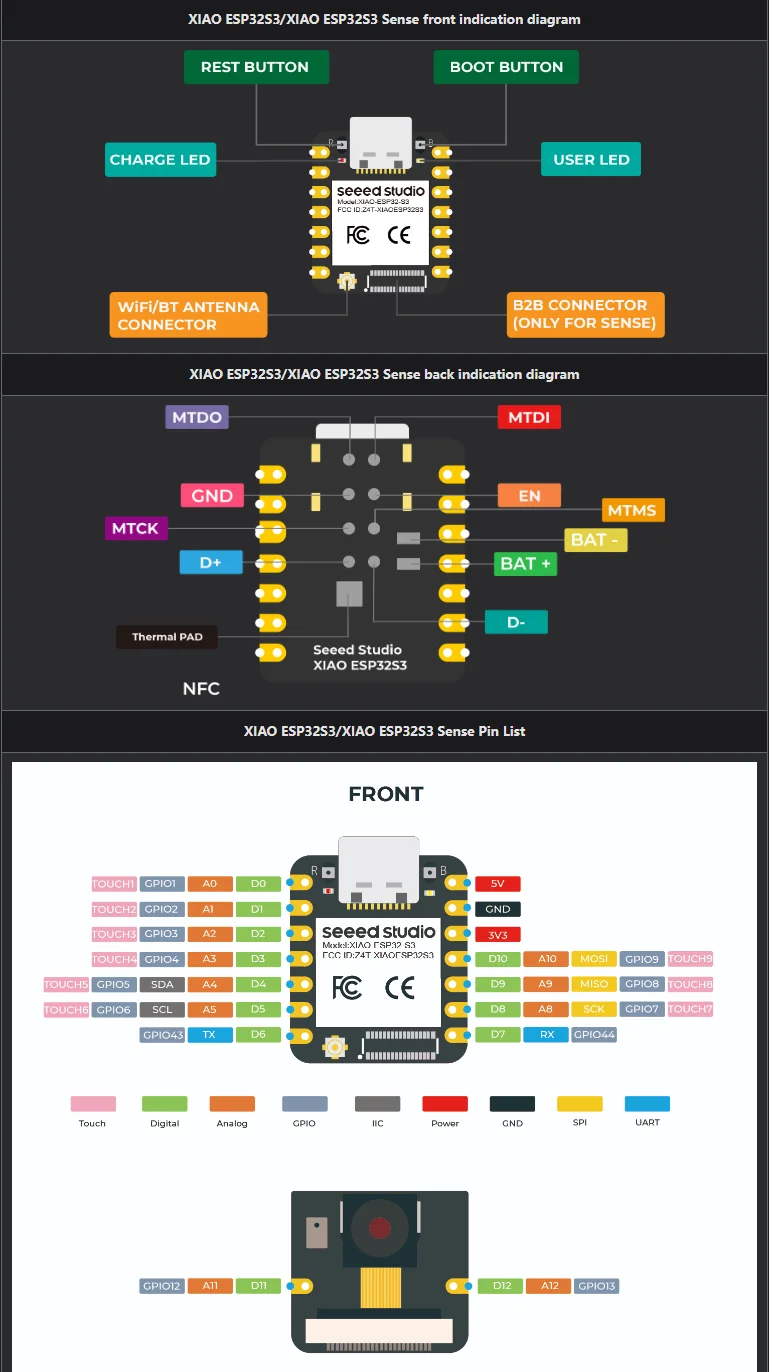

Hardware Overview

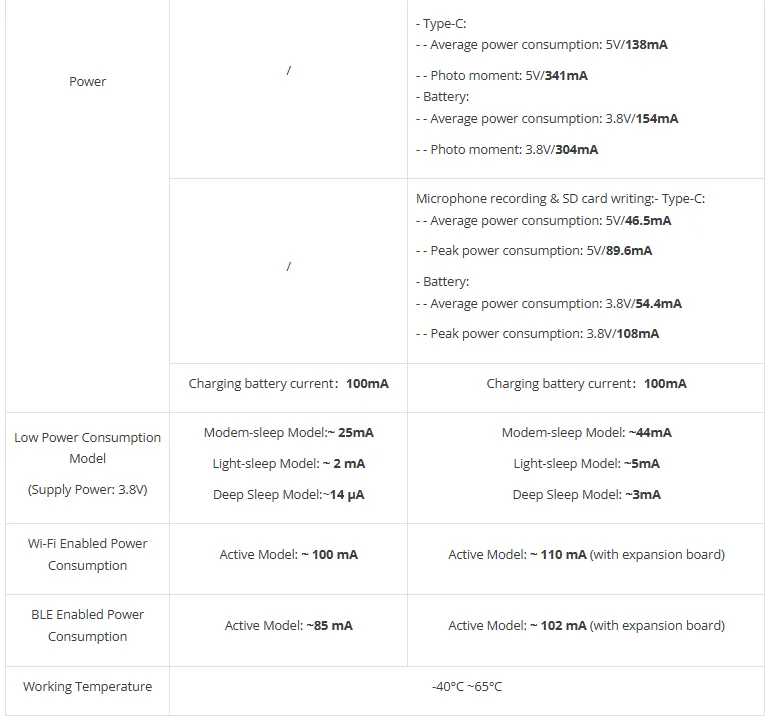

Before everything starts, it is quite essential to have some basic parameters of the product. The following table provides information about the characteristics of Seeed Studio XIAO ESP32S3.
Before everything starts, it is quite essential to have some basic parameters of the product. The following table provides information about the characteristics of Seeed Studio XIAO ESP32S3.

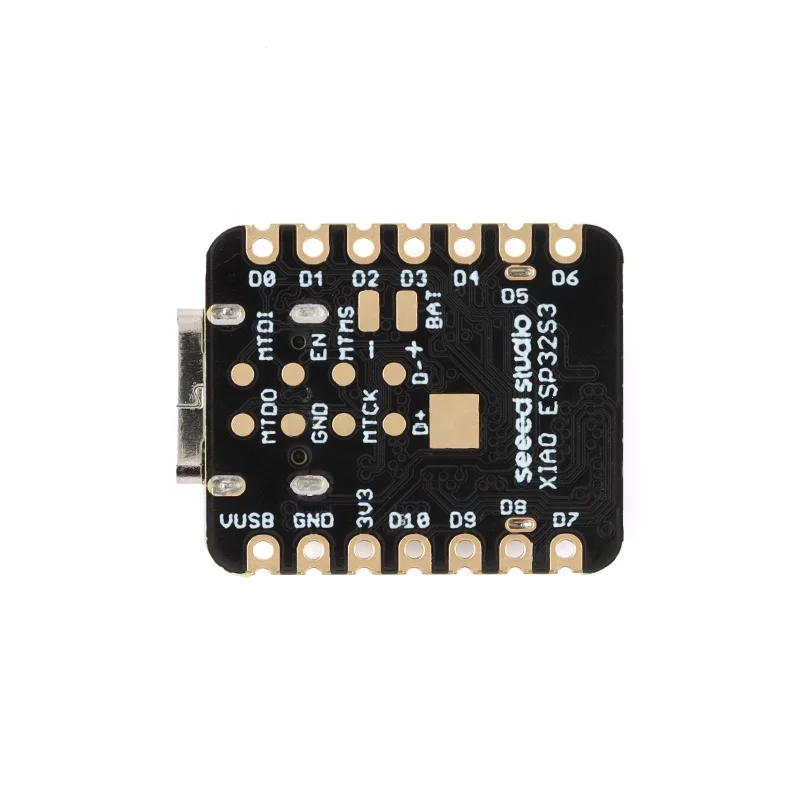

* 5V - This is 5v out from the USB port. You can also use this as a voltage input but you must have some sort of diode (schottky, signal, power) between your external power source and this pin with anode to battery, cathode to 5V pin.
* 3V3 - This is the regulated output from the onboard regulator. You can draw 700mA
* GND - Power/data/signal ground
Getting Started
To enable you to get started with the XIAO ESP32S3 faster, please read the hardware and software preparation below to prepare the XIAO.
* 3V3 - This is the regulated output from the onboard regulator. You can draw 700mA
* GND - Power/data/signal ground
Getting Started
To enable you to get started with the XIAO ESP32S3 faster, please read the hardware and software preparation below to prepare the XIAO.
Factory procedure
We pre-program each new XIAO ESP32S3 and XIAO ESP32S3 Sense with a simple factory program.
1. XIAO ESP32S3

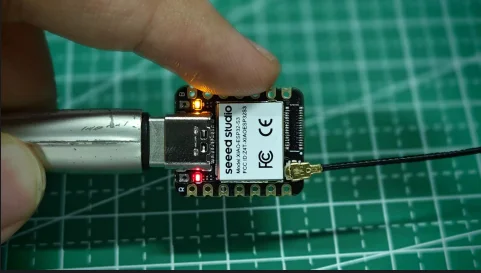

The factory program preset in the regular version is the touch pin light-up program. When you power up the XIAO, touch some of its pins and the orange user indicator will light up.
We pre-program each new XIAO ESP32S3 and XIAO ESP32S3 Sense with a simple factory program.
1. XIAO ESP32S3
The factory program preset in the regular version is the touch pin light-up program. When you power up the XIAO, touch some of its pins and the orange user indicator will light up.
2. XIAO ESP32S3 Sense

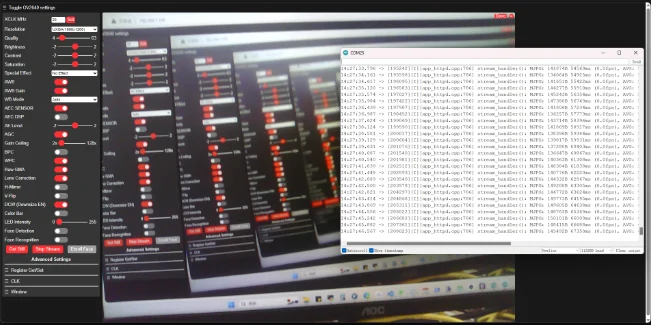

The XIAO ESP32S3 Sense is shipped with the WebCam sample program pre-installed. You can use this program by giving the XIAO a good antenna installation and powering it up. For details, you can read the Wiki about this program.
The XIAO ESP32S3 Sense is shipped with the WebCam sample program pre-installed. You can use this program by giving the XIAO a good antenna installation and powering it up. For details, you can read the Wiki about this program.
Hardware Preparation
Solder header
XIAO ESP32S3 is shipped without pin headers by default, you need to prepare your own pin headers and solder it to the corresponding pins of XIAO so that you can connect to the expansion board or sensor.
Due to the miniature size of XIAO ESP32S3, please be careful when soldering headers, do not stick different pins together, and do not stick solder to the shield or other components. Otherwise, it may cause XIAO to short circuit or not work properly, and the consequences caused by this will be borne by the user.
Solder header
XIAO ESP32S3 is shipped without pin headers by default, you need to prepare your own pin headers and solder it to the corresponding pins of XIAO so that you can connect to the expansion board or sensor.
Due to the miniature size of XIAO ESP32S3, please be careful when soldering headers, do not stick different pins together, and do not stick solder to the shield or other components. Otherwise, it may cause XIAO to short circuit or not work properly, and the consequences caused by this will be borne by the user.
Company Profile
Shenzhen Youxin Electronic Technology Co., Ltd.
is an e-commerce trading company with Internet technology as the core, focusing on the operation of various e-commerce platforms and brands at home and abroad. Our mission is to provide customers with quality products and efficient services!
Why Choose Us
1. 13 years' experience in components
2. Focus on original chips & quality modules
2. Focus on original chips & quality modules
3. With certificate and authorization letter
4. One-stop service, supporting BOM quotation
5. Professional technical team, providing technical support
6. Pre-sales and after-sales service, quickly responding to customer questions
7. We accept 7 days refund money without any conditions.
Note:
Any import fees or postage are the responsibility of buyer.
Shipping
Certifications
FAQ
Q1: What can you buy from us?
Original IC, Sensor Module,Display Module,Power Module,Wireless Module,PCB, Relay and so on.
We also support BOM, please send us list: product name/detail/quantity.
If Ic chips, please note the chip :Brand/Model/Package, so that we can offer you the right one.
Q2: How can we guarantee for the quality of goods?
Always a pre-production sample before mass production;
Products will be inspected before packing to confirm the quality and quantity are no problems.
If there is a problem with the product quality, send back and choose to refund and replace a good one.
If there is a problem with the product quality, send back and choose to refund and replace a good one.
We offer 30-90 days warranty to our products.
Usually it is 5~7 working days after order confirmed and payment received.
Special requirement orders, delivery time is negotiable.
Q4: What about shipping method and payment terms?
All kinds of logistics and payment methods are choosed by buyer.
DHL, UPS, TNT, FedEx and China Post ect.
Credit/Debit Card, Paypal, T/T, Apple Pay, Google Pay, Wechat.
Contact Us
Sales: Carly Zhan
Wechat: CarlyZhan666
Email: carly_ecbuying@outlook.com
Skype: carly_ecbuying@outlook.com
Whatsapp: +86 13432040874
Похожие товары
100W PD зарядки 4K главного адаптера под названием 30 Гц SD устройство для считывания с tf-карт USB 3,0 для Macbook Pro и Air 2 порта USB 3,0 6 в 1 концентратор USB типа C
12,48 $ - 15,00 $
Экспортер тропических фруктов/вьетнамский молодой кокос легко открываемый с соломой/Свежий Кокосовый молодой поставщик
0,10 $
Жесткий дорожный Органайзер EVA для электронных аксессуаров, портативные USB-кабели для зарядного устройства
Новый фильтр SMD1.1x0.10mm RHFR11C2655UB001 SAW 0,006g 5000pcs-Tape/Reel
0,02 $
Фабрика, поставляющая экструдер для производства полипропиленовой обвязочной машины
11,00 $ - 18,00 $
Передняя фара в сборе левая/правая сторона для HAFEI NEW KING/MINGYI HF 6391
10,00 $ - 11,00 $

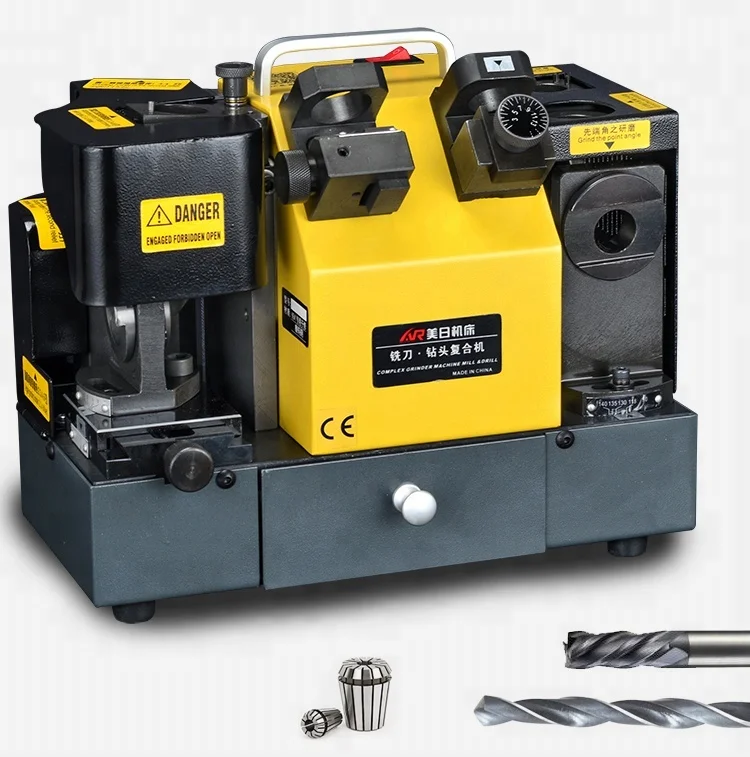

MR-F4 легкое в использовании сверлильный станок мельница и дрель шина заточного
