Product Description
Overview
1. Solar power supply for quarter turn actuator, the actuator is flexible to connect different type ball valve and butterfly valve, including metal and PVC, soft seat valve and hard seat valve, as torque is available from 30Nm~2000Nm
2. App and computer to remote control, set timed irrigation program in App and Web.
Specification
item | QT-10-G |
Usage | Agriculture |
Type | IRRIGATION SYSTEM |
Applicable Industries | Farms |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | Engine |
Condition | New |
Place of Origin | China |
Guangdong | |
Brand Name | QOTO |
Material | Metal |
Feature | Solar power |
Diameter | 120cm |
After-sales Service Provided | Video technical support, Online support |
Warranty | 1 Year |
Key Selling Points | solar power |
Weight | 10KG |
Product name | Solar power smart motorized valve |
Application | Agriculture Garden Farm Irrigaiton |
Actuator | quarter turn actuator |
Ball valve | DN125 PVC ball valve |
Battery | 4000 mAh 22.2V 88.8Wh |
solar panel | 350*290*17*MM |
Land covered | 1.66 Arce |
ball type | full bore |
Certificate | CE |
Protection level | IP67 |
Certifications
Products real shot
The QT-02-G/L can be applied in Flower nursery
The irrigation schedule is flexible, not only timed schedule, but also group control and polling irrigation
Group control: The valves in the same group carry on the same irrigation task at the same time.
Polling irrigation: The smart actuator will open the valves one by one after certain time interval.
QT-02T-G/L is special three way valve
One three way valves control two water outlets, saving cost and raising watering efficiency
One single three way valve can cover 10 chinese arces
QT-03G-G/L is high pressure motorized valve
It can be applied in pesticides mist spraying system as an automatic valve controller
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packing & Delivery
232*160*150MM
Company Profile
Shenzhen Power-Tomorrow Actuator Valve Co.,Ltd, started on 21st,Nov,2017, a high-tech company of IoT flow automation with thenucleus of Internet of thing+smart hardware, has created QOTO smart irrigation system and obtained multiple patents. The smartvalves and valve controllers developed by our own for small and medium sized pipelines have been applied in municipal landscapingand agricultural irrigation, meeting different requirements from users and scenarios.After years of accumulations on experience
and technology, QOTO has been the leader of remote control smart motorized valve, pushing forward the developing of IoT flowcontrol and society, wining the honer with sincerity and market with quality. We stick to make contribution to saving watersociety with high quality products, professional technical solution and high standard before-sales and after-sales services.
and technology, QOTO has been the leader of remote control smart motorized valve, pushing forward the developing of IoT flowcontrol and society, wining the honer with sincerity and market with quality. We stick to make contribution to saving watersociety with high quality products, professional technical solution and high standard before-sales and after-sales services.
FAQ
1. What is the special feature of our solar irrigation system?
Most of the solar irrigation system in the market, it is solar based
pumping system. Ours is solar based valve system. The valve automation
in the watering scheduled is all powered by solar panel+rechargeable batteries. no need any electric cable
2. What is the longevity of the rechargeable batteries and solar panel?
Battery: 2 years
Solar panel: 5 years
3. How long can the valve work once batteried are fully charged.
As we use rechargeable batteries, in the sunny condition, the battery can work continously.
Let take QT-02-G as an example, the solar panel is polysilicon, 6.5V, 5.5W. The QT-02-G use 4 batteries.
If in a cloudy weather situation,once full charge, the battery can stand by 15days.
4. What is a motorized valve?
A motorized valve use motor to drive the valve open and close while a solenoid valve use solenoid valve to open and close.
A motorized valve can connect different types of valves. Let take QT-02-G as example, QT-02-G can connect ball valve and butterfly valve, PVC material or metal materials.
5. What is the difference between solenoid valve based automatic irrigation and motorized valve based irrigatin system?
A. Motorized valve has bigger open port than solenoid valve.
B. The valve can be open without any water pressure
C. Solar powered Installation without any AC/DC electric power cable.
6. Can App support English language?
Yes, it has Chinese and English version.
7. What is the communication protocol for the devices?
We have 4G and LoRa protocol.
8. What internet protocol does the system support?
The system supports HTTP MQTT TCP/IP.
9. What is LoRa frequency?
For chinese market: 470Mhz-510Mhz
For oversea market: 860Mhz-930Mhz
10. What is the valve size.
There are DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250,
DN300, DN350, DN400, DN500
Most of the solar irrigation system in the market, it is solar based
pumping system. Ours is solar based valve system. The valve automation
in the watering scheduled is all powered by solar panel+rechargeable batteries. no need any electric cable
2. What is the longevity of the rechargeable batteries and solar panel?
Battery: 2 years
Solar panel: 5 years
3. How long can the valve work once batteried are fully charged.
As we use rechargeable batteries, in the sunny condition, the battery can work continously.
Let take QT-02-G as an example, the solar panel is polysilicon, 6.5V, 5.5W. The QT-02-G use 4 batteries.
If in a cloudy weather situation,once full charge, the battery can stand by 15days.
4. What is a motorized valve?
A motorized valve use motor to drive the valve open and close while a solenoid valve use solenoid valve to open and close.
A motorized valve can connect different types of valves. Let take QT-02-G as example, QT-02-G can connect ball valve and butterfly valve, PVC material or metal materials.
5. What is the difference between solenoid valve based automatic irrigation and motorized valve based irrigatin system?
A. Motorized valve has bigger open port than solenoid valve.
B. The valve can be open without any water pressure
C. Solar powered Installation without any AC/DC electric power cable.
6. Can App support English language?
Yes, it has Chinese and English version.
7. What is the communication protocol for the devices?
We have 4G and LoRa protocol.
8. What internet protocol does the system support?
The system supports HTTP MQTT TCP/IP.
9. What is LoRa frequency?
For chinese market: 470Mhz-510Mhz
For oversea market: 860Mhz-930Mhz
10. What is the valve size.
There are DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250,
DN300, DN350, DN400, DN500
Похожие товары

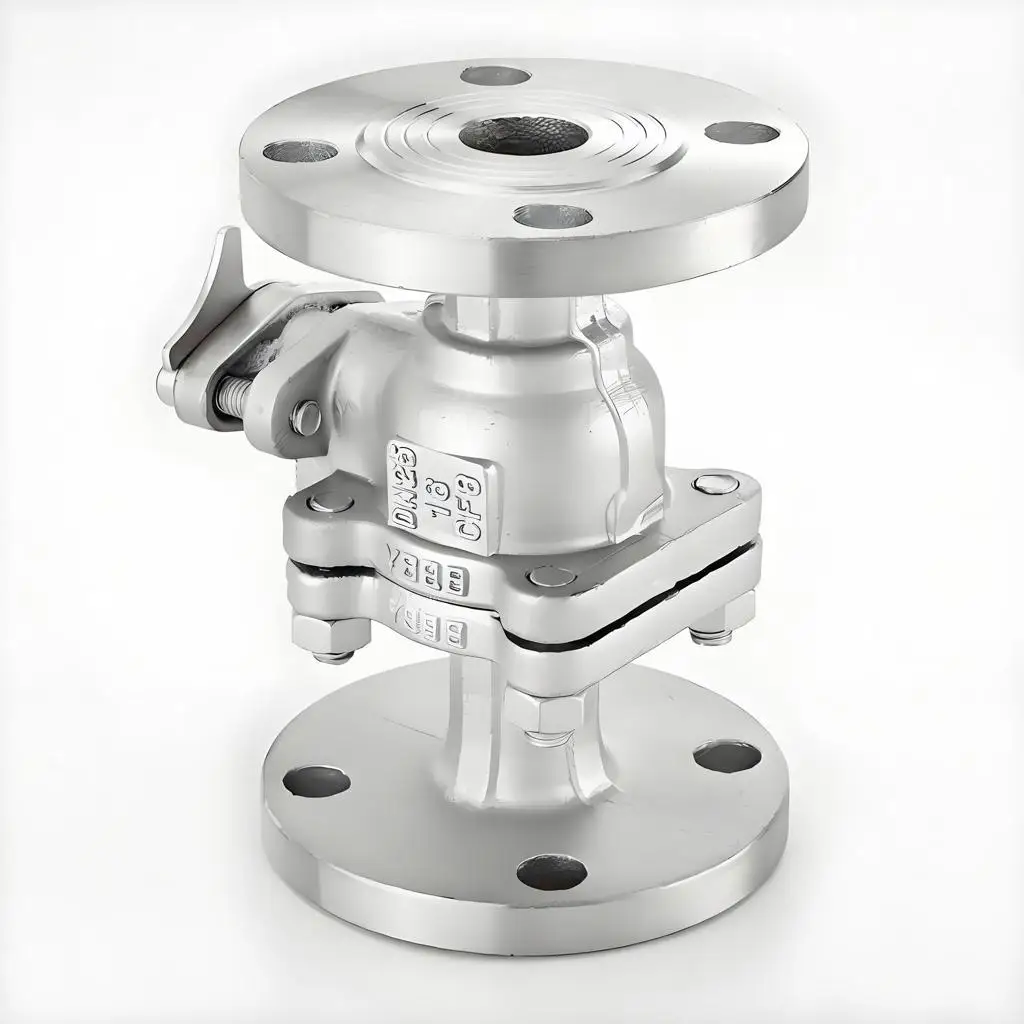

Поставщик шаровых клапанов промышленный клапан из нержавеющей стали 304 Китай фланец CF8 2 шт. литье бренд Linggong

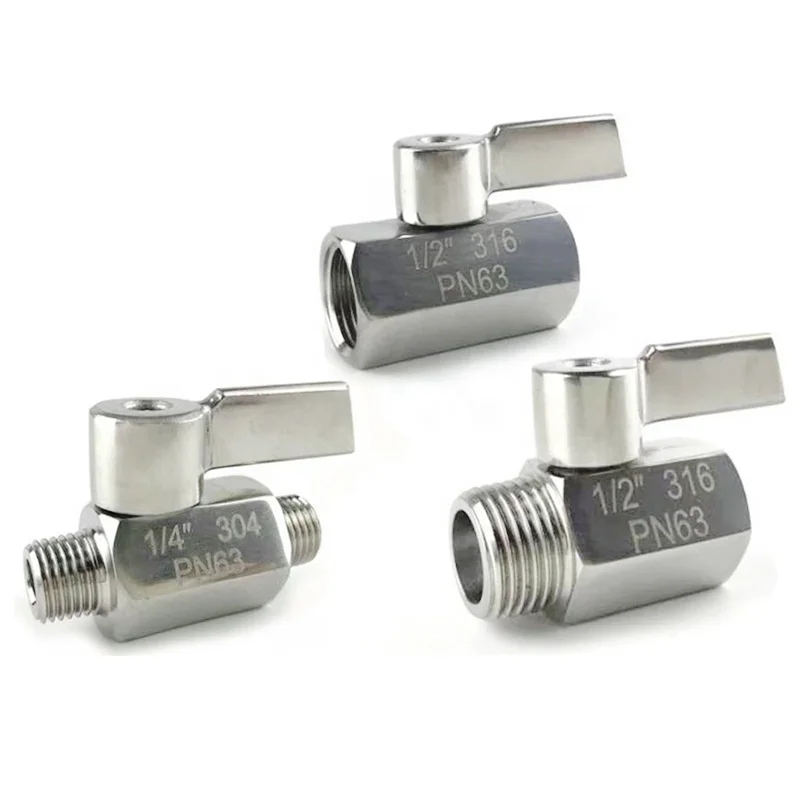

Шаровой мини-клапан из нержавеющей стали 1/4 NPT BSPP BSPT

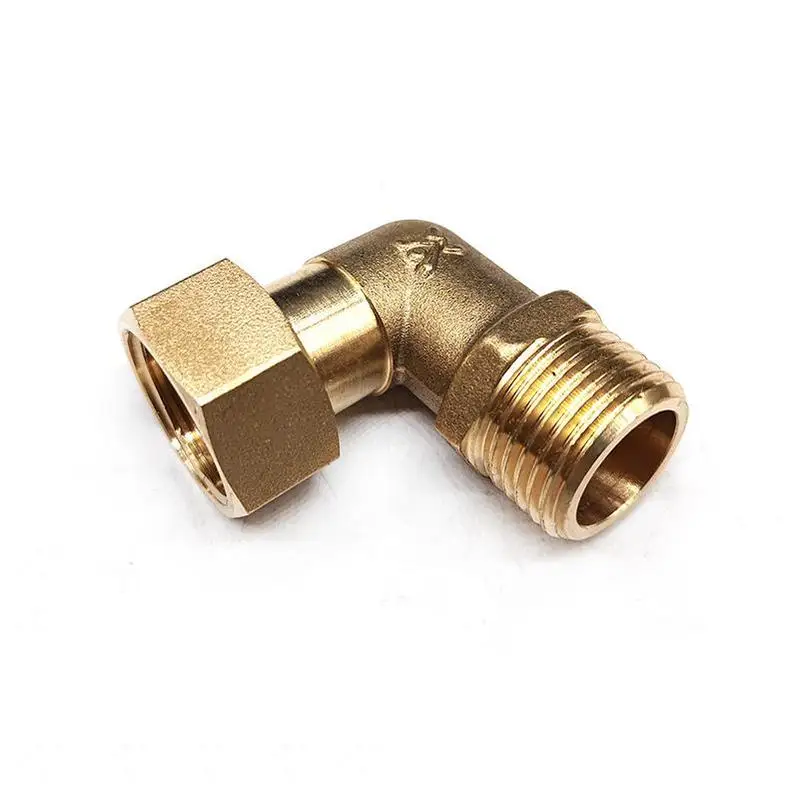

Фитинги для труб с латунным шаровым клапаном
0,70-0,82 $

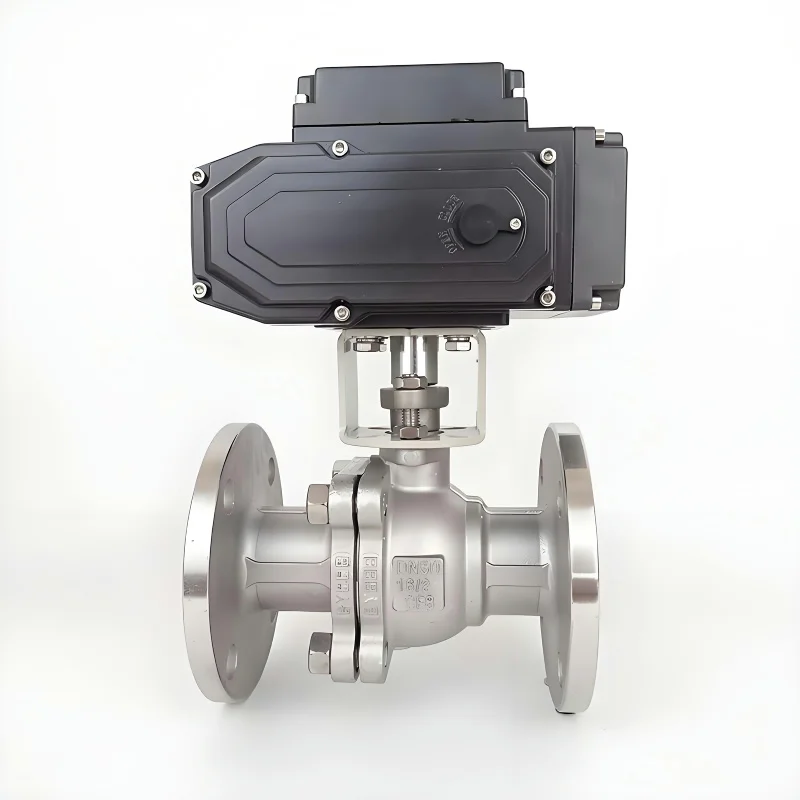

Кованая нержавеющая сталь CF8 DN50/60/100 высокого давления Электрический привод флангбольный клапан для масла газа воды

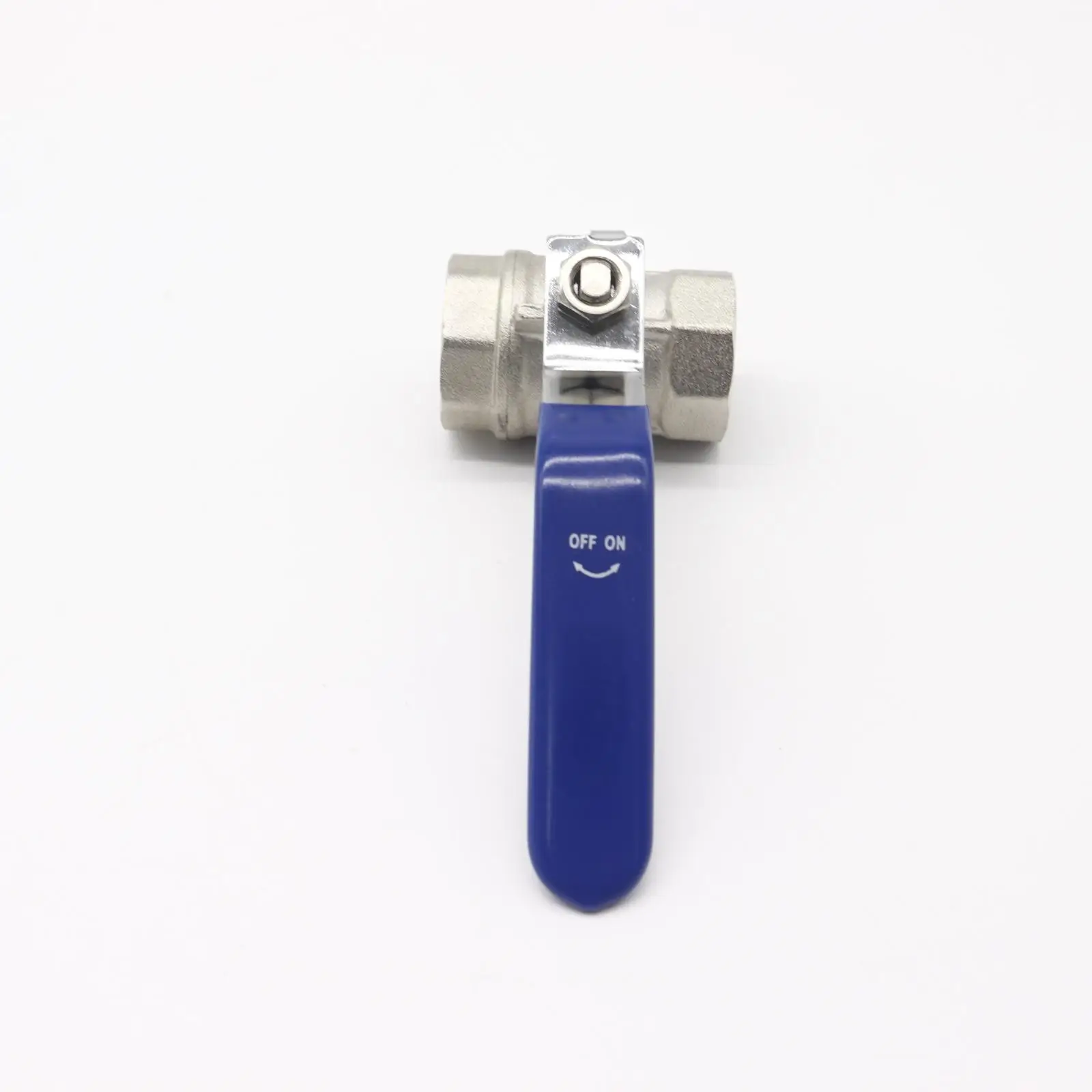

Ручные латунные шаровые краны высокого класса

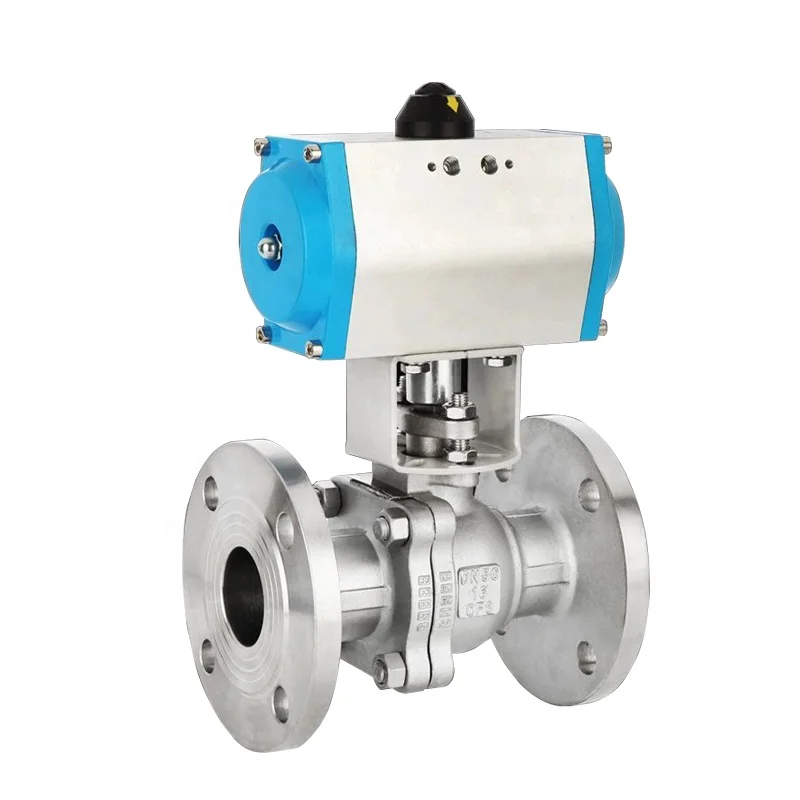

Шариковый клапан фланца пневматического привода нержавеющей стали
99,00 $

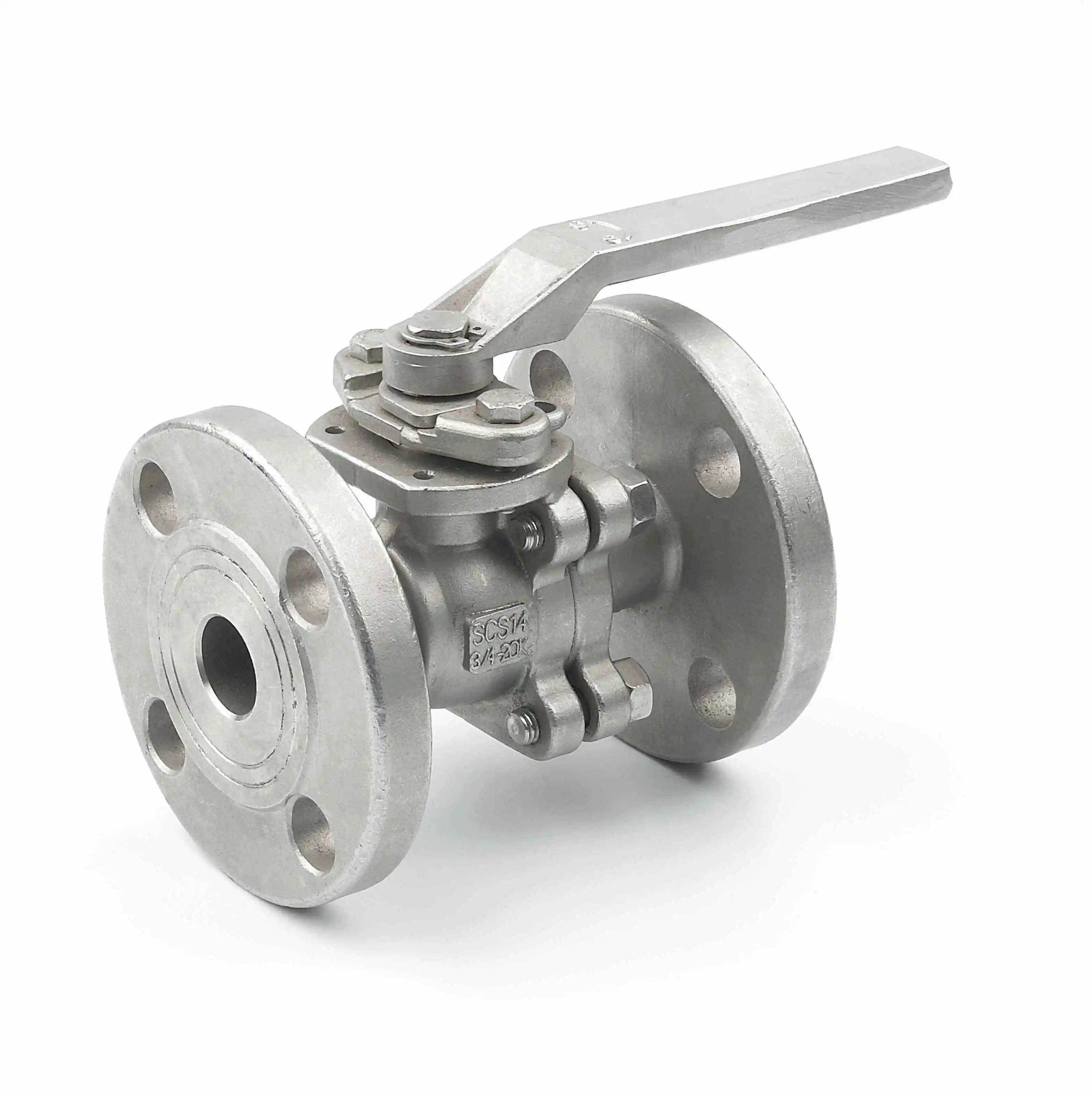

DN50 2-дюймовый фланцевый конец из нержавеющей стали 2 шт. шаровой клапан ANSI
