Products Description

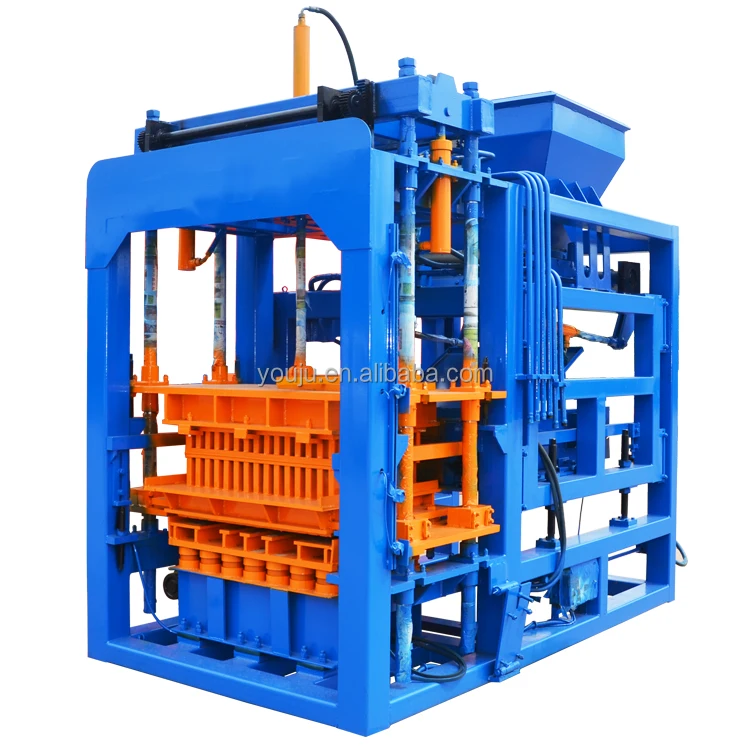

QT6-15 BLOCK MAKING MACHINE
YOUJU Hot Sale QT6-15 Cement Interlocking Brick Making Machinery Automatic Hollow Concrete Block Making
QT6-15 block machine, is a stationary equipment for making building blocks. The material can be fly ash, slag, gangue or the others industrial waste, river sand, gravel, cement etc. Makes different sizes of hollow blocks, porous blocks, curbstone, pavement blocks, grass blocks, slope-protecting blocks, ring-tree blocks etc. If add color feeding machine, it can make colored paving blocks
The machine is mainly composed of pallet feeder, host machine, block conveyor, hydraulic station and PLC controller.
Building Material Brick Machinery QT6-15 Cement Block Making Machine Hollow Paver Solid Curbstone Molds Customized
YOUJU Hot Sale QT6-15 Cement Interlocking Brick Making Machinery Automatic Hollow Concrete Block Making




YOUJU Hot Sale QT6-15 Cement Interlocking Brick Making Machinery Automatic Hollow Concrete Block Making
Host machine
It is composed of main frame, material hopper, feeding box, standing axle sliding sleeve, vibration box, mould, pushing cylinder, mainly used for main material feeding, mould press, vibration ,molding, demolding, etc
Pallet feeder
It is composed of pallet box, shifting fork,frame,pushing cylinder,pallet cart frame,mainly used to stock and convey the pallets.

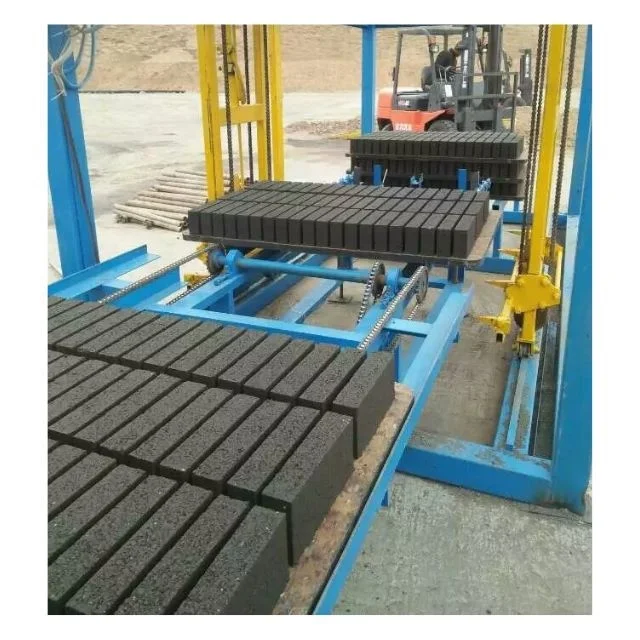

Block conveyor
Made by rack, buffer wheel, link chain, belt pulley, reducer, belt, horizontal guide sheave, used for transporting blocks.
Hydraulic station
Include oil tank,motor,oil pump,manifold block,hydraulic valve and cooler.Can provide power for all the working parts.
The hydraulic pressure stands should use the N32 or N46 hydraulic oil,the oil into the tank should filter exceed 20μm,without filter oil should not put into the tank.

YOUJU Hot Sale QT6-15 Cement Interlocking Brick Making Machinery Automatic Hollow Concrete Block Making




YOUJU Hot Sale QT6-15 Cement Interlocking Brick Making Machinery Automatic Hollow Concrete Block Making
PLC controller
Control system include PLC control box, expand parts, touch screen human-computer interface, intermediate relay, exchange contactor and so on, all parts can work in manual or automatic type. For example, the press head up and down mold box working, material box working, vibrate, molding, demolding, pallet go and back all can control automaticlly. And can adjust the feeding times and vibration time.
Control parts include indicator light, control button, programmable operation panel. Through control the electric component, can know the machine situation, it can transition between manual mode and automatic mode. When changing the technical parameter, or there’s problem about the machine, should cut down electric in time, make sure the machine and person safe.
Building Material Brick Machinery QT6-15 Cement Block Making Machine Hollow Paver Solid Curbstone Molds Customized
YOUJU Hot Sale QT6-15 Cement Interlocking Brick Making Machinery Automatic Hollow Concrete Block Making


Technical parameters


YOUJU Hot Sale QT6-15 Cement Interlocking Brick Making Machinery Automatic Hollow Concrete Block Making
Dimension
7100 x 1500 x 3000 mm
Weight
5400 kgs
Pallet Size
900 x 700 mm
Molding Cycle
15-25s, if add color material 20-30s
Power
32KW
Height of Blocks
50-200mm
Vibration Form
Platform Vibration

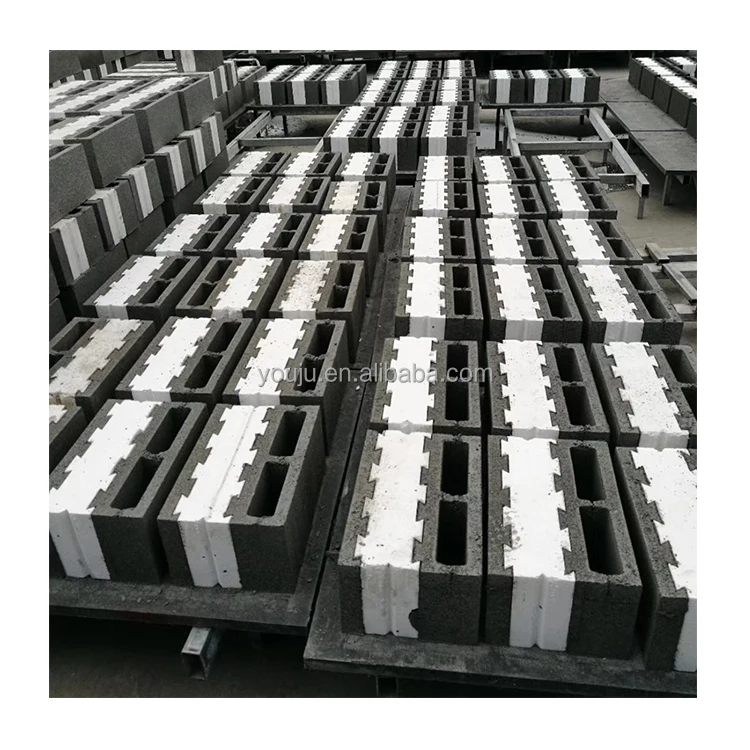

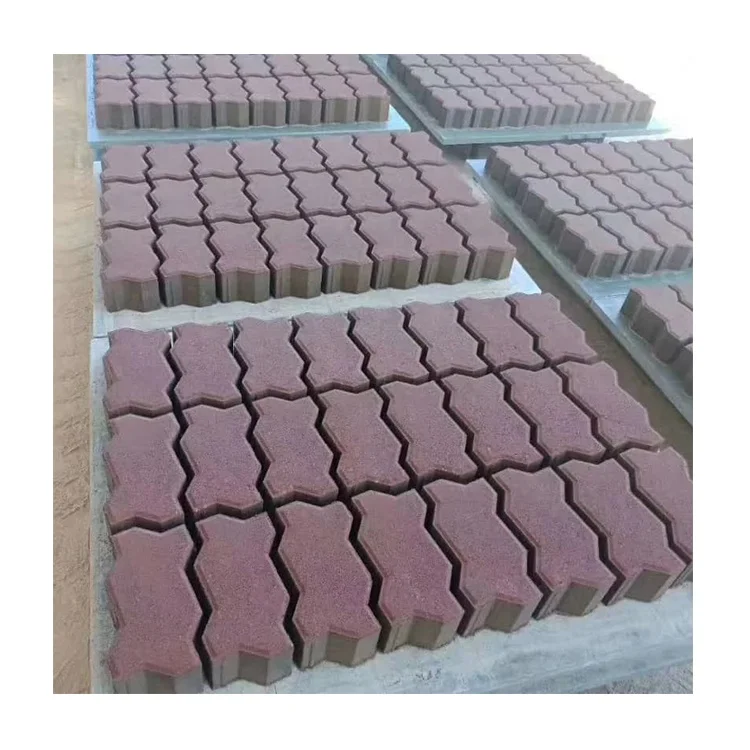

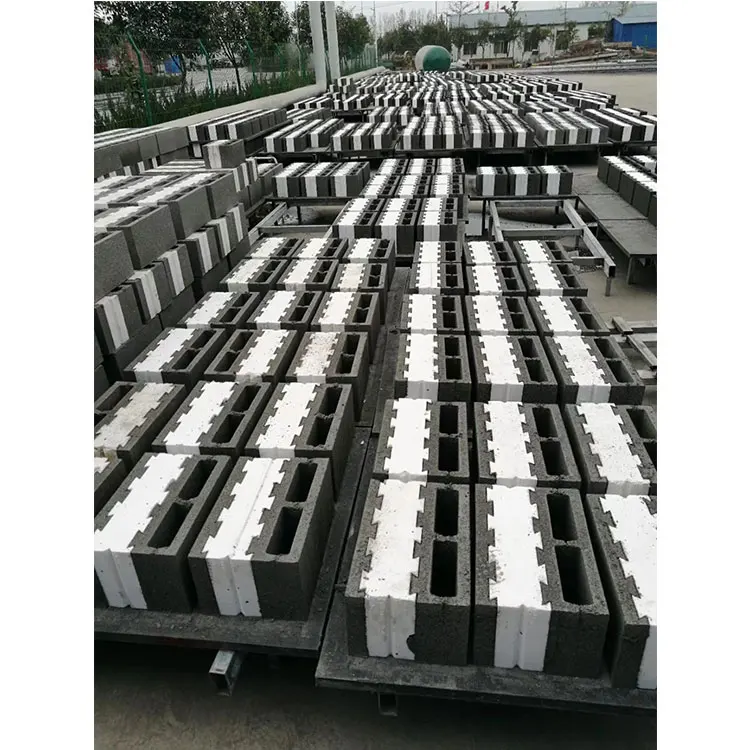

Block Samples


YOUJU Hot Sale QT6-15 Cement Interlocking Brick Making Machinery Automatic Hollow Concrete Block Making
Block Specification and Capacity
Size (L x W x H) mm
Pcs/Mold
Pcs/Hour
Pcs/Day(8hours)
400 x 200 x 200
6
1437
11500
400 x 150 x 200
8
1912
15300
240 x 115 x 90
15
3600
28800
240 x 115 x 53
30
7200
57600
225 x 112.5 x 60
15
3600
28800
200 x 100 x 60
24
5760
46080

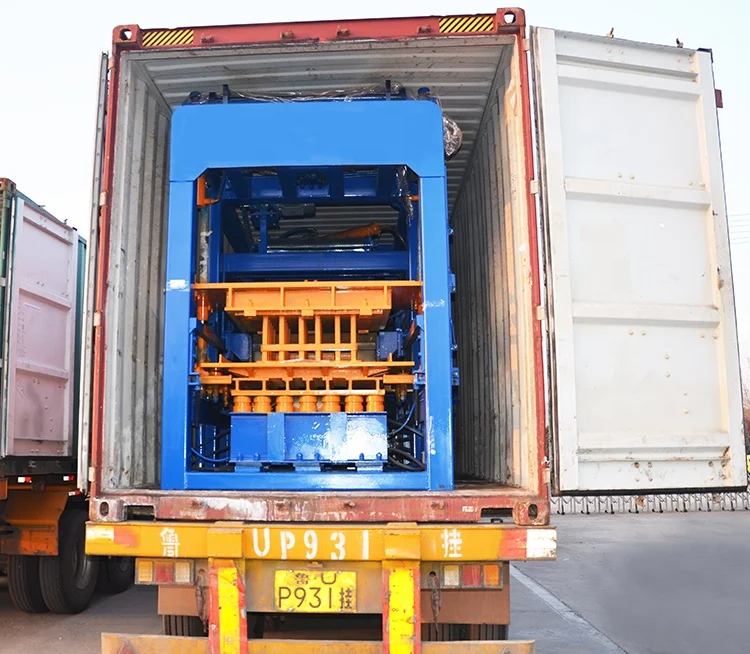

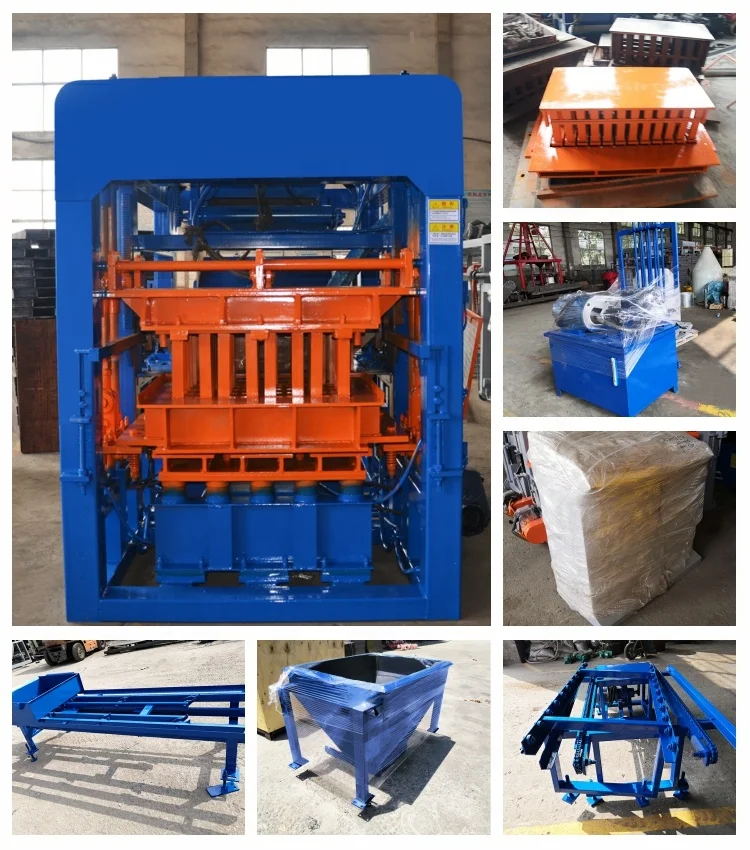

Packing & Delivery

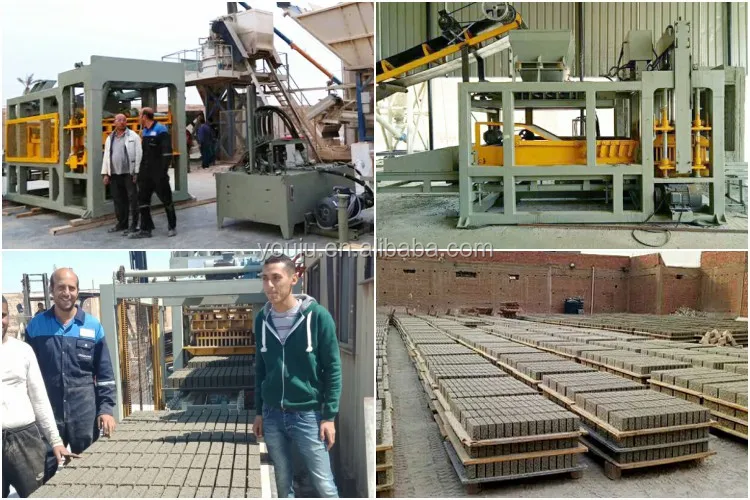

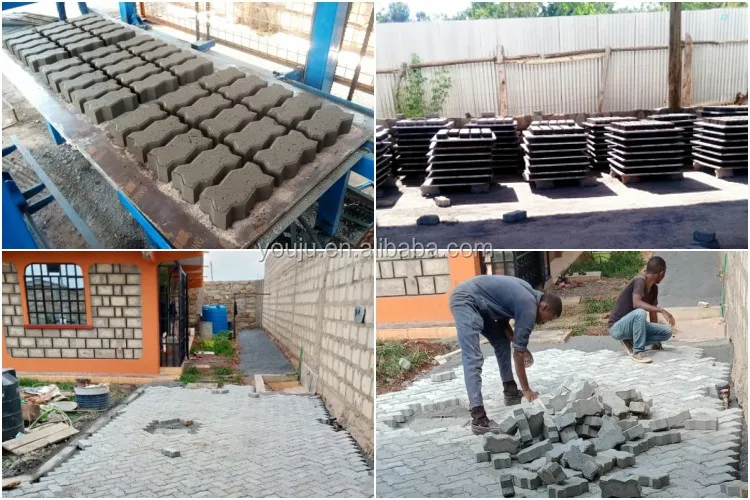

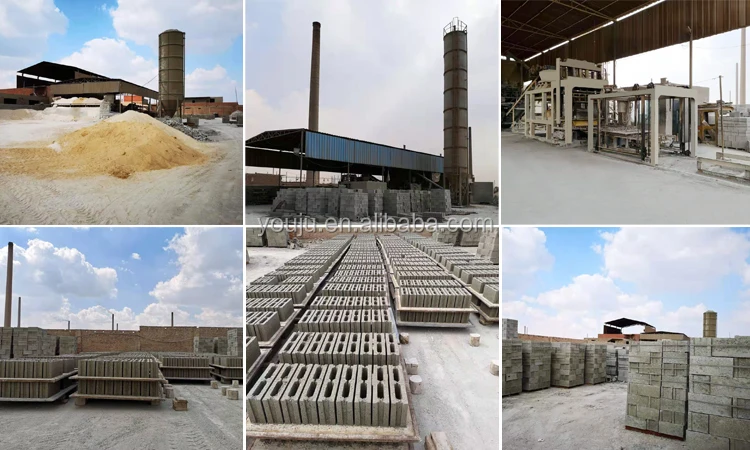

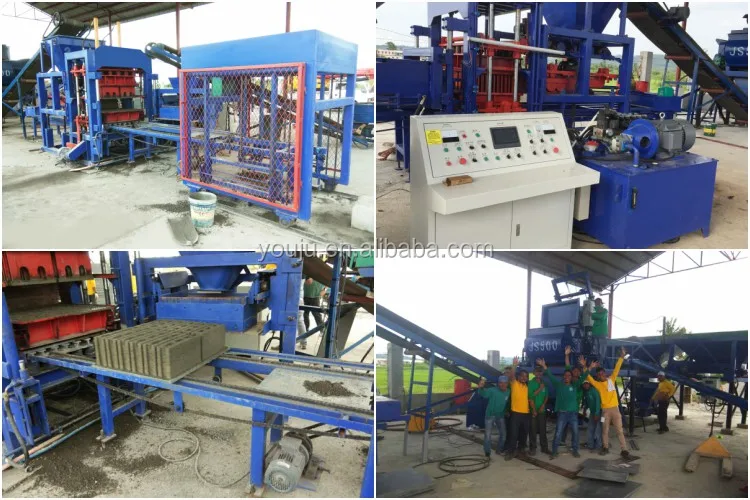

Customer working site
