Ручной цифровой измеритель Тесла поверхности магнитного поля Гаусс метр
- Категория: Other Analysis Instruments >>>
- Поставщик: Xiamen Yuxiang Magnetic Materials Technology Co. Ltd.
Сохранить в закладки 1600933937332:
Описание и отзывы
Характеристики
Products Description

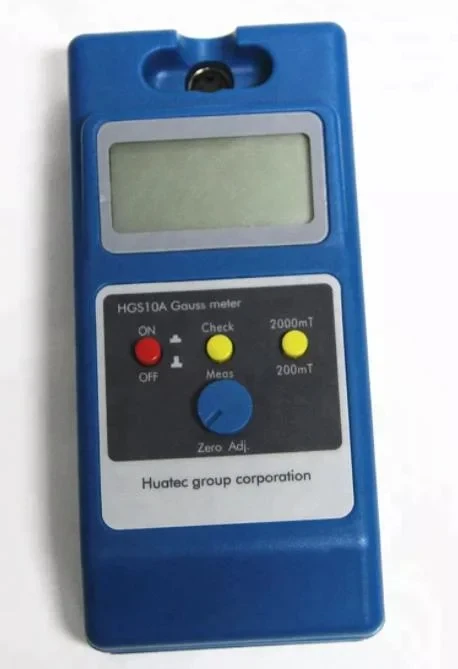

Hand-hold Digital Tesla Meter
Features:
1. Hand-held 3 1/2 digits large LCD display, compact, light weighted, reliable and easy to operate
2. Adopting low power consumption design, with 15 min. Auto poweroff and powershort alarming function, each battery can be used
continuously for 250~500 hours
Operation Methods:
1. Insert plug of probe into the socket for probe properly, then press power button to start.
2. Use screw-driver for meter to press the measuring/calibrating shifting switch at the rear panel, then check if the value on LCD
comply with the calibrated value of the probe, if not, adjust the calibration potentiometer at the rear panel with the dirver, so
as to make them consistent, after that, lift the measuring/calibrating switch. For future usage, as long as the probe is not
changed, this step can be omitted.
3. Make the probe far away from magnetic field, then use the screw-driver to adjust the zero potentiometer on the front panel, to
make the display show 000mT.
4. Take off the protection cover for the probe, then you can start measuring, if the value is positive one, then the probe will
marked with N pole, otherwise it will be S.
5. As soon as the measuring is done, put on the protection cover for the probe right back, then turn off the power button, if one
forgets to turn power off, then the meter will auto poweroff 15 min. After start up; Then if one needs to do new measuring, just
press the power button twice.
6. During measuring, should it occurs either of following phenomenon, it means the probe is damaged, needs to be replaced.
A). If there is no field, the meter shows "1", "1" or if adjust the zero potentiometer, there is no 000mT.
B). Approaching a magnetic field, reading will not change as the magnetic field intensity differs.
7. If there is an arrowhead appearing at the upper corner of display, it means the battery needs to be changed.
For more detail info, please feel free to visit our website or inquire us at any of your convenience..
Features:
1. Hand-held 3 1/2 digits large LCD display, compact, light weighted, reliable and easy to operate
2. Adopting low power consumption design, with 15 min. Auto poweroff and powershort alarming function, each battery can be used
continuously for 250~500 hours
Operation Methods:
1. Insert plug of probe into the socket for probe properly, then press power button to start.
2. Use screw-driver for meter to press the measuring/calibrating shifting switch at the rear panel, then check if the value on LCD
comply with the calibrated value of the probe, if not, adjust the calibration potentiometer at the rear panel with the dirver, so
as to make them consistent, after that, lift the measuring/calibrating switch. For future usage, as long as the probe is not
changed, this step can be omitted.
3. Make the probe far away from magnetic field, then use the screw-driver to adjust the zero potentiometer on the front panel, to
make the display show 000mT.
4. Take off the protection cover for the probe, then you can start measuring, if the value is positive one, then the probe will
marked with N pole, otherwise it will be S.
5. As soon as the measuring is done, put on the protection cover for the probe right back, then turn off the power button, if one
forgets to turn power off, then the meter will auto poweroff 15 min. After start up; Then if one needs to do new measuring, just
press the power button twice.
6. During measuring, should it occurs either of following phenomenon, it means the probe is damaged, needs to be replaced.
A). If there is no field, the meter shows "1", "1" or if adjust the zero potentiometer, there is no 000mT.
B). Approaching a magnetic field, reading will not change as the magnetic field intensity differs.
7. If there is an arrowhead appearing at the upper corner of display, it means the battery needs to be changed.
For more detail info, please feel free to visit our website or inquire us at any of your convenience..
Measuring field | DC magnetic field |
Measuring range | 0~2000mT |
Resolution | 1 mT(10Gs) |
Accuracy | ± 2%(reading) |
Power supply | DC9V |
Working temperature | -10~50 o C |
Storing temperature | -20~60 o C |
Dimension | 149*69*25 mm |
Weight | 250g approx. (with accessories) |

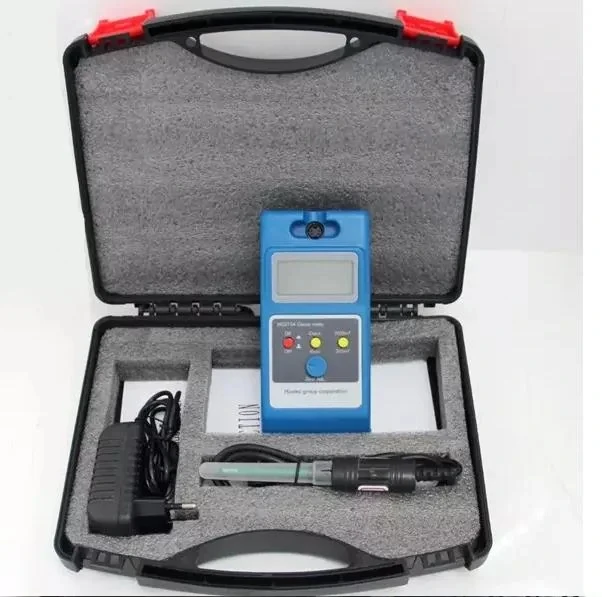

Standard accessories | 1 probe, 1screw-driver for meter, 1 battery, 1operational manual |
Our Company
XIAMEN YUXIANG MAGNETIC MATERIALS TECHNOLOGY CO.,LTD. is Iocated in the beautiful coast of southeast sea. Established in 1997, we are an export-oriented enterprise. Now our company becomes an enterprise with advanced technology, owning two factories in China, both of which have their own R&D and QC departments, and arel ISO9001: 2000 certified.
Our Product
We supply hard magnets and magnetic materials from China. Our magnets include ferrite magnets, flexible magnets, NdFeB
magnets,AlNiCo magnets, SmCo magnets, rubber magnets, refrigerator fridge magnets, magnetic powder, magnetic compound tesla meters&magnetizers, and magnetic jewelry. We also supply ferrite cores, MnZn cores and NiZn cores for transformers and coils,
loudspeakermagnets, motor magnets, and refrigerator gasket stripes.
magnets,AlNiCo magnets, SmCo magnets, rubber magnets, refrigerator fridge magnets, magnetic powder, magnetic compound tesla meters&magnetizers, and magnetic jewelry. We also supply ferrite cores, MnZn cores and NiZn cores for transformers and coils,
loudspeakermagnets, motor magnets, and refrigerator gasket stripes.
Certifications
Packing&Shipping
Product Packing
1.Suitable carton size.
2.Anti-magnetized packaging.
3.We will suggest the best solution of shipment for your reference according to order quantityes.
2.Anti-magnetized packaging.
3.We will suggest the best solution of shipment for your reference according to order quantityes.
Delivery Method
By Express Courier, such as DHL, Fedex, UPS,TNT, EMS etc.;By Air, by Land or by Sea
FAQ
1. who are we?
We are based in Fujian, China, start from 2017,sell to North America(52.00%),Western Europe(20.00%),Northern
Europe(9.00%),Oceania(7.00%),Africa(5.00%),Southern Europe(4.00%),Eastern Europe(3.00%). There are total about 11-50 people in our
office.
Europe(9.00%),Oceania(7.00%),Africa(5.00%),Southern Europe(4.00%),Eastern Europe(3.00%). There are total about 11-50 people in our
office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.what can you buy from us?
NdFeB Magnet,Soft Magnet,Ferrite Magnet,Fridge Magnet,Magnetic Powder
4. why should you buy from us not from other suppliers?
XIAMEN YUXIANG MAGNETIC MATERIALS TECHNOLOGY CO.,LTD is Established in 1997, more than 20 years of technical know-how and experience have been keeping us ahead in the industry. We have been in the OEM business for five years and are ready for your orders.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union;
Language Spoken:English,Chinese
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union;
Language Spoken:English,Chinese
Похожие товары
JLDG интеллектуальный цифровой дисплей JD-105 измеритель уровня звука для контроля
9,00 $ - 18,00 $

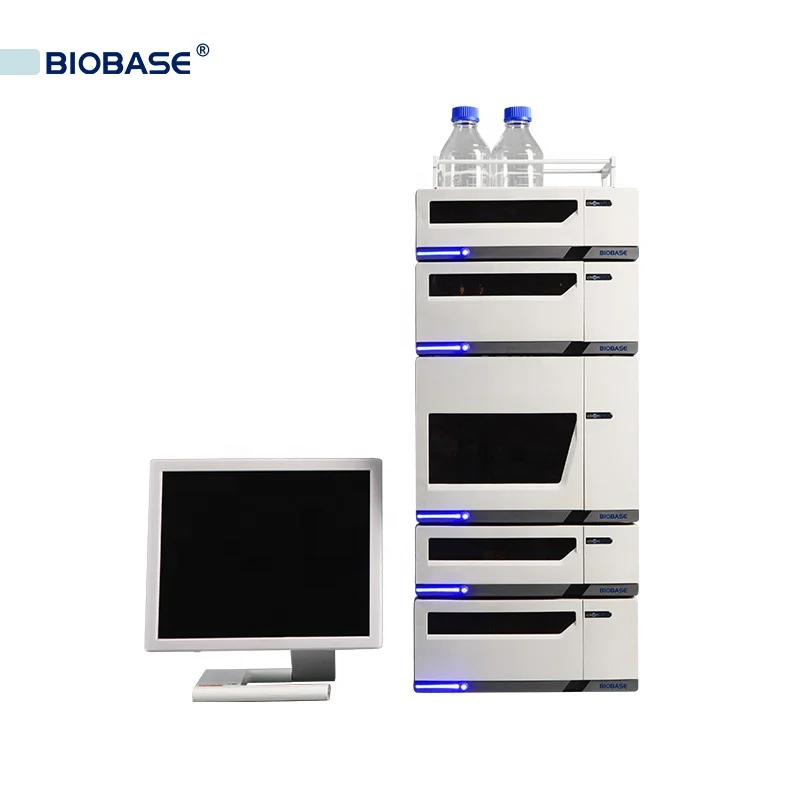

Высокопроизводительная Жидкостная Хроматография BIOBASE 5100 (Тип IV) HPLC с контроллером системы детектора насоса для
Высокоэффективная Жидкостная Хроматография BIOBASE прибор для анализа 5100 (тип II) HPLC
Ручной цифровой измеритель Тесла магнитного поля поверхности Измеритель
91,00 $ - 125,00 $

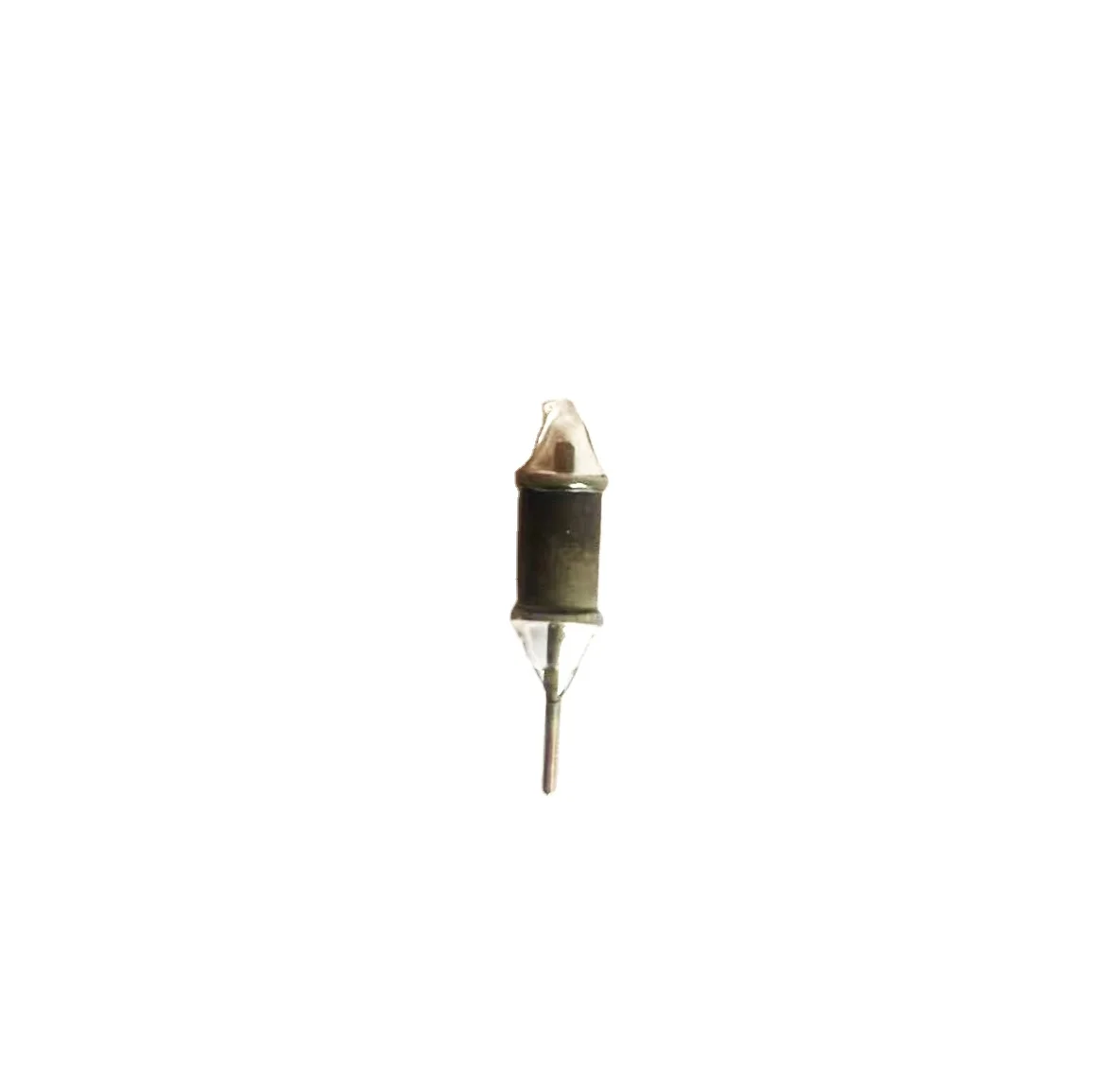

Датчик для обнаружения ядерного излучения GM tube Geiger muller
19,50 $

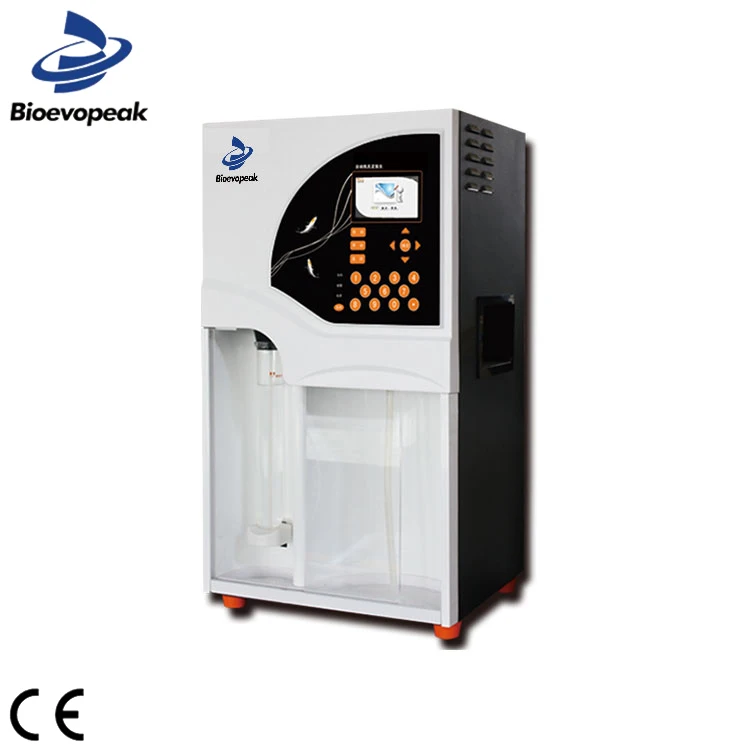

Bioevopeak автоматический анализатор Kjeldahl KJA-9840 из Китая
