Product Description

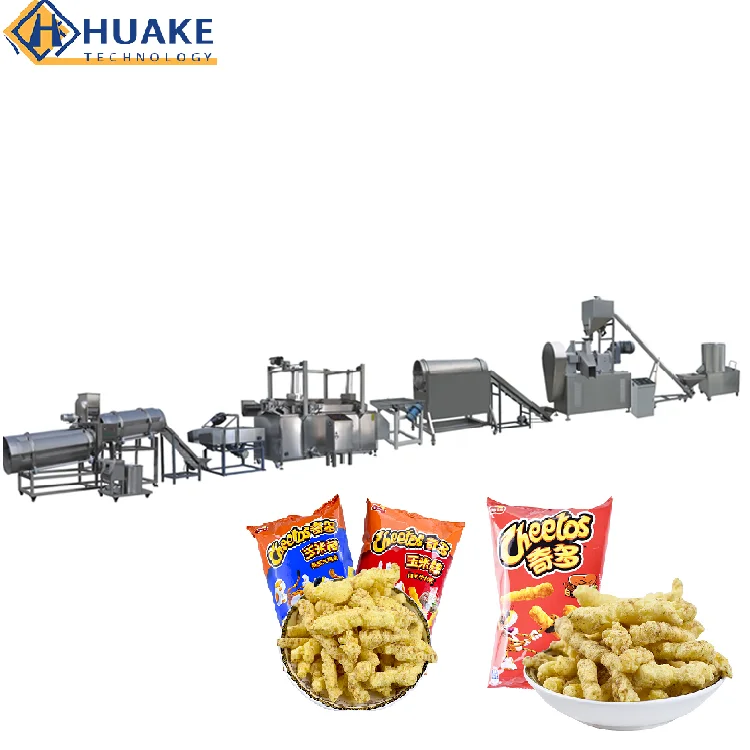

Corn kurkure cheetos making machine production line
Cheetos kurkure niknaks process line can be manufactured special snack with extreme crispy taste. The main raw material is corn grits which is mixed with water evenly by the flour mixer, squeezed and twisted by the extruder to form the iregular curls shape, and then cut into different length, at last fried or baked and flavored. Such snacks with rich taste are always the customer's favor.
Production Flow:
Flour Mixer → Cheetos Extruder → Conveyor → Rotary Sifter → Elevator → Fryer → Vibrating De-Oiler → Flavoring Line → Cooling Conveyor
Main Features
1) Direct transmission between motor and gear box,reducing energy consumption.
2) Feeding,main driving device, and rotary cutting device adopt inverter to adjust the speed with more powerful drive, stable running, and low consumption.
3) Screw is made of alloy steel with long life.Segmental assembled screws are applied tomore kinds of materials and products.
4) Automatic lubrication system can lower down power consumption and prolong the life.
5) Double screws feed equal materials forcibly.
6) Hanging mould and knives seat and bearing knife adjusting system can adjust the kniver exactly and swiftly.
2) Feeding,main driving device, and rotary cutting device adopt inverter to adjust the speed with more powerful drive, stable running, and low consumption.
3) Screw is made of alloy steel with long life.Segmental assembled screws are applied tomore kinds of materials and products.
4) Automatic lubrication system can lower down power consumption and prolong the life.
5) Double screws feed equal materials forcibly.
6) Hanging mould and knives seat and bearing knife adjusting system can adjust the kniver exactly and swiftly.
Details Images
Name | Cheetos Extruder |
Diameter of screw | φ74mm |
Main driving power | 5.5kw |
Extruding driving power | 22kw |
Capacity | 100~150kg/h |
Dimension | 2100x785x2280mm |
Name | LF-Rotayr Separate Sifter |
Driving power | 0.37kw |
Capacity | 150kg/h |
Size of roller | Φ636×2865mm |
Dimension | 2865x780x2650mm |
Name | LXZ4000 Continuous Frying Line |
Conveying power | 1.5kw |
Electric heating power | 70kw |
Frying temperature | 0~250℃ adjustable |
Capacity | 260~500kg/h |
Dimension | 4400×2050×2300mm |
Name | PF-PG Oil Spray Flavoring Line |
PF Driving power | 0.75KW |
Capacity | 0~250kg/h |
Dimension | 1300×450×1600mm |
PG Driving power | 0.37KW |
Drum size | 636×2700mm |
Dimension | 2700×750×1500mm |
Equipment Real Time Shooting
Rotating separation equipment
Host PLC operation console
Cooling equipment
Frying equipment
Specification
item | value |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product 2023 |
Warranty of core components | 1 Year |
Core Components | PLC, Bearing, Gearbox, Gear |
Condition | New |
Place of Origin | China |
Shandong | |
Brand Name | DAYI |
Voltage | 220v or customized |
Power | 59kw |
Weight | 550KG |
Dimension(L*W*H) | 28400*4900*2300mm |
Year | 2023 |
Warranty | 1 Year |
Key Selling Points | Long Service Life |
Product name | puffs cheetos snack food manufacturing machines |
Application | Food Processing Machine |
Usage | Food Industry Equipment |
Name | Corn Puff Snack Extruder |
Function | Multifunctional |
Type | Fully Automatic |
Keywords | Easy Operate High Productivity |
Core Components | Main Machine |
Key Selling Points | Easy |
After-sales Service Provided | Video Technical Support |
Packing & Delivery
1.Wooden Case or Wooden Pallet
2.Fumigation wooden cases, which are well sealed and strong enough for long-term trip, and suitable for multi-times loading &
unloading by forklift.
Company Profile
About Dayi Machinery
DAYI Extrusion Machinery Co., Ltd. has been established for more than 20 years since 1996 ,with an annual average turnover of more than 100 million.DAYI is a professional food extruder manufacturing company and a national high-tech enterprise integrating R&D, production and manufacturing, product sales and after-sales service.
research and development centre
DAYI has more than 50 senior engineers and technicians and it has trained a production and service team with excellent and high skills.
Inside the plant
DAYI's main business scope includes food extrusion machinery, drying machinery, frying machinery, puffed food machinery .
standardized factory building
DAYI has modern office areas,R&D center and standardized manufacturing workshop,with the building area of more than 20,000㎡.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Contact Information
FAQ
1.Does your product support international transportation?
Answer: Yes, we support international transportation. Our products can be shipped globally. The transportation method and cost will depend on your order and destination. At checkout, you can choose the shipping option that suits you.
2. Does your product have quality assurance?
Answer: Yes, we have high requirements for the quality of our products and provide quality assurance to support pre factory inspection. You can click here to Contact Us.
3. What’s your Guarantee?
Answer:We provide 1 year complete Guarantee and life-time maintenance service
4. How about the installation?
Answer:We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.
