Сушильная пневматическая система производителя воздуходувка воздушный нож сопло для сушки
- Категория: >>>
- Поставщик: Guangzhou Xiangfeng Electromechanical Equipment Co. Ltd.
Сохранить в закладки 1600934354120:
Описание и отзывы
Характеристики
Factory Supply & Quality Assured
1. The length of the air knife can be customized.
2. The air inlet can be customized.
2. The air inlet can be customized.
3. Support picture or sketch customization. (We can also sketch for you according to your requirements)

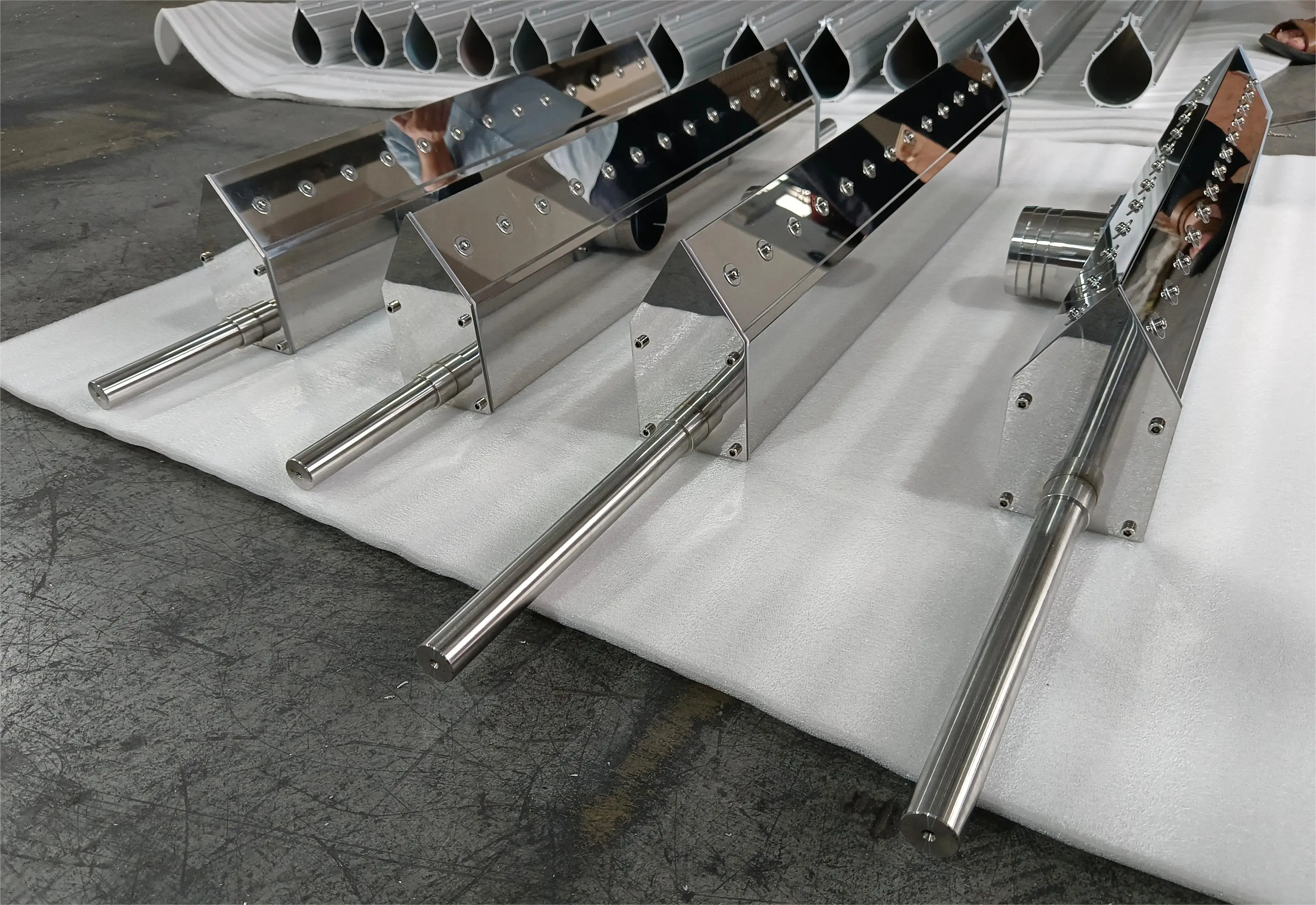

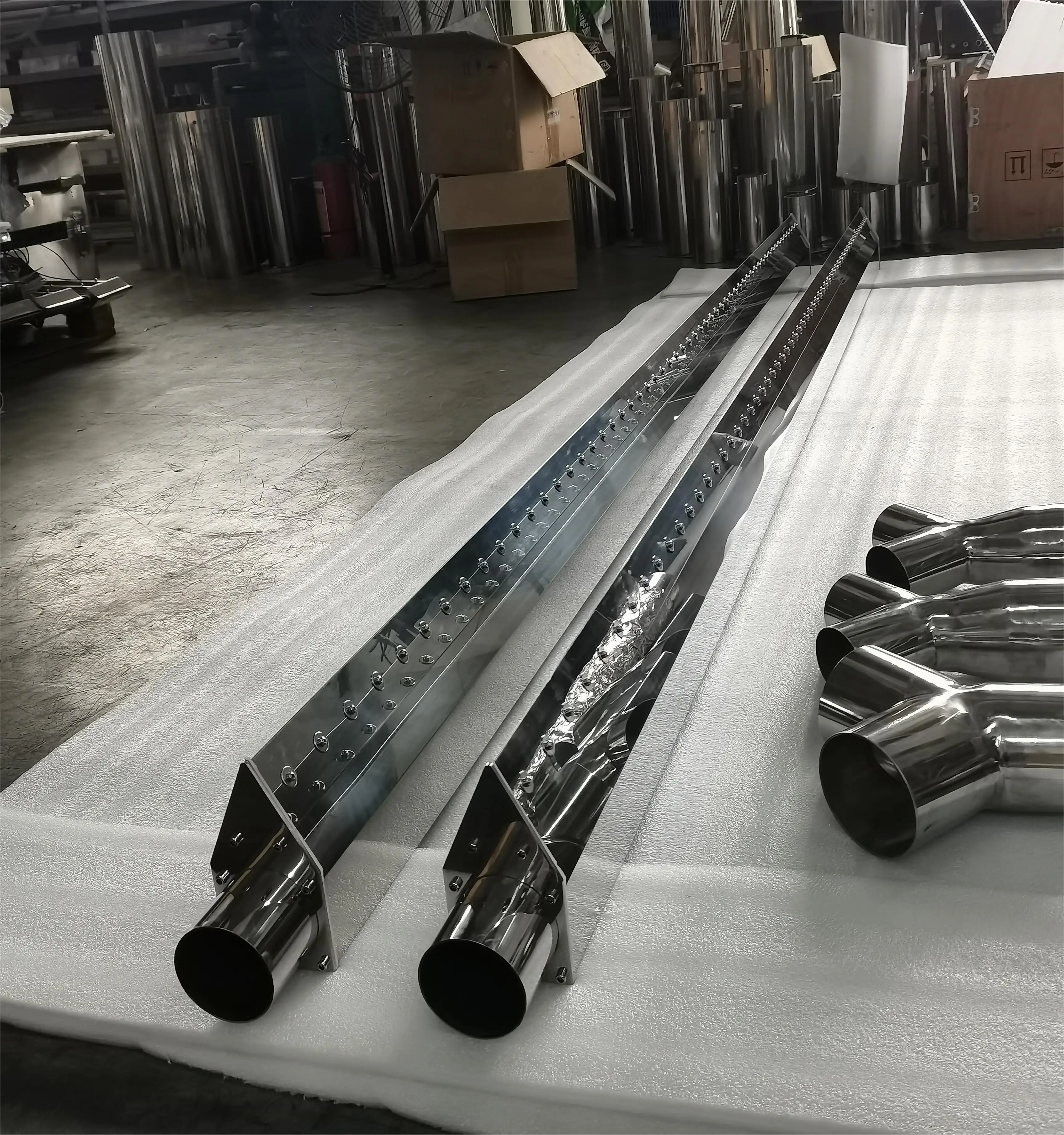

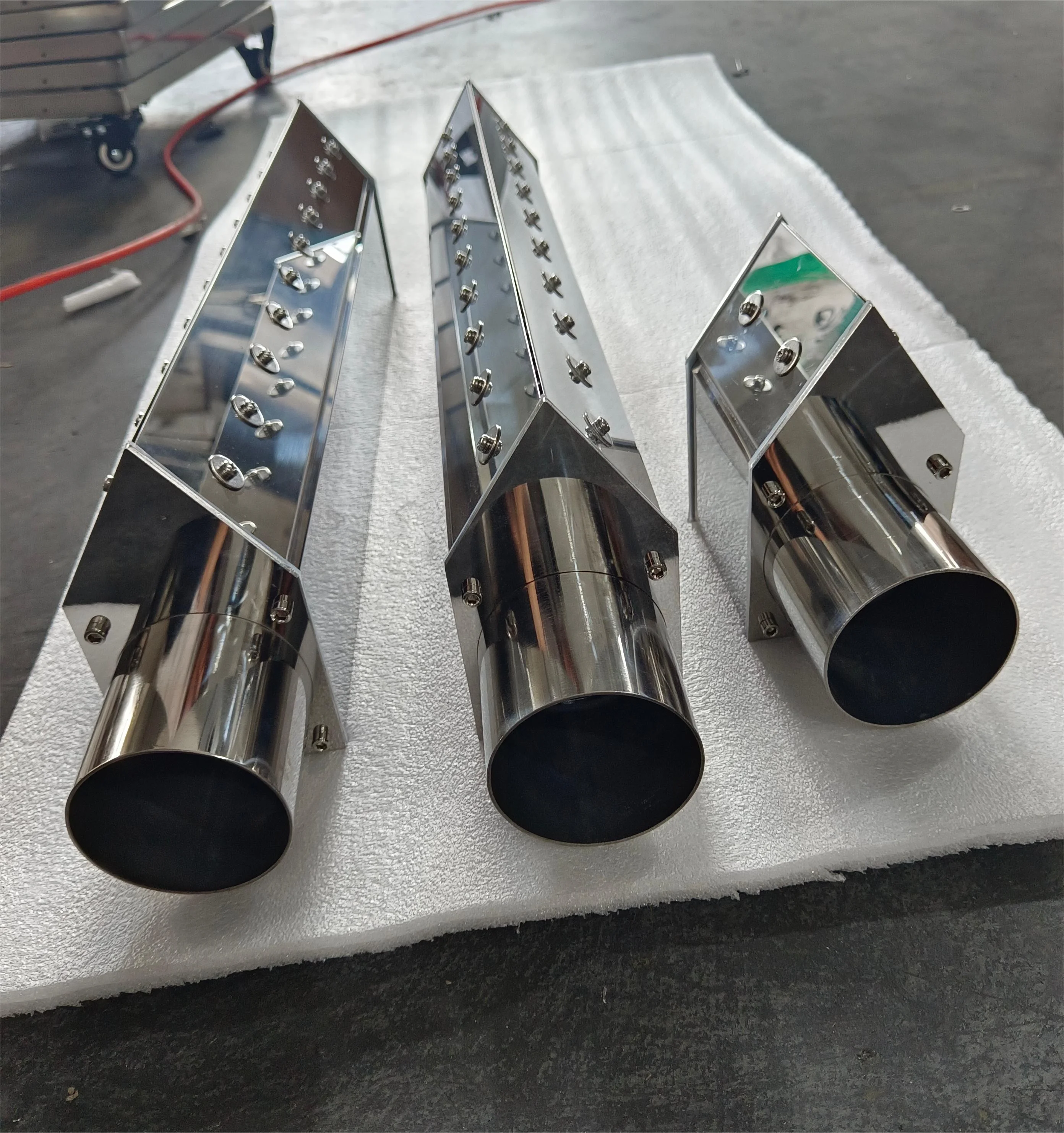

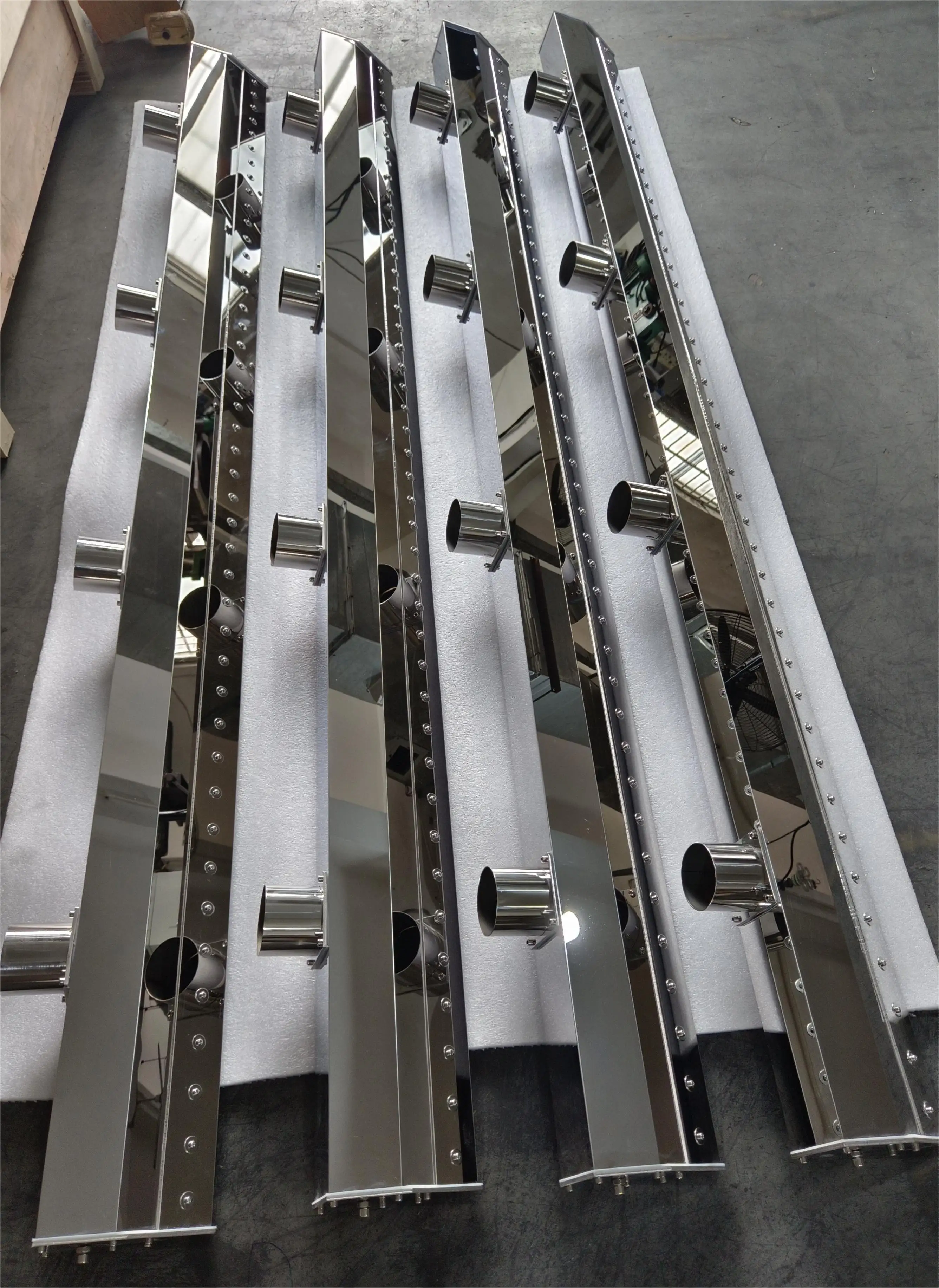

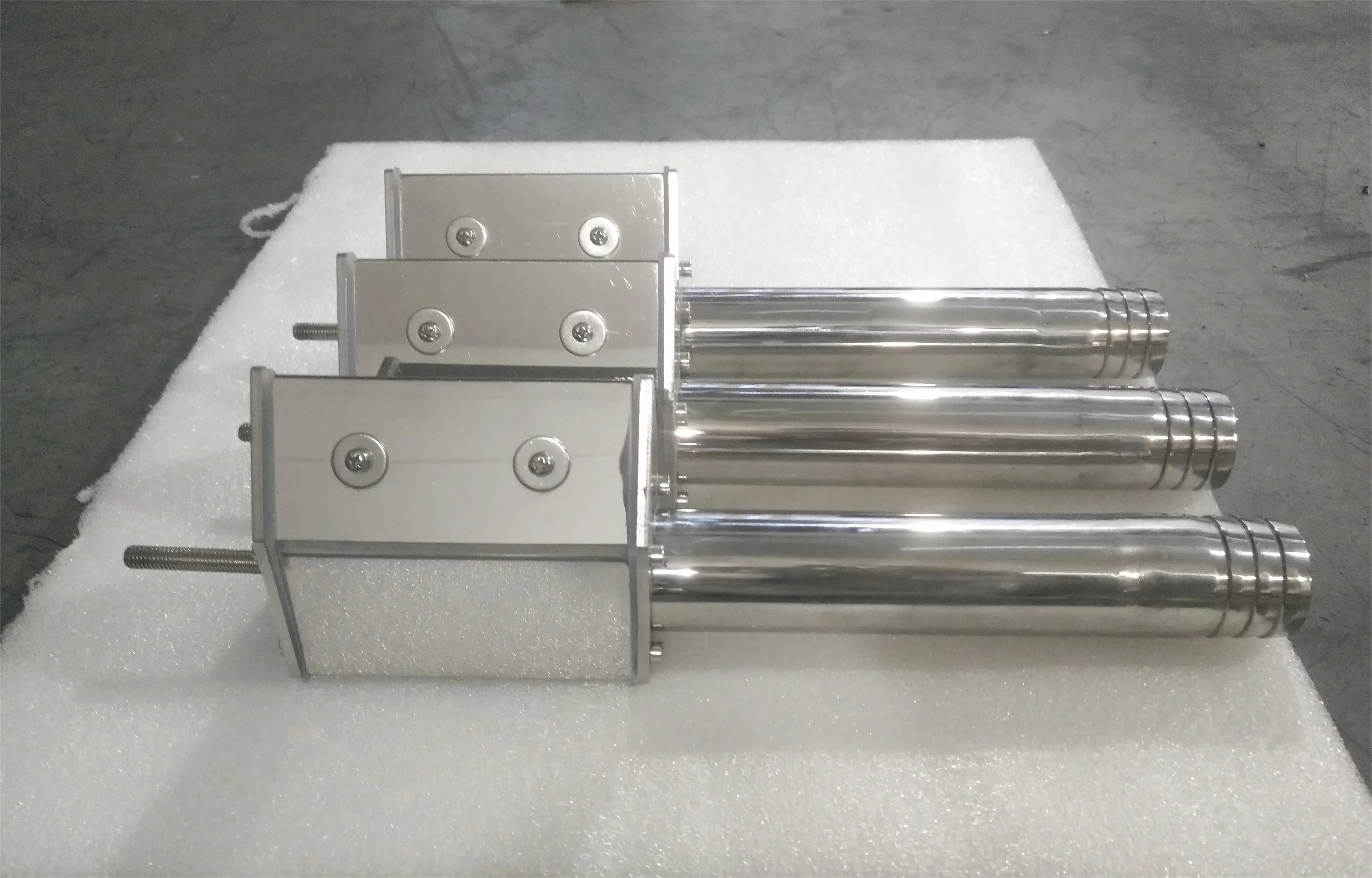

Product Display
Product Characteristics
Product Characteristics：
1. The air knife is made of All Stainless Steel(SUS304 or 316L) material, which has stronger hardness, higher pressure resistance and better precision.2. The width of the air outlet can be adjusted (generally 1mm, minimum 0.1mm, precision can reach 0.1mm); The length can reach 2.4m (customized up to 3m).
2. Air knife body generally withstand pressure 5 kgf/ c㎡, wind speed up to 400 m/s (up to 400 m/s with air shrink machine), temperature 250℃, can be connected to the heater blowing hot air.
3. The product can be used for cleaning, but also for water curtain decoration.
4. In addition to blowing water for drying, it can also be used as an isolation curtain to reduce the loss of cold/hot air.
5. The air knife has very low pressure loss and saves more electricity (up to 60%) than the standard air knife.
6. There are multiple air outlet directions (direct , forward, backward blowing) and adjustable air outlet angles (direct blowing: 53°, 127°, 200°).
Material | All Aluminium alloy, stainless steel |
Length | 50mm to 6000mm ( Customizable) |
Air Outlet Opening-gap | 0.3~3mm (adjustable) |
Air Inlet Specification | Optional inlet specification and positions to meet different kinds of bolt orhose connections. |
Air Source | High pressure positive blowercentrifugal blowerhot-air blower. |
High PressureResistance | 0.2~5bar |
Highest Air Speed | 400m/s |
Highest Temperature Resistance | 250°0 |
Lead Time | 1-7 days after payment |
Delivery | DHL,FedEx,UPS,TNTARAMEX,CDFK,EMS |
Payment Method | T/T, Western Union, PayPal, MasterCard, VISA, Credit Card, Alipay, WeChat pay |
Product Paramenters
Air knife blowing wind
Model: SS
Air knife blowing water
Model: WSS
Model | A | B | C | D | E | F | G | |||||||
25SS-S1 | DN25 | 96 | 200~1000 | M8X50 | 48 | 24 | 41 | |||||||
40SS-S1 | DN40 | 118 | 200~2000 | M8X50 | 59 | 29.5 | 52 | |||||||
50SS-S1 | DN50 | 140 | 200~2000 | M8X50 | 69 | 36.5 | 64 | |||||||
65SS-S1 | DN65 | 166 | 200~2000 | M8X50 | 88 | 44 | 71 | |||||||
75SS-S1 | DN75 | 188 | 200~2000 | M8X50 | 100 | 50 | 81 | |||||||
100SS-S1 | DN100 | 253 | 200~2000 | M8X50 | 126 | 63 | 119 | |||||||
125SS-S1 | DN125 | 300 | 200~2000 | M8X50 | 153 | 76.5 | 140 | |||||||
DN represents its diameter (national standard). Unit: mm | ||||||||||||||
Model | A | B | C | D | E | F | G | |||||||
25SS-T1 | DN25 | 96 | 200~1000 | M8X50 | 48 | 24 | 41 | |||||||
40SS-T1 | DN40 | 118 | 200~2000 | M8X50 | 59 | 29.5 | 52 | |||||||
50SS-T1 | DN50 | 140 | 200~2000 | M8X50 | 69 | 36.5 | 64 | |||||||
65SS-T1 | DN65 | 166 | 200~2000 | M8X50 | 88 | 44 | 71 | |||||||
75SS-T1 | DN75 | 188 | 200~2000 | M8X50 | 100 | 50 | 81 | |||||||
100SS-T1 | DN100 | 253 | 200~2000 | M8X50 | 126 | 63 | 119 | |||||||
125SS-T1 | DN125 | 300 | 200~2000 | M8X50 | 153 | 76.5 | 140 | |||||||
DN represents its diameter (national standard). Unit: mm | ||||||||||||||
Model | Air knife specifications | Basic air volume (Calculated by one air outlet) | Weight (blade + air inlet and baffle) | |||||
Length | Width | |||||||
25SA | 200 ~ 2400 mm | 0.1 ~ 1.0 mm | 2.3 m3/min =138 m3/h | 372g/100mm + 500g(S1) / 520g(S2) | ||||
40SA | 200 ~ 2400 mm | 0.3 ~ 3.0 mm | 4.8 m3/min =288 m3/h | 572g/100mm + 670g(S1)/720g(S2) /850g(T1)/1050g(T2)/1255g(T3) | ||||
50SA | 300 ~ 2400 mm | 0.3 ~ 5.0 mm | 7.6 m3/min = 456 m3/h | 606g/100mm + 790g(S1)/776g(S2)/ 972g(T1)/1208g(T2)/1532g(T3) | ||||
65SA | 300 ~ 2400 mm | 0.3 ~ 5.0 mm | 12.8 m3/min =768 m3/h | 636g/100mm + 900g(S1)/846g(S2)/ 1040g(T1)/1408g(T2)/1732g(T3) | ||||
75SA | 300 ~ 2400 mm | 0.3 ~ 6.0 mm | 17.1 m3/min =1026 m3/h | 666g/100mm + 1010g(S1)/902g(S2)/ 1092g(T1)/1608g(T2)/1932g(T3) | ||||
100SA | 300 ~ 2400 mm | 0.3 ~ 6.0mm | 30 m3/min =1800 m3/h | 696g/100mm + 1120g(S1)/902g(S2)/ 1212g(T1)/1808g(T2)/2132g(T3) | ||||
125SA | 300 ~ 2400 mm | 0.3 ~ 8.0 mm | 48 m3/min =2880 m3/h | 726g/100mm + 1240g(S1)/958g(S2)/ 1332g(T1)/2008g(T2)/2332g(T3) | ||||
S1, S2 refers to: The air inlet is on the Side of the air knife; S1 refers to one air inlet, S2 refers to two air inlet. T1, T2, T3 refers to: The air inlet is on the Top of the air knife; T1 refers to one air inlet, T2 refers to two air inlet, T3 refers to three air inlet. (The pictures can refer to the above shown pictures ) | ||||||||
Recommend Products
Company Profile
Certifications
Packing & Delivery
FAQ
1. Are you manufacturer or trading company?
Re: We are manufacturer, professional for produce hot air fan, portable small hot air fan, cold and hot air knife drying system, hot fan, hot blast stove and so on.
2. What is the highest temperature it can reach?
Re: Can be formulated according to your requirements, the maximum temperature can reach 900 degrees above.
3. The airflow and temperature can be adjusted?
Re: Yes of course.
4. How long can we transport the goods ?
Re: a. In stock commodity: 1-5 days to pack and pass customer inspection.
b. Non-stock commodity: 20 days after payment.
5. This is the first time to use Alibaba, how i can make purchase?
Re: Don't worry, you just only need contact us, confirm with us the product you need and your request, then we will choose model for you, and we will help you make Alibaba order, then you can pay.
6.How to transport goods?
Re: We transport goods as your requirement. Depending on the quantity and whether it's urgent or not, ship via express, or by air, or by sea.
Any other question welcome to communicate with us.
Re: We are manufacturer, professional for produce hot air fan, portable small hot air fan, cold and hot air knife drying system, hot fan, hot blast stove and so on.
2. What is the highest temperature it can reach?
Re: Can be formulated according to your requirements, the maximum temperature can reach 900 degrees above.
3. The airflow and temperature can be adjusted?
Re: Yes of course.
4. How long can we transport the goods ?
Re: a. In stock commodity: 1-5 days to pack and pass customer inspection.
b. Non-stock commodity: 20 days after payment.
5. This is the first time to use Alibaba, how i can make purchase?
Re: Don't worry, you just only need contact us, confirm with us the product you need and your request, then we will choose model for you, and we will help you make Alibaba order, then you can pay.
6.How to transport goods?
Re: We transport goods as your requirement. Depending on the quantity and whether it's urgent or not, ship via express, or by air, or by sea.
Any other question welcome to communicate with us.
https://xiangfeng08.en.alibaba.com/custom_page/Page2.html
telephone number：13318704361
Address：2nd Floor, No. 5, Xiaojing East Road, Huangpu District, Guangzhou City, Guangdong Province.
telephone number：13318704361
Address：2nd Floor, No. 5, Xiaojing East Road, Huangpu District, Guangzhou City, Guangdong Province.
Похожие товары
Ручной держатель для шланга
13 012,31 ₽ - 16 265,39 ₽
Импортный плунжерный насос высокого давления YOOC Italy, 200 бар, 20 мПа, 21 л/мин, трехцилиндровый плунжерный насос
60 724,11 ₽ - 61 808,47 ₽

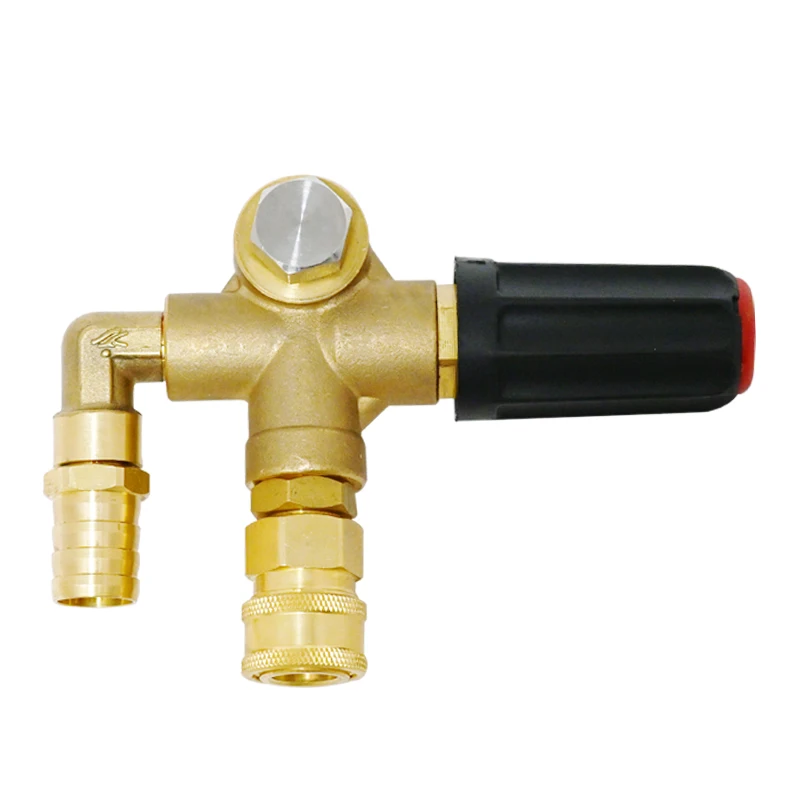

Доступны оптовые заказы, наружный Обход с болтом 45/200 бар, разгрузочный клапан, регулятор давления
3 253,08 ₽ - 5 421,80 ₽
Надежный двигатель японского производства 200 бар 34 л/мин с насосом UDOR и антивибрационным шасси для автомобильных уличных уборщиков
303 620,52 ₽ - 314 464,11 ₽
Итальянский верхний насос, оригинальный UDOR - CXC 22/50-GR, 1-дюймовый вал, 500 бар, сверхбольшой плунжерный насос высокого давления
105 182,83 ₽ - 106 267,19 ₽

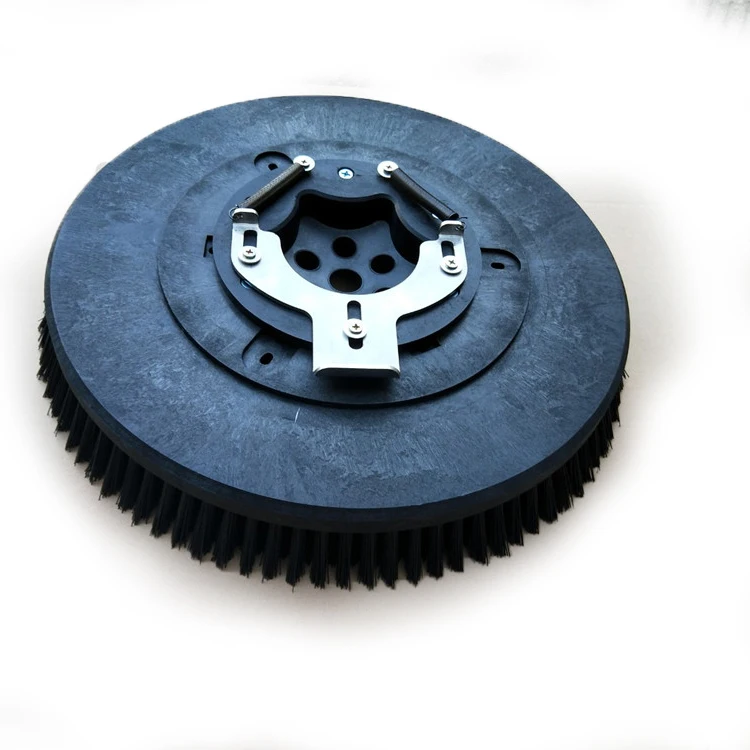

Gaomei машина для очистки пола GM230/GM160 запасные части вращающаяся дисковая
