Высококачественный специальный соэкструдер FAYGO UNION для экструзионной машины производства ПВХ профиля
- Категория: >>>
- Поставщик: Jiangsu Faygo Union Machinery Co. Ltd.
Сохранить в закладки 1600934582315:
Описание и отзывы
Характеристики
Production Introduction

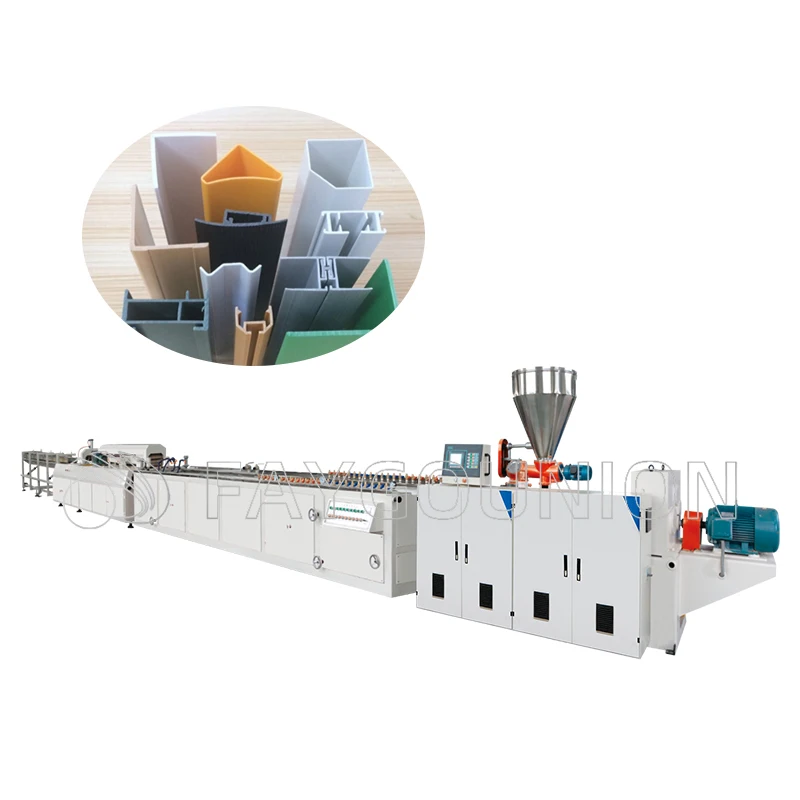

PLASTIC PROFILE EXTRUSION PRODUCTION LINE
>>For production of soft PVC profile, rigid PVC profile, soft-hard co-extrusion profile,foam profile extrusion, multi layer
co-extrusion etc.
co-extrusion etc.
>>Process Flow: Screw Loader →cone / parallel Twin Screw Extruder/Single screw extruder → Co-extrusion machine → Mould → Calibration Table →
Haul-off & Cutter →Tripping Table → Final Product Inspecting & Packing
Haul-off & Cutter →Tripping Table → Final Product Inspecting & Packing
Specification
Conical twin screw extruder
• World famous brand electrical component such as Siemens,Schneider, ABB etc;
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface.

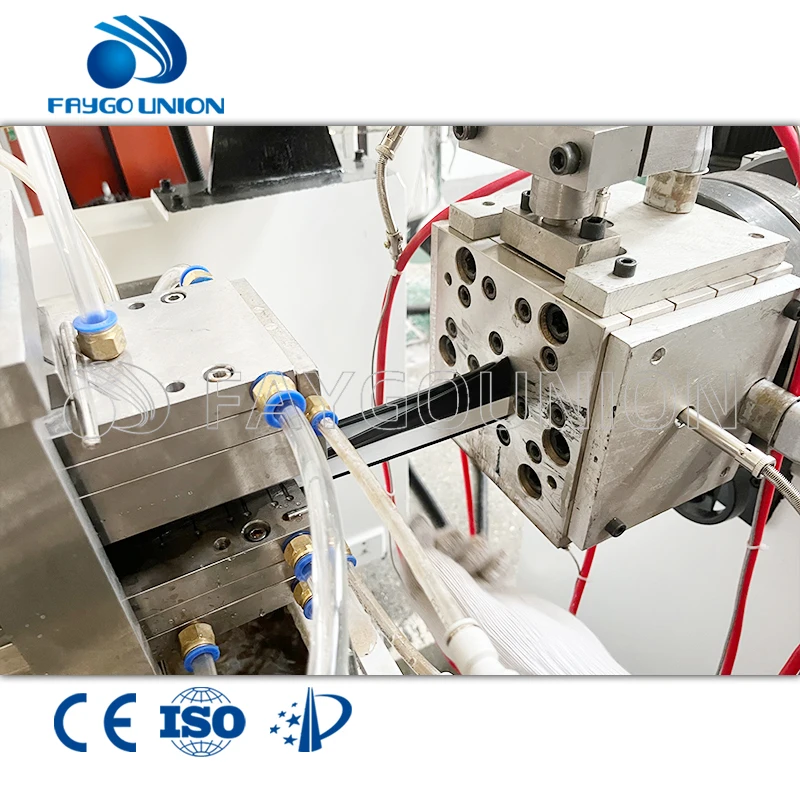

Die head
• 3Cr13/3Cr17 material;
•Complete set include extrusion die head, calibrator and cooling tank;
• Apply to soft PVC, rigid PVC, soft-hard co-extrusion profile, foamed profile, multi-layers co-extrusion etc.

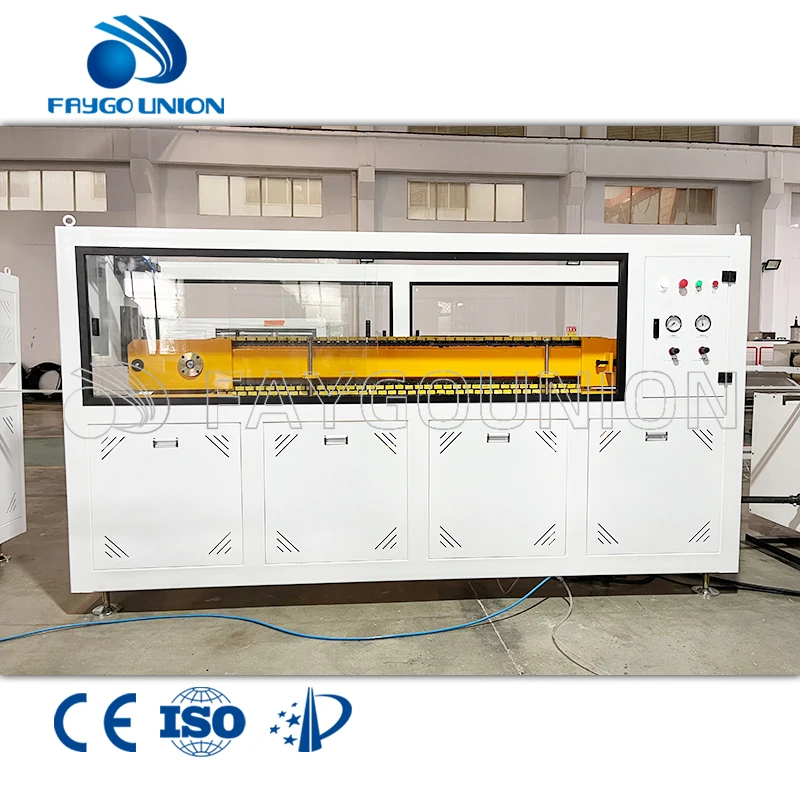

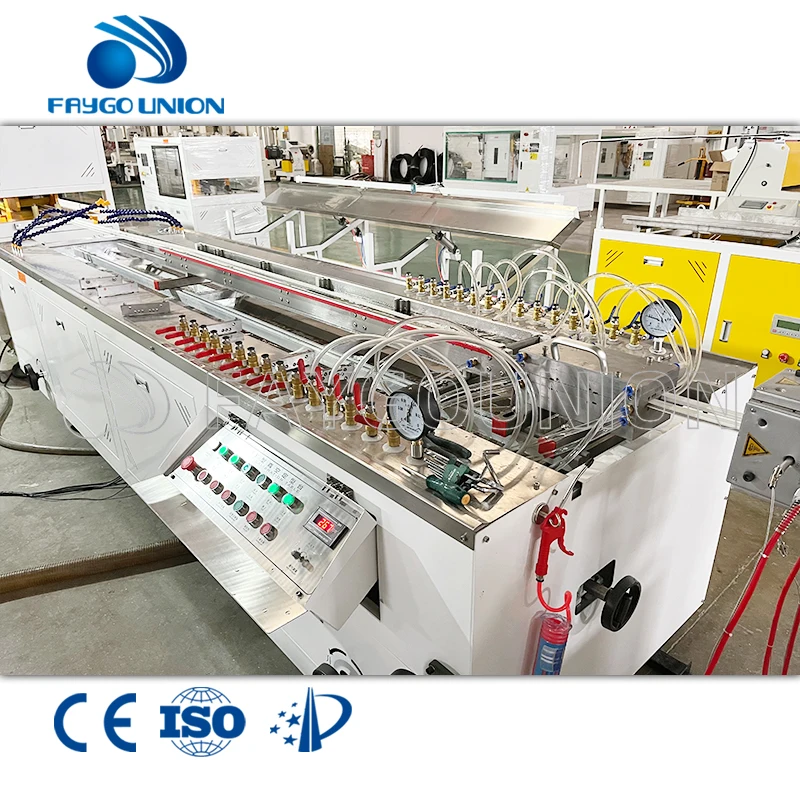

Calibration table
• Include full set of vacuum and water pump;
• Length from 4m-11.5m
• Independent operation panel for easy operation.

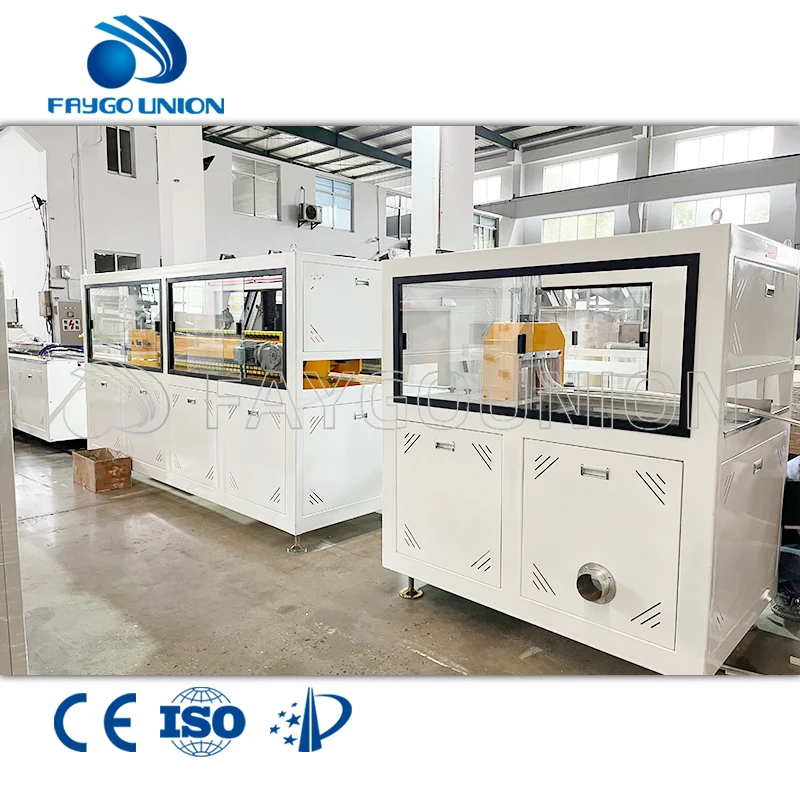

Haul off&Cutter
• Upper and lower caterpillar is driven separately and speed control by frequency inverter;
• Upper and lower caterpillar is driven separately and speed control by frequency inverter;
• Fast change type pads for easy operation;
• Install plate is adopts aluminum material;
• Compacting driving by pneumatic;• Tracking cutter or lifting saw cutter with adopts double station dust collection system;
• Synchronous driving by air cylinder or servo motor control.
Stacker
• Stainless steel304 as touching material;
• Stainless steel304 as touching material;
• Discharge driving by air cylinder.
Product Paramenters
Max. profile width(mm) | Extruder model | Designed capacity(kg/h) | Extruder motor power(kw) |
180 | FG 51/105 or 55/110 | 80-120/120-150 | 18.5/22 |
240 | FG 65/132 | 175-250 | 37 |
300 | FG 65/132 | 175-250 | 37 |
400 | FG 65/132 or 80/156 | 175-250/250-350 | 37/55 |
600 | FG 65/132 or 80/156 | 175-250/250-350 | 37/55 |
800 | FG 80/156 | 280-350 | 55 |
Why Choose Us
1. Technical innovation: As a nationally certified high-tech enterprise, our company places great emphasis on technical innovation. We absorb advanced European experience and constantly innovate to improve our products and services.
2. Professional team: Our company has over 100 employees, including engineers, technical staff, sales personnel, etc. They can provide customers with comprehensive services and support.
3. Wide customer base: Our company has a wide customer base covering 150 countries around the world.
4. Market experience: With 23 years of experience in the plastic machinery industry, our company has profound market experience and industry knowledge to provide customers with material ratio and factory opening advice.
5. Trustworthy: Our comp any has been on Alibaba International Station for 13 years with very few post-sale problems. Our engineers can provide overseas services and we provide one-year quality assurance to ensure our customers' maximum benefits.
3. Wide customer base: Our company has a wide customer base covering 150 countries around the world.
4. Market experience: With 23 years of experience in the plastic machinery industry, our company has profound market experience and industry knowledge to provide customers with material ratio and factory opening advice.
5. Trustworthy: Our comp any has been on Alibaba International Station for 13 years with very few post-sale problems. Our engineers can provide overseas services and we provide one-year quality assurance to ensure our customers' maximum benefits.
FAQ
1. Who are we?
We are based in Jiangsu China, start from 2010, sell to Domestic Market (22.00%), Africa (20.00%), Western Europe(13.00%), South America (10.00%), Southeast Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Southern Europe(5.00%), South Asia(5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Plastic extrusion line (Pipe, Sheet, Board, recycling machine), PET bottle blowing machine and air compressor.
4. Why should you buy from us not from other suppliers?
* Over 20 years' experience on R & D.
We are based in Jiangsu China, start from 2010, sell to Domestic Market (22.00%), Africa (20.00%), Western Europe(13.00%), South America (10.00%), Southeast Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Southern Europe(5.00%), South Asia(5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Plastic extrusion line (Pipe, Sheet, Board, recycling machine), PET bottle blowing machine and air compressor.
4. Why should you buy from us not from other suppliers?
* Over 20 years' experience on R & D.
* Over 100+ employees.
* Over 20000+ square meters factory
* 24 hours' online service.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery,DAF, DES；
Accepted Payment Currency: USD, EUR, JPY, CAD, HKD, GBP, CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery,DAF, DES；
Accepted Payment Currency: USD, EUR, JPY, CAD, HKD, GBP, CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
Похожие товары

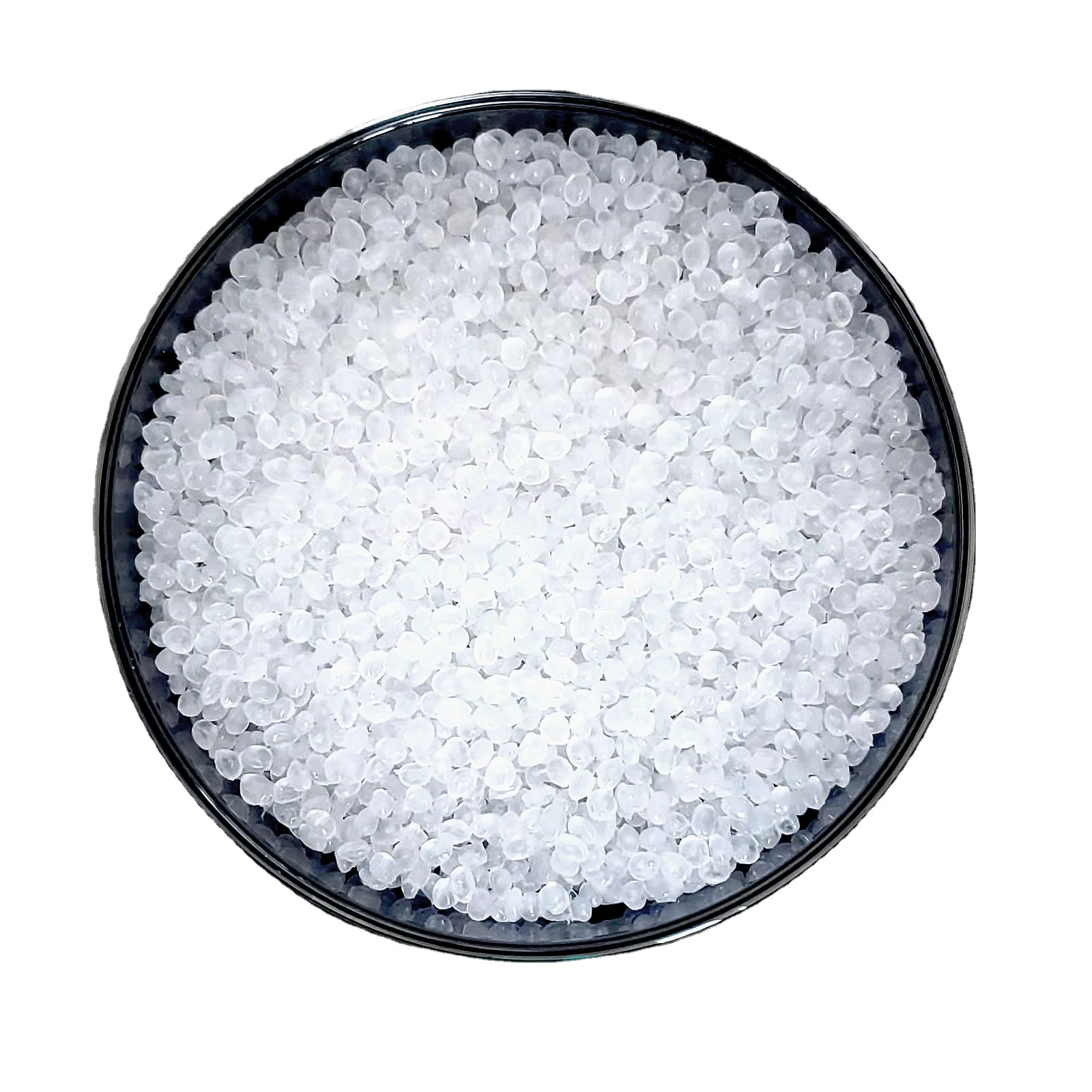

Химические добавки полипропилен привитый МАЛЕИНОВЫЙ ангидрид MAPP для усиления удара
1,94 $ - 2,04 $

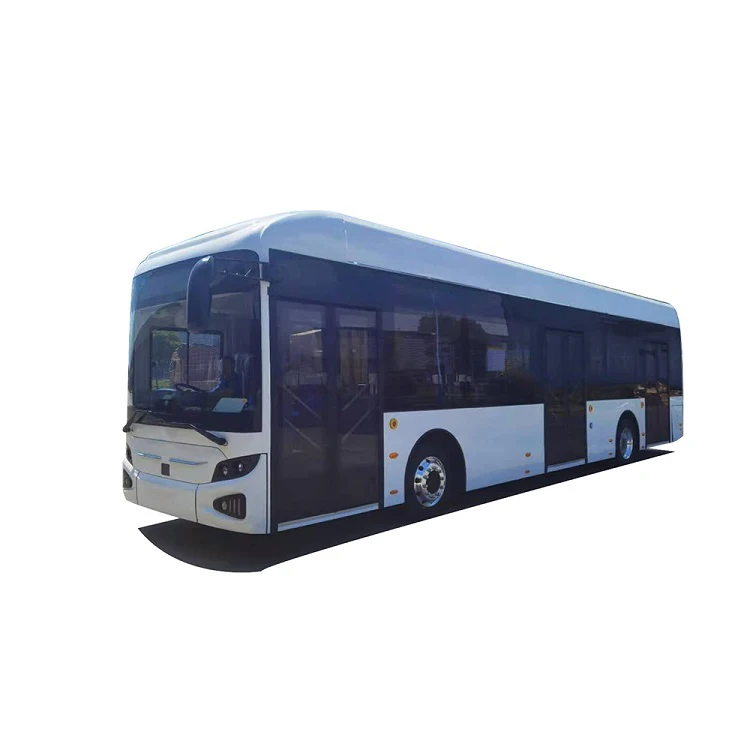

Беспробежное расстояние, 250 км, 25 мест, городской транспорт, электрические автобусы с сертификатом CE
285 000,00 $ - 290 000,00 $
Полиметилметакрилат косметического класса нано-Ультратонкий размер частиц высококлассный крем для макияжа Pmma
Баночка для шаровой мельницы из карбида вольфрама
Стельки из углеродного волокна для торба, переломов ног, Hallux жесткий и limitusжесткий обувной вкладыш для спорта, hikingхайкинга, баскетбола
9,95 $ - 11,75 $

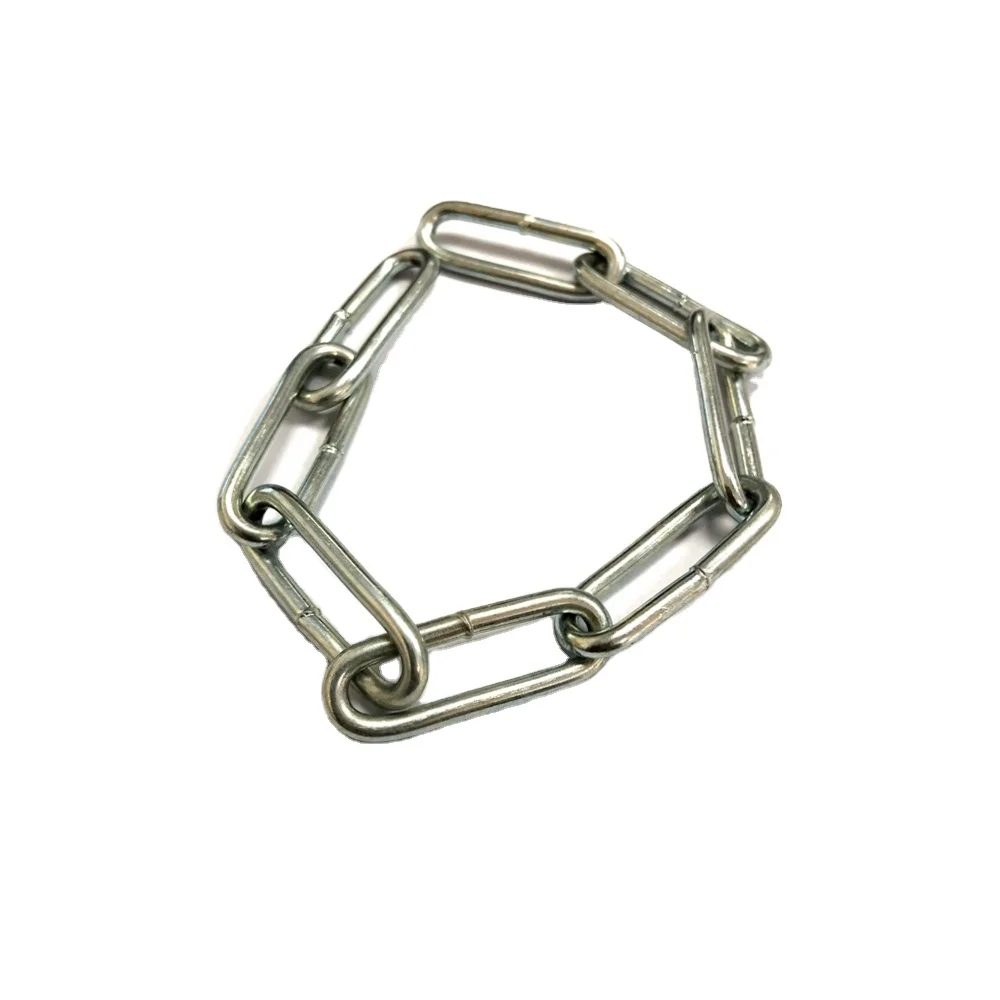

Оцинкованная полированная витая короткая цепь из нержавеющей стали
