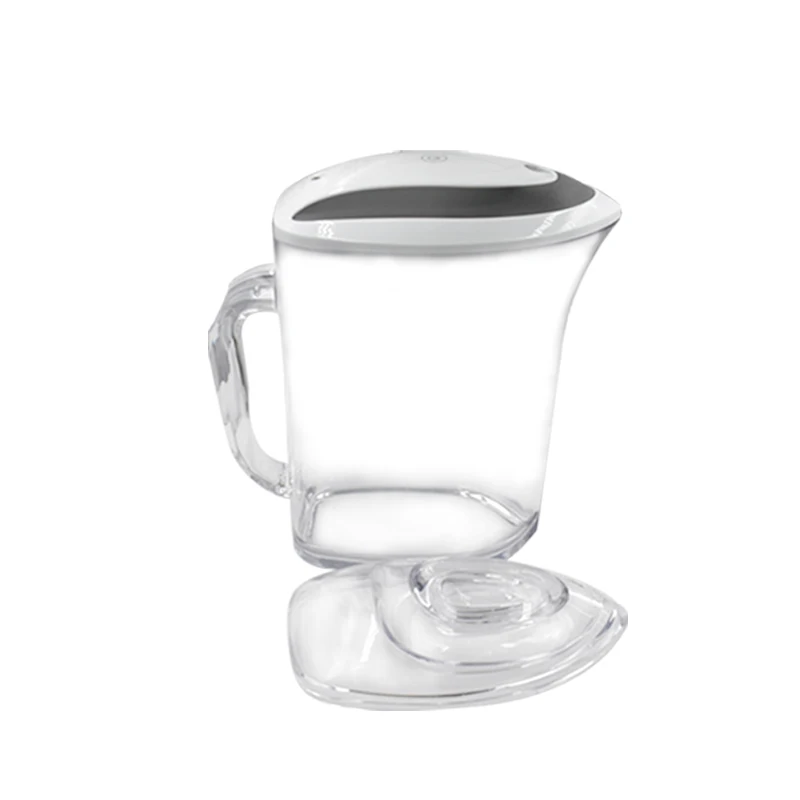

Популярный 5000 + чашка высокой концентрации ppb H2 водородная бутылка для воды
4 229,01 ₽ - 5 313,36 ₽
Сохранить в закладки 1600935180203:
Subject | Other hydrogen water cup samples | Suyzeko improves hydrogen water cups | Advantages | ||
Technology | SPE technique (hydrogen and oxygen separation) | SPE (h2 and o2 separation) | 1.Increase pressure decoration of the electrolytic cell (increase the titanium sticky electrode sheet) 2.Increase waterproof sealing ring in the electrolytic cell (make the hydrogen and oxygen separation more pure) 3.Optimization of internal structure of electrolyzer (application for practical patent and appearance patent) | ||
Electrode plate material | Titanium plated with platinum | Titanium plated with platinum | Cathode/anode electrode sheet size increased by 1 mm (increased electrolytic area) | ||
Diaphragm | Proton membrane | Dupont 117 proton membrane + gold-plated surface | Not tested for now | ||
Mode of charging | Magnetic suction round hole charging 5V | Magnetic suction round hole charging 5V | There is no filling around the PIN needle in the middle of the sample charging head, which is easy to deform during use, leading to poor charging and no waterproof function at the same time. The improved charging head is filled with high-temperature resistant nylon rubber plug around the PIN needle to solve the above problems. | ||
Concentration of h2 | 1800ppb/5min 4500ppb/10min | 2500ppb/5min 6000ppb/10min | The same brand of hydrogen concentration reagent | ||
Cup body system | Exposed matching bar | Fit in tight | 1.improve the appearance (overall coordination, can not see the matching bar)2.cup body ultrasonic line structure modification (ultrasound tight, withstand 5 kg pressure without water leakage) | ||
Cup lid structure | Double seal ring bearing pressure | Sealing ring + ball bearing pressure | The max pressure of the sealing ring is 2 kg, the pressure of the ball plus sealing ring is 5 kg (application for practical patent) | ||
Others | Patents | Patents | 1.Apply for appearance patent, with display screen and cup body pattern (original sample not applied) 2.There were 5 applicationsmfor utility model patents | ||
