12V200ah Sunway гель глубокого цикла перезаряжаемый аккумулятор для хранения солнечной батареи без обслуживания свинцово кислотный

Сохранить в закладки 1600935379537:


Цена:80,00-100,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description




Key Features :
♦Gelled electrolyte made by mixing sulfuric acid with silica fume.
♦The electrolyte is gel like ,immobile and does not leak ,enabling uniform reaction of each part of the plate .
♦High rate discharge performance due to tight assembly technology.
♦Strong heat dissipation and wide operating temperature range.
♦Avoid acid mist being separated out , environment friendliness.
♦Efficient venting system release excessive gas automatically.




Specifications


GEL Battery Technology Data
Model
LCPC100-12-GEL
LCPC150-12-GEL
LCPC200-12-GEL
LCPC250-12-GEL
Reted Voltage
12v
12V
12V
12V
Capacity(10hr,1.80v/cell)
100Ah
150Ah
200Ah
250Ah
Weight
31kg
45kg
57kg
72kg
Max Discharge Current
30I10A(3min)
Max Charge Current
<0.25C10
Self¬ Discharge (25 °C)
<3%/month
Recommended Using Temperature
15 °C 〜25 °C
Cover Material
ABS
Using Temperature
Discharge:-45 °C 〜50 °C Charge: -20°C~45°C Storage: -30°C〜40°C
Charge Voltage (25 °C)
Float Charge: 13.5V-13.8V Average Charge: 14.1V-14.4V


Charge Mode(25°C)
Float Charge:2.275±0.025V/Cell Temperature
Compensation Coefficient :±3 mV/Cell °C
Cycle Charge:2.45±0.05V/Cell Temperature
Compensation Coefficient: ±5 mV/Cell °C

Cycle life
100%DOD 572times
50%DOD 1422 times
30%DOD 2218times

Capacity Affected by Temperature
105 % @40°C
85 % @0°C
60 % @ -20 °C


Product Details





ABS Container
>corrosion resistance
>High pressure resistance
>high temperature resistance





Lead Plate
>Choose raw material No.1 lead
>Advanced die casting technology
>High hardness, with big current discharge, will not bend.





Copper Terminal
>Excellent electrical conductivity
>Provide connectors and copper medals
>Strong corrosion resistance

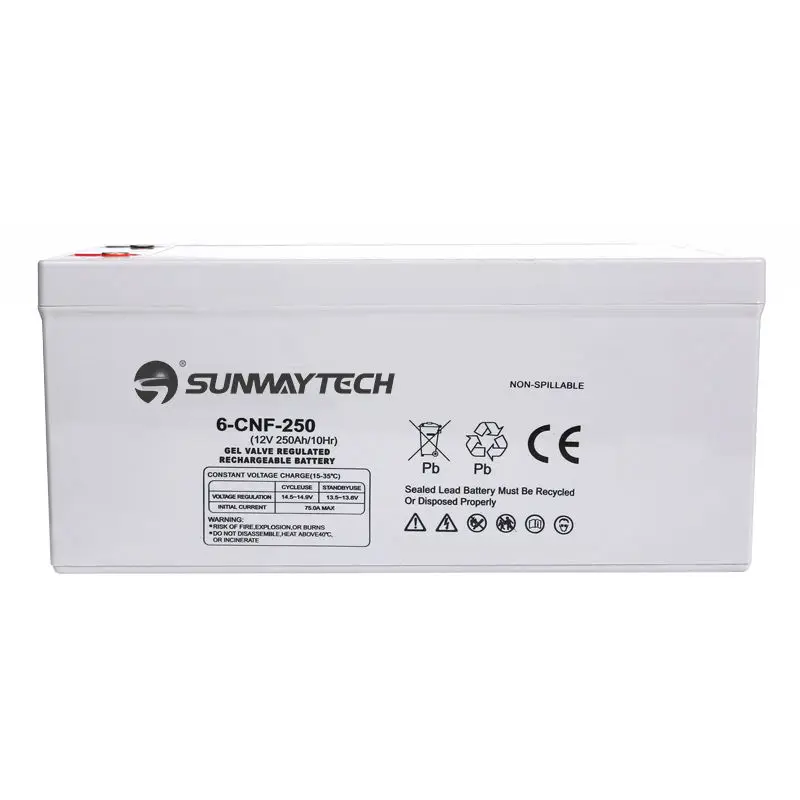

LCPC100-12-GEL
LCPC150-12-GEL




LCPC200-12-GEL
LCPC250-12-GEL

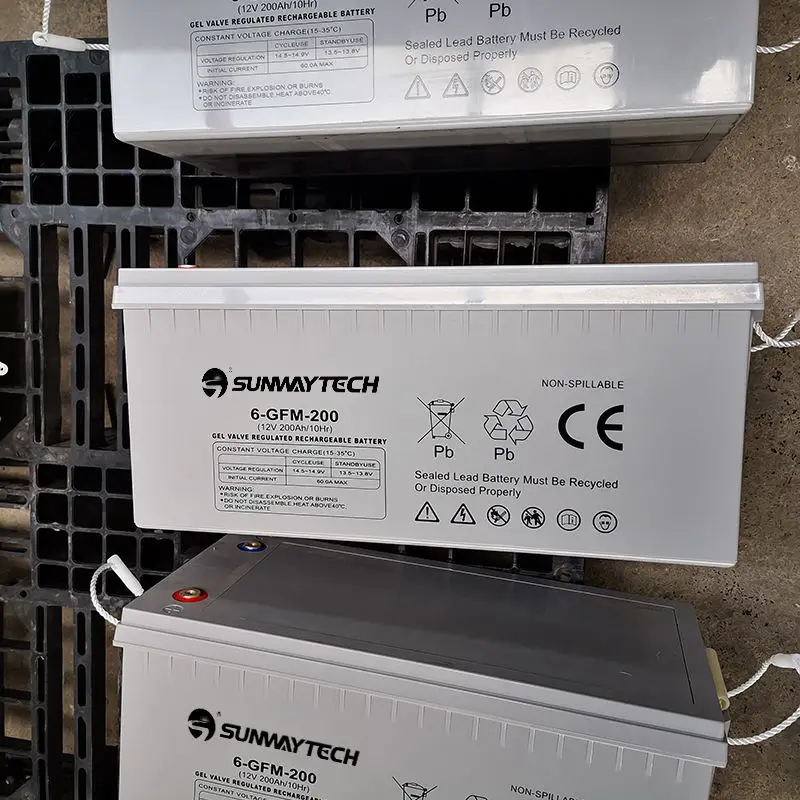

Product Packaging

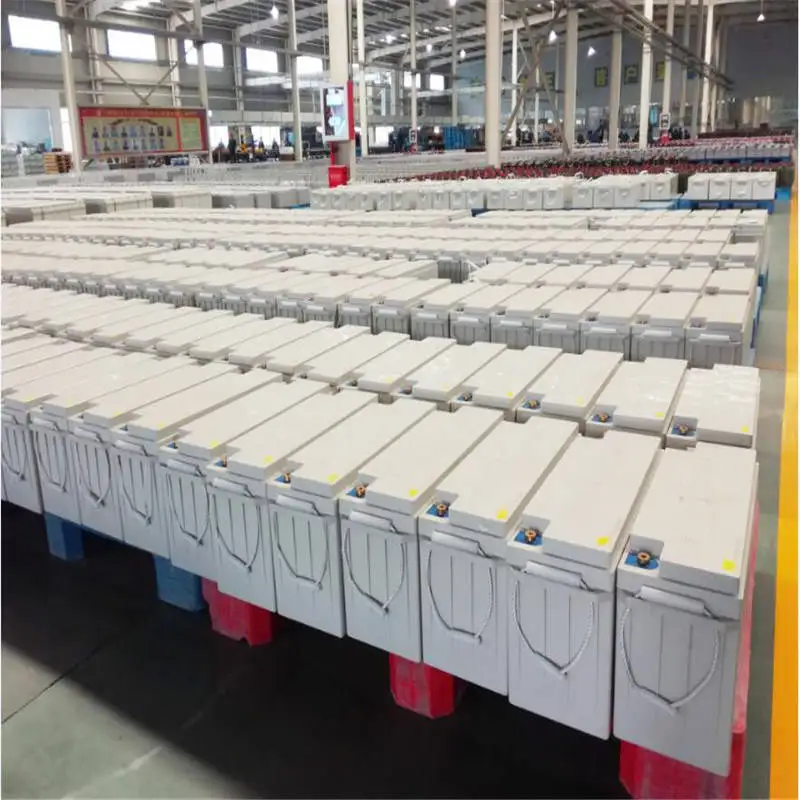

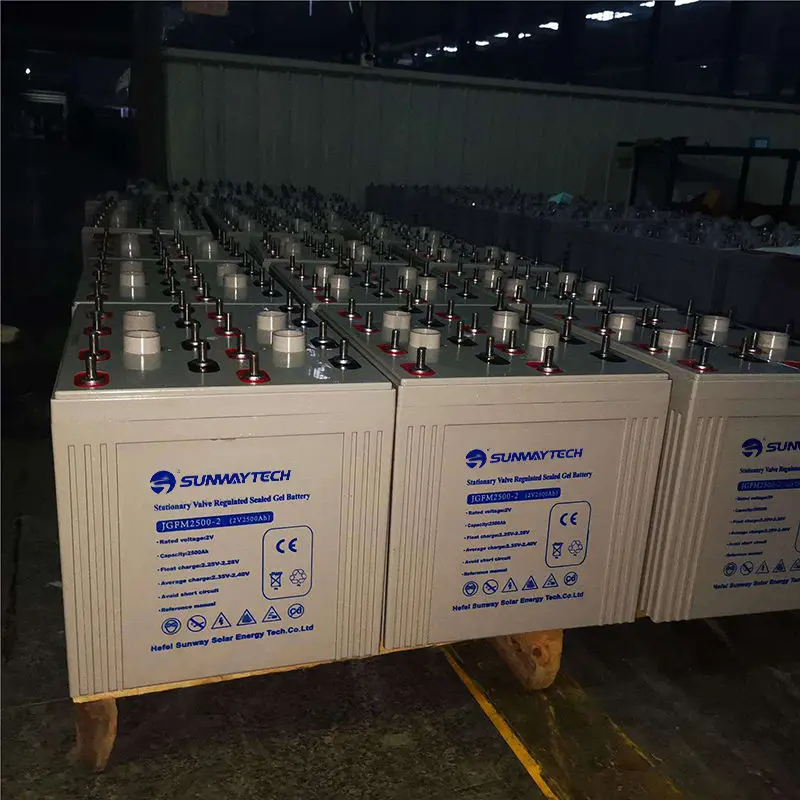

Our Factory






Certifications
