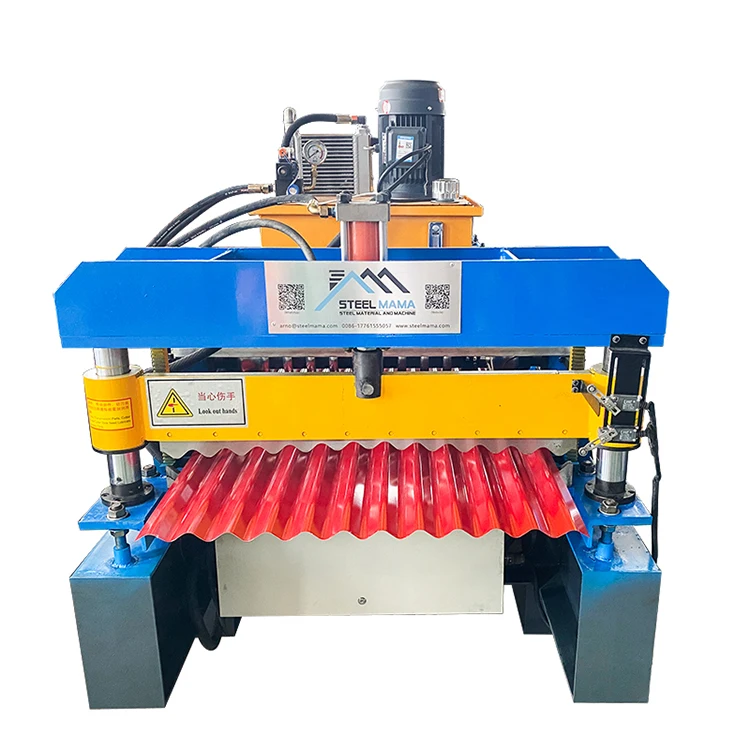

Горячая распродажа, трехслойная оцинкованная гофрированная стальная трапециевидная кровельная листовая машина
1 093 934,00 ₽ - 1 312 720,80 ₽

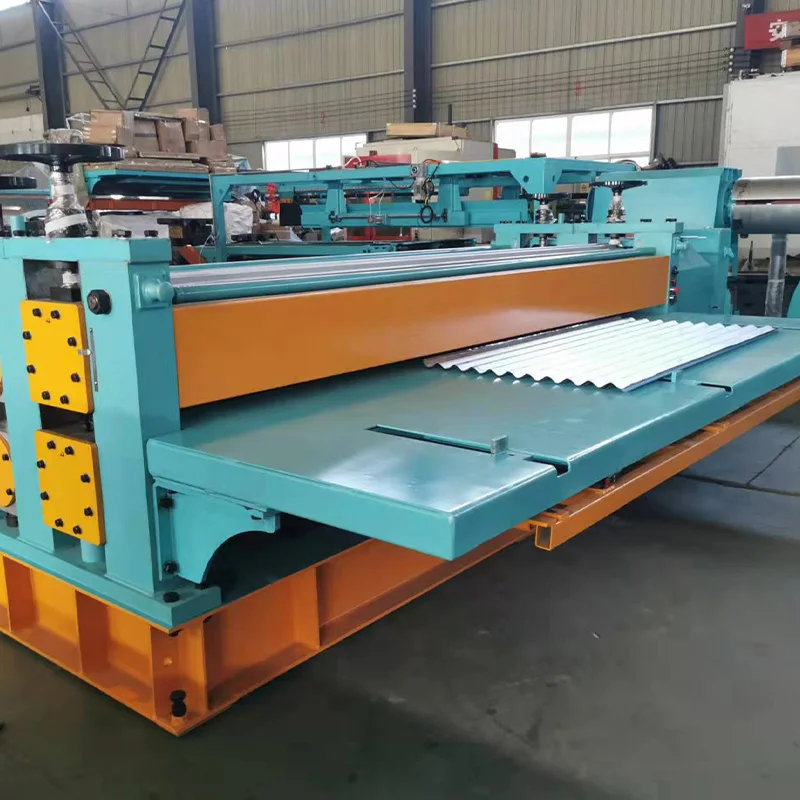

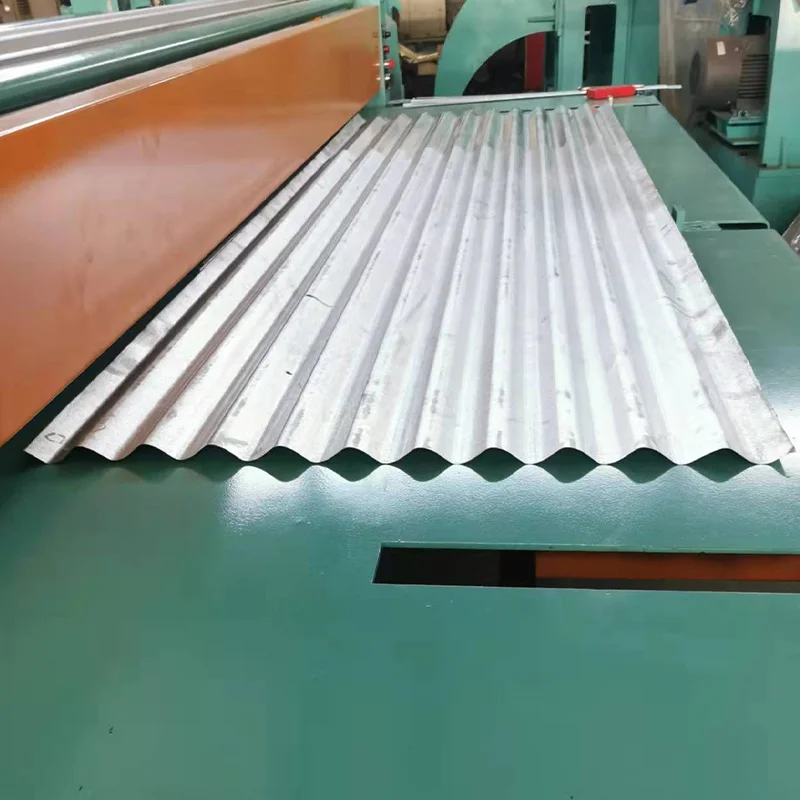

Машина для производства листового железа
- Категория: >>>
- Поставщик: Wuxi Sunway Machinery Co. Ltd.
Сохранить в закладки 1600935477890:
Описание и отзывы
Характеристики
Product Description

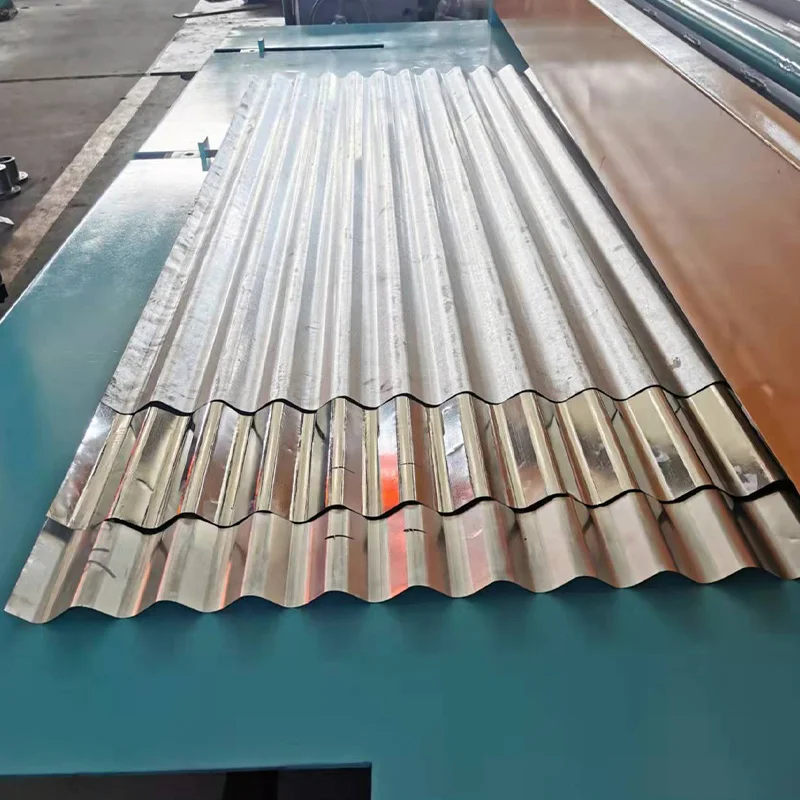

Barrel corrugated panel roll forming machine is used to produce sinusoidal wave shape panels. Normally the panel thickness is 0.12-0.3mm with FULL HARD Galvanized steel, yield strength can be up to 550Mpa even 600Mpa.
The Barrel corrugated roll forming machine is mainly composed of drive motor, reducer, transmission system, forming roller, flat roller, automatic feeding platform and electrical control cabinet. The machine adopts low speed, high torque, low inertia AC motor with a v belt drive to the hardened reducer with double output shaft，to achieve the purpose of transmission and deceleration. The automatic feeding of the working roller is always carried out by the timing chain and the linear guide rail，thus ensuring the stability of the product.
In Construction Industries, we are able to manufacture more machines like main channel roll forming machine, purlin roll forming machine, drywall roll forming machine, stud roll forming machine, track roll forming machine, top hat roll forming machine, clip roll forming machine, metal deck (floor deck) roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine, corrugated roll forming machine, ridge cap roll forming machine, downspout roll forming machine, etc.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.
The Barrel corrugated roll forming machine is mainly composed of drive motor, reducer, transmission system, forming roller, flat roller, automatic feeding platform and electrical control cabinet. The machine adopts low speed, high torque, low inertia AC motor with a v belt drive to the hardened reducer with double output shaft，to achieve the purpose of transmission and deceleration. The automatic feeding of the working roller is always carried out by the timing chain and the linear guide rail，thus ensuring the stability of the product.
In Construction Industries, we are able to manufacture more machines like main channel roll forming machine, purlin roll forming machine, drywall roll forming machine, stud roll forming machine, track roll forming machine, top hat roll forming machine, clip roll forming machine, metal deck (floor deck) roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine, corrugated roll forming machine, ridge cap roll forming machine, downspout roll forming machine, etc.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

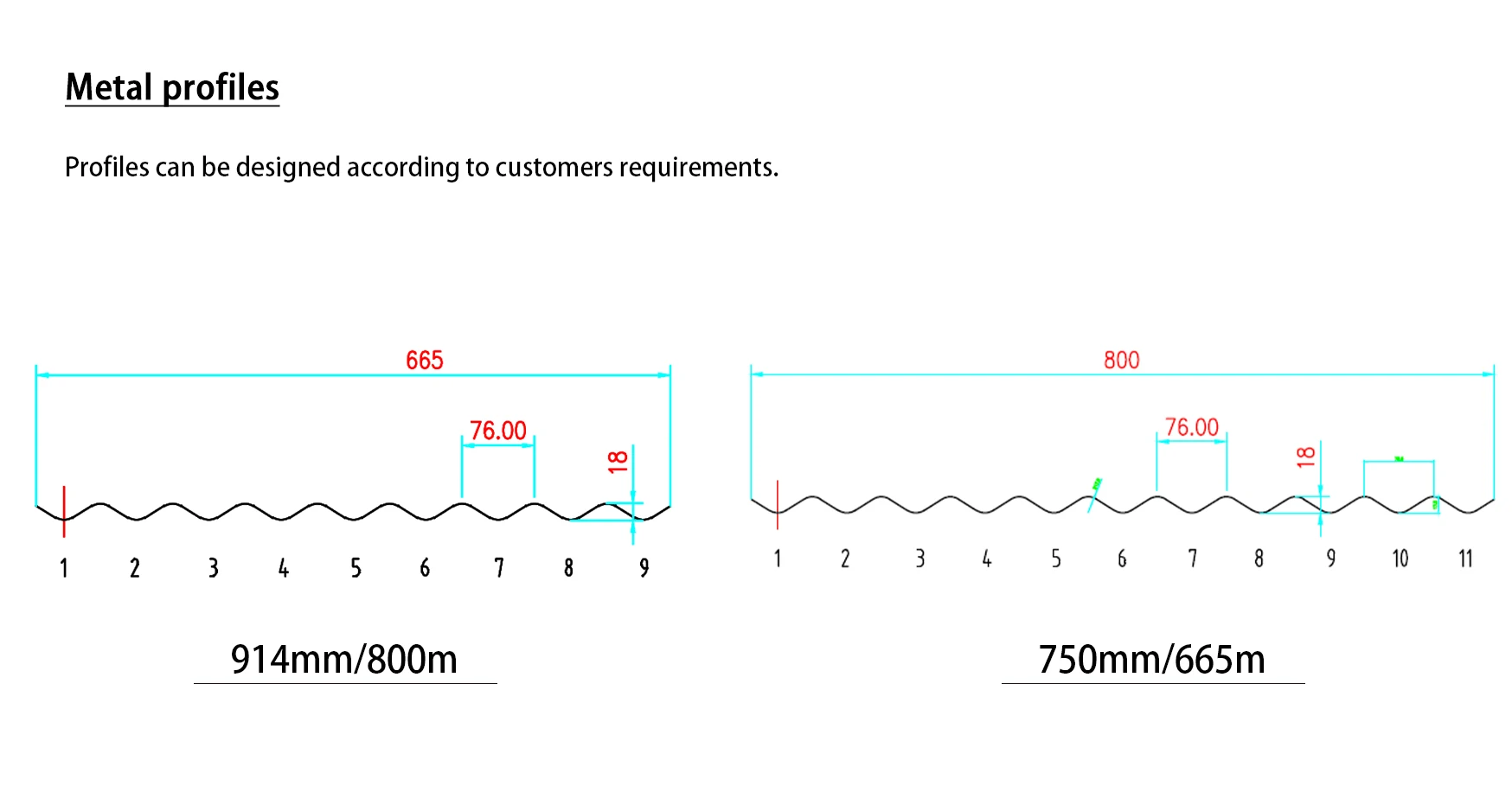

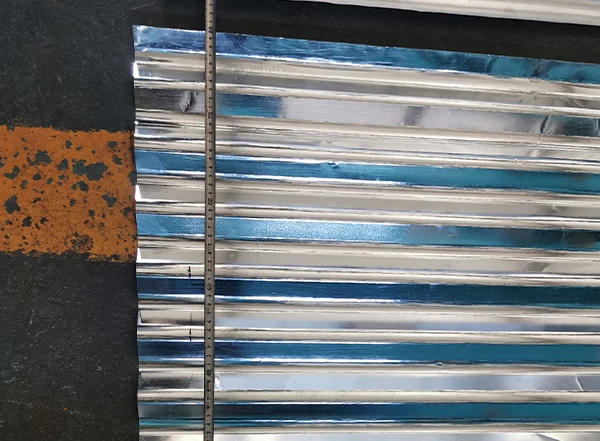

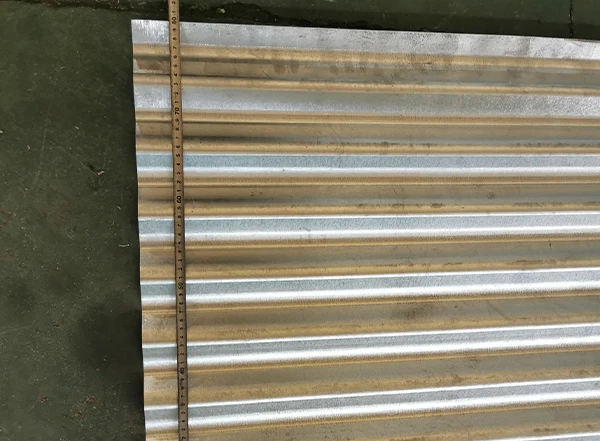

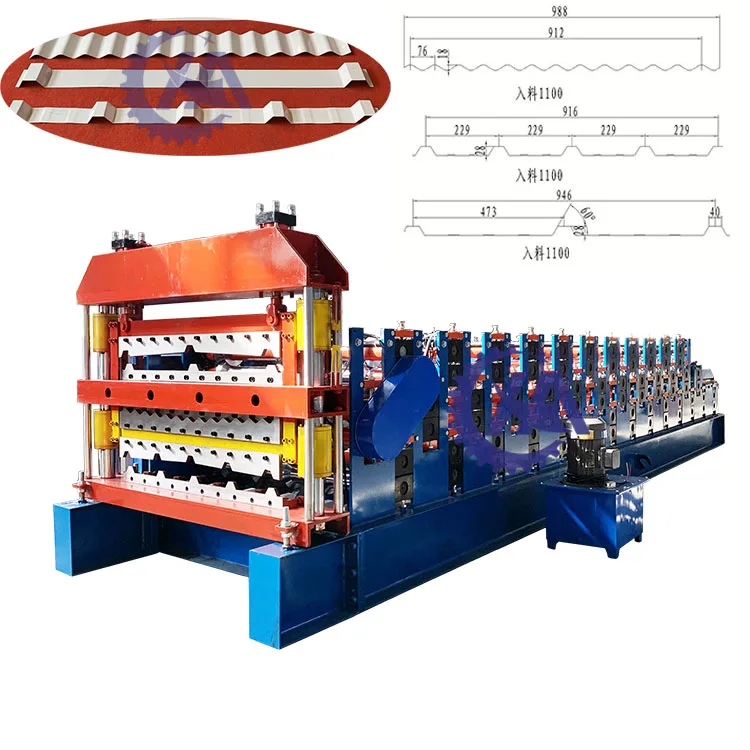

Profile Drawings

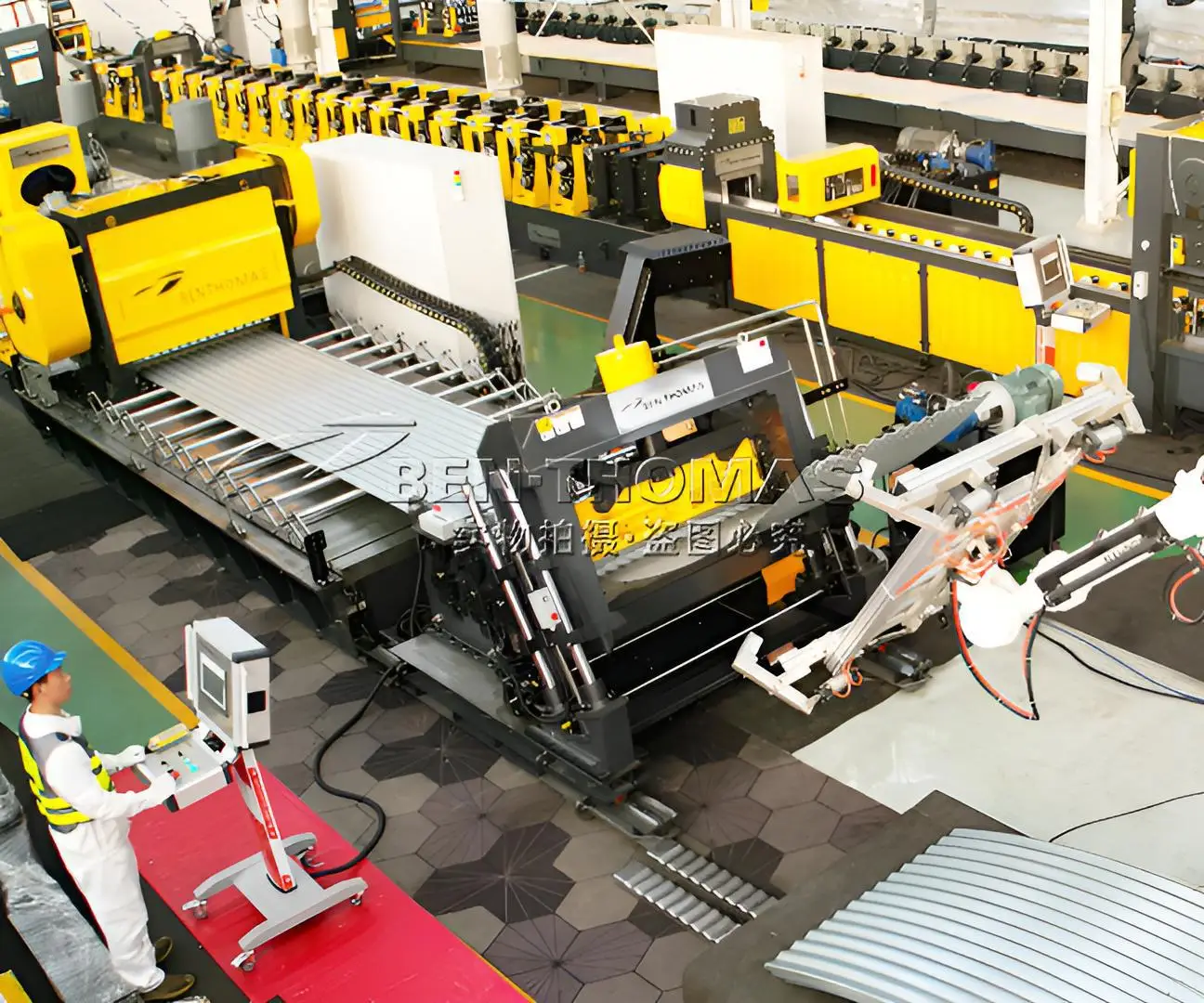

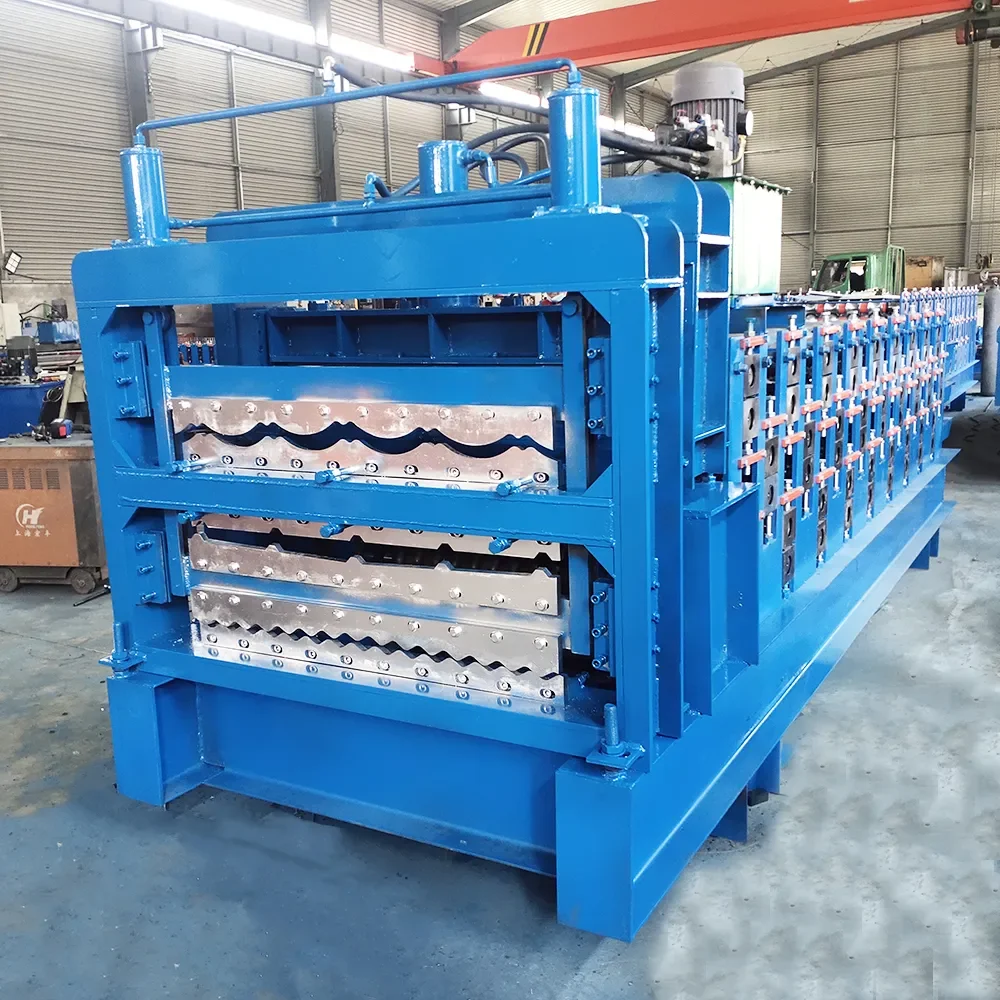

Production Line

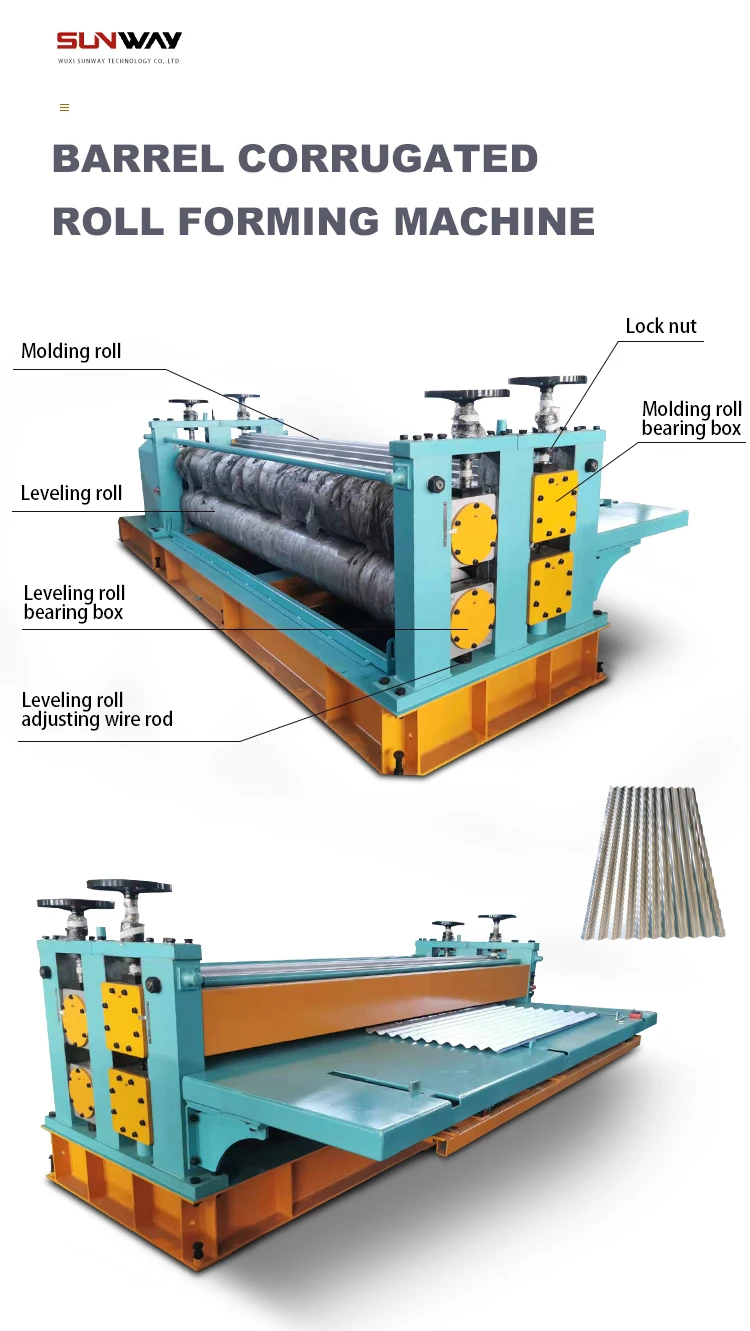

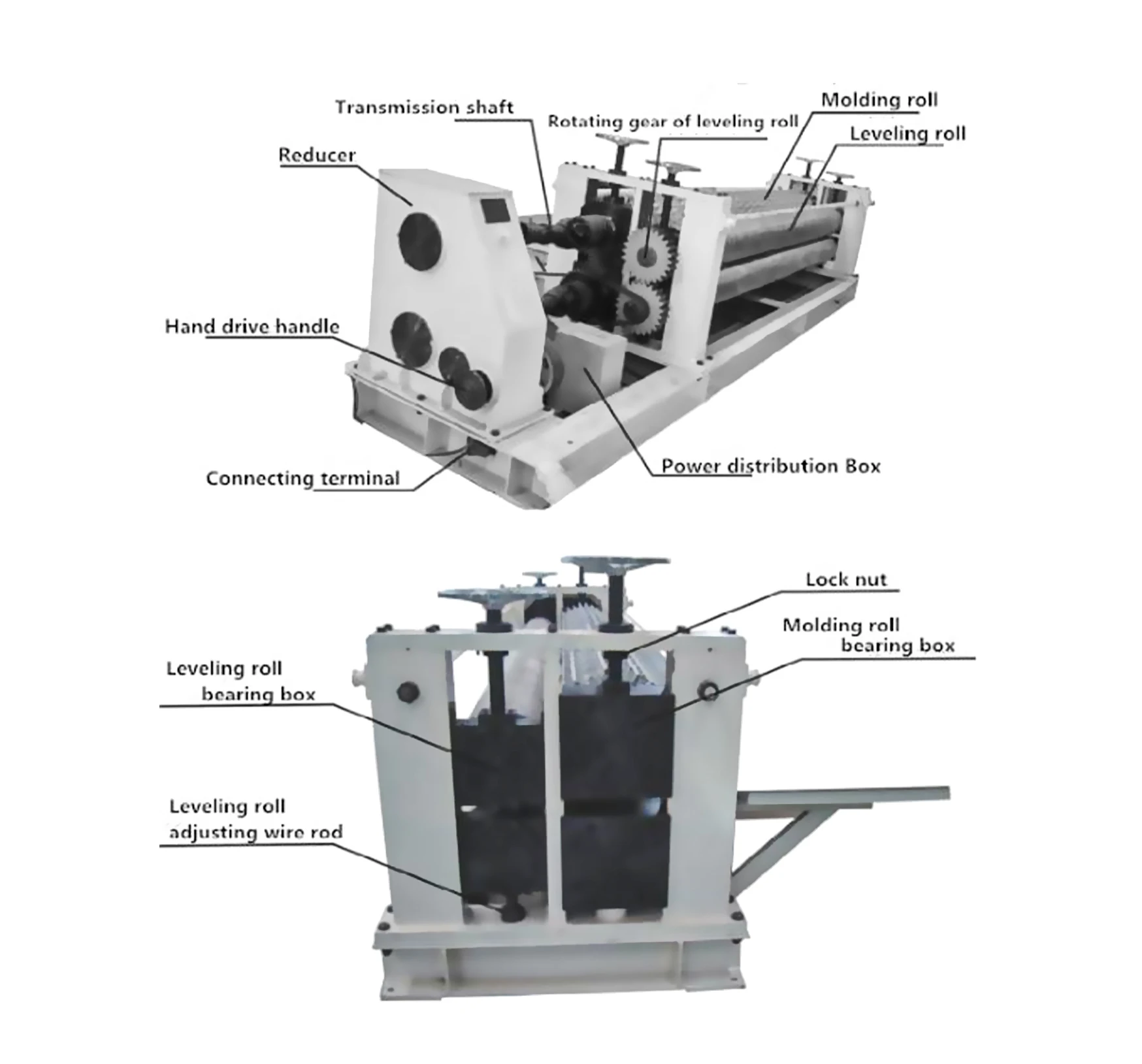

Product Details

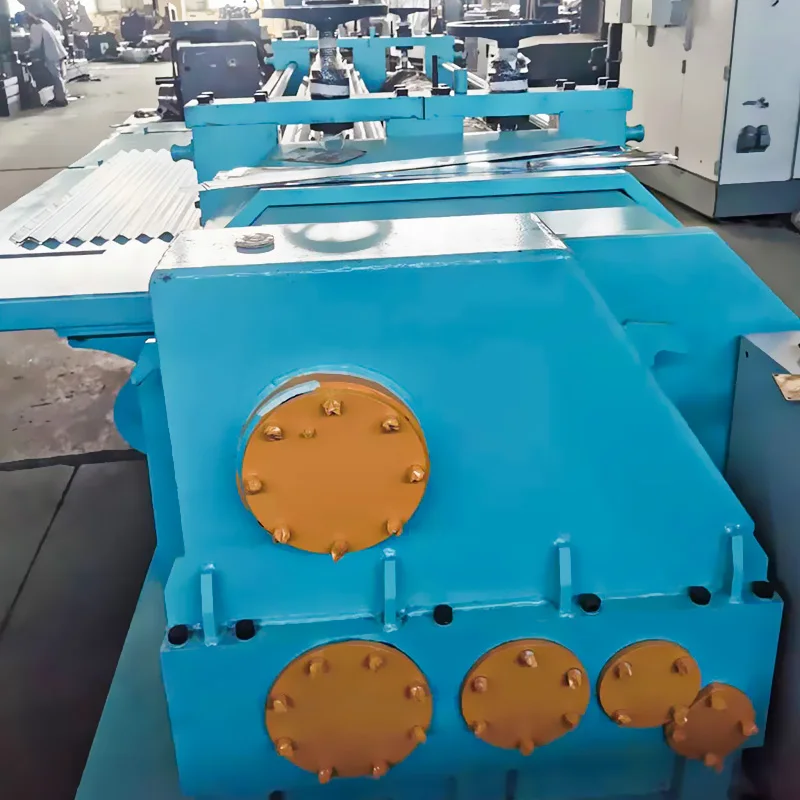

Reducer
Bearing Box
Leveling Roll
Molding Roll
Product Paramenters
Model | Effective Length | Motor Power(Kw) | Size(L*W*H) | Weight(Ton) | ||||
SW-26E | 2480mm | 7.5-8 | 4308X2230X1500mm | 6.5 | ||||
SW-32E | 3050mm | 7.5-8 | 4908X2230X1500mm | 7.2 | ||||
SW-38E | 3660mm | 11.0-8 | 5508X2230X1500mm | 7.4 | ||||
SW-40E | 3900mm,13feet | 11.0-8 | 5708X2230X1500mm | 8.0 | ||||
SW-43E | 4200mm | 11.0-8 | 6008X2230X1500mm | 9.5 | ||||
Profiles: 18-76, 15-63, 9-31.8mm or customized | ||||||||
Forming Thickness: 0.12-0.20/0.14-0.3/0.16-0.4mm | ||||||||
Forming Speed: 9-12 times/min; 2-4 ton/hour | ||||||||

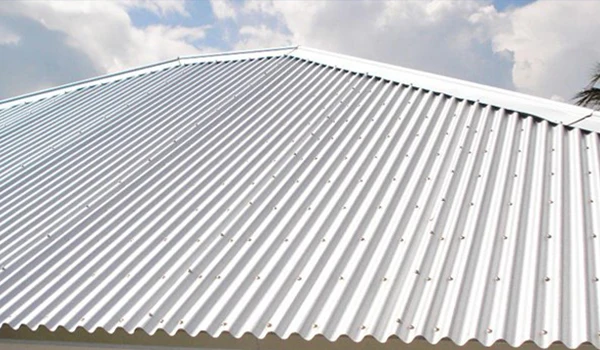

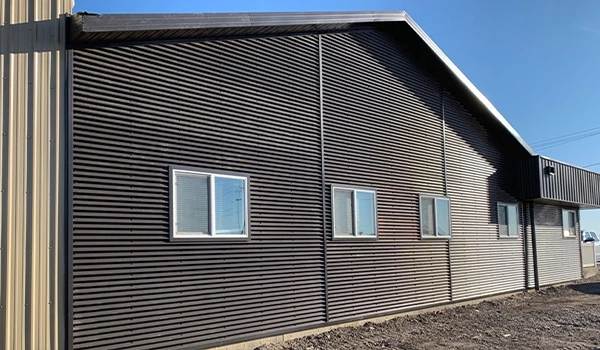

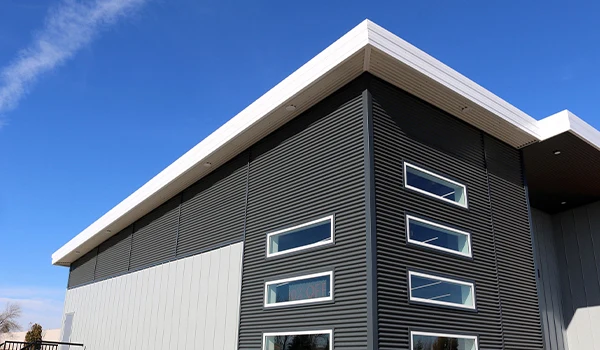

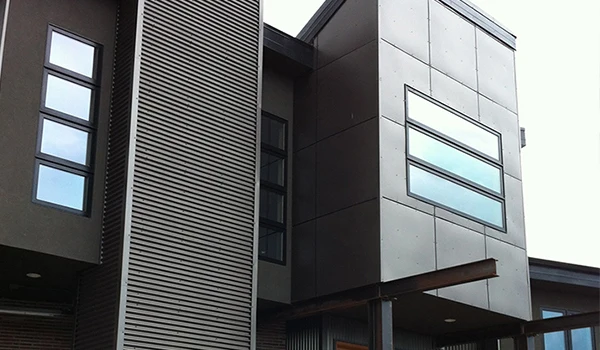

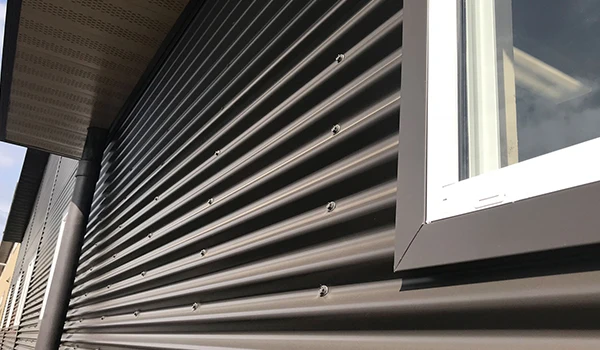

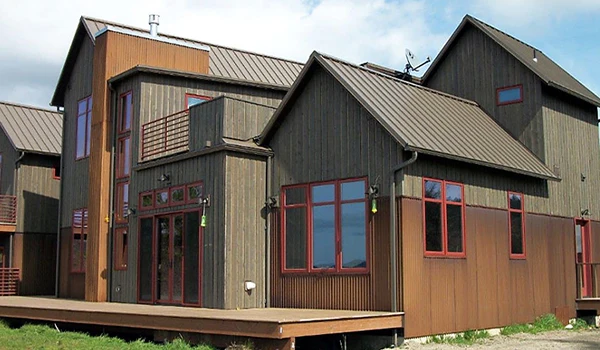

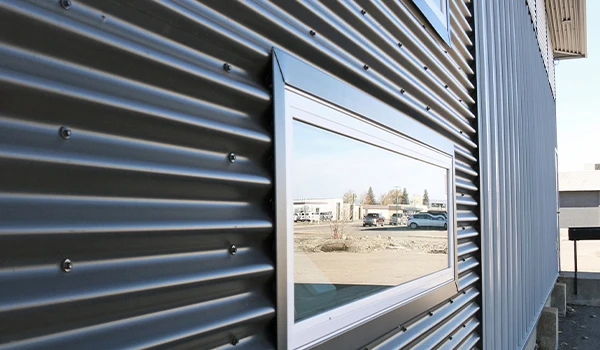

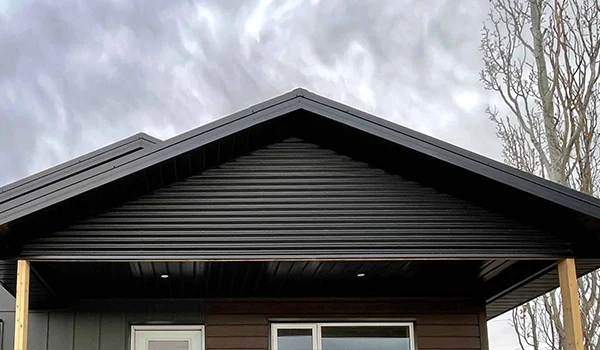

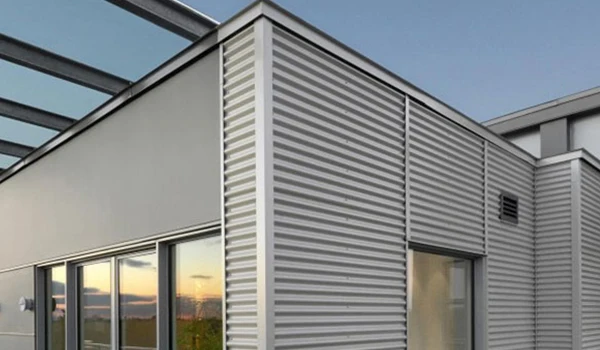

Application
Company Profile
WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. It has gained a global sales network.
Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications, slitting machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are widely used in Photovoltaic field.
SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In accordance with High Quality Assurance and Valued Credibility, we provide customers high qualified and reliable products with complete after-sales service. Our company is looking forward to establishing successful and long-term business relationships with all clients around the world in the near future.
FAQ
Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness just for exporting various types of roll forming machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.
Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
A:We are factory with professional production team and service consciousness just for exporting various types of roll forming machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.
Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
