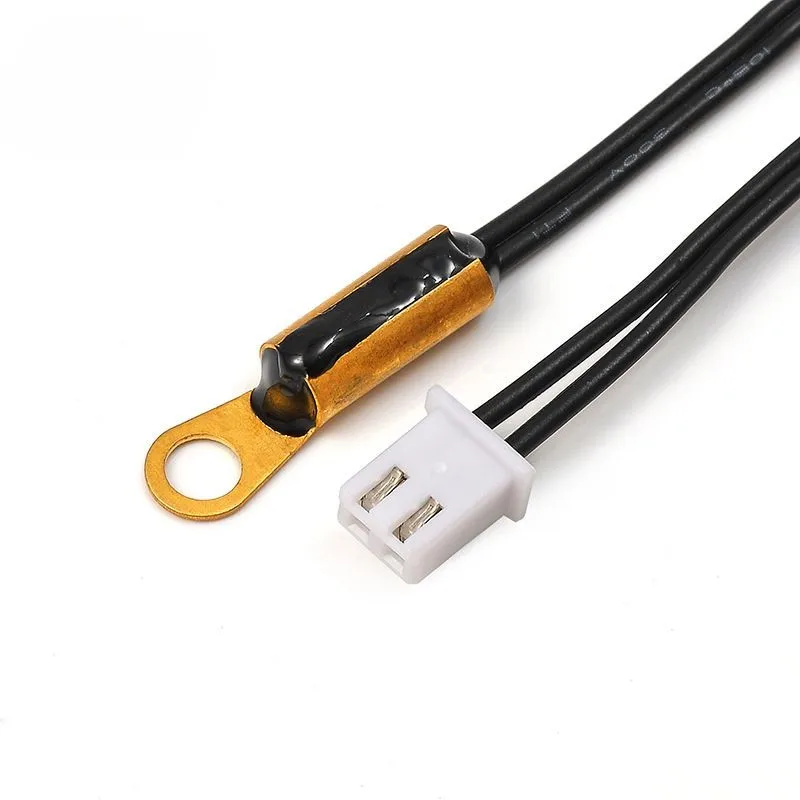

FOCUSENS уплотнительное кольцо типа NTC RTD датчик температуры M4 M5 M10 M12 корпус для автомобильного аккумулятора EV
- Категория: >>>
- Поставщик: Focus Sensing And Control Technology Co. Ltd.
Сохранить в закладки 1600935592649:
Описание и отзывы
Характеристики

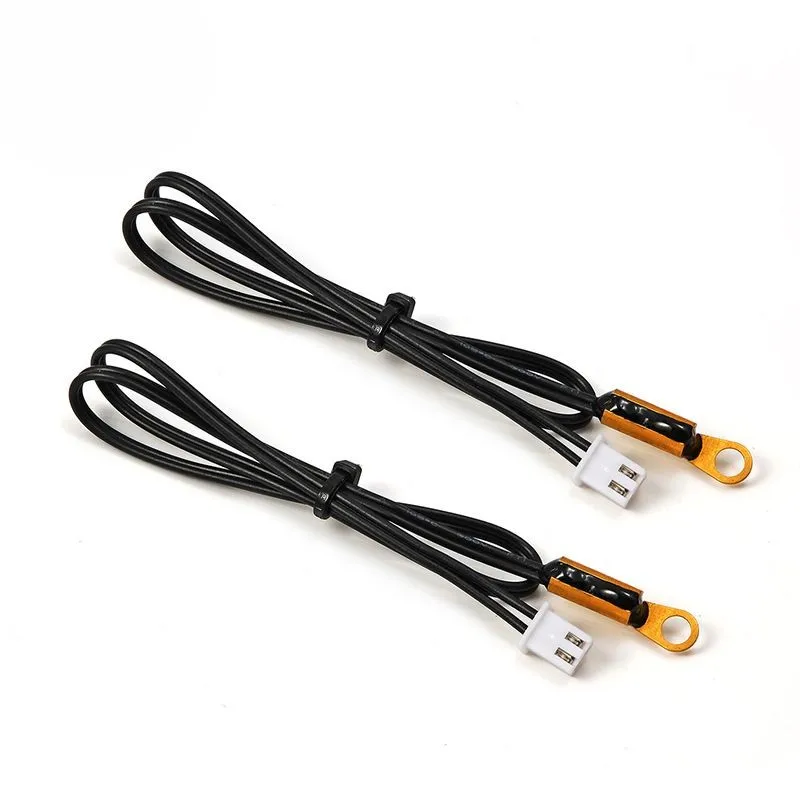

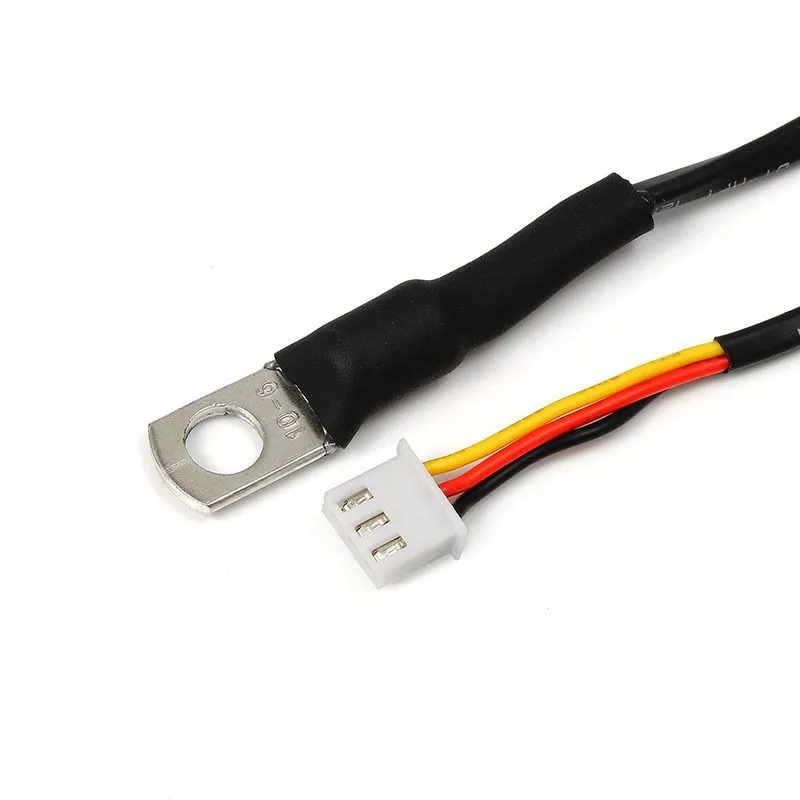

This series of NTC temperature sensors is encapsulated within a "ring terminal" for fixing to a surface and for measurement of its surface. The sensors are used in a wide range of automotive and industrial applications, providing robust and reliable temperature sensing capability when used correctly..
Features

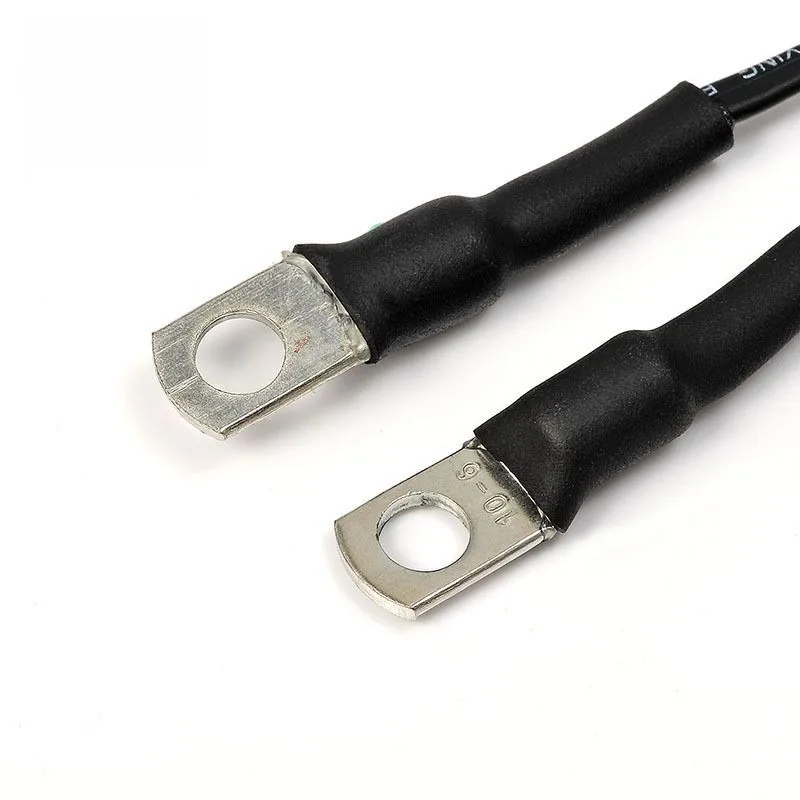

◆ Ring lug terminals enable easy and secure surface mounting.
◆ Fast response time.
◆ Completely customizable; offer a variety of housings and lead wire gauges.
◆ Engineered to withstand extreme temperatures -40 to + 150°C.
◆ Engineered to withstand extreme temperatures -40 to + 150°C.
◆ Surface mount sensing with screw-fix location.
◆ Tailored resistance versus temperature.
◆ Environmental protection: IP57 and upwards.
◆ Tailored resistance versus temperature.
◆ Environmental protection: IP57 and upwards.
PARAMETER | OPTIONS | UNIT |
Resistance @ 25°C | 1, 4.7, 5, 8, 10, 12, 20, 30, 47, 50, 100, 1000 | kohms |
Resistance Tolerance | 1, 2, 3, 5 | % |
Beta Value | 3435, 3950, 3977, 3984, 4000 | K |
Temperature Range | -40 to +150; -40 to +105 | °C |
Thermal Time Constant | < 20 | s |
Temperature Coefficient Resistance | -4.4 | %/°C |
Max Power | 30 | mW |
Dissipation Constant (in air) | 3 | mW/K |
Mounting Hole Diameter | M3.5, M4, M6, M8, M10 | mm |
Wire Material | PVC, Silicone, Teflon | |
Connector | Molex, JST, or Stripped |
Flexible customize the product specifications and shape to match your applications.
➤ Temperature range
➤ Probe dimension
➤ Wire length
➤ Wire connector
➤ Probe dimension
➤ Wire length
➤ Wire connector
Home Appliances
● Refrigerators
● Washing Machines
● Water Heaters
● Coffee Makers

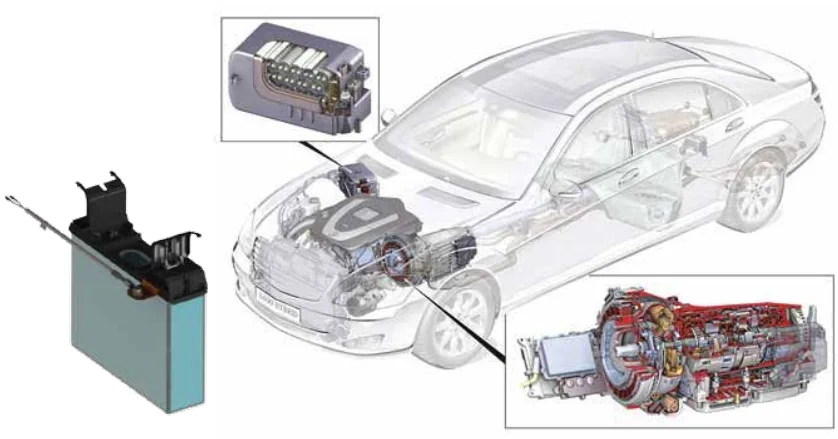

Automotive / Industrial
● Battery Management
● DC/DC Converters
● On-Board Chargers
● Inverters
Consumer
● Hair Dryers
● Vending Machines
● Heated Massage Chairs
● LED Lighting
ABOUT US
Focus Sensing and Control Technology
Co.,LTD is a Sensor expert works professionally in Temperature, Humidity, Level sensing Fields. We are ISO certified and patented factory located in National Grade High Tech Industry Zone of Hefei city, middle East China close to Shanghai.
Basically we works for 5 main industry lines , household electricity, Automobile, Medical, IoT and Industry. Under our brand name Focusens , we develop and produce thermistors and esistance Temperature Sensors NTC ,PTC
Basically we works for 5 main industry lines , household electricity, Automobile, Medical, IoT and Industry. Under our brand name Focusens , we develop and produce thermistors and esistance Temperature Sensors NTC ,PTC
RTD, we also R&D and manufacture varisous digital temperature sensors, Temp humidity transmitters, door switch sensors as well as float level sensors.All our products are RoHS and Reach compliance, reliability meeting relevant IEC standard or industry standard like AECQ.
Focusens have a project and sales engineer team that have almost 20 years sensor field experience, which enable us flexible and reliable product development and professional customer project support. We annually
develop 50+ new sensor solutions for different applications ,and we’ve exported to over 60 countries ,especially Westen European , South European , North America and South East Asia.
Focusens equipped with advanced processing assembling and testing machines like Auto Chip Selection Machine, Multi-Functional Computer Wire Cutting Machine, Precision Spot Welding Machine, 0.01’ Degree C super high precision thermal bath Machine, Precision constant humidity chamber etc.
Directly buy , distribution, agent or OEM, we welcome various models of cooperation. Drop us contact or visit , start your pleasant experience of cooperation with Focusens.
Directly buy , distribution, agent or OEM, we welcome various models of cooperation. Drop us contact or visit , start your pleasant experience of cooperation with Focusens.
What is typical phase for set up a sensor project with Focusens ?
Specification Confirmation – Price Confirmation –Sample Evaluation --- Trial Order—Routine Order--- Partnership Cooperation
How to match right sensor and get quotation sooner？
1. Drawing of the sensor part you are in need. (Most convenient and prefered if you have it)
2. A sensor probe generally consist of 4 below basic parts, it will works if you can describe us your specific requirements on below :
- Your requirement on parameter or electrical value of sensing element
- Material and size of probe/ sensor house
- Gauge and size of extension cable
- Requirements on other accessories like connector, cable gland, label, etc
3. A sample of existing sensor that you want to order same. ( we measure sample and send counterpart )
4. In case you are not able to specify above and your project is open for sensor selection, we can make recommend base on your exact field application requirement.
Specification Confirmation – Price Confirmation –Sample Evaluation --- Trial Order—Routine Order--- Partnership Cooperation
How to match right sensor and get quotation sooner？
1. Drawing of the sensor part you are in need. (Most convenient and prefered if you have it)
2. A sensor probe generally consist of 4 below basic parts, it will works if you can describe us your specific requirements on below :
- Your requirement on parameter or electrical value of sensing element
- Material and size of probe/ sensor house
- Gauge and size of extension cable
- Requirements on other accessories like connector, cable gland, label, etc
3. A sample of existing sensor that you want to order same. ( we measure sample and send counterpart )
4. In case you are not able to specify above and your project is open for sensor selection, we can make recommend base on your exact field application requirement.
Похожие товары
Сверла для скважин SPM 360 DHD 8 1/2 дюйма на продажу/сверло odex/сверло сверления 7 формирования
1 459,90 $ - 1 751,90 $
Оригинальный Новый серверный процессор Intel Xeon Gold 6154, 18 ядер, 3,00 ГГц, 6154
1 554,00 $

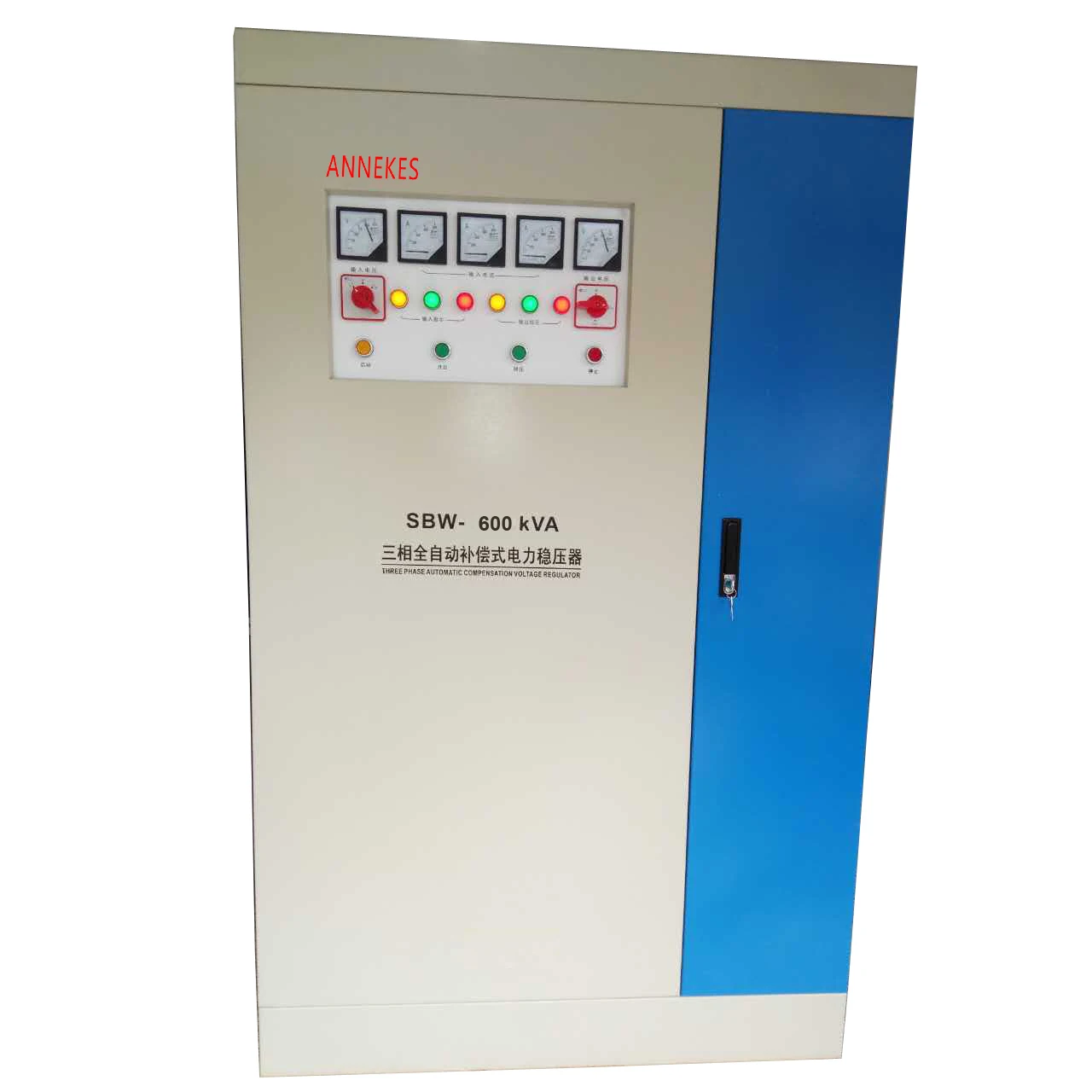

SBW SBW-F серии 600kva-2000KVA 3 фазы статический Бесконтактный регулятор напряжения переменного
