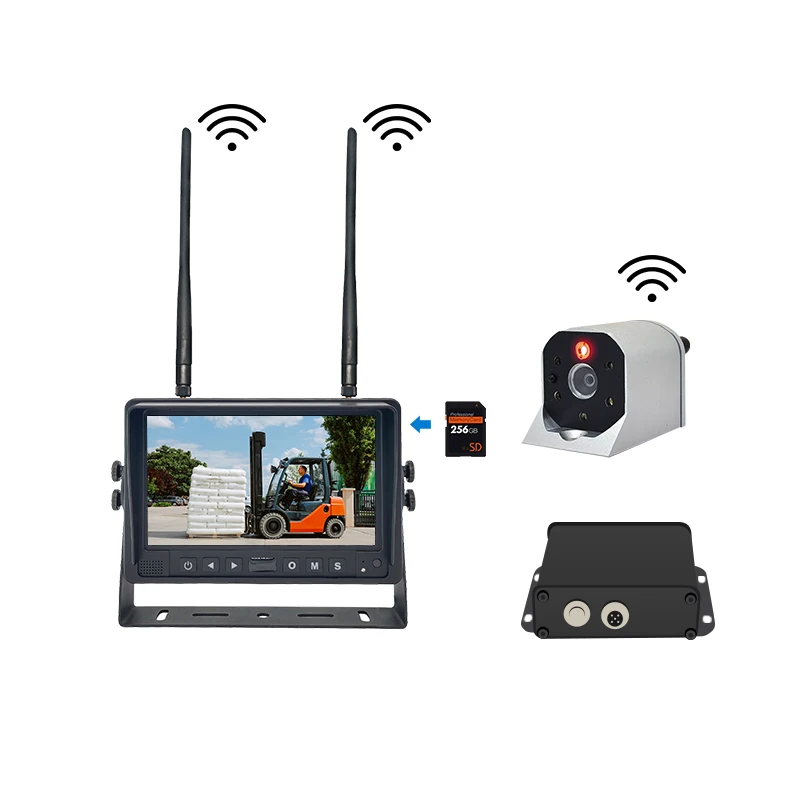

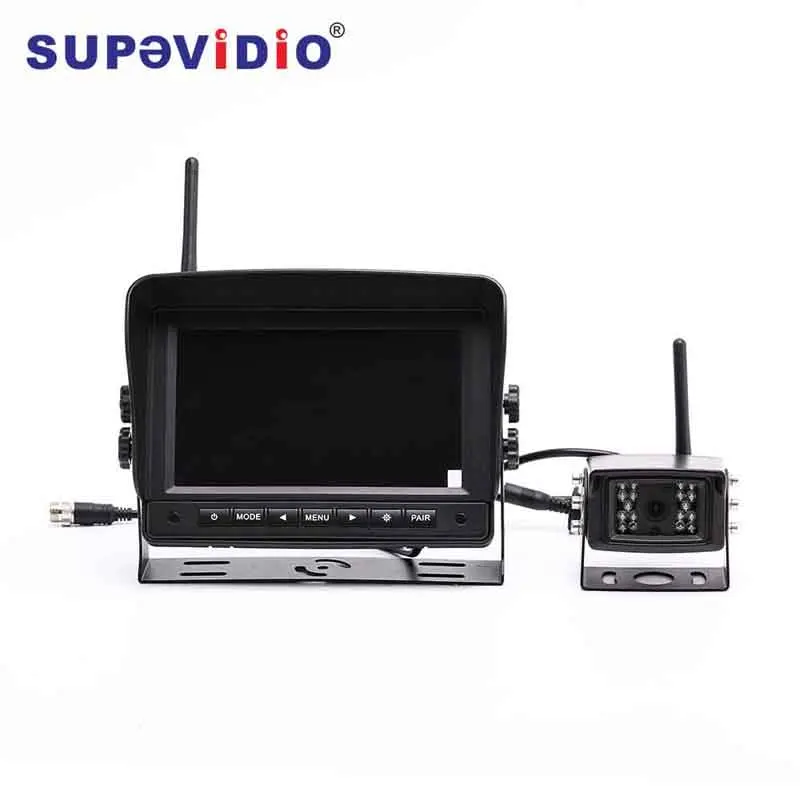

DC 12 V/24V 7 дюймов беспроводной приемник Kit камера безопасности система для автомобиля грузовика
8 816,68 ₽ - 10 910,64 ₽
7 дюймовый AHD 720P водонепроницаемый аккумулятор цифровой беспроводной вилочный погрузчик камера заднего вида Система помощи при мониторинге
- Категория: >>>
- Поставщик: Guangzhou Starting Point Video Electronic Technology Co. Ltd.
Сохранить в закладки 1600935880208:
Описание и отзывы
Характеристики
Specification
Monitor Specifications | Camera Specifications | ||||

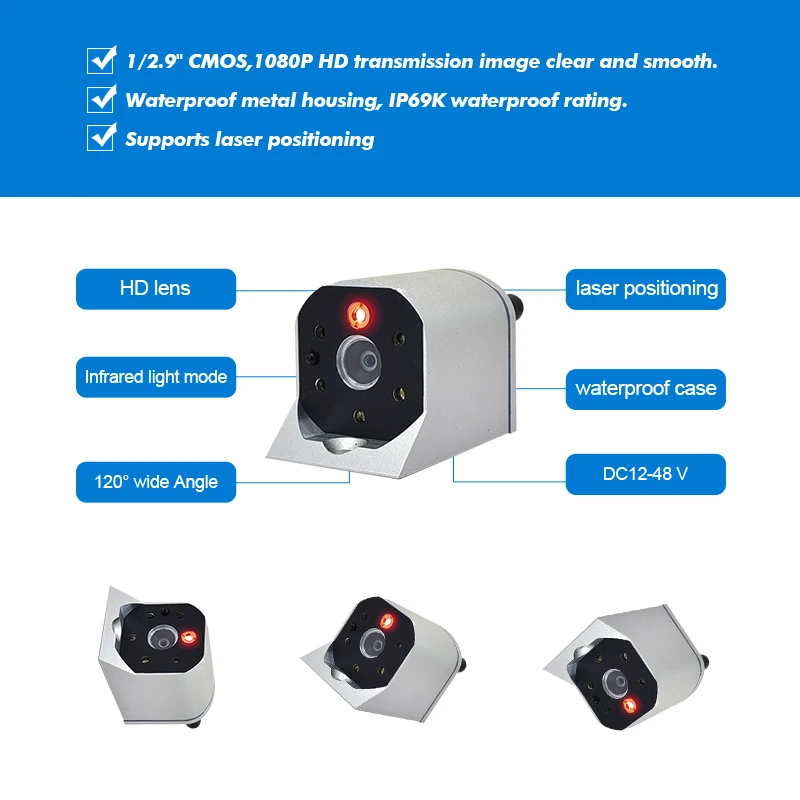

LCD size | 7" IPS LCD | Image Device | 1/2.9" CMOS | ||
Resolution | 1024 x 3 (RGB) x 600 | TV System | PAL / NTSC | ||
Contrast | 1900/2/2 8:01:00 | Array Size | 1920*1080 | ||
Brightness | 450 cd/m² | Sensing Area | 2.8um x2.8um | ||
Viewing Angle | U: 80 / D: 85, R/L: 85 | Sync. System | Internal | ||
Aspect Ratio | 16:09:00 | White Balance | Auto | ||
Channel | 4 CH | Resolution | 1080P | ||
Key | Mechanical keys | Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) | ||
Operating Frequency | 2412 - 2467 MHz | Microphone | Yes | ||
Transmitting Distance | 380 M | Electronic Exposure | Up to 510:1 | ||
Recieving Sensitivity | '-85 dBm | Laser lamp power | 70mW | ||
Decompression Form | H.264 | Laser wavelength | 660nm | ||
Emitting Frequency | 17 dBm | Laser Angle | 120° | ||
Communication protocol | P-WIFI | Backlight compensation | Auto | ||
Modulation | FSK/GFSK | Current Consumption | Max. 400 mA/12V | ||
TF Card | Max. 256G | Power Supply | DC 12-48 V | ||
Time Delay | 200ms | Operating frequency | 2400 -2483.5 MHz | ||
System Format | PAL / NTSC | Transmitting distance | 380M | ||
Power Supply | DC 12-48 V | Transmitting speed | 12Mbps | ||
Power Consumption | Max. 8W | Decompression form | H.264 | ||
Loudspeaker | 1.5W/8Ω | Transmit output power | '17 dBm | ||
Operating Temperature | -20~+70ºC, RH 90% | Lens | f = 2.8mm | ||
Storage Temperature | -30~+80℃, RH 90% | Lens Angle | 120° | ||
Waterproof | IP69K | ||||
Operating Temperature | '-20°C~60°C, RH 90% MAX. | ||||
Storage Temperature | '-30°C~80°C, RH 90% MAX. | ||||
1) The use of 24-bit encryption to code communication technology, enhance the confidentiality of audio and video signal transmission, the use of the latest digital automatic frequency hopping technology, strong anti-interference ability, the use of H.264 audio and video codec technology,1080P high-definition transmission image clear and smooth.
2) 4M bandwidth broadband technology to achieve real-time wireless transmission of audio and video at 30 frames per second.

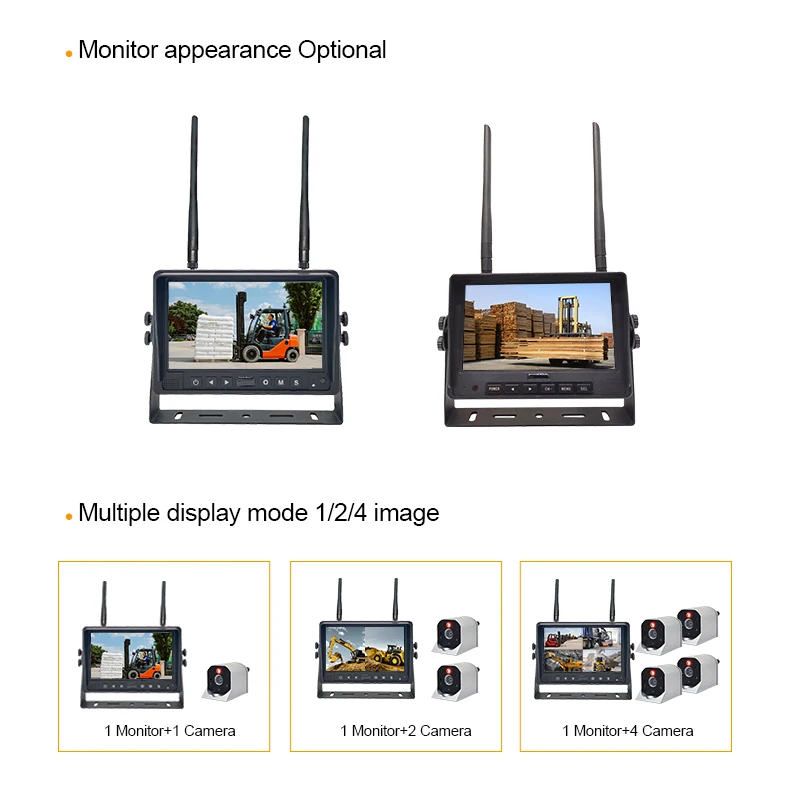

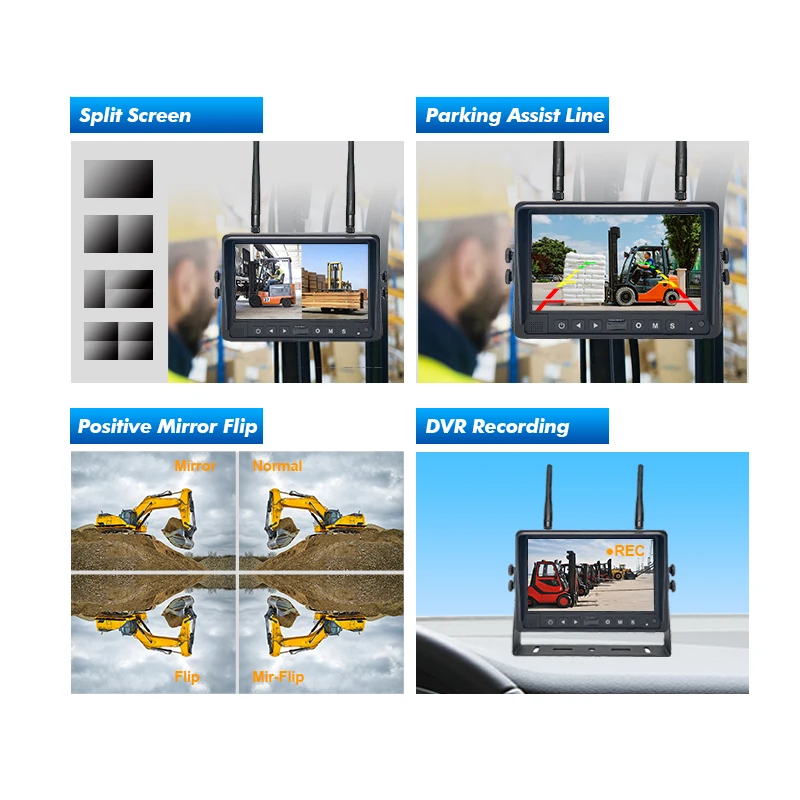

3) Support 4 split /3 split /2 split display mode, automatic switching mode and single display mode, support video, SD card maximum storage capacity: 256G
4) Long transmission distance, open distance (straight line barrier-free) up to 300 meters
2) 4M bandwidth broadband technology to achieve real-time wireless transmission of audio and video at 30 frames per second.
3) Support 4 split /3 split /2 split display mode, automatic switching mode and single display mode, support video, SD card maximum storage capacity: 256G
4) Long transmission distance, open distance (straight line barrier-free) up to 300 meters
Product Description

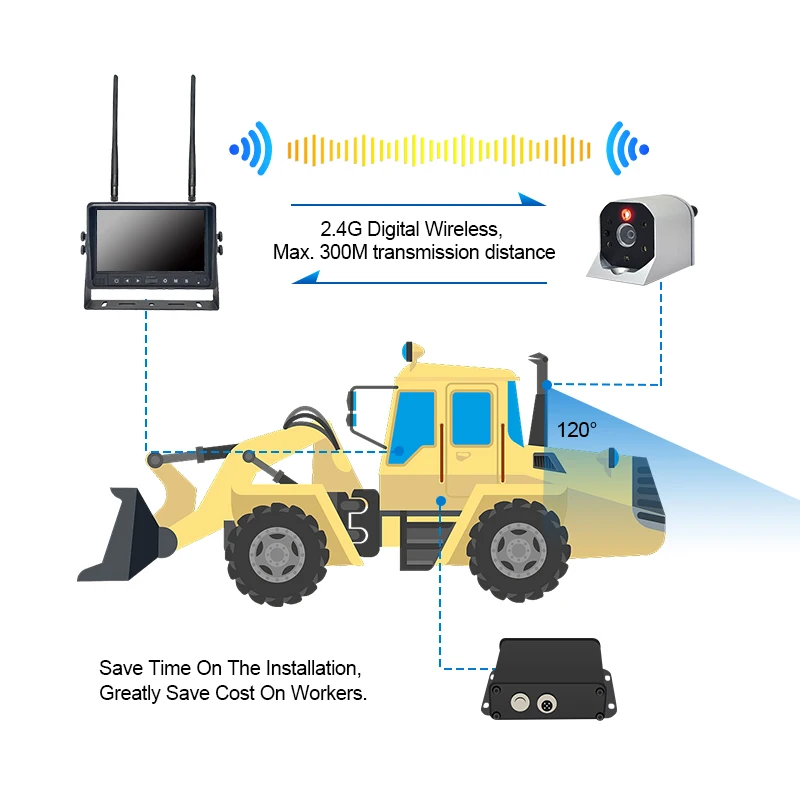

2.4G Digital Paired, No Delay, The transmission distance is far, and the open distance (straight line barrier-free) is 300 meters
Why Choose Starting
Quality Products & Customer-Oriented Service
A. Quality Products:1. Images sensor and PCB board
Starting Point Video uses genuine sensors directly from Sony, Panasonic, OmniVision, PixelPlus. PCB boards are independently developed by us.
2.Lens
Starting use Full glass lens 5 layers instead of 3 layers to ensure the best quality of camera.
3. Waterproof
Starting choose high quality silicone adhesive for waterproof sealing, IP68 testing (equaling to 10 meters water pressure) for each camera are available for high requirements .
4.Camera's housing
Starting use metal housing for enduring usage.
5.Cables
Starting use 8P/13P pure copper video cable with locked screw connector which offer clearer image and lasting usage than normal cable
6. Quality Control
1st : 100% Raw material quality control
2nd : 100% inspection after assembling
3rd : 100% aging test
4th: 100% quality inspection on packing lines
5th : sample inspection(MIL-STD-105E II (MA=1.5,MI=2.5) standards)
before delivery Our defective rate is nearly 0% before shipment and lower than 0.3% after shipments.
7.Certification
CE, E9 certificate for monitor/cameras, IP68 for camera, IP65 for video cables.
B. Customer-Oriented Service:
1.Tooling & Mold Service
Our engineer has over 10 years experience in designing ,and our technical team can quickly support your OEM & ODM requirements .
2.After-Service
Starting offers 7 days refundable policy without any condition. Life time technical support.
3.Warranty
1 years warranty for our products. Free replacement will be sent immediately for defective products but not including damagescaused by improper usage.
Packing & Delivery
Each set is a box, unisex packaging, can be customized according to demand. 10pcs/box
Company Profile
Guangzhou Start Vision Electronic Technology Co., Ltd. is a company focusing on passenger and truck safety vision system products and solutions, which has more than 8 years of development history.
The company has a sales center, a production base, three professional R & D staff, with a total area of more than 500 square meters. It is an industrial and trade enterprise integrating design, R&D, production and sales.
The main products and service objects are vehicle security system truck camera system, rearview mirror system, car security electronic equipment including reversing camera, LED headlight camera, car monitor, parking sensor, parking radar, etc., such as heavy trucks, trailers, buses, school buses, sweepers, sprinklers, ambulances, special vehicles, industrial vehicles, agricultural vehicles, etc. can be applied.
With stable product quality and excellent product performance and service, we have been maintaining good relationships with parked safety system package dealers, commercial vehicle manufacturers, fleet operators and other types of customers.
For the global market, we accept all kinds of orders, including OEM/ODM, welcome to cooperate with us.
The company has a sales center, a production base, three professional R & D staff, with a total area of more than 500 square meters. It is an industrial and trade enterprise integrating design, R&D, production and sales.
The main products and service objects are vehicle security system truck camera system, rearview mirror system, car security electronic equipment including reversing camera, LED headlight camera, car monitor, parking sensor, parking radar, etc., such as heavy trucks, trailers, buses, school buses, sweepers, sprinklers, ambulances, special vehicles, industrial vehicles, agricultural vehicles, etc. can be applied.
With stable product quality and excellent product performance and service, we have been maintaining good relationships with parked safety system package dealers, commercial vehicle manufacturers, fleet operators and other types of customers.
For the global market, we accept all kinds of orders, including OEM/ODM, welcome to cooperate with us.
FAQ
Q1: Are you a manufacturer?
A: Yes, we have a factory in Guangzhou which can respond to orders quickly.
Q2. What warranty do you have on your products?
A: We offer 1 year warranty on all products and 100% testing before shipment.
Q3. What is your sample policy?
A: If you renew your order in bulk, we will refund the sample fee. However, customers need to pay the sample fee and shipping cost.
Q4. What are the payment methods?
A: For sample order: 100% prepayment; for mass production order, T/T 30% as deposit and 70% before delivery. We will show you photos of the finished product before paying the balance.
Q5. Can you produce according to my sample?
A: Yes, please tt provide us with samples or technical drawings. We can provide professional advice accordingly if required.
Q6. What are your packaging terms?
A: Generally, we pack the goods in neutral white cartons and brown cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after obtaining your authorisation.
Q7. What is your delivery time?
A: Generally, it takes 3 to 60 days after receiving your advance payment. The exact delivery time depends on the items and quantity you order.
A: Yes, we have a factory in Guangzhou which can respond to orders quickly.
Q2. What warranty do you have on your products?
A: We offer 1 year warranty on all products and 100% testing before shipment.
Q3. What is your sample policy?
A: If you renew your order in bulk, we will refund the sample fee. However, customers need to pay the sample fee and shipping cost.
Q4. What are the payment methods?
A: For sample order: 100% prepayment; for mass production order, T/T 30% as deposit and 70% before delivery. We will show you photos of the finished product before paying the balance.
Q5. Can you produce according to my sample?
A: Yes, please tt provide us with samples or technical drawings. We can provide professional advice accordingly if required.
Q6. What are your packaging terms?
A: Generally, we pack the goods in neutral white cartons and brown cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after obtaining your authorisation.
Q7. What is your delivery time?
A: Generally, it takes 3 to 60 days after receiving your advance payment. The exact delivery time depends on the items and quantity you order.
Похожие товары

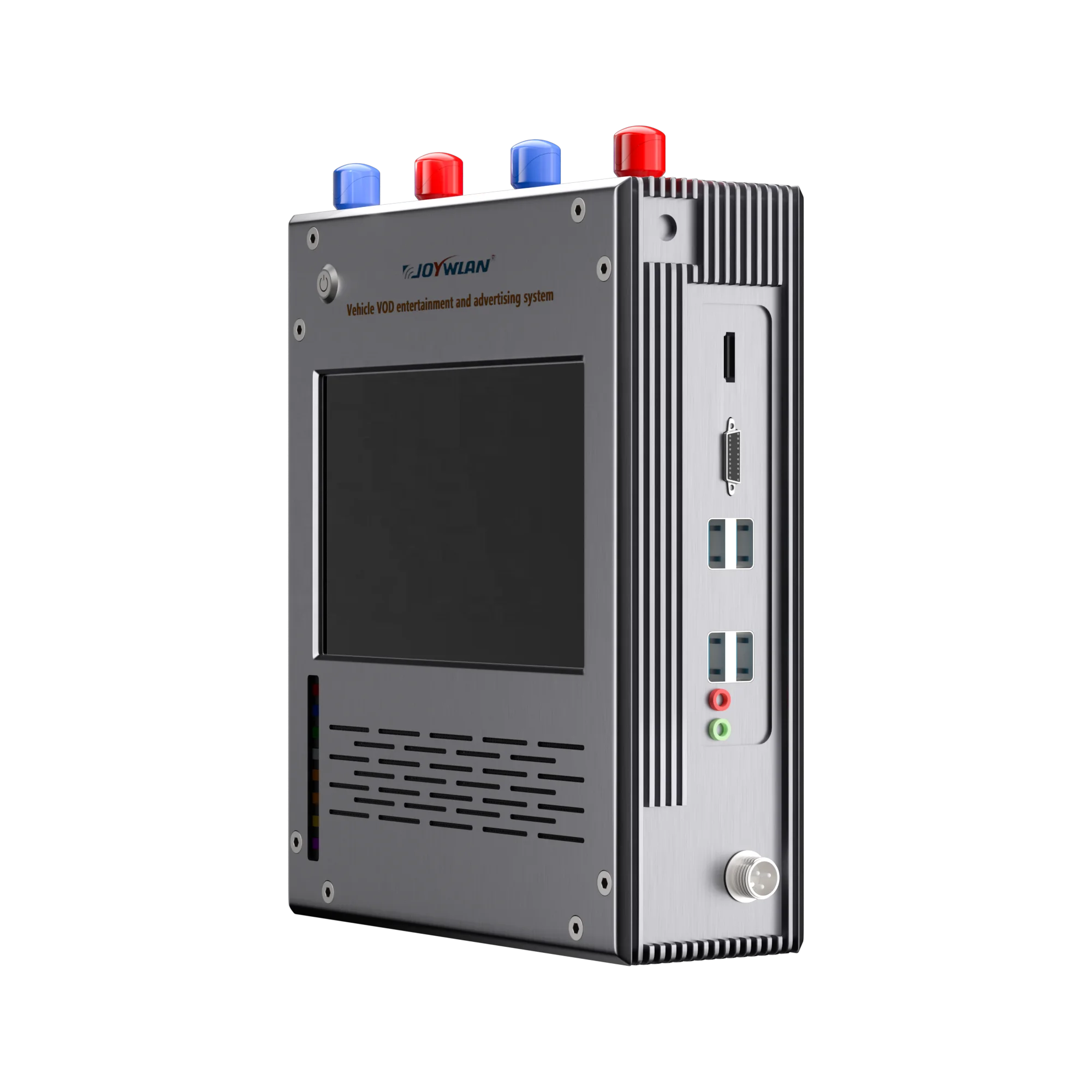

Автобусная система vod для автомобиля/автобуса/поезда
121 229,24 ₽ - 141 066,76 ₽
Автобусные VOD Guangzhou производство развлекательные решения для спинки пассажирских сидений
10 139,18 ₽ - 12 122,93 ₽

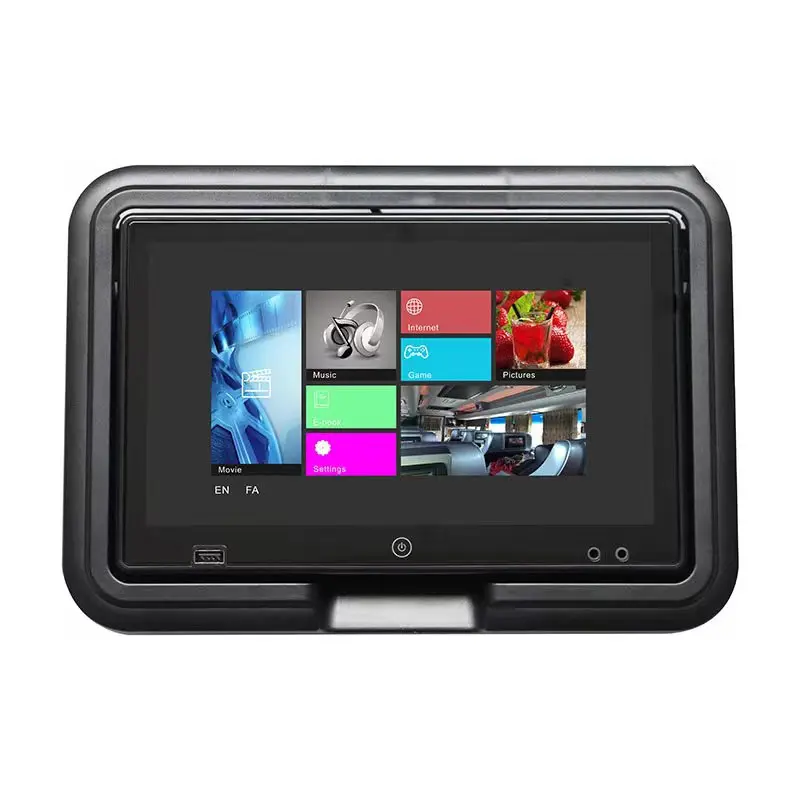

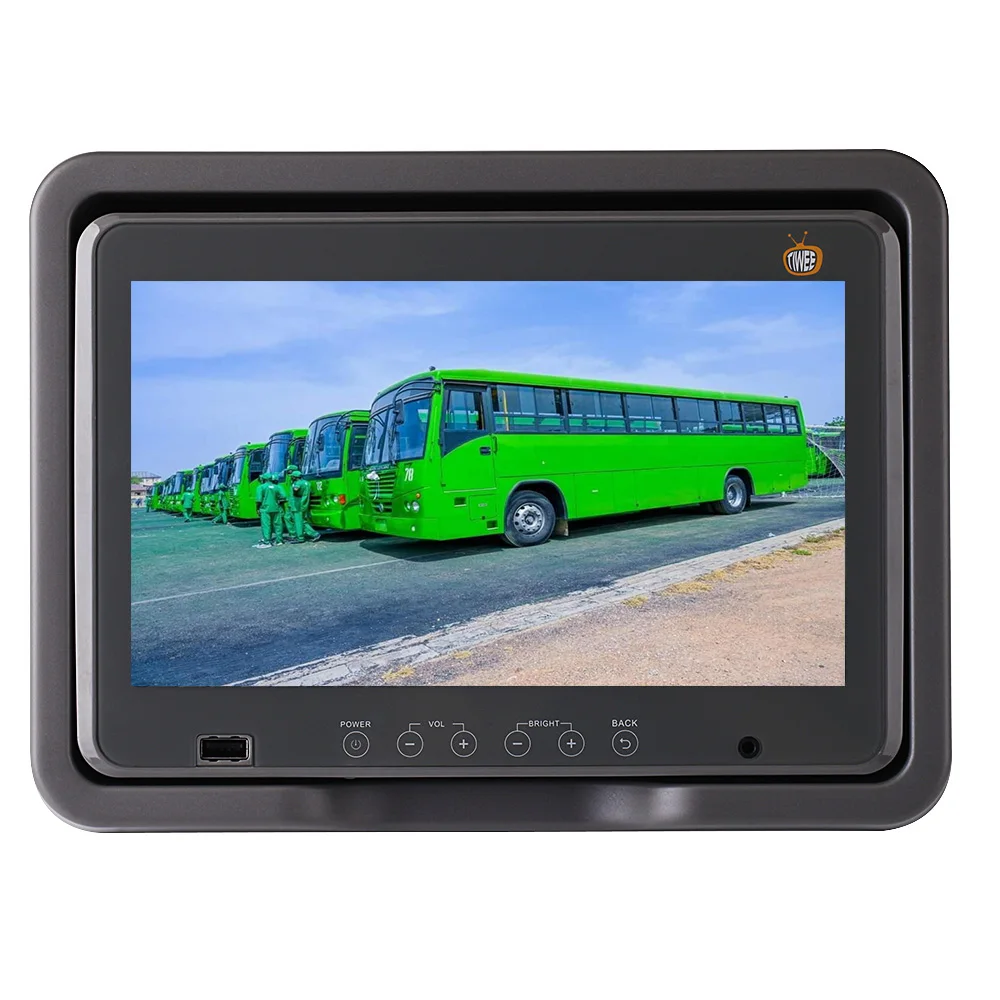

Развлекательный автобусный монитор 12 дюймов Android экран для VIP Bus VOD серверной системы
12 122,93 ₽ - 13 225,01 ₽

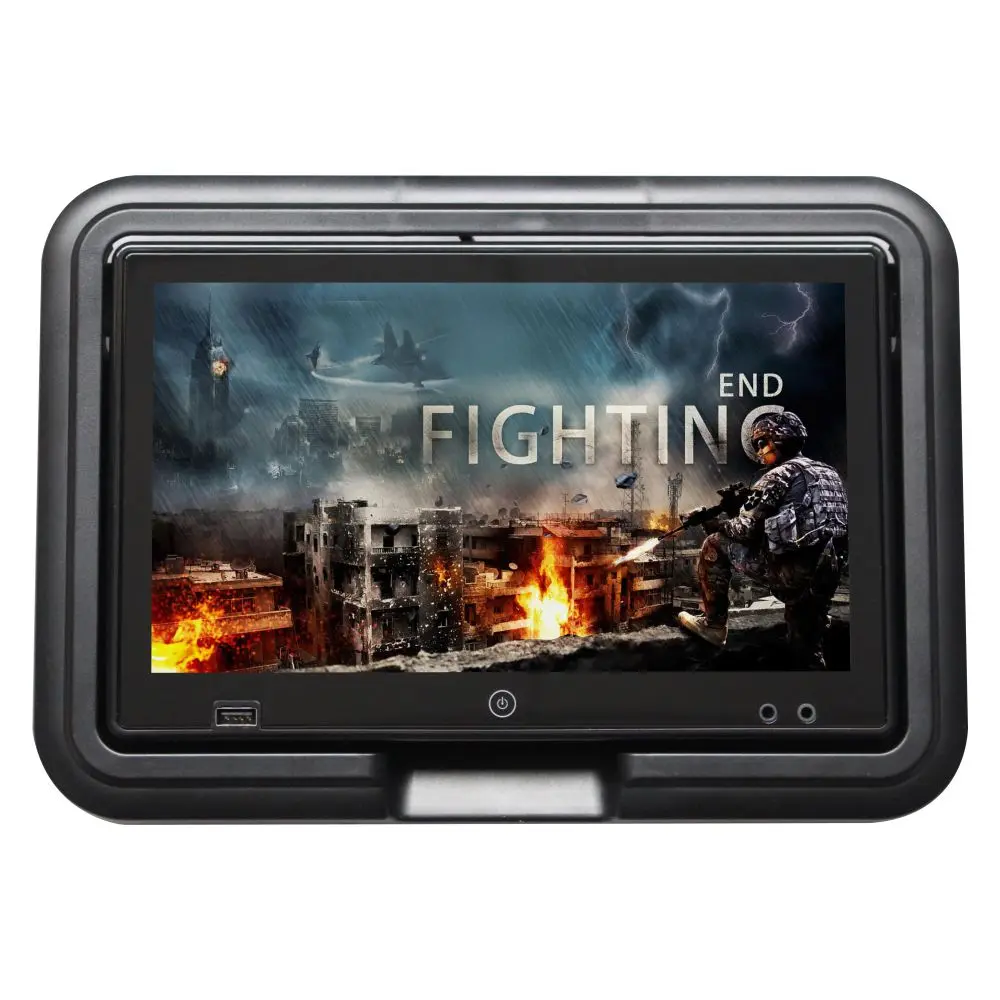

Новинка серверные планшеты для автобусов сиденье спина 10-дюймовый монитор развлекательная автобусная панель
9 808,55 ₽ - 12 122,93 ₽
2 5 г/5 г wifi 6 vod сервер управления шиной сенсорный экран светодиодный HD дисплей
10 469,80 ₽ - 12 122,93 ₽
Китайский MOD VOD Многофункциональный и Удобный беспроводной сервер с поддержкой рекламного дисплея
12 122,93 ₽ - 13 225,01 ₽

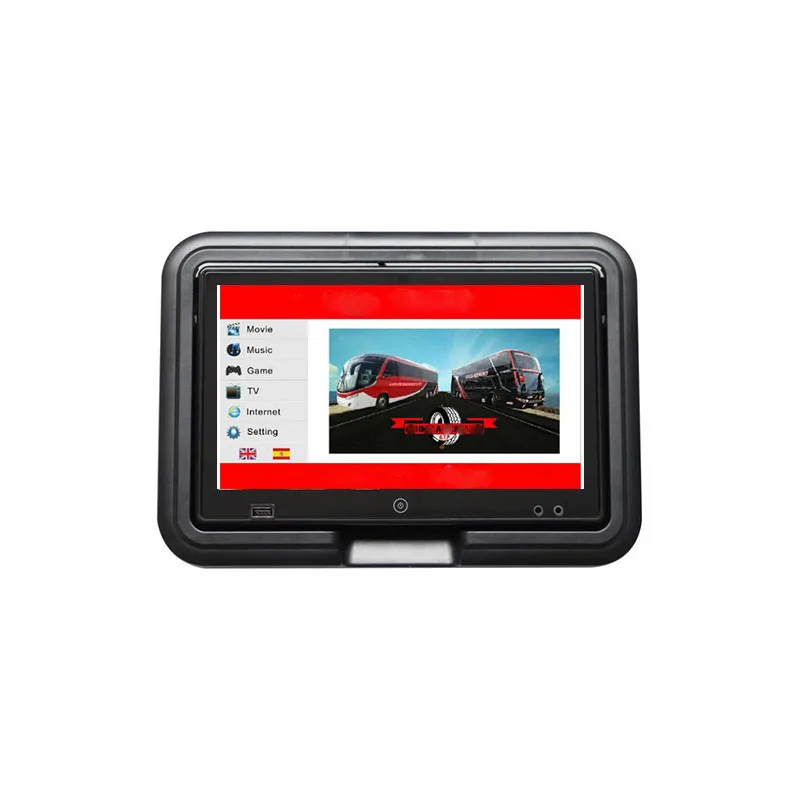

10 1 'экран с беспроводным сервером android 0 VOD system 2 + 32G сенсорный экран монитор спинки Автобусного Сиденья
