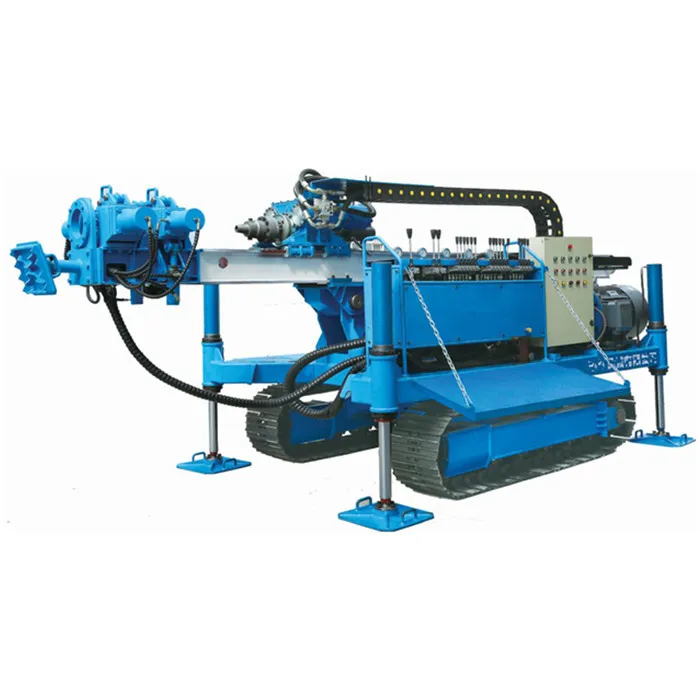

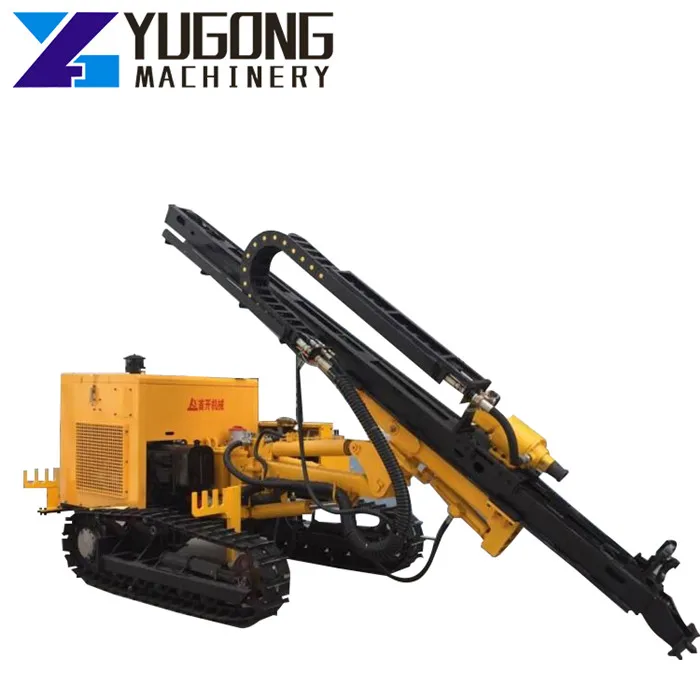

Новая профессиональная гусеничная буровая установка YG 2022 цена на продажу машина для бурения шахт
- Категория: >>>
- Поставщик: Henan Yugong Machinery Co. Ltd.
Сохранить в закладки 1600936254297:
Описание и отзывы
Характеристики
Product Description
Suitable for a variety of working conditions: drilling in clay, silt, sand or quicksand formations, and can also be used in loose, broken, rockfill and other rock formations.
Specification
Model | YG40 | YG50 | YG70 | YG90A |
Drill depth(m) | 10~60 | 10~60 | 25~70 | 25~100 |
lift height(m) | 2-5 | 5-10 | 10-18 | 18-30 |
Hole diameter(mm) | 90~150(rock) | 90~180(rock) | 90~230(rock) | 90~250(rock) |
Air consumption(m³/min) | 9~12 | 9~12 | 9~12 | 9~12 |
Drill rod(mm) | φ76*1500 φ89*1500 | φ76*1500 φ89*1500 | φ76*1500 φ89*1500 | φ76*1500 φ89*1500 |
Rotary torque(N.m) | 1700 | 3600 | 5200 | 6800 |
Lifting force(kN) | 27.5 | 45 | 65 | 65 |
Hydraulic pressure(Mpa) | 16 | 16 | 16 | 16 |
Electric motor(kw) | 7.5+4 | 22 | 25 | 30 |
Weight(kg) | 750 | 1100 | 1300 | 1400 |
Dimension(mm) | 1400*730*1200 | 1400*730*1200 | 1400*730*1200 | 1400*730*1200 |

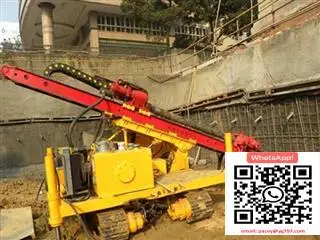

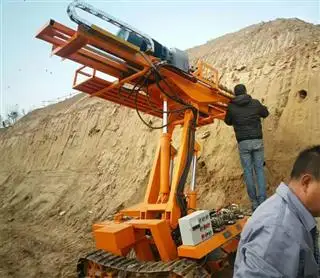

Successful Cooperation cases
The anchoring rig is mainly used in the landslide and dangerous rock mass anchoring projects in the prevention and control of various geological disasters in hydropower stations, railways and highway slopes, especially suitable for high slope rock mass anchoring projects, and also suitable for construction of urban deep foundation pit support, anti-floating For bolts and foundation grouting reinforcement engineering holes, blasting holes for blasting engineering, high-pressure jetting piles, tunnel pipe shed support holes, etc., the power head can be slightly changed to facilitate all-round construction.
Main drilling methods: conventional drilling with down-the-hole hammer, pipe drilling, and auger drilling. In the drilling construction practice of various complex formations and different drilling methods, its excellent drilling performance has been recognized by the majority of construction units and peers.
Main drilling methods: conventional drilling with down-the-hole hammer, pipe drilling, and auger drilling. In the drilling construction practice of various complex formations and different drilling methods, its excellent drilling performance has been recognized by the majority of construction units and peers.
In recent years, the construction pile machinery manufacturing industry has achieved rapid growth and has a good development momentum. Under the favorable state of increasing infrastructure investment, the industry has an average annual growth rate of nearly 30%. Benefiting from the continuous development of the global economy and the pull of fixed asset investment , the implementation of the strategy of revitalizing the equipment manufacturing industry and other favorable factors, especially the construction of a number of high-speed railways, highways, high-rise buildings, super bridges and other projects do not require piles and deep foundations for support, which has led to the use of piles in recent years. The sharp rise has driven the rapid development of the global pile machinery industry. At the same time, with the gradual increase in the construction volume of environmental protection, ecological construction, gardening, and greening construction, pile machinery must have a wider and wider stage.
Product Advantages
High-strength crawler chassis
Equipped with a turntable and optional rotary jetting module, making the rig more adaptable to complex construction conditions
Drilling Rig Rotary Platform

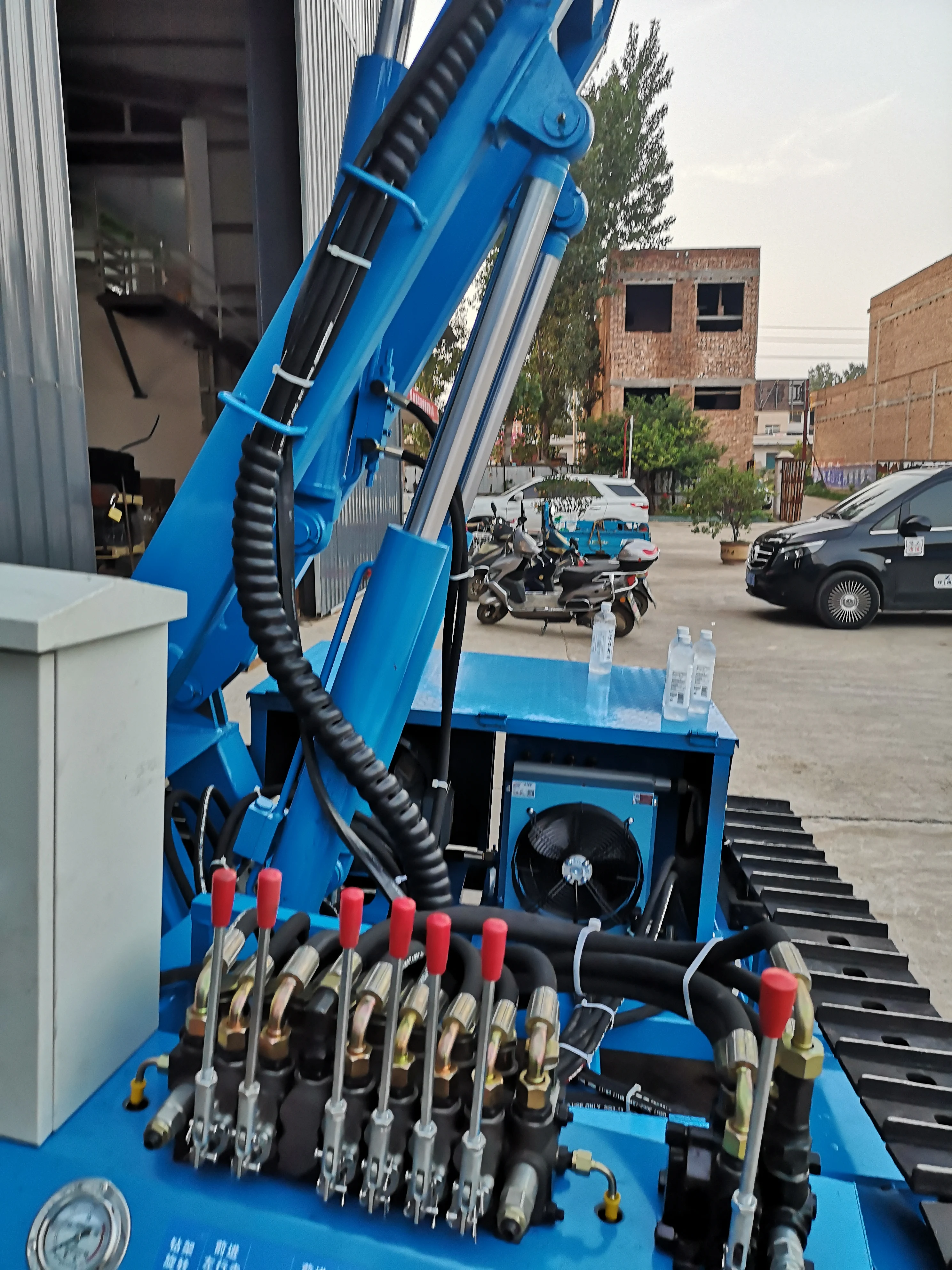

Driven by dual hydraulic motors, the output torque is large, which improves the drilling stability of the drilling rig and improves the work efficiency.
root canal drilling tool
It can support arm opening in unstable formation, with fast drilling efficiency and good hole quality
Our service
Whole process guidance
With more than 20 years of service experience,Please provide your procurement budget, drilling height/depth/bore diameter, construction conditions? We will provide the most suitable model.
Provide a full set of construction method and equipment training
After-sales service system
Support customization
Extensive spare parts service
Support sea, land and air transportation
We can ship products to every corner of the world. If you need, we also support a series of tedious tasks such as customs clearance and tail end delivery.Company Profile
Certification
We have passed CE, ISO, SGS certification! Better quality creates greater benefits for you!
Customer visit
We receive an average of 4 customers every week, visit and audit our factory, and negotiate business. There is a Chinese proverb: It is always a pleasure to greet a friend from afar.
Factories and offices
More than 100,000 square meters of manufacturing and warehouse space More than 100 employees in the International Business Department.
FAQ
Q: How to select and determine the model?
A: Please provide your procurement budget, drilling height/depth/bore diameter, construction conditions? We will provide the most suitable model.
Q: I just started to enter these industries? Don't know what to do?
A: We will assist you to choose a cost-effective machine; we will provide assistance in purchasing raw materials, equipment debugging, and later technical guidance.
Q: How can I ship these machines to my company after purchase?
A: We have a stable and cooperative freight forwarder and have rich experience. We can be responsible for the whole process of transportation/customs declaration/customs clearance/transportation, and transport the goods to your company.
Q: Can you tell us about your service and support throughout the process?
A: I think selling a machine is just the start of our partnership
1.We will provide technical solutions, product selection guidance, and related supporting equipment support before sales
(For example, to help you identify hot-selling products in the market to determine machine selection)
2.Provide regular feedback on manufacturing progress in production Pictures or videos
3.Provide machine testing after sale; free accessories; stable packaging; product shipping to your factory , customs clearance and shipping services we can also cover;
4.During production: continuous debugging of the machine; raw material supply etc.
A: Please provide your procurement budget, drilling height/depth/bore diameter, construction conditions? We will provide the most suitable model.
Q: I just started to enter these industries? Don't know what to do?
A: We will assist you to choose a cost-effective machine; we will provide assistance in purchasing raw materials, equipment debugging, and later technical guidance.
Q: How can I ship these machines to my company after purchase?
A: We have a stable and cooperative freight forwarder and have rich experience. We can be responsible for the whole process of transportation/customs declaration/customs clearance/transportation, and transport the goods to your company.
Q: Can you tell us about your service and support throughout the process?
A: I think selling a machine is just the start of our partnership
1.We will provide technical solutions, product selection guidance, and related supporting equipment support before sales
(For example, to help you identify hot-selling products in the market to determine machine selection)
2.Provide regular feedback on manufacturing progress in production Pictures or videos
3.Provide machine testing after sale; free accessories; stable packaging; product shipping to your factory , customs clearance and shipping services we can also cover;
4.During production: continuous debugging of the machine; raw material supply etc.
Похожие товары
Холодильник из нержавеющей стали скребок для льда Кухня ручной морозильник Лопата обогреватель лопата для снега
0,31 $ - 0,42 $
SHINGCHEM газовый хладагент, высокопроизводительное масло Pag Poe, охлаждающее смазочное масло, китайская фабрика, масло PAG
49,00 $ - 53,00 $
SK330-8 масляного инжектора болт экскаватора запчасти VH156051250A
3,58 $

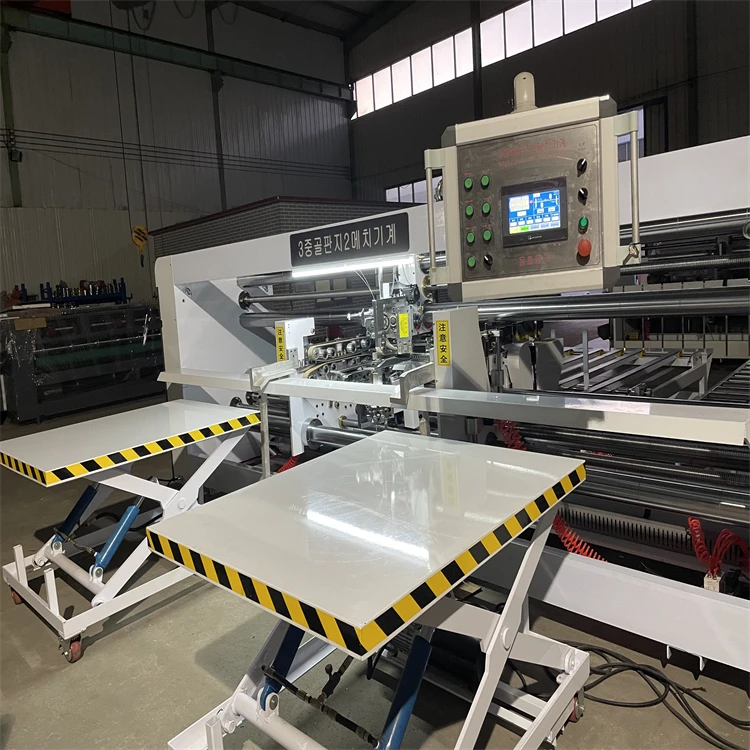

Китай полуавтоматическая машина для сшивания картонных коробок из двух частей, машина для сшивания картонных листов Corrugados
