Product Description

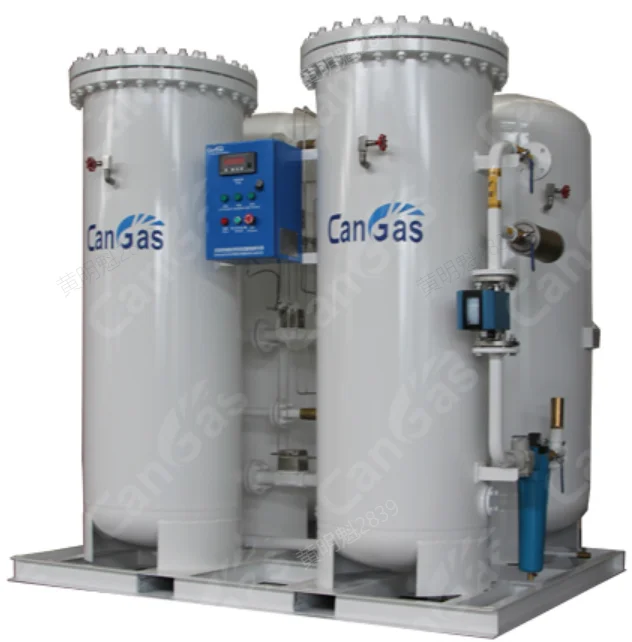

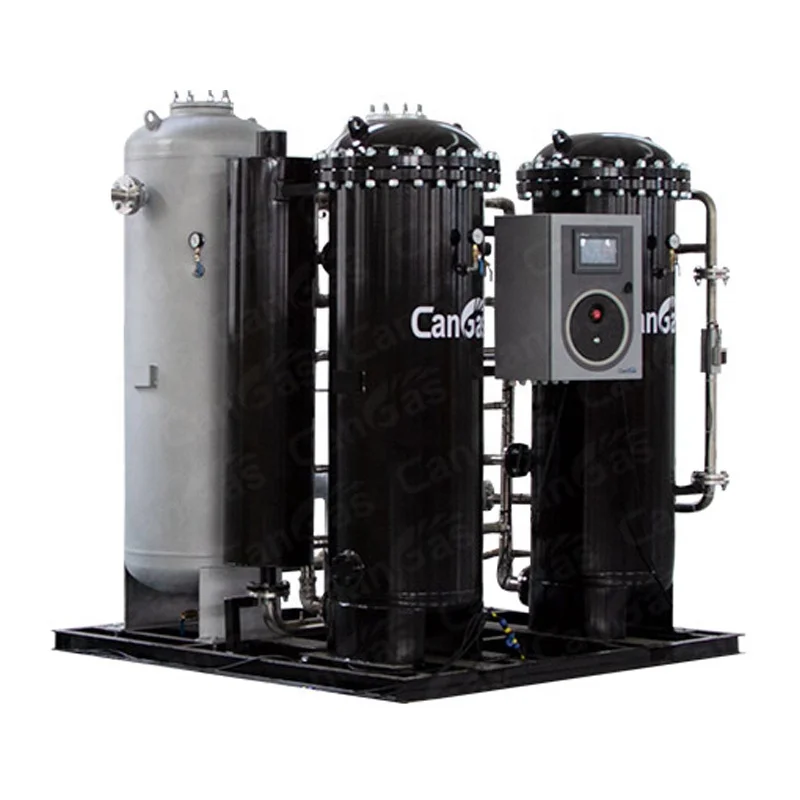

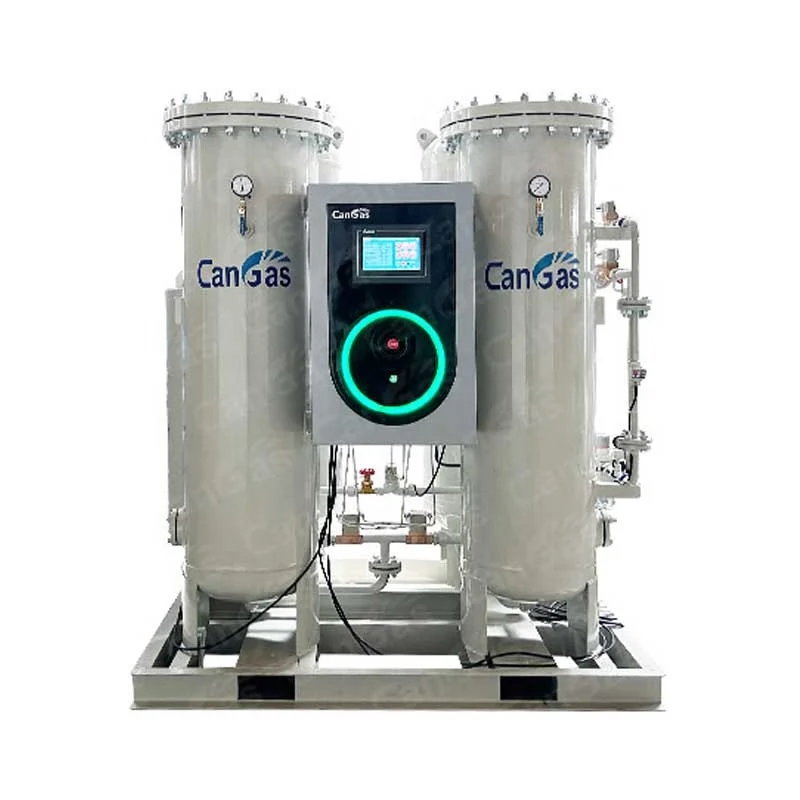

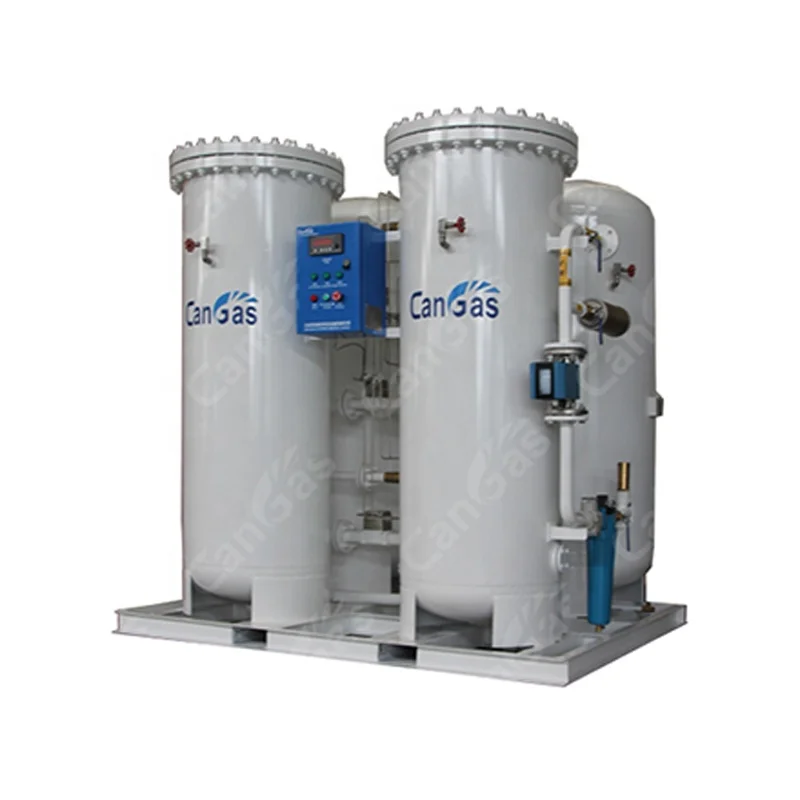

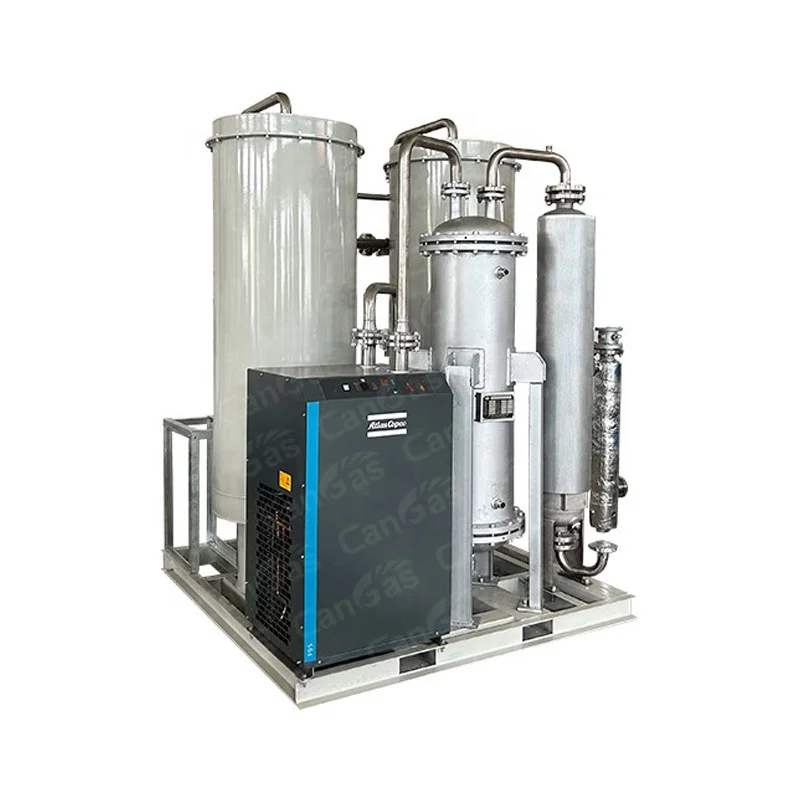

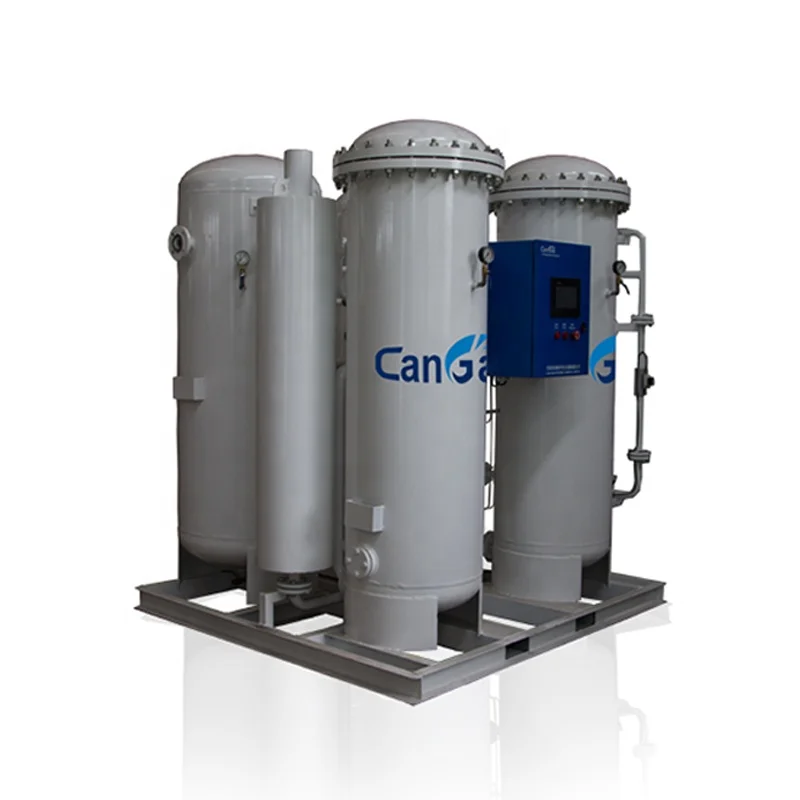

CAN GAS CAPN /CAPN HP series PSA Nitrogen Gas Generator
CANGAS PSA( pressure swing adsorpiton) on-site nitorgne genertor -product gas technical indicators:
Nitrogen flow rate:5-8000Nm3/h
Nitrogen purity: ≥97%~99.999%
Nitrogen dew point:-20~-80℃
Nitrogen outlet pressure: 0.2~1.0Mpa (adjustable)
CANGAS PSA nitrogen production equipment is divided into: 95%,97%, 98%, 99%, 99.5%, 99.9%, 99.99%, 99.995%, 99.999%,99.9995
according to nitrogen purity, for your choice.
Nitorgen Genertor type: PSA N2 genertor , Membrane nitrogen genertor , Skid mounted type ,small box type ,container type, trailer type, truck type .
CANGAS PSA( pressure swing adsorpiton) on-site nitorgne genertor -product gas technical indicators:
Nitrogen flow rate:5-8000Nm3/h
Nitrogen purity: ≥97%~99.999%
Nitrogen dew point:-20~-80℃
Nitrogen outlet pressure: 0.2~1.0Mpa (adjustable)
CANGAS PSA nitrogen production equipment is divided into: 95%,97%, 98%, 99%, 99.5%, 99.9%, 99.99%, 99.995%, 99.999%,99.9995
according to nitrogen purity, for your choice.
Nitorgen Genertor type: PSA N2 genertor , Membrane nitrogen genertor , Skid mounted type ,small box type ,container type, trailer type, truck type .
Injection or Blow Molding
High pressure nitrogen for meeting high pressure demands
Plastic producers are under ever increasing pressure to increase quality while decreasing costs. Gas Assist Injection Molding
(GAIM) can help you meet both demands by allowing you to decrease your plastic usage while ensuring a more consistent product quality and wall thickness—all with an aim to maximize your process efficiency. Liquid nitrogen can also be used in the blow molding process instead of cooled air to help increase quality and productivity in the process. In some cases, liquid carbon dioxide can be used for temperature control and cooling hot spots in the molding process.
Higher Quality, Decreased Costs
Adding GAIM to an injection molding process can have wide-ranging benefits across your operation. From increasing your product quality to decreasing your plastic weight, learn how GAIM can help you do more with less:
GAIM can help increase:
* Part strength and rigidity
* Design freedom
* Oxidative resistance
* Wall thickness uniformity
* Overall quality by reducing sink marks
GAIM can help decrease:
* Machine size and energy use
* Cycle and cooling time
* Part weight
* Plastic usage
Plastic producers are under ever increasing pressure to increase quality while decreasing costs. Gas Assist Injection Molding
(GAIM) can help you meet both demands by allowing you to decrease your plastic usage while ensuring a more consistent product quality and wall thickness—all with an aim to maximize your process efficiency. Liquid nitrogen can also be used in the blow molding process instead of cooled air to help increase quality and productivity in the process. In some cases, liquid carbon dioxide can be used for temperature control and cooling hot spots in the molding process.
Higher Quality, Decreased Costs
Adding GAIM to an injection molding process can have wide-ranging benefits across your operation. From increasing your product quality to decreasing your plastic weight, learn how GAIM can help you do more with less:
GAIM can help increase:
* Part strength and rigidity
* Design freedom
* Oxidative resistance
* Wall thickness uniformity
* Overall quality by reducing sink marks
GAIM can help decrease:
* Machine size and energy use
* Cycle and cooling time
* Part weight
* Plastic usage
Working Principle
How to select nitrogen generator
Tell CAN GAS purity/ pressure/ flow rate needed in your application, our professional sales team will help you .
Host model | Extended model | Purity（%） | 99.999 | 99.995 | 99.99 | 99.9 | 99.5 | |||||||
CAPN HP-20 | CAPN HP-20 | Capacity（Nm³/h） | 11.2 | 17.6 | 20 | 32 | / | |||||||
Size（mm） | 1500×1500×1700 | |||||||||||||
Weight（KG） | 1000 | |||||||||||||
CAPN HP-20C | Size（mm） | 1600×1550×1750 | ||||||||||||
Weight（KG） | 1050 | |||||||||||||
CAPN HP-30 | CAPN HP-30 | Capacity（Nm³/h） | 18.2 | 28.6 | 30 | 50 | / | |||||||
Size（mm） | 1700×1500×2100 | |||||||||||||
Weight（KG） | 1320 | |||||||||||||
CAPN HP-30C | Size（mm） | 1800×1600×2150 | ||||||||||||
Weight（KG） | 1400 | |||||||||||||
CAPN HP-35 | CAPN HP-35 | Capacity（Nm³/h） | 19.6 | 19.6 | 35 | 56 | 64.4 | |||||||
Size（mm） | 1600×1450×1950 | |||||||||||||
Weight（KG） | 1400 | |||||||||||||
CAPN HP-35C | Size（mm） | 1700×1550×2000 | ||||||||||||
Weight（KG） | 1450 | |||||||||||||
The above table shows some models of nitrogen generators, others can be customizable. | ||||||||||||||
Host model | Extended model | Purity（%） | 99.999 | 99.99 | 99.9 | 99.5 | 99 | 98 | 95 | |||||||||
CAPN HP-40 | CAPN HP-40 | Capacity（Nm³/h） | 22.4 | 40 | 64 | 80 | 96 | 112 | 160 | |||||||||
Size（mm） | 1600×1450×2200 | 1600×800×2130 | ||||||||||||||||
Weight（KG） | 1396 | 1020 | ||||||||||||||||
CAPN HP-40C | Size（mm） | 1700×1500×2250 | / | |||||||||||||||
Weight（KG） | 1456 | |||||||||||||||||
CAPN HP-50 | CAPN HP-50 | Capacity（Nm³/h） | 28 | 50 | 80 | 100 | 120 | 140 | 200 | |||||||||
Size（mm） | 1700×1550×2160 | 1700×1050×2060 | ||||||||||||||||
Weight（KG） | 1550 | 1092 | ||||||||||||||||
CAPN HP-50C | Size（mm） | 1800×1600×2200 | / | |||||||||||||||
Weight（KG） | 1610 | |||||||||||||||||
CAPN HP-60 | CAPN HP-60 | Capacity（Nm³/h） | 33.6 | 60 | 96 | 120 | 144 | 168 | 200 | |||||||||
Size（mm） | 1860×1750×2100 | 1860×1100×2060 | ||||||||||||||||
Weight（KG） | 2040 | 1640 | ||||||||||||||||
CAPN HP-60C | Size（mm） | 1900×1800×2150 | / | |||||||||||||||
Weight（KG） | 2100 | |||||||||||||||||
The above table shows some models of nitrogen generators, others can be customizable. | ||||||||||||||||||
Company Profile
We have the largest professional production base of PSA oxygen generators，PSA nitrogen generator,membrane nitrogen
generator,medical on-site oxygen generator etc air seperation system in China since 1998, covers an area of 28,000m2.
1. One of the most experienced manufacturer of air separation Unit(ASU) in China CAN GAS is one of the first air separation technology developing companies in China, dedicated to researching and developing more suitable onsite medical gas solutions for hospitals.
2. Most professional oxygen generator manufacturer in China
(1)Since establishment, R&D and production of ASU is our professional field.
(2)The only company own High-tech enterprise and new tech product/service certificate for medical PSA oxygen generator.
(3)The most patent certificate for medical oxygen generator and software copyright.
(4)Unique company covering business sectors, medical, commercial and artificial environment.
(5)Trusted by customers and distributors
generator,medical on-site oxygen generator etc air seperation system in China since 1998, covers an area of 28,000m2.
1. One of the most experienced manufacturer of air separation Unit(ASU) in China CAN GAS is one of the first air separation technology developing companies in China, dedicated to researching and developing more suitable onsite medical gas solutions for hospitals.
2. Most professional oxygen generator manufacturer in China
(1)Since establishment, R&D and production of ASU is our professional field.
(2)The only company own High-tech enterprise and new tech product/service certificate for medical PSA oxygen generator.
(3)The most patent certificate for medical oxygen generator and software copyright.
(4)Unique company covering business sectors, medical, commercial and artificial environment.
(5)Trusted by customers and distributors
Certifications
References
Service
After service and Warranty:
Warranty: PERIOD of warranty is 18 months after shipment or 12 months after commissioning, whichever occurs first. It is responsible for CANGAS to analysis, answer breakdowns for users all through the working life of CANGAS oxygen generator. Engineer can be sent on-site for free after-service service if necessary. Please refer to Warranty terms for more information.
Installation & Commissioning & Training: CANGAS service engineer is available to instruct the installation and start up of this plant (6 days at job site with service fee or remotely).If job site service is needed the buyer should prepare flights, accommodation, food and local transportation for CANGAS service engineer.
Installation & Commissioning & Training: CANGAS service engineer is available to instruct the installation and start up of this plant (6 days at job site with service fee or remotely).If job site service is needed the buyer should prepare flights, accommodation, food and local transportation for CANGAS service engineer.
Application
Customer Photos
