Винтовой терминал для наружного подводного электропитания быстрая Простая установка прямой разъем кабеля M25
- Категория: >>>
- Поставщик: Zhongshan Ruipu Lighting Electric Appliance Co. Ltd.
Сохранить в закладки 1600936961008:
Описание и отзывы
Характеристики

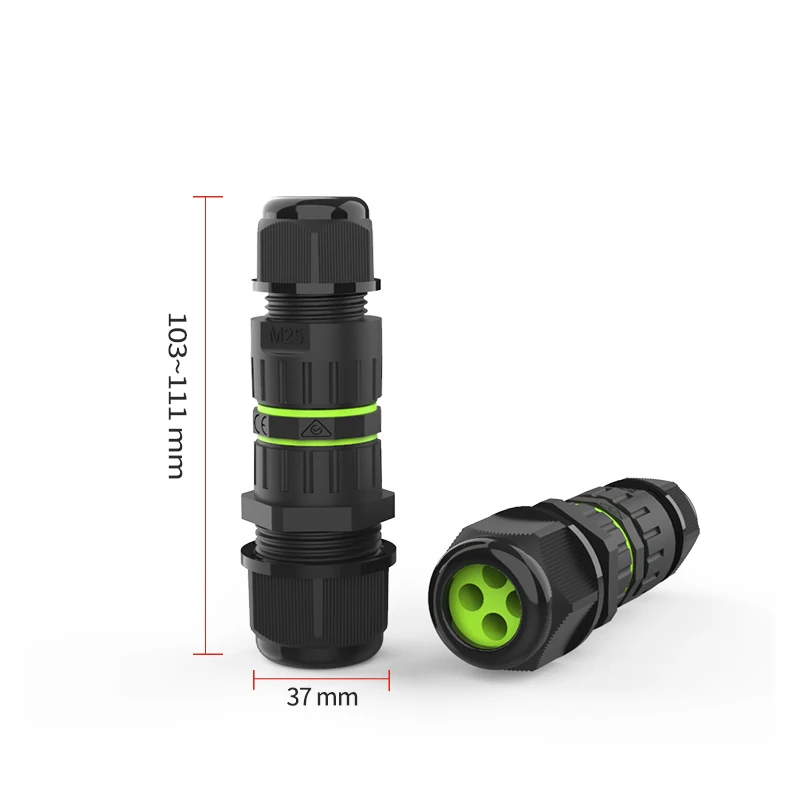

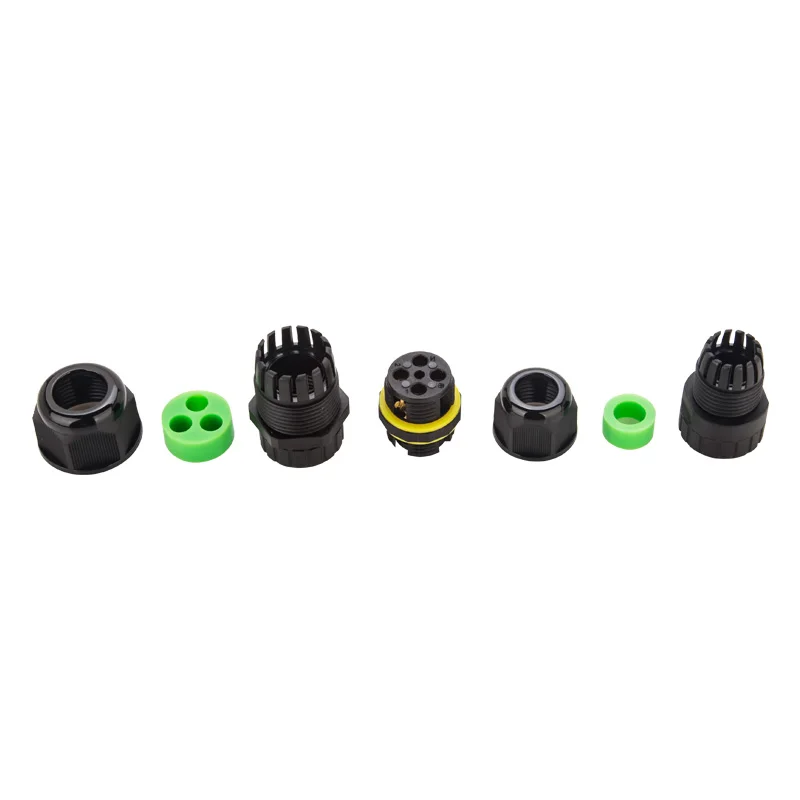

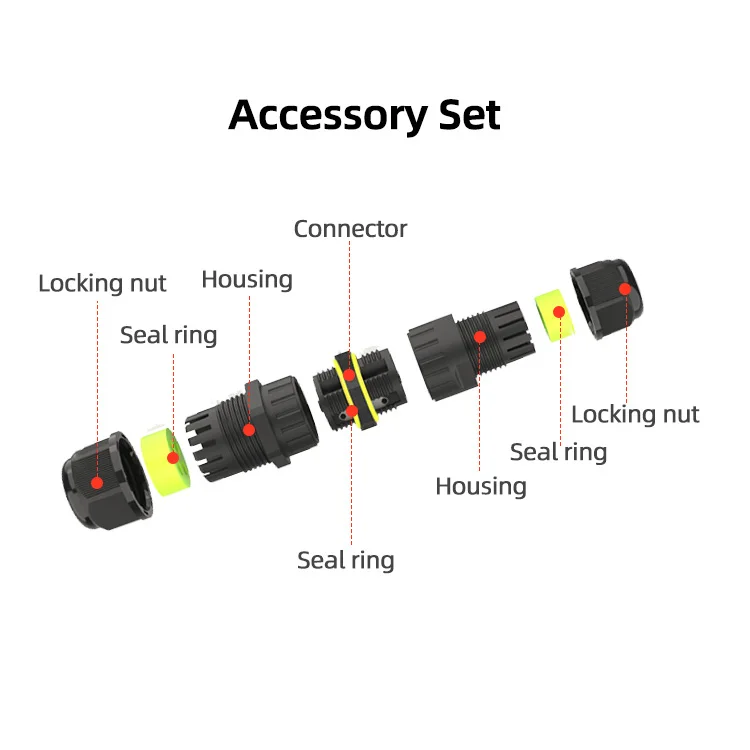

Screw Terminal Outdoor Underwater Electrical Power Quick Easy Installation Straight M25 Cable Wire Connector
Specification
EW-M25 | ||

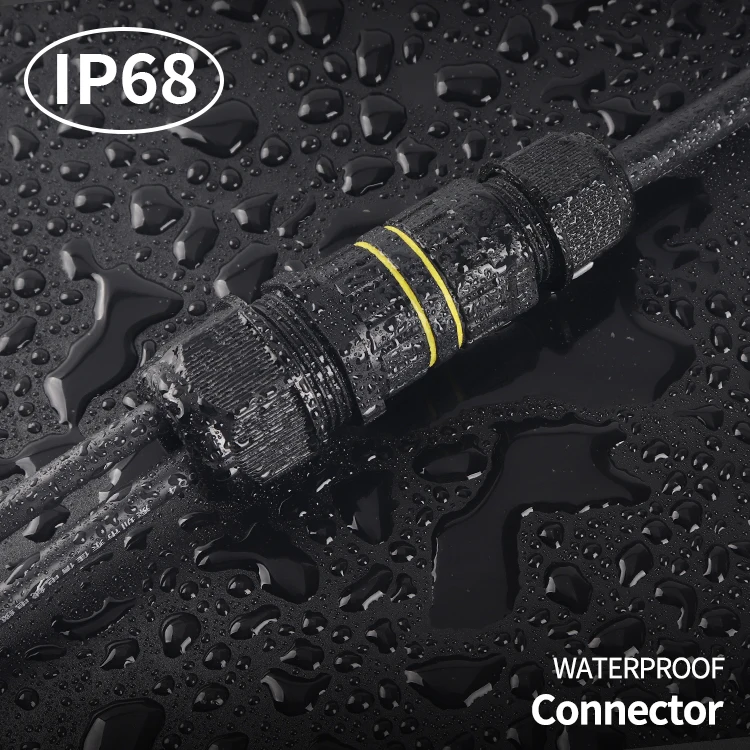

The Detail Of IP68 Waterproof Connector | ||
Item | EW-M25-4P-3T/4T/5T | |
Number of Poles | 4P | |
Operating current | 40A | |
Wire cross section . | 0.5mm²- 6.0mm² | |
Cable Diameter | 1in: 5mm-9mm;9mm-12mm;10mm-14mm;14mm-18mm | |
2out: 5.5-8.5mm/3out: 5-8mm/4out: 3.5-6.5mm | ||
Operating voltage | Max. 400V | |
IP grade | IP68(4m, 365 days) | |
Sealing | Silicone | |
Contacts | Nickel-plated Brass | |
Temperature | -40℃ - 105℃ | |
Materials properties | Halogen Free | |
Connector housing Cable gland | PA66 UL94-V2 | |
Model | number of poles | Ampere | voltage | Outer Cable Diameter | Wire Section | Temperatur | Ip-code /Material |
EW-M16 | 2~3Pin | 17.5A | 450V | 3.5-7mm,7-10mm | 0.5-1.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-M20 | 2~6Pin | 2~4Pin24A 5-6Pin17.5A | 450V | 5-9mm,9-12mm | 0.5-0.5mm² 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-M20T | 2~4Pin | 24A | 450V | 5-9mm,9-12mm | 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-M20X | 2~3Pin | 24A | 400V | 5-9mm,9-12mm | 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-M25 | 2~5Pin | 2~4Pin40A 5Pin24A | 400V | 5-9mm,9-12mm 10-14mm | 0.5-0.6mm² 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-M25B | 2~3Pin | 24A | 400V | 5-9mm,9-12mm 10-14mm | 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-M25I | 2/3/5Pin | 24A/32A | 450V | 5-9mm,9-12mm 10-14mm | 0.5-4mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-M25T | 2~3Pin | 40A | 400V | 5-9mm,9-12mm 10-14mm | 0.5-0.6mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-M25T-C | 2/3/5Pin | 24A/32A | 450V | 5-9mm,9-12mm 10-14mm | 0.5-4mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-M25X | 2~3Pin | 40A | 400V | 5-9mm,9-12mm 10-14mm | 0.5-0.6mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-M25Y | 2/3/5Pin | 24A/32A | 450V | 5-9mm,9-12mm 10-14mm | 0.5-4mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-P20 | 2~3Pin | 16A | 450V | 5-9mm,9-12mm | 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-P20T | 2~3Pin | 16A | 450V | 5-9mm,9-12mm | 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-P20T-B02 | 2Pin | 24A | 450V | 5-9mm,9-12mm | 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-P20X-B02 | 2Pin | 24A | 450V | 5-9mm,9-12mm | 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-EW-P25 | 4/5Pin | 16A | 450V | 5-9mm,9-12mm 10-14mm | 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-P25T-B03 | 3Pin | 24A | 450V | 5-9mm,9-12mm 10-14mm | 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-P25X-B03 | 3Pin | 24A | 450V | 5-9mm,9-12mm 10-14mm | 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
Model | number of poles | Ampere | voltage | Outer Cable Diameter | Wire Section | Temperatur | Ipcode /Material |
EW-M15MP | 2~4Pin | 10A | 450V | 2.5-4.5mm 3.5-7mm | 0.5-1mm² 0.5-1.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-M19MP | 2~5Pin | 20A/15A | 450V | 3.5-7mm,5-8mm 7-10mm | 0.5-2.5mm² 0.5-1.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-M23MP | 2~5Pin | 30A/15A | 450V | 5-9mm,9-12mm | 0.5-4mm² 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-M28MP | 2~5Pin | 30A/15A | 450V | 5-9mm,9-12mm | 0.5-4mm² 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-102/103 | 2~3Pin | 24A | 450V | 3.5-7mm,7-10mm | 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-b02 | 2Pin | 16A | 450V | 3.5-7mm,7-10mm | 0,2-0,5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-P15MP | 2~4Pin | 10A | 450V | 2.5-4.5mm 3.5-7mm | 0,2-0,5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-M19MP | 3Pin | 20A | 450V | 3.5-7mm,5-8mm 7-10mm | 0,2-0,5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-M23MP | 2~5Pin | 30A/15A | 450V | 5-9mm,9-12mm | 0.5-4mm² 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-P23MP | 2~3Pin | 16A | 450V | 5-9mm,9-12mm | 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-P25MP | 4~5Pin | 16 | 450V | 5-9mm,9-12mm 10-14mm | 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
EW-P28MP | 2~6Pin | 50A/20A | 450V | 5-9mm,9-12mm 10-14mm | 0.5-6mm² 0.5-2.5mm² | -40 ℃ - 105 ℃ | Nylon IP68/PA66 |
Production Process
①Mold
②Hardware workshop
③Plastic Iniection
④Metal stamping
⑤Automatic pre-assembly
⑥Final assembly
Test Machine
Waterproof test
Two dimensional image measuring instrument
Torque test
Salt spray test machine
Tensile test
Hardness Testing
Certifications

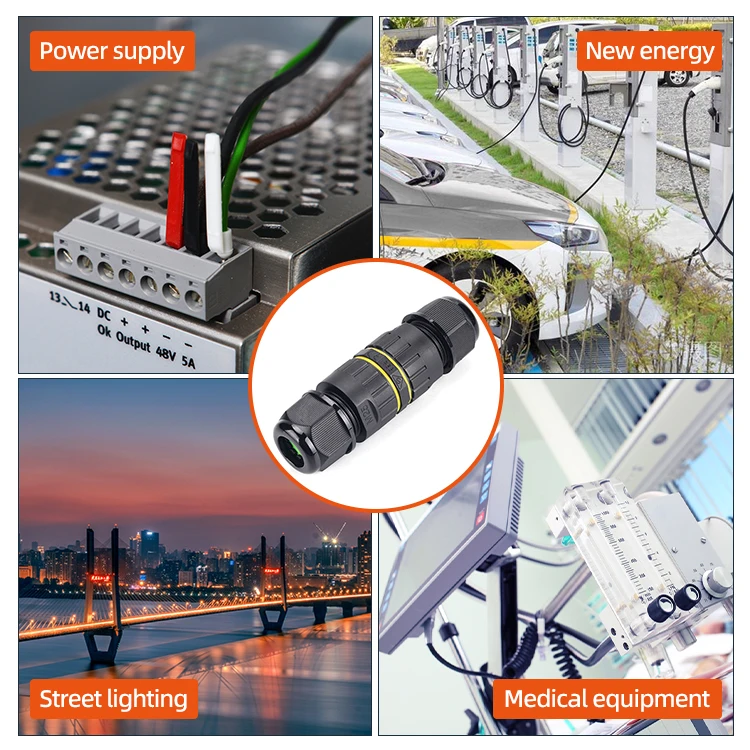

Application field
Company Profile
ABOUT US
Zhongshan Ruipu Lighting Electric Appliance Co., Ltd.. was established in 2012. It is a modern professional enterprise
integrating R&D, production and sales. And has a complete and scientific quality management system. The company's
products have passed UL, VDE, CE, CB, TUV, ENEC, SAA, CQC, ROHS and other domestic and foreign certifications. Our
integrity, strength and product quality are recognized by the industry. With the unremitting efforts of all the staff of the
company and the support of our customers, our company's business covers the entire Pearl River Delta and radiates all
over the country, and is exported to many countries and regions. It is widely used in variouselectronic and electrical fields, such as lighting, household appliances, communication equipment, instrumentation, rail transit, medical industry, marine electronics, solar energy systems, intelligent buildings, elevator control and other fields, and has been
recognized by the majority of users.
integrating R&D, production and sales. And has a complete and scientific quality management system. The company's
products have passed UL, VDE, CE, CB, TUV, ENEC, SAA, CQC, ROHS and other domestic and foreign certifications. Our
integrity, strength and product quality are recognized by the industry. With the unremitting efforts of all the staff of the
company and the support of our customers, our company's business covers the entire Pearl River Delta and radiates all
over the country, and is exported to many countries and regions. It is widely used in variouselectronic and electrical fields, such as lighting, household appliances, communication equipment, instrumentation, rail transit, medical industry, marine electronics, solar energy systems, intelligent buildings, elevator control and other fields, and has been
recognized by the majority of users.
Transport ＆ Packing
FAQ
Q1.What's your after-sales service?
A1:We provide technical support for you, also can help you to solve your customers' problem.
Q2. Can I have a sample order ?
A2: Yes, we can provide sample , but the express cost will be on your account.
Q3.How to play an order?
A3: Contact with online service, or sent an email to us,we will confirm you with product price,specs,packing etc.
Q4. How about your delivery time?
A4: Shipped in 5-7 work days after payment be confirmed.
Q5: What is your terms of payment ?
A5: We accept TT,or other payment methods.
Q6: What is your price?
A6: We are a manufacturer and always offer our customers the most competitive factory price.
Q7. Is it OK to print my logo on your product?
A7:Yes. We welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our sample.
Q8: Which kind of wire connector can I use?
A8:Kindly tell us your cable diameter, wire cross-sections to help us recommend the suitable models.
Q9: Why cooperate with you?
A9: 1. 100% homemade, competitive price.
2. Strict quality control, certified by ISO9001:2000 / ENEC25 /ETL / TUV / CE / PSE / CQC / RoHS.
3. 7 x 24h technical support and after-sales service.
4. We treat it as a win-win cooperation, not our unilateral sales Activity.
A1:We provide technical support for you, also can help you to solve your customers' problem.
Q2. Can I have a sample order ?
A2: Yes, we can provide sample , but the express cost will be on your account.
Q3.How to play an order?
A3: Contact with online service, or sent an email to us,we will confirm you with product price,specs,packing etc.
Q4. How about your delivery time?
A4: Shipped in 5-7 work days after payment be confirmed.
Q5: What is your terms of payment ?
A5: We accept TT,or other payment methods.
Q6: What is your price?
A6: We are a manufacturer and always offer our customers the most competitive factory price.
Q7. Is it OK to print my logo on your product?
A7:Yes. We welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our sample.
Q8: Which kind of wire connector can I use?
A8:Kindly tell us your cable diameter, wire cross-sections to help us recommend the suitable models.
Q9: Why cooperate with you?
A9: 1. 100% homemade, competitive price.
2. Strict quality control, certified by ISO9001:2000 / ENEC25 /ETL / TUV / CE / PSE / CQC / RoHS.
3. 7 x 24h technical support and after-sales service.
4. We treat it as a win-win cooperation, not our unilateral sales Activity.
Похожие товары

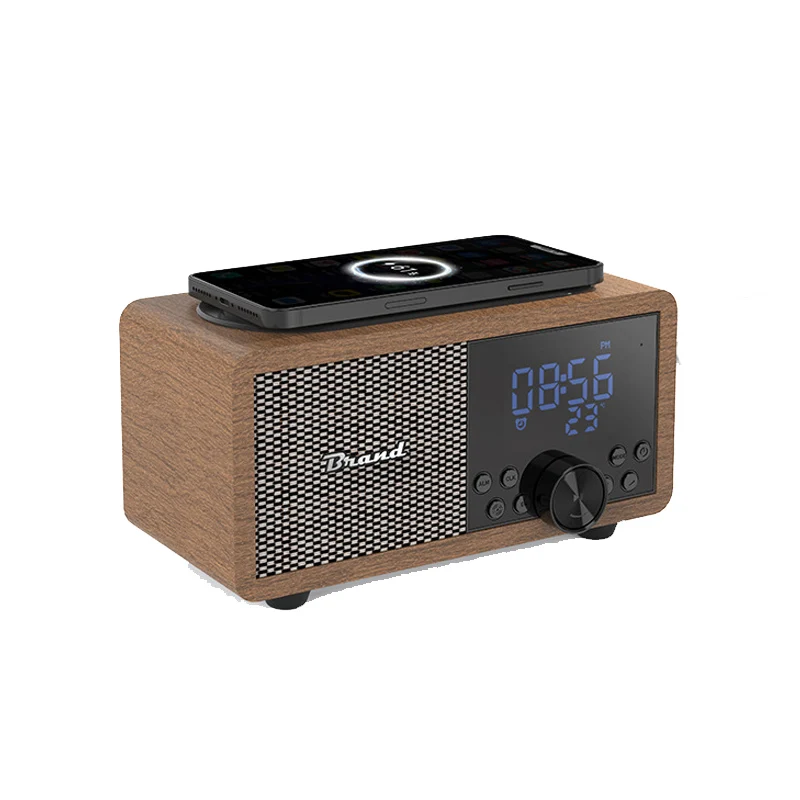

Деревянные Bluetooth динамик с зарядным устройством для мобильного телефона Bluetooth Пауэр банк с музыкальным проигрывателем 3-в-1 Будильник беспроводной динамик
20,15 $ - 23,14 $

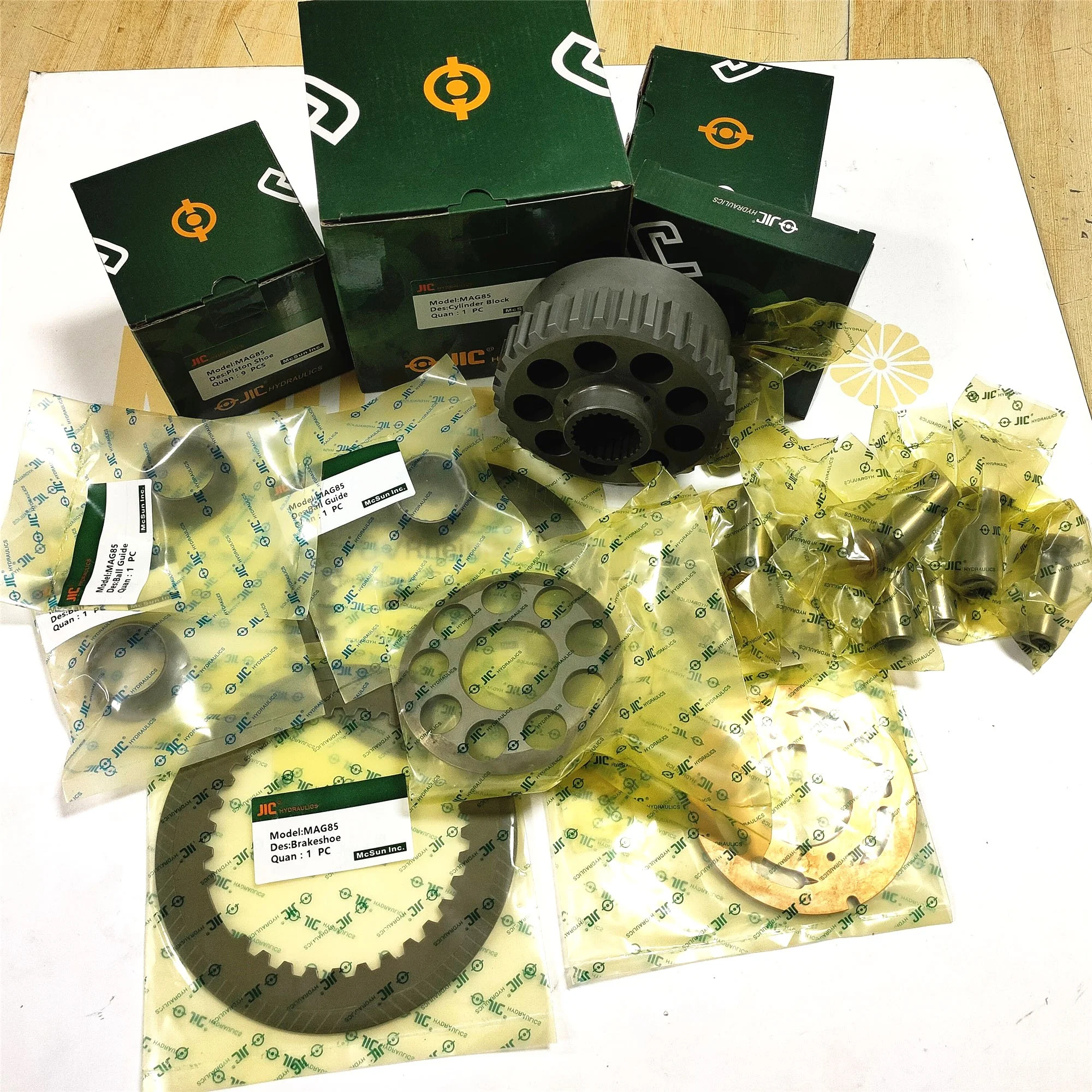

Запчасти для komatsu hitachi
59,00 $ - 157,00 $

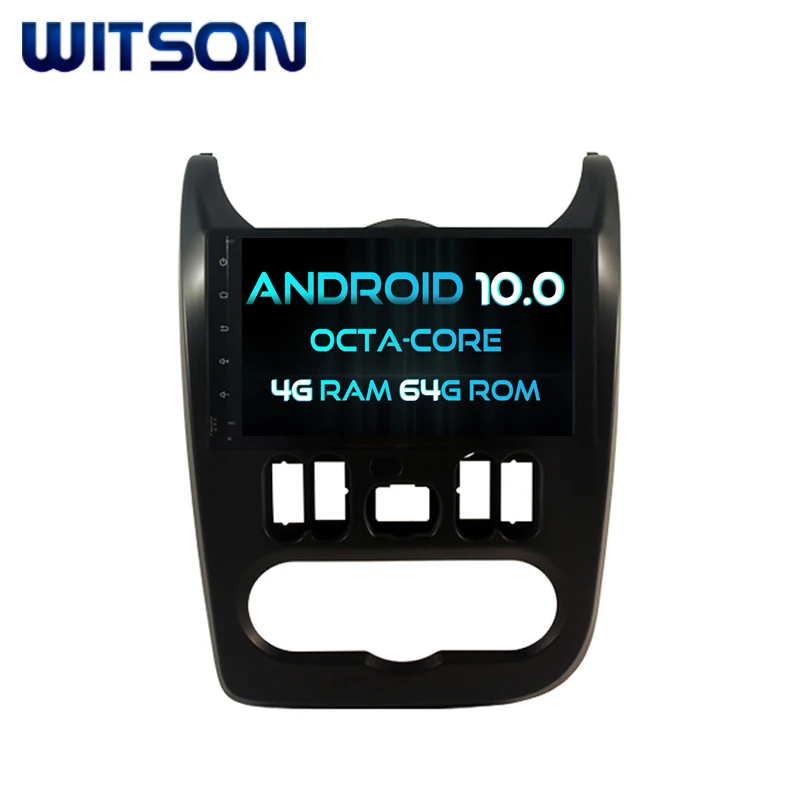

WITSON ANDROID 10,0 Авто Радио DVD GPS для RENAULT DUSTER 2012 PX5 OCTA-CORE IPS экран 32g R0M
Выдувной вручную стеклянный кувшин 2 в 1 для масла и уксуса 10 унций с виноградными кластерами
2,65 $ - 2,95 $

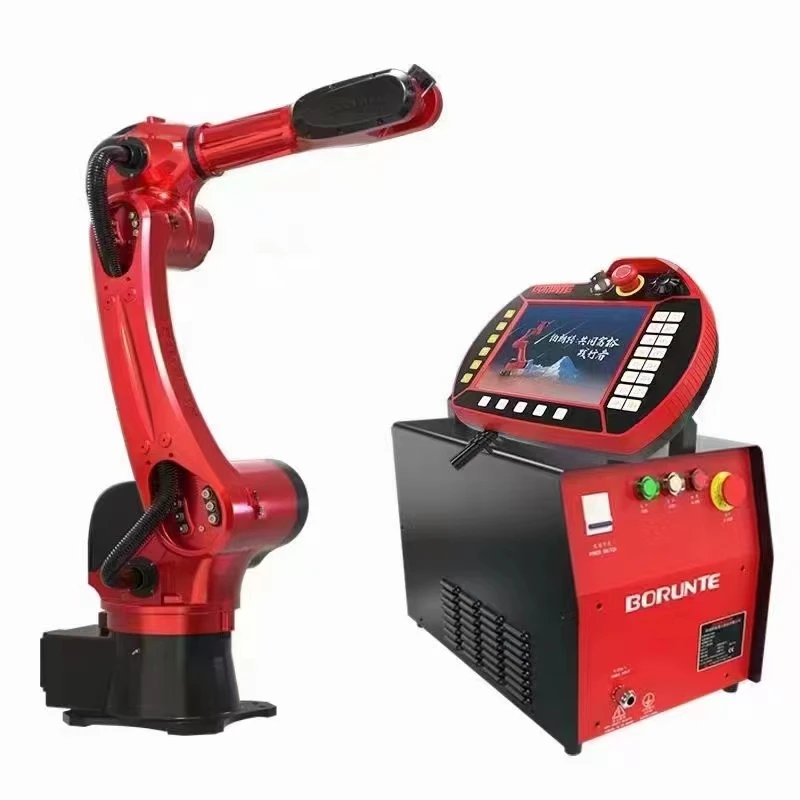

Сварочный робот Borunte BRTIRUS1510A, промышленный робот, 6-осевой робот для обработки
5 000,00 $

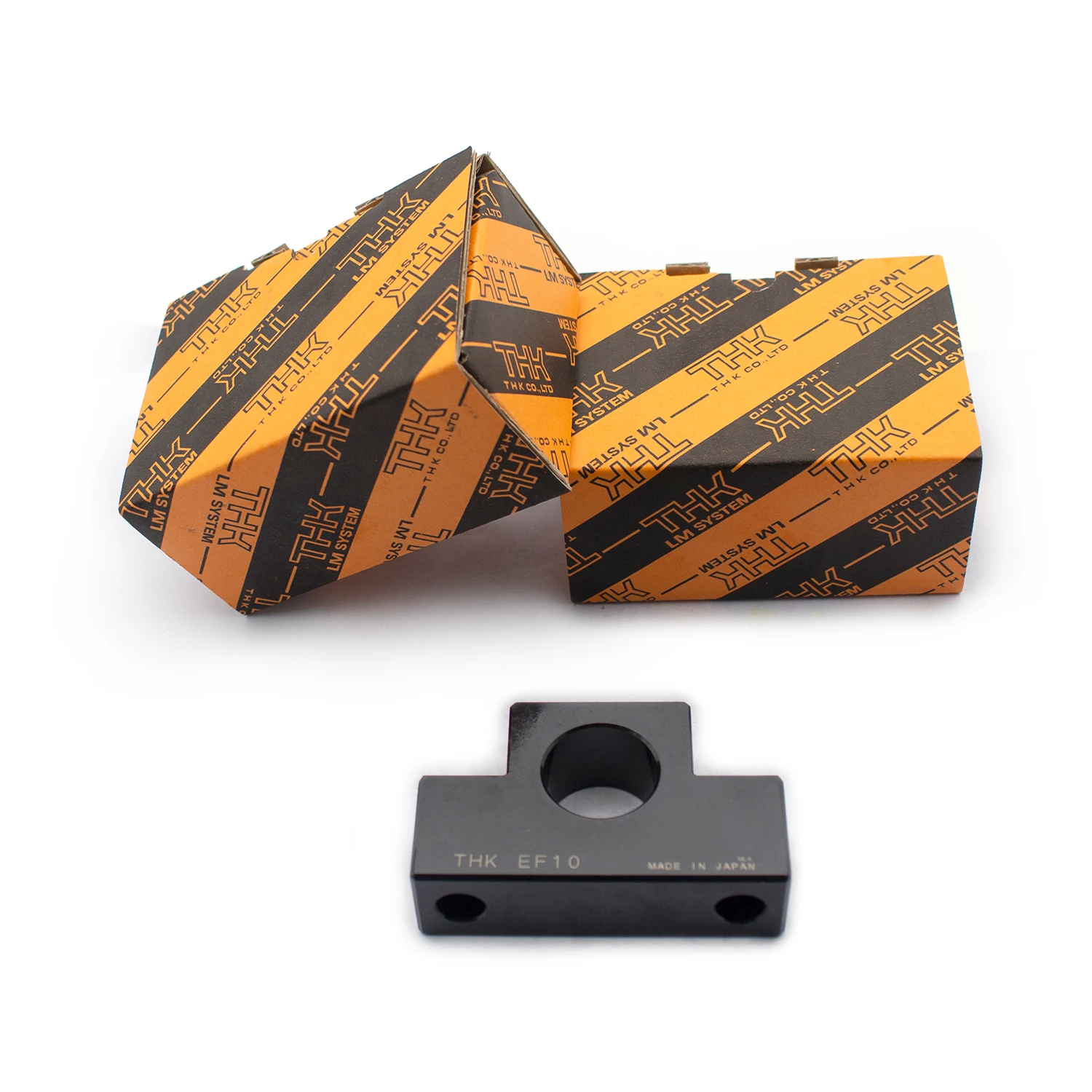

THK оригинальный шариковый винтовой опорный крепежный седло CNC EK6 EF6 EK8 ef10 EF12 EK15 EF20C3 опорный блок подшипника
