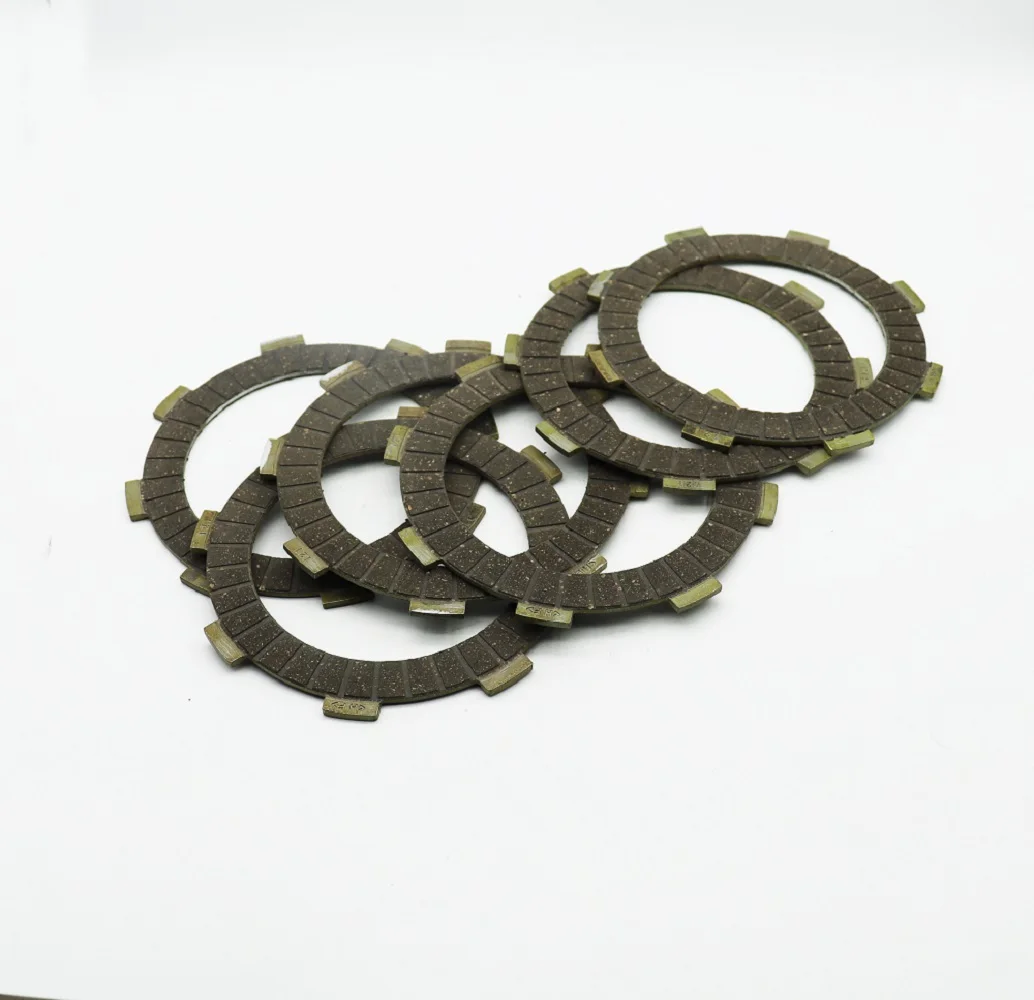

CQHZJ, оптовая продажа, аксессуары для мотоциклов, 6 шт., диски сцепления, диски сцепления CG 300
0,22 $ - 0,35 $
24V 48V 72V 80V 80A 100A 150A 200A 3 фазное напряжение литиевая батарея зарядное устройство для вилочного погрузчика AGV солнечная система зарядные устройства высокой мощности
- Категория: >>>
- Поставщик: Shenzhen Depowersupply Electrical Co. Ltd.
Сохранить в закладки 1600938187543:
Описание и отзывы
Характеристики
PC Series High Power Battery Charger | ||||||
Model name | Max. output power | Charge current | Other parameters | |||
WMC24100 | 3200W@ 220VAC 1600W@ 110VAC | 100A@ 220VAC 50A@ 110VAC | Communication: RS485/CAN Power factor: 0.99(100% Load) Max. Efficiency: 94.5% Cooling: Fan cooling Working Temp: -20~55 ℃ Short circuit protection: Yes Over temperature protection: Yes Charging phase: Pre-charge+ constant current+ constant voltage( Lithium battery） | |||
WMC24200 | 6400W@220VAC 3200W@110VAC | 200A@ 220VAC 100A@ 110VAC | ||||
WMC48100 | 6000W@ 220VAC 3000W@ 110VAC | 100A@ 220VAC 50A@ 110VAC | ||||
WMC48150 | 9000W@ 220VAC 4500W@ 110VAC | 150A@ 220VAC 75A@110VAC | ||||
WMC7280 | 6400W@ 220VAC 3200W@ 110VAC | 80A@ 220VAC 40A@ 110VAC | ||||
WMC80100 | 20KW(323V AC~520V AC) Full Load 10KW(323V AC~260V AC) Half Load | 100A@323V ~520V 50A@323V ~260V | ||||
WMC80200 | 200A@323V ~520V 100A@323V ~260V | |||||
The products of WMC series can be used for single-phase input voltage and three-phase input voltage. A charger with an input voltage of three phases is called an industrial high-power charger.
The Industrial High power series are multiple powerful battery chargers capable of charging at 100 amps and 200amps or over 10KW for 24v/48v/72v/80v lead-acid, lithium batteries and etc.

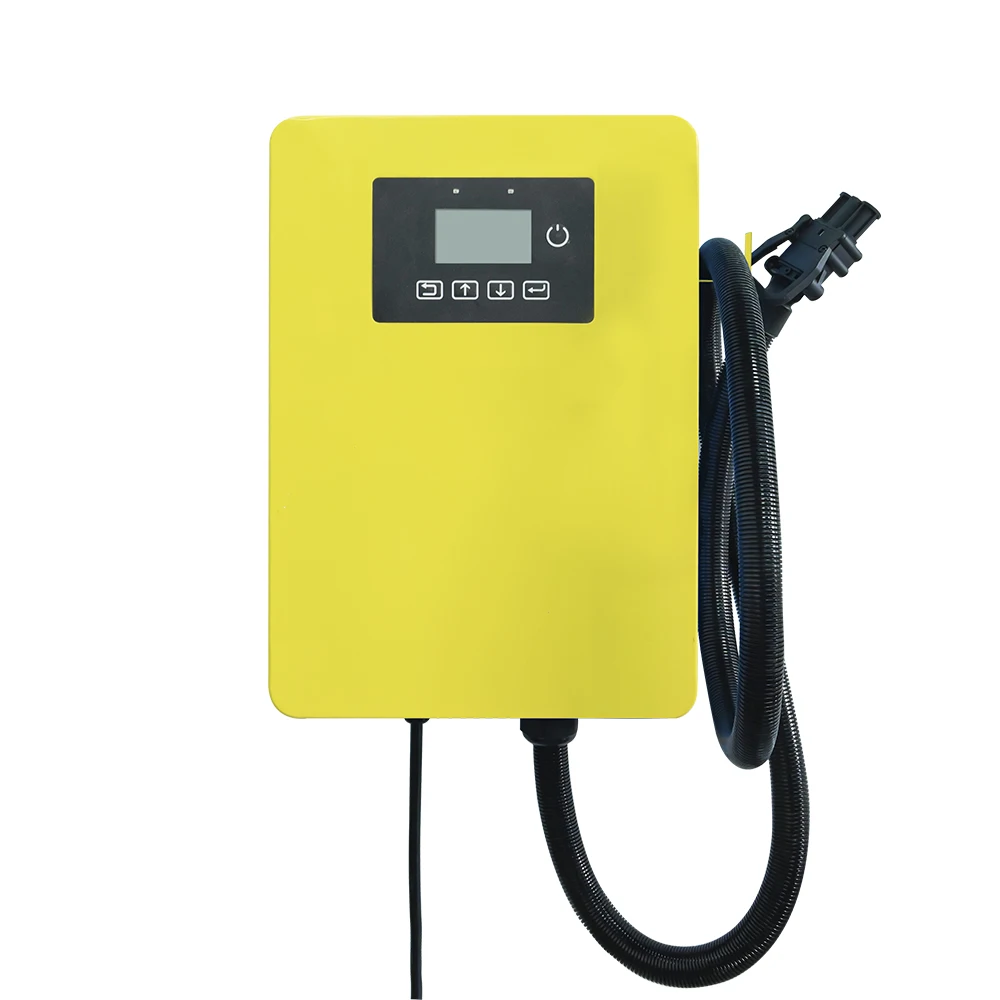

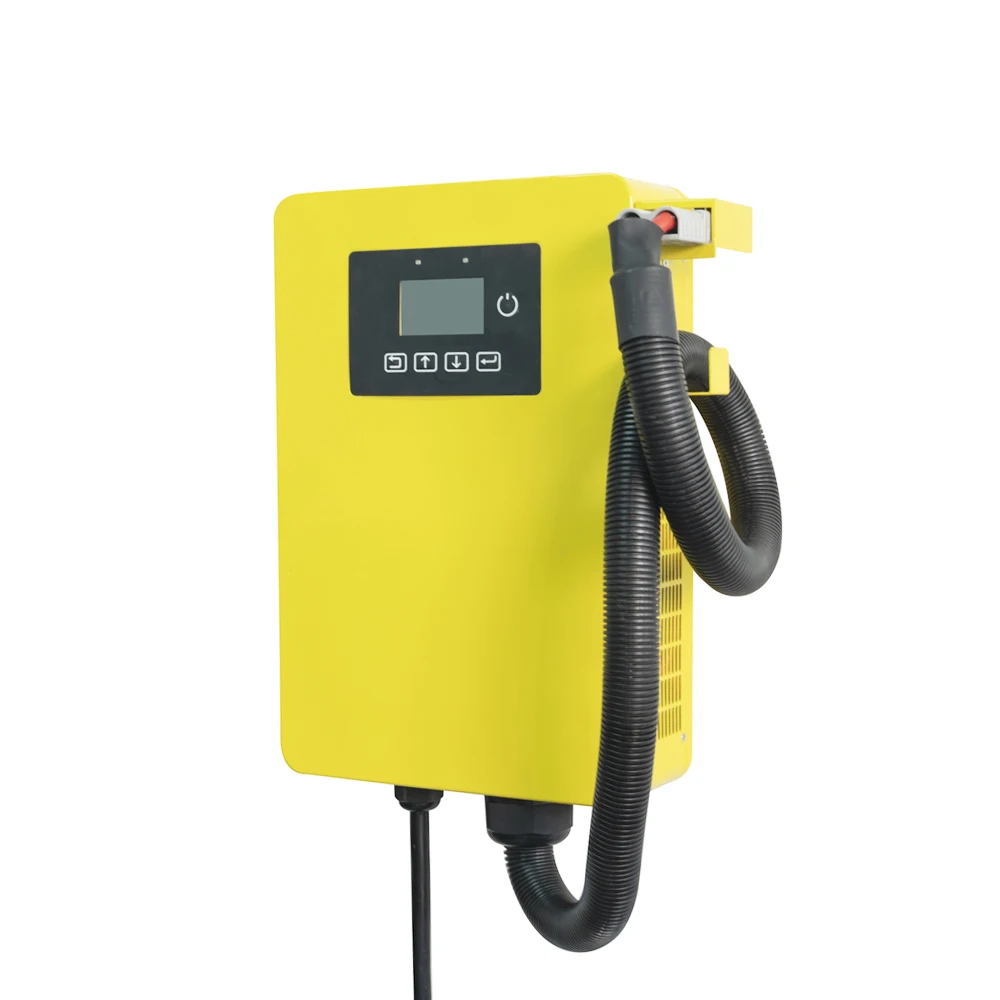

Our WMC series wall-mounted battery charger adopts advanced charging technology, and the charging time and charging efficiency are higher than ordinary chargers. At the same time, our WMC series wall-mounted battery charger has a built-in battery management system, which monitors the battery throughout the process, detects battery temperature, voltage and other parameters, and ensures charging safety. It can be used in fields such as energy storage systems, aerospace and rail transportation.
This is part of our battery chargers models, for further detail specifications, please contact us directly. Thank you.Our WMC series wall-mounted battery charger adopts advanced charging technology, and the charging time and charging efficiency are higher than ordinary chargers. At the same time, our WMC series wall-mounted battery charger has a built-in battery management system, which monitors the battery throughout the process, detects battery temperature, voltage and other parameters, and ensures charging safety. It can be used in fields such as energy storage systems, aerospace and rail transportation.

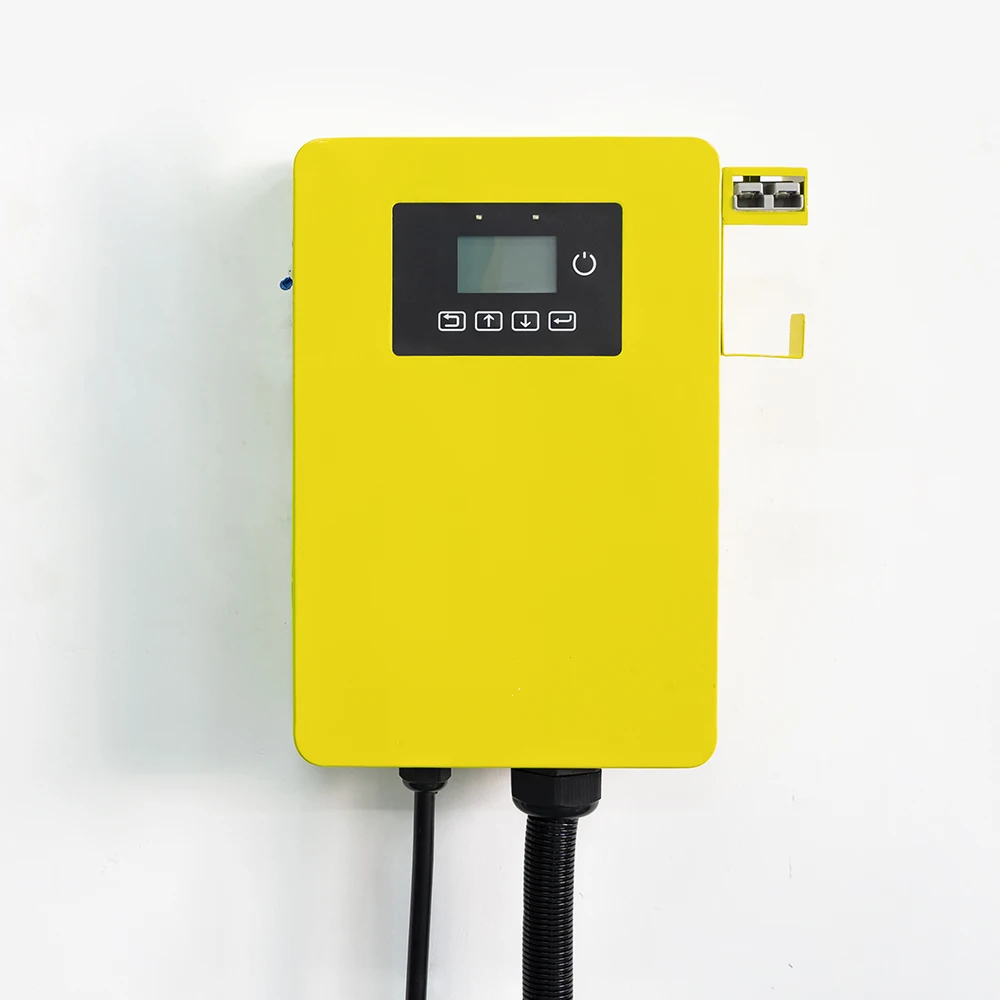

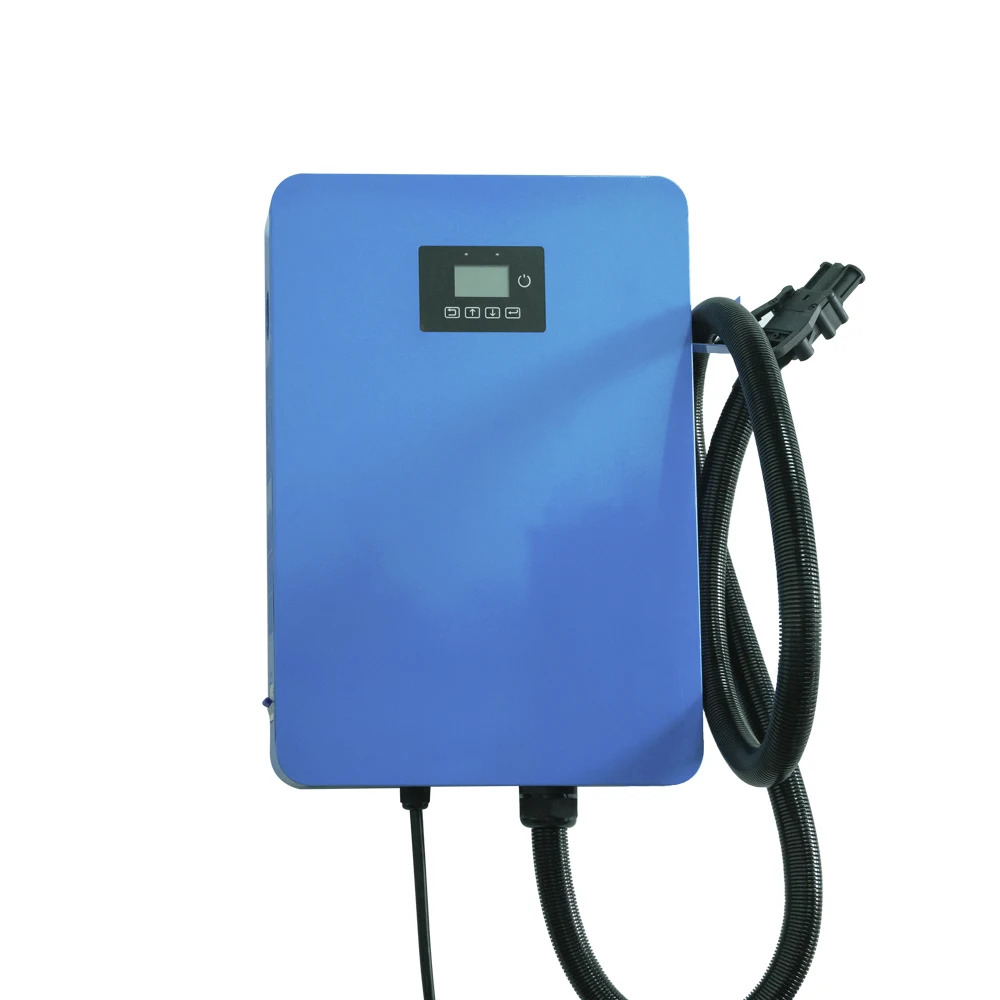

We can make WMC Series High Power Wall-mounted Battery Charger in Yellow, White, or any other colors you desire. It would be helpful if you could provide us with the Pantone colors you need, and we will check and confirm them for you right away.
The US plug usually for United States, Canada, Japan, Brazil, the Philippines, Thailand and other countries.
The EU plug, usually for EU countries such as Germany, France, the Netherlands, Denmark, Austria, Sweden, etc.
The UK plug, usually for Britain, India, Pakistan, Singapore and etc.
The AU plug, usually for Australia, New Zealand, Argentina and etc.

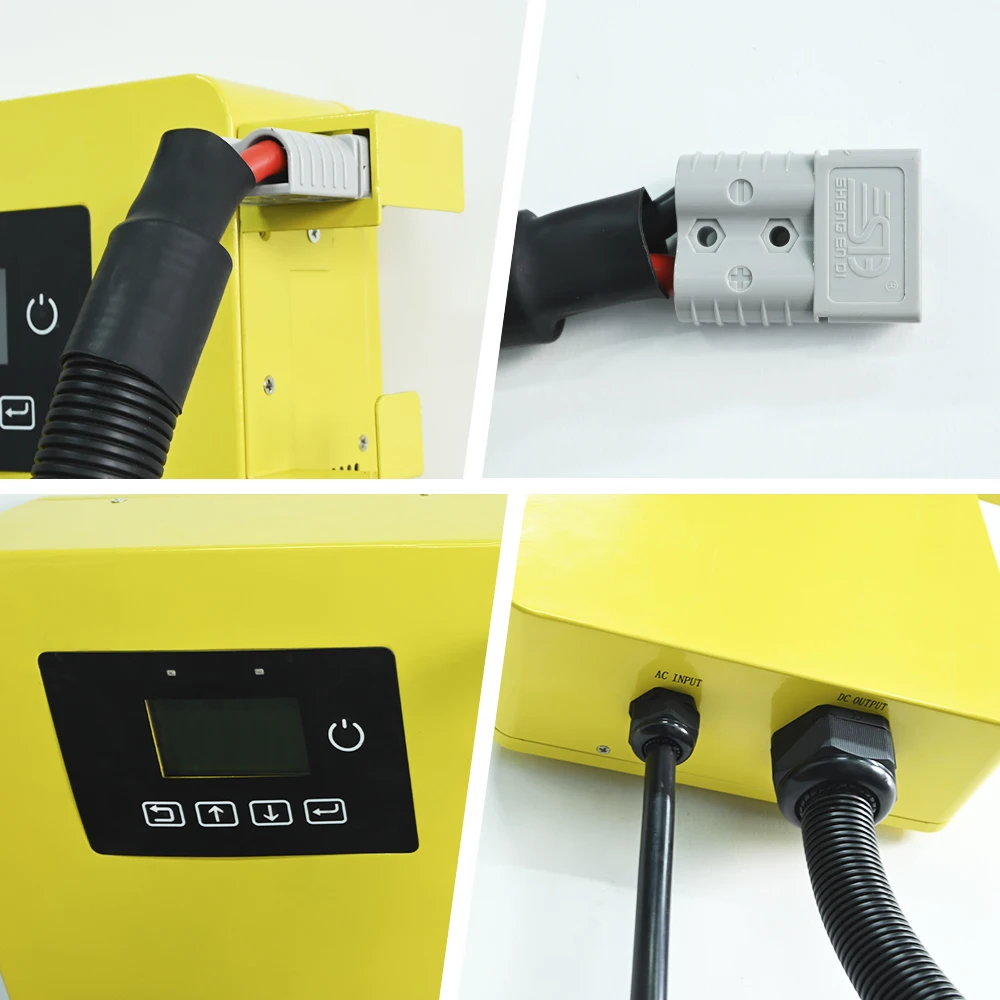

The common DC connectors in the market include Anderson 120A, Rema 320A, and SC25-8 Connector, etc.
The WMC series high power Wall-mounted battery charger can be used for solar system, forklifts, electric boats, AGV, large drones and so on.
This wall-mounted high-power charger can be used for single-phase or three-phase input voltage. The size of the high power charger for single phase input voltage is 415mm*337mm*112mm. The size of the high power charger for three-phase input voltage is 700mm*562mm*129mm.
We have passed the ISO 9001:2015 quality management standard. All steps of the production process are strictly controlled to ensure that high-quality chargers are delivered to customers. In addition, all employees entering the workshop and warehouse must wear anti-lithium electrician shoes to ensure an electrostatic environment and proper hygiene.
1. What is your delivery time?
The delivery time is determined by the production time and the shipping method. For sample orders, the production time is
around5-7 days; For orders of more than 1000 pcs, the production time is around 30-45 days generally.
around5-7 days; For orders of more than 1000 pcs, the production time is around 30-45 days generally.
2. What is the delivery way for the package?
For sample orders, we usually ship the goods by express like DHL, FedEx, and UPS. The shipping time is 5-7 days normally. For decent orders weighing more than 200kg, we will choose the shipping way by sea, special line, or Express according to your needs. The shipping time by sea is 20-30 days.
3. Can you do DDP service of the shipment?
We could provide DDP service according to the shipping way you choose. And we always consider the most economic way for our customers.
4. How to proceed an order?
First, we need to know your battery type and series, battery nominal voltage , battery full charged voltage, battery capacity. Second about the batteries. According to your battery capacity, we will recommend you the current matching your battery. For example, your battery capacity is 100AH, we will recommend 20A or 25A for you, and the time required to fully charge the battery is 5 hours and 4 hours respectively. Then we will suggest the most suitable charger for your reference.Then, base on the chargers you choose and your address, we will provide you a quotation for total cost. Finally, we will draft your order on Alibaba or send you our bank account number as you required.
First, we need to know your battery type and series, battery nominal voltage , battery full charged voltage, battery capacity. Second about the batteries. According to your battery capacity, we will recommend you the current matching your battery. For example, your battery capacity is 100AH, we will recommend 20A or 25A for you, and the time required to fully charge the battery is 5 hours and 4 hours respectively. Then we will suggest the most suitable charger for your reference.Then, base on the chargers you choose and your address, we will provide you a quotation for total cost. Finally, we will draft your order on Alibaba or send you our bank account number as you required.
5. What is the operating & storage temperature range for this charger?
The operating temperature -20℃ ~ 50℃, storage temperature -40℃ ~ 80℃.
The operating temperature -20℃ ~ 50℃, storage temperature -40℃ ~ 80℃.
6. Can you also do OEM or ODM products for customers?
Yes, we could do OEM and ODM services for our customers around the world. You could forward your details demands to us via email, Whats@App, or We@Chat.
7. Do you offer guarantee for the products? If could, how long the warranty period can you offer？
We offer two years warranty to our products.
We offer two years warranty to our products.
8. Are you a manufacturer/factory or trade company?
We are a superior battery charger manufacture with over 10 year's experience. All chargers produced by our factory.
9. Do you have any certification of your battery charger products?
Yes, we have CE, Rohs and UKCA certification for all of our battery charger. And we could support other certifications after discussed the detail information.
We are a superior battery charger manufacture with over 10 year's experience. All chargers produced by our factory.
9. Do you have any certification of your battery charger products?
Yes, we have CE, Rohs and UKCA certification for all of our battery charger. And we could support other certifications after discussed the detail information.
10. How do you guarantee the quality of battery charger?
The battery charger workshop strictly follows the ISO9001 system. Each of our processes has to undergo strict quality audits, our chargers are fully filled with glue instead of half filled and 100% aging test before packing.
The battery charger workshop strictly follows the ISO9001 system. Each of our processes has to undergo strict quality audits, our chargers are fully filled with glue instead of half filled and 100% aging test before packing.
Похожие товары

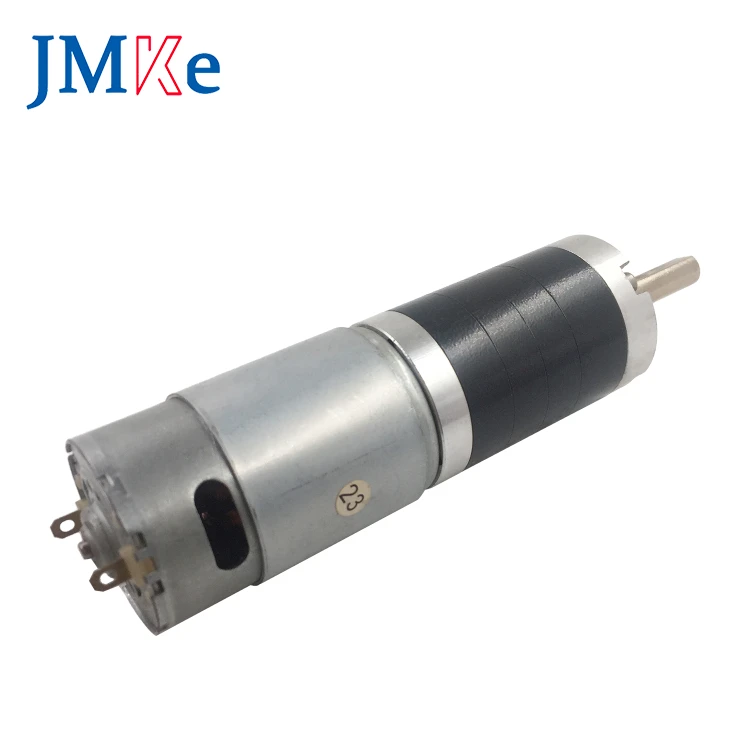

JMKE 36 мм планетарный редукторный двигатель постоянного тока с высоким крутящим моментом
Оптовая продажа Офисная белая бумага с принтом древесной целлюлозы 8 упаковок 70 г Электростатическая формата А4 офисные принадлежности
1,00 $ - 3,00 $
Винтажная Футболка мыть свободный крой с заниженной линией плеч для мужчин футболка унисекс для мужчин футболка на заказ графической печати Ins оверсайз 100 хлопок
8,99 $ - 9,90 $

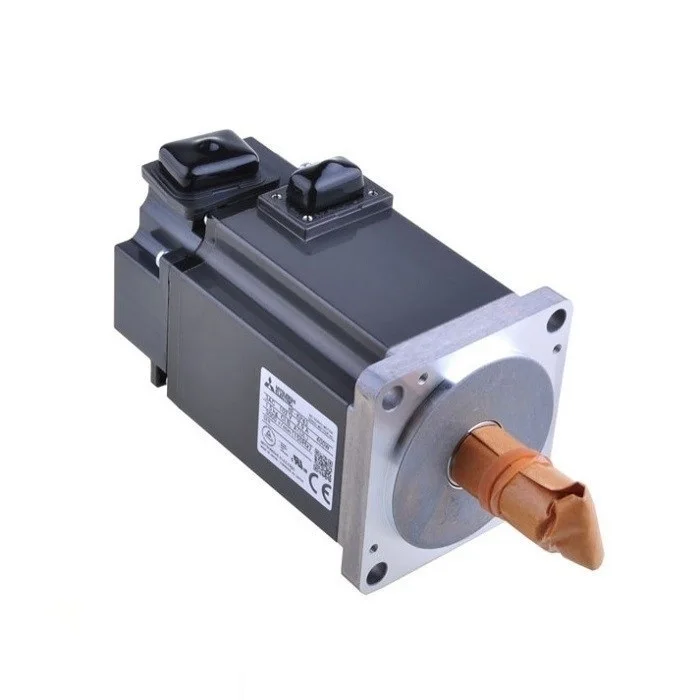

Mitsubishi сервомотор HF-KP43 полной серией продукции совершенно новый аппарат не Привязанный к оператору сотовой связи дается гарантия в течение одного
160,80 $ - 185,80 $

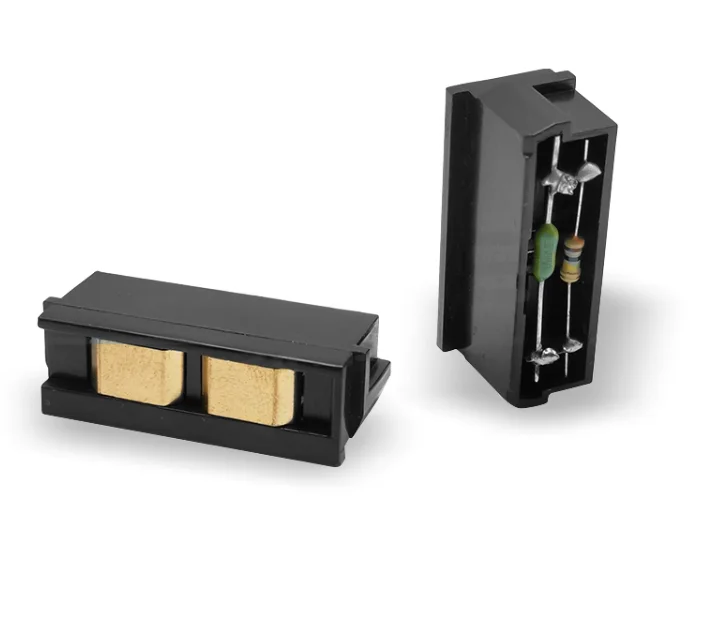

W1120A/W1132A чип барабанного блока для HP цветной лазер MFP 179fnw/178/150a/150w/154nw
