Фотоэлектрическая солнечная энергетическая система 30 кВт 50 100 500 автономные системы хранения батарей
0,28-0,38 $
Комплексная гибридная солнечная панель для жилых помещений от 3 кВт до 10 фотоэлектрическая Солнечная система с комплектами батарей
- Категория: >>>
- Поставщик: Enerlution Energy Technology Co. LtdEnerlution Ltd
Сохранить в закладки 1600938561228:
Описание и отзывы
Характеристики
Product Description
Product Name | 10-20KW Off/On Grid Hybrid Solar Energy System | ||||||||||
System Efficiency | 85%-90% | ||||||||||
Life Time | 25 Years+ | ||||||||||
Model | 2KW-OFF | 3KW-OFF | 5KW-OFF | 10KW-OFF | 15KW-OFF | 20KW-OFF | |||||
Solar Panel | MONO 400W x 4pcs | MONO 400W x 6pcs | MONO 400W x 12pcs | MONO 400W x 24pcs | MONO 400W x 36pcs | MONO 400W x 48pcs | |||||
Off-grid Hybrid Inverter | 1KVA, Single Phase | 3KVA, Single Phase | 5KVA, Single Phase | 10KVA, Single Phase | 20KVA, Single Phase | 30KVA, Single Phase | |||||
WI-FI Monitoring | Lifepo4 BatteryOptional | ||||||||||
Battery | Lifepo4 Battery 2.5KWh | Lifepo4 Battery 5KWh | Lifepo4 Battery 10KWh | Lifepo4 Battery 20KWh | Lifepo4 Battery 30KWh | Lifepo4 Battery 40KWh | |||||
DC Combiner Box | Included Compatible | ||||||||||
PV Cable | 50 meters/100 meters optional | ||||||||||
MC4 Connector | Included Compatible | ||||||||||
Mounting System | Customized for Roof or Ground Optional | ||||||||||
Peak Power Watts: 400W
Maximum Power Voltage: 30.94V
Maximum Power Voltage: 30.94V
Maximum Power Current: 12.93A
Open Circuit Voltage: 36.9V
Short Circuit Current: 13.72A
Module Efficiency (%):20.5

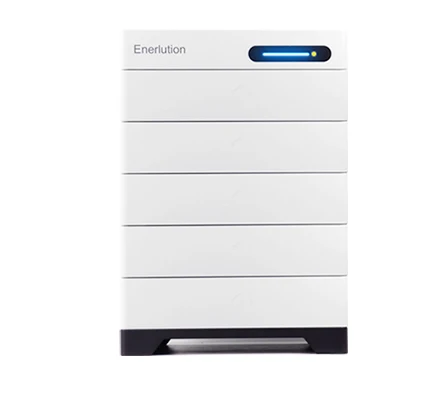

Lifepo4 battery
2.5/5kWh modular design, support 1-8 battery in parallel.
Wall mounted or floor mounted, saving installation time and cost.
Lithium Iron Phosphate(LFP) cell only. BMS fuse are built in.
Wider temperature range: -10C-55C.IP65 protection class.
Compatible with most High voltage inverters in the market.
Wall mounted or floor mounted, saving installation time and cost.
Lithium Iron Phosphate(LFP) cell only. BMS fuse are built in.
Wider temperature range: -10C-55C.IP65 protection class.
Compatible with most High voltage inverters in the market.

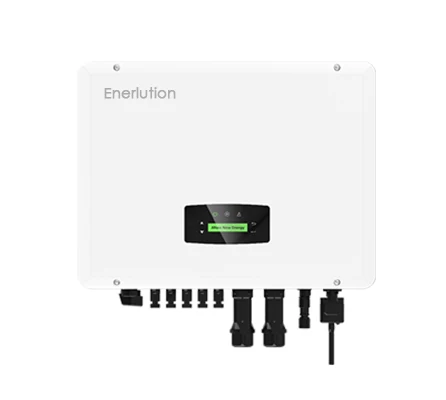

Quick Arc Fault circuit interruption (Optional)
WIFI standard
Compact design
Multiple intelligent protections
Compatible with bifacial modules
String level monitoring
WIFI standard
Compact design
Multiple intelligent protections
Compatible with bifacial modules
String level monitoring
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
DC Cable & MC4 Connector
Cross Section: 4mm², 6mm² OptionalRated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
DC & AC Disconnect Switch
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
Company Profile
Compatible with most brands three phase inverter,including Growatt Deye Goodwe Sofar Luxpower etc.
Our batteries are suitable for the vast majority of inverters in the market, and we have our own research and experimental personnel, as well as long-term non-stop inverter matching experiments for customers.
As a manufacturer，supplier of energy solutions, we can design completed systems base your needs, warehouse in Germany, Netherlands and Belgium,including battery and inverter, ship from warehouse will save more time and alleviate the pressure on the capital chain.
From 2019 to 2024, we have successively established three or more local warehouses in Europe, achieving a delivery speed of 2-7 days for shipments within Europe. You can choose to pick up the goods nearby; And several after-sales service points have been established in Europe, which can provide convenient technical training and sales support at any time. In the future, we may also establish a cooperative battery recycling center for our brand.
As a supplier of energy solutions, we can design completed systems base your needs, warehouse in Germany, Netherlands and Belgium,including battery and inverter, ship from warehouse will save more time and alleviate the pressure on the capital chain.
Company Introduction
Enerlution Power Technology Co., Ltd was established in May 2017, a China’s leading lithium BESS manufacturer, specialize in R&D and production of Residential, Commercial and Industrial energy storage systems(ESS), Energy Management System(EMS), Battery Management System(BMS). Committed to bring world-leading battery systems for every kind of customers of the whole world.
Enerlution is focused on Residential ESS market, has lots of successful footprints in Germany, France, Czech, Poland, UK, Netherlands, Portugal, Belgium, Hungary, South Africa etc. markets. Annual production capacity is 1GWh, big capable for providing ODM and OEM services. Enerlution, a guardian of electric power for your home. Certifications wall: ISO9001, UN38.3, MSDS, IEC62619, CE , CB , UL1973，UKCA , PSE, CEC,CEI, VDE etc.
At present, Our factory covers an area of 8000 square meters in which contains production workshop, package workshop and laboratories. The monthly production capacity reaches6000~10000 sets batteries. Combined the lithium ion phosphate A+ Grade cell with self-developed EMS, BMS and other core components, our products have features on long life, high safety and high reliability.
Enerlution Lithium Lifepo4 Solar Home Battery Solar Energy Systems, which can match most global brand inverters.
Enerlution is focused on Residential ESS market, has lots of successful footprints in Germany, France, Czech, Poland, UK, Netherlands, Portugal, Belgium, Hungary, South Africa etc. markets. Annual production capacity is 1GWh, big capable for providing ODM and OEM services. Enerlution, a guardian of electric power for your home. Certifications wall: ISO9001, UN38.3, MSDS, IEC62619, CE , CB , UL1973，UKCA , PSE, CEC,CEI, VDE etc.
At present, Our factory covers an area of 8000 square meters in which contains production workshop, package workshop and laboratories. The monthly production capacity reaches6000~10000 sets batteries. Combined the lithium ion phosphate A+ Grade cell with self-developed EMS, BMS and other core components, our products have features on long life, high safety and high reliability.
Enerlution Lithium Lifepo4 Solar Home Battery Solar Energy Systems, which can match most global brand inverters.
Enerlution Power Technology Co., Ltd
THE REAL SOURCE MANUFACTURER OF LITHIUM BATTERY
Enerlution Lithium Lifepo4 Solar Home Battery Solar Energy Systems
which can match most global brand inverters. We supply to many onlin
and offline brands who do business on Alibaba.
Welcome ODM and OEM orders !
We provide you with 'Enough capacity, Short Lead Time, Full set of certificates !’
Please contact us if you have any questions!
What is recognized is our cost-effectiveness
Sales price - (purchase price+after-sales cost)=profit
Customer recognition+excellent quality=a continuous stream of customers
Sales price - (purchase price+after-sales cost)=profit
Customer recognition+excellent quality=a continuous stream of customers
Since its launch, this product has received numerous distributors visiting the factory and
signing orders, believing that reliable quality is more cost-effective than low prices
Exhibition history
In the past five years, we have participated in various exhibitions of all sizes and have gained recognition from many customers
The upcoming exhibition in 2024. We will invite you to come and discuss.
Welcome all dealers and friends from all over to come. If you need an invitation letter from us, please contact us as soon as possible
The smarter Europe 2024 / INTERSOLAR Europe 2024 Germany
JUNE 19-21,2024
MESSE MUNCHEN
MESSE MUNCHEN
booth number: C3-220
welcome !!!
INTRODUCTION AND PROGRAM OVERVIEW SNEC PV+
June 13-15, 2024Shanghai National Convention and Exhibition Center
booth number: 7.1H - E150
welcome !!!
INTRODUCTION AND PROGRAM OVERVIEW SNEC ES+
September 25-27, 2024
CHINA Shangha iNew International Expo Center
CHINA Shangha iNew International Expo Center
booth number: N2 - 385
welcome !!!
FAQ
Battery Cell 1： What battery cell you are using?
We are using Gotion or BYD brand new prismatic cell. If necessary, please contact us for battery cell specifications.
2： How many cycles can achieve for your battery cells?
CATL/BYD /GOTION brand new cells can achieve 6000 cycles @ 25℃, 0.5C conditions. Also please know usually 1C condition is only about 3500 cycles.
Low Voltage Battery
1：Which hybrid inverter your battery BMS has been communicated?
Our BMS has built protocol communication with most of inverter brands in market. You can please find the brnad information above picture.
High Voltage Battery
1：Which hybrid inverter your high voltage battery BMS has been communicated?
Our high voltage battery BMS has built protocol communication with Deye , afor. Growatt, Sofarsolar, Goodwe, INVT, Megarevo etc brand three phase hybrid inverters, You can please find the brnad information above picture or please contact us for new list.
2： Why we use high voltage battery?
High voltage battery always works with three phase hybrid inverters, which need a higher battery output. So we need high voltage battery solution to achieve a bigger kW power.
3： How much total voltage I need?
This depends on inverter battery side specifications. For three hybrid inverter, it is always around 150V to 600V. We just need to consider this HV battery system volatge is in this range.
Warranty
1：What's your warranty years?
The warranty period is ten years if the conditions are met.The product shall be free from material or workmanship defects for a period of ten years from the start date of the warranty.The product will be subject to usage restrictions based on the ambient temperature listed in the table below, and will operate in a normal manner according to the guidelines/specifications/warning labels provided by our company. After different years, there will still be 80% remaining usable power.
2：If battery has issues, how you proceed for warranty?
Our engineer will remotely check the issues by software, this need local installer assistance. If it is software issue, the
battery can be repaired by firmware update. If it is battery hardware issue, We provide replacement parts for customers to replace.
Service
1：Can you offer OEM or ODM?
Yes, we are LFP battery specialized solution provider mainly in energy storage field. You can please inform us your applications, inverter brand and model name. We will select or customize LFP battery system for you.
delivery date
1: How long can I ship the goods after I make the payment?
If it is not a customized version, we usually prepare some stock. We have 3 warehouses in Europe for hot selling items that can be picked up on the same day.
If it is an OEM, we need to ship from China and can ship it of 7-15 days; If it is ODM, it also needs to be designed and
customized from China, and then shipped, with a design cycle of 15-30 days.
after-sale service
1.What should I do if the product I received is damaged?
If the product is damaged upon receipt, we will provide you with a new item as soon as possible, without delaying your use or sale.
2.What assistance can I provide if I encounter difficulties during installation?
Our sales team provides detailed installation videos and instructions, as well as remote installation guidance throughout the entire process. We regularly organize installation guidance meetings in Europe and other places, provide face-to-face technical training, and provide free food and accommodation throughout the entire process.
3.What if I encounter quality issues with the product?
No matter what caused the problem and it is no usable, we will replace the battery with a new one from our warehouse in Europe as soon as possible. By the way, please rest assured that our product has not received any quality complaints for many years, and the probability of quality problems is currently very low.
4.What kind of sales assistance can I receive after purchasing?
If you are for sales purposes, we will provide a complete set of formal and valid certificates and authorize you to use them, provide high-definition images and promotional materials of the product, and provide free remote training for your sales and engineers.
