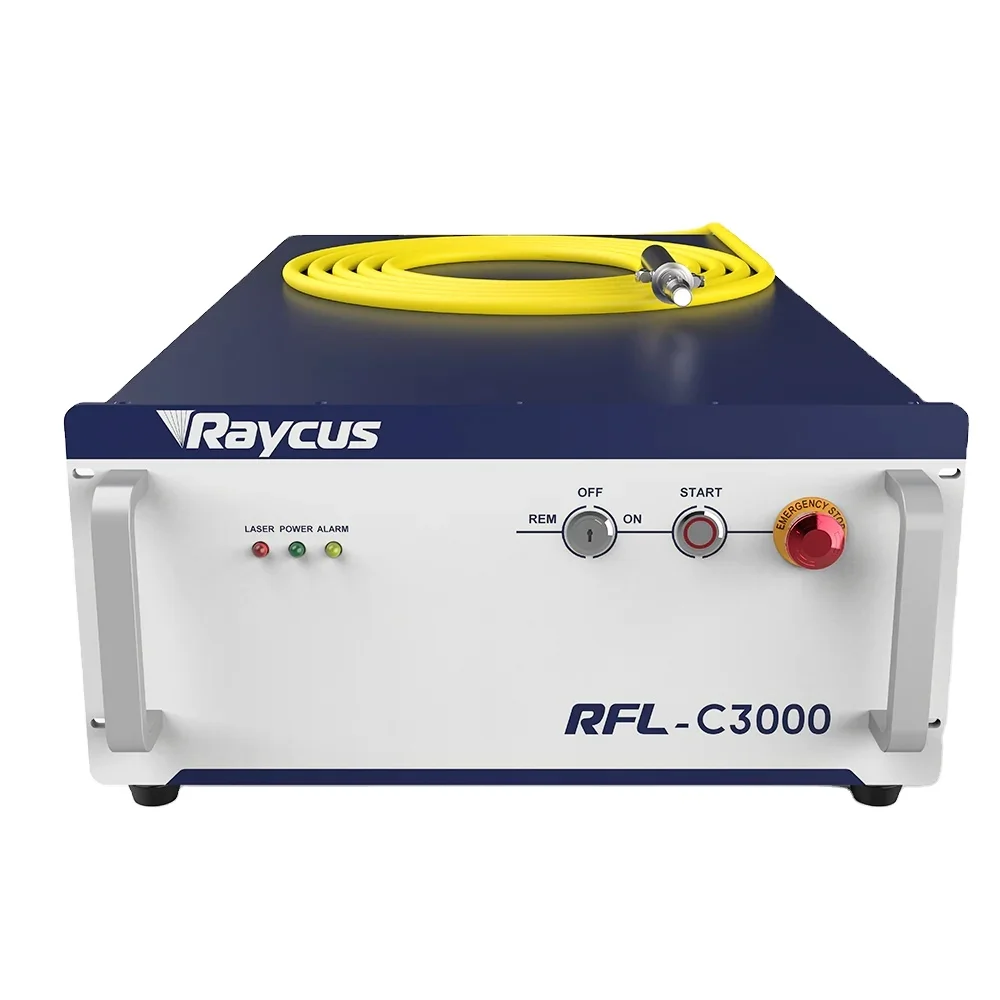

Raycus 3000 Вт лазерный источник RayTools BT220 BT240 BM110 BM111 FSCUT2000 управляющая программная режущая машина
108 551,92 ₽
CWUL 05 промышленный охладитель воды для УФ лазерной маркировочной машины
- Категория: >>>
- Поставщик: Xuzhou Vank Cnc Machinery Co. Ltd.
Сохранить в закладки 1600939362753:
Описание и отзывы
Характеристики
Product Description

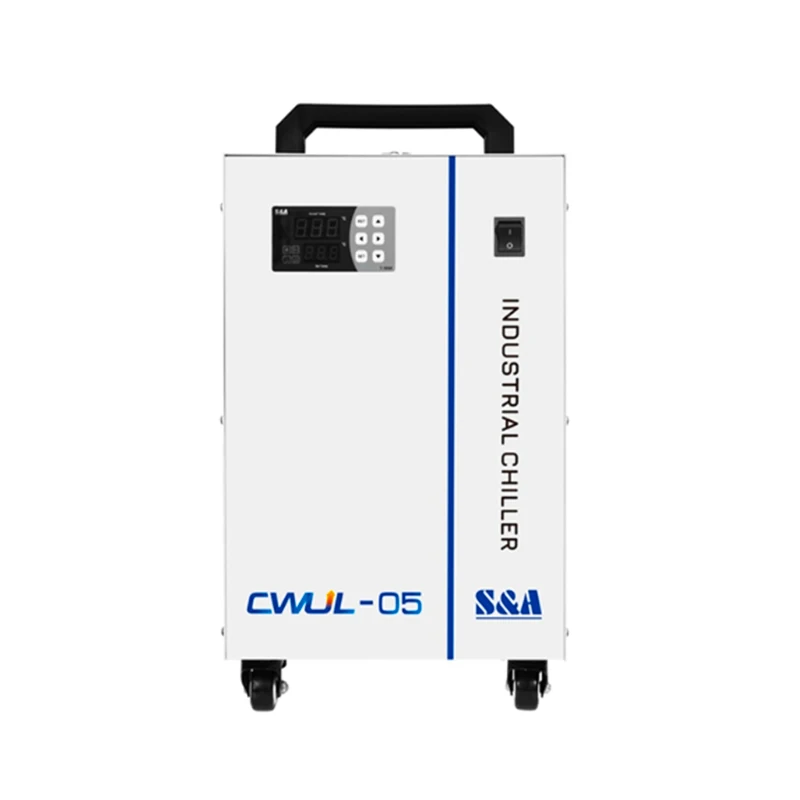

S&A CWUL-05 industry water chiller
CWUL-05 water chiller, cooling capacity up to 430W, temperature control accuracy ± 0.2 ℃, suitable for cooling 3W-5W ultraviolet solid-state laser. , The model is compact in structure, small in size and easy to move. It includes output signal control function, cooling water .
1. Cooling capacity up to 430W, using environmentally friendly refrigerant
2. Stable refrigeration, small size and easy operation;
3. The temperature control accuracy can reach ±0.2℃;
4. The intelligent temperature controller of the laser chiller has two temperature control modes, which are suitable for different
use occasions; it has a variety of settings and fault display functions;
5. With a variety of alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm;
temperature ultra high/low alarm;
2. Stable refrigeration, small size and easy operation;
3. The temperature control accuracy can reach ±0.2℃;
4. The intelligent temperature controller of the laser chiller has two temperature control modes, which are suitable for different
use occasions; it has a variety of settings and fault display functions;
5. With a variety of alarm protection functions: compressor delay protection; compressor overcurrent protection; water flow alarm;
temperature ultra high/low alarm;

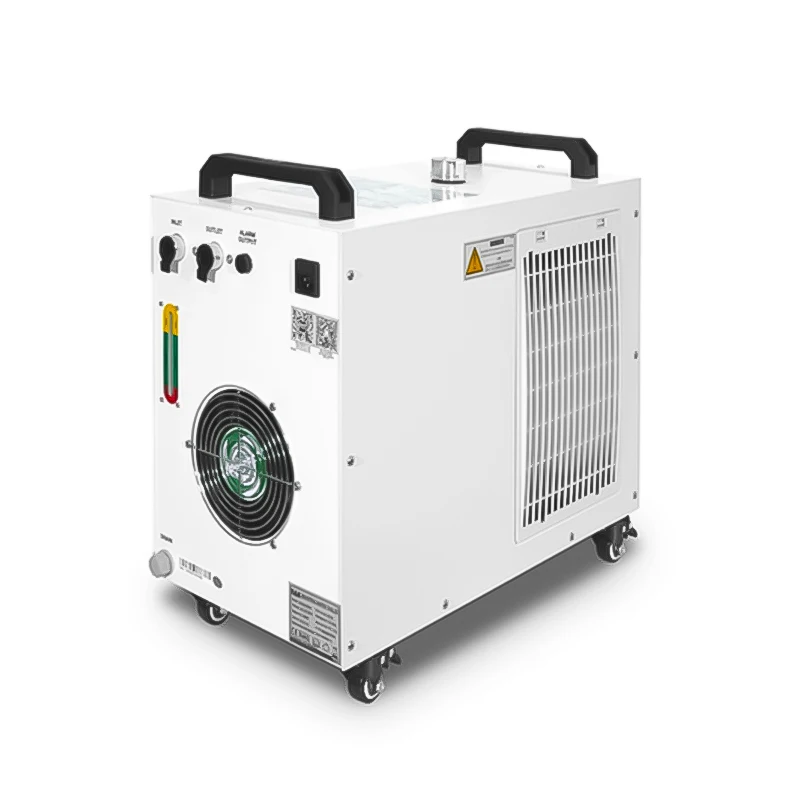

Feature design:
Small heat dissipation chiller, heat dissipation 50W/℃, easy to operate;Small size, easy to move, the chiller moves So Easy
Thermostat
Water inlet
Fan
Product parameters
Model | CWUL-05AH | CWUL-05BH | CWUL-05DH | ||
Voltage | AC 1P 220~240V | AC 1P 220~240V | AC 1P 110V | ||
Frequency | 50Hz | 60Hz | 60Hz | ||
Current | 0.5-3.1A | 0.5-3.1A | 0.5-5.6A | ||
Max. power consumption | 0.58kW | 0.58kW | 0.59kW | ||
Compressor power | 0.19kW | 0.19 kW | 0.19kW | ||
0.25HP | 0.25HP | 0.25HP | |||
Nominal cooling capacity | 1467Btu/h 0.43kW 369Kcal/h | 1610Btu/h 0.48kW 405Kcal/h | 1467Btu/h 0.43kW 369Kcal/h | ||
Refrigerant | R-134a | ||||
Precision | ±0.2℃ | ||||
Reducer | Capillary | ||||
Pump power | 0.05kW | ||||
Tank capacity | 6 L | ||||
Inlet and outlet | Rp1/2” | ||||
Max. pump pressure | 12M | ||||
Max. pump flow | 13L/min | ||||
N.W | 21Kg | 22Kg | 23Kg | ||
G.W | 24Kg | 25Kg | 26Kg | ||

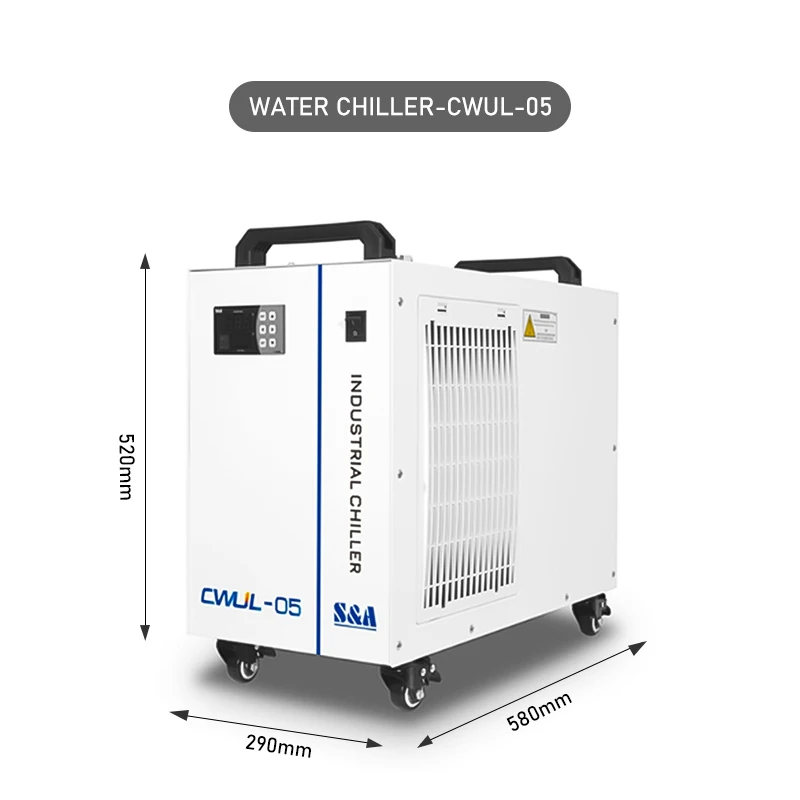

Dimension | 58X29X52cm (L X W X H) | ||||
Package dimension | 65X36X56cm (L X W X H) | ||||
Applicable industry
precision instrument
UV printing
CNC machinery
3C industry
Advertising logo
metal processing
Company Profile
vank laser technology is a high-tech enterprise with years of experience in R&D, production, salesand technical maintenance in the laser equipment industry. With the professional laser technologyas the backing, the company constantly absorbs advanced technology and design concept, andproduces and sells laser equipment suitable for various industrial automation production needs. Our company's main products are optical fiber laser cutting machine, fiber laser marking machine,CO2 laser engraving&cutting machine.All products through the CE certification, safe and reliableproduct quality. In addition to providing standardized products for our customers, we can alsoprovide customized solutions to meet the needs of different customers. Our laser equipment are widely used in industries of electronic, medical, sheet metal, furniture,advertising, craft gifts,architectural model, industrial mold, luxury, decoration, identification, clothing,leather and other industries. We make the high quality advanced machines, we are providing the best after-sale service in China Andwe are also offering the most competitive price to all of the customers. "VANK" is known by more andmore people.At present, our products have been exported to many countries and regions such
asEurope, South America, North America and so on. We have enjoyed the mutual benefit and will moveon, and we hope to establish a long term business relations with more and more oversea customers.
asEurope, South America, North America and so on. We have enjoyed the mutual benefit and will moveon, and we hope to establish a long term business relations with more and more oversea customers.
Products Process
Product packaging
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2019,sell to Domestic Market(00.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Laser Cutting Machine,Laser Engraving Machine,Fiber Laser Marking Machine,Laser Welding Machine,Laser Parts
4. why should you buy from us not from other suppliers?
VANK CNC has source control visual production flow in 20,000 square meters standardized factory.From machine body processing, sheet matal processing, machine installation, testing and package.
VANK CNC welcome standard products production and OEM service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Italian
We are based in Jiangsu, China, start from 2019,sell to Domestic Market(00.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Laser Cutting Machine,Laser Engraving Machine,Fiber Laser Marking Machine,Laser Welding Machine,Laser Parts
4. why should you buy from us not from other suppliers?
VANK CNC has source control visual production flow in 20,000 square meters standardized factory.From machine body processing, sheet matal processing, machine installation, testing and package.
VANK CNC welcome standard products production and OEM service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Italian
Похожие товары

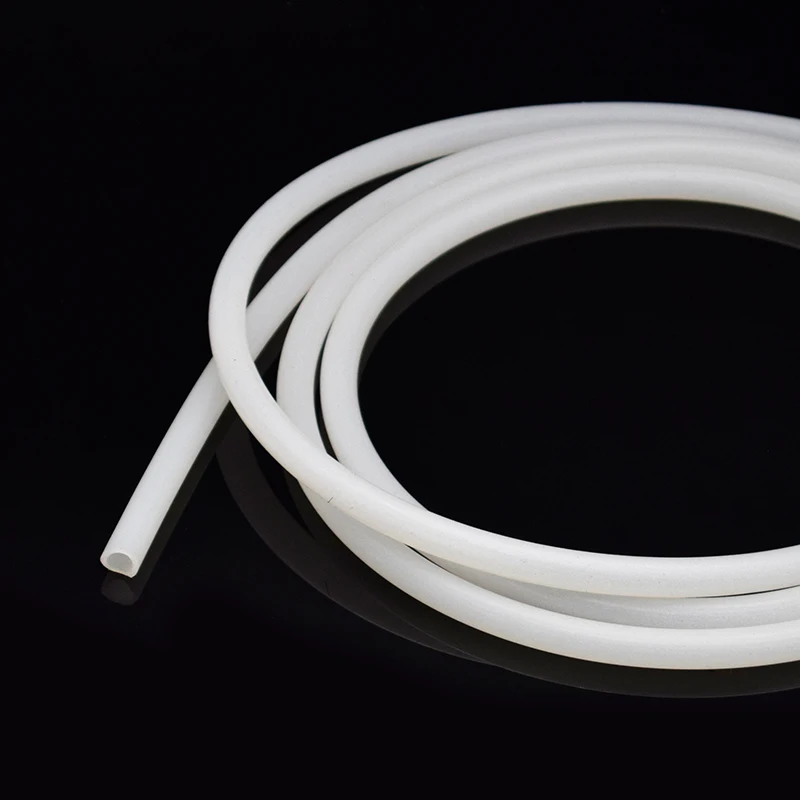

Силиконовая трубка WaveTopSign 7x10 мм 8x12 гибкий шланг для водяного датчика насоса и охладителя

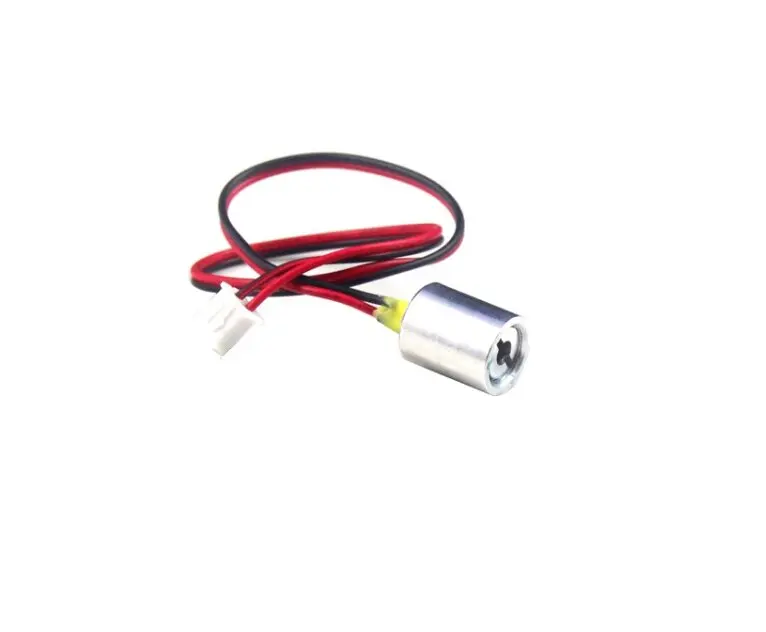

5 МВт 650 нм 10x22 мм Внутренний фокус точка красный лазерный модуль промышленного позиционирования точечный диодный
274,13 ₽ - 383,77 ₽

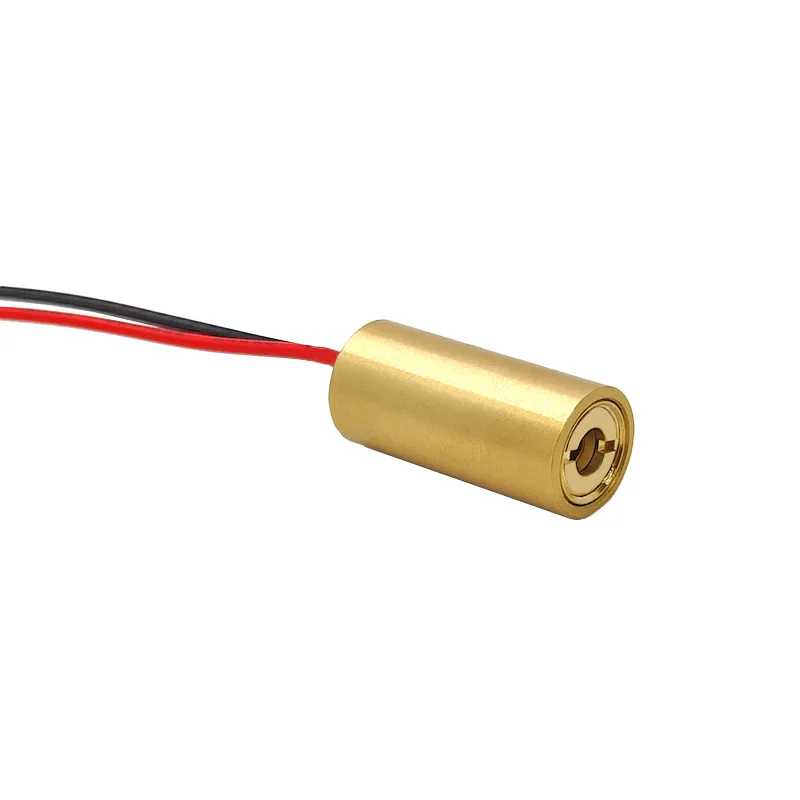

Сценический свет 638 нм 50 МВт точка красный лазерный диодный модуль
