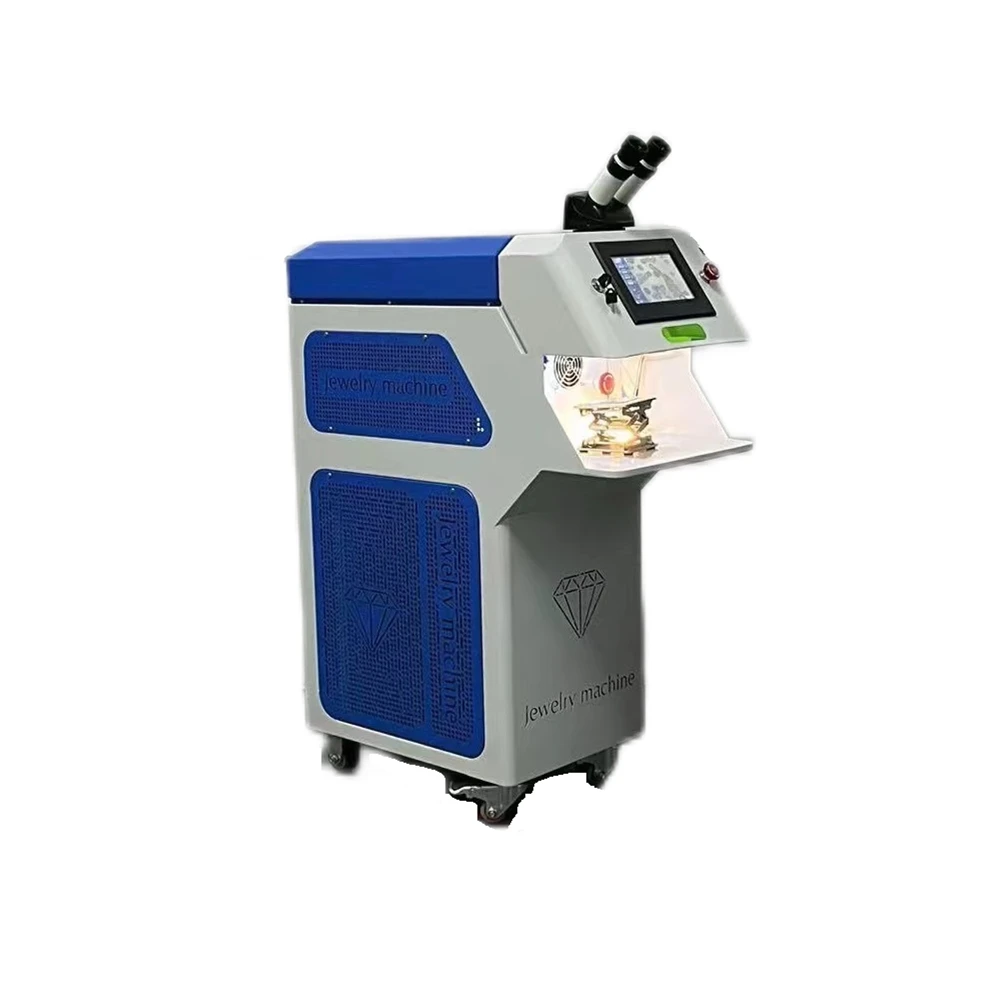

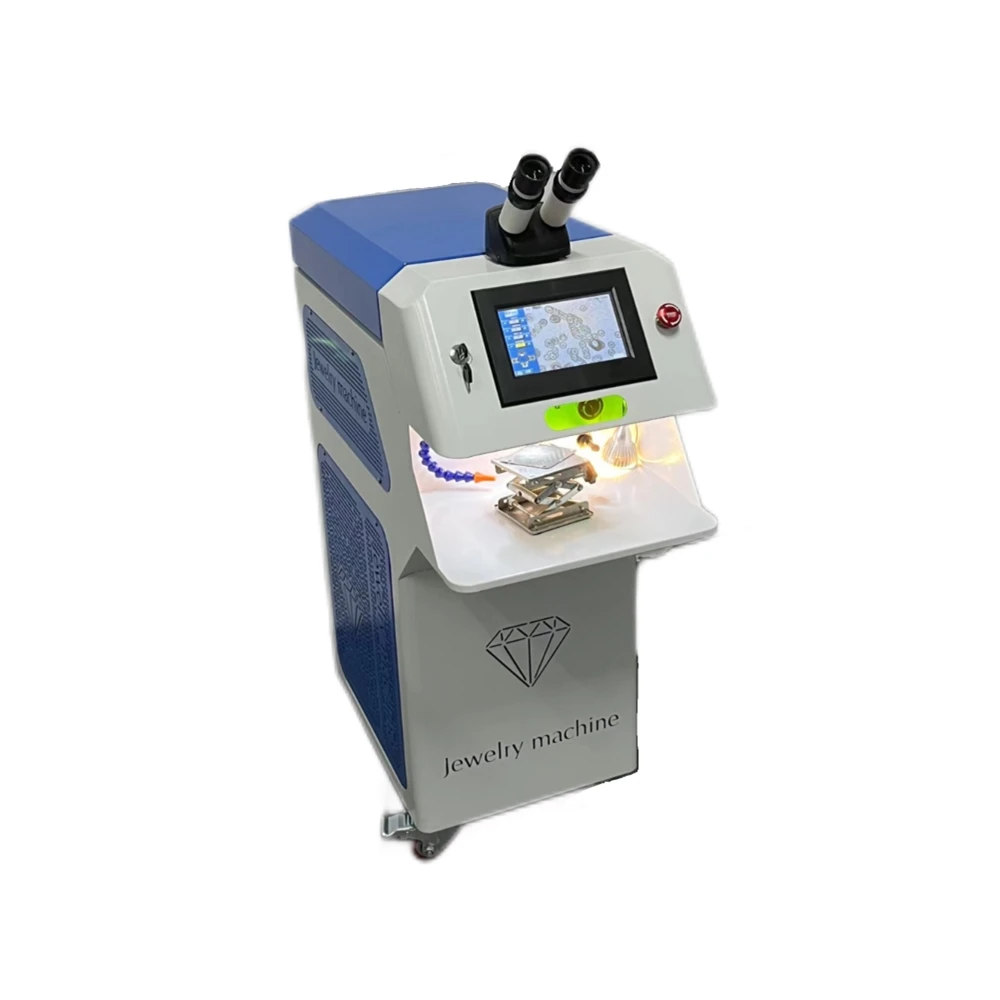

Мини аппарат YAG лазерный для точечной сварки ювелирных изделий 300 Вт

Сохранить в закладки 1600940394075:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


LY Mini YAG Laser 300W Super Power 150J Touch Screen Jewelry Spot Welding Machine Micro laser Soldering For Gold Silver Chain Ring Pendant Denture With HD CCD Microscope Built-in Air Cooling System




The jewelry laser welder is specifically for jewelry laser welding of a product, mainly used in gold and silver ornaments of the hole and spot welding blisters. Laser spot welding machine is one of the important aspects of the application of laser material processing technology. The jewelry laser welding machine's process is heat conduction. That is, laser radiation heats the surface of the work piece. The heat of the surface spreads through the heat conduction to the interior. By controlling the width, energy, peak power and repetition of laser pulse Frequency and other parameters, the work piece melting, forming a specific pool.


Because of jewelry laser welding machine's unique advantages, has been successfully applied to gold and silver jewelry processing and micro, small parts welding.





Specification


Laser medium


Nd 3+ :YAG


Laser Wavelength 1064nm


Output power 300W


Pulse width 0.1~20ms adjustable


Pulse Repeated Frequency 1~20Hz adjustable


Spot size: 0.1-3mm


Laser distance F120


HD CCD System


Maximum single pulse power  150J


Cooling : Built-in Air cool system


Maximum input power 7KW


Net weight: 80KG


Gross weight:110KG


Voltage: 220V/50HZ/3KVA  (If 110V country need to use with transformer)
