Портативная наземная станция с двумя экранами

Сохранить в закладки 1600940471085:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


Product Name
XK-M02
Function
Ground control station for Drones
Package
Packed in a professional shipping box




1. Product performance description

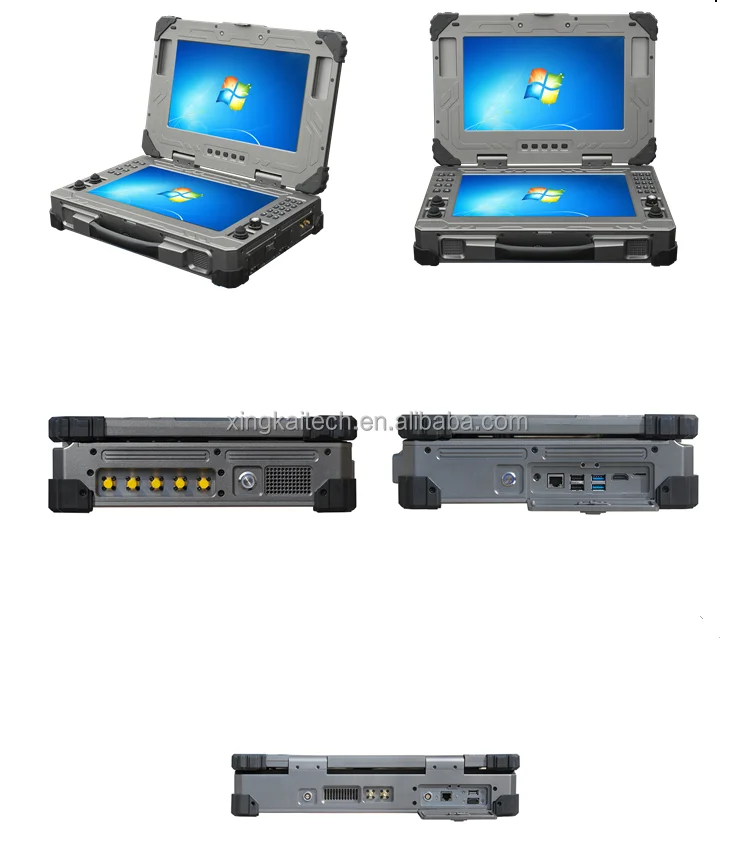

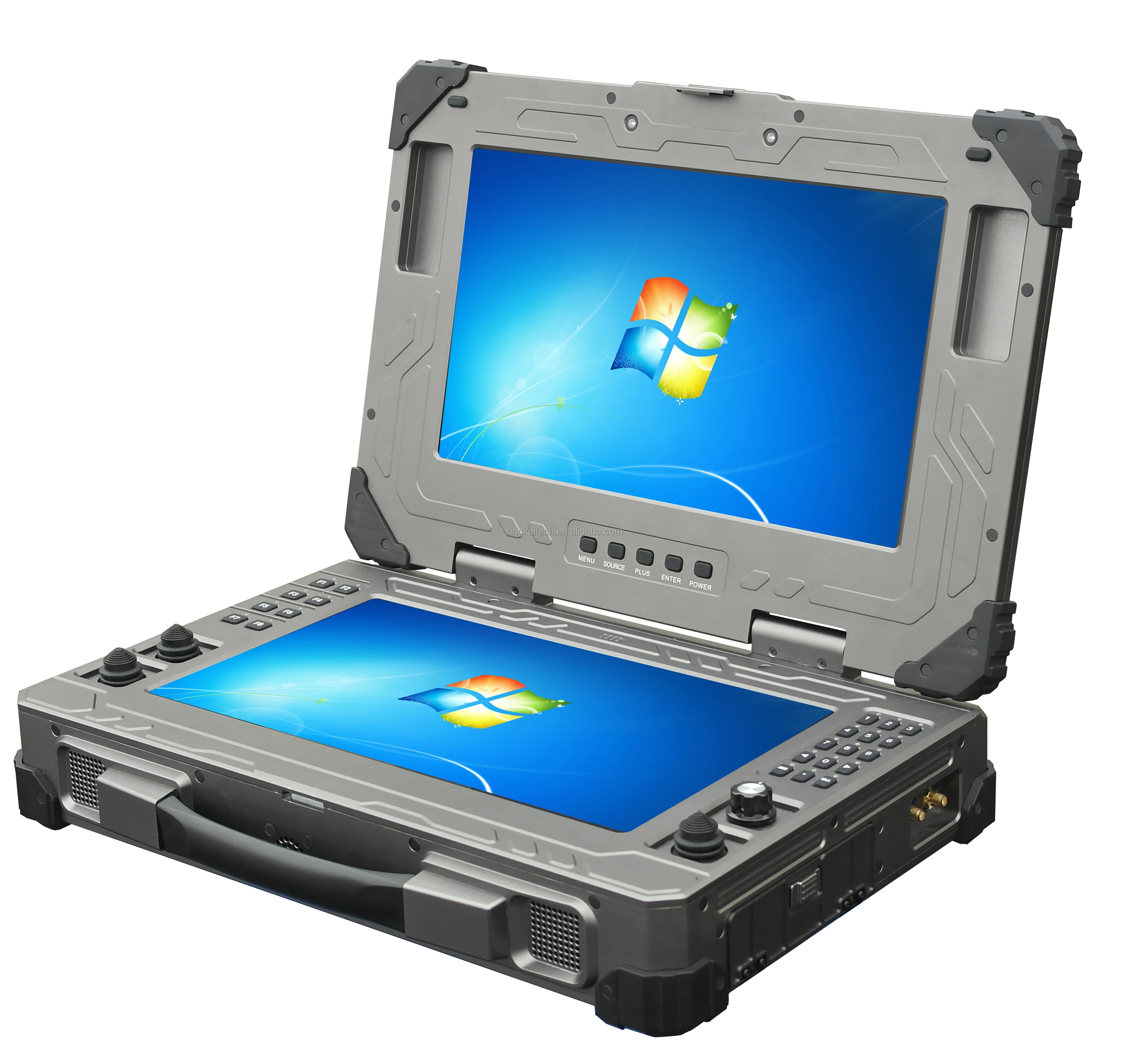

Two high-brightness LCD displays with screen brightness adjustment,memory and solid state disk size selectable; two Gigabit LAN ports, 8 customizable keys; long Endurance with lithium battery, internal space reserved for secondary development; whole aluminum alloy with hard anodized sandblasted finish; operating system supports Windows 7 / Linux system.

XK-M02 is a universal solution for controlling the unmanned vehicle and its payload. It is especially designed for unmanned ground vehicle and robot. The system offers functions like real-time data feedback, remote control status display, route planning, etc. With Windows and Linux OS for choice.



2. Technical Specifications


System parameters
Processor
IntelI7-7500U
Lithium batteries
6 hours
Memory
Memory DDR4 8G
Disks
Solid State Drives 256G
LCD screen
Display
2*13.3"FHD TFTLCD
Maximum resolution
1920*1080
Maximum colour
16M
Display area
293.472 × 165.078 mm
Brightness
1000nits
Touch Screen
Top screen
Optional resistive touch screen
Lower screen
Capacitive touch screens
Pushbuttons
Screen adjustment buttons
Brightness/source adjustment
Customised keys
8
Number Key
1
Twist switches
/
Knobs
1
Two-axis joystick
3

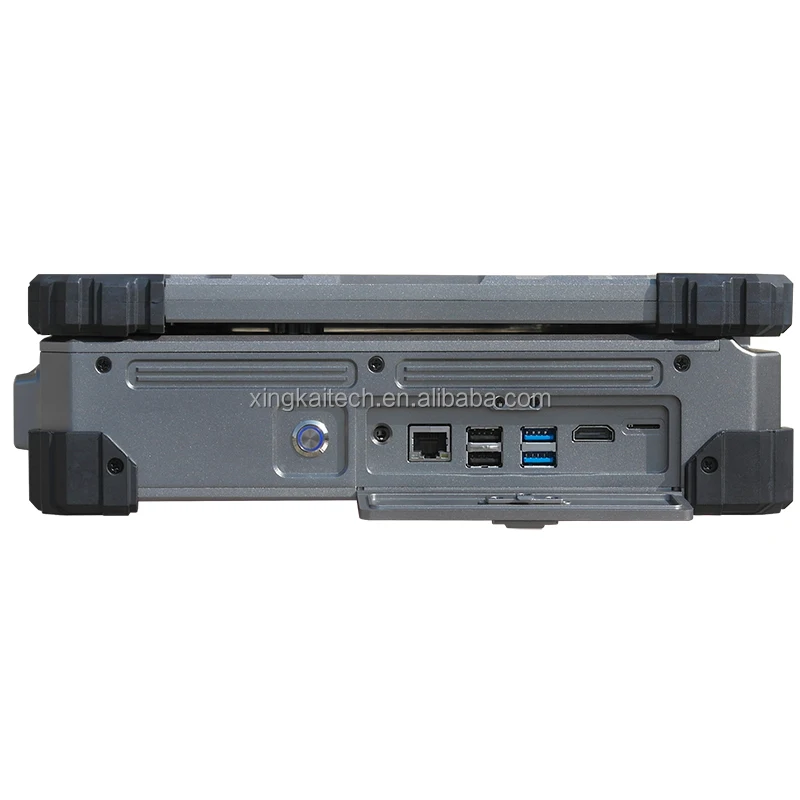

I/O Interface
Network port
2
USB
5*USB
HDMI
2
SIM
1
Power input
DC19V

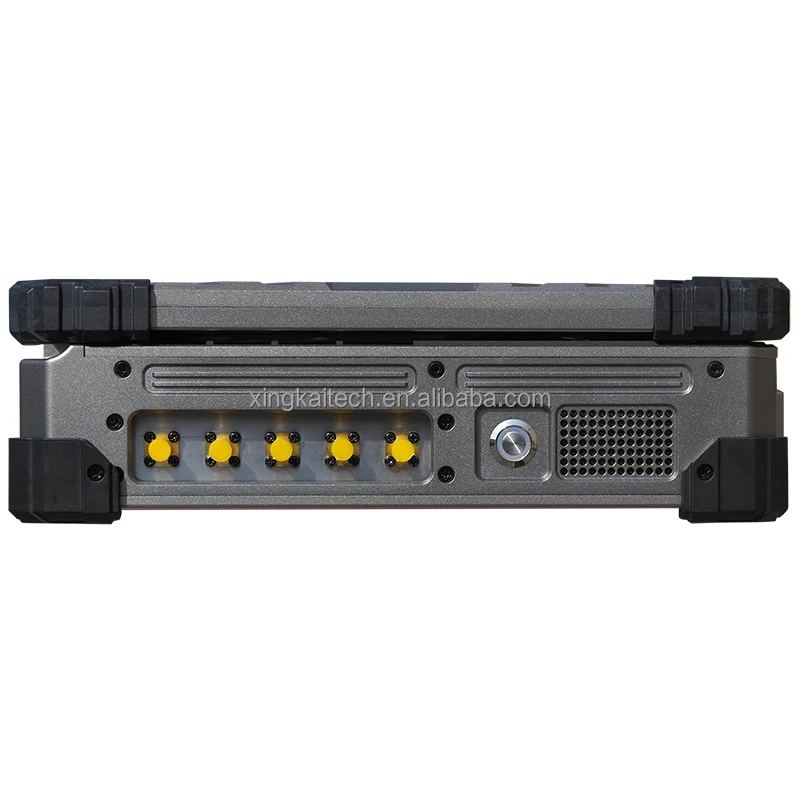

SMA antennas
5(Reserved)
WIFI/4G
2
Internal reserved interfaces
Internal space reserved to support
secondary development(244.5*164.5*31mm)
4*RS232/DC 5V/DC 12V/2*USB
port/1*HDMI /1*LAN
Environmental parameters
Operating tem
-20℃-50℃
Storage tem
-30℃-60℃
Relative humidity
20%~80%@40ºC
Physical parameters
Panels Material
Aluminium with hard anodised
sandblasted finish
Dimension
429*290*88.6
Weight
7.8KG
Others
loudspeaker*2
Operating systems
win10 win7/Linux system










Related Products




3.Packing&Shipping:

Packing: Packed in a professional shipping box
Port: Yantian, Shekou or Hong Kong



4.Company Introduction

Shenzhen Xingkai Technology Co., Ltd. is a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance, and defense industries.

Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery ot end-to-end communications&advanced networkings. The company attaches great importance to the construction of the R&D team, with a team who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.

Our products range includes mimo mesh network, military radio, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of military C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can't risk communication failure.








5.Exhibitions





6.Testing Instruments





7.Certifications









8.Cooperative Partners





9.Contact Details
