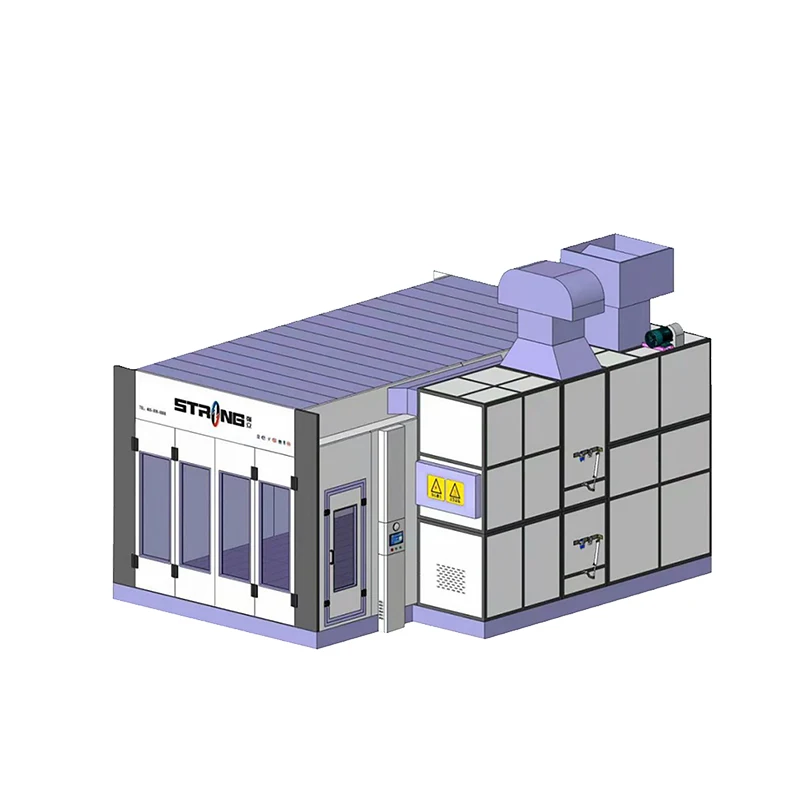

Прямая продажа от китайского производителя экономичная Автомобильная покрасочная камера с шлифовальной станцией
491 529,47 ₽ - 625 983,72 ₽
Хорошее качество Электрический обогрев автомобиля распылительная камера/Автомобильная скамья комбо для автокузовного магазина
- Категория: >>>
- Поставщик: Yantai Autenf Automobile Services Co. Ltd.
Сохранить в закладки 1600940620348:
Описание и отзывы
Характеристики

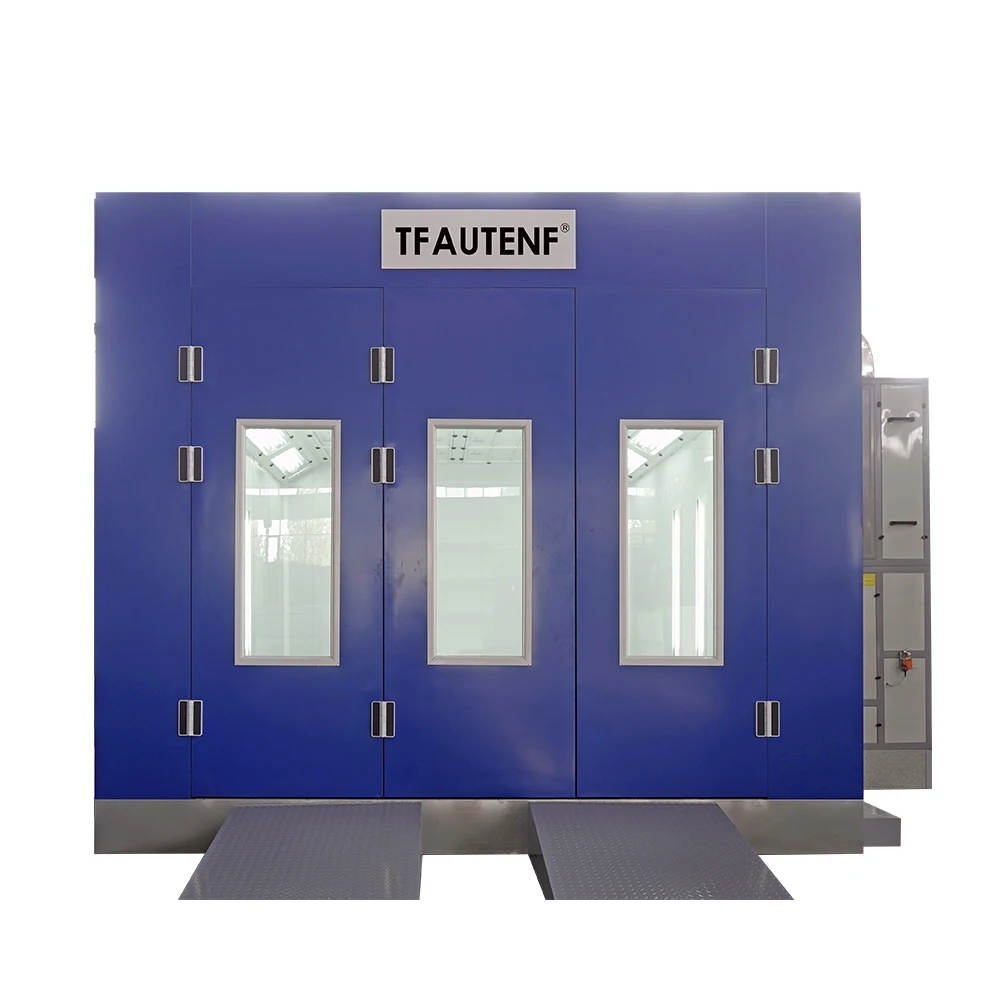

Spray booth description
Spray booth size | ||
External size | 7000*5200*3400mm (L*W*H) | |
Internal size | 6900*3900*2650mm (L*W*H) | |
Main door | 3 folds, 3000*2600mm (W*H), with spray handle & cast aluminum lock | |
Personal door | 1 fold, 650*2000mm (W*H), with handle & anti-explosion lock | |
Main system specifications | ||||
Body system | Wall panel | 50 mm EPS with 0.45 mm color steel plate, tongue-and-groove construction, with galvanized steel roof | ||
Basement | Galvanized steel assemble,full metal foundation,height: 280mm 3 rows of steel grids in the middle, 2 rows of corrugated plates 2 pcs of ramps,each size:970*2000mm (W*L),corrugated plates construction | |||
Ventilation system | Inlet fan | 2*3KW YDW double-intake centrifugal fans Total air capacity:20000m³/h,rpm:900 | ||
Extract fan | 1*5.5KW YDW double-intake centrifugal fan Total air capacity:15000m³/h,rpm:900 | |||
Airflow speed | 0.35m/s, ventilation rate: 280times/h | |||
Heating system | Infrared heat lamps | 10 units high efficient short wave infrared lamps,with protective covers. 3 lamps/unit,each lamp 1KW, total power:30KW 15-20 minutes (20-80℃) under baking status,max baking temperature:80℃ | ||
Lighting system | Ceiling lights | 8 units*4 pcs=32 pcs*16W LED tubes,with electronic ballast | ||
Side lights | 4 units*4 pcs=16 pcs*16W LED tubes,with electronic ballast | |||
Filtering system | Pre filter | Capture more than 10μm particles,filtering rate＞83% | ||
Ceiling filter | Capture more than 4μm particles,filtering rate＞98% | |||
Floor filter | Multi-layer fiberglass filter,filtering rate＞70% | |||
Control system | Function | Painting, risen-temperature painting, baking, time setting, lighting, failure indication, thermostatic switch, power switch, emergency stop etc | ||
Power supply | 380V/50Hz/3ph or customized | |||
Working power | 43 KW | |||
Notes | size, voltage, and some other details can be customized according to customers' actual situation | |||

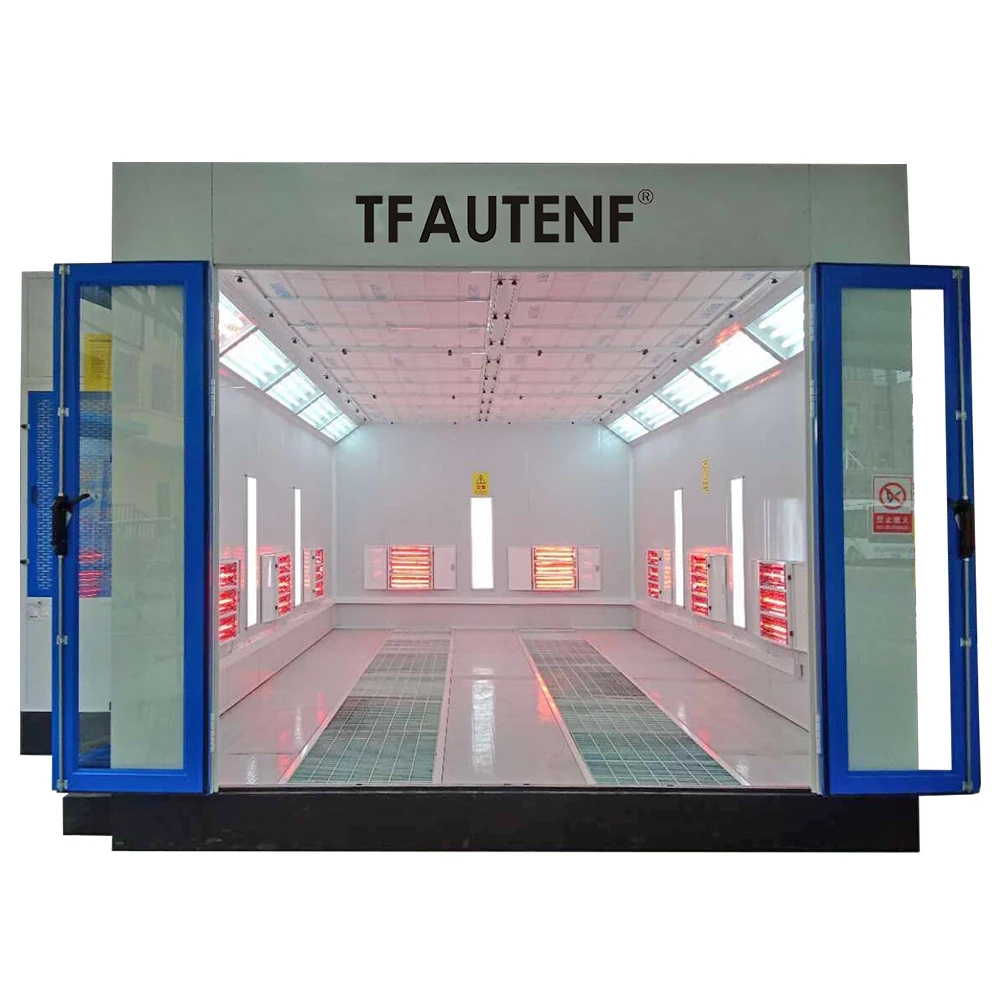

Heating system--- this model has 10 units of infrared heat lamps
Each unit has 2 covers, it can be closed when not in use,which can prevent paint spraying on the lamps.
The lamps unit are controlled by grouping contactors respectively, so the lamps can be turned on together or separately.
Ventilation system
Our spray booth are equipped with famous domestic brand fans, copper coil motor, with low noise.
Light system
With ceiling lights and side lights, Illuminance: ≥900LUX
Ceiling lights
Ceiling lights
Side lights

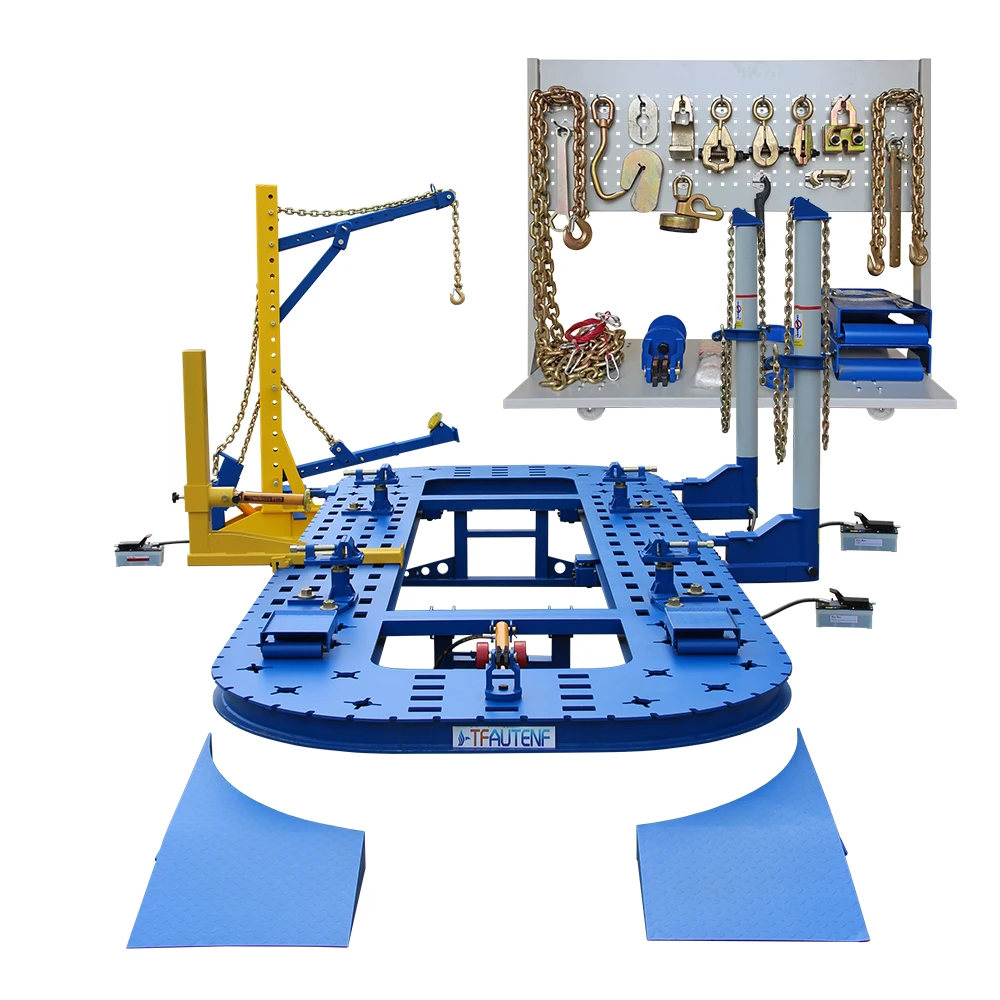

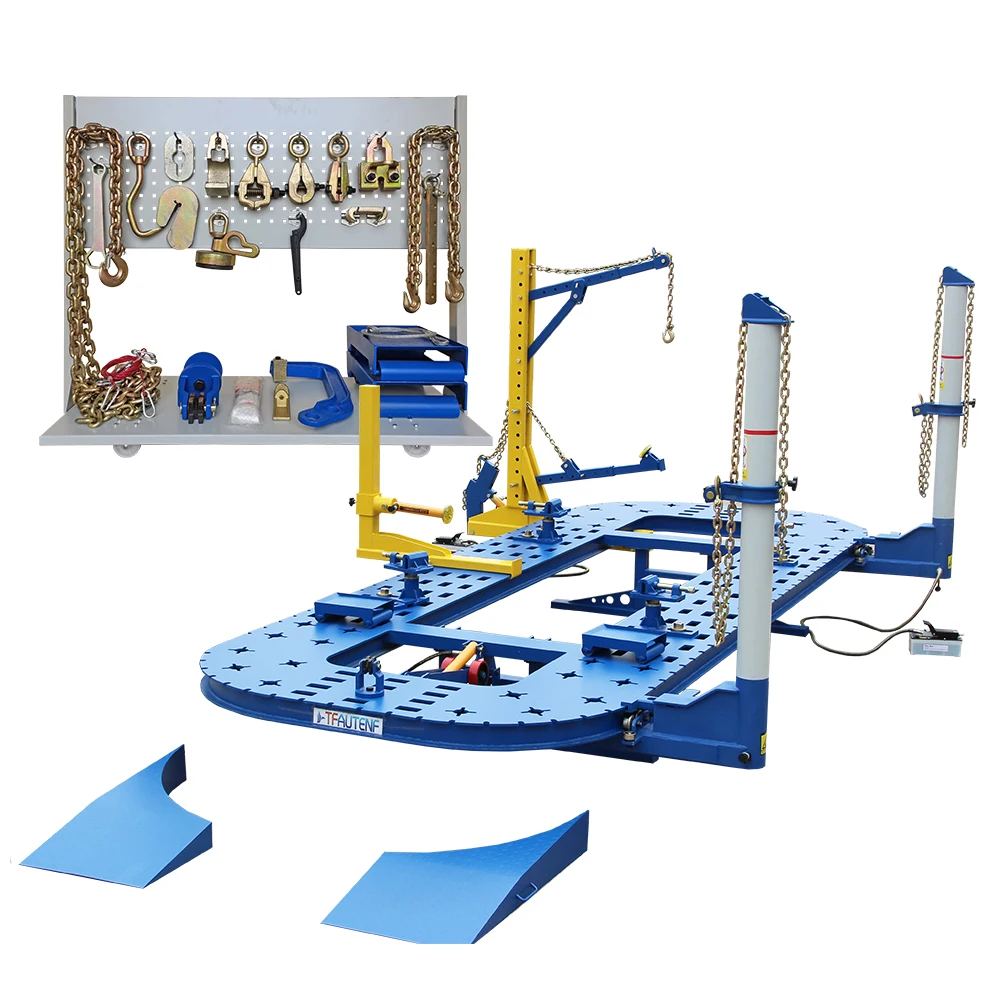

Frame machine description
Product Specifications | Working Specifications | ||||
Platform material | manganese steel plate | Lifting type | tiltable from one side | ||
Platform length | 5200mm (17 ft)/ 5600mm (18.4 ft)/ 5800mm (19 ft) | Pulling power | 98 KN/10 tons | ||
Platform width | 2200mm (7.2 ft) | Pulling range | 360 degree | ||
Lifting height | 550mm (21.65 inch) | Lifting capacity | 3500 kgs | ||
Pulling tower | round tower * 2 pcs & square tower*1 pc & push tower*1 | Power unit | pneumatic-hydraulic | ||
Accessories | complete set | Hydraulic pressure | 70 Mpa | ||
Weight | according to the length | Pneumatic pressure | 0.65 Mpa | ||
Detailed images
Hydraulic air pump
Vice clamps
Car dollys
Cross holes & square holes on platform
Cross holes & square holes on platform
Overview from the top
Round pulling tower detail
Round pulling tower detail
Round pulling tower detail
Drawing
Packing & Delivery
Company Profile
Yantai Autenf Automobile Services Co., Ltd. is professional manufacturer of auto repair & maintenance equipments with over 13 years production experience. Our products are mainly used in 4S shops, garages, workshops, repair factories etc.
Our product range includes:
-- 3.5 to 10 tons two post car lift for passenger cars and light trucks;
-- 4.0 to 20 tons four post car lift for passenger cars and light trucks;
-- 22 to 45 tons four/six column lift for heavy duty commercial vehicles;
-- 5.2 to 14 m auto frame repair bench for passenger cars and heavy duty commercial vehicles;
-- 7.0 to 15 m auto spray booth for passenger cars and heavy duty commercial vehicles;
-- Tire repair equipment, e.g. tire changer, wheel balancer etc.;
-- 3D alignment equipment;
-- Other accessories;
We sincerely hope to a mutually beneficial cooperation with you.
Our product range includes:
-- 3.5 to 10 tons two post car lift for passenger cars and light trucks;
-- 4.0 to 20 tons four post car lift for passenger cars and light trucks;
-- 22 to 45 tons four/six column lift for heavy duty commercial vehicles;
-- 5.2 to 14 m auto frame repair bench for passenger cars and heavy duty commercial vehicles;
-- 7.0 to 15 m auto spray booth for passenger cars and heavy duty commercial vehicles;
-- Tire repair equipment, e.g. tire changer, wheel balancer etc.;
-- 3D alignment equipment;
-- Other accessories;
We sincerely hope to a mutually beneficial cooperation with you.
Recommend Products
Похожие товары

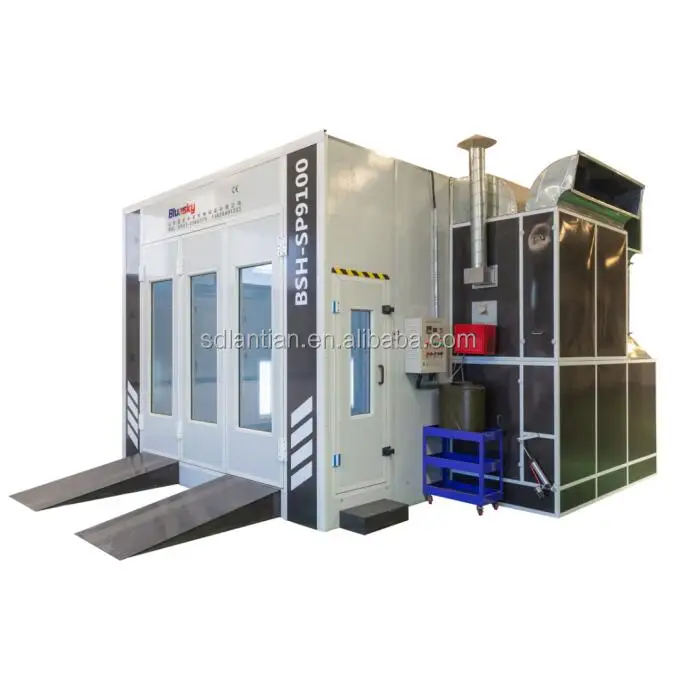

Распылительная камера для автомобиля по заводской цене
550 931,80 ₽ - 606 146,20 ₽
Ручной лакокрасочный магазин с УФ-покрытием без пыли
Автомобильная покрасочная камера 220V STR 49 2 года для автопокраски 7400-4000-2800 7500-5550-3750
606 146,20 ₽

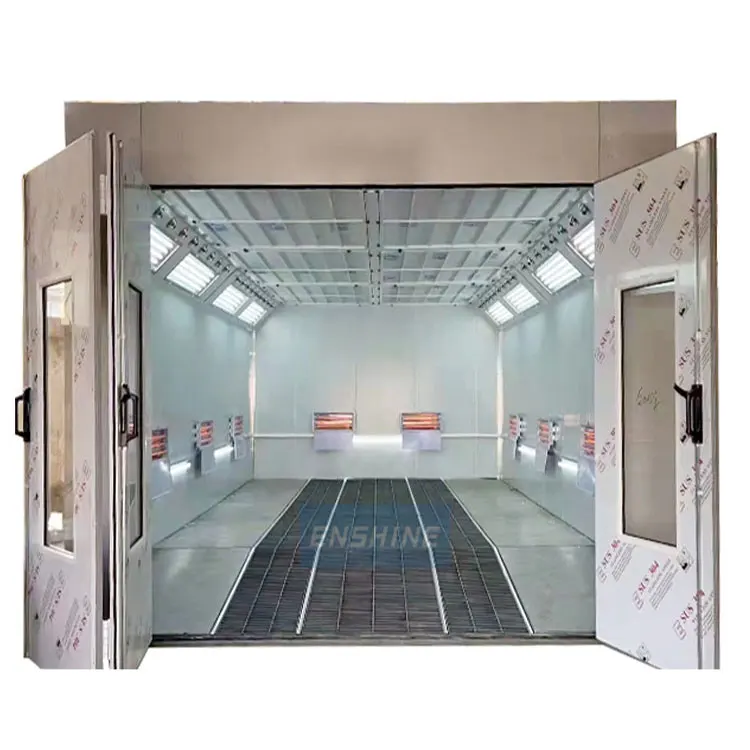

Промышленная покрасочная будка с системой обогрева 12 м
544 209,08 ₽ - 769 585,26 ₽

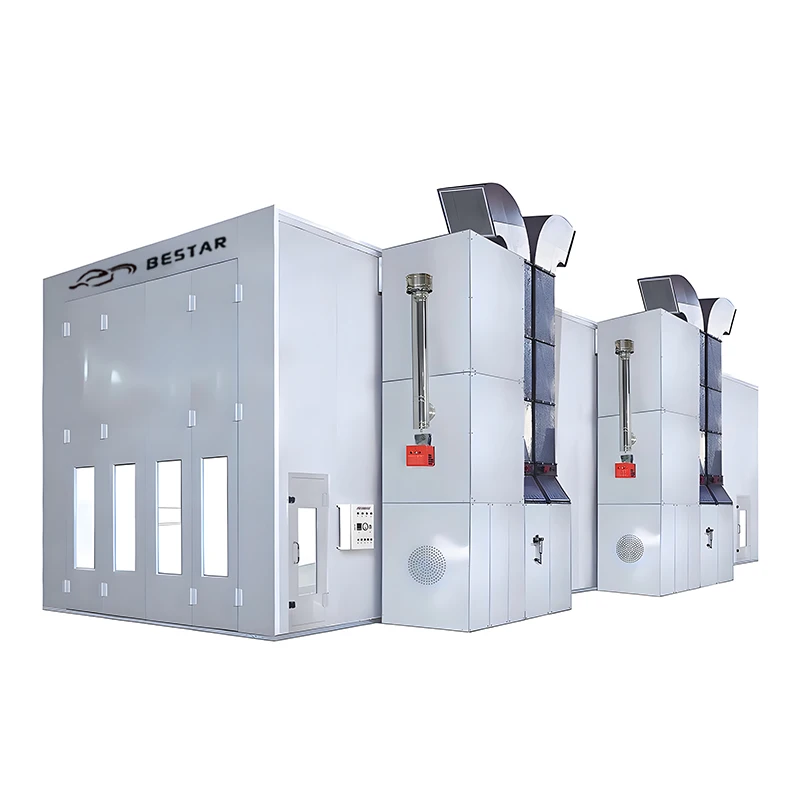

Распылительная камера полуопрыскивающая одобренная CE
501 448,22 ₽ - 573 083,68 ₽
Авто Paint бут/автобус краски конструкции/красильной

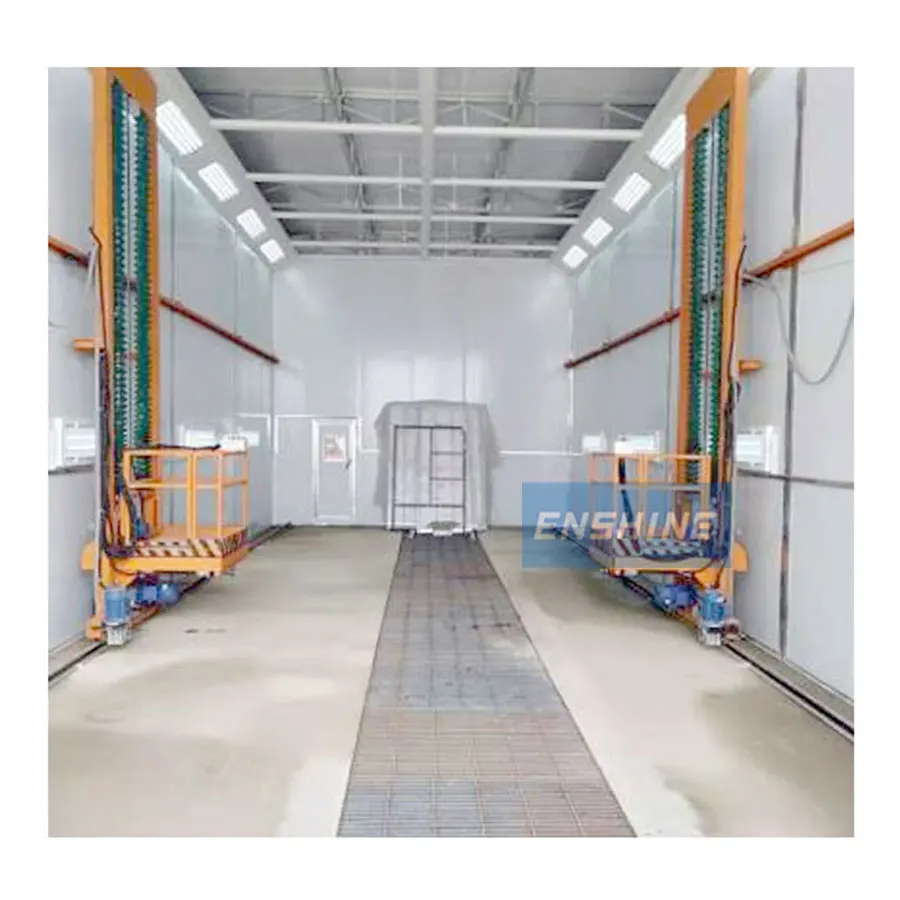

Высокопроизводительная Автомобильная покраска для грузовиков и автобусов
