API 16A всех размеров F HF S U типа резиновый уплотнитель для протирки

BOP parts that we supply all come from original manufacturers, they are 100% interchangeable.

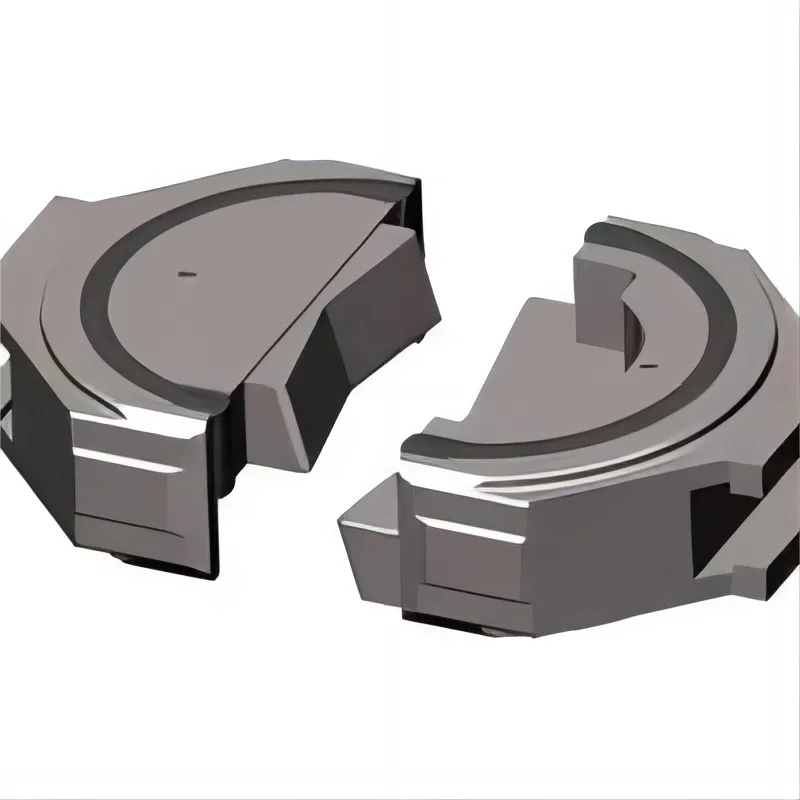

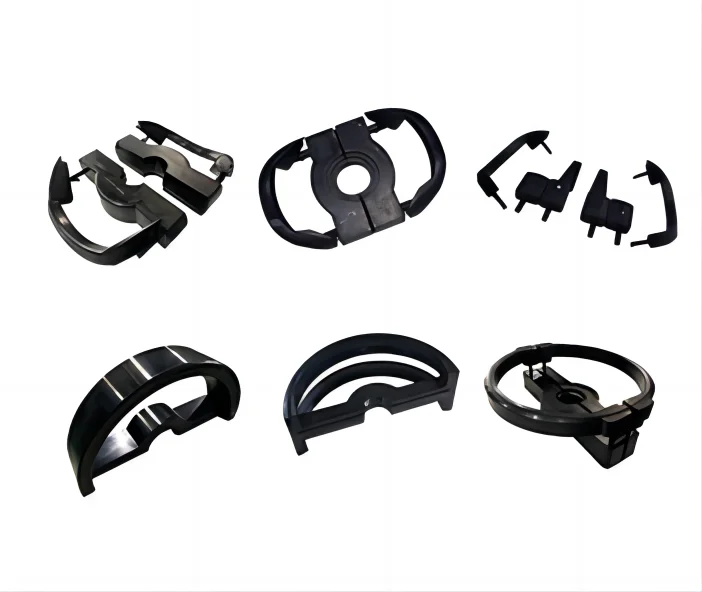

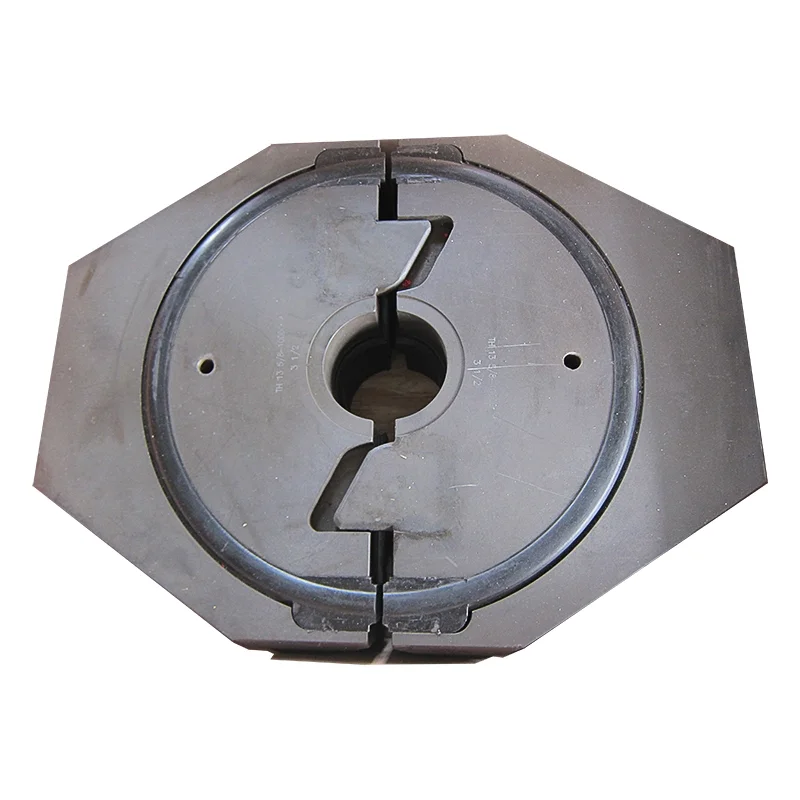

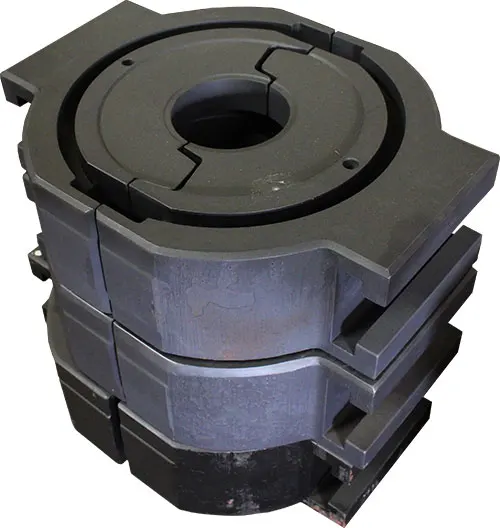

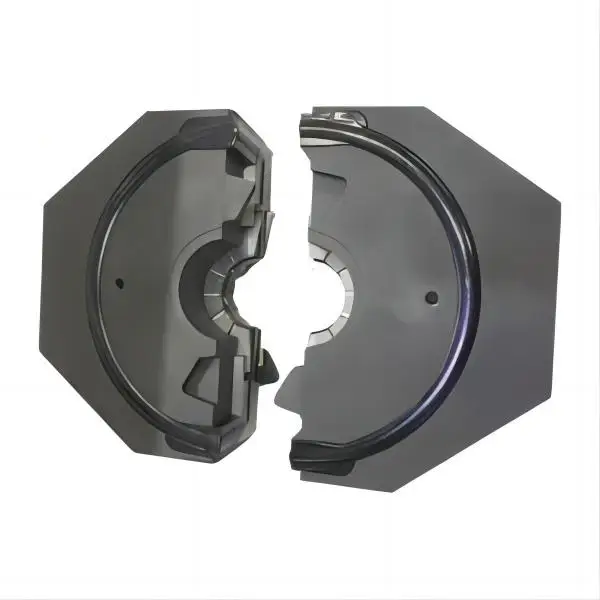

BOP PART NAME: top sealing, front sealing, pipe ram, blind ram, slip ram, shear ram, spherical packer, bonnet, piston, shell.

APPLY TO BELOW BOP:

Brand: SHENKAI BOP. RONGSHENG BOP ETC OTHER FAMOUS BRAND BOP

Type: Annular BOP, Single Ram BOP, Double Ram BOP, Shear Ram BOP

Characters of BOP pare parts:

In the structure, it is divided into annular blowout preventer with spherical plastic core, annular blowout preventer with cone-shaped plastic core, and blowout preventer with tube-shaped plastic core. Annular BOP top cap and housing are connected by bolts or claw blocks.

Blowout preventer with spherical plastic core and dust-proof ring.

Performance characteristics: reasonable structure, easy operation, long life of plastic core, adapt to a wide range, capable to seal pipe string with nominal paths from 0-DN in ans shapes, better performance by combining with ran blowout preventer in the use.

Working of BOP pare parts:

When wells must be sealed in case of kicks high pressure (10.5Mpa) oil from control systems enters into close-cavity under piston from housing oil outlet, to promote plastic core moving upward along ball surface, so that bearing tendons move closer to each other to moce the rubber between them to the center of wellhead so as to seal drilling tools or fully seal wellhead. In opening , hydraulic pressure oul enters into open-cavity above piston from housing oul inlet, to push piston moving downwards , so that plastic will reset with its own elasticity, wellhead will be open.

Lake Petro is located in Dongying City, which is famous for Shengli Oilfield and the largest manufacturing hub of petroleum equipment in China. Following the principle of “quality first, science and technology innovated, people oriented”, every Lake Petro person is sparing no effort to provide the customers with best products and services. Our products are based on advanced production line and testing equipment, our products are designed and manufactured according to certification of ISO, GOST, etc.
