6 Вт подсветка IP65 RGBW Дистанционно управляемый источник света с множеством спецификаций пластиковый оптоволоконный пучок для потолочного освещения

Сохранить в закладки 1600943752917:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


6W Highlighting IP65 RGBW Remote Controlled light source with many specifications plastic optical fiber bundle for ceiling light






Product Description

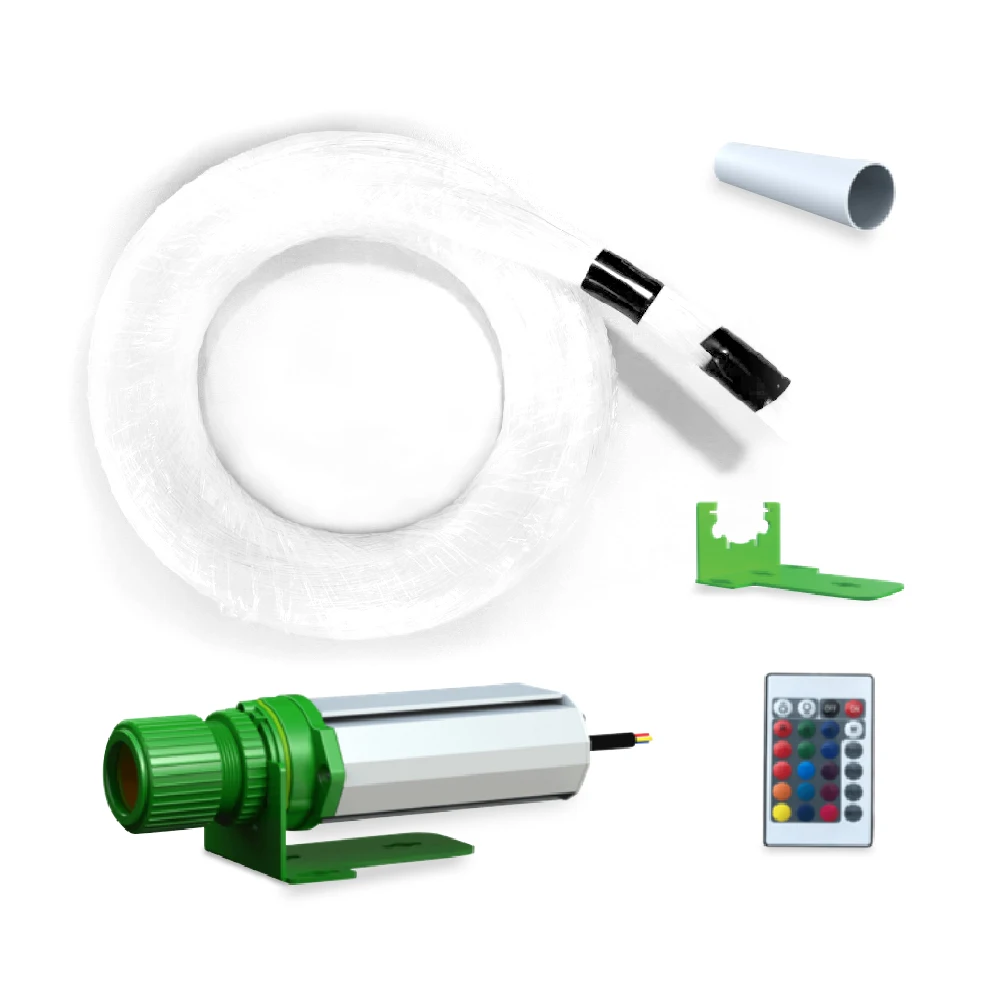

Customized led fiber optic star light kit for car roof or ceiling:

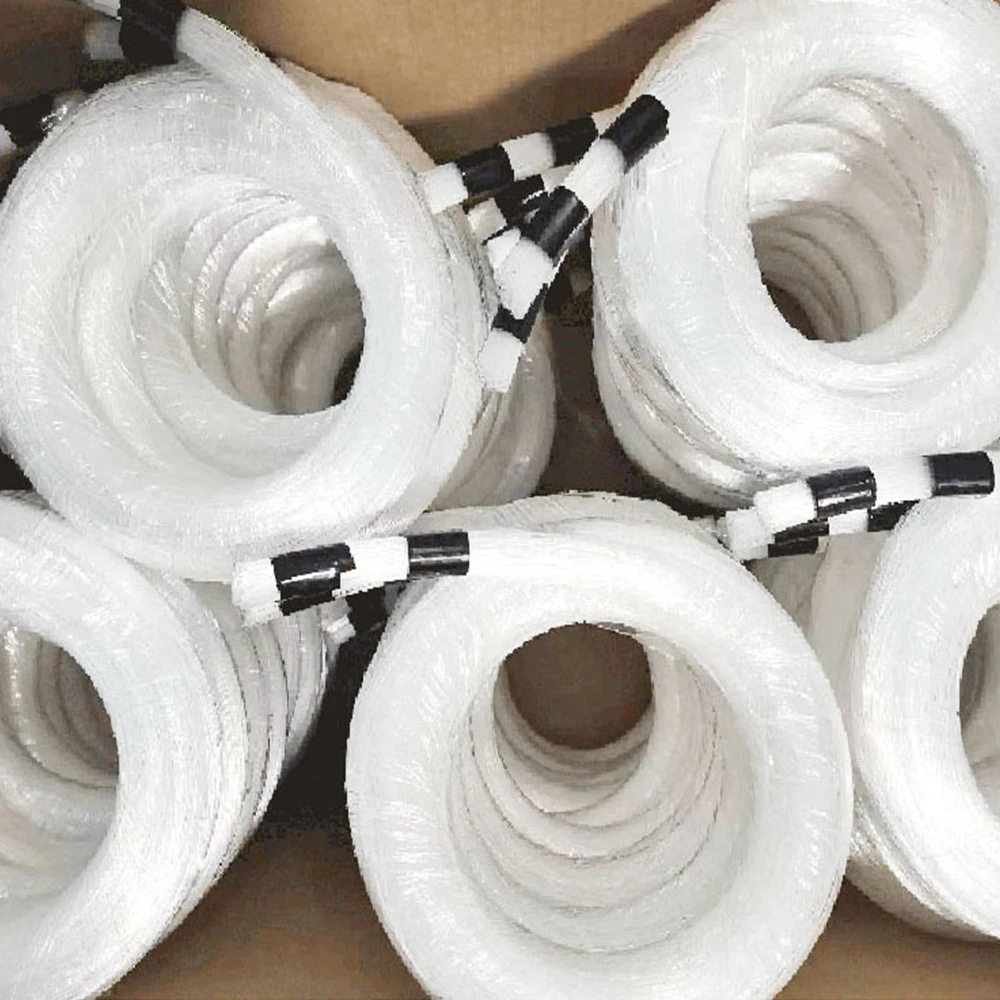

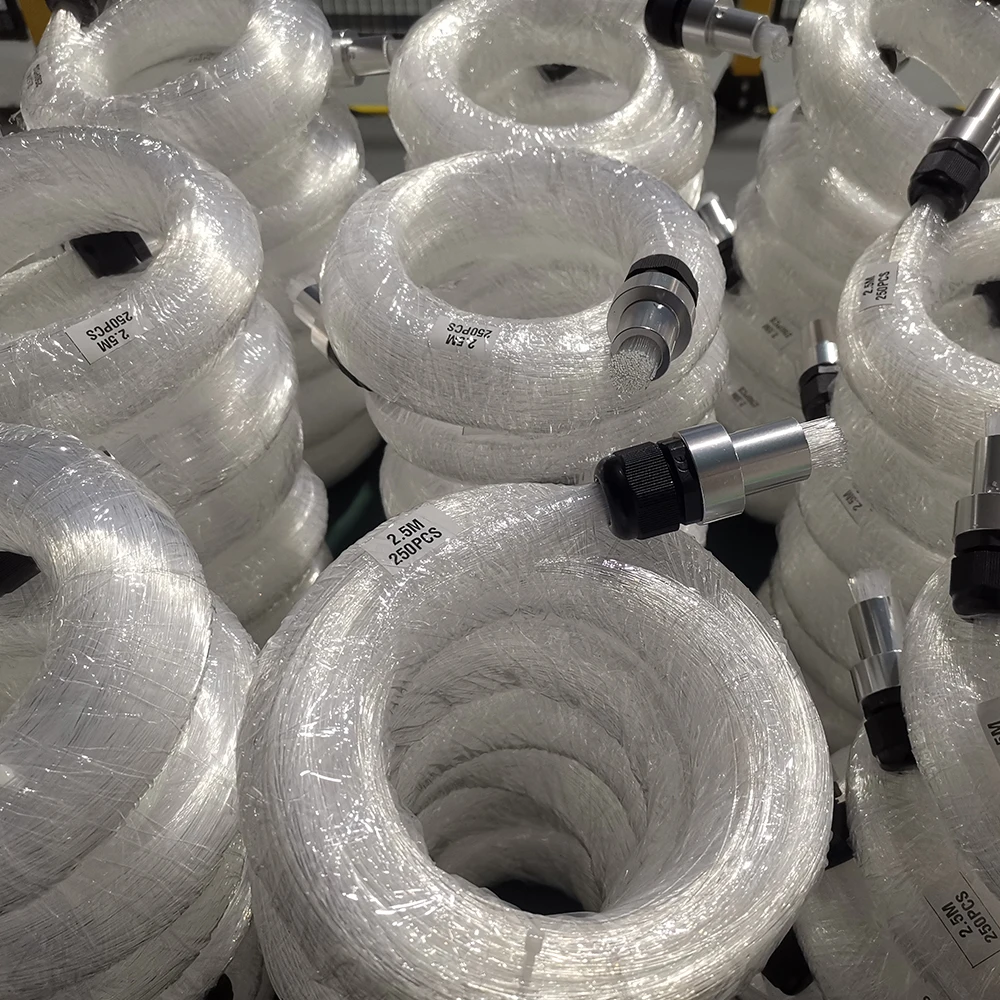

1. The plastic optical fiber bundle can be any length you want ,from 0.5 to 15m , or mixed length (such as 1m - 100pcs , 2m - 50pcs , 3m -200pcs and so on ) .
2. The diameter of the fiber can be from 0.5mm to 3mm , or mixed size (such as 0.5mm + 0.75mm + 1mm + 2.5mm .....)
3. The effect can be twinkle , shooting star and mixed color .
4. The control way is Remote control.


5. Our MOQ is one set, and within 100 sets can delivery in one day
If any inquiry,please feel free to contact me at any time!





 Technical Parameter

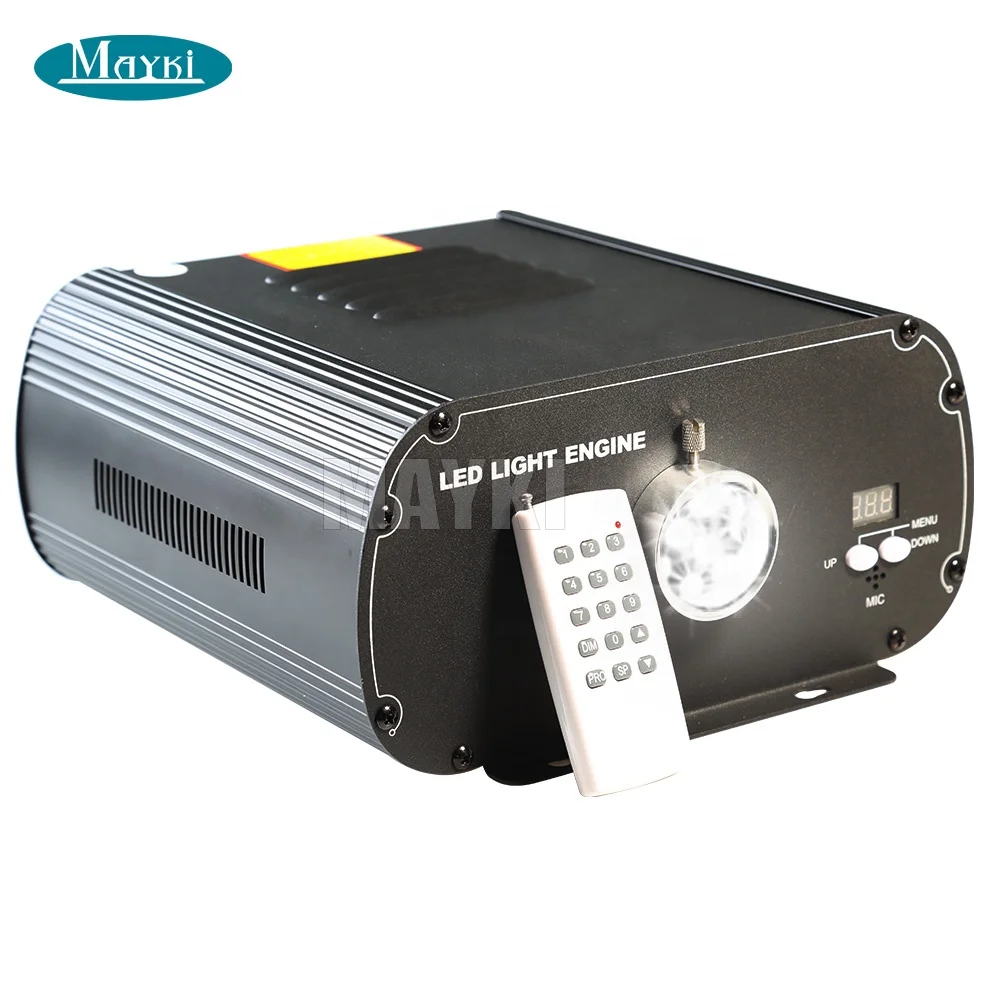

Product nameMiniature Highlighting Full Color Light Source MachineModelE04XS251
Shelf life2 years
VoltageAC100v-240vSizeL:167mm W:67mm H:50mm
Light Source LED Power 6W
Coupling rate 80%  Luminous flux570lm
  Basic configuration  Light source machine
Mounting Plate Controller
Weight 410g
 Product styleModern simplicity
 Coupler Diameter25mm Material Aluminum alloy
 TypeRGBW Application Suitable for fiber optic luminaires
 Mode   Fixing, gradient, flashing, breathing, running types.
Test ConditionsA PMMA stick was used as standard optic fiber to test: diameter 25mm, length 25cm, light transmittance
over 90%. The luminous flux was deteminated at the center of the 40cm from the end of the stick.

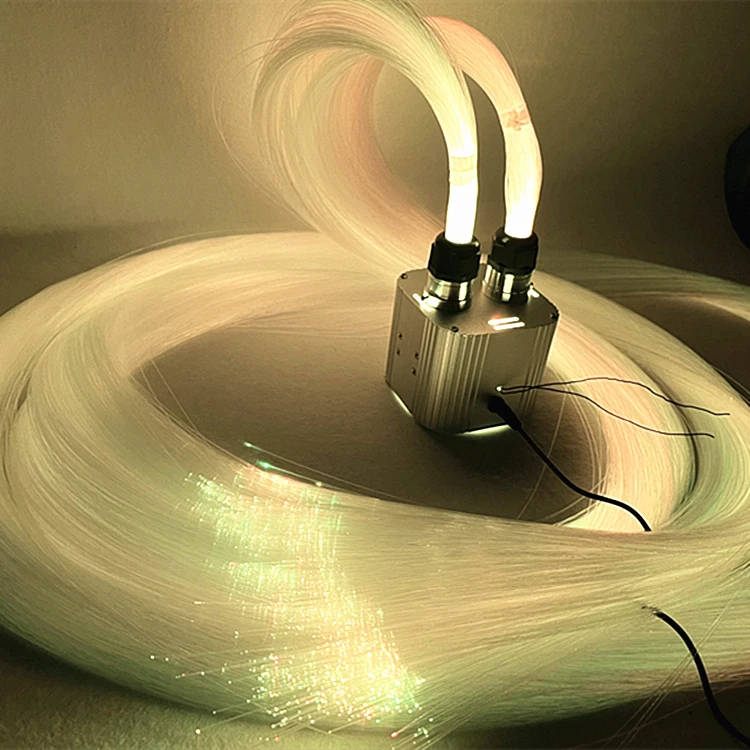

 The light source dimension




 Make sure all the fibers in the same surface and cut it with cuting machine and polish the end to be very smooth . Make sure all the fibers can get the lights well .




Note: The maximum number of plastic optical fiber is different by diameter, seeing as below!



























The Maximum Of Plastic Optical Fiber
Diameter(mm)0.75mm1.00mm1.5mm2.00mm3.00mm
Number7004001809540




Detailed function description of remote control button

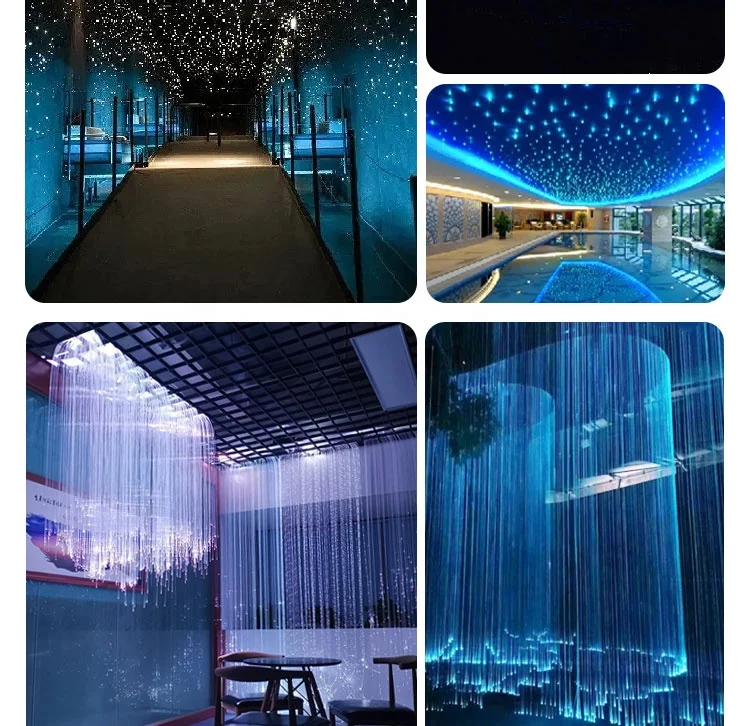

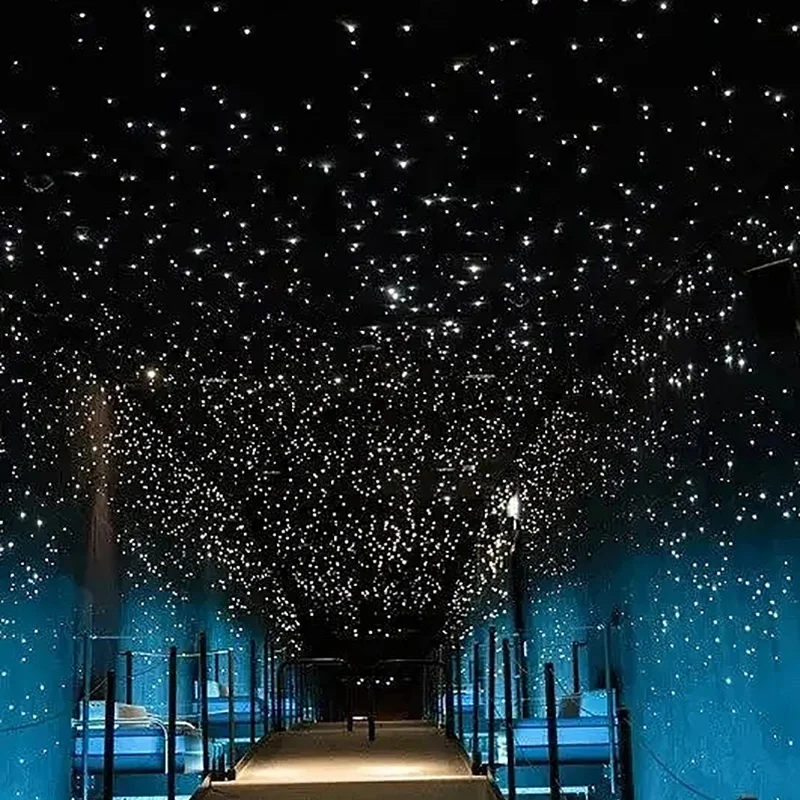

The way to make the star ceiling with the Plastic optical fiber light

1 : According to your design, drill holes on the ceiling!
2 : Put the fiber into the holes,fix the fiber with glue and then cut the fiber and keep it 3-4mm longer.


.jpg














Our Services


 1. Payment: T/T only 30% deposits before production, 70% balance to be paid before deliver,


    Western Union , Cash/paypal/HSBC HongKong bank  are welcomed


2. Delivery method: FOB Wuhan,   EXW


3. Production Lead Time for 1000-10000 rolls: 7-15 days


4. Sample can be delivered in 3 days


5. Discounts are offered based on order quantities


6. MOQ : 1 roll


7. Shipping : Express , Air freight , Sea freight








FAQ


1. who are we?
We are based in Hubei, China, start from 2022,sell to Western Europe(30.00%),North America(30.00%),Southeast Asia(20.00%),Eastern Asia(20.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.what can you buy from us?
plastic optical fiber,plastic optical cable,plastic optical patch cord,plastic optical sensor

4. why should you buy from us not from other suppliers?
Our company specialize in manufacuring plastic optical fiber,cable and patch cord, we are one of the three plastic optical fiber giants in China,so the quality of our product is guaranteed.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese.
