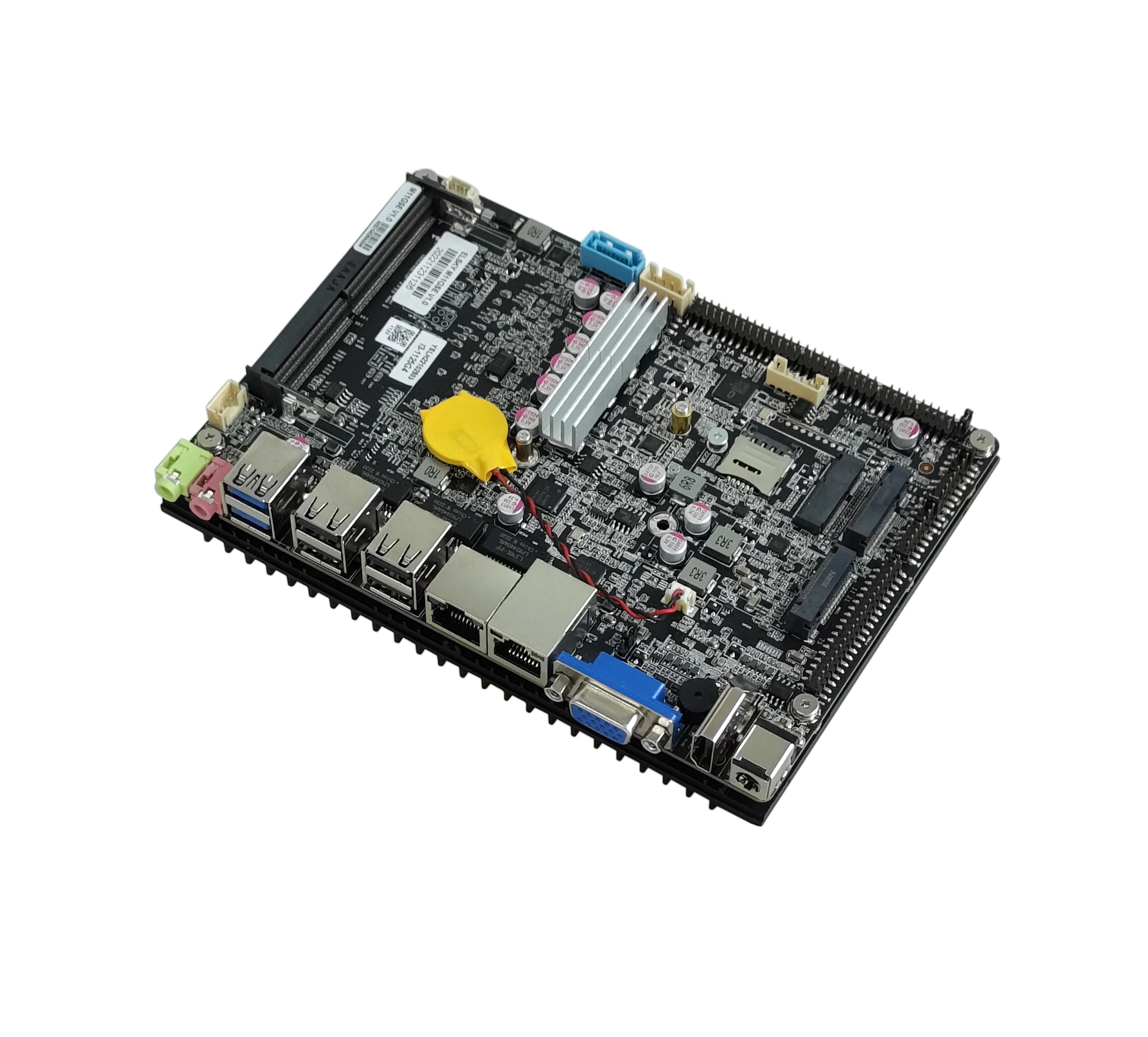

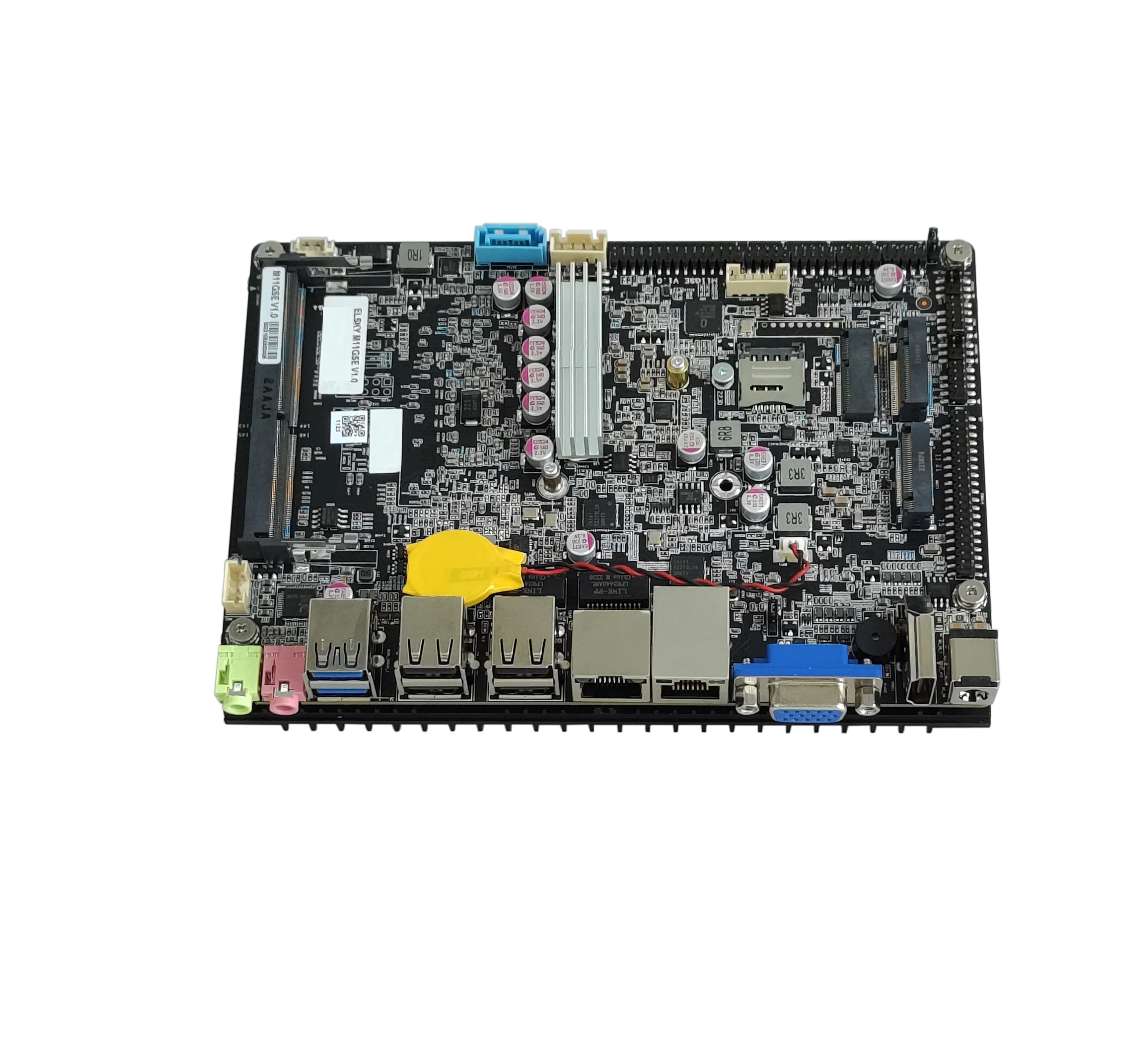

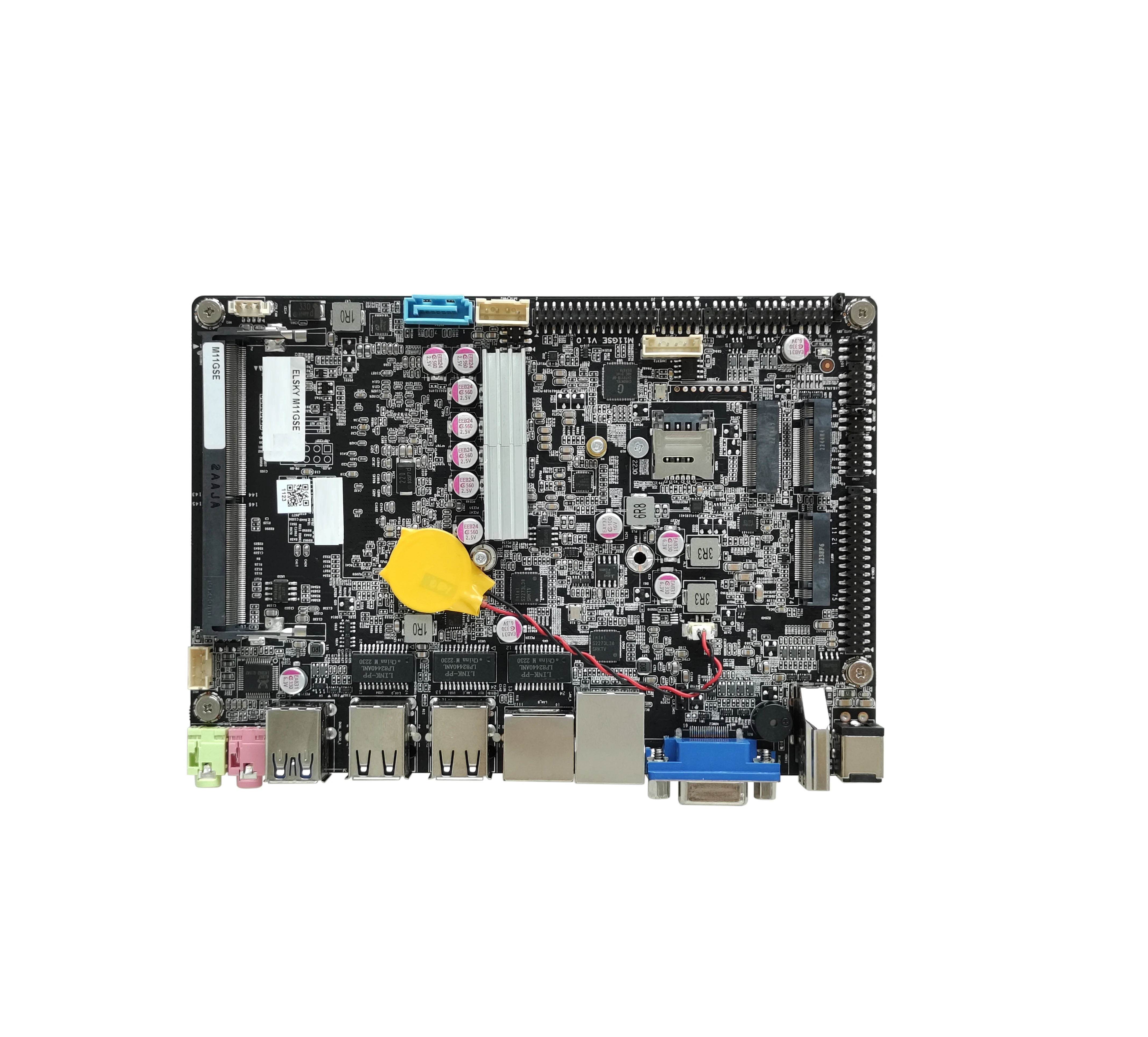

Новая 4 дюймовая материнская плата ELSKY M11GSE поддержка Intel 11 го поколения процессоры i3 i5 i7 TPM2.0 UEFI Secure Boot DDR4 M.2 MVNE

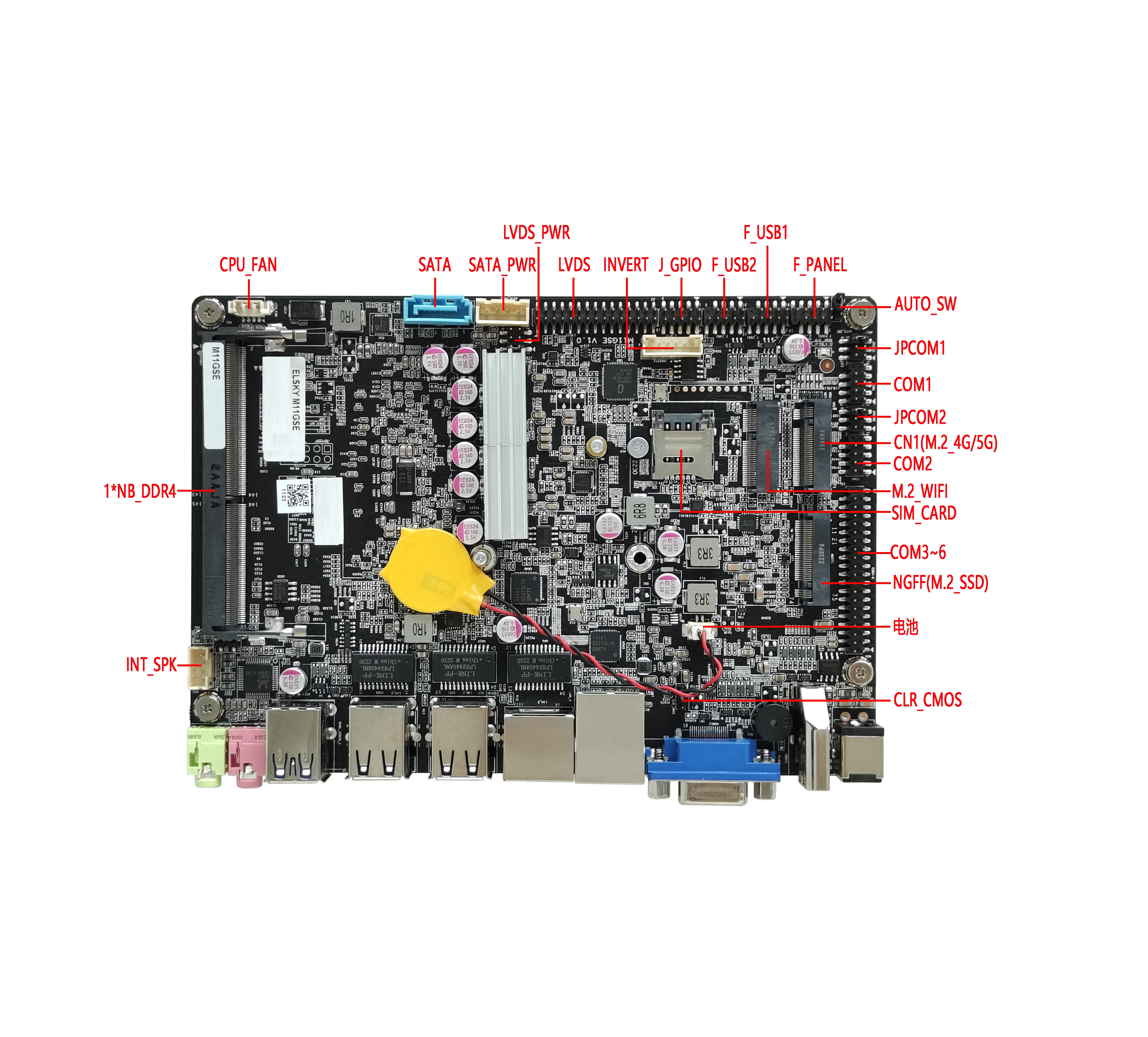

Motherboard Size

4 inch  165mm(L)*115mm(W)*31mm(H)

CPU

Support 11^th Tiger Lake CPU:I3-1115G4,I5-1135G7,I7-1165G7etc

Power supply

1*DC_IN

Options: 1*ATX(4Pin)

The inner diameter of the DC head is 2.5MM, supporting 12V/19V

The full load power consumption of the motherboard is about 60W.

Suggest using 12V 7A or 19V 6.3A or higher power supply

Memory

1*NB-DDR4 Memory slot, supporting 2133/2400/2666/3200MHz memory,

with a maximum support of 32GB

Dispaly

Integrated Intel UHD Graphics super core graphics card, supporting single display, dual display/triple display replication, dual display/triple display expansion, and dual display under SHELL

1*VGA DB15 Interface

Support resolution 1920*1080@60Hz

1*HDMI2 2.0 Interface (Optional)

Support 4K  resolution 4096/3840*2160@60Hz  (12Pin,1*12Pin,2.0mm)

VGA and HDMI2 are Optional,default support VGA

If you need 2*HDMI, Please tell us in advance

1*HDMI 2.0 Interface

Support 4K  resolution 4096/3840*2160@60Hz

1*LVDS/EDP  Pin

LVDS or EDP Pin                       (30Pin,2*15Pin,2.0mm)

1*LVDS_PWR Pin

LVDS voltage control Pin                (6Pin,2*3Pin,2.0mm)

1*INVERT Pin

LVDS backlight control Pin              (6Pin,1*6Pin,2.0mm)

Choose between LVDS and EDP signals on the motherboard, EDP uses EDP-B screen cables, only supporting 2K.Support LVDS by default. If you need EDP , please tell us in advance

Network

2*RJ45_LAN

Optional3/4*LAN

Supports Intel i226-V gigabit network card chips, supports network wake-up and PXE diskless startup functions.

1*CN1Interface

Support for Key-BInterface M.2_ 5G module, can be modified to support 4G modules

1*M.2_WIFIInterface

Support for Key-EInterface M.2_ 2230 WIFI, can be modified to support Bluetooth

3042 specification 4G/5G module and M.2_ WIFI module cannot be connected at the same time, only can choose one;

3052 specification 5G module and M.2_ The WIFI module can be connected  at the same time

Hard Drive

1*NGFF1Interface

Support Key-MInterface M.2 2280, optional 2242; Default SATA protocol, NVME (PCIE) protocol can be modified

1*SATA1Interface

Standard SATA3.0 hard disk interface with a maximum transfer speed of 6.0 Gbps

1*SATA_PWR Pin

The hard drive is powered by Pin and can be powered by 5V or 12V.                      (4Pin,1*4Pin,2.54mm)

Sound function

Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller

1*LINE_OUTInterface

Support for audio output (green)

1*MIC_INInterface

Supports microphone input (pink)

1*INT_SPK Pin

The power amplifier supports dual channel output of 8-ohm 5-watt speakers                         (4Pin,1*4Pin,2.0mm)

USB

2*USB3.2Interface

Post standard USB3.2 Gen1Interface, with a maximum transmission bandwidth of 5Gbps

4*USB2.0Interface

Post standard USB2.0 Interface with a maximum transmission bandwidth of 480Mbps

1*F_USB1 Pin

Front USB2.0 Pin, with a set of 2 * USB2.0                 (9Pin,2*5Pin,2.0mm)

1*F_USB2 Pin

Front USB2.0 Pin, with a set of 2 * USB2.0                 (9Pin,2*5Pin,2.0mm)

M. 2_ USB signal of WIFI and F_ The 2nd/4th/6th/8th/10th pins of USB2 have either option, default to M.2_ WIFI without USB signal

USB signal of CN1Interface 4G and F_ The 1/3/5/7 pins of USB2 are either optional, and 4G is not supported by default

SWITCH

1*F_PANEL Pin

Switch, power light, hard drive light, restart Pin

(9Pin,2*5Pin,2.0mm)

1*AUTO_SW Pin

Support hardware control for powering on and powering on(3Pin,1*3Pin,2.0mm)

Other I/O

1*COM1 Pin

Serial port, supporting RS232/RS422/RS485 options

(9Pin,2*5Pin,2.0mm)

1*COM2 Pin

Serial port, supporting RS232/RS485 options

(9Pin,2*5Pin,2.0mm)

1*COM3~6 Pin

Serial port, supporting standard RS232(39Pin,2*20Pin,2.0mm)

1*JPCOM1/2 Pin

Control COM1/2 pin 9 voltage 0V/5V/12V optional     (6Pin,2*3Pin,2.0mm)

1*SIM slot

Supports SIM card, requires SIM card when using 4G/5G

1*CLR_CMOS Pin

Clear and discharge the motherboard

 Pin(3Pin,1*3Pin,2.0mm)

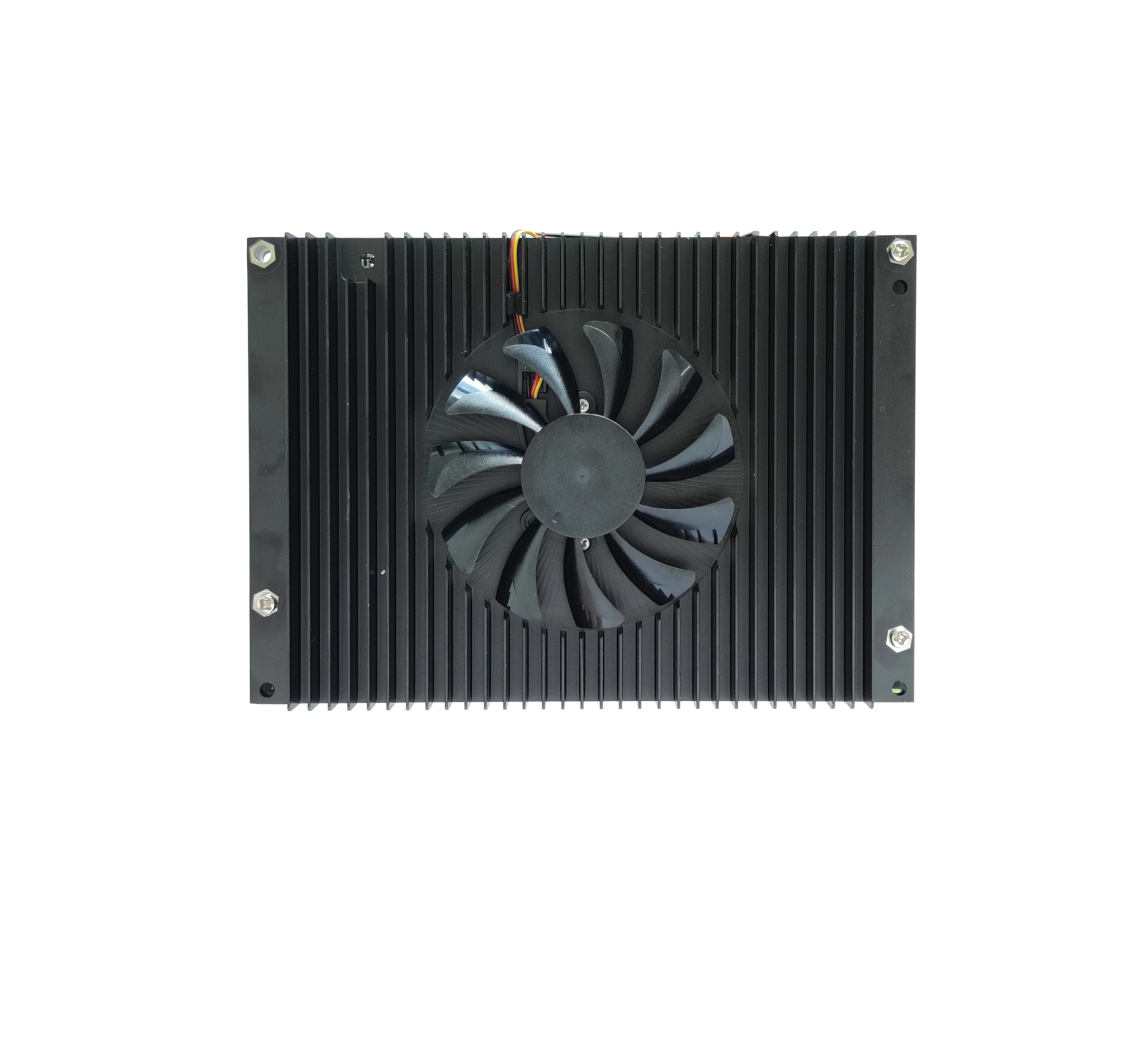

1*CPU_FAN Pin

CPU Fan Pin, supports temperature control

(4Pin,1*4Pin,1.25mm)

1*J_GPIO Pin

GPIO control Pin

 (10Pin,2*5Pin,2.0mm)

Operating environment

Working temperature: -10 ℃~60 ℃; Working humidity: 5%~95% relative humidity, non condensing

BIOS

AMI BIOS, support power-on and start-up, scheduled start-up, remote switch

Watch Dog

Watchdog programming, support hardware reset function   (256 levels, 0~255 seconds)

Operating System:

 Compatible with Windows 10, Windows 8, Windows 7, Linux,etc.

Option Windows 11,if you need,please inform us in advance.
