Небольшой автоматический вертикальный сверлильный станок для стекла/автоматический с ЧПУ
415 129,75 ₽
Профессиональное оборудование для очистки воды
- Категория: >>>
- Поставщик: FOSHAN TANPU INTELLIGENT TECHNOLOGY CO. LTDFOSHAN LTD
Сохранить в закладки 1600945989721:
Описание и отзывы
Характеристики
Classification | Description | Remarks |
Processing capacity | ≥ 120 t/H | |

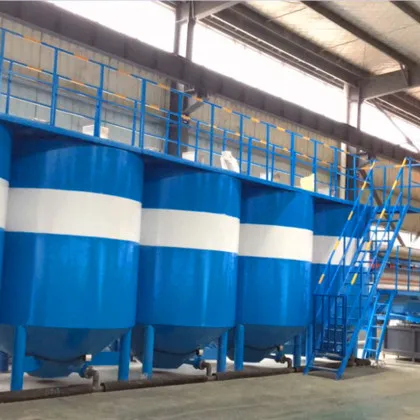

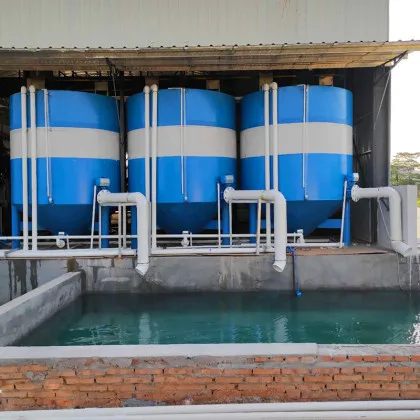

Type of jar | Number of jars: 4 Single tank treatment capacity: 25 ~ 30T/H Jar size: φ 2100*3900H + guardrail 1100H | Combined water production |
Weight of single tank | Full load operating weight ≈ 20 t | The heavy ground is the responsibility of the customer |
Sewage collection tank | ≥ 40m | Customer responsibility |
Clear water collection tank | ≥ 50 m | Customer responsibility |
Sludge pond | ≥ 10m | Customer responsibility |

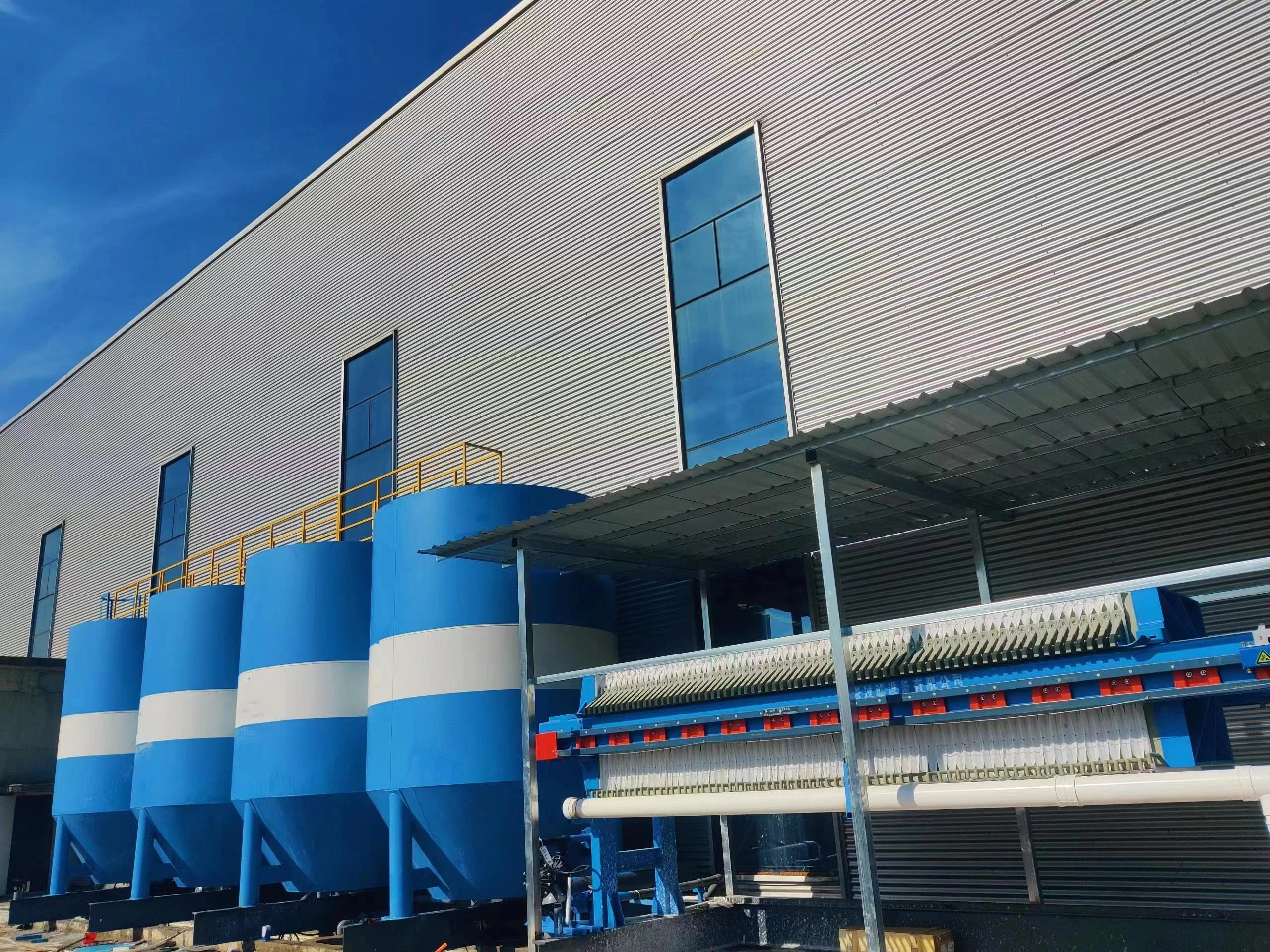

Filter press | 60 ㎡ automatic pull plate | Custom height |
Total floor size | Length and width: 11000*3500mm | Excluding pool |

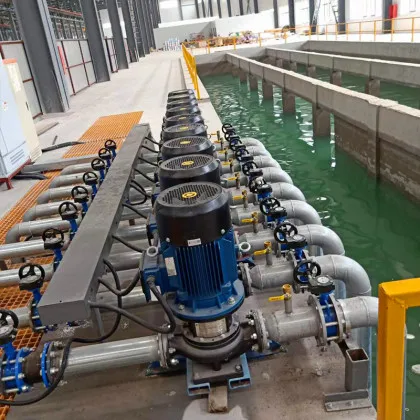

Constant pressure water supply system | 22KW one for use and one for standby | Customer selection |
Total design power | ≤ 20KW | The customer is responsible for three-phase five-wire power to the equipment cabinet |
Compressed air consumption | ≥ 1 m/min | The customer is responsible for supplying power to the equipment cabinet |
Water quality index | COD ≤ 100mg/LBOD ≤ 30mg/L Chroma ≤ 50 (times) SS ≤ 30mg/L PH: 6.5 ~ 8.5 Ammonia nitrogen: ≤ 30 mg/L |

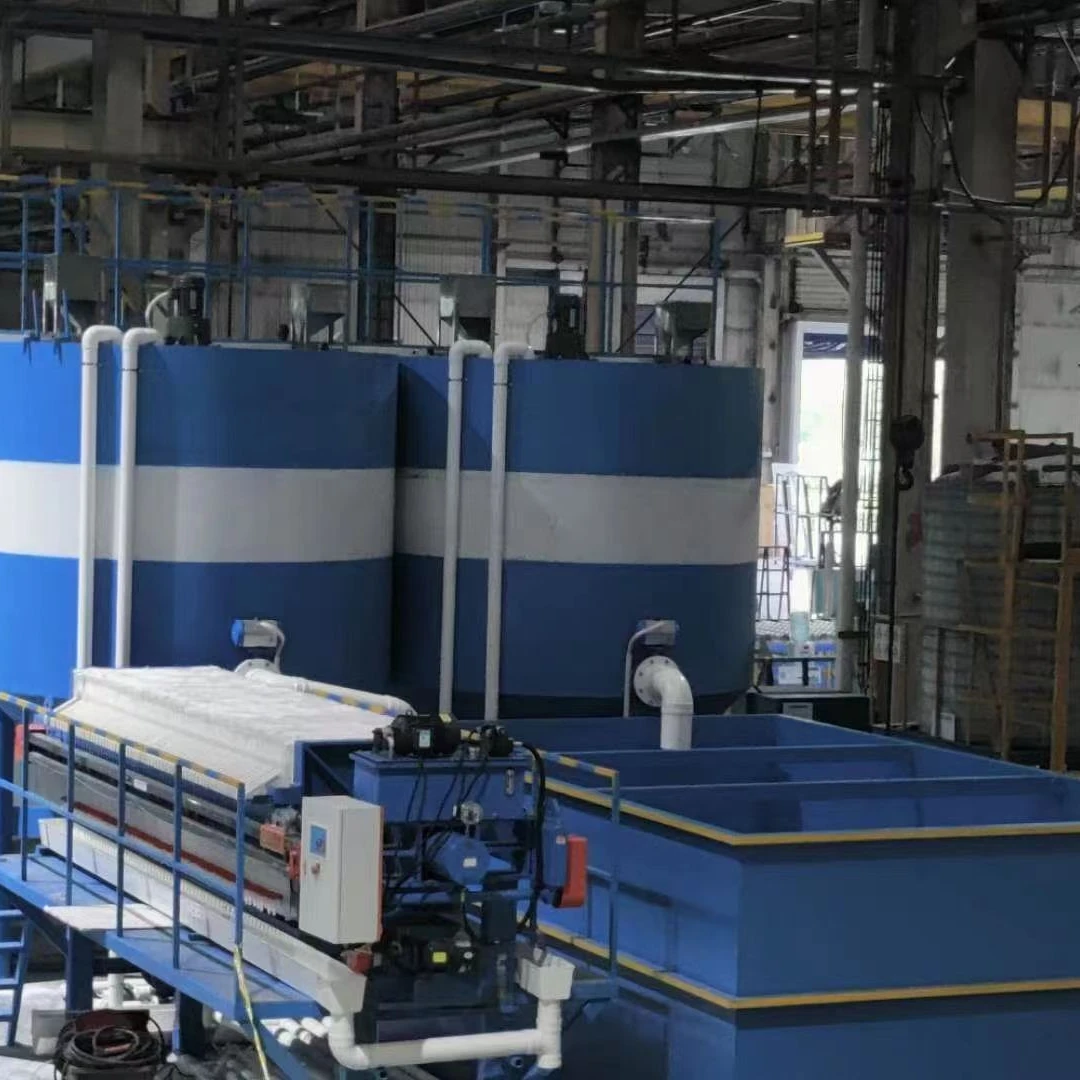

Working principle of equipment: By collecting sewage from multiple edging machines and cleaning machines into a sewage collection tank, an aeration device is installed in the sewage collection tank to make the powder difficult to precipitate at the bottom of the tank. The main component of sewage is glass powder, so the treatment process is integrated flocculation and sedimentation to achieve the effect of solid-liquid separation, and clear water is recycled. After the sewage is pumped to the integrated sewage treatment equipment and coagulant is added, the colloid and dispersed particles of suspended solids form floccules under the interaction of molecular forces, and they collide and condense with each other in the settling process, and their size and mass become larger and the settling speed increases continuously. Bulk flocculate and glass powder quickly precipitate to the bottom of the tank. The bottom of the tank is provided with a sludge discharge valve, which discharges the sludge sunk at the bottom to the sludge tank by gravity and compresses it into a cake shape by a filter press. Clear water is drained to the clear water pool for reuse to the edging machine. | ||||||||
Equipment process includes: 1. Sewage aeration system: fan aeration system to prevent glass powder from settling at the bottom of the pool, greatly prolonging the period of cleaning glass powder 2. Integrated treatment equipment: High-efficiency treatment system has large tonnage and small occupied area 3. Dosing system: scientific formula automatic dosing system, accurate dosing 4. Pressure filtration system: Big brand pressure filtration system, more stable and reliable, better filtration effect 5. Acid-base regulation system: strictly control the PH value of water quality and monitor it in real time, so that the water quality is more guaranteed 6. Control system: Siemens high-end control system and remote intelligent control system are smarter and more convenient to maintain 7. Constant pressure water supply system: Customers choose constant pressure water supply system, which is more stable and energy-saving | ||||||||
Equipment advantages and characteristics 1. The equipment operation adopts Siemens fully automatic control system, and the intelligent degree is higher with remote management system 2. The treatment water volume is large, the operation cost is low, and the drug consumption and power consumption are greatly reduced 3. Sewage treatment equipment strictly controls water quality through automatic adjustment of acid and base of high-precision detector 4. Automatic water level control, automatic adjustment of water treatment rhythm, saving cost 5. The residue is cake solid waste, which is convenient for treatment 6. The equipment occupies a small area and is flexibly adjusted according to the site 7. Adopt a number of patented technologies to make the product flocculate better and precipitate faster 8. High product configuration and better equipment stability 9. Aeration system is used in sewage pool to prevent glass powder from precipitating | ||||||||
1.Who are we?
TANPU INTELLIGENT is a design and fabrication oriented company for Flat Glass Deep processing technology. We are based on Guangdong, China, start from 2015, sell to Eastern Europe(30.00%), South America(20.00%), Southeast Asia(20.00%), North America(10.00%), Mid East(10.00%), Southern Europe(10.00%). There are total about 5-10 people in our office.
2.When can we arrange shipment?
We usually arrange shipment within 30 days after getting deposit, but customized machines should be between 60~100 days.
3.How to provide after-sales service?
Free warranty for one year. Provide remote services and video guidance.
4.What operating language is the machine?
Standard English, can also be changed as required
5.How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us for engineer
dispatching.
6.How can I contact you?
You can contact us directly on Ali International platform or add WA:008613703234074 or yt-machinery@vip.163.com.
7.Can l have a sample?
Yes, we can provide you with samples, but you need to pay the price of individual samples.
TANPU INTELLIGENT is a design and fabrication oriented company for Flat Glass Deep processing technology. We are based on Guangdong, China, start from 2015, sell to Eastern Europe(30.00%), South America(20.00%), Southeast Asia(20.00%), North America(10.00%), Mid East(10.00%), Southern Europe(10.00%). There are total about 5-10 people in our office.
2.When can we arrange shipment?
We usually arrange shipment within 30 days after getting deposit, but customized machines should be between 60~100 days.
3.How to provide after-sales service?
Free warranty for one year. Provide remote services and video guidance.
4.What operating language is the machine?
Standard English, can also be changed as required
5.How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us for engineer
dispatching.
6.How can I contact you?
You can contact us directly on Ali International platform or add WA:008613703234074 or yt-machinery@vip.163.com.
7.Can l have a sample?
Yes, we can provide you with samples, but you need to pay the price of individual samples.
