Horizontal axis 2kw wind wind turbine 2kw high power 48/96v 11m/s rated speed power supply wind turbine 2000w
Products Description
* Selection of casing steel refined but become, light weight, beautiful shape, low vibration.
* The increase of glass fiber reinforced plastic rotor blades, match with optimization of aerodynamic design and mechanism design, start wind speed is low, high wind energy utilization coefficient, increase the power generating capacity.
* Power generation using the patent technology of ndfeb permanent magnet alternator rotor, stater of special design, effectively reduce the resistance torque of the generator, at the same time make wind turbines and generators have more good matching characteristic, the reliability of unit operation.
* Stern rudder adopts the design of automatic yaw, stronger ability to resist the typhoon, safe and reliable operation.
* Selection of anti corrosive epoxy zinc-rich primer and polyurethane enamel, uv and acid rain resistance, salt fog.
* Grease automatic filling machine, intelligent equipment more flexible operation, long service life.
* Optional maximum power tracking intelligent controller, effectively regulate the current voltage.
* The increase of glass fiber reinforced plastic rotor blades, match with optimization of aerodynamic design and mechanism design, start wind speed is low, high wind energy utilization coefficient, increase the power generating capacity.
* Power generation using the patent technology of ndfeb permanent magnet alternator rotor, stater of special design, effectively reduce the resistance torque of the generator, at the same time make wind turbines and generators have more good matching characteristic, the reliability of unit operation.
* Stern rudder adopts the design of automatic yaw, stronger ability to resist the typhoon, safe and reliable operation.
* Selection of anti corrosive epoxy zinc-rich primer and polyurethane enamel, uv and acid rain resistance, salt fog.
* Grease automatic filling machine, intelligent equipment more flexible operation, long service life.
* Optional maximum power tracking intelligent controller, effectively regulate the current voltage.
Product Paramenters
Model | EN-1KW-L | EN-1.5KW-L | EN-2KW-L | EN-2.5KW-L | EN-3KW-G | ||||
Rated Power | 1000W | 1500W | 2000W | 2500W | 3000W | ||||
Max. power | 1200W | 1700W | 2300W | 2800W | 3500W | ||||
Rated voltage | 48V | 48V | 48V/96V | 48V/96V | 48/96/120V | ||||
Start-up wind speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | ||||
Rated wind speed | 11m/s | 11m/s | 11m/s | 11m/s | 11m/s | ||||
Survival wind speed | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s | ||||
Top net weight | 45kg | 50kg | 55kg | 60kg | 205kg | ||||
Wind wheel diameter | 2.9m | 3.2m | 3.7m | 4.7m | 5.2m | ||||
Number of blades | 3pcs | ||||||||
Blades material | Reinforced glass fiber | ||||||||
Generator | Three phase AC permanent magnet generator | ||||||||
Controller system | Electromagnetic/Wind wheel yaw | ||||||||
Speed regulation | The wind Angle automatically | ||||||||
Working temperature | -40°C~80°C | ||||||||

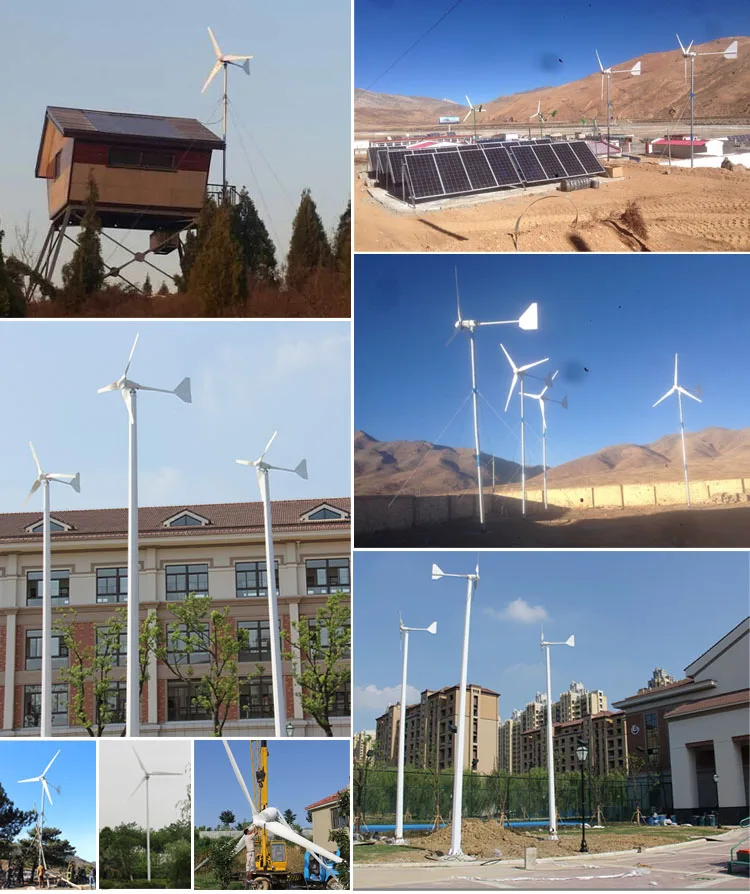

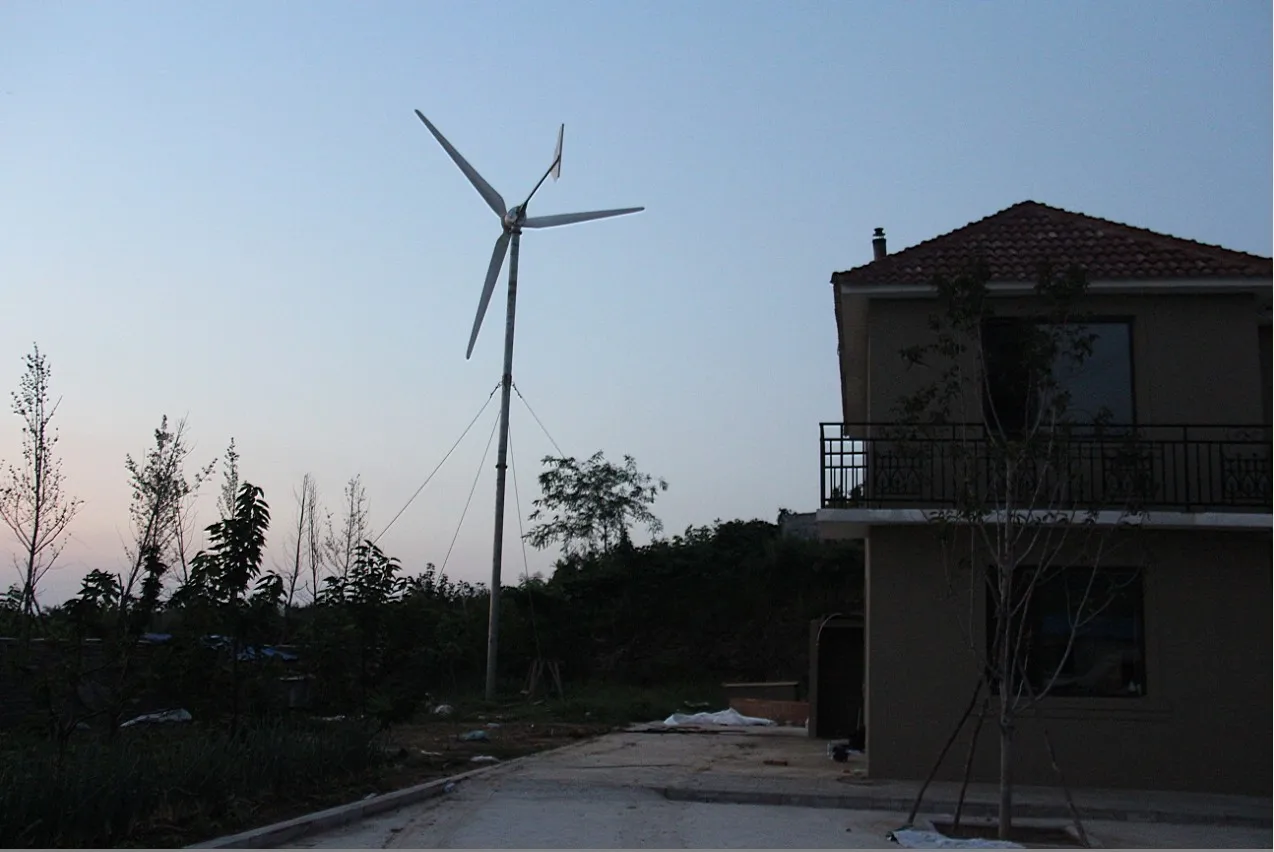

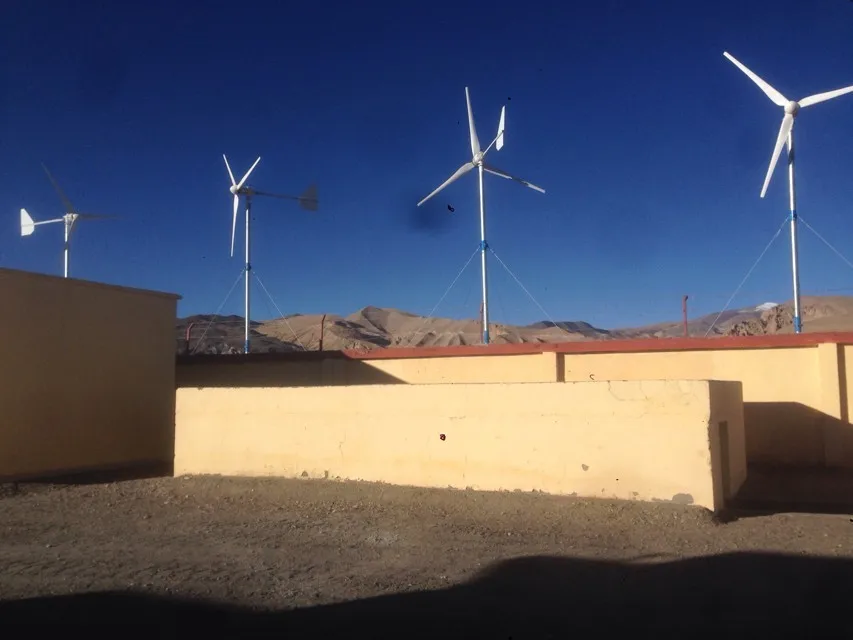

Project Sample
Factory Show
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally,it will take 1-3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: Sample is available ,but sample should be paid in advance.
Q7. How do you make our business long-term and good relationship?
1.We keep good quality and competitive price to ensure our customers benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally,it will take 1-3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: Sample is available ,but sample should be paid in advance.
Q7. How do you make our business long-term and good relationship?
1.We keep good quality and competitive price to ensure our customers benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Contact
