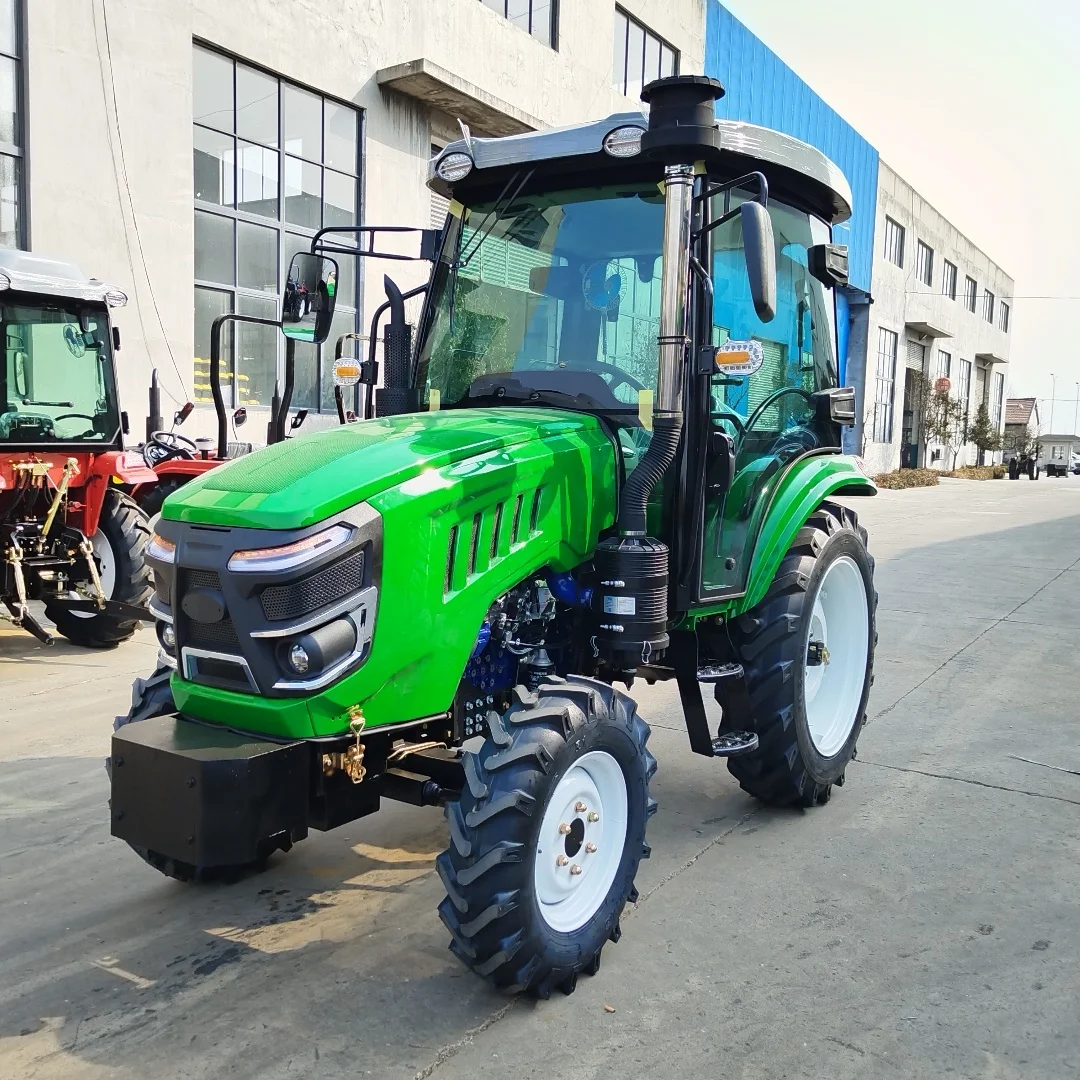

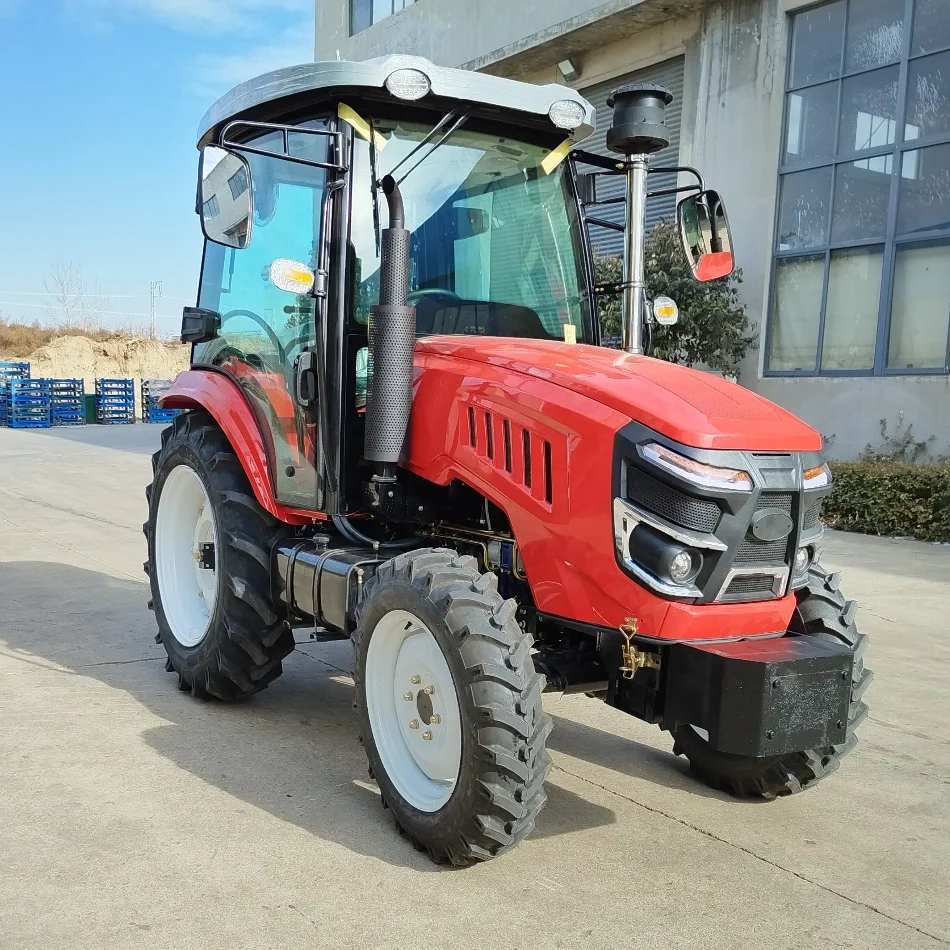

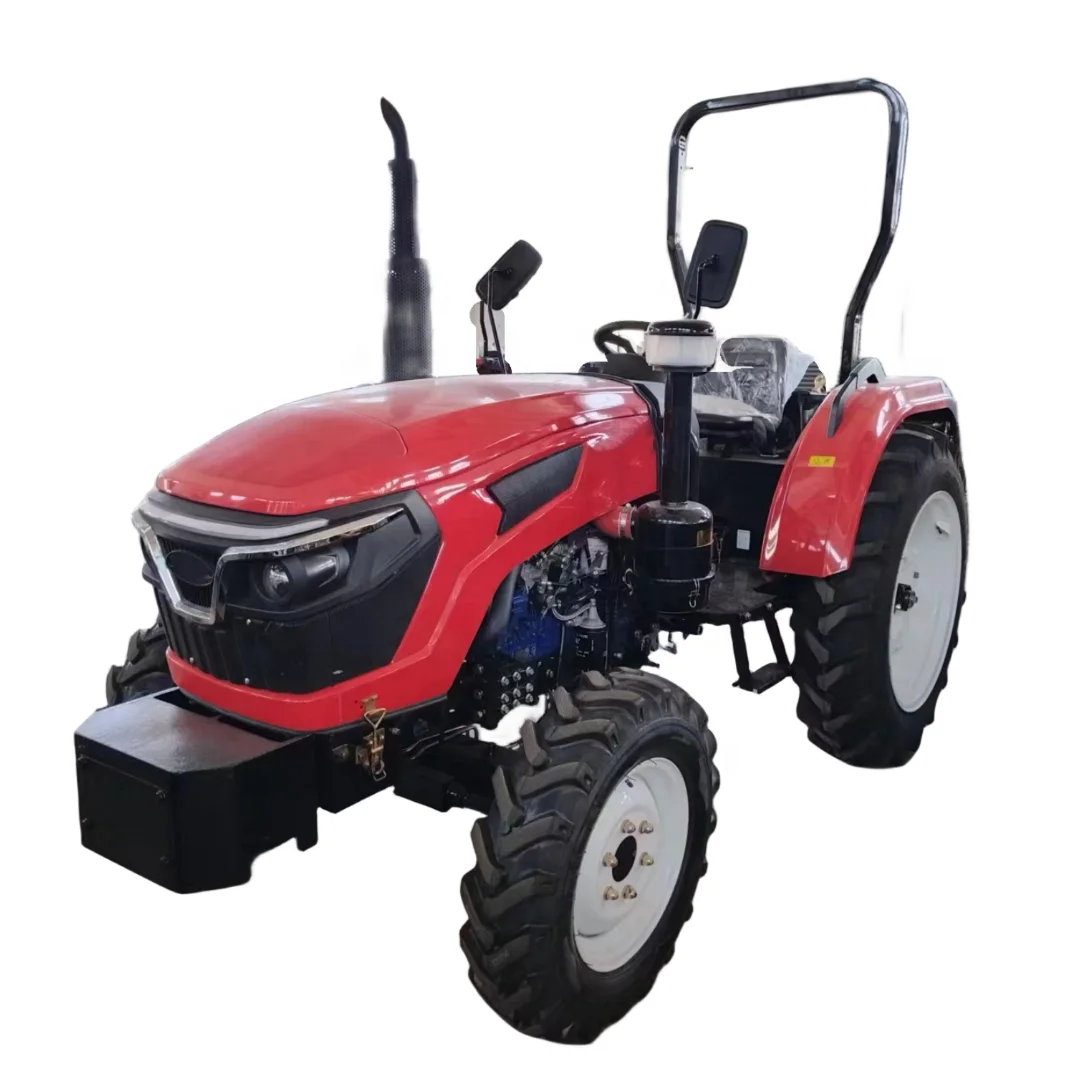

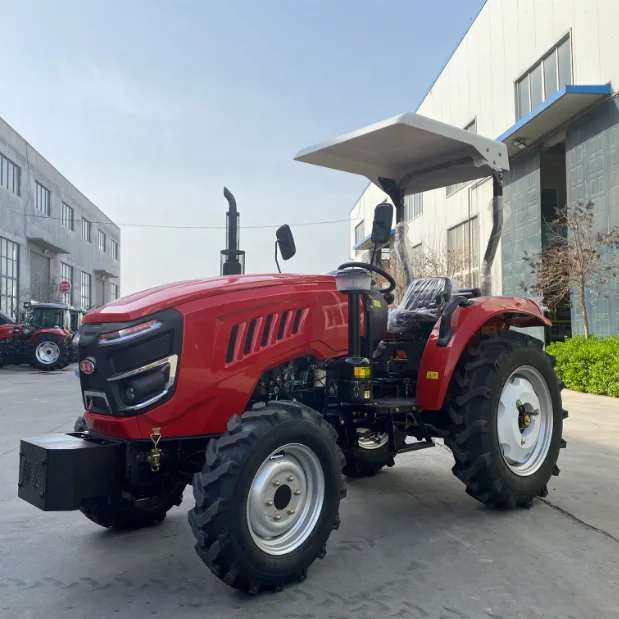

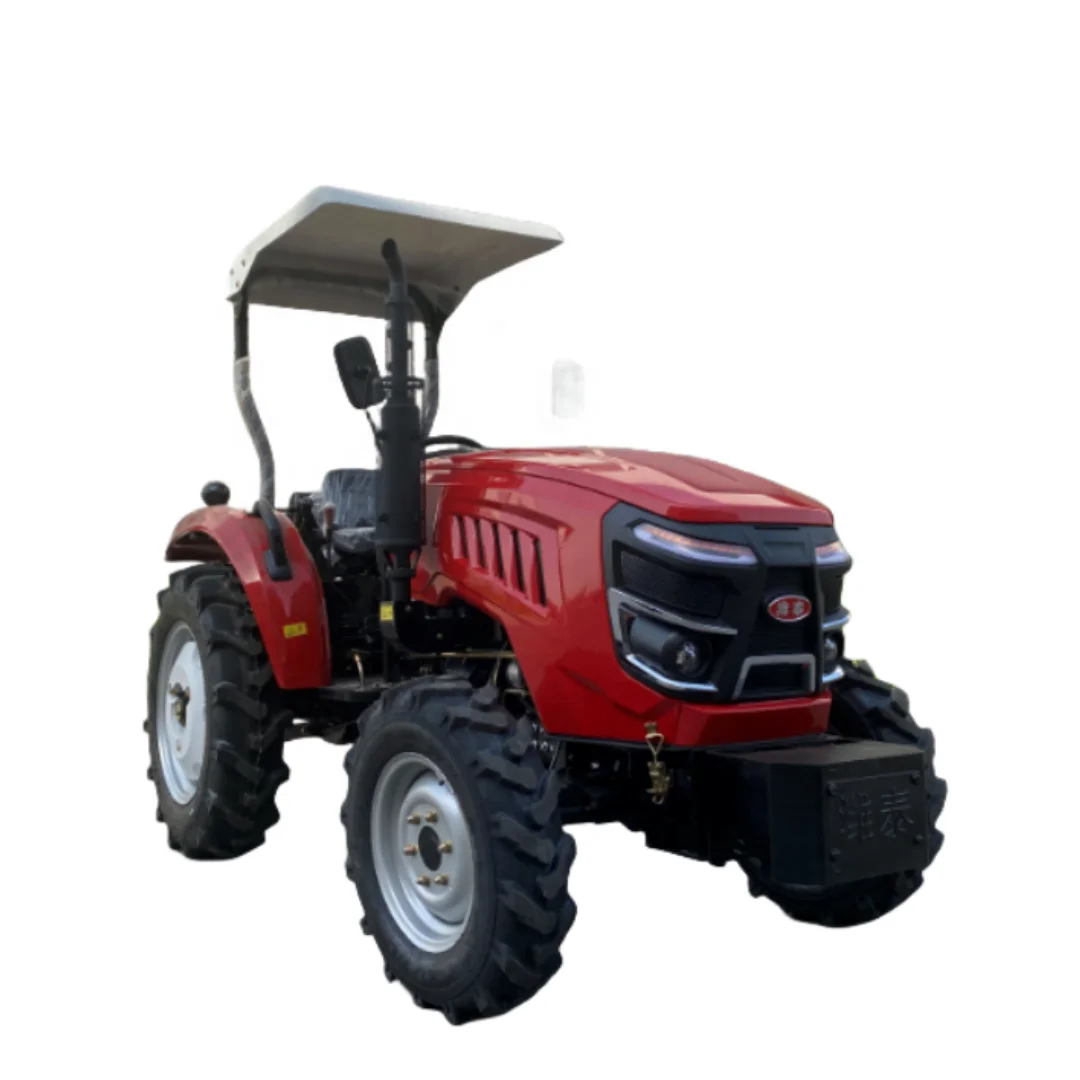

25hp 30hp 35hp 40hp 45hp 50hp 55hp 60hp 70hp 80hp 90hp 100hp TY8F 2R коробка передач с одним сцеплением внутренние гидравлические тракторы
- Категория: >>>
- Поставщик: Shandong Yunnei Power Co. Ltd.
Сохранить в закладки 1600948274693:
Описание и отзывы
Характеристики
Product Description
Specification
MODEL | UNIT | TT300 | TT304 | TT350 | TT354 | ||
IMENSIONS OF TRACTOR | TYPE | DRIVE TYPE (4×2) | DRIVE TYPE (4×4) | DRIVE TYPE (4×2) | DRIVE TYPE (4×4) | ||
kW | kW | 25.8 | 25.8 | 25.8 | 25.8 | ||
DIMENSION (L×W×H) | mm | 3300×1200×2255 | 3300×1200×2255 | 3300×1200×2255 | 3300×1200×2255 | ||
WHEEL BASE | mm | 1820 | 1820 | 1820 | 1820 | ||
MIN.GROUND CLEARANCE | mm | 330 | 300 | 330 | 300 330 | ||
WEIGHT | kg | 1266 | 1386 | 1266 | 1386 | ||
TREAD | mm | FRONT TREAD:1000(1000～1300)ADJUSTABLE | FRONT TREAD:1000(1000～1300)ADJUSTABLE | FRONT TREAD:1000(1000～1300)ADJUSTABLE | FRONT TREAD:1000(1000～1300)ADJUSTABLE | ||
REA TREAD:1000(1000～1300)ADJUSTABLE | REA TREAD:1000(1000～1300)ADJUSTABLE | REA TREAD:1000(1000～1300)ADJUSTABLE | REA TREAD:1000(1000～1300)ADJUSTABLE | ||||
MATCHED POWER | CLUTH TYPE | / | DRY-TYPE,SINGLE-ACTING | DRY-TYPE,SINGLE-ACTING | DRY-TYPE,SINGLE-ACTING | DRY-TYPE,SINGLE-ACTING | |
ENGINE | / | （III）YANGDONG 4 CYLINDER(25HP 3 CYLINDER) | （III）YANGDONG 4 CYLINDER(25HP 3 CYLINDER) | （III）YANGDONG 4 CYLINDER(25HP 3 CYLINDER) | （III）YANGDONG 4 CYLINDER(25HP 3 CYLINDER) | ||
RATED SPEED | r/min | 2400 | 2400 | 2400 | 2400 | ||
WORKING PORTING | GEAR | / | 8F+2R(OPTION:8F+8R) | 8F+2R(OPTION:8F+8R) | 8F+2R(OPTION:8F+8R) | 8F+2R(OPTION:8F+8R) | |
PTO TYPE | / | 6 PIN、Φ35、I TYPE(OPTION: 8 PIN) | 6 PIN、Φ35、I TYPE(OPTION: 8 PIN) | 6 PIN、Φ35、I TYPE(OPTION: 8 PIN) | 6 PIN、Φ35、I TYPE(OPTION: 8 PIN) | ||
PTO RATED POWER | kW | ≥22.0 | ≥22.0 | ≥22.0 | ≥22.0 | ||
PTO SPEED | r/min | 760（OPTIONAL 540/720） | 760（OPTIONAL 540/720） | 760（OPTIONAL 540/720） | 760（OPTIONAL 540/720） | ||
HYDRUALIC SYSTEM | THREE POINT LINKAGE | / | REAR, THREE-POINT SUSPENSION ,CAT1 | REAR, THREE-POINT SUSPENSION ,CAT1 | REAR, THREE-POINT SUSPENSION ,CAT1 | REAR, THREE-POINT SUSPENSION ,CAT1 | |
HYDRUALIC OUTPUT | / | SIMPLE OUTPUT | SIMPLE OUTPUT | SIMPLE OUTPUT | SIMPLE OUTPUT | ||
HYDRUALIC ADJUSTMENT MODE | / | FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL （OPTIONAL:FORCED HYDRUAL SYSTEM, POSITION CONTRL, FLOATING CONTRO） | FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL （OPTIONAL:FORCED HYDRUAL SYSTEM, POSITION CONTRL, FLOATING CONTRO） | FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL （OPTIONAL:FORCED HYDRUAL SYSTEM, POSITION CONTRL, FLOATING CONTRO） | FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL （OPTIONAL:FORCED HYDRUAL SYSTEM, POSITION CONTRL, FLOATING CONTRO） | ||
MAX.LIFTING FORCE AT FRAME CENTER | kN | ≥5.9 | ≥5.9 | ≥5.9 | ≥5.9 | ||
TYRE TYPE | NORM TYRE SIZE （FRONT/ TEAR） | / | 6.00-16/11.2-24 | 7.50-16/11.2-24 | 6.00-16/11.2-24 | 7.50-16/11.2-24 | |
OPTIONAL TYRE (I) | 5.50-16/9.50-24 | 6.50-16/9.50-24 | 5.50-16/9.50-24 | 6.50-16/9.50-24 | |||
OTHER OPTIONS | STEAM BRAKE | / | OPTIONAL | OPTIONAL | OPTIONAL | OPTIONAL | |
MODEL | UNIT | TT404 | TT454 | TT500 | TT504 | ||
IMENSIONS OF TRACTOR | TYPE | / | DRIVE TYPE (4×4) | DRIVE TYPE (4×4) | DRIVE TYPE (4×2) | DRIVE TYPE (4×4) | |
kW | kW | 29.5 | 33.1 | 36.8 | 36.8 | ||
DIMENSION (L×W×H) | mm | 3590×1500×2370 | 3590×1500×2370 | 3590×1500×2370 | 3590×1500×2370 | ||
WHEEL BASE | mm | 1820 | 1820 | 1820 | 1820 | ||
MIN.GROUND CLEARANCE | mm | 300 | 300 | 330 | 300 | ||
WEIGHT | kg | 1530 | 1530 | 1420 | 1530 | ||
TREAD | mm | FRONT TREAD:1200(1200～1500)ADJUSTABLE | FRONT TREAD:1200(1200～1500)ADJUSTABLE | FRONT TREAD:1200(1200～1500)ADJUSTABLE | FRONT TREAD:1200(1200～1500)ADJUSTABLE | ||
REA TREAD:1200(1200～1500)ADJUSTABLE | REA TREAD:1200(1200～1500)ADJUSTABLE | REA TREAD:1200(1200～1500)ADJUSTABLE | REA TREAD:1200(1200～1500)ADJUSTABLE | ||||
MATCHED POWER | CLUTH TYPE | / | DRY-TYPE,SINGLE-ACTING（OPTIONAL DOUBLE-ACTING） | DRY-TYPE,SINGLE-ACTING（OPTIONAL DOUBLE-ACTING） | DRY-TYPE,SINGLE-ACTING（OPTIONAL DOUBLE-ACTING） | DRY-TYPE,SINGLE-ACTING（OPTIONAL DOUBLE-ACTING） | |
ENGINE | / | （III）YUNNEI 4 CYLINDER | （III）YUNNEI 4 CYLINDER | （III）YUNNEI 4 CYLINDER | （III）YUNNEI 4 CYLINDER | ||
r/min | 2400 | 2400 | 2400 | 2400 | |||
RATED SPEED | |||||||
WORKING PORTING | GEAR | / | 8F+2R(OPTION: 8F+8R)（OPTIONAL 8F+8R） | 8F+2R(OPTION: 8F+8R)（OPTIONAL 8F+8R） | 8F+2R(OPTION: 8F+8R)（OPTIONAL 8F+8R） | 8F+2R(OPTION: 8F+8R)（OPTIONAL 8F+8R） | |
PTO TYPE | / | 6 PIN、Φ35、ITYPE(OPTION: 8 PIN) | 6 PIN、Φ35、ITYPE(OPTION: 8 PIN) | 6 PIN、Φ35、ITYPE(OPTION: 8 PIN) | 6 PIN、Φ35、ITYPE(OPTION: 8 PIN) | ||
PTO RATED POWER | kW | ≥25.1 | ≥28.2 | ≥31.3 | ≥31.3 | ||
PTO SPEED | r/min | 760（OPTIONAL 540/720） | 760（OPTIONAL 540/720） | 760（OPTIONAL 540/720） | 760（OPTIONAL 540/720） | ||
HYDRUALIC SYSTEM | THREE POINT LINKAGE | / | REAR, THREE-POINT SUSPENSION ,CAT1 | REAR, THREE-POINT SUSPENSION ,CAT1 | REAR, THREE-POINT SUSPENSION ,CAT1 | REAR, THREE-POINT SUSPENSION ,CAT1 | |
HYDRUALIC OUTPUT | / | 1-WAY VALVE（OPTIONAL 2-WAY VALVE OR SIMPLE OUTPUT OR NO） | 1-WAY VALVE（OPTIONAL 2-WAY VALVE OR SIMPLE OUTPUT OR NO） | 1-WAY VALVE（OPTIONAL 2-WAY VALVE OR SIMPLE OUTPUT OR NO） | 1-WAY VALVE（OPTIONAL 2-WAY VALVE OR SIMPLE OUTPUT OR NO） | ||
HYDRUALIC ADJUSTMENT MODE | / | FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL （OPTIONAL:FORCED HYDRUAL SYSTEM, POSITION CONTRL, FLOATING CONTRO） | FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL （OPTIONAL:FORCED HYDRUAL SYSTEM, POSITION CONTRL, FLOATING CONTRO） | FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL （OPTIONAL:FORCED HYDRUAL SYSTEM, POSITION CONTRL, FLOATING CONTRO） | FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL （OPTIONAL:FORCED HYDRUAL SYSTEM, POSITION CONTRL, FLOATING CONTRO） | ||
MAX.LIFTING FORCE AT FRAME CENTER | kN | ≥7.1 | ≥8.0 | ≥8.9 | ≥8.9 | ||
TYRE TYPE | / | 7.50-16/11.2-24 | 7.50-16/11.2-24 | 6.00-16/11.2-24 | 7.50-16/11.2-24 | ||
NORM TYRE SIZE （FRONT/ TEAR） | |||||||
7.50-16/12.4-24 | 7.50-16/12.4-24 | 6.00-16/12.4-24 | 7.50-16/12.4-24 | ||||
OPTIONAL TYRE (I) | |||||||
OPTIONAL TYRE (II) | 6.50-16/9.50-24 | 6.50-16/9.50-24 | 5.50-16/9.50-24 | 6.50-16/9.50-24 | |||
OPTIONAL TYRE (III) | / | 7.50-20/11.2-28 | 7.50-20/11.2-28 | 6.00-16/11.2-28 | 7.50-20/11.2-28 | ||
OTHER OPTIONS | STEAM BRAKE | / | OPTIONAL | OPTIONAL | OPTIONAL | OPTIONAL | |
MODEL | UNIT | TT600 | TT604 | TT700 | TT704 | ||
IMENSIONS OF TRACTOR | TYPE | / | DRIVE TYPE (4×2) | DRIVE TYPE (4×4) | DRIVE TYPE (4×2) | DRIVE TYPE (4×4) | |
kW | kW | 44.1 | 44.1 | 51.5 | 51.5 | ||
DIMENSION (L×W×H) | mm | 3630×1500×2370 | 3630×1500×2370 | 3630×1500×2370 | 3630×1500×2370 | ||
WHEEL BASE | mm | 1860 | 1860 | 1860 | 1860 | ||
MIN.GROUND CLEARANCE | mm | 380 | 355 | 380 | 355 | ||
WEIGHT | kg | 1575 | 1695 | 1575 | 1695 | ||
TREAD | mm | FRONT TREAD:1200(1200～1500)ADJUSTABLE | FRONT TREAD:1200(1200～1500)ADJUSTABLE | FRONT TREAD:1200(1200～1500)ADJUSTABLE | FRONT TREAD:1200(1200～1500)ADJUSTABLE | ||
REAR TREAD:1200(1200～1500)ADJUSTABLE | REAR TREAD:1200(1200～1500)ADJUSTABLE | REAR TREAD:1200(1200～1500)ADJUSTABLE | REAR TREAD:1200(1200～1500)ADJUSTABLE | ||||
MATCHED POWER | CLUTH TYPE | / | DRY-TYPE,SINGLE-ACTING（OPTIONAL DOUBLE-ACTING） | DRY-TYPE,SINGLE-ACTING（OPTIONAL DOUBLE-ACTING） | DRY-TYPE,SINGLE-ACTING（OPTIONAL DOUBLE-ACTING） | DRY-TYPE,SINGLE-ACTING（OPTIONAL DOUBLE-ACTING） | |
ENGINE | / | （Ⅲ）YUNNEI 4 CYLINDER | （Ⅲ）YUNNEI 4 CYLINDER | （Ⅲ）YUNNEI 4 CYLINDER | （Ⅲ）YUNNEI 4 CYLINDER | ||
RATED SPEED | r/min | 2300 | 2300 | 2300 | 2300 | ||
工作部分 WORKING PORTING | GEAR | / | 8F+2R（OPTIONAL 8F+8R） | 8F+2R（OPTIONAL 8F+8R） | 8F+2R（OPTIONAL 8F+8R） | 8F+2R（OPTIONAL 8F+8R） | |
PTO TYPE | / | 6 PIN、Φ35、ⅠTYPE(OPTION: 8 PIN) | 6 PIN、Φ35、ⅠTYPE(OPTION: 8 PIN) | 6 PIN、Φ35、ⅠTYPE(OPTION: 8 PIN) | 6 PIN、Φ35、ⅠTYPE(OPTION: 8 PIN) | ||
PTO RATED POWER | kW | ≥37.5 | ≥37.5 | ≥43.8 | ≥43.8 | ||
PTO SPEED | r/min | 540/720 | 540/720 | 540/720 | 540/720 | ||
HYDRUALIC SYSTEM | THREE POINT LINKAGE | / | REAR, THREE-POINT SUSPENSION ,CAT1 | REAR, THREE-POINT SUSPENSION ,CAT1 | REAR, THREE-POINT SUSPENSION ,CAT1 | REAR, THREE-POINT SUSPENSION ,CAT1 | |
HYDRUALIC OUTPUT | / | 1-WAY VALVE（OPTIONAL 2-WAY VALVE） | 1-WAY VALVE（OPTIONAL 2-WAY VALVE） | 1-WAY VALVE（OPTIONAL 2-WAY VALVE） | 1-WAY VALVE（OPTIONAL 2-WAY VALVE） | ||
HYDRUALIC ADJUSTMENT MODE | / | FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL | FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL | FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL | FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL | ||
MAX.LIFTING FORCE AT FRAME CENTER | kN | ≥10.6 | ≥10.6 | ≥12.4 | ≥12.4 | ||
TYRE TYPE | NORM TYRE SIZE （FRONT/ TEAR） | / | 6.00-16/11.2-28 | 7.50-20/11.2-28 | 6.00-16/11.2-28 | 7.50-20/11.2-28 | |
OPTIONAL TYRE (Ⅰ) | / | 6.00-16/12.4-28 | 7.50-20/12.4-28 | 6.00-16/12.4-28 | 7.50-20/12.4-28 | ||
OPTIONAL TYRE (Ⅱ) | / | 6.00-16/11.2-24 | 7.50-16/11.2-24 | 6.00-16/11.2-24 | 7.50-16/11.2-24 | ||
OPTIONAL TYRE (Ⅲ) | / | 6.00-16/12.4-24 | 7.50-16/12.4-24 | 6.00-16/12.4-24 | 7.50-16/12.4-24 | ||
OTHER OPTIONS | STEAM BRAKE | / | OPTIONAL | OPTIONAL | OPTIONAL | OPTIONAL | |
MODEL | UNIT | TT804 | TT904 | TT1004 | |||
IMENSIONS OF TRACTOR | TYPE | / | DRIVE TYPE (4×4) | ||||
kW | kW | 58.8 | 66.2 | 74 | |||
DIMENSION (L×W×H) | mm | 3945×1860×2730 | 3945×1860×2730 | 3970×1840×2720 | |||
WHEEL BASE | mm | 2090 | |||||
MIN.GROUND CLEARANCE | mm | 350 | |||||
WEIGHT | kg | 2900 | 2900 | 3225 | |||
TREAD | mm | FRONT TREAD:1400(1200～1600)ADJUSTABLE | |||||
REAR TREAD:1400(1300～1600)ADJUSTABLE | |||||||
MATCHED POWER | / | DRY-TYPE,DOUBLE-ACTING | |||||
CLUTH TYPE | |||||||
ENGINE | / | （III）YUNNEI 4 CYLINDER | |||||
RATED SPEED | r/min | 2300 | 2300 | 2400 | |||
WORKING PORTING | GEAR | / | 12F+12R | 12F+12R | 12F+12R | ||
PTO TYPE | / | 8 PIN、Φ38、I TYPE(OPTION: 6PIN) | |||||
PTO RATED POWER | kW | ≥50.2 | ≥56.3 | ≥63 | |||
PTO SPEED | r/min | 540/720、540/1000 | |||||
HYDRUALIC SYSTEM | / | REAR, THREE-POINT SUSPENSION ,CAT2 | |||||
THREE POINT LINKAGE | |||||||
HYDRUALIC OUTPUT | / | 2-WAY VALVE(OR 3-WAY) | |||||
HYDRUALIC ADJUSTMENT MODE | / | FORCED HYDRUALIC SIYSTEM, POSITION CONTROL ,FLOATING CONTROL | |||||
MAX.LIFTING FORCE AT FRAME CENTER | kN | ≥14.3 | ≥15.9 | ≥20.2 | |||
TYRE TYPE | NORM TYRE SIZE （FRONT/ TEAR） | / | 9.5-24/16.9-30 | 9.5-24/16.9-30 | 9.5-24/16.9-30 | ||
OPTIONAL TYRE (I) | / | 8.3-24/14.9-30 | 8.3-24/14.9-30 | 8.3-24/14.9-30 | |||
OPTIONAL TYRE (II) | / | 8.3-20/12.4-28 | 8.3-20/12.4-28 | 8.3-20/12.4-28 | |||
OTHER OPTIONS | WARM CABIN | / | OPTIONAL | OPTIONAL | OPTIONAL | ||
SAFETY SHELF | / | OPTIONAL | OPTIONAL | OPTIONAL | |||

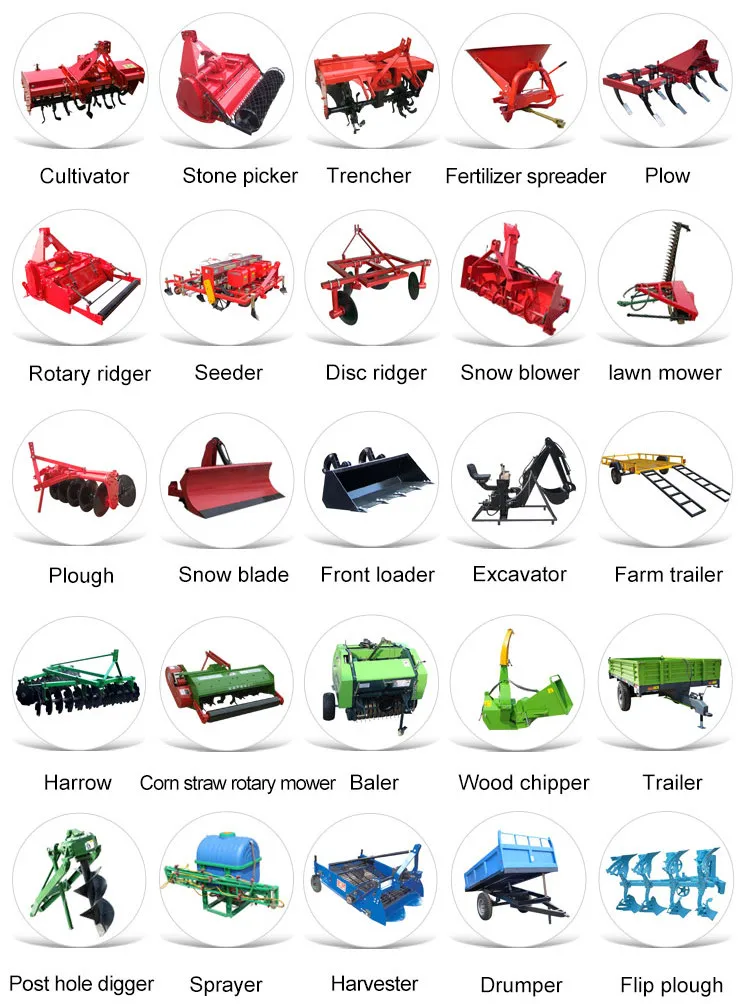

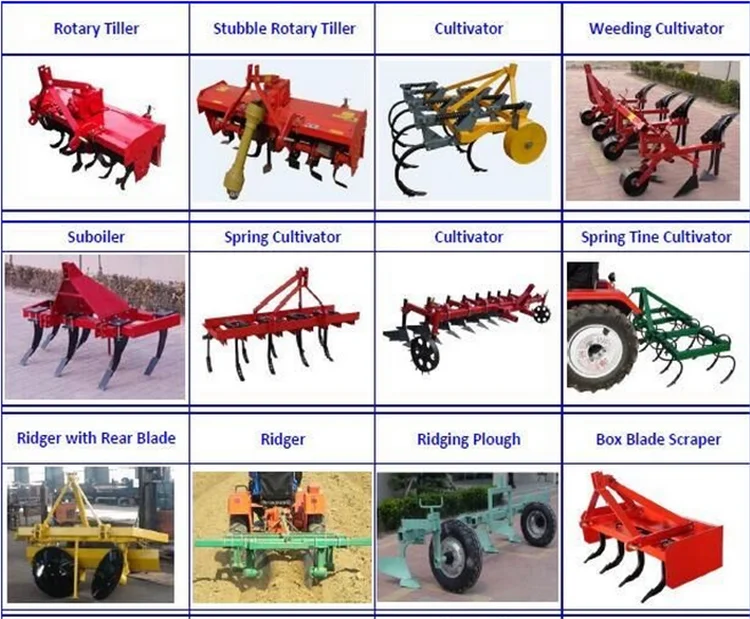

Farm Implement

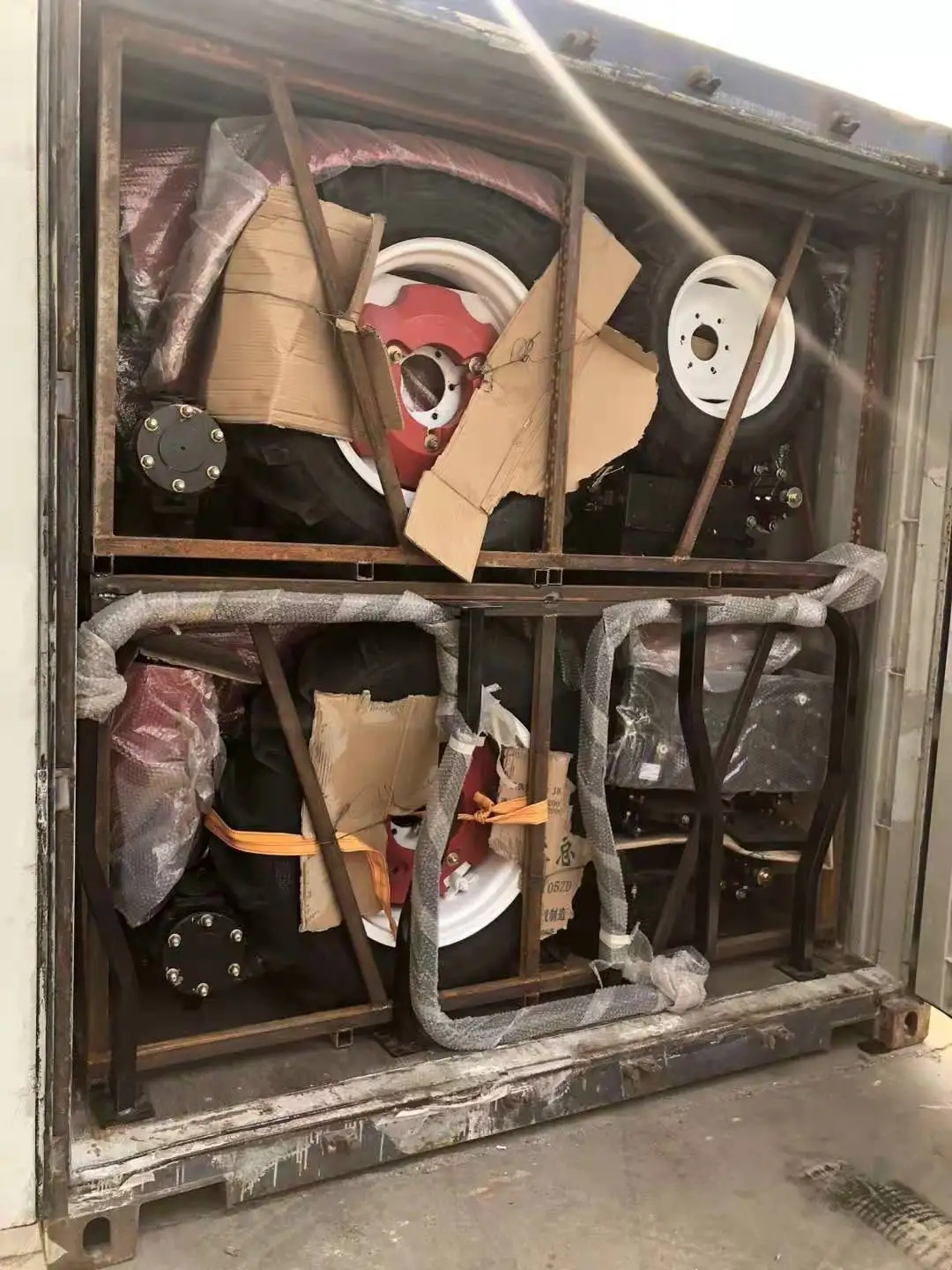

Packing & Delivery

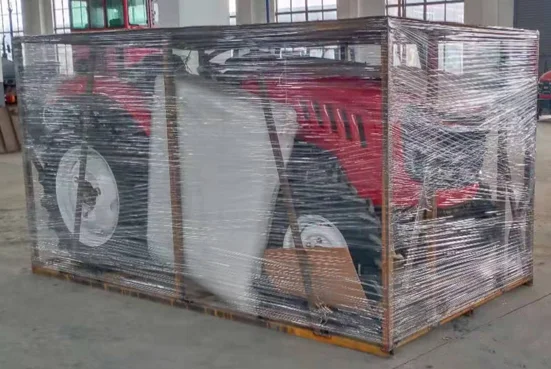

Frame in container

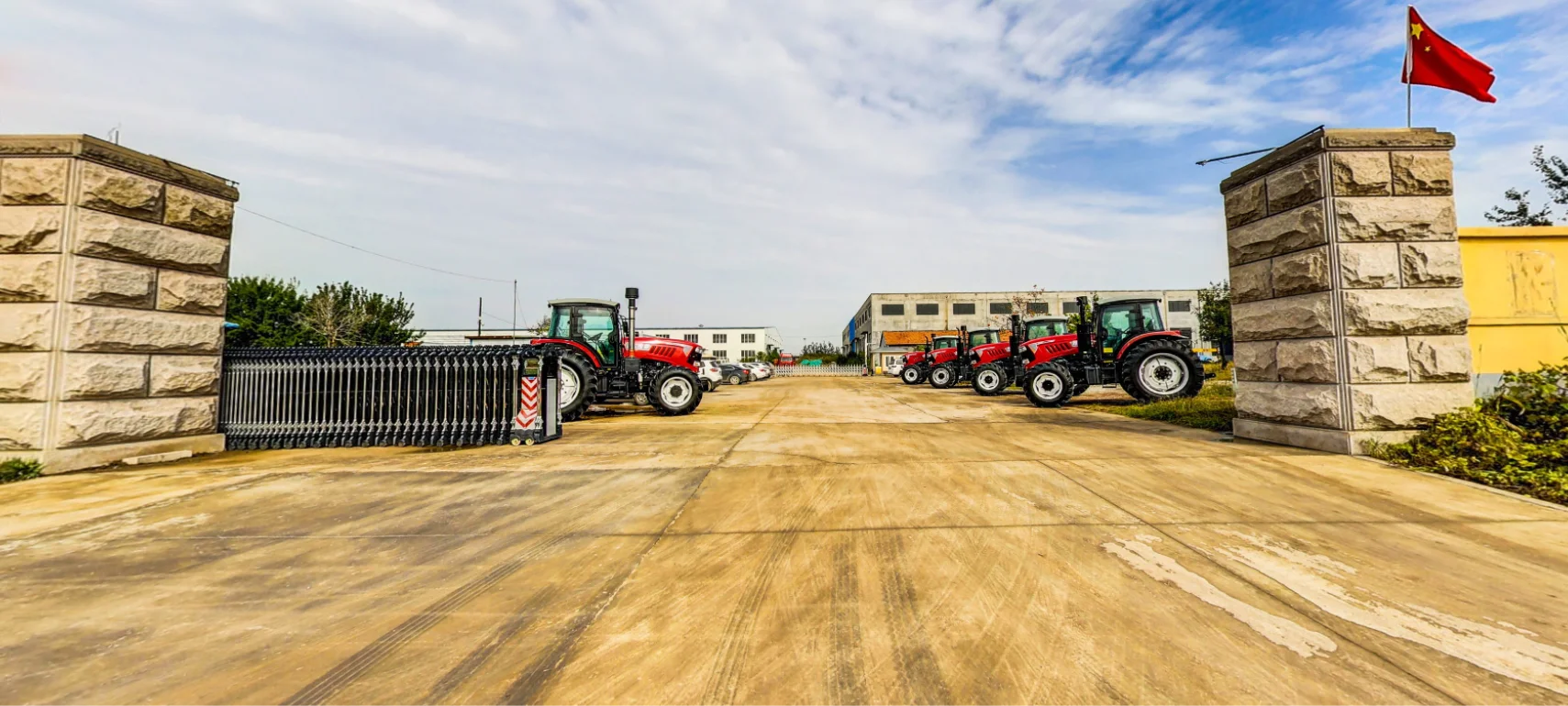

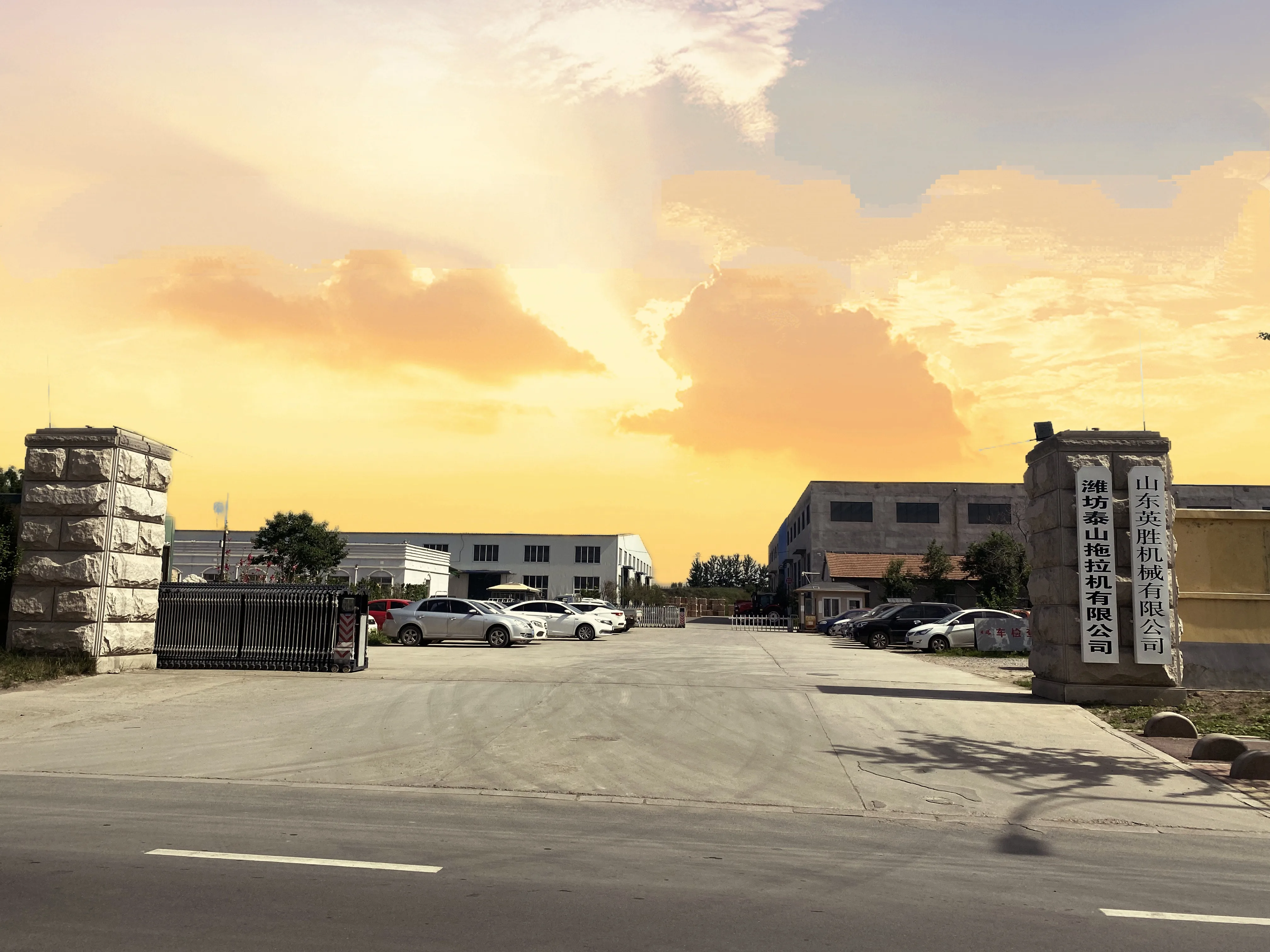

Company Profile
China Manufacturer 4x4 4WD 25hp 30hp 35hp 40hp 45hp 50hp 55hp 60hp 70hp 80hp 90hp 100hp Wheel tractors
Weifang Taishan Tractor Co., Ltd. is located in the western part of the Shandong province - Weifang City, close to the Ji-Qing Expressway, adjacent to the port of Qingdao, having convenient traffic, and remarkable location advantage. The manufacturing plant covers an area of 200,000 square meters, has three advanced tractor assembly lines, the annual capacity of more than 100,000 sets. Including of R & D, production, sales, foreign trade department, It is an large and professional tractor production enterprises. Many years of developing in agricultural machinery industry, we committed to build the world's first-class modern agricultural machinery enterprises.The company's main products, "Weitai" brand tractors and agricultural machinery , are well received by the market due to high quality and good service. At present, after more than 20 years of development and continuous innovation, Weitai tractors have formed 8 series, more than 100 models, with power covering 40-280 horsepower. The company has national subsidy qualification, and a number of domestic and foreign certifications, having ISO9001:2015 international quality system certification and CE certification. The company has a strong independent research and development strength and new product development ability, with all kinds of technical personnel more than 200 people, so far has won a total of 35 national patents, each patent can be reused in the reflection of its advantages and supervision, well received the majority of users. Sales network throughout the Chinese domestic cities and exported to Southeast Asia, Central Asia, Africa, Europe, America and other more than 20 countries and regions.
On the way of development, we never stop our steps, the company uphold the "Innovation leads The Times, The good faith creates brilliance" management beliefs, adapting scientific and strict company management, sincere service customers, contributing to society, keeping innovation , remaining true to our original aspiration, contributing to promote agricultural machinery modernization of the world!
Contact Us
