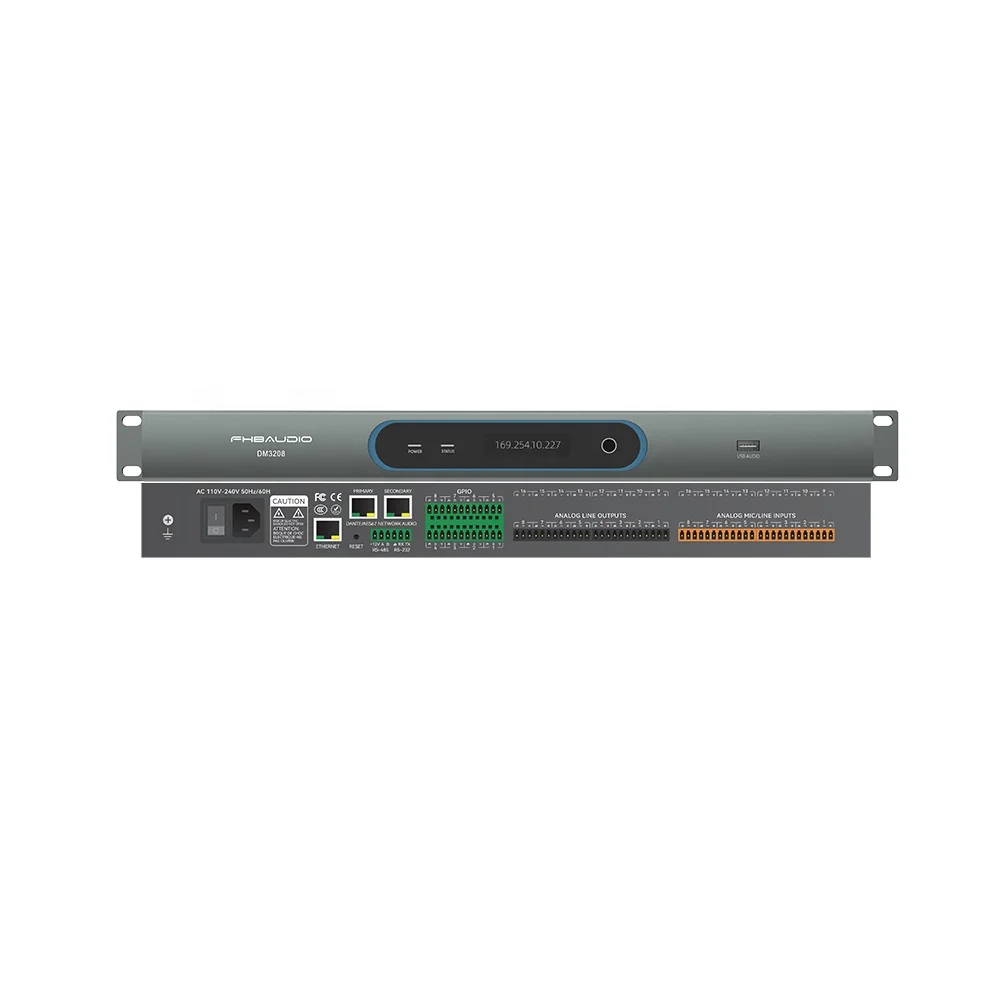

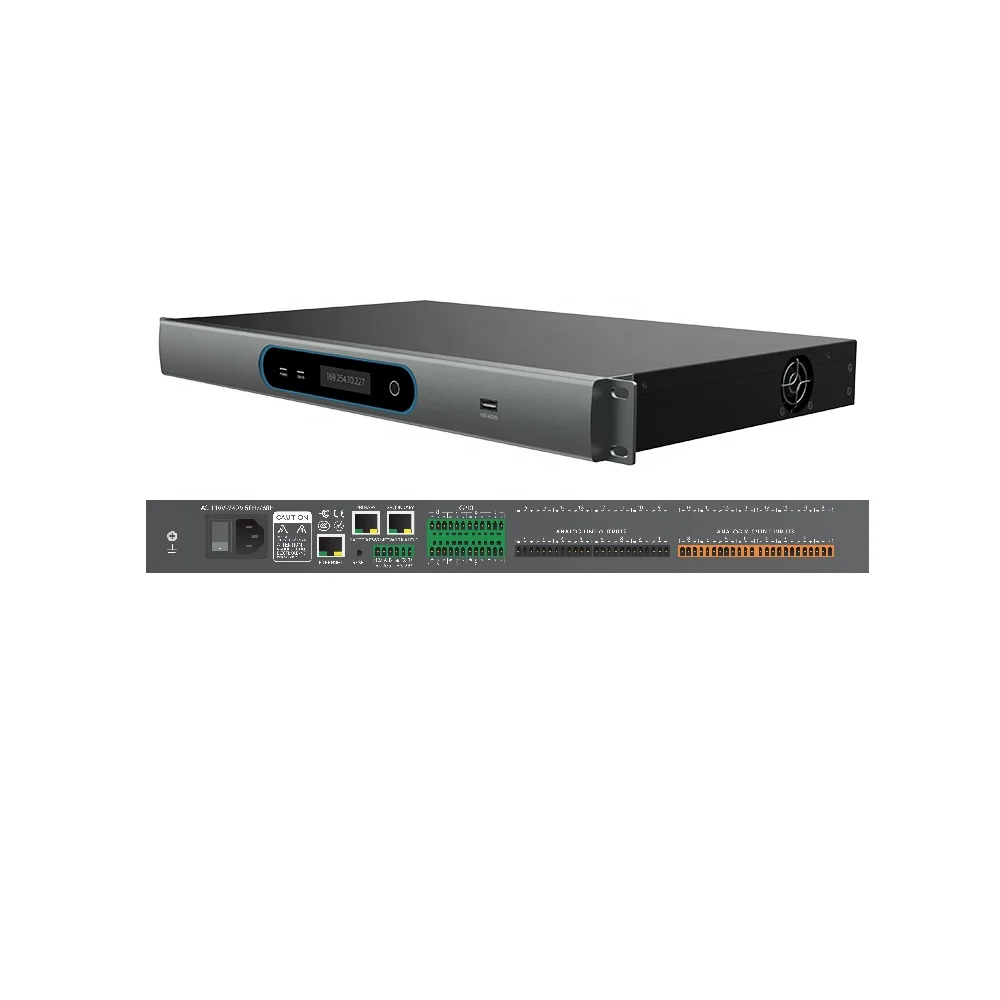

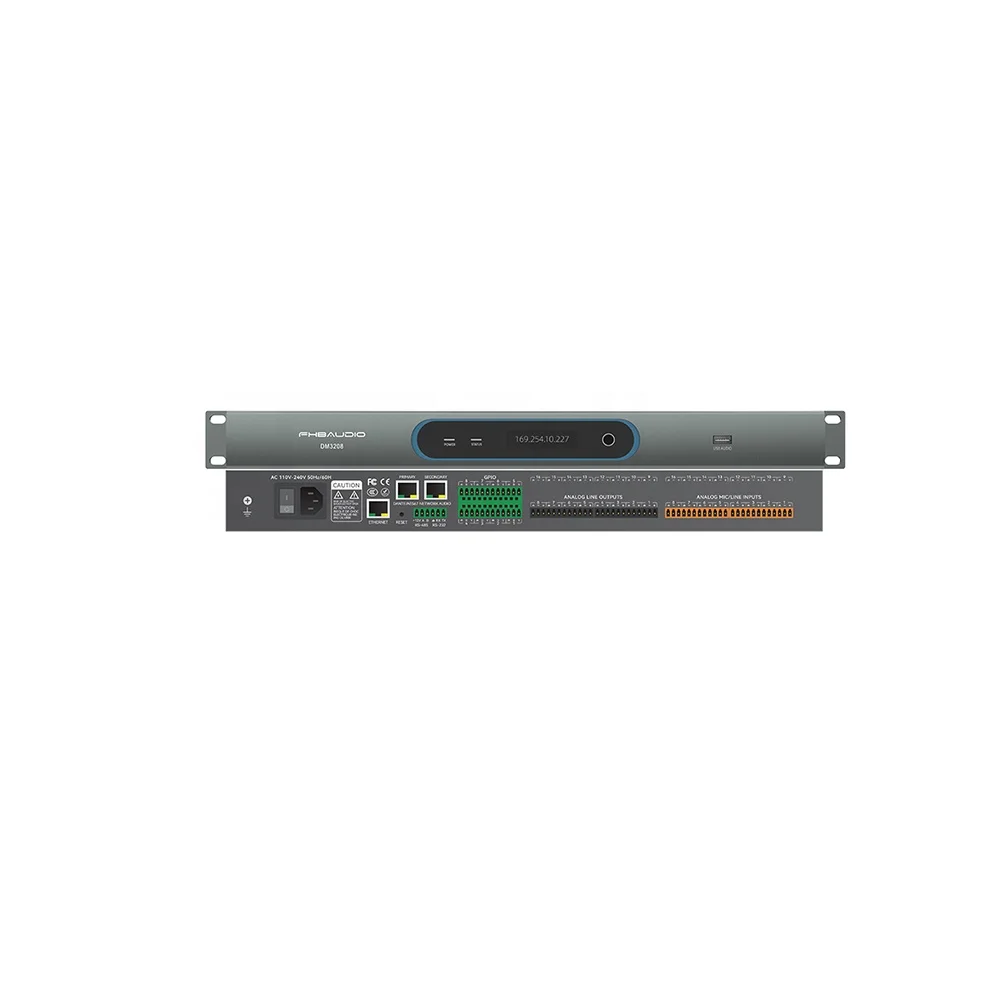

Новое поступление профессиональная высококачественная цифровая аудиосистема Dante с 32 канальной цифровой аудиосистемой
- Категория: >>>
- Поставщик: Shenzhen Fhb Audio Technology Co. Ltd.
Сохранить в закладки 1600948767479:
Описание и отзывы
Характеристики
Product Description
Product Description
The DM series audio system uses ADI SHARC 21569 processing chip with a main frequency of up to 1GHz and a 64-bit floating point
DSP engine. It is powerful and suitable for large-scale conference scenarios such as large command centers, exhibition centers,
and multi-conference room clusters
DSP engine. It is powerful and suitable for large-scale conference scenarios such as large command centers, exhibition centers,
and multi-conference room clusters
Main Feature:
* Analog Channel:8 input and 8output
* Dante Channel :64 input and 64 output
* Using ADI SHARC 21569 processing chip, DSP processing capacity: 800 MIPS, 1.6 GFLOPS.
* USB sound card channel: 2x2.
* Configurable GPIO channels: 8.
* Serial port: RS-232 RS-485.
* System configuration and control via Ethernet.

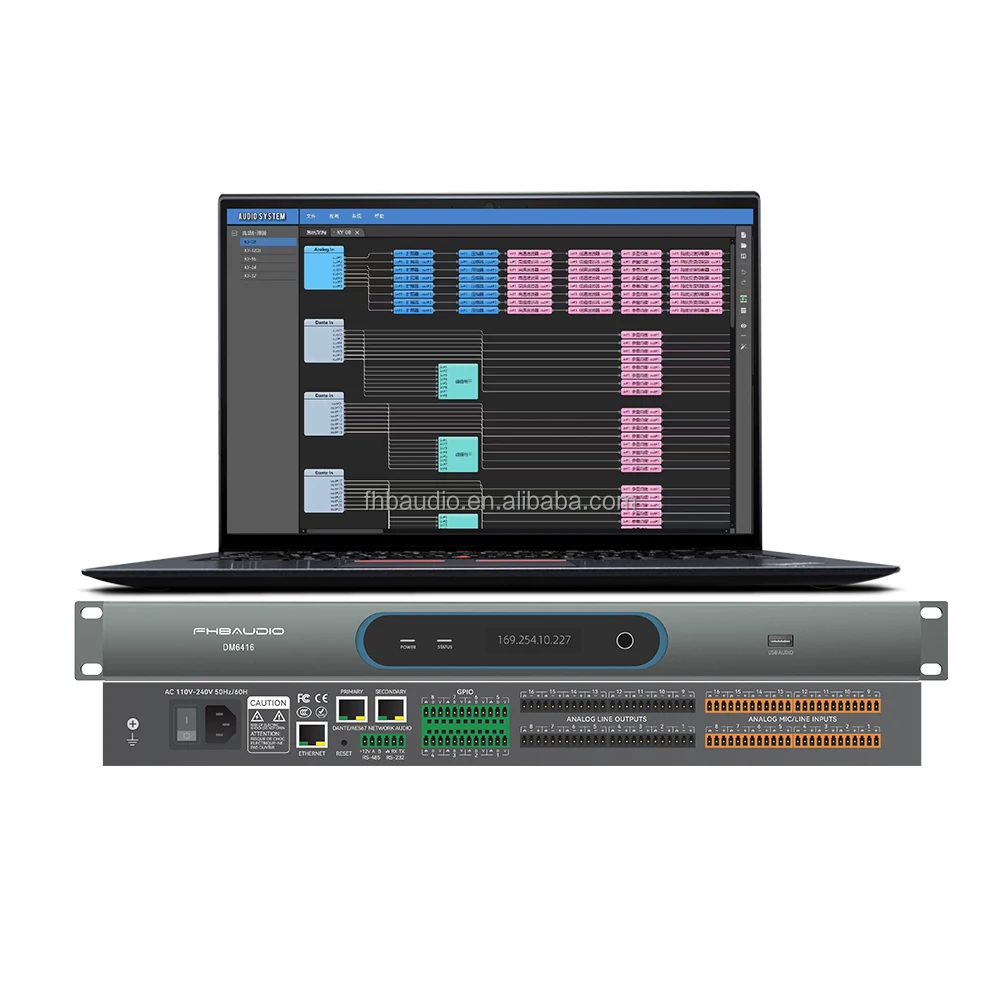

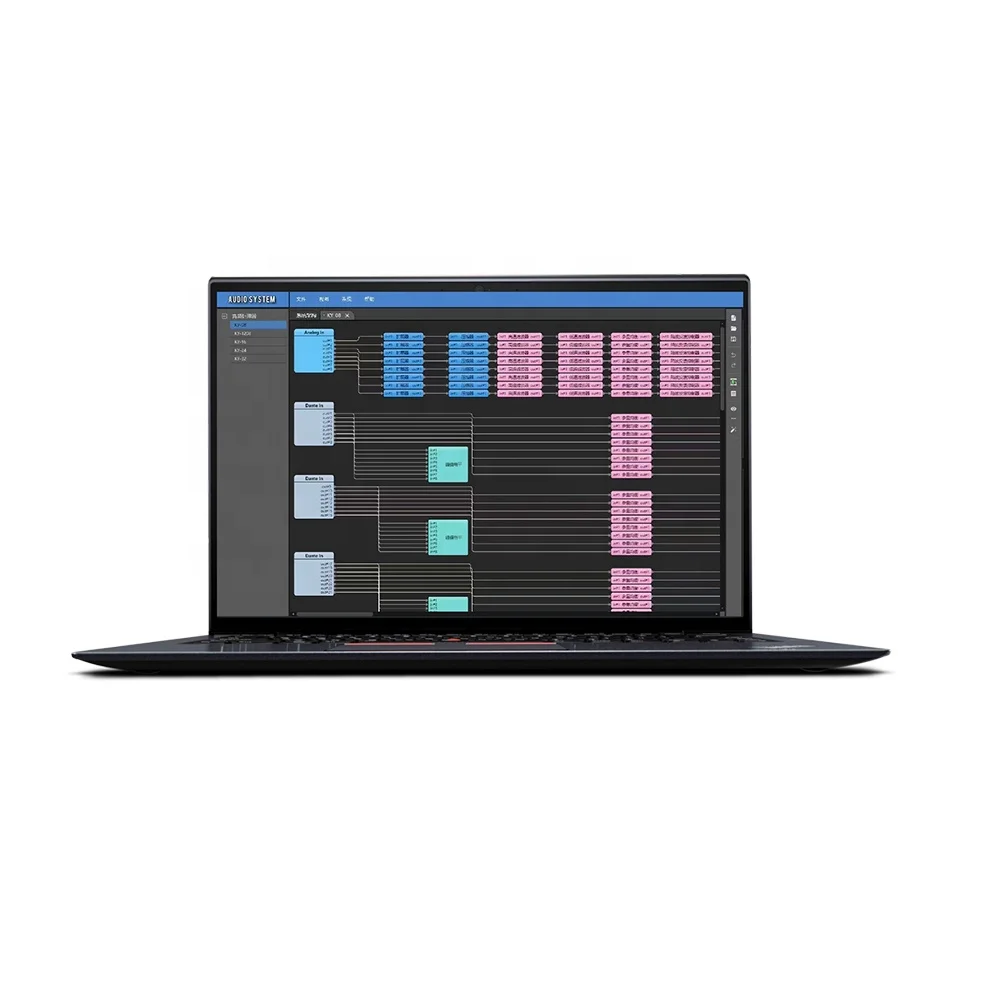

* Signal processing is performed through intuitive software, allowing configuration and control of signal routing, mixing,
equalization, filtering and delay. Multiple built-in processing processes can be freely selected according to different needs.
* Provides end-user customized operation interface (GUI), real-time level, data feedback, custom buttons, graphics import, and supports up to 30 devices to be managed on one interface at the same time. It also has central control function and supports RS232, RS485, and UDP. Three control methods can control the power supply, signal switching, environment control, audio, etc. in the system as a whole, and realize the functions required to start the system with one click.
* Dante Channel :64 input and 64 output
* Using ADI SHARC 21569 processing chip, DSP processing capacity: 800 MIPS, 1.6 GFLOPS.
* USB sound card channel: 2x2.
* Configurable GPIO channels: 8.
* Serial port: RS-232 RS-485.
* System configuration and control via Ethernet.
* Signal processing is performed through intuitive software, allowing configuration and control of signal routing, mixing,
equalization, filtering and delay. Multiple built-in processing processes can be freely selected according to different needs.
* Provides end-user customized operation interface (GUI), real-time level, data feedback, custom buttons, graphics import, and supports up to 30 devices to be managed on one interface at the same time. It also has central control function and supports RS232, RS485, and UDP. Three control methods can control the power supply, signal switching, environment control, audio, etc. in the system as a whole, and realize the functions required to start the system with one click.
* The front panel is equipped with a 2.08" OLED display. Touch the button to turn pages. The displayed content includes:
* Device status: device name, project name, IP address, subnet mask, default gateway;
* System status: firmware information, temperature, fan speed; input and output channel status: mute, signal indication, +48V phantom power supply.
* Device status: device name, project name, IP address, subnet mask, default gateway;
* System status: firmware information, temperature, fan speed; input and output channel status: mute, signal indication, +48V phantom power supply.
Model No. | DM3208 |
DSP Chip | ADI SHARC 21569 |
Sampling rate/quantization bits | 48K/24bit;40bit DSP floating point operation engine |
Number of analog input and output channels | 8 x 8 |
Number of Dante input and output channels | 32X32 |
Input gain | 0/3/6/9/12/15/18/21/24/27/30/33/ 36/39/42/45/48 dBu |
Phantom power | +48V/10mA max |
Frequency response (20~20kHz) | ±0.3Db |
Maximum level | +18dBu |
THD+N | <0.003%@4dBu |
Input dynamic range | 115Db |
Output dynamic range | 115dB |
Channel isolation (@1kHz) | 108Db |
Input impedance (balanced connection) | 5.4KΩ |
Output impedance (balanced connection) | 600Ω |
System delay | <3ms |
AM、AGC、AFS、AEC | Support |
Working power | AC110~240V,50Hz/60Hz |
Weight | 4KG |
Size | 482 x 260 x 45mm |
Related Products
Product Usage

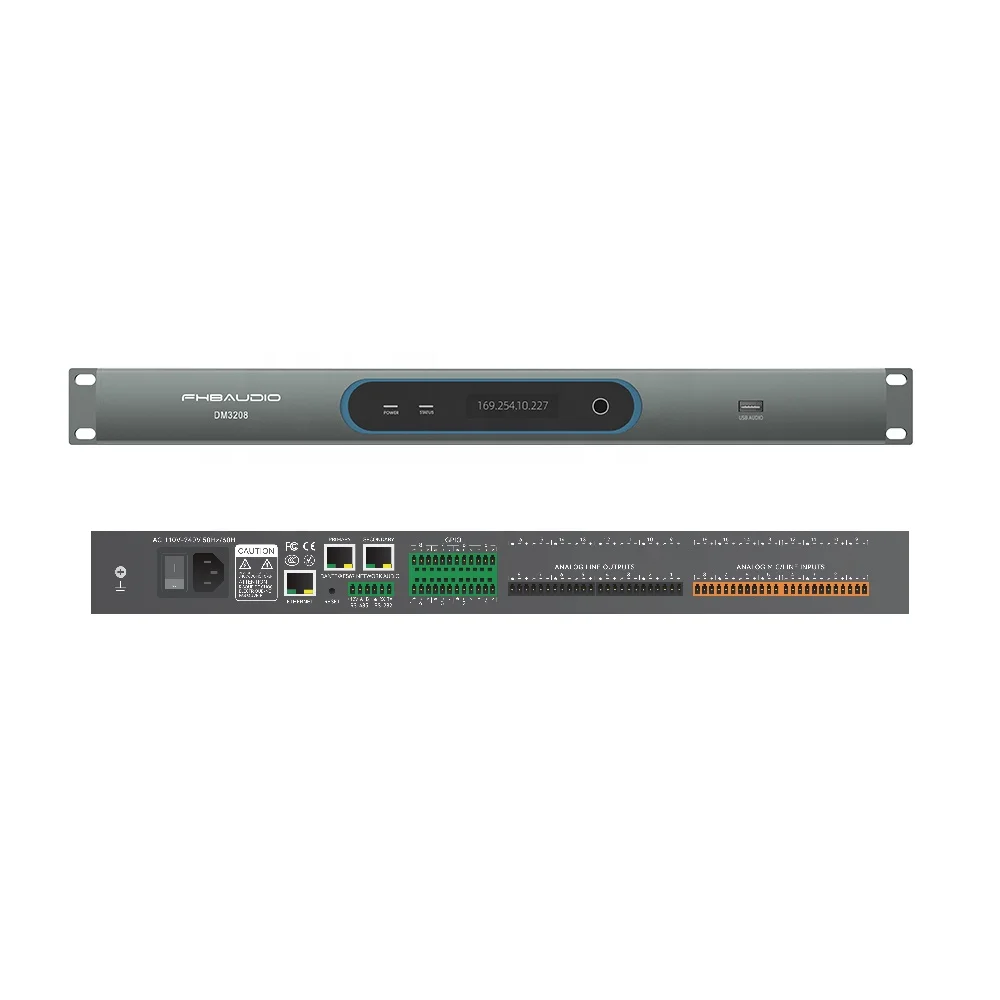

Front Panel Introduction
(1) Power: LED power indicator;
(2) STATUS : equipment operating status indicator;
(3) OLED display: the display content includes: device name, project name, IP address, subnet mask, default gateway, firmware
information, temperature, fan speed; Input and output channel status: mute, signal indication, +48V phantom power;
(4) Touch button: turn the page of the display content;
(5) USB audio: USB sound card, which can realize recording function.
(2) STATUS : equipment operating status indicator;
(3) OLED display: the display content includes: device name, project name, IP address, subnet mask, default gateway, firmware
information, temperature, fan speed; Input and output channel status: mute, signal indication, +48V phantom power;
(4) Touch button: turn the page of the display content;
(5) USB audio: USB sound card, which can realize recording function.

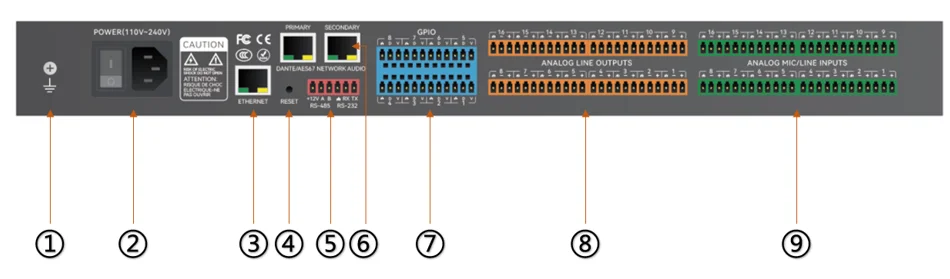

Real Panel
* Grounding screw: It can prevent static electricity or leakage on the surface of electrical equipment from causing lightning damage to humans.
* Power: connect 110V—240V AC power supply, rocker switch to control processor power;
* Ethernet: by connecting to this network port, the client computer can debug and monitor the device;
* RESET: press and hold for 3 seconds to restore factory settings;
* RS232+RS485 interface: connect control terminal or central control equipment;
* Dante network interface: used to connect to the Dante audio network, the left side is the main port and the right side is the backup port (the two ports cannot be plugged in at the same time);
* GPIO interface: 8 channels can define input/output logic level control ports, which can be connected to trigger equipment actions below 24V, such as dry contact signals, or output 5 V after triggering actions to drive relays and other equipment;
* Analog output interface: can be connected to power amplifiers, active speakers and other equipment;
* Analog signal input interface: can connect microphone, DVD and other devices.
* Power: connect 110V—240V AC power supply, rocker switch to control processor power;
* Ethernet: by connecting to this network port, the client computer can debug and monitor the device;
* RESET: press and hold for 3 seconds to restore factory settings;
* RS232+RS485 interface: connect control terminal or central control equipment;
* Dante network interface: used to connect to the Dante audio network, the left side is the main port and the right side is the backup port (the two ports cannot be plugged in at the same time);
* GPIO interface: 8 channels can define input/output logic level control ports, which can be connected to trigger equipment actions below 24V, such as dry contact signals, or output 5 V after triggering actions to drive relays and other equipment;
* Analog output interface: can be connected to power amplifiers, active speakers and other equipment;
* Analog signal input interface: can connect microphone, DVD and other devices.
Packing&Shipping
Standard Packing

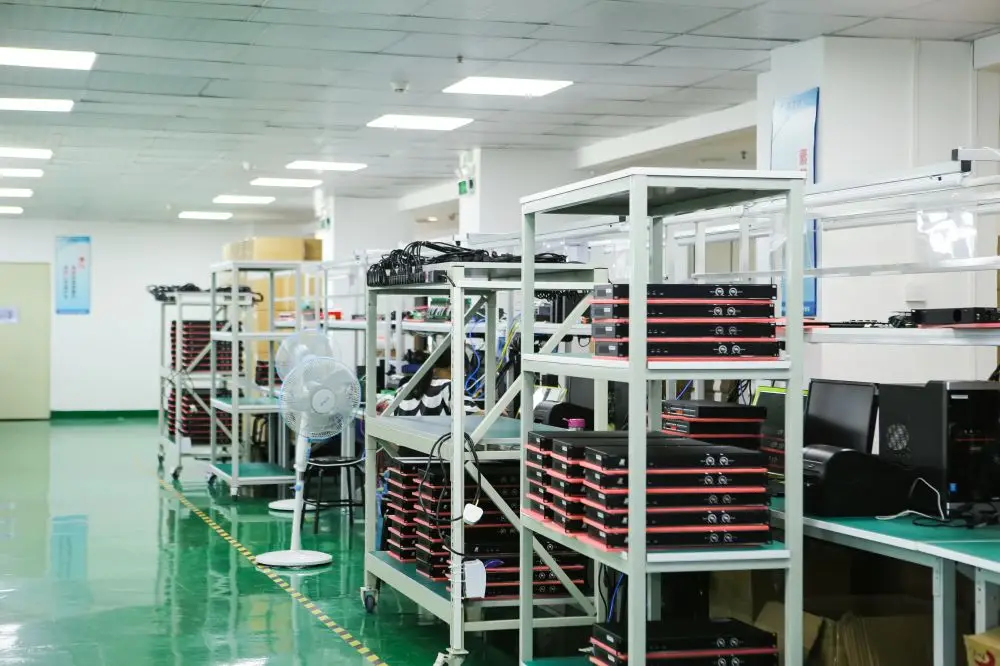

Company Introduction
FHB Audio was established in 2018，who is a technology-based enterprise integrating design, research and development, production,sales, and service, specializing in the production of digital signal processor, digital conference system,Dante products line,microphones, Digital Mixer, power amplifier etc., also can provide customers with a series of according to their requirements,mainly for conference, education, hotels and other application.
The company has strong R&D technical strength and advanced production equipment, and has a complete product quality control system. From raw material input to cost delivery, all links are tested and quality tracked, so as to ensure reliable and stable quality.
Through unremitting efforts, the scale of FHB has continued to expand, and our company has gathered a group of high-quality,first-class audio technology professionals. So far, our team has more than 100 employees, the product line has increased to 3, andthe business is sold all over the world. The products have mature OEM/ODM experience, and have obtained CE, ROHS certificates.
FHB always adheres to the business tenet of "honesty-based", and pursues excellent quality, and constantly improves product quality and after-sales service system to achieve a win-win situation.
Through unremitting efforts, the scale of FHB has continued to expand, and our company has gathered a group of high-quality,first-class audio technology professionals. So far, our team has more than 100 employees, the product line has increased to 3, andthe business is sold all over the world. The products have mature OEM/ODM experience, and have obtained CE, ROHS certificates.
FHB always adheres to the business tenet of "honesty-based", and pursues excellent quality, and constantly improves product quality and after-sales service system to achieve a win-win situation.
FAQ
Q1: Are you manufacturer or trade company?
A: We are manufacturer,which located in Shenzhen, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, We can provide OEM or ODM Solution depends on client requirements
Q3: What's the quality standard of your products?
A: Our products has approved CE, ROHS certification.
Q4: Which place will use FHB equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Airports, Parliaments, Eduction
institutes, Hotel, Private corporate conference hall and ect.
Q5: What’s the delivery time?
A:Sample order:During 5days,Bulk order:10-15days
A: We are manufacturer,which located in Shenzhen, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, We can provide OEM or ODM Solution depends on client requirements
Q3: What's the quality standard of your products?
A: Our products has approved CE, ROHS certification.
Q4: Which place will use FHB equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Airports, Parliaments, Eduction
institutes, Hotel, Private corporate conference hall and ect.
Q5: What’s the delivery time?
A:Sample order:During 5days,Bulk order:10-15days
Why Choose Us
Wide & Deep Products Line
We provide over 100 audio & Video products, as well as a series of Dante products, such as Dante signal processor, Dante interface machine, Dante Bluetooth panel, Dante microphone, and Dante speaker etc…
Our industry-leading support team makes it easy for you to choose the right product and provide the right system solutions.
Our industry-leading support team makes it easy for you to choose the right product and provide the right system solutions.
Professional & Fast Service
* 24 hours online services to provide suggestions and solutions for customer.
* After-Sales Technical Support /Product Maintenance
* Wiring/Installation/Debugging Instruction
* After-Sales Technical Support /Product Maintenance
* Wiring/Installation/Debugging Instruction
OEM/ODM SOLUTIONS
Professional System Designers to assist in product selection and system design to meet your specific needs
Quality Assurance
Check Products one by one, to make sure all products are working excellent quality.
Похожие товары
LA448 профессиональное цифровое аудиооборудование dsp 4-в-8-аут-Аудиопроцессор с фильтром
30 913,01 ₽
Профессиональный цифровой звуковой процессор dsp audio X6
9 163,50 ₽ - 12 696,42 ₽
Профессиональный динамик Biner LS15 15-дюймовые и 18-дюймовые динамики для уличного концерта
64 204,11 ₽ - 70 998,35 ₽
Наружная струйная Ночная пузырька Клубная движущаяся пена для вечеринки пушка бассейна 3000 Вт машина распыления пены

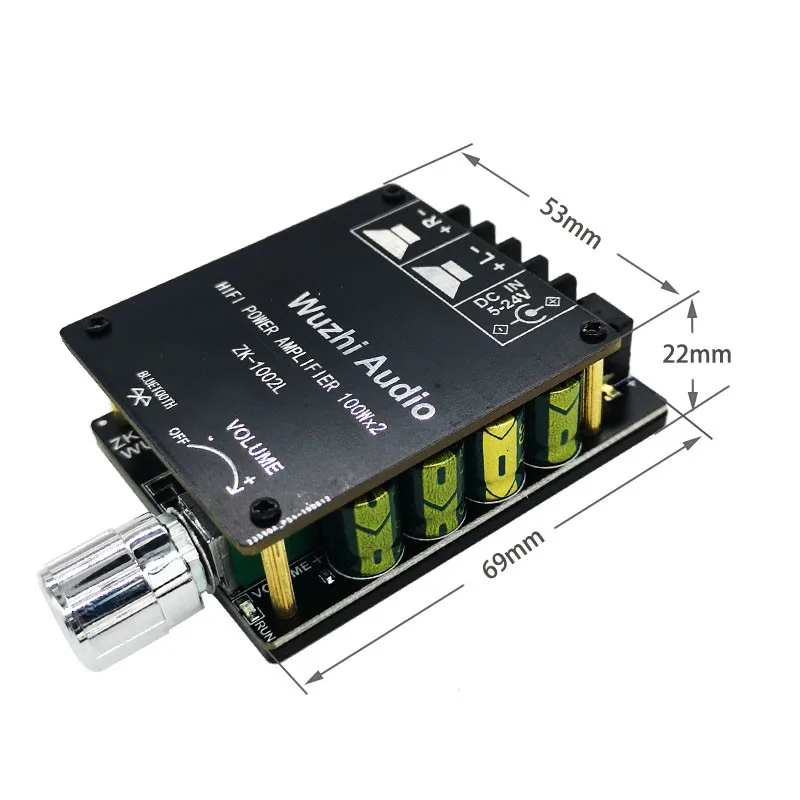

ZK-1002L 100WX2 Mini BT 5 0 беспроводной цифровой усилитель мощности аудио Плата стерео DC 12V 24V
