Высокоточная Передняя установленная ультразвуковая интегрированная система управления парковкой для подземной автостоянки
- Категория: >>>
- Поставщик: Shenzhen Thinkpark Technology Co. Ltd.
Сохранить в закладки 1600948870684:
Описание и отзывы
Характеристики
Thinkpark Ultrasonic Parking Guidance System works to alleviate congestion by quickly and efficiently guiding drivers to the first available parking space. No more cycling aisles or aimlessly guessing which structure has an available space. Thanks to individual bay monitoring, accurate space availability is broadcast to drives on signs from as far as the freeway, guiding them to the structure, level and aisle with available space, ultimately highlighting open spots with a green light illuminated above the parking bay. The applications for parking guidance are endless, whether you are an airport
trying to maximize occupancy , a university looking to reduce carbon emissions, or a mall looking to minimize the time shoppers spend in the parking lot so you can maximize their time in the stores.
trying to maximize occupancy , a university looking to reduce carbon emissions, or a mall looking to minimize the time shoppers spend in the parking lot so you can maximize their time in the stores.
Advantages of Parking Guidance System
Advantages of Parking Guidance System
1) Improve parking environment and increase customer satisfaction
By using the parking guidance system, the car driver can be guided in parking rapidly. Thus the time for the car driver to search for the parking is reduced. Meanwhile, the flow rate of parking is increased by more than 30% before installation. The dispute and displeasure of searching for parking is also mitigated and the car driver’s satisfaction with the overall service of parking lot is increased.
2) Reduce enterprise management cost
With the development of the society, the manpower management cost has been also increased. The parking guidance system can be used to effectively reduce the number of managers in the parking lot, reduce the enterprise management cost and increase the delicacy management level of parking lot. Through comparison of occupation ratio of parking, it could be found that the managers in parking lot can be rationally assigned during rush hour and the unoccupied parking could be figured out in real time.
3) Energy conservation and environmental protection
By using the parking guidance system, the time for searching for the parking can be averagely saved by 15min and the mileage for searching for parking can also be saved by 45%, thus the car exhaust is also reduced. It could be then found that it meets the tendency of low carbon and energy-saving social development.
4) Improve corporate image and competitiveness
By using the parking guidance system, the convenience is brought to the parker and the enterprise image is also improved,
manifesting the strong hardware and software strength of the enterprise.
1) Improve parking environment and increase customer satisfaction
By using the parking guidance system, the car driver can be guided in parking rapidly. Thus the time for the car driver to search for the parking is reduced. Meanwhile, the flow rate of parking is increased by more than 30% before installation. The dispute and displeasure of searching for parking is also mitigated and the car driver’s satisfaction with the overall service of parking lot is increased.
2) Reduce enterprise management cost
With the development of the society, the manpower management cost has been also increased. The parking guidance system can be used to effectively reduce the number of managers in the parking lot, reduce the enterprise management cost and increase the delicacy management level of parking lot. Through comparison of occupation ratio of parking, it could be found that the managers in parking lot can be rationally assigned during rush hour and the unoccupied parking could be figured out in real time.
3) Energy conservation and environmental protection
By using the parking guidance system, the time for searching for the parking can be averagely saved by 15min and the mileage for searching for parking can also be saved by 45%, thus the car exhaust is also reduced. It could be then found that it meets the tendency of low carbon and energy-saving social development.
4) Improve corporate image and competitiveness
By using the parking guidance system, the convenience is brought to the parker and the enterprise image is also improved,
manifesting the strong hardware and software strength of the enterprise.
Process of Parking Guidance System

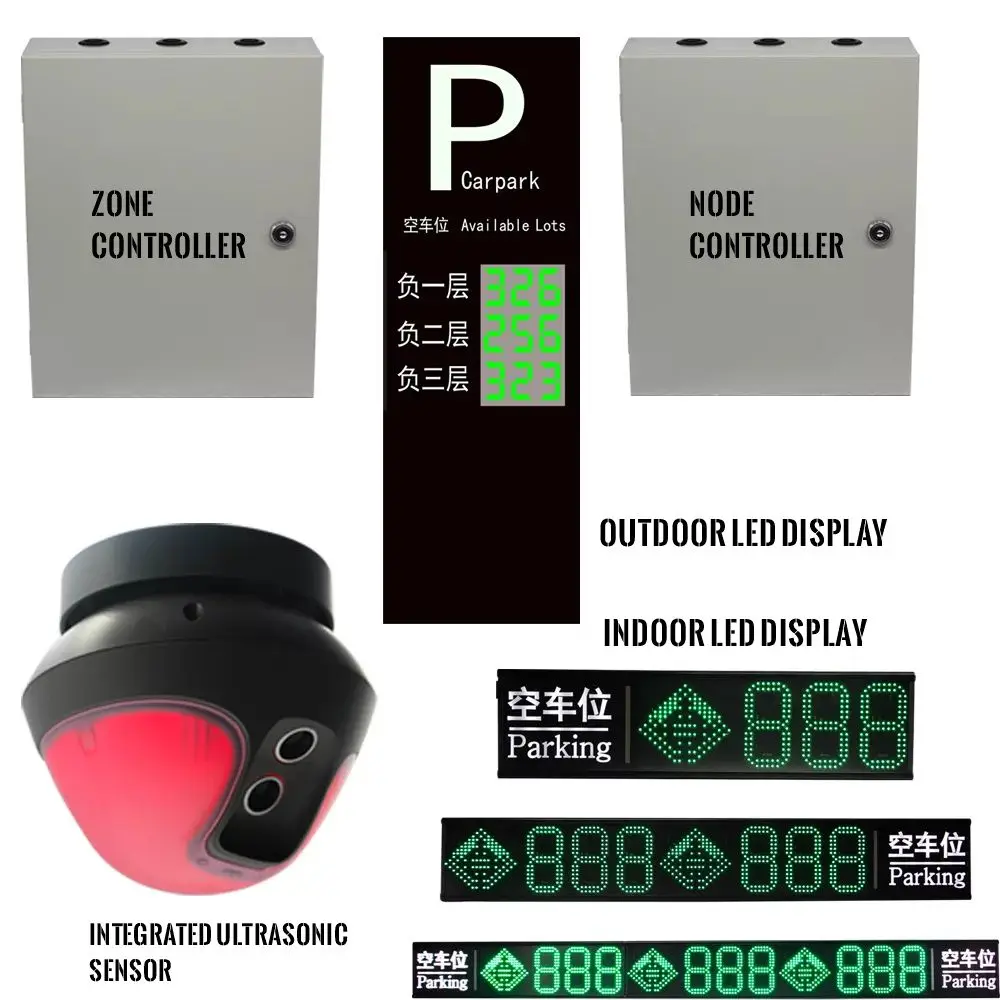

Architecture of Parking Guidance System
The parking information of the parking lot can be collected in real time by using the Integrated Ultrasonic Sensor installed right above each parking line. When there is parking space available, the indicator light integrated by the ultrasonic parking detector will change into the red from the green. The Zone Controller connecting the detector will collect the information of all connected detectors according to roll poling. Besides, the data will be sent to the Central Controller after compression and encoding according to certain rules. After completing data processing, the Central Controller
will send the parking data to each parking LED signage of the parking lot to display the information of unoccupied parking so that the function of guiding the cars in entering the unoccupied parking space can be realized. Meanwhile, the system will send the data to the computer, then the computer will save the data in database server so that the users can enquire into the real-time parking information, yearly, monthly and daily statistics data of the parking lot.
will send the parking data to each parking LED signage of the parking lot to display the information of unoccupied parking so that the function of guiding the cars in entering the unoccupied parking space can be realized. Meanwhile, the system will send the data to the computer, then the computer will save the data in database server so that the users can enquire into the real-time parking information, yearly, monthly and daily statistics data of the parking lot.
The unique Integrated Ultrasonic Sensor is used for the integrated ultrasonic parking guidance system to detect the parking information. Compared to the ordinary ultrasonic probe, it integrates the ultrasonic sensor and indicator light. It is installed right above the parking line to collect parking information in real time and control the indicator light to represent parking state and upload the parking information to the Central Controller.
Product Description

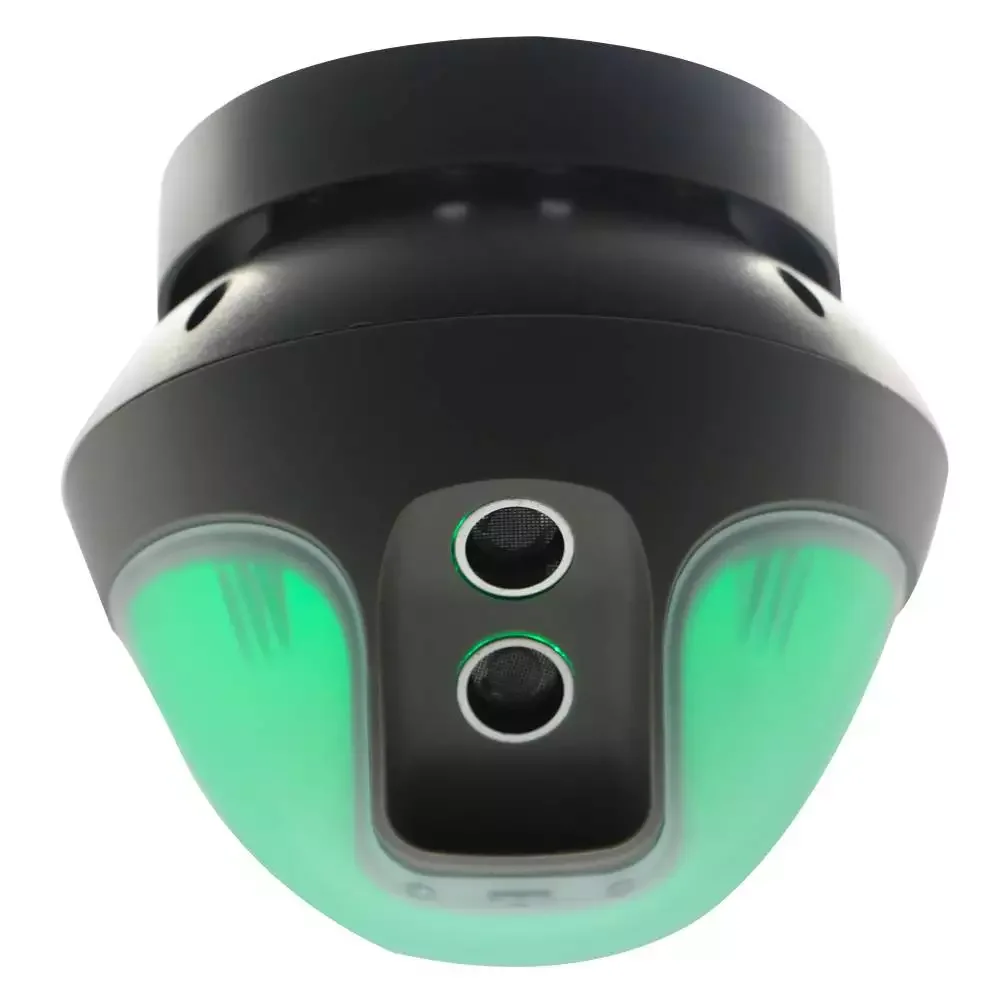

Integrated Ultrasonic Sensor and LED Indicator
Integrated Ultrasonic Sensor, an important integral part of parking guidance system, is installed right above each parking space. It integrates ultrasonic sensor and indicator light. The working principle of ultrasonic ranging is used to collect the unoccupied and occupied state information of parking space in real time, control the indicator light of the parking to display different parking states and immediately sends the parking state information to the Zone Controller through RS485 networking.
One Integrated Ultrasonic Sensor is comprised of detector main body and indicator light. The detector main body is the ultrasonic sensor. It is used to detect the unoccupied and occupied state of parking. The integrated indicator light is used to display different colors according to the command of the detector. When there is no car in the parking space, the indicator light is green. However, when there is car in the parking space, it is red.
* Parking detector is integrated with the indicator light. It is installed right above each parking. Compared to the traditional
split-type ultrasonic parking guidance system, its construction is simpler. Thus the construction period is effectively reduced.
Meanwhile, one indicator light, one KBG pipe or cable tray, one single-pass and one piece of twisted pair is saved for each
parking space. Then the material and labor cost is saved for each parking space.
* The Integrated Ultrasonic Sensor is directly installed on the cable tray right above each parking space, thus the shielding of the upright is effectively avoided and the installation effect is more beautiful;
* Two-way independent receiving and sending ultrasonic circuit design is used for the Integrated Ultrasonic Sensor. It effectively covers the detection zone. Meanwhile, it works independently with two-way switching and redundant backup. Thus the service life, stability and reliability of the detector is enhanced greatly;
* Various combined judgment modes are used for the receiving circuit to enhance the anti-interference and detection stability of the equipment;
* With advanced intelligent study-type anti-interference algorithm, the problems of ultrasonic about adjacent-channel crosstalk
and non-interference of the neighboring car during detection are effectively solved. Thus, the stability and reliability of
parking state detection is guaranteed.
* Through strict tests of static, lightning stroke & surge and group pulse, the reliable use of fluorescent lamp and large-scale
electromechanical device under the influence of harsh environmental factors such as lightning stroke in parking lot is effectively guaranteed;
* All devices are designed with the short circuit, transposition and misconnection protection to prevent the electrical damage to the related devices caused by the circumstances of short circuit, transposition and misconnection due to the wrong wiring during construction;
* Dual network access design is used for the wiring interface. It is connected with standard network cable, thus the material cost and construction difficulty is reduced greatly. Meanwhile, the circumstance of short circuit and bad contact caused by poor wiring can be reduced.
* With external double LED state display, the manager can know about the working state of the device through land
* LED lamp bead design is used for displaying state, featuring long service life and far visual range;
* Unique concise and general appearance design;
One Integrated Ultrasonic Sensor is comprised of detector main body and indicator light. The detector main body is the ultrasonic sensor. It is used to detect the unoccupied and occupied state of parking. The integrated indicator light is used to display different colors according to the command of the detector. When there is no car in the parking space, the indicator light is green. However, when there is car in the parking space, it is red.
* Parking detector is integrated with the indicator light. It is installed right above each parking. Compared to the traditional
split-type ultrasonic parking guidance system, its construction is simpler. Thus the construction period is effectively reduced.
Meanwhile, one indicator light, one KBG pipe or cable tray, one single-pass and one piece of twisted pair is saved for each
parking space. Then the material and labor cost is saved for each parking space.
* The Integrated Ultrasonic Sensor is directly installed on the cable tray right above each parking space, thus the shielding of the upright is effectively avoided and the installation effect is more beautiful;
* Two-way independent receiving and sending ultrasonic circuit design is used for the Integrated Ultrasonic Sensor. It effectively covers the detection zone. Meanwhile, it works independently with two-way switching and redundant backup. Thus the service life, stability and reliability of the detector is enhanced greatly;
* Various combined judgment modes are used for the receiving circuit to enhance the anti-interference and detection stability of the equipment;
* With advanced intelligent study-type anti-interference algorithm, the problems of ultrasonic about adjacent-channel crosstalk
and non-interference of the neighboring car during detection are effectively solved. Thus, the stability and reliability of
parking state detection is guaranteed.
* Through strict tests of static, lightning stroke & surge and group pulse, the reliable use of fluorescent lamp and large-scale
electromechanical device under the influence of harsh environmental factors such as lightning stroke in parking lot is effectively guaranteed;
* All devices are designed with the short circuit, transposition and misconnection protection to prevent the electrical damage to the related devices caused by the circumstances of short circuit, transposition and misconnection due to the wrong wiring during construction;
* Dual network access design is used for the wiring interface. It is connected with standard network cable, thus the material cost and construction difficulty is reduced greatly. Meanwhile, the circumstance of short circuit and bad contact caused by poor wiring can be reduced.
* With external double LED state display, the manager can know about the working state of the device through land
* LED lamp bead design is used for displaying state, featuring long service life and far visual range;
* Unique concise and general appearance design;
Specification
Model | TP-T02F | Communication mode | RS485 |
Operating voltage | DC 10~28V (rated 24V) | Communication interface | 2 RJ45 ports |
Power consumption | <1W | Communication distance | ≤300m (CAT5 network cable) |
Working temperature | -20℃ ~ +65℃ | Supply power distance | ≤150m (CAT5 network cable) |
Storage temperature | -40℃ ~ +85℃ | Response time of the detector after parking | 5s~10s |
Environmental humidity | 40%~70%RH | Type of the indicator light | 7 color highlight |
Dimension | φ126*125mm | Installation location (away from the parking line) | Horizontal 0~0.5m Vertical 2 ~ 3m(advised 2.2-2.8m) |
Net weight | 180g | Ranging error | 2cm |
Appearance material | Grey ABS engineering plastics | Detection accuracy | >99.9% |
Ultrasonic Sensor Installation
The Integrated Ultrasonic Sensor is installed right above the parking line. It is 0-0.5m away from the parking line horizontally. Its installation height is 2-3m. advised 2.2-2.8m.
Notes: the installation height of the detector = installation height of the cable tray -height of the detector. The length of parking is 5m. It is necessary to slightly adjust the horizontal installation location of other spaces. For details, please refer to the construction manual.
Zone Controller
The Zone Controller is used for cyclically detecting the state of the connected detector and uploading the related information to the Node Controller. It’s advised to connect at most 50 parking terminals with every Zone Controller.
It is used to connect the Node Controller, parking detector and LED signage screen. With RS485 and CAN bus mixed communication mechanism, the problem about reliable long-distance communication and network node expansion and grouping management are solved.
It is used to connect the Node Controller, parking detector and LED signage screen. With RS485 and CAN bus mixed communication mechanism, the problem about reliable long-distance communication and network node expansion and grouping management are solved.
Model | TP-K02Z | Working temperature | -20 ~ +65℃ |
Dimension | 320*260*90mm | Operating voltage | AC 110~240V |
Net weight | 3.5Kg | Communication mode | 1-circuit CAN 2-circuit RS485 |
Casing material | Galvanized sheet | Communication distance | CAN:≤1000m(RVSP 2*1.0) RS485:≤300m (CAT 5 network cable) |
Single-circuit node capacity | 25 (including sensor and LED signage) | Power consumption | ≤2W (its power consumption, not including detector) |
Node Controller
The Node Controller is used for collecting all parking information in this region and uploading the related collected information code to the Central Controller. It’s advised to connect at most 25 Zone Controllers with every Node Controller.
It is used to connect regional and Central Controllers. CAN bus communication mechanism is used to guarantee the reliability of long-distance communication data.
It is used to connect regional and Central Controllers. CAN bus communication mechanism is used to guarantee the reliability of long-distance communication data.
Model | TP-K02N | Working temperature | -20 ~ +65℃ |
Dimension | 320*260*90mm | Operating voltage | AC 110~240V |
Net weight | 3.2Kg | Communication mode | 2 way CAN |
Casing material | Galvanized sheet | Communication distance | ≤1000m(RVSP 1.0*2) |
Node capacity | 25 | Power consumption | ≤2W |
Central Controller
The Central Controller is the core of the whole system and also the collection and control center of whole intelligent parking guidance system. By upgrading the real-time data of parking LED signage, the function of guiding vehicles is realized. At most 25 Node Controllers can be controlled through one Central Controller.
Model | TP-K02M | Working temperature | -20 ~ +65℃ |
Dimension | 320*260*90mm | Operating voltage | AC 110~240V |
Net weight | 3.2Kg | Power consumption | ≤2W |
Casing material | Galvanized sheet | Communication mode | 1-circuit CAN 1-circuit 10/100BaseT Ethernet |
Node capacity | 25 | Communication distance | CAN:≤1000m (RVSP 1.0*2) Ethernet:100m (CAT5 network cable) |

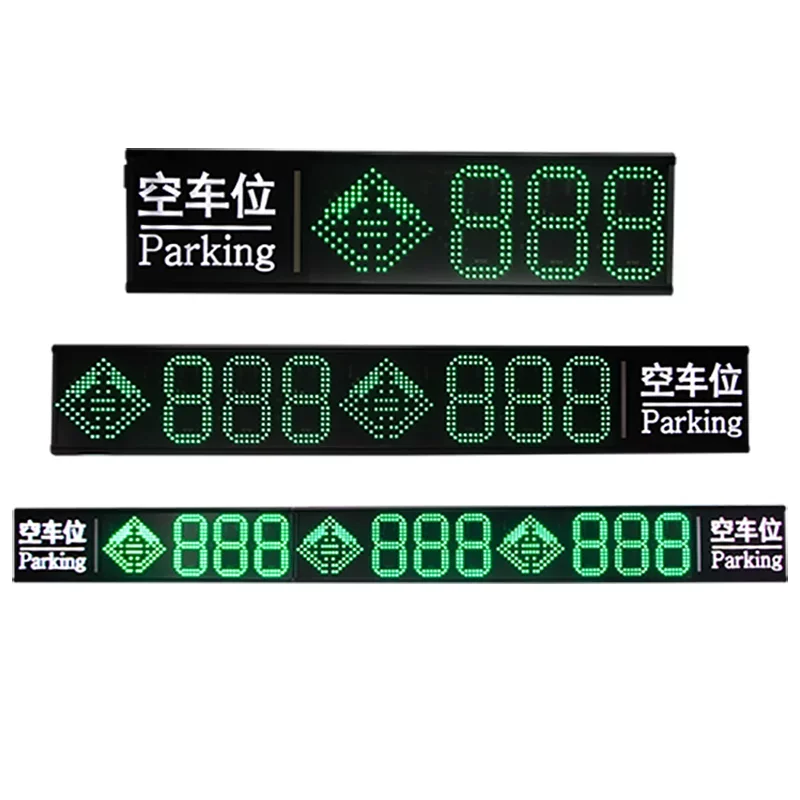

Indoor LED Display
The parking guidance display screen is installed at the important fork roads in parking lot. The LED signage is comprised of LED module, drive unit and support. It receives the output information of the Central Controller, display the empty parking spaces in the form of figure and arrow, guides the car driver to find out the unoccupied parking space fast to guarantee the smoothness order of parking lot and sufficient utilization of parking space.
Model | TP-ID301 (single-Display) | Working temperature | -20℃ ~ +65℃ |
Dimension | Single-Display 650*183*56mm | Operating voltage | AC110~ 240V |
Double-Displayl 1030*183*56mm | Power consumption | ≤10W (single-Display) | |
Three-directional 1410*183*56mm | Environmental humidity | 30%--90% (relative humidity) | |
Appearance material | Aluminum profile+organic glass panel | Communication mode | RS485 |
Lamp bead type | P4.75 LED lamp bead | Dimension of display | 420*149mm |
Light source | Green&Red LED lamp bead | Communication distance | ≤300m |
Entrance LED Display
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Model | TP-OD3N1 (single layer) | Working temperature | -40℃ ~ +85℃ |
Dimension | 800*160*2200mm | Environmental humidity | ≤90%RH (no condensation) |
Dimension of Single 8-character panel | 126*240mm | Operating voltage | AC 110~240V |
Appearance material | Cold steel and stoving varnish+tempered glass panel | Power consumption | ≤15W (single layer) |
Light source | Red/green high-light LED | Communication mode | RS485 |
IP grade | IP55 | Communication distance | RS485 ≤300m |
Support display digit | 3 or 4-digit | Digital display dimension | 110*200mm |
Parking Guidance System Software Function and Highlights
*Fixed parking protection function (customized)
Through evasion and guidance, the reservation of special parking spaces such as fixed and monthly parking.
* Monitoring parking state in real time
The system can display the occupation of parking in real time. Through statistics of the number of occupied and unoccupied parking
spaces and entrance and exit of various vehicles, it can be convenient for the manager to monitor and managing the parking lot.
* Statistics function
Through the statistics of daily, monthly and time-phased use ratio of parking lot, the car driver can know about the service
condition of the parking lot.
* Parking time detection function
It begins timing after car enters the parking space. The parking lot manager can know about the parking space in parking lot.
* Right control function
Multi-level right control function is helpful for controlling and keeping confidential about related information conveniently.
Through evasion and guidance, the reservation of special parking spaces such as fixed and monthly parking.
* Monitoring parking state in real time
The system can display the occupation of parking in real time. Through statistics of the number of occupied and unoccupied parking
spaces and entrance and exit of various vehicles, it can be convenient for the manager to monitor and managing the parking lot.
* Statistics function
Through the statistics of daily, monthly and time-phased use ratio of parking lot, the car driver can know about the service
condition of the parking lot.
* Parking time detection function
It begins timing after car enters the parking space. The parking lot manager can know about the parking space in parking lot.
* Right control function
Multi-level right control function is helpful for controlling and keeping confidential about related information conveniently.
FAQ
We provide completed after-sales service and commitment, including training, notes for routine maintenance, fault handling.
