MEUDY KBZ-HT Погружной Дренажный Насос для высокотемпературных жидкостей
75 514,83 ₽
Высококачественный китайский жидкий моноблочный вакуумный насос 4 кВт промышленный водяной герметичный одноступенчатый 110 жидкостный кольцевой 2 BV5
- Категория: >>>
- Поставщик: Taizhou Shouzhen Machinery Co. Ltd.Taizhou Ltd.
Сохранить в закладки 1600949563279:
Описание и отзывы
Характеристики
ABOUT SOUZ VACUUM
SOUZ VACUUM is a comprehensive high-tech enterprises integrating R&D, production, sales and service of vacuum pumps.
With professional technical team to help every customer to get the most suitable and cost-effective vacuum solutions and vacuum pumps.
We always perseveres in innovative work to develop better products.
SOUZ VACUUM,covering an area of 100000 square meters production plant ,has hundreds of employees and 50 sets modern processing equipments.In order to provide high quality products,SOUZ VACUUM imported Japan Tsugami processing center for processing pump rotor and Japan Okuma vertical processing center for processing pump body,Hexagon coordinate measuring instrument and so on.
Moreover, on the basis of digestion of imported Germany technology and substitution with SOUZ VACUUM improved technology. The key components of vacuum pump were choosen from international well-known brands to make the overall performance to achieve the international level. We can provide alternative basically spare parts to some well-known brands of vacuum pumps.
The acceptance rate of product will be raised by improvement of process's quality control.
With professional technical team to help every customer to get the most suitable and cost-effective vacuum solutions and vacuum pumps.
We always perseveres in innovative work to develop better products.
SOUZ VACUUM,covering an area of 100000 square meters production plant ,has hundreds of employees and 50 sets modern processing equipments.In order to provide high quality products,SOUZ VACUUM imported Japan Tsugami processing center for processing pump rotor and Japan Okuma vertical processing center for processing pump body,Hexagon coordinate measuring instrument and so on.
Moreover, on the basis of digestion of imported Germany technology and substitution with SOUZ VACUUM improved technology. The key components of vacuum pump were choosen from international well-known brands to make the overall performance to achieve the international level. We can provide alternative basically spare parts to some well-known brands of vacuum pumps.
The acceptance rate of product will be raised by improvement of process's quality control.
Mechanical seal
Stainless steel material
High pressure-resistance & wear-resistance.
* Energy-saving motor
100% copper wire, high temperature resistance, stronger power.

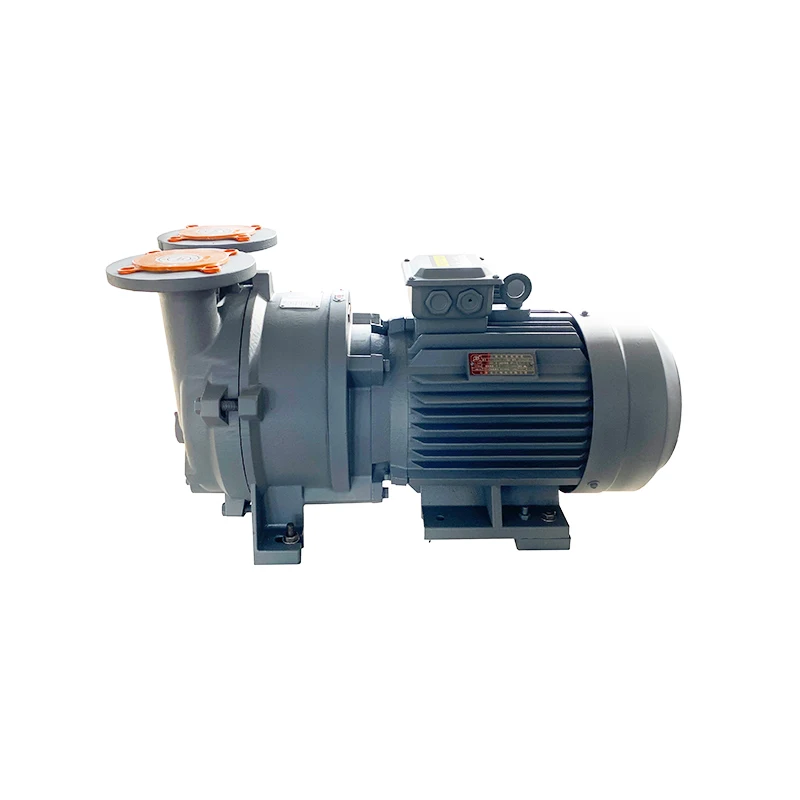

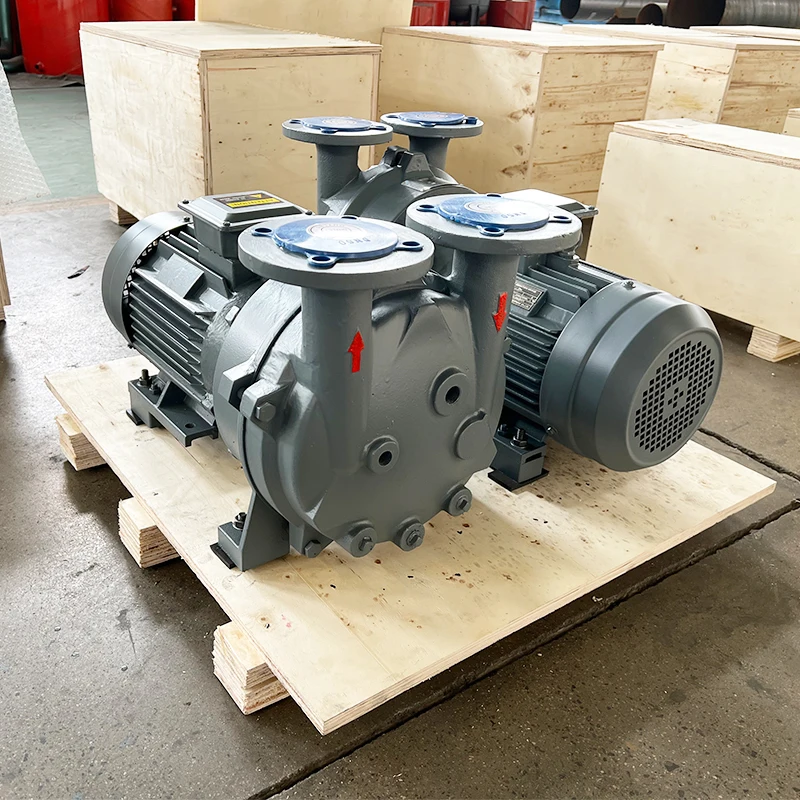

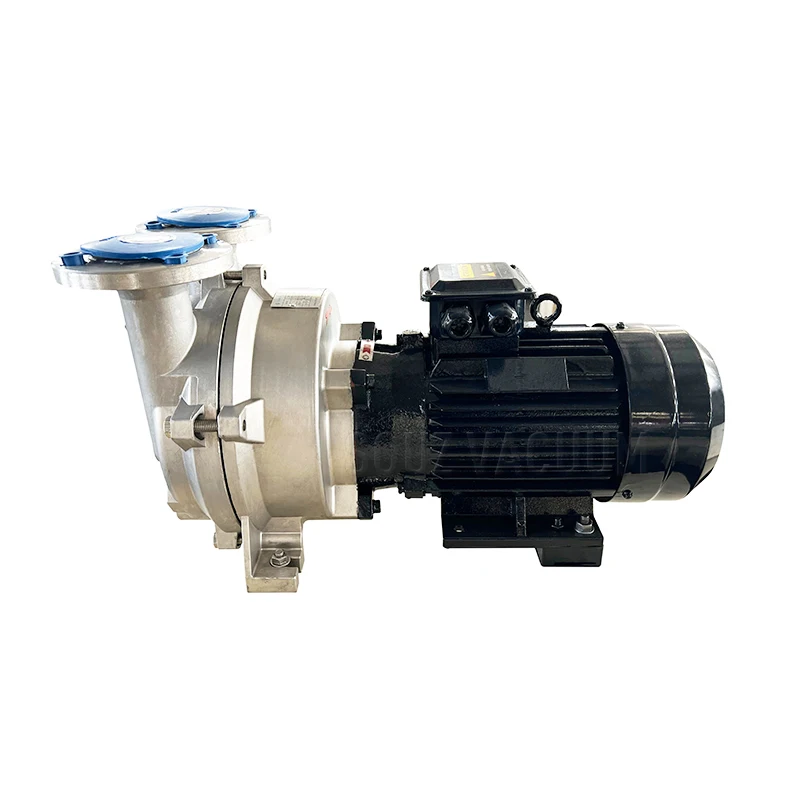

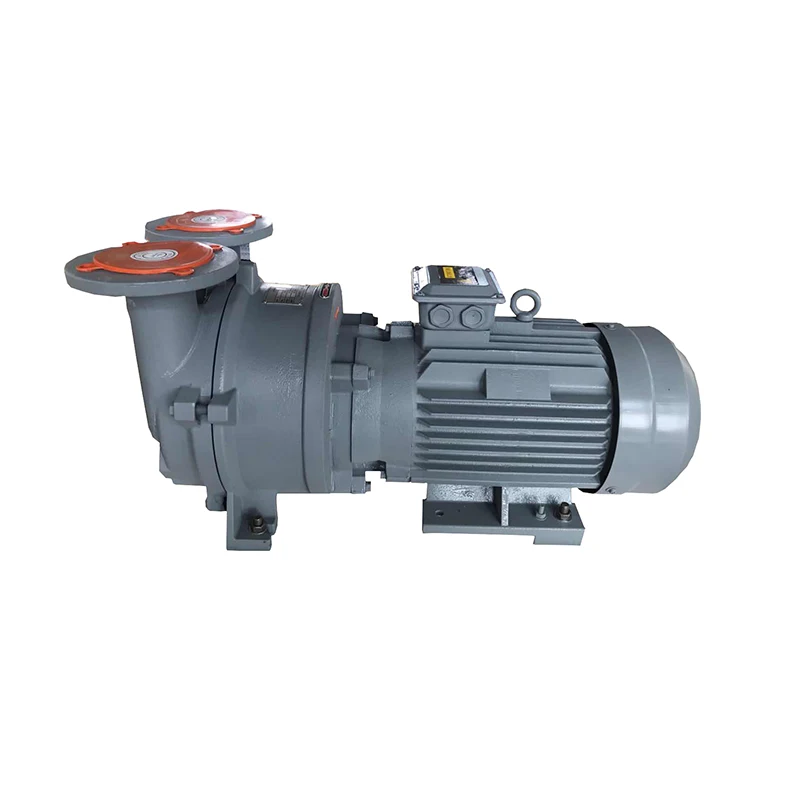

SOUZ Pump 2BV Single-stage close-coupled Liquid Ring vacuum pumps
Liquid ring vacuum pumps are available in single- stage and two-stage versions that for low, medium and high vacuum.
Depending on the pumped medium, liquid ring vacuum pumps can be operated as a simple continuous flow system or as a partial or total recirculation system.
The operating fluid is usually water, but other liquids may be used if required to suit the process conditions.
2BV series are robust and reliable liquid ring vacuum pumps in a monoblock design. The directly flange-mounted motor makes them exceptionally compact. Therefore, 2BV series are very well suited for integration into existing systems or machines.
Depending on the pumped medium, liquid ring vacuum pumps can be operated as a simple continuous flow system or as a partial or total recirculation system.
The operating fluid is usually water, but other liquids may be used if required to suit the process conditions.
Continuous service liquid must be fed to the pump for the vacuum level to be maintained and for the pump to operate efficiently.
Mono-block liquid ring vacuum pump: 2BV series
Single stage large capacity liquid ring vacuum pump : 2BE series
Two stage liquid ring vacuum pump : 2SK series
Key Features:
1. Compact, light integral pump and motor design
2. Quiet operation
3. No need for additional baseplates, couplings, or guards, which add to cost
4. Various sizes and versions
5.Direct motor driven: IE2/IE3 motor as request.
1. Compact, light integral pump and motor design
2. Quiet operation
3. No need for additional baseplates, couplings, or guards, which add to cost
4. Various sizes and versions
5.Direct motor driven: IE2/IE3 motor as request.
6. Extremely high vapor
Application:
Vacuum technology plays a key role in the manufacture of many products. The rotary vane pump is a reliable vacuum device.
1. General mechanical engineering, built-in pumps.
2. Food production, evaporators.
3. Beverage industry, filling machines.
4. Production of plastics, extruders.
5. Replacement of existing liquid ring vacuum pumps.
4. Production of plastics, extruders.
5. Replacement of existing liquid ring vacuum pumps.
2BV series are robust and reliable liquid ring vacuum pumps in a monoblock design. The directly flange-mounted motor makes them exceptionally compact. Therefore, 2BV series are very well suited for integration into existing systems or machines.
PRODUCT FAMILY | LIQUID RING VACUUM PUMP VERSION | ULTIMATE PRESSURE | CHARACTERISTICS |
2BV | Single-stage close-coupled | 33mbar | Small capacity. 27m3/h-600m3/h |
2BEA | Single-stage | 33mbar | Capacity 246m3/h-9400m3/h |
2BEC | Single-stage | 160mbar | Big capacity. 7320m3/h-60000m3/h |
2SK | Two-stage | 33mbar | Capacity 180m3/h-1800m3/h |
2BV series Monoblock Liquid Ring Vacuum Pumps | ||||||
Model | 2BV5 110 | Capacity | 165 m3/h | |||
Power | 4 kW | Ultimate pressure | 33 mbar | |||
Rotary speed | 1440 rpm | Liquid flow-rate | 6-10 L/Min | |||
Inlet/outlet diam. | DN50 | Material | all cast iron | |||
Noise | 72 dB(A) | Weight | 92KG / 110 KG | |||
Best Value China Fluid Monoblock Vacuum Pump 4KW Engine Industrial Water Sealed Single Stage 2BV5 110 Liquid Ring Vacuum Pump | ||||||
Find More information from SOUZ VACUUM
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2: Is it acceptable to make customers' own brand?
A2: Sure, we can do OEM.
Q3: What are your payment terms?
A3: 30% T/T deposit, 70% against documents, or L/C at sight.
Q4: How long is your warranty?
A4: One year!
Q5. Why should I choose your products?
A5. Compared to other VACUUM PUMPS' supplier in China, our products are better quality .
Q6. Any other good service your company can provide?
A6. Yes,we can provide good after-sale and fast delivery.
