100x50x5 0 мм коробка upn 100 oem Китай оптовая продажа s235jr углеродистая универсальная канальная сталь
- Категория: >>>
- Поставщик: Weihai Topsteel Co. Ltd.
Сохранить в закладки 1600950202132:
Описание и отзывы
Характеристики
100x50x5.0 mm box upn 100 oem china wholesale s235jr carbon universal channel steel
Product Description
STEEL CHANNEL BAR IS OUR FACTORY MAIN PRODUCT, PLEASE GIVE US A CHANCE. LET'S SHOW OUR QUALITY AND PRICE FOR YOUR REFERENCE.
| Steel type | Range of specification | Material | Standard applied |
| Channel bar | China standard 5#-40#C | Q235, S235JR, S275JR, ST37, SS400, A36, Q345, S355JR, ST52-3, A50... | GB/T6478-2001 JISG3507-1980 |
Japan standard 50*25*3-200*80*7.5 mm | |||
| UPN/ UPE 80-120 |

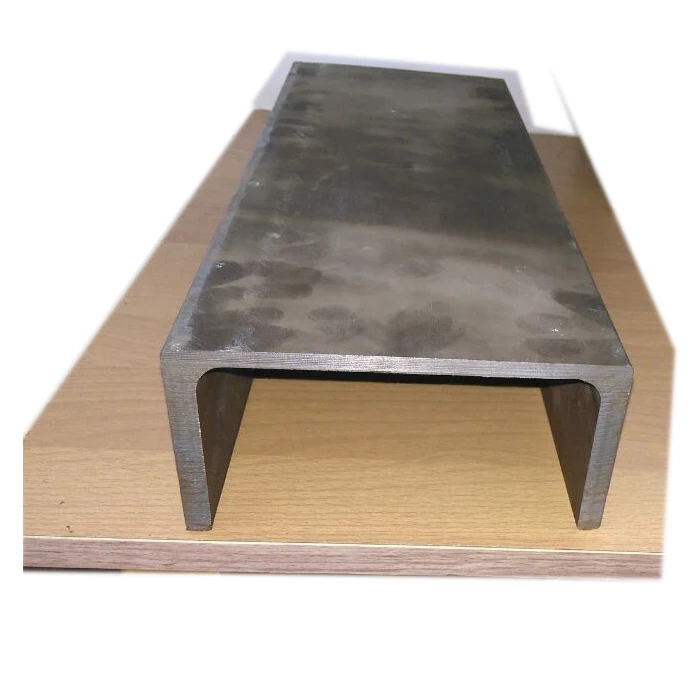

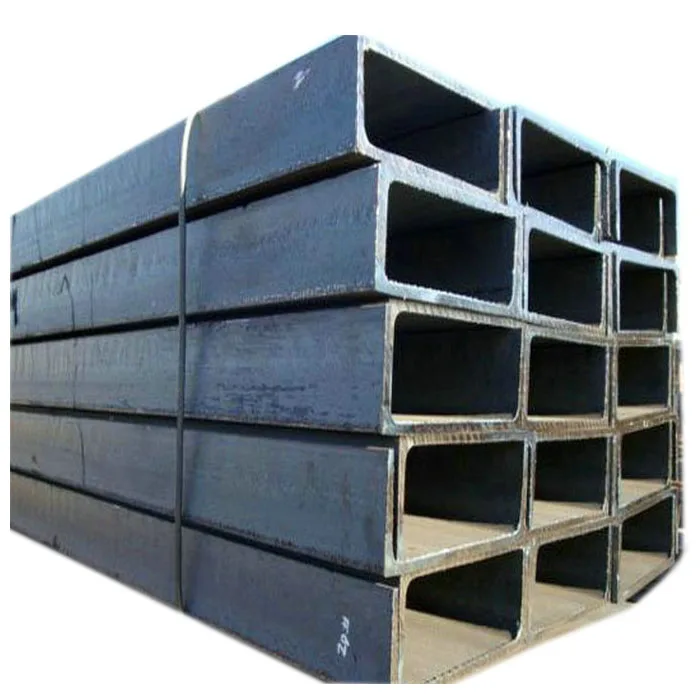

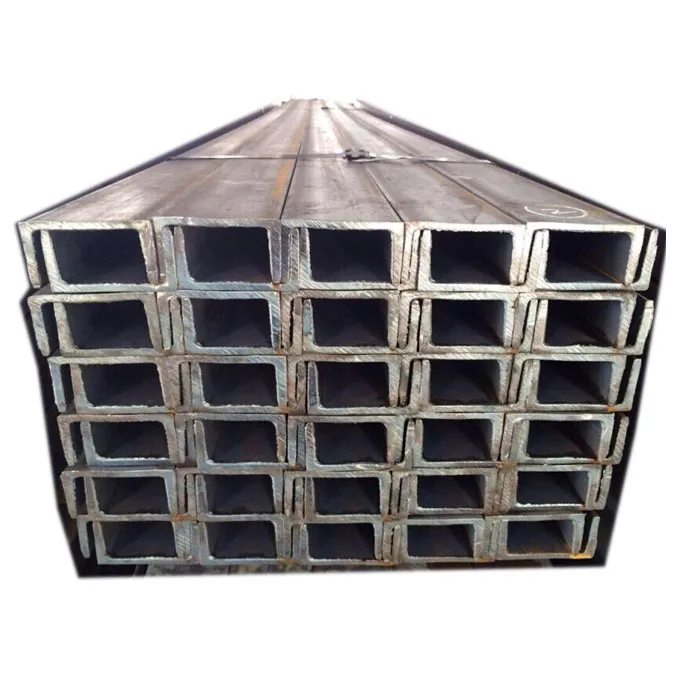

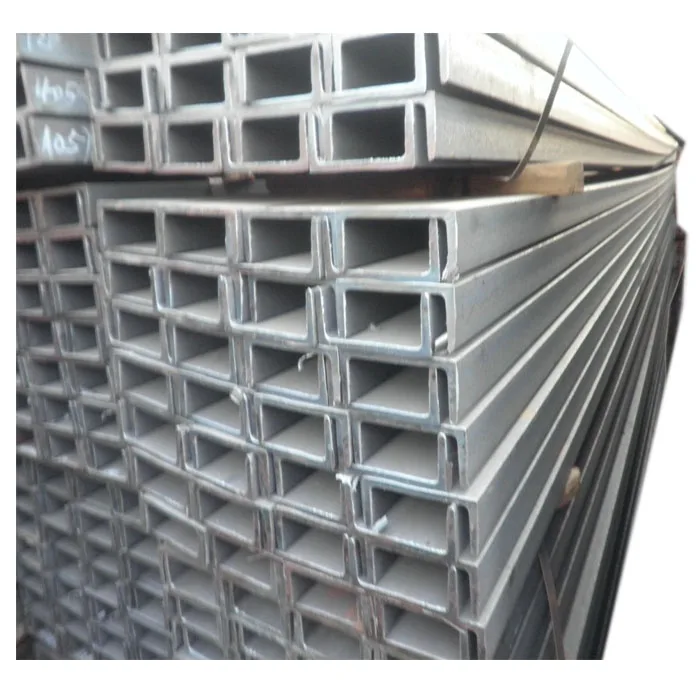

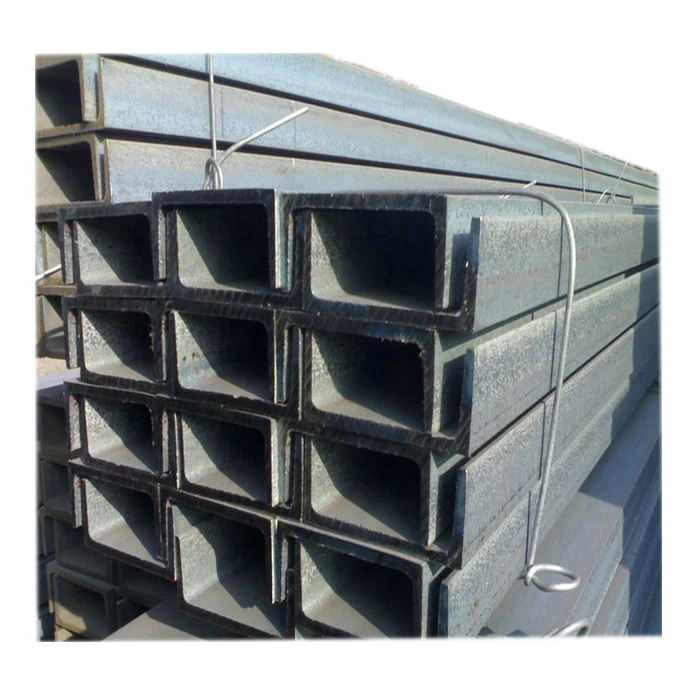

Steel channel bar surface and measure picture show
100x50x5.0 mm box upn 100 oem china wholesale s235jr carbon universal channel steel
Chinese standard U Channel Size | |||||
| Size(MM) | Model | Weight(Kg/m) | Size(MM) | Model | Weight(Kg/m) |
| 50*37*4.5 | 5# | 5.44 | 240*78*7 | 24#A | 26.86 |
| 63*40*4.8 | 6.3# | 6.635 | 240*80*9 | 24#B | 30.638 |
| 65*40*4.8 | 6.5# | 6.7 | 250*78*7 | 25#A | 27.41 |
| 80*43*5 | 8# | 8.045 | 250*80*9 | 25#B | 31.335 |
| 100*48*5.3 | 10# | 10.007 | 270*82*7.5 | 27#A | 30.838 |
| 120*53*5.5 | 12# | 12.6 | 270*84*9.5 | 27#B | 35.077 |
| 126*53*5.5 | 12.6# | 12.37 | 280*82*7.5 | 28#A | 31.427 |
| 140*58*6 | 14#A | 14.53 | 280*84*9.5 | 28#B | 35.823 |
| 140*60*8 | 14#B | 16.73 | 300*85*7.5 | 30#A | 34.463 |
| 160*63*6.5 | 16#A | 17.23 | 300*87*9.5 | 30#B | 39.173 |
| 160*65*8.5 | 16#B | 19.755 | 320*88*8 | 32#A | 38.083 |
| 180*68*7 | 18#A | 20.17 | 320*90*10 | 32#B | 43.107 |
| 180*70*9 | 18#B | 23 | 360*96*9 | 36#A | 47.814 |
| 200*73*7 | 20#A | 22.637 | 360*98*11 | 36#B | 53.466 |
| 200*75*9 | 20#B | 25.777 | 400*100*10.5 | 40#A | 58.928 |
| 220*77*7 | 22#A | 24.999 | 400*102*12.5 | 40#B | 65.208 |
| 220*79*9 | 22#B | 28.453 | |||
PFC Channel
| Other Standard U channel size | |||||
| Jis Standard | BS Standard | PFC Standard | |||
| Size(MM) | Weight(Kg/m) | Size(MM) | Weight(Kg/m) | Size(MM) | Weight (Kg/m) |
| 75*40*3.8 | 5.3 | 76*38*5.1 | 6.7 | 100*50*5 | 10.2 |
| 75*40*5.0 | 6.92 | 102*51*6.1 | 10.42 | 125*65*5.5 | 14.8 |
| 100*50*3.8 | 7.3 | 127*64*6.4 | 14.9 | 150*75*5.5 | 17.9 |
| 100*50*4.5 | 8.97 | 152*76*6.4 | 17.9 | 200*75*6 | 23.4 |
| 100*50*5 | 9.36 | 152*89*7.1 | 23.84 | 75*40*3.8 | 5.92 |
| 125*65*5.2 | 11.66 | 100*50*4.2 | 8.33 | ||
| 125*65*5.5 | 12.91 | UPN Standard | 125*65*4.7 | 11.9 | |
| 125*65*6 | 13.4 | Size(MM) | Weight(Kg/m) | 150*75*6 | 17.7 |
| 150*75*5.5 | 14.66 | 80*45*6 | 8.65 | 200*75*6 | 22.9 |
| 150*75*5.7 | 16.71 | 100*50*6 | 10.6 | ||
| 150*75*6 | 17.9 | 120*55*7 | 13.4 | ||
| 50*75*6.5 | 18.6 | ||||
| 150*75*9 | 24 | ||||
| 200*80*7.5 | 24.6 | ||||
Top Steel company have Photovoltaic support and all kinds shape Channel
Top Steel Company have a big warehouse, Urgent orders, contact me!!!!
Top Steel company have galvanized, punch holes Channel steel , The zinc coating produce by your requirement.The range of Zinc coating available is about 30-700 g/m2. The thickness is 4-100 micron.
Packaging & Shipping
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)
For 20feet container load 25tons-28tons.
For40feet container load 25tons-26tons.
Other options are available based on customer requests. Please discuss when placing orders.
Top Steel company have the professional loading team, we will check the most economical way of loading according to your different length.
Our Services
We have many reliable and long-term cooperated section steel factories from Hebei province, such as Tangshan city and Tianjin city. also GI/PPGI factories from Shandong province You are welcome to visit our factory and office anytime.We will try our best to satisfy your per request.
We prepare to provide the pre-sales serves, service during sales and afer-sales service for coustomes by the way of advance service, value added service and personalized service.
Advantage
Over 10 years exporting experience on all kinds of steel product make us much professional !
Strictly quality control system from choosing the material to processing !
Comepetitive price and shortest delivery time !
One step total solution
Ready stock goods with fast delivery
Customizable:Non-standard sizes are also available
Small quantity is acceptable
Refund or replacement for any product faulty
24 hours feedback, 48 hours solution !
Related products
Weihai Top Steel Co., LTD is professional Chinese leading supplier of steel. Following is our main products:100x50x5.0 mm box upn 100 oem china wholesale s235jr carbon universal channel steel
1. Stainless steel strip,coil,sheet,plate,pipe.
2. Hot rolled steel coils, plates, CR coils, sheets. galvanized steel strip
3. Steel pipes, weld retangular tube, pipes. seamless pipe. galvanized steel pipe
4. Section Steel: I beam, H beam, U channel, angles etc, galvanized steel section
If you are interested in our other products, please click the pictures! The pictures will help you to find our more details!!!
Company Information
Top Steel is one of the leading manufactories with ISO 9001 certificate who is specializing in manufacturing & exporting various kinds of steel pipes, steel plate, steel coil, round bar, flat bar, angle bar, H beam and other steel products in China. We owned the complete production technique and related equipments for coking, sintering, iron, steel, steel rolling etc, also including the related energy source power system. Meanwhile, we have reached the production technique` s completeness and systematicness at the modern steel industry.
Weihai Top Steel Co., LTD is professional Chinese leading supplier of steel. Following is our main products:
1. Stainless steel strip,coil,sheet,plate,pipe.
2. Hot rolled steel coils, plates, CR coils, sheets.
3. Galvanized steel coils, sheet, PPGI,corrugated sheets.
4. Steel pipes, weld retangular tube, pipes. seamless pipe.
5. Section Steel: I beam, H beam, U channel, angles etc.
FAQ
Q: What is your time of making a sample
A: Usually we will take 1~3 days to make the sample
Q: What is your MOQ?
A: Usually 20 feet containers ( 25 tons) for section steel
Q: What is your delivery time?
A: For stocks, we can send the goods to loading port within 7 days after receiving your deposit
For production period, it usually needs about 15days- 30 days after receiving the deposit
Contact Us
More information please visit us Top Steel Industry Co.,Ltd ! NOW CONTACT US!!
| Contact Person: Alice |  |
| Top Steel Industry Co.,Ltd | |
| WhatsApp: 008613082687468 | |
| Email: inquir@ topsteelco.com | |
| Skype: topsteelv | |
| Phone: 008613082687468 |
Похожие товары
Модульный очиститель ISO8 без пыли iso8
Гуанчжоу, оптовая продажа, искусственное внутреннее дерево banyan ficus, натуральный деревянный ствол, искусственное растение с корнями
JBZ ведро Арес серии 10-дюймовый динамик BT 1006 с УВЧ беспроводной микрофон открытый портативный диктор вагонетки, деревянные плеер
93,00 $ - 215,00 $

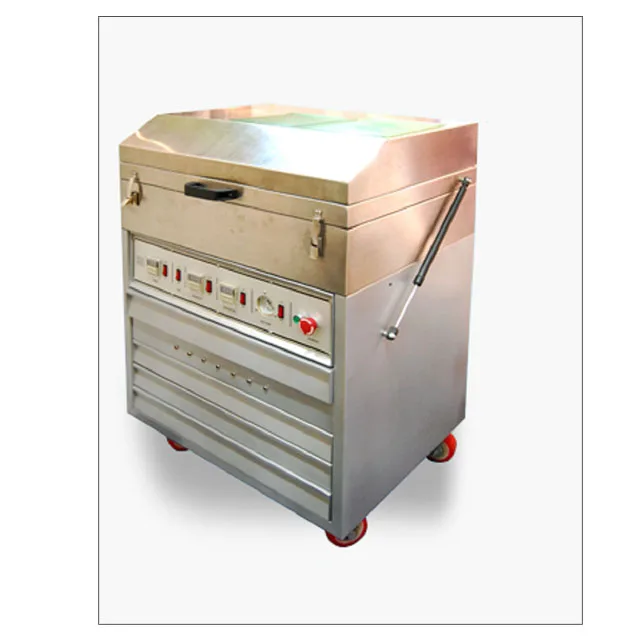

Машина для изготовления пластин из полимерной флексографической смолы

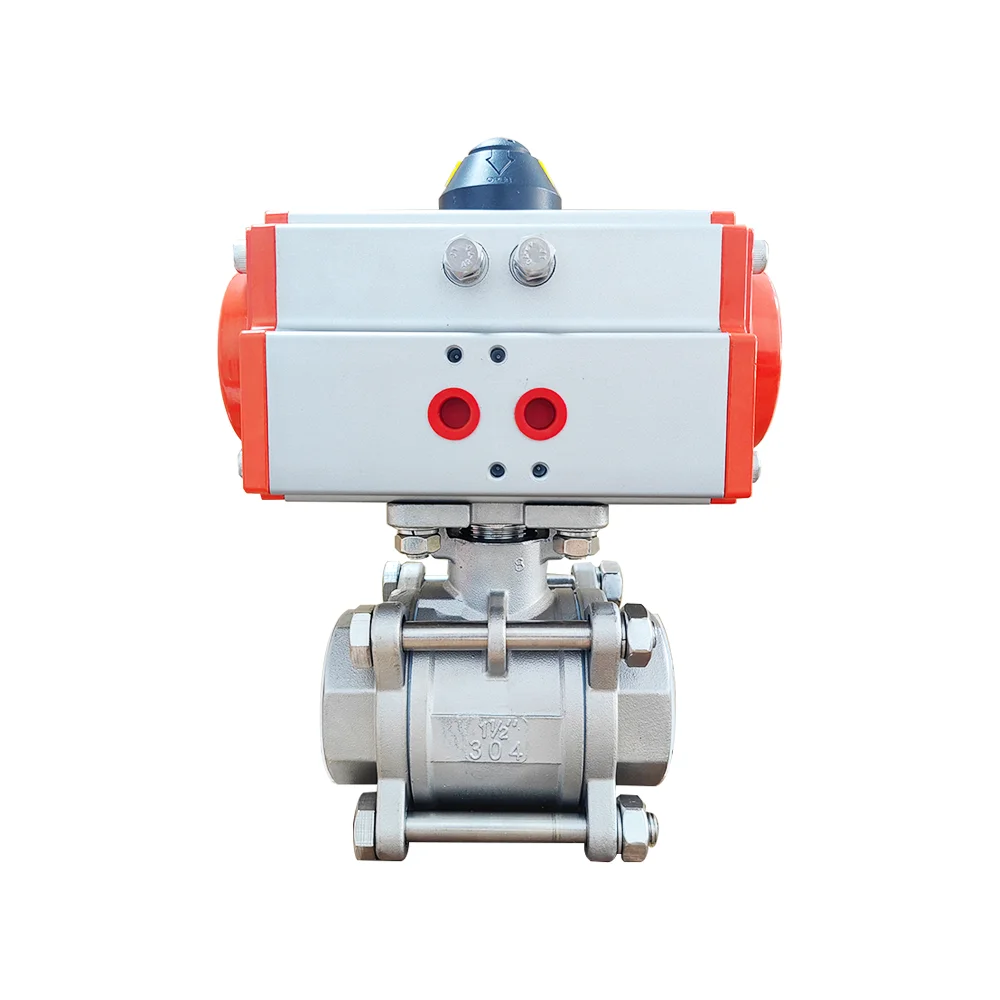

Пневматический шариковый клапан с внутренней резьбой из нержавеющей стали, трехкомпонентный проволочный шаровой клапан с защелкой, цилиндр двойного действия
