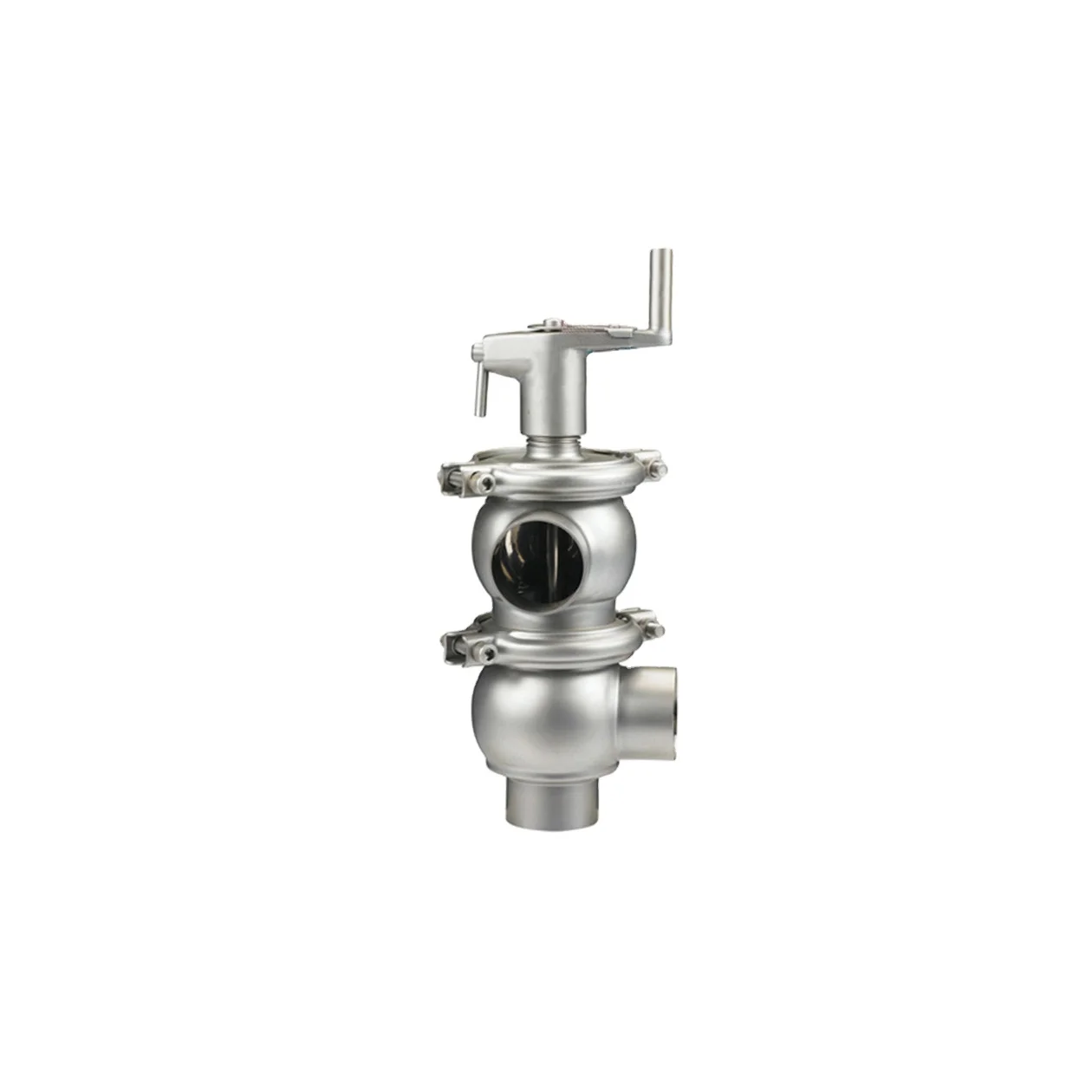

Ручной санитарный реверсивный клапан из нержавеющей стали SS316L SS304
- Категория: >>>
- Поставщик: Linch Machinery Co. Ltd.Linch Ltd.
Сохранить в закладки 1600950370596:
Описание и отзывы
Характеристики

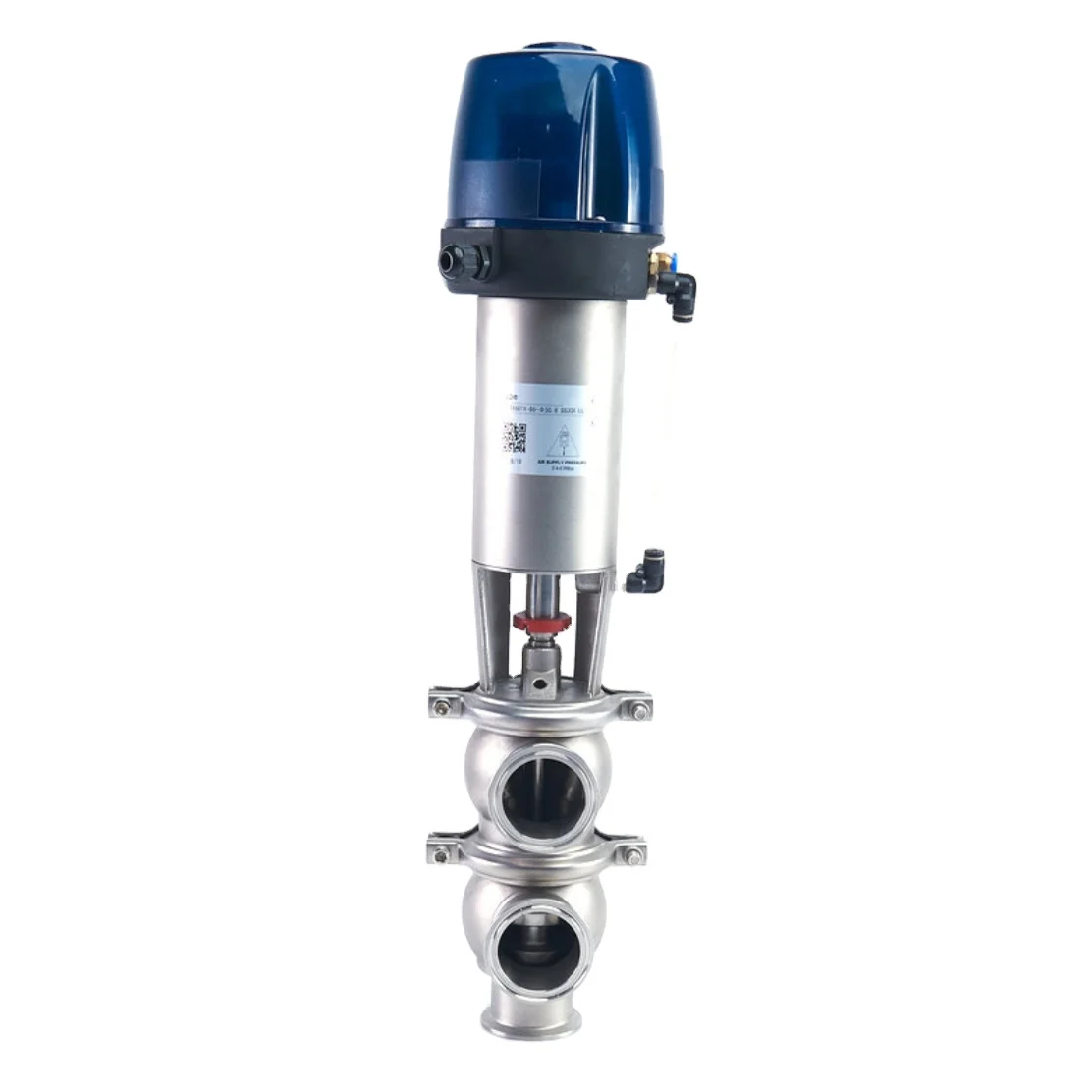

Sanitary Divert Valves
* Made from food grade stainless steel material make sure the cleanliness and corrosion resistance.
* Divert valve body features a self-draining angular structure with no flow dead zones or recesses, ensuring smooth flow, easy cleaning, and no liquid or residue accumulation.
* Supports CIP (Cleaning In Place) cleaning and SIP (Sterilization In Place) disinfection systems.
* All seals are made from PDA-certified sealing materials, ensuring clean operating conditions.
* Single-seat sealing structure provides a tight seal.
* Compatible with WFI (Water for Injection) systems.
Pneumatic Air supply pressure | 4 bar ~ 8 bar |
Operation principle | Double acting ( air / air ), or single acting ( air / spring ) |
Operation mode | Normally open ( NO ), or Normally closed ( NC ) |
Size | DN25~100, 3/4”, 1”, 1 1/4”, 1 1/2”, 2”, 3”, 4” |
Temperature | -10~+100℃ |
Fluid Pressure | 0~10 bar |
Connection End | Clamp, weld, thread, and so on |
Characteristics of Divert Valves
Divert valve features an open bracket design where the pneumatic actuator is separated from the valve body, it allows direct inspection of the shaft seal.
This design separates the valve’s driving mechanism from the product area, preventing heat transfer from the pneumatic actuator to the valve body.
Divert valve offers an excellent solution for mitigating the impact of medium in the event of an emergency valve closure.
This diverter valve is a sanitary single-seat valve that can be operated pneumatically and it is widely used in food processing,beverage production, pharmaceuticals, and fine chemicals industries.
Working Principle
Working Principle of Divert Valve
Divert valve converts the energy generated by compressed air into mechanical energy.
This mechanical energy drives the axial movement of the valve stem, thereby changing the position of the sealing components.
The different positions of these sealing components control the opening and closing of the pipeline ports, ultimately achieving the purpose of directing or stopping the flow of the medium.
Production Process
Why Choose Us
We are one of the best suppliers of sanitary stainless steel products in China, specializing in the production of various high-precision sanitary stainless steel products.
Products cover: sanitary valves, stainless steel pipes, pipe fittings, flanges, fasteners, reducing pipes, etc., and various sanitary stainless steel products can also be customized according to customer requirements.
Products cover: sanitary valves, stainless steel pipes, pipe fittings, flanges, fasteners, reducing pipes, etc., and various sanitary stainless steel products can also be customized according to customer requirements.
In order to ensure that product quality meets all relevant standards, we have developed 8 special processing technologies and have more than 10 technical patents.
Currently, all our products comply with ISO, SMS, IDF, 3A and DIN standards, as well as GMP and food industry requirements.
Among all Chinese suppliers, we have the most extensive range of models and the safest certification
We provide customized services to customers all over the world
* We have technical team with more than 15 years’ experience in R & D and design of sanitary stainless steel products
* A complete system of control process to meet customer’s specific needs and applications
* Our management mechanism is one-on-one project for each client
* More stringent process technology team, more skillful technology processing workers
* A full set of non-standard products processing equipment
* We have technical team with more than 15 years’ experience in R & D and design of sanitary stainless steel products
* A complete system of control process to meet customer’s specific needs and applications
* Our management mechanism is one-on-one project for each client
* More stringent process technology team, more skillful technology processing workers
* A full set of non-standard products processing equipment
Certifications
FAQ
Q:What is MQO?
A:No MOQ required for products in stock.Others can be discussed.
A:No MOQ required for products in stock.Others can be discussed.
Q:What is your lead time?
A:7-10 days for standard products.For custom made products lead time to be negotiated.
A:7-10 days for standard products.For custom made products lead time to be negotiated.
Q:How do you ensure to meet our requirement?
A:Yes, we fabricate samples for your approval, and arrange trial order production before mass production.
A:Yes, we fabricate samples for your approval, and arrange trial order production before mass production.
A:We can fabricate non-standard stainless steel valves and fittings as per your drawings. We can also provide technical support in design according to your special requirement.
Похожие товары
IP68 High Quality Customized Iphone EPTFE Acoustic Vent Waterproof Membrane
0,52-1,00 $

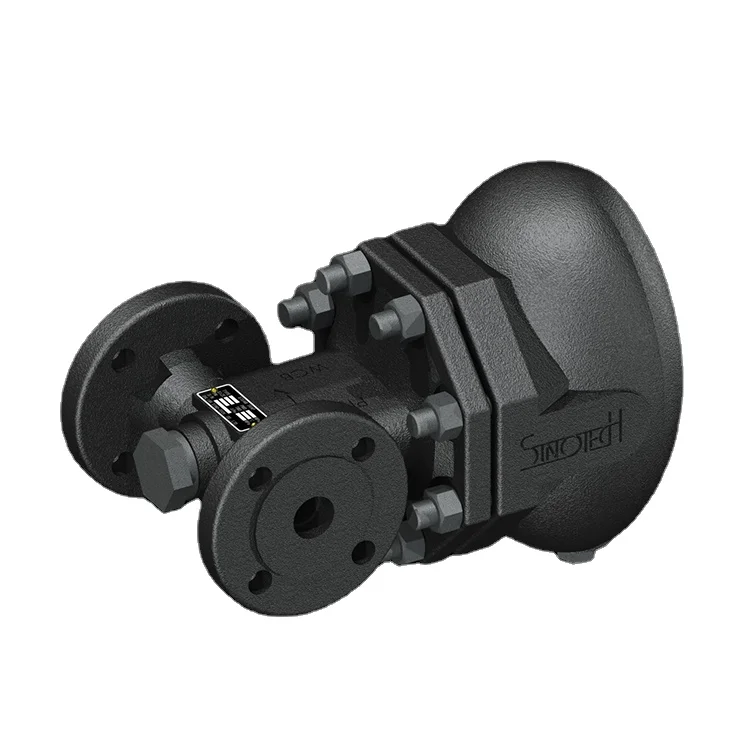

SINOTECH High Pressure PN40 Lever Float Steam Trap HFT-AR
Запасные части для газовой плиты

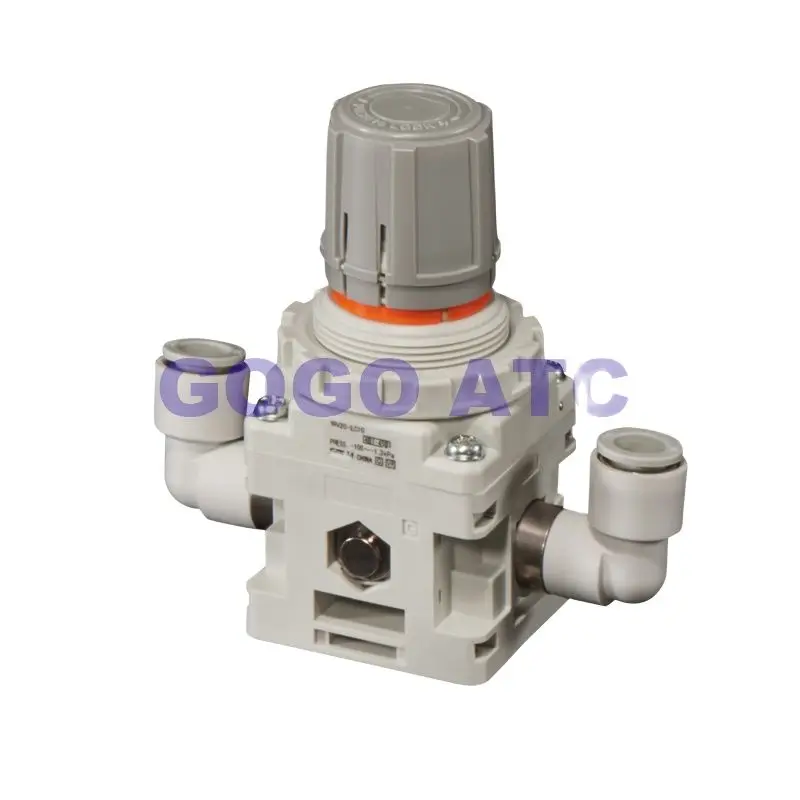

Тип SMC вакуумный отрицательное давление регулятор IRV10-C06 / C08 IRV20-C06/C08/C10/C12 точность редукционный клапан регулятора
Конический ферментер 304/316L
25,80-30,80 $

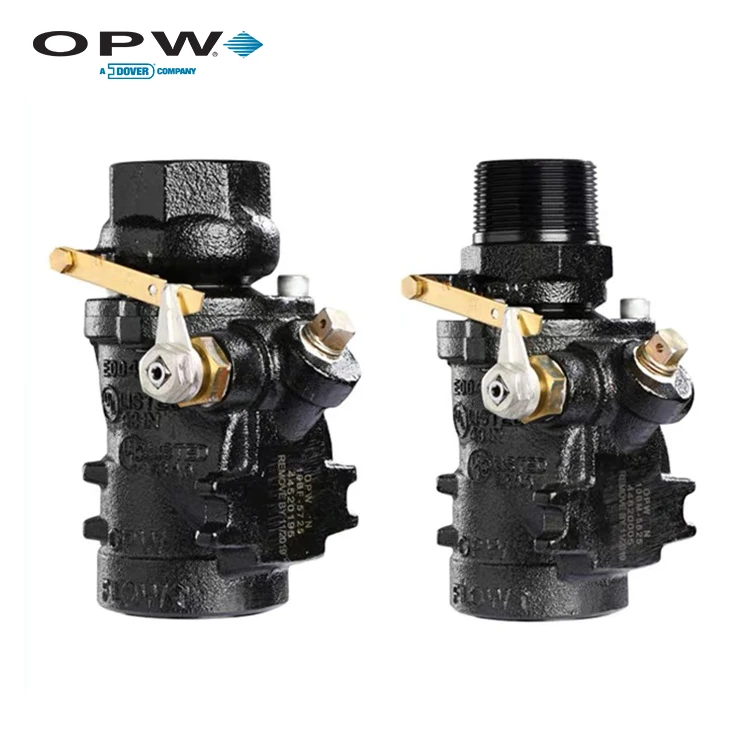

Double-poppet Cast Iron Emergency Cut-off Valves for Fuel Dispenser Equipment
