1000BASE SX SFP 1310 нм 2 км MMF модуль трансивера
- Категория: >>>
- Поставщик: Shen Zhen Fibertop Technology Co. Ltd
Сохранить в закладки 1600950530648:
Описание и отзывы
Характеристики
Automated Production Process
√ 20+ Years Experience as Expert of Optical Transceivers
√ Pursue Excellence,Create Quality
√ Outstanding Product Performance
Product Details
Features
• Support Up to 1.25Gb/s data links
• Up to 2km on 50/125µm MMF
• Compliant with SFP MSA standard
• Compliant with IEEE 802.3z
• Hot-pluggable SFP footprint
• Single 3.3V power supply
• LC Duplex connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free
• Up to 2km on 50/125µm MMF
• Compliant with SFP MSA standard
• Compliant with IEEE 802.3z
• Hot-pluggable SFP footprint
• Single 3.3V power supply
• LC Duplex connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free
Compatibility detection.
Each module is 100% tested on the host equipment of the laboratory to ensure compatibility. The following are some of our network test equipment. With the expansion and combination of products, the equipment will be updated in real time.
Specification | ||||||
Product series | optic fiber transceiver | FIBERTOP Part Number | SFP-MM3124-02DC | |||
Form Factor | SFP | Data Rate | 1.25 Gb/s | |||
Wavelength | 1310nm | Fiber Type | MMF | |||
Max Distance | 2 KM | Optical Components | FP+PIN | |||
Transmitter Power | - 13 ~ - 3 dBm | Extinction ratio | > 9 dB | |||
Receiver Sensitivity | < - 21 dBm | Receiver Overload | > - 1 dBm | |||

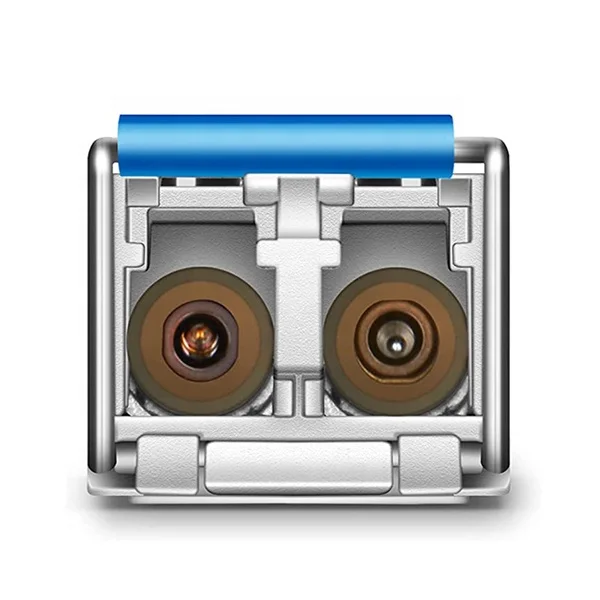

Connector | Double LC | Digital Diagnostic Monitoring | Yes | |||
Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C | Weight | 0.025 kg | |||
Apllication | 1x Fiber Channel, Switch to Switch InterfaceGigabit Ethernet, Switched Backplane Applications Router/Server Interface, Other Optical Links | Compliance | IEC/EN 61000-4-2 IEC-60825 RoHS | |||
For more detailed parameters, please contact us.

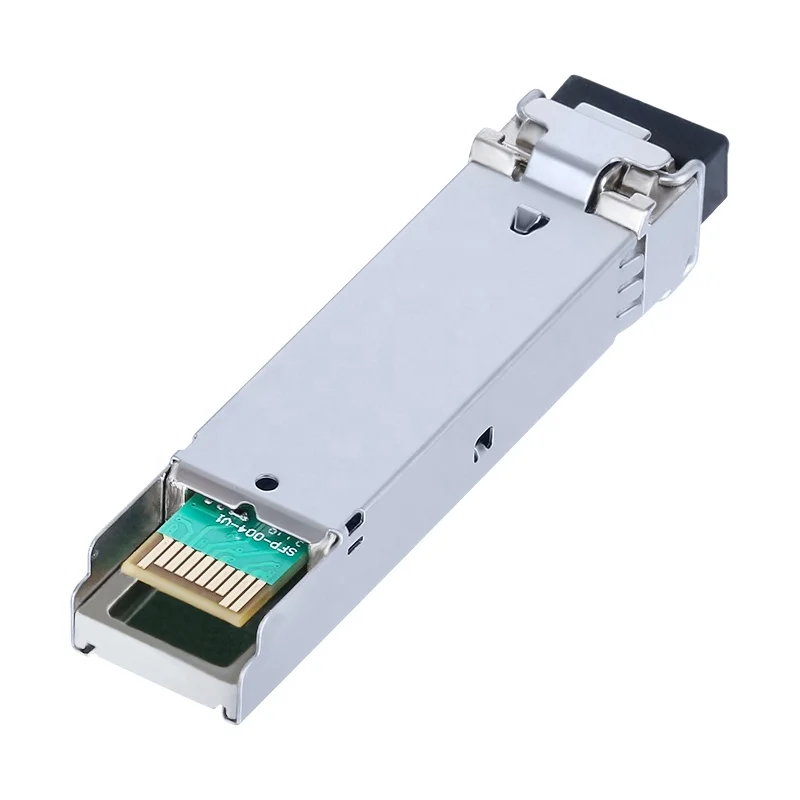

1000BASE-SX SFP Transceiver Module( MMF , 1310nm ,2KM , DDM, Double LC ) Fibertop's SFP-MM3124-02DC is a high performance and cost-effective small form factor pluggable (SFP) transceiver for 1000BASE-SX Gigabit Ethernet and 1G Fiber Channel application. It fully complies with the SFP Multi-Sourcing Agreement (MSA) and can be used on the MSA compliant networking equipment. The 1000BASE-SX SFP transceiver is tested to be compatible with Transition networking equipment including Ethernet Switches, Ethernet Routers, Network Interface Cards (NICs) and Media Converters.The SFP transceiver is an ideal equivalent to Transition TN-SFP-ESX5 1000BASE-SX 1310nm MMF 2km SFP Transceiver but with much lower price, which provides a reliable compatible SFP transceiver solution for system integrator, distributors and end users in network infrastructure and fiber cabling. The SFP transceiver consists of the below sections: the LD driver, the limiting amplifier, the VCSEL laser and the PIN photo-detector. The SFP transceiver module is a Class 1 laser product complies with IEC-60825 standards. |
Ordering information | ||
Part number | Description | |
SFP-MM8524-S5DC | 1.25Gbps SFP MMF 850nm 550M Optical Transceiver double LC 0ºC~+70ºC | |
SFP-MM3124-02DC | 1.25Gbps SFP MMF 1310nm 2KM Optical Transceiver double LC 0ºC~+70ºC | |
SFP-SM3124-10DC | 1.25Gbps SFP SMF 1310nm 10KM Optical Transceiver double LC 0ºC~+70ºC | |
SFP-SM3124-20DC | 1.25Gbps SFP SMF 1310nm 20KM Optical Transceiver double LC 0ºC~+70ºC | |
SFP-SM3124-40DC | 1.25Gbps SFP SMF 1310nm 40KM Optical Transceiver double LC 0ºC~+70ºC | |
SFP-SM5524-40DC | 1.25Gbps SFP SMF 1550nm 40KM Optical Transceiver double LC 0ºC~+70ºC | |
SFP-SM5524-80DC | 1.25Gbps SFP SMF 1550nm 80KM Optical Transceiver double LC 0ºC~+70ºC | |
SFP-SM5524-A2DC | 1.25Gbps SFP SMF 1550nm 120KM Optical Transceiver double LC 0ºC~+70ºC | |
SFP-SM5524-A4DC | 1.25Gbps SFP SMF 1550nm 140KM Optical Transceiver double LC 0ºC~+70ºC | |
Remark | Industrial temperature ：- 40ºC~+85ºC is optional. | |
Quality inspection & Daily shipment
Inventory Status
Click to learn more
Production Process
Production line
Welding
Visual inspection
Assembly
Test
Cleaning
Ageing
Compatibility Test
Packing
Efficiently Supply Chain
High Quality | High Reliability | Win-Win Partnership |
Our Qualifications&Certificates
Completely management system | ISO9001/ISO14001/ISO45001 |
Reliability Product certificate | RoHs/UL/CE/FCC |
Independent R&D Enterprise | 100+ technical patent certificates |
shipping
Our package defaults to single pack and 10 packs, and we support customized package;
Currently we can support DHL , if you need to use other logistics, please contact with us.
Currently we can support DHL , if you need to use other logistics, please contact with us.
FAQ
Q1:Can I have a sample order? What is your MOQ?
Q4:What is operating temperature range of optical modules?
A4:Commercial temperature range(COM) : 0 to 70℃
Extended temperature range(EXT):-20 to 85℃
Industrial temperature range(IND)::-40 to 85℃
A1:Yes, sample order is available for your testing and checking quality. Mixed samples are acceptable, our MOQ is just one piece.
Q2:Do you have customization service?
A2:Yes. You can use your logo,other services please talk with us.
Q3:What is your after-sales service?
A3:All our customers can get three years quality warranty, and lifetime technical support.
A3:All our customers can get three years quality warranty, and lifetime technical support.
Q4:What is operating temperature range of optical modules?
A4:Commercial temperature range(COM) : 0 to 70℃
Extended temperature range(EXT):-20 to 85℃
Industrial temperature range(IND)::-40 to 85℃
