AHD1080P 4CH One SD-карты система для мобильного DVR ЖК-экран MDVR 3G 4G Wi-Fi GPS-трекинг комплект записи грузовика автобуса такси автомобиля
9 983,48 ₽ - 11 092,75 ₽
8 1 канал 1080p школьный автобус CCTV MDVR GPS 4G WIFI камера Система предупреждения о выходе из полосы движения ADAS AI DSM мобильный видеорегистратор для грузовика
- Категория: >>>
- Поставщик: MCY Technology Limited
Сохранить в закладки 1600951292498:
Описание и отзывы
Характеристики
Product Description
Technical Specifications
MAR-HK09A is a 8 +1 channels mobile digital video recorder specially designed for vehicle video surveillance and remote monitoring, with the goal of improving driver and passenger safety. It has a high-speed processor and embedded operating system, combining with the most advanced H.264/H.265 video compression technology, GPS positioning technology, collision avoidance technology, driver behaviors detection technology and etc. The MDVR supports video recording in multiple formats, including 720P, 1080P, D1 and CIF, also recording vehicle tracking information and enabling wireless data uploads. Its modular design offers flexible installation, easy maintenance and high reliability, making it an invaluable asset for your fleet security needs.
● Video Channels: supports 8 channels AHD + 1 channel IPC
● Dual Streams: offer local recording and wireless transmission, providing flexibility in data management
● GPS Tracking: Built-in GPS functionality enables location tracking for your vehicles
● 3G/4G Connectivity: With a built-in 3G/4G module for remotely monitoring the vehicles in real-time
● Internal Wi-Fi: supports convenient downloading of regular video files and alarm files
● Power Loss Protection: built-in power loss protection to prevent video loss during unexpected power interruptions
● Advanced Driver Assistance Systems (ADAS): It includes ADAS features like lane departure warning, pedestrian collision alerts, and front vehicle collision warnings, enhancing driver safety
● Driver Behavior Analysis: Utilizing AI algorithms, it can detect abnormal driver behaviors such as phone usage, yawning, and smoking, and etc.
● Multi Platform Access: PC and mobile applications, providing convenience and flexibility in monitoring
● High-Speed Backup: Supports USB 2.0 high-speed backup for efficient data retrieval and storage
● Data Recovery Technology: Incorporates data recovery technology for added data security and retrieval capabilities
● Audio & Video Synchronization: Ensures synchronized audio and video recording, offering a complete record of events
● Storage Options: Supports up to 2TB SSD/HDD storage and up to 256GB SD card storage
● Shock Absorption Design: Designed with excellent shock absorption features, ensuring durability and reliable performance even in rugged conditions
● Dual Streams: offer local recording and wireless transmission, providing flexibility in data management
● GPS Tracking: Built-in GPS functionality enables location tracking for your vehicles
● 3G/4G Connectivity: With a built-in 3G/4G module for remotely monitoring the vehicles in real-time
● Internal Wi-Fi: supports convenient downloading of regular video files and alarm files
● Power Loss Protection: built-in power loss protection to prevent video loss during unexpected power interruptions
● Advanced Driver Assistance Systems (ADAS): It includes ADAS features like lane departure warning, pedestrian collision alerts, and front vehicle collision warnings, enhancing driver safety
● Driver Behavior Analysis: Utilizing AI algorithms, it can detect abnormal driver behaviors such as phone usage, yawning, and smoking, and etc.
● Multi Platform Access: PC and mobile applications, providing convenience and flexibility in monitoring
● High-Speed Backup: Supports USB 2.0 high-speed backup for efficient data retrieval and storage
● Data Recovery Technology: Incorporates data recovery technology for added data security and retrieval capabilities
● Audio & Video Synchronization: Ensures synchronized audio and video recording, offering a complete record of events
● Storage Options: Supports up to 2TB SSD/HDD storage and up to 256GB SD card storage
● Shock Absorption Design: Designed with excellent shock absorption features, ensuring durability and reliable performance even in rugged conditions
Item | Device parameter | Performance |
System | Operating system | Embedded Linux OS |
Operating language | Chinese/English | |
Operating interface | GUI, support mouse | |
Password security | User password/Admin password | |
Audio & Video | Video standard | PAL/NTSC |
Video compression | H.264 | |
Image resolution | 1080P/720P /960H/D1/CIF | |
Playback quality | 1080P/720P /960H/D1/CIF | |
Compound mode | a variety of ways | |
Decoding ability | 1ch 1080P real time | |
Recording quality | Class 1-6 optional | |
Image display | Single/QUAD display optional | |
Audio Compression | G.726 | |
Audio recording | Audio & Video synchronized recording | |
Recording & Playback | Recording mode | Manual/Alarm |
Video bit rate | Full frame 4096Mbps，6 classes image quality optional | |
Audio bit rate | 8KB/s | |
Storage media | SD card + HDD/SSD storage | |
Video inquiry | Inquiry by channel/Recording type | |
Local playback | Playback by file | |
Firmware upgrading | Upgrading mode | Manual/Automatical/Remote/Emergency Recovery |
Upgrading method | USB disk/Wireless network/SD card | |

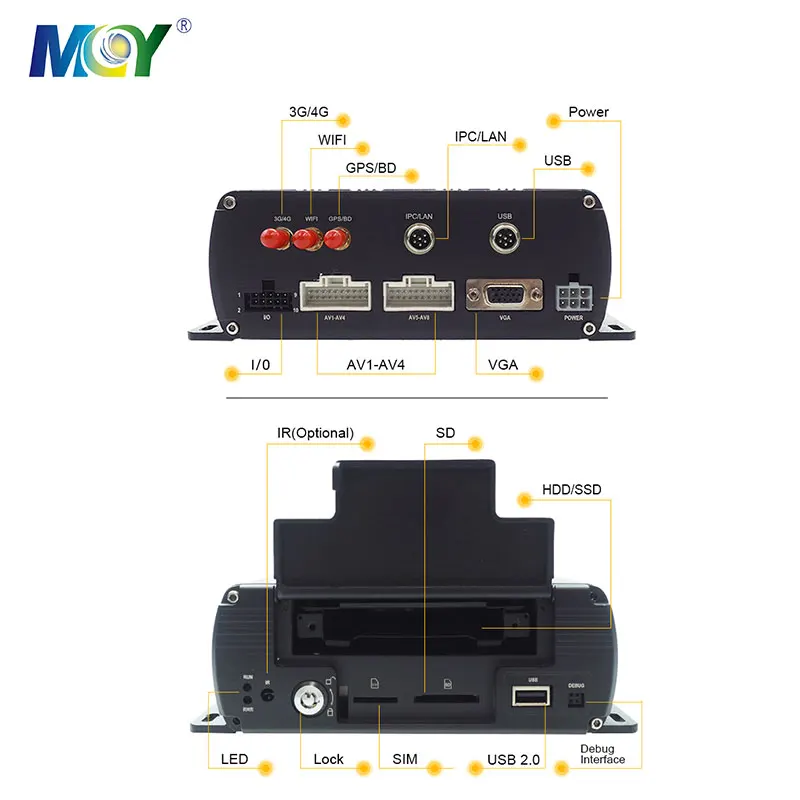

Interface | AV input | 8ch aviation interface |
AV output | 1ch VGA video output, 1ch aviation AV output | |
Alarm input | 4 digital inputs (4 Positive/Negative trigger) | |
HDD/SSD | 1 HDD/SSD (up to 2TB, support hot plug/unplug) | |
SD card | 1 SDXC High speed card (up to 256GB) | |
USB interface | 1 USB 2.0 (support U disk/mouse) | |
Ignition input | 1 ACC signal | |
UART | 1 LVTTL Level | |
LED Indication | PWR/RUN | |
Disk lock | 1 | |
Debug port | 1 | |
Function extention | GPS/BD | Support detecting antenna Plug in/Unplug/Short circuit |
3G/4G | Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE | |
WIFI | 802.11b/g/n, 2.4GHz | |
Others | Power input | 9~36V DC |
Power output | 5V 300mA | |
Power consumption | Standby 3mA Maximum consumption 18W @12V 1.5A @24V 0.75A | |
Working temperature | -20 --- 70℃ | |

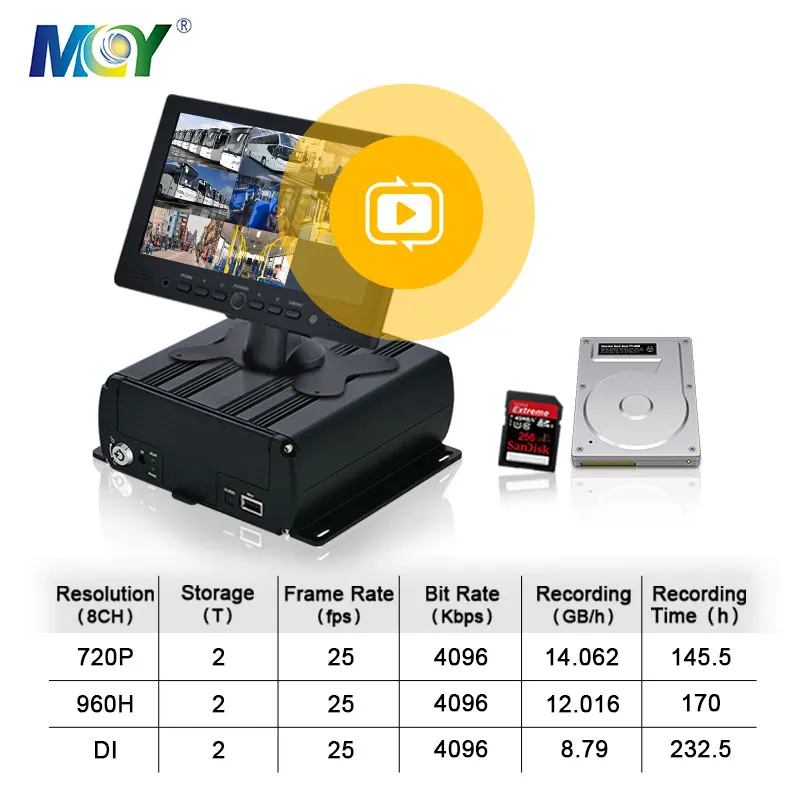

Storage | 1080N 1.2G/h/channel 720P 1G/h/channel 960H 750M/h/channel | |
Dimension | 162mm*153mm*52mm |

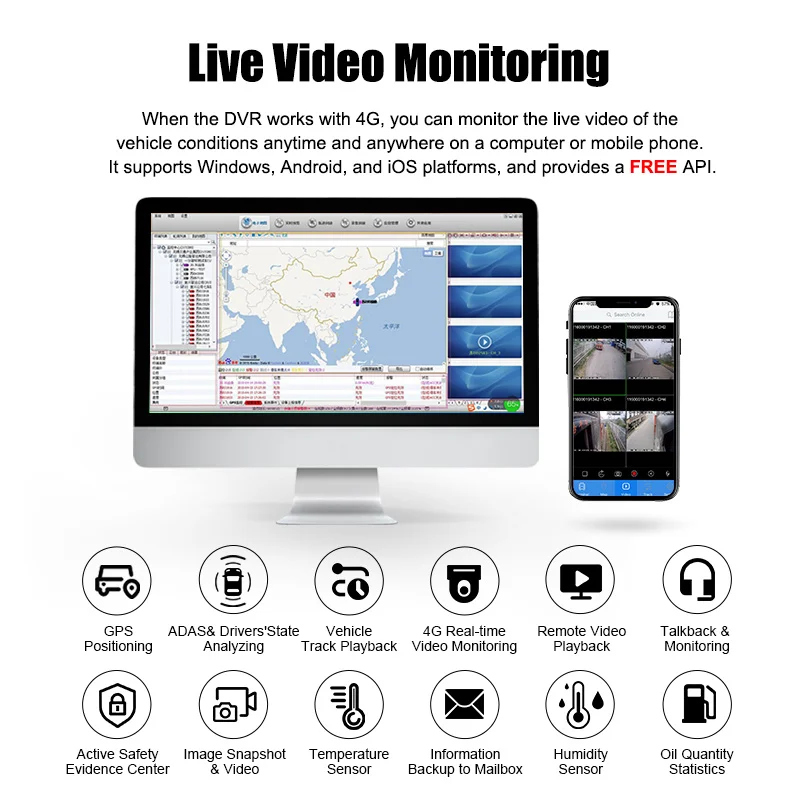

4G Real Time Remote View
While vehicles are in motion, our mobile DVR enables real-time remote monitoring with its 4G LTE capability. We offer a FREE mobile app and PC client for convenient real-time remote viewing and video playback.
GPS Positioning
Our system allows for remote recording and viewing of vehicle speed and location and provides a detailed record of the route the vehicle has driven.

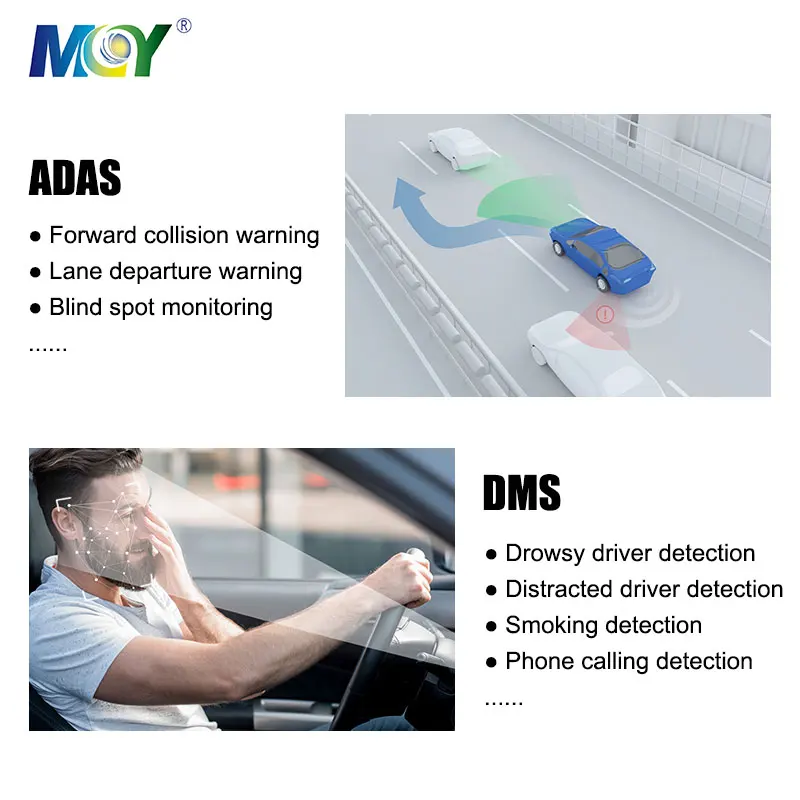

ADAS & DMS
Advanced Driver Assistance Systems (ADAS): It includes ADAS features like lane departure warning, pedestrian collision alerts, and front vehicle collision warnings, enhancing driver safety
Driver Behavior Analysis: Utilizing AI algorithms, it can detect abnormal driver behaviors such as phone usage, yawning, and smoking, and etc.
Driver Behavior Analysis: Utilizing AI algorithms, it can detect abnormal driver behaviors such as phone usage, yawning, and smoking, and etc.
Fuel Level Sensor (optional)
This system utilizes an ultrasonic probe to accurately detect the fuel level height. The built-in program in the controller's box smartly processes the height signals of fuel quantity. Subsequently, the Mobile DVR sends the fuel height data to the platform for analysis and generates a comprehensive fuel quantity report.

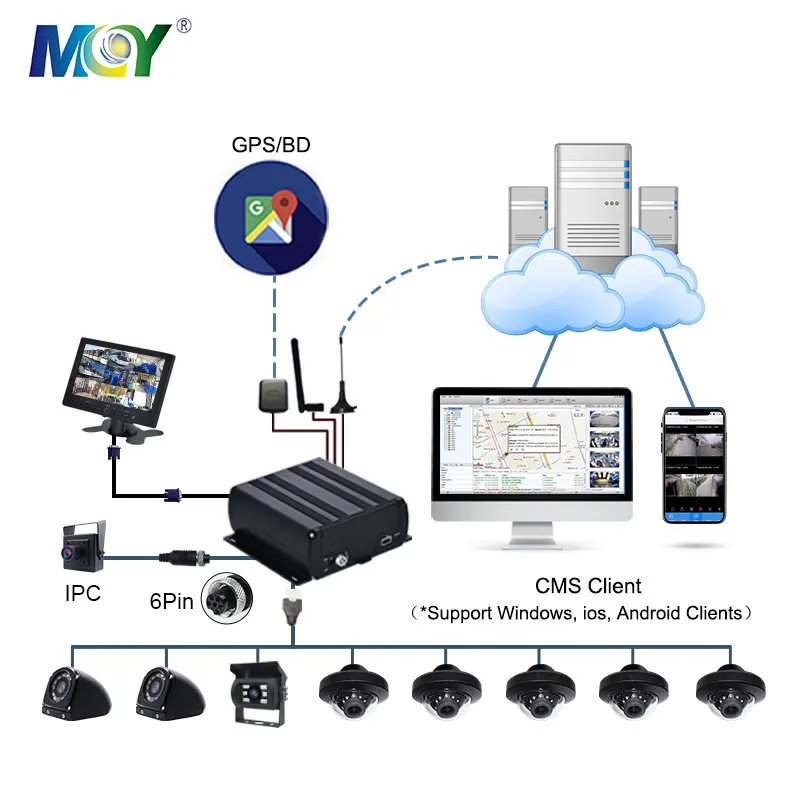

4CH AHD/ 4CH AHD+1CH IPC/8CH AHD/8CH AHD+1CH IPC DVR Vehcle Solution
Our MDVR offers flexible video input configurations (4CH AHD/ 4CH AHD+1CH IPC/8CH AHD/8CH AHD+1CH IPC), providing versatile surveillance solutions. It is widely utilized for vehicle monitoring in various settings such as buses, taxis, school buses, trucks, coaches, tanker trucks, vans, and more. If you have any questions or require further assistance, please don't hesitate to send us an inquiry!
Contact Us For More Detailed Information
Company Introduction
MAIN PRODUCT SERIES
QUALITY CONTROL
All new products request a series of reliable performance tests from raw material to finished product before mass production.
CERTIFICATIONS
MCY has passed IATF16949:2016 quality management system. Design patents of camera, monitor, DVR have been obtained and most of products has certified with CE, UKCA, FCC, E-mark, R118, R46, R10, CE-RED, RoHS, IP69K certificate for compliance with international standards.
EXHIBITIONS
SUCCESSFUL CASES
FAQ
Q1. What is your terms of packing?
Re: Packing goods in neutral white boxes and brown cartons. We can do OEM package for you. Welcome send your requirements in detail, we can design the package for you.
Q2. How about your lead time?
Re: 5 to 21 working days upon receipt of your payment. The specific lead time depends on the items and the quantity of your order.
Q3. What is your sample policy?
Re: We offer samples (no MOQ requirements for regular products), with sample costs, shipping and taxes paid by the buyer.
Q4. What is your payment terms?
Re: T/T(Bank transfer), PayPal, Western Union.
Q5. How to get the best price?
Re: The order price can be negotiated. We will quote the latest best price according to your final purchase list. SEND INQUIRY and talk in detail.
Re: Packing goods in neutral white boxes and brown cartons. We can do OEM package for you. Welcome send your requirements in detail, we can design the package for you.
Q2. How about your lead time?
Re: 5 to 21 working days upon receipt of your payment. The specific lead time depends on the items and the quantity of your order.
Q3. What is your sample policy?
Re: We offer samples (no MOQ requirements for regular products), with sample costs, shipping and taxes paid by the buyer.
Q4. What is your payment terms?
Re: T/T(Bank transfer), PayPal, Western Union.
Q5. How to get the best price?
Re: The order price can be negotiated. We will quote the latest best price according to your final purchase list. SEND INQUIRY and talk in detail.
If anything else you want to know, please send your message to us in below !
More information about us, please click here!
More information about us, please click here!
Похожие товары
Лидер продаж Автомобильный видеорегистратор 150 градусов широкий 9 дюймов Full Hd 1080p автомобильный черный ящик 2k +
4 183,08 ₽ - 4 373,88 ₽
Оригинальный Автомобильный видеорегистратор Xiaomi 70 Mai 1S 1080P Full HD 70mai с обзором на 130 градусов
3 216,90 ₽ - 3 327,83 ₽
Автомобильный Лазерный Радар-детектор 2 31 дюйма 1080P 170 градусов
7 210,29 ₽
Автомобильный видеорегистратор Topnavi 11 66 дюймов
7 099,36 ₽ - 7 654,00 ₽
V3 автомобильный Автомобильный радар-детектор 360 светодиодный дисплей скорости Поддержка русского и английского для обнаружения движения потока
876,33 ₽ - 976,17 ₽
Автомобильный видеорегистратор
3 660,61 ₽ - 3 882,47 ₽

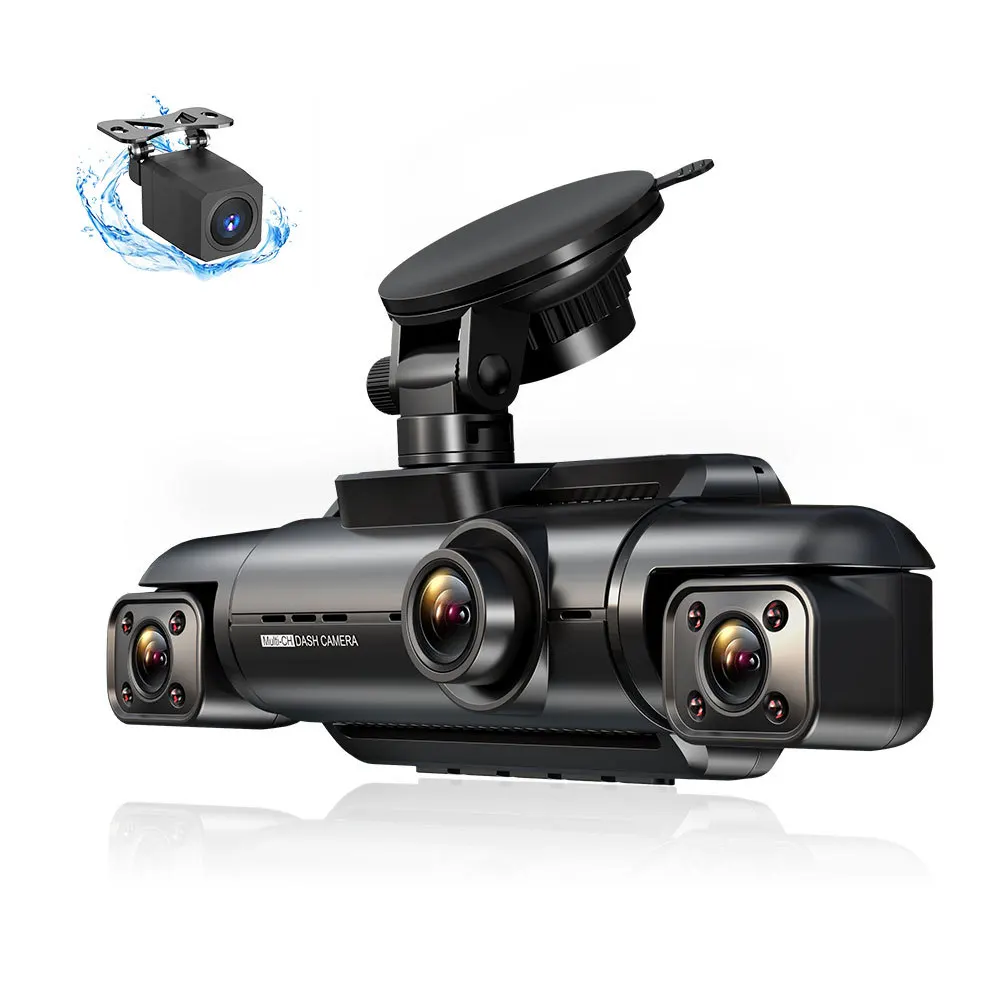

360 градусов Full HD 1080P DVR ночная версия камеры видеорегистратор с 4-канальным передним и задним видеорегистратором
