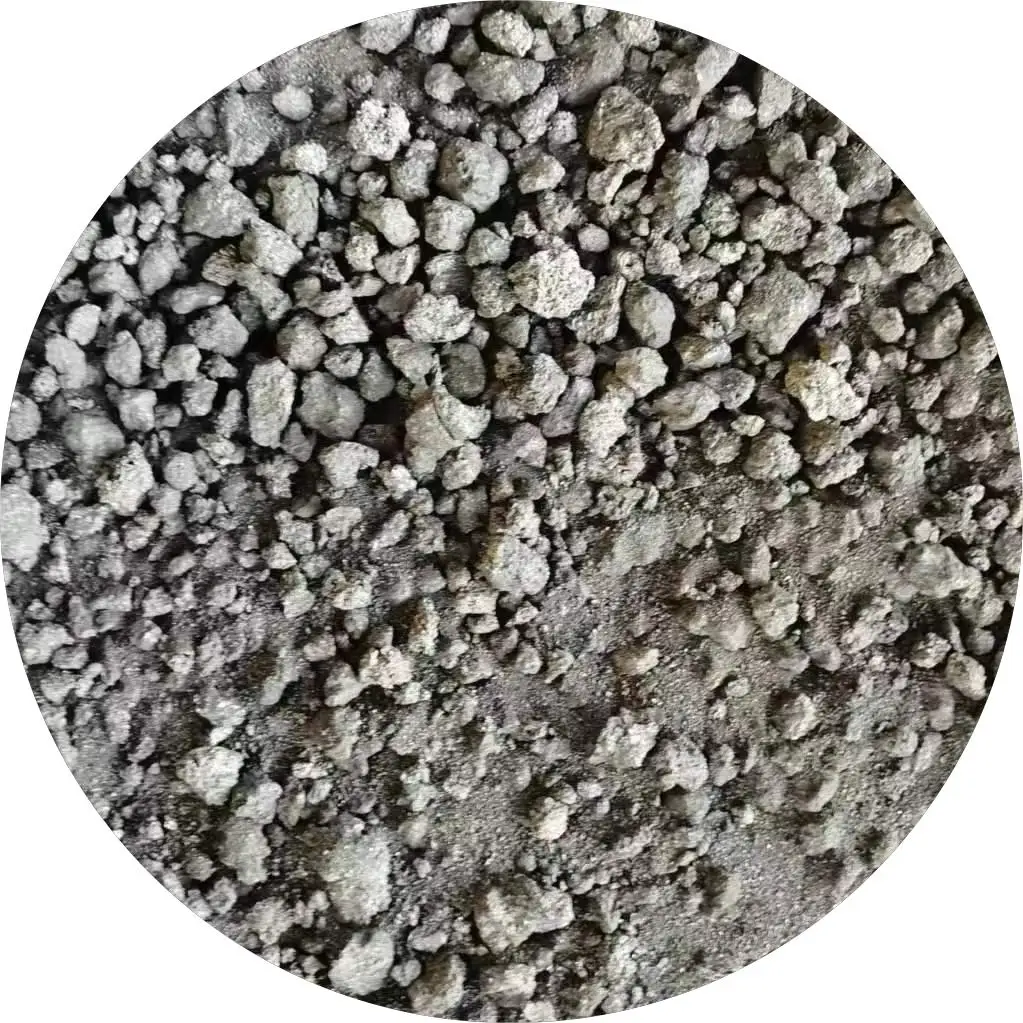

Прямая поставка с завода угольного Смоляного кокса
947,52 $ - 954,81 $
Полиэтиленовый рулонный скатерть
- Категория: >>>
- Поставщик: Wenzhou Mude Machinery Co. Ltd.
Сохранить в закладки 1600955146652:
Описание и отзывы
Характеристики
Product Description
Main parameter:

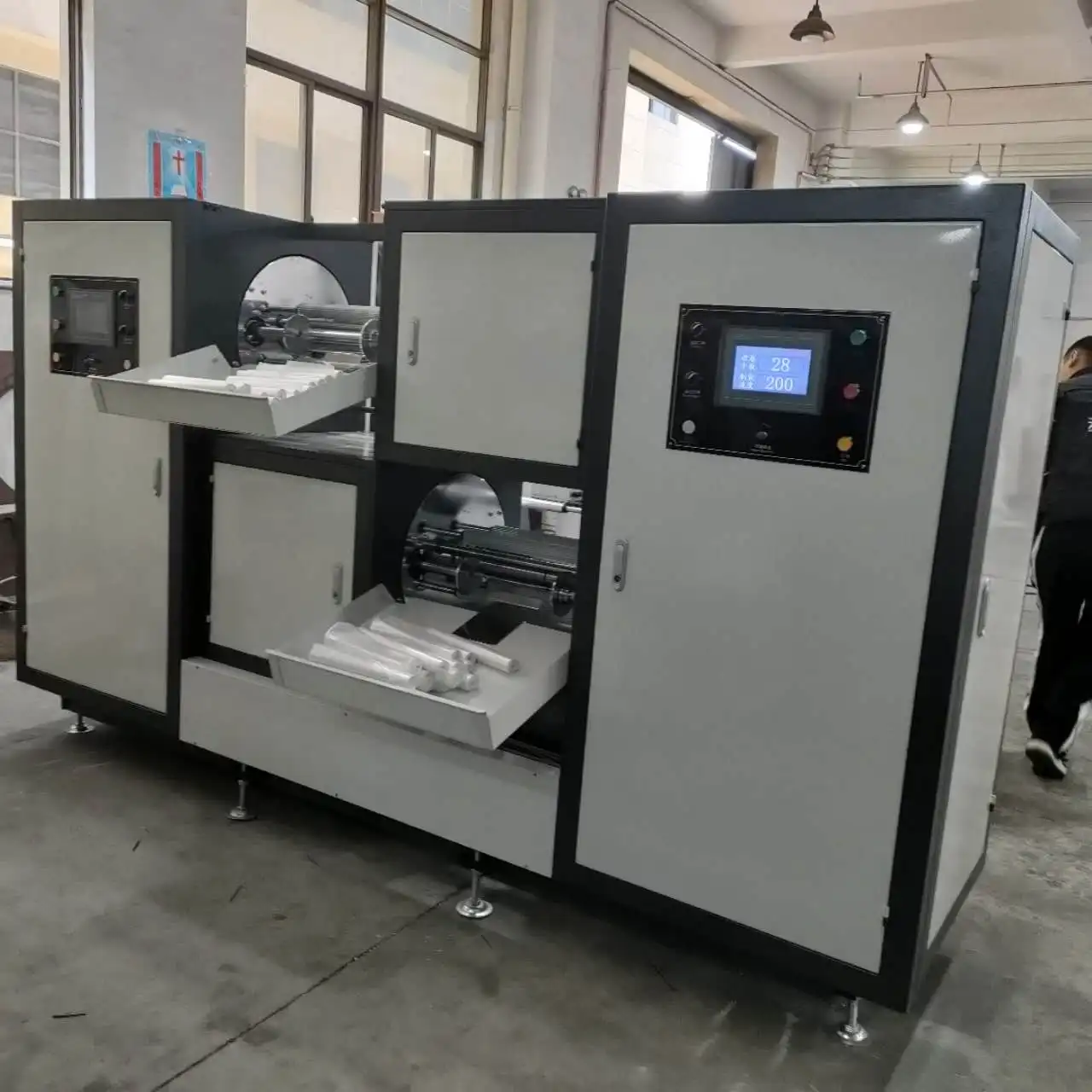

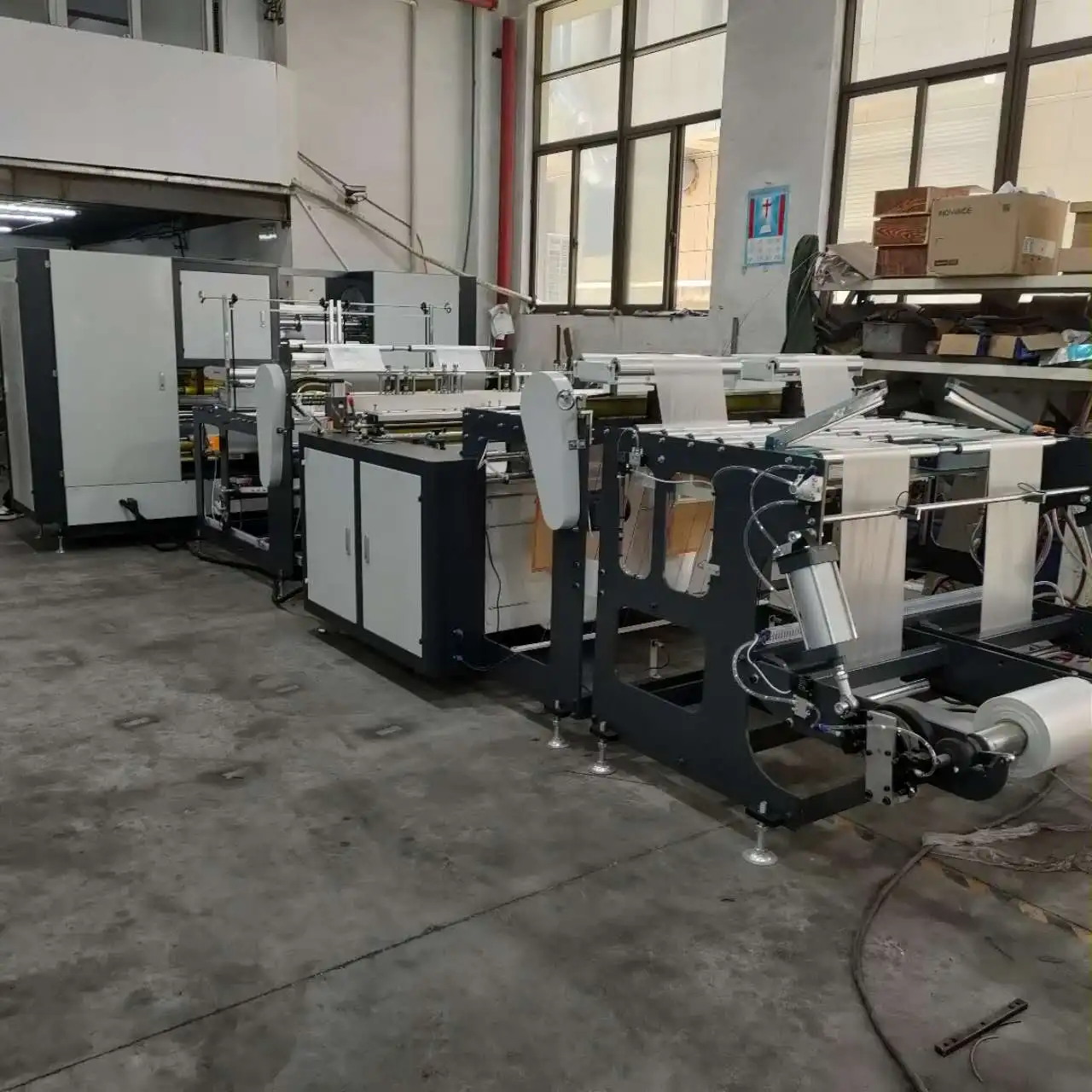

Full automatic double line high speed continuous roll bag making machine
Items | Parameter |
Bag making width | 80-400mm |
Bag making length | 100-1200mm |
Bag making speed | 60-280pcs/min*2 |
Max line speed of film | 120m/min |
Bag making thickness | 0.005-0.015mm |
Bag making methods | Rolling star sealing flat bag |
Roll Plastic garbage bag making machine

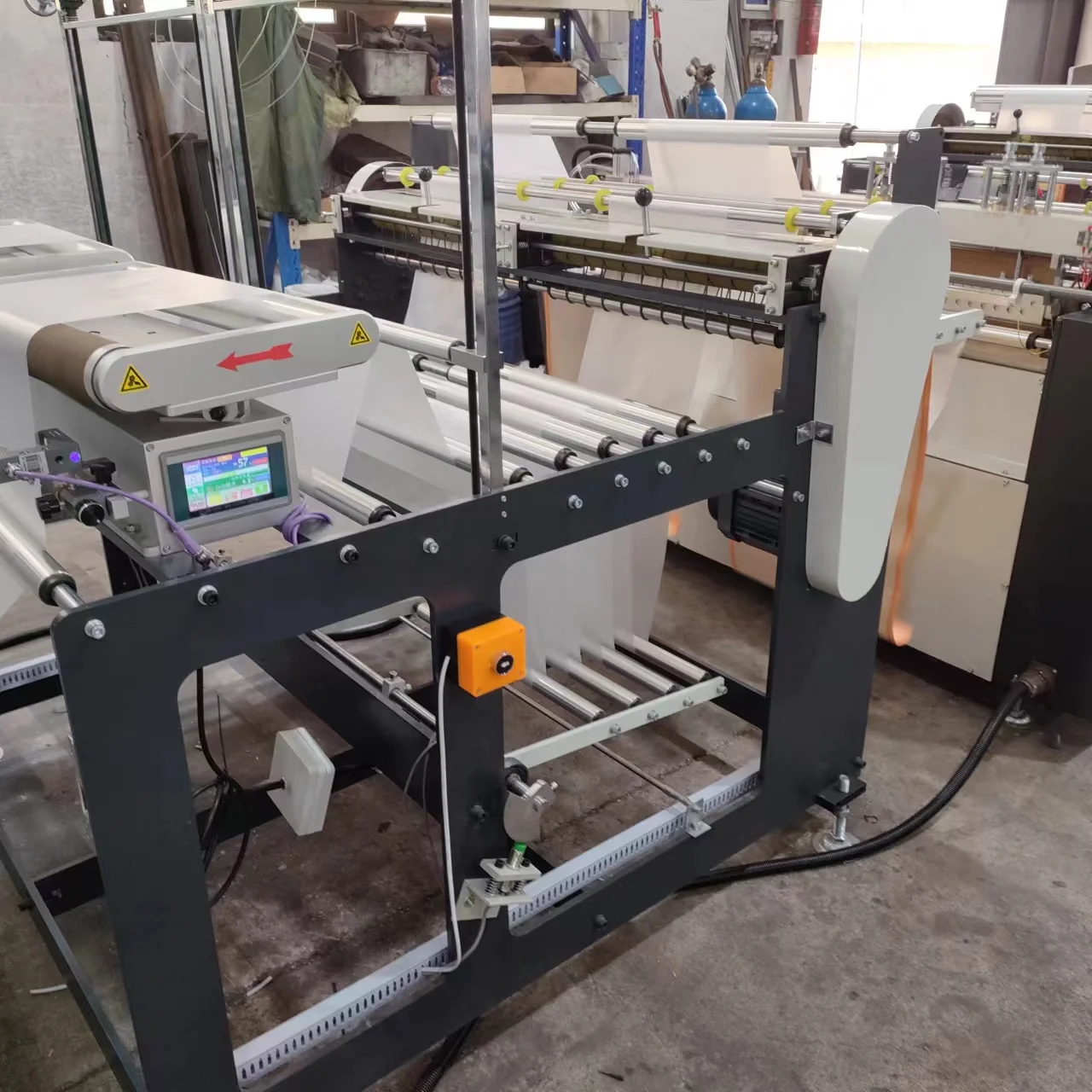

Discharging part:
1. Pneumatic feeding
2. Automatic constant tension
3. Discharge magnetic particle tension
4. Automatic edge correction for discharging (edge correction stroke: plus or minus 7cm)
5. Discharge coil diameter: 600mm (customizable)
Traction part:
1. Overlap of elevated breach
2. Upper and lower double swing arms
3. Rubber roller belt reduction motor
Threading part:
1. Automatic threading
2. Rope requirements: (5cm single piece material or 2.5cm double folded material, one rope and bag making material)
1. Pneumatic feeding
2. Automatic constant tension
3. Discharge magnetic particle tension
4. Automatic edge correction for discharging (edge correction stroke: plus or minus 7cm)
5. Discharge coil diameter: 600mm (customizable)
Traction part:
1. Overlap of elevated breach
2. Upper and lower double swing arms
3. Rubber roller belt reduction motor
Threading part:
1. Automatic threading
2. Rope requirements: (5cm single piece material or 2.5cm double folded material, one rope and bag making material)
3. Belt brake
4. Material cut-off shutdown
5. Photoelectric start stop
6. With cutter
7. Threading motor: 1:7.5 reduction motor

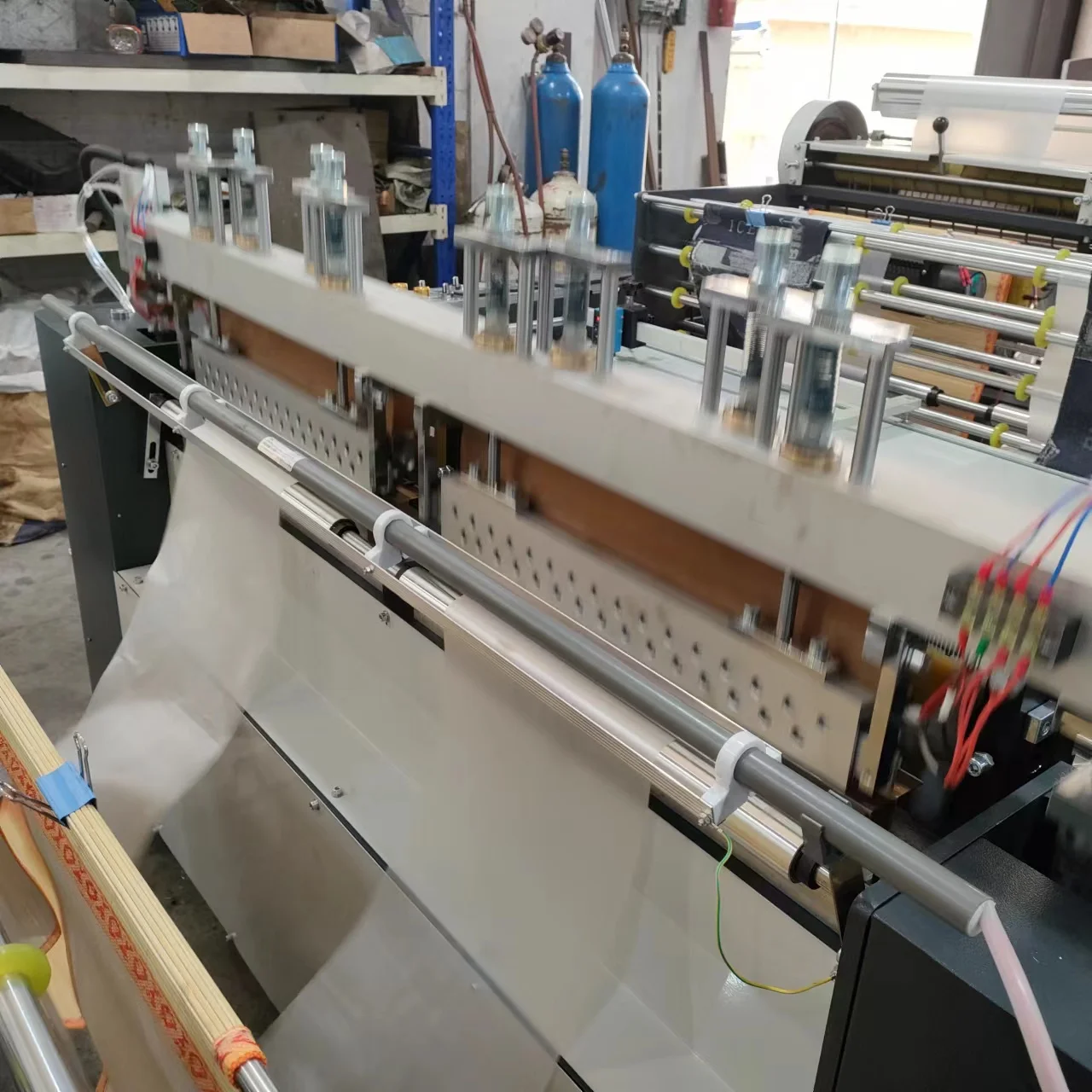

Cross ironing part:
1. 2 hot knives forged with fine brass
2. Upper and lower separation ironing
3. Operation mode: Mechanical
Longitudinal ironing part:
1. Hot knife fine brass forging
2. Toothed cutter with point
3. Belt strengthening ironing
4. Operation mode: mechanical + pneumatic
Half fold:
1. Double fold
2. Electric fine adjustment
3. Variable frequency speed regulation
4. With reduction motor
5. With independent swing arm

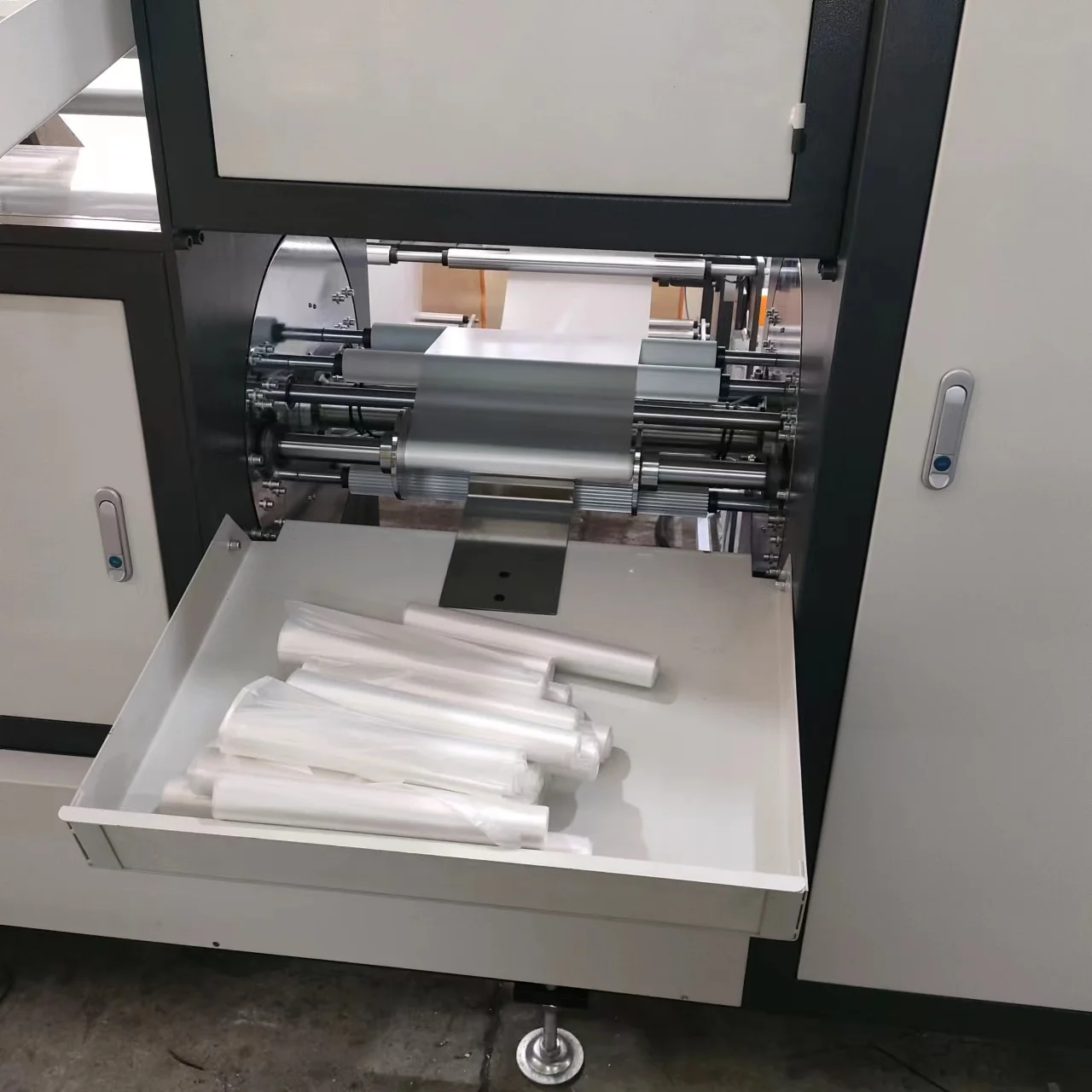

Roll change part: manual roll change / automatic roll change
1. Manual roll change / automatic roll change
2. Pneumatic unwinding
3. Winding motor: 1:7.5 reduction motor / servo motor
4. Material cut-off shutdown
5. Photoelectric start stop
6. With cutter
7. Threading motor: 1:7.5 reduction motor
Cross ironing part:
1. 2 hot knives forged with fine brass
2. Upper and lower separation ironing
3. Operation mode: Mechanical
Longitudinal ironing part:
1. Hot knife fine brass forging
2. Toothed cutter with point
3. Belt strengthening ironing
4. Operation mode: mechanical + pneumatic
Half fold:
1. Double fold
2. Electric fine adjustment
3. Variable frequency speed regulation
4. With reduction motor
5. With independent swing arm
Roll change part: manual roll change / automatic roll change
1. Manual roll change / automatic roll change
2. Pneumatic unwinding
3. Winding motor: 1:7.5 reduction motor / servo motor
Performance and features:
Performance and features:
1. The rope threading garbage bag making machine is manufactured by our company with advanced technology at home and abroad.
2. Computer controlled stepping motor structure is adopted.
3. It has photoelectric automatic tracking, white bag and color bag conversion function, microcomputer fixed length, automatic counting, arrival alarm and automatic temperature control.
4. It has automatic cutting, air hole, half round hole, belt threading, belt displacement, side sealing, bottom sealing, point breaking, folding, coiling and sub coiling mechanical devices.
5. The sealing is synchronized with point breaking, and the back cover is firm and beautiful.
6. The machine can process continuous rolling, wear garbage bags and continuous rolling flat bags.
7. The whole machine adopts a one-stop production line with high degree of automation. It is an ideal equipment for making wearing garbage bags and an advanced equipment to replace imported similar products
1. The rope threading garbage bag making machine is manufactured by our company with advanced technology at home and abroad.
2. Computer controlled stepping motor structure is adopted.
3. It has photoelectric automatic tracking, white bag and color bag conversion function, microcomputer fixed length, automatic counting, arrival alarm and automatic temperature control.
4. It has automatic cutting, air hole, half round hole, belt threading, belt displacement, side sealing, bottom sealing, point breaking, folding, coiling and sub coiling mechanical devices.
5. The sealing is synchronized with point breaking, and the back cover is firm and beautiful.
6. The machine can process continuous rolling, wear garbage bags and continuous rolling flat bags.
7. The whole machine adopts a one-stop production line with high degree of automation. It is an ideal equipment for making wearing garbage bags and an advanced equipment to replace imported similar products
Company Profile
Company profile
reliable professional ability to meet your more needs
Wenzhou mude Machinery Co., Ltd. is located in Ruian City, Wenzhou, Zhejiang Province, China. There is a large-scale production base in China with products all over the world. The vast sales network and information sources provide a good service platform for our innovation and development. It mainly sells complete sets of flexible
packaging equipment: film blowing machine, printing machine, slitting machine, bag making machine, computer cross cutting machine, packaging machine and other series, with more than 100 kinds of products for your reference and selection, which can meet your requirements on product quality, output and so on. The products are mainly used for plastic film bag making such as OPP, PP, PVC, PE, POF and degradable film, film, non-woven fabric, web paper bag making and slitting rewinder, and are widely used in the packaging production of clothing, stationery, hardware and other products. Our machinery and equipment are exported to Eastern Europe, North America, South America, Southeast Asia and other regions and countries.
Sample Room
Production Process
Exhibition
Certifications
Packing & Delivery
FAQ
Q: Are you a factory or trading company?
A:We are a factory
Q:How long is the warranty period?
A: All of our products have one year warranty
Q: What’s the main market of your company?
A: We have customers all over the world
Q:What’s your delivery time and payment Terms?
A:Normally,it need about 10-30 days.The exact time depends on your quantity.The payment terms always 30% deposits,70% to be paid before shipment.
Q: Can we visit your machine operation in your factory?
A: Welcome to you go to our factory to see the machine operation.
Q: Where’s your factory located? How can we visit there?
A: We are in Zhixin industry Zone, Ruian City,Zhejiang province,China.
You can by air to Wenzhou airport and by High-speed train to Rui’an Station
A:We are a factory
Q:How long is the warranty period?
A: All of our products have one year warranty
Q: What’s the main market of your company?
A: We have customers all over the world
Q:What’s your delivery time and payment Terms?
A:Normally,it need about 10-30 days.The exact time depends on your quantity.The payment terms always 30% deposits,70% to be paid before shipment.
Q: Can we visit your machine operation in your factory?
A: Welcome to you go to our factory to see the machine operation.
Q: Where’s your factory located? How can we visit there?
A: We are in Zhixin industry Zone, Ruian City,Zhejiang province,China.
You can by air to Wenzhou airport and by High-speed train to Rui’an Station
Похожие товары

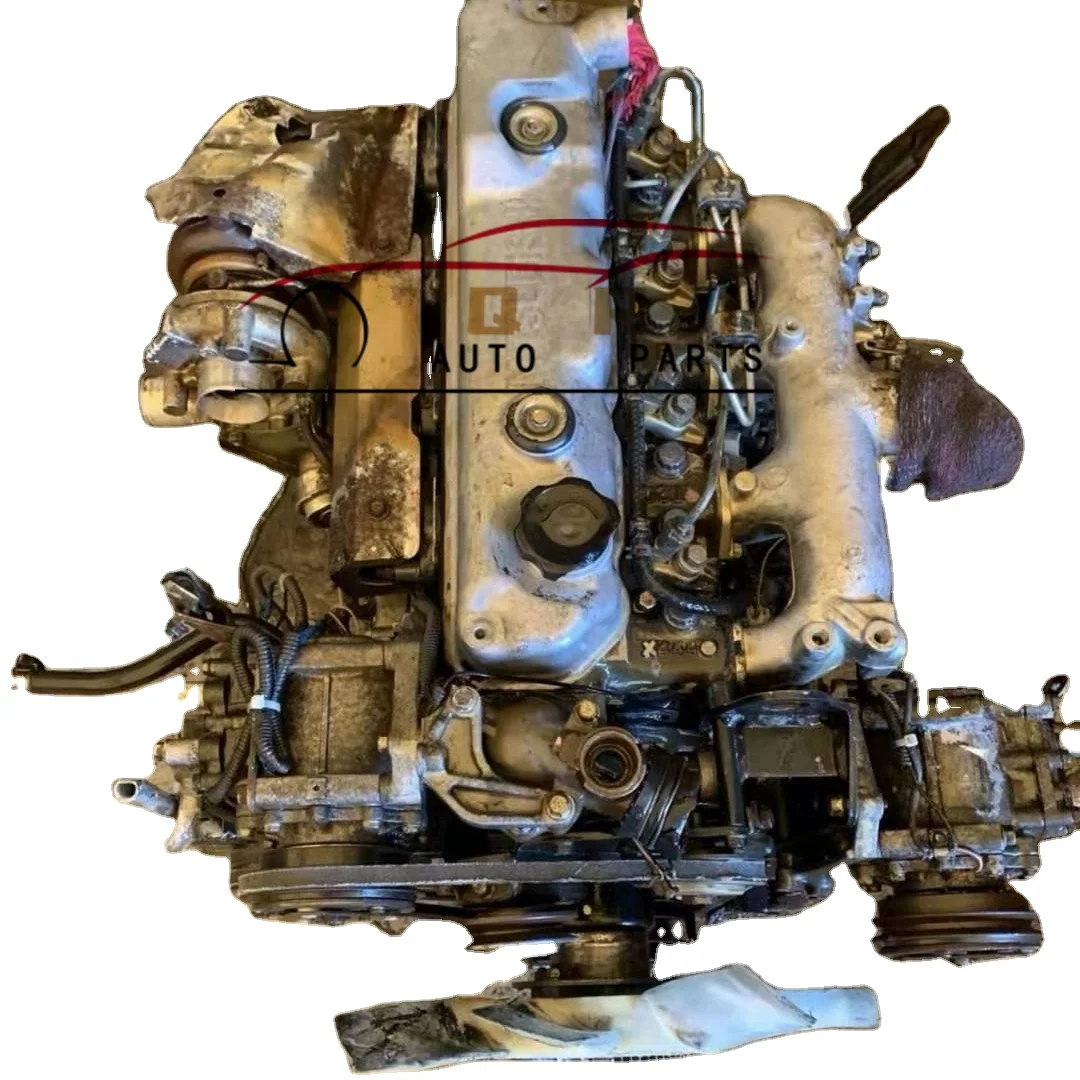

FOMI 4D34 двигатель 4D35 дизельный экскаватор 4D30 4D32 4D33 в сборе для
950,00 $ - 1 000,00 $

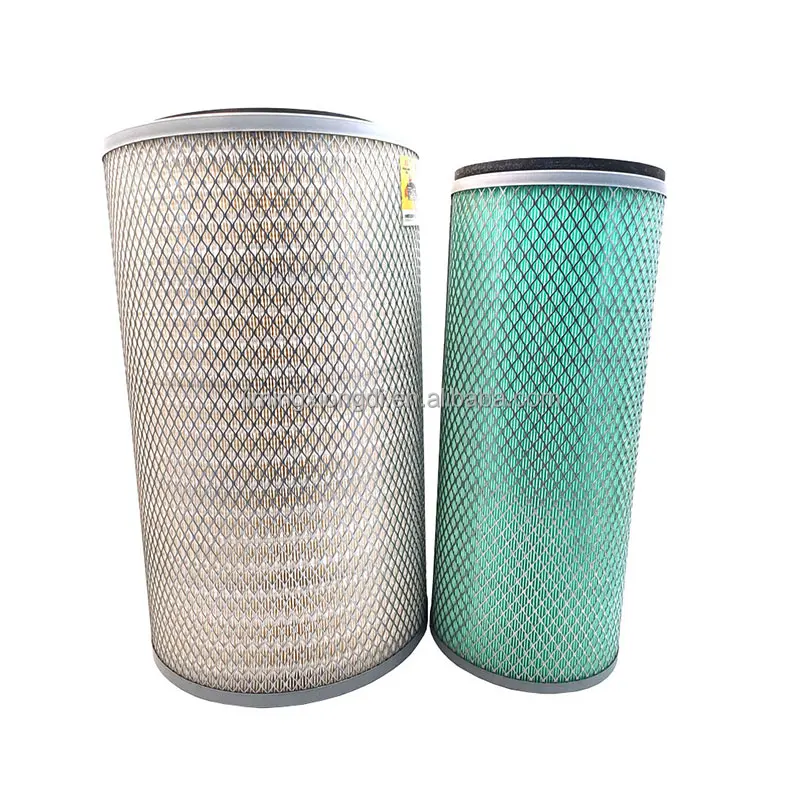

Китайский производитель, прямые поставки, воздушный фильтр двигателя K3250 для грузовика
11,60 $ - 12,50 $
Оптовая продажа, натуральный полированный гравий, кварц, необработанный драгоценный камень, розовый кристалл, гравий
10,00 $ - 18,00 $

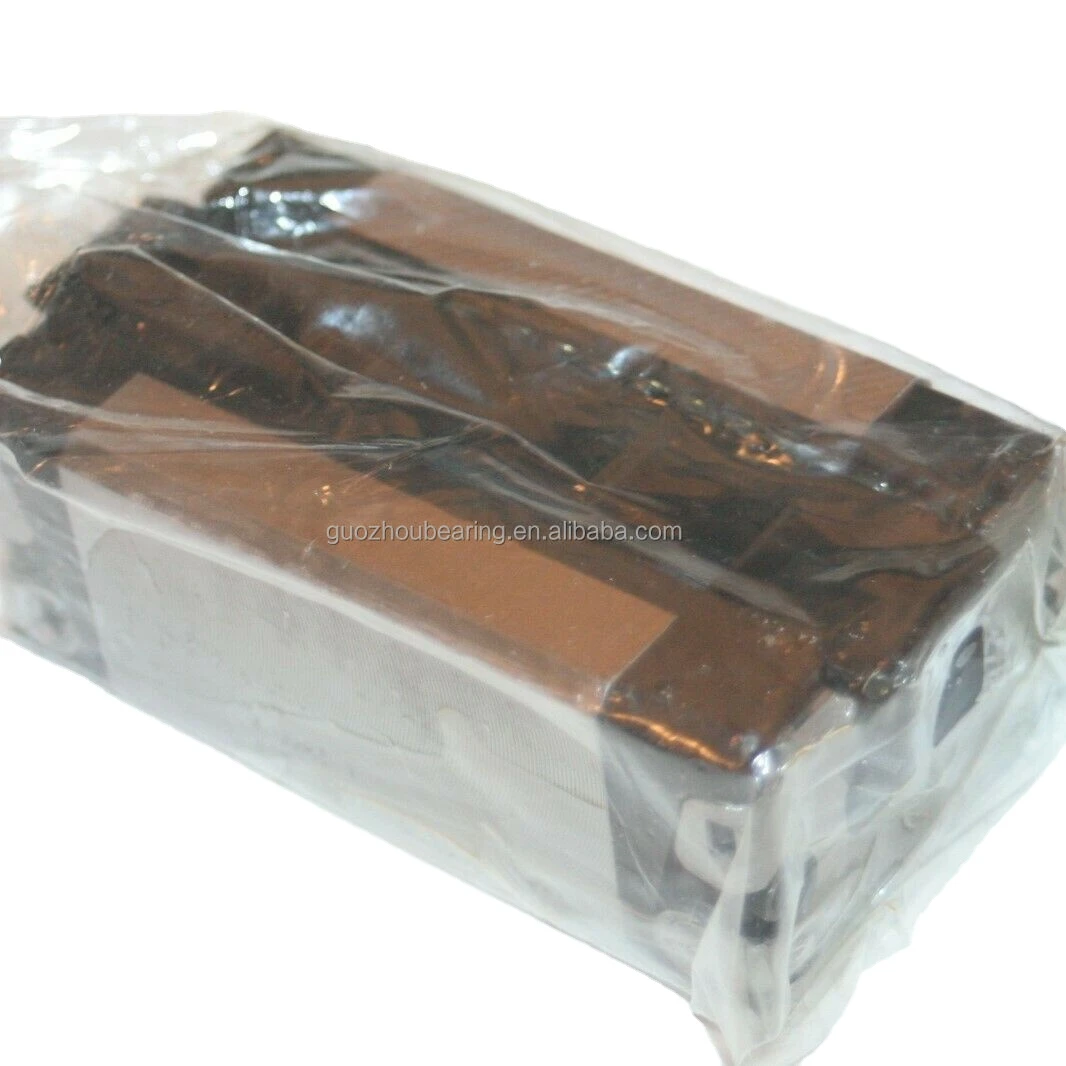

Rexroth линейная направляющая скольжения подшипник движения R162229420 R 162229420

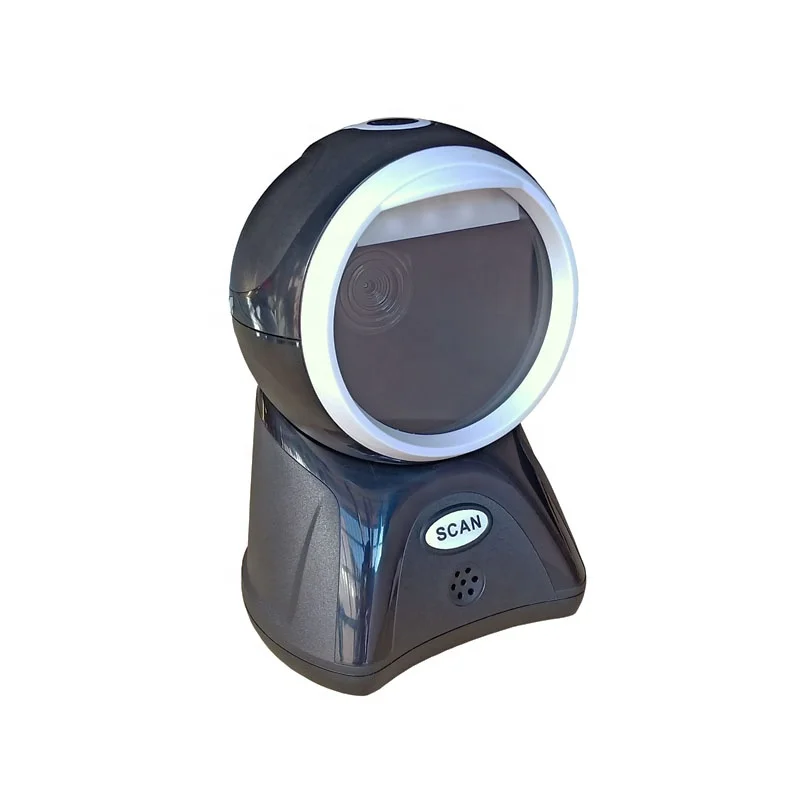

Всенаправленный орбитальный USB RS232 1D 2D QR-код Настольный ручной сканер для считывания штрих-кодов для супермаркетов POS
35,00 $ - 42,00 $
Робот-собака PuppyPi Hiwonder ROS с искусственным интеллектом, работающая от Raspberry Pi, с поддержкой Lidar SLAM map и навигации

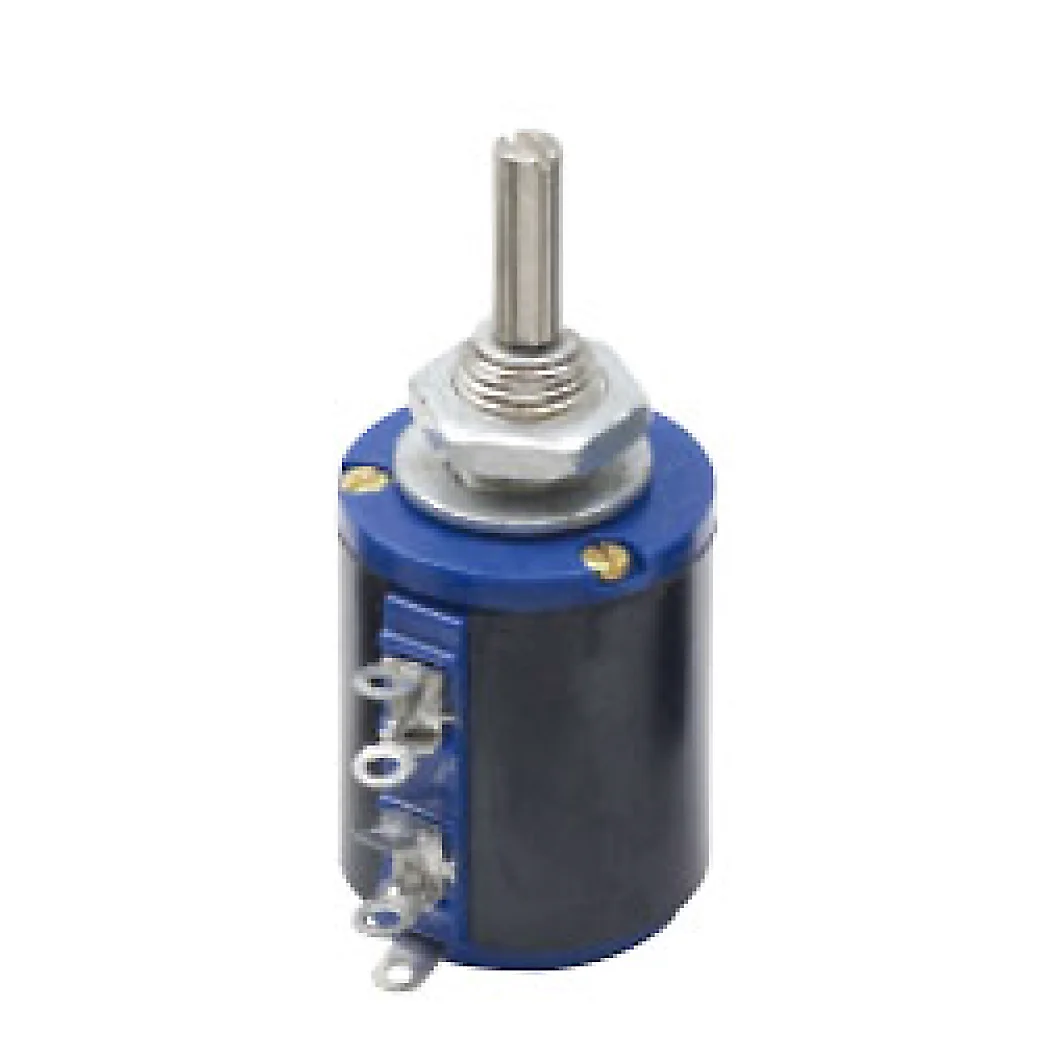

WXD3-12-1W Высокоточный Регулируемый многоходовой потенциометр с плотной регулировкой поворотный потенциометр
