Промышленный водяной насос с воздушным охлаждением 15HP Водяной охладитель воды
- Категория: >>>
- Поставщик: Jinan Mgreenbelt Machinery Co. Ltd.
Сохранить в закладки 1600955218045:
Описание и отзывы
Характеристики

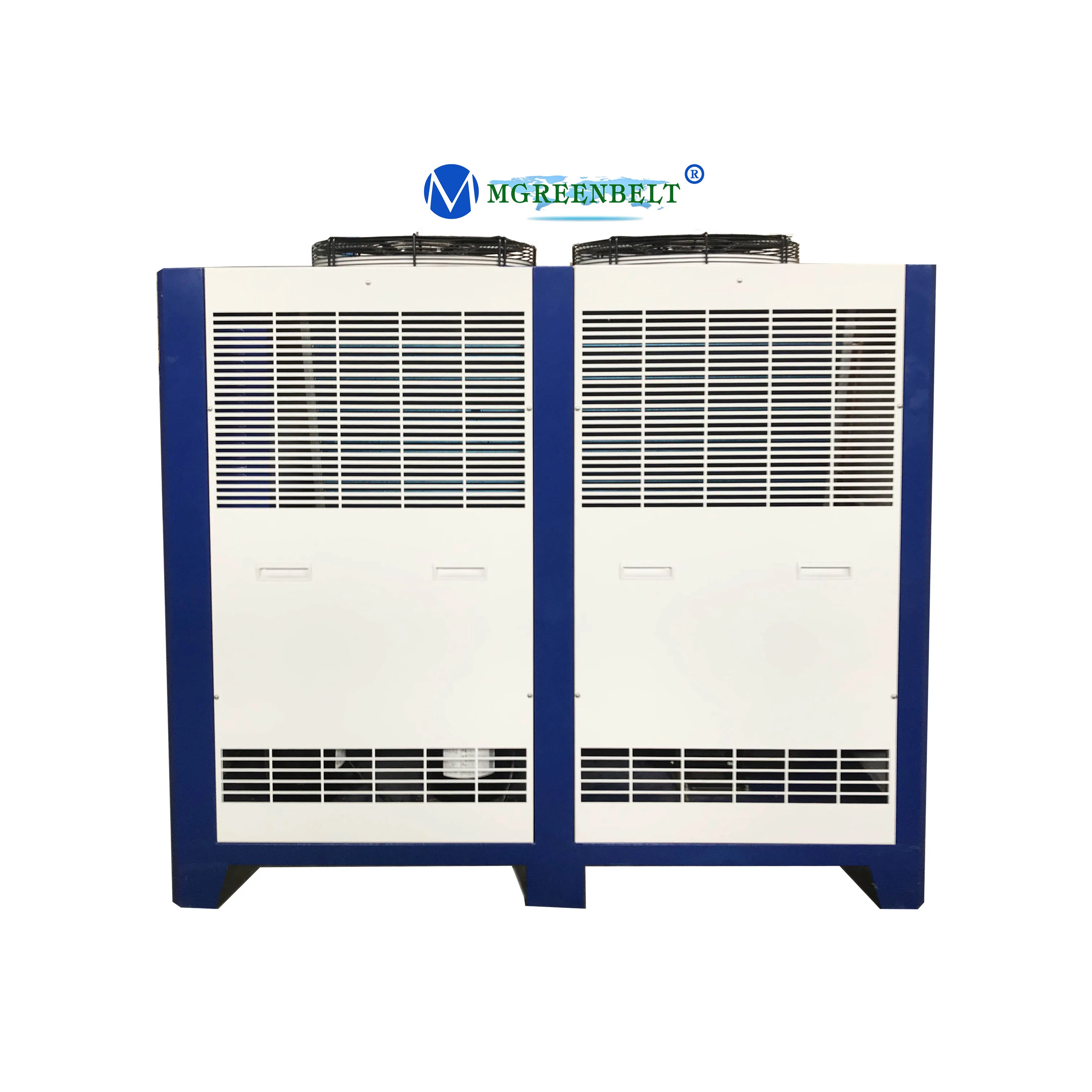

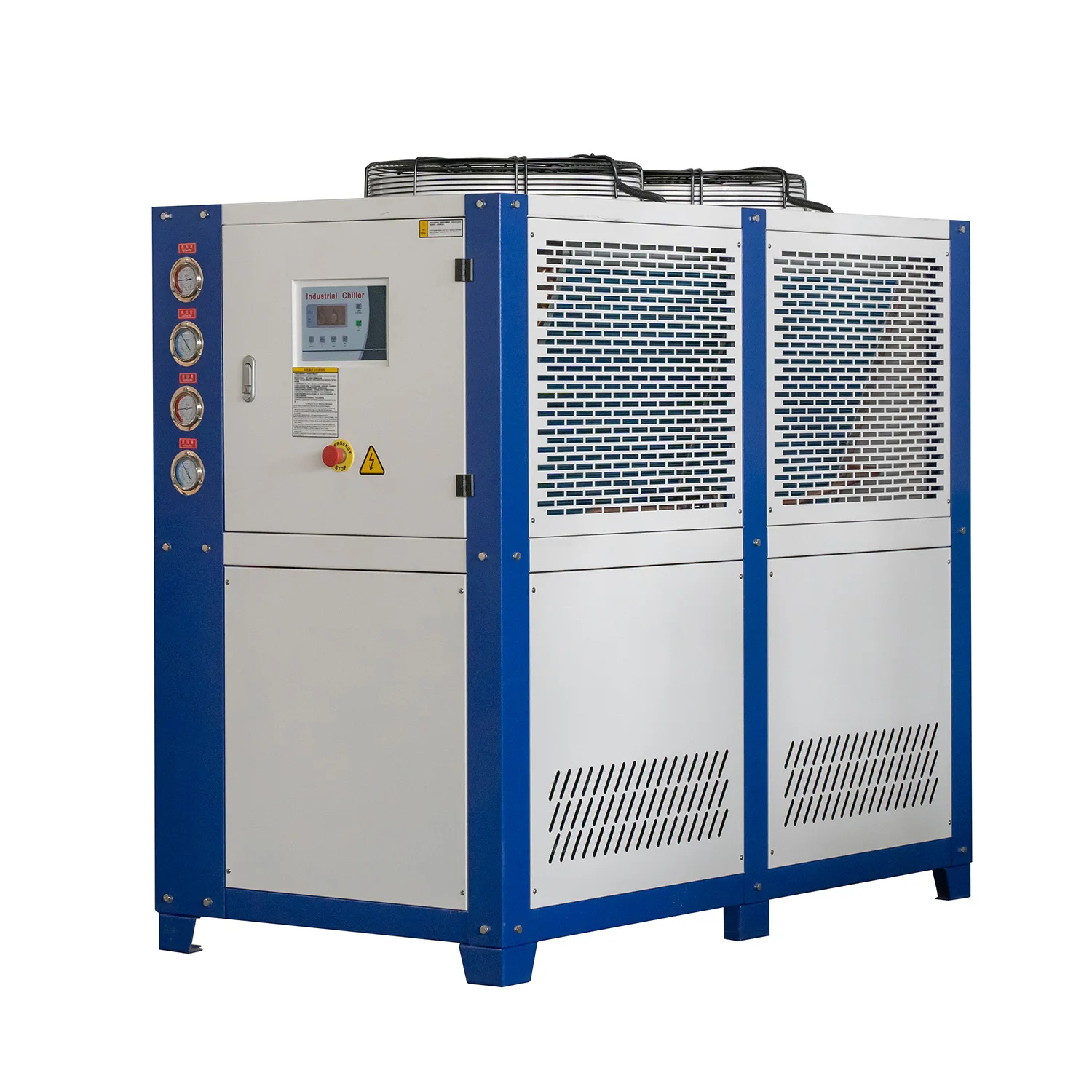

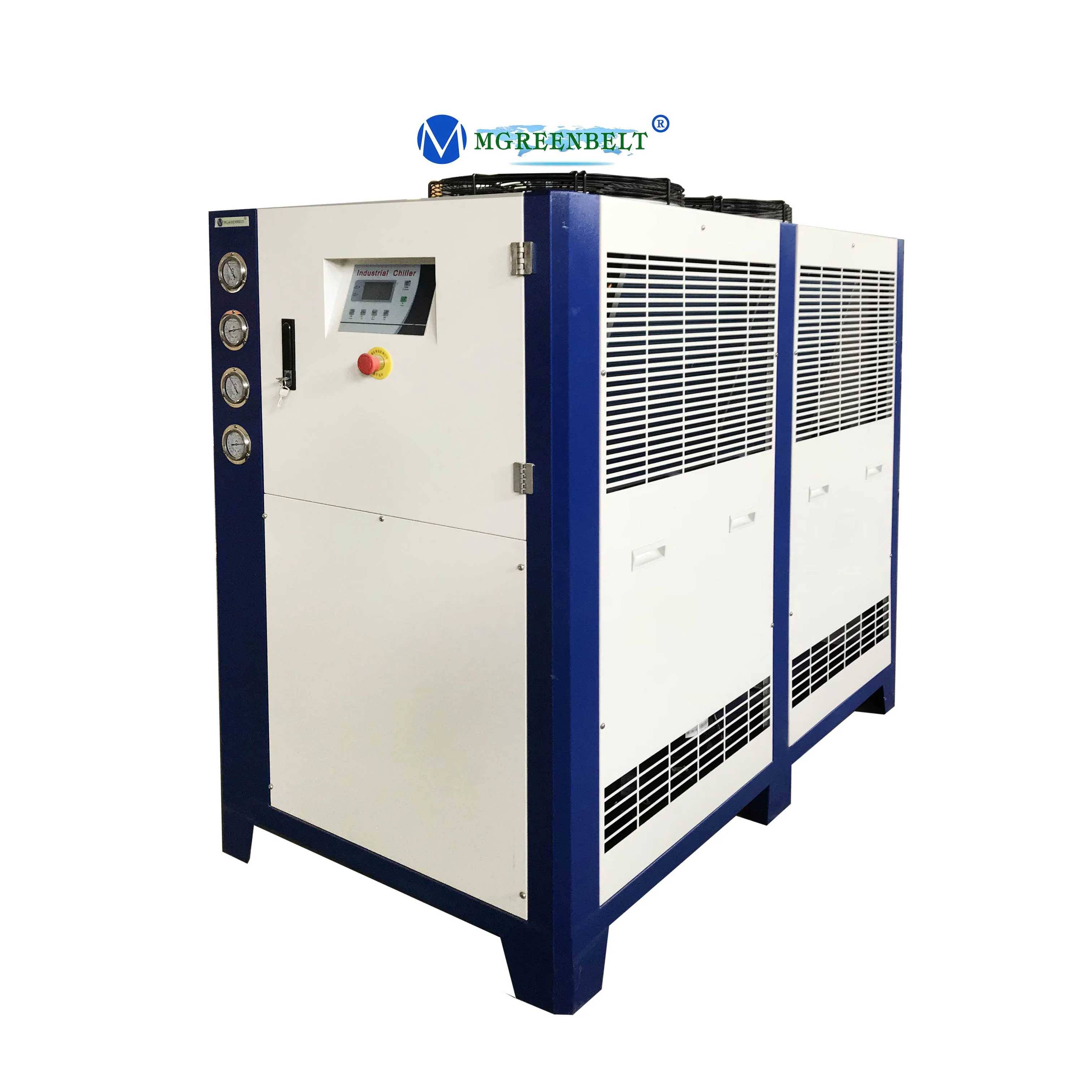

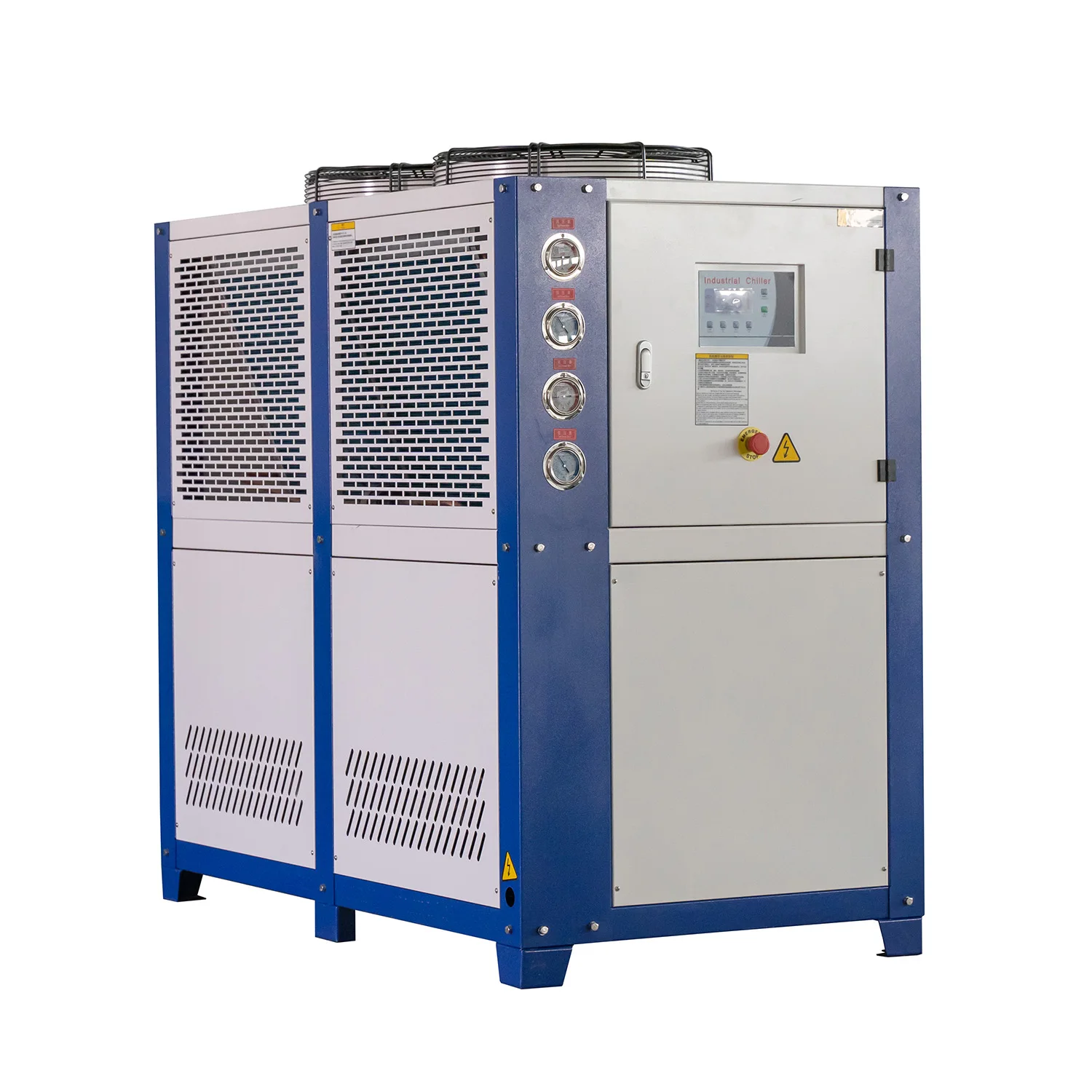

Hot Sale 5HP-40HP Industrial Air Cooled Water Chiller/Water Cooling Machine
Product Description
Specification
Model | MG-5C | MG-10C | MG-15CD | MG-20CD | MG-25CD | MG-30CT | MG-40CF | ||||||||
Cooling capacity | Kcal/h | 11524 | 23048 | 35948 | 47558 | 55212 | 71896 | 95116 | |||||||
kw | 13.4 | 26.8 | 41.8 | 55.3 | 64.2 | 83.6 | 110.6 | ||||||||
power | kw | 5.05 | 9.91 | 13.56 | 19.63 | 24.48 | 30.2 | 38.52 | |||||||
Power input | 3PH-380V-50HZ | ||||||||||||||
Refrigerant | Type | R22/R407C | |||||||||||||
Control | Thermostatic expansion valve | ||||||||||||||
Compressor | Type | Hermetic scroll type | |||||||||||||
Power（kw） | 4.1 | 4.1*2 | 5.36*2 | 8.13*2 | 9.79*2 | 8.13*3 | 8.13*4 | ||||||||
Evaporator | Type | SS Tank with coil or Shell and tube | |||||||||||||
Water flow m³/h | 2.3 | 4.59 | 7.17 | 9.48 | 11.01 | 14.33 | 18.96 | ||||||||
Capacity L | 80 | 200 | 275 | 360 | 360 | 530 | 740 | ||||||||
Inlet/Outlet | DN25 | DN32 | DN40 | DN40 | DN40 | DN65 | DN65 | ||||||||
Condenser | Type | High efficiency hydrophilic aluminum foll finned type | |||||||||||||
Power | 0.58 | 0.58*2 | 0.67*2 | 0.937*2 | 1.7*2 | 0.937*3 | 1.7*4 | ||||||||
pump | Type | Centrigual water pump | |||||||||||||
Power kw | 0.37 | 0.55 | 1.5 | 1.5 | 1.5 | 3 | 3 | ||||||||
Lift m | 24 | 20 | 20 | 20 | 20 | 22 | 21 | ||||||||
Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||||||||||
Dimension | L mm | 1220 | 1560 | 1800 | 2050 | 2050 | 2720 | 2450 | |||||||
W mm | 600 | 840 | 900 | 990 | 990 | 1120 | 1400 | ||||||||
H mm | 1200 | 1530 | 1600 | 1740 | 1865 | 1800 | 2110 | ||||||||
Wight | kg | 200 | 450 | 750 | 850 | 900 | 1150 | 1350 | |||||||
Company Profile
Jinan Mgreenbelt Machinery Co., Ltd is a water chiller and cold room manufacturer, our main product range include industrial water chiller, cold storage and air compressor equipment.
In order to meet the need of different customer, we specialized the main industrial:
Plastic industry use water chiller: different capacity and cooling type; Include plastic injection machine water chiller, plastic extruder water chiller, plastic blowing water chiller and etc;
Brewery use glycol chiller: outlet temperature can satisfy 0 deg C, -5 deg C, -10deg C or much lower based on your need; Include Beer Chiller, Distillery Chiller, Winery Chiller and etc;
Chemical industry chiller: the lowest temperature can be -40 deg C; Chemical And Pharmaceutical Use Chiller, Explosion-Proof Chiller
Other industry equipment working cooling.
In order to meet the need of different customer, we specialized the main industrial:
Plastic industry use water chiller: different capacity and cooling type; Include plastic injection machine water chiller, plastic extruder water chiller, plastic blowing water chiller and etc;
Brewery use glycol chiller: outlet temperature can satisfy 0 deg C, -5 deg C, -10deg C or much lower based on your need; Include Beer Chiller, Distillery Chiller, Winery Chiller and etc;
Chemical industry chiller: the lowest temperature can be -40 deg C; Chemical And Pharmaceutical Use Chiller, Explosion-Proof Chiller
Other industry equipment working cooling.
Customer Photos
PACKAGE & SHIPPING
Certificates
FAQ
Q:How to choose a right chiller model? A:Please make sure the details as follow:
1.What's the flow rate need?
2.Inlet and outlettemperature need ?
Then we will calculate what's hte cooling capacity you need.
Q: How to quote a accurate solution for you?
A:After make sure the cooling capacity,please inform us:
1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need
1.What's the flow rate need?
2.Inlet and outlettemperature need ?
Then we will calculate what's hte cooling capacity you need.
Q: How to quote a accurate solution for you?
A:After make sure the cooling capacity,please inform us:
1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need
Any requirements, pls feel free to let me know:
Angie Ma | Sales manager
Jinan Mgreenbelt Machinery Co.,ltd.
Professional water chiller & refrigeration equipment Manufacturer/Supplier
Web: www.mgreenbeltchillers.com
Email: angie@mgreenbelt.com | Wechat/Whatsapp: +8613255315089
Jinan Mgreenbelt Machinery Co.,ltd.
Professional water chiller & refrigeration equipment Manufacturer/Supplier
Web: www.mgreenbeltchillers.com
Email: angie@mgreenbelt.com | Wechat/Whatsapp: +8613255315089
Recommend Products
Похожие товары

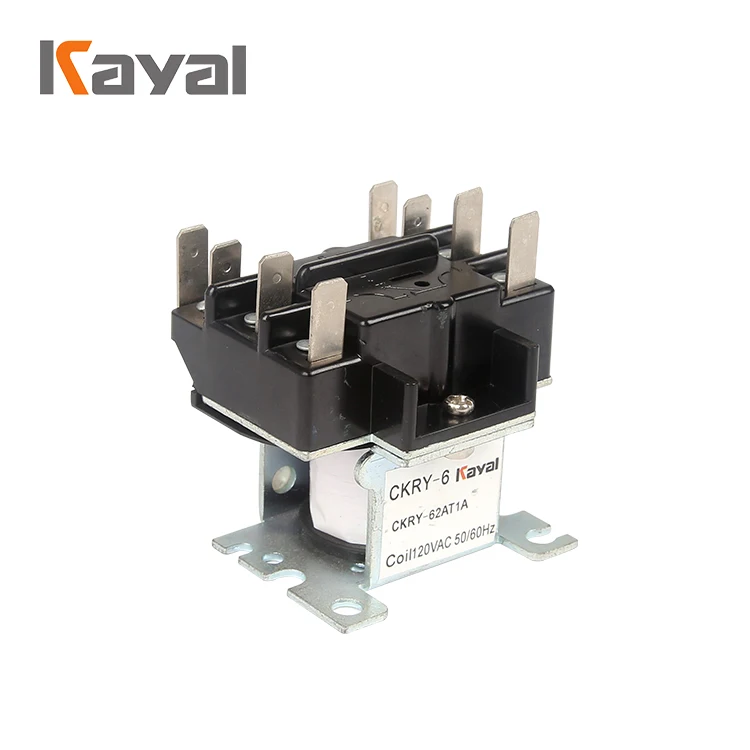

Типы реле 120 Вольт реле с 24 вольт катушки кондиционера целевого реле контактора

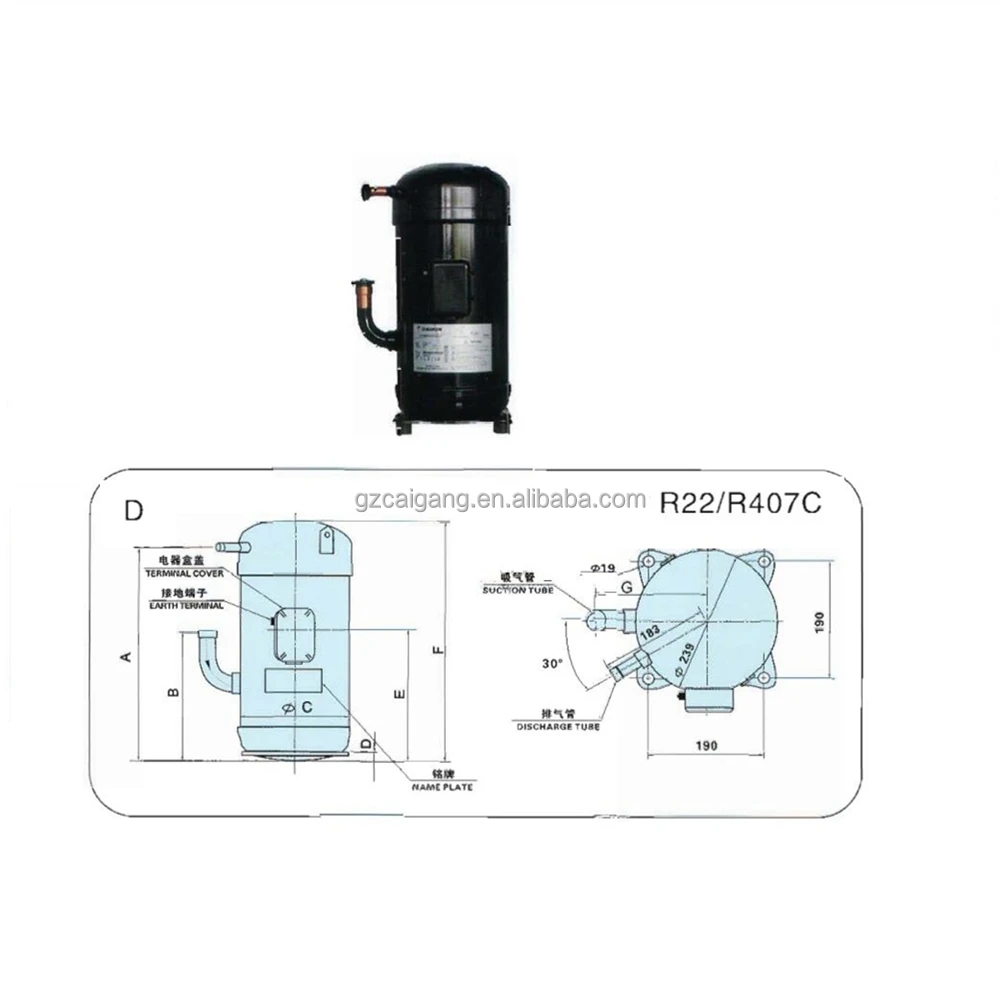

С низким минимальным объемом продукта заказного DAIKIN JT100G-VDL @ S JT100G-YDWT3 JT100 Кондиционер спиральный компрессор
178,00 $ - 198,00 $

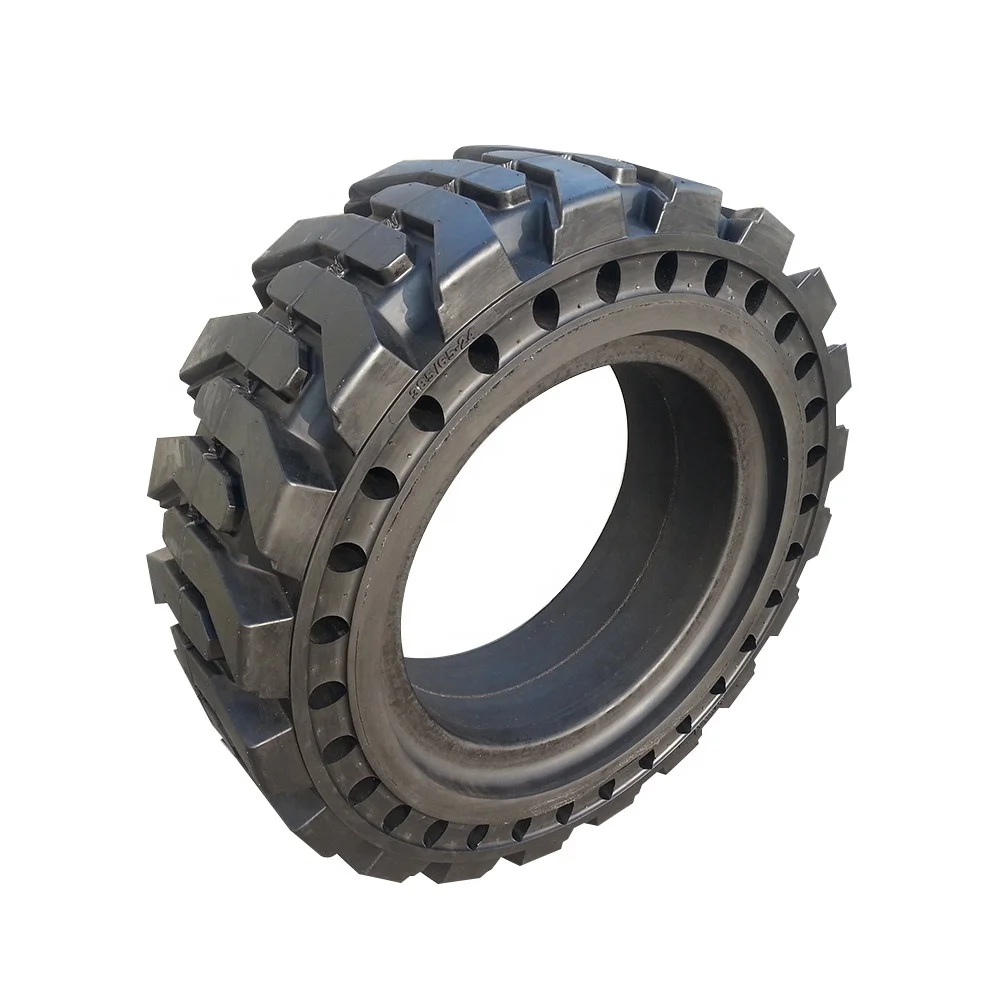

Подъемник с поролоновым наполнением 445/55D-19.5 18-19,5, цельная шина с ободом для GENIE JLG
