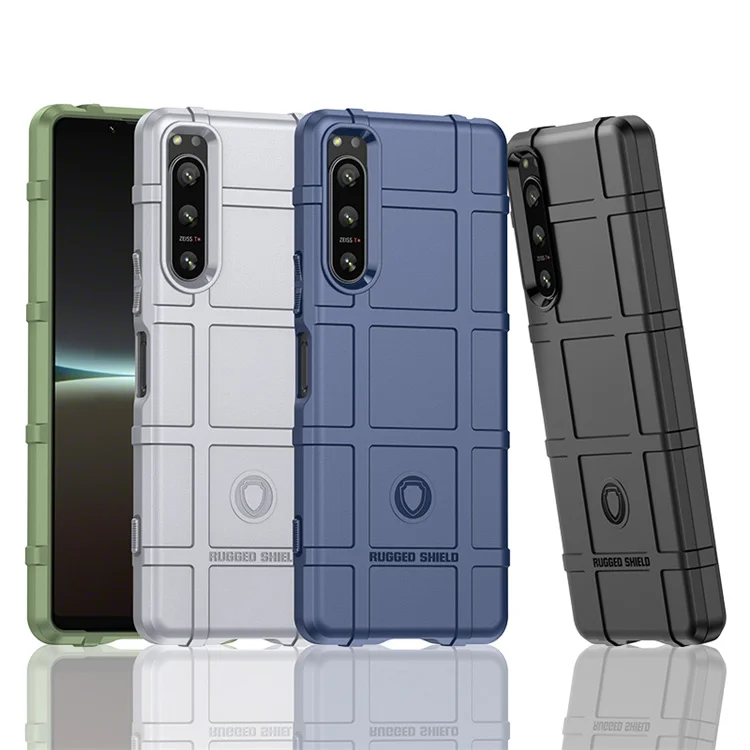

Прочный защитный чехол для сотового телефона Sony Xperia 1 V противоударный резиновый чехол для телефона Sony Xperia 10V 5 IV 1 IV III
0,77 $ - 1,06 $
Китай Yantai Furukawa hb20g 30 г 40 гидравлический уплотнитель
- Категория: >>>
- Поставщик: Yantai Baicai Machinery Co. Ltd.
Сохранить в закладки 1600955982336:
Описание и отзывы
Характеристики
Product Description
Description | Operating Weight | Required Oil Flow | Impact Rate | Working Pressure | Rod Diameter | Applicable Carrier |
Unit | KG | L/min | bmp | Kg/cm² | mm | ton |
YLB530 | 130 | 25-50 | 550-1000 | 90-120 | 53 | 2.5-4.5 |
YLB680 | 300 | 40-70 | 500-800 | 100-140 | 68 | 4-7 |
YLB750 | 396 | 50-90 | 450-800 | 120-150 | 75 | 6-9 |
YLB1000 | 780 | 80-120 | 350-700 | 160-180 | 100 | 11-16 |
YLB1350 | 1650 | 100-150 | 350-600 | 180-210 | 135 | 18-21 |
YLB1400 | 1750 | 130-170 | 350-500 | 190-220 | 140 | 20-26 |
YLB1550 | 2600 | 170-220 | 300-450 | 220-240 | 155 | 28-35 |
YLB1650 | 3200 | 200-260 | 250-400 | 230-250 | 165 | 30-40 |
YLB1750 | 3750 | 210-260 | 250-350 | 240-260 | 175 | 40-55 |
YLB2100 | 6800 | 400-500 | 300-400 | 170-190 | 210 | 50-90 |

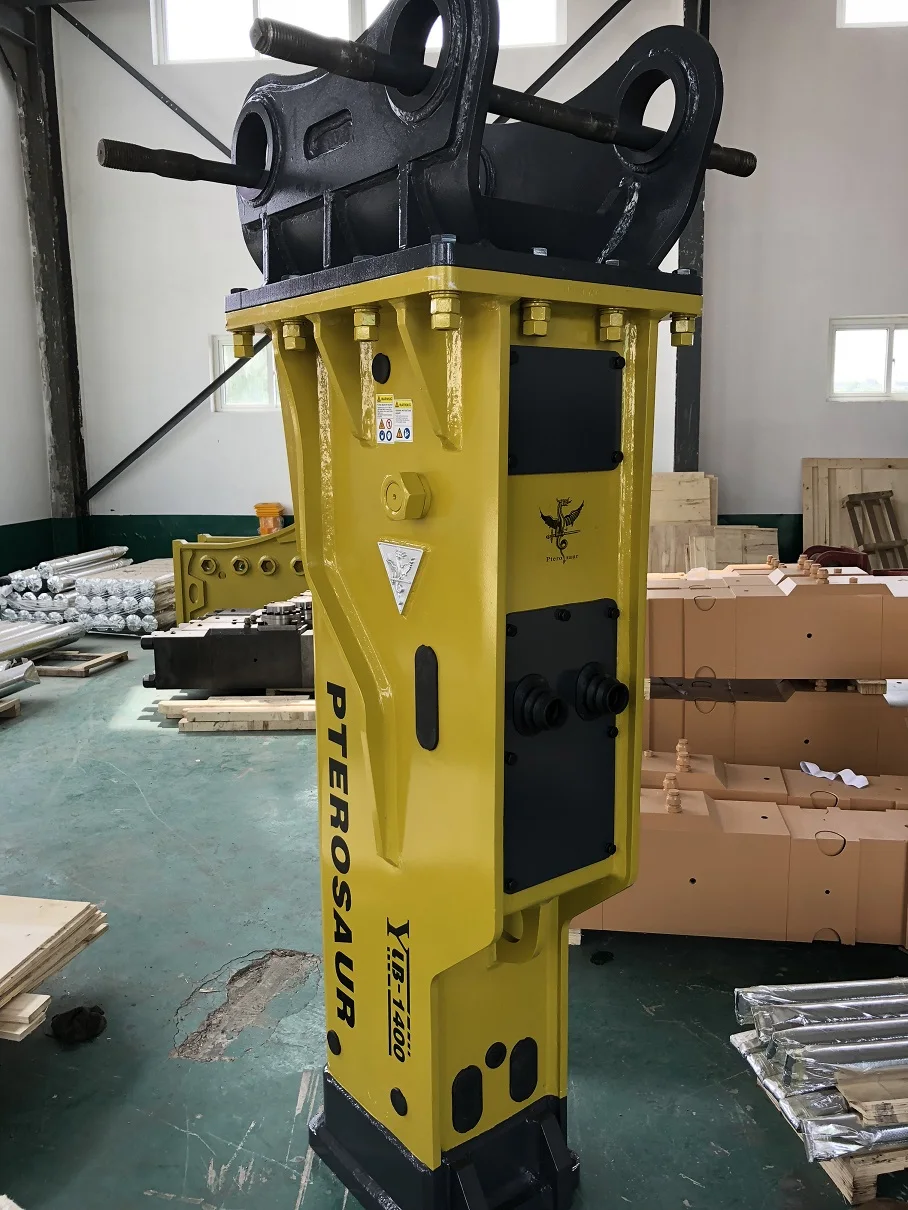

The main components of our Pterosaur crusher
1. Through bolts-42Crmo: Long service life of bolts through the use of this new material
2. Back Head-20CrMo: It is experimented by our desiger many times to make the internal organization tighter and increasing the hydraulic breaker wear-resistance.
3. Front Head-20CrMo: Our material is used by the best quality standard in breaker market,it can serve the breaker to work with longer using life.
4. Control Valve: We adopt production process by grinding machine to improve the size presicion, position accuracy & coordination accuracy.
5. Cylinder Body- 20CrMo: Our material is used by the best quality standard in breaker market,its hardness can reach 61.8HRC; it is more resistant to deformation、 ripping and scratching than other domestic breaker.
6. Piston-20Cr2Ni4: Our piston quality is controlled strictly by desiger; it has good hardness of 61.8HRC; it is more resistant to deformation、 ripping and scratching than other domestic breaker; it can also reduce scratch problem with grinding process.
7. Chisel-42Crmo: The specially heat-treated chisel is directly applied to break rocks. There are four types for choosing: moil, blunt,flat, conical point.

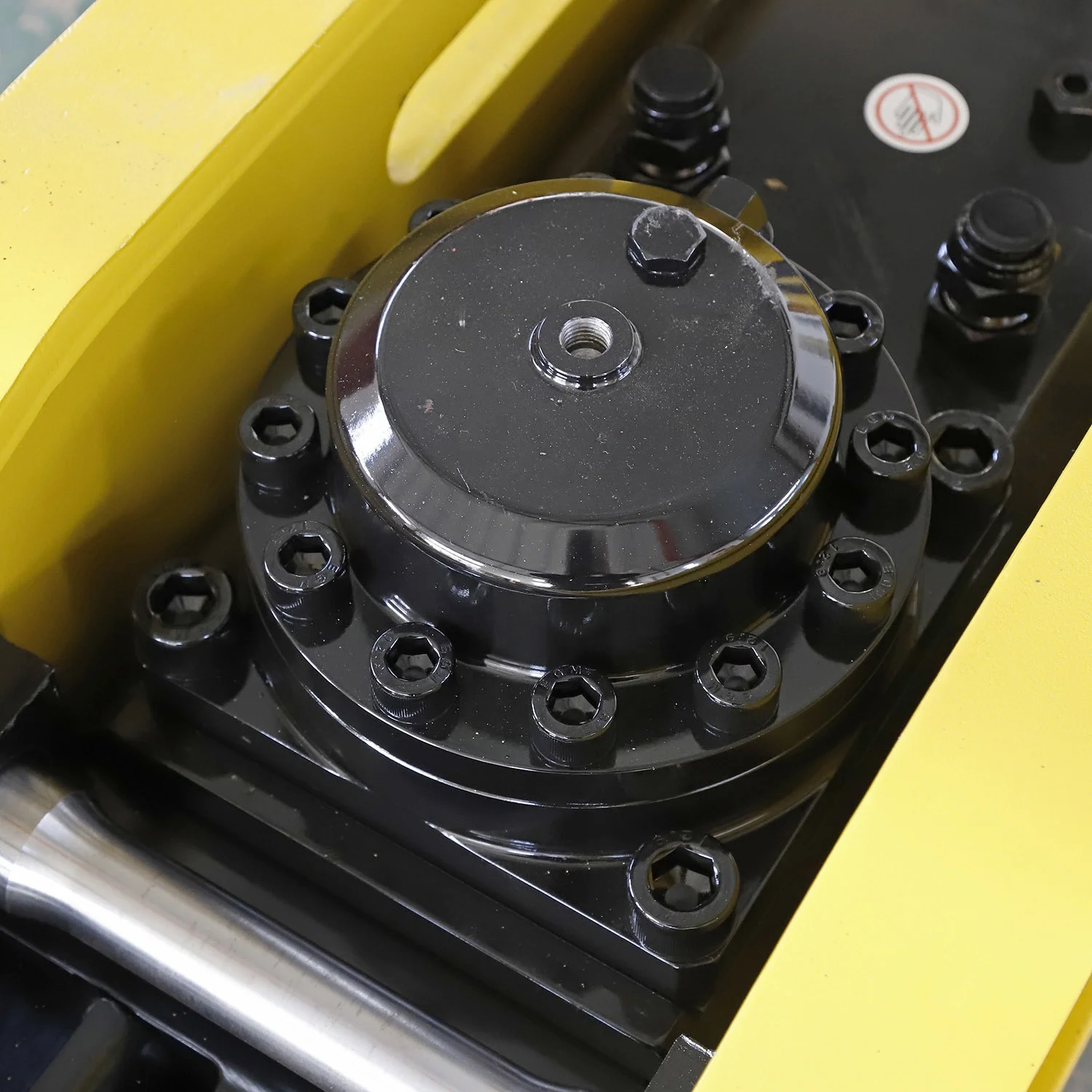

8.Main Body: Front head, cylinder and back head composed the main body,each part is in best performance.
9.Seal Kit: We adopt both Parker and NOK seal kit which are most famous brand in the business line.
Remark: We are speciallied in making breakers, our engineer is come from Korean with professional experience for many years,each quality of our Pterosaur crusher is strictly controlled including the raw material, heat treatments, size and production technology, etc.
Why choose us
1. Our advantage

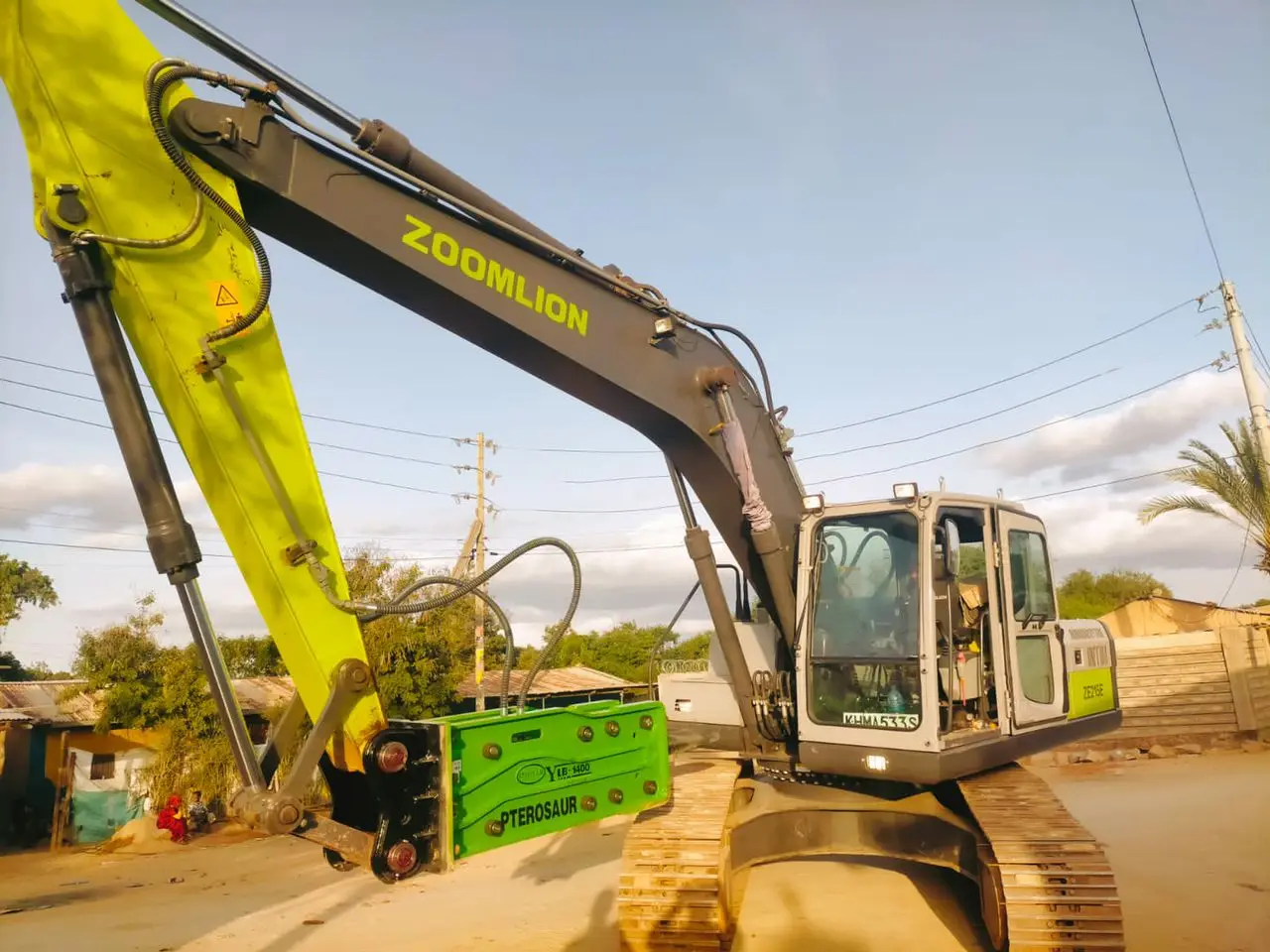

Silenced/Box type hydraulic breaker
● Low noise level,suitable for quietness place and cities work.
● Full-closed bracket protects the main-body.
Side type hydraulic breaker
● Shorten the total length,it is more flexible on mining site.
● More convenience to handle the breaking object.
● Easily Maintenance.
Top/Open type hydraulic breaker
● Easy-control and easy-position make it more convenience to excavator work.
● Without side-weight,reducing the rate of chisel breakage.
● Longer total-length and heavier total weight,suitable for building destroy.
Application Field
☞ Mining:Mining,secondary breaking.
☞ Metallurgy:Clearing slag,demolition of furance and foundation.
☞ Road:Repairing,breaking,foundation work.
☞ Raliway:Tunneling demolition of bridge.
☞ Construction:Demolition of building and reinforced concrete.
☞ Ship reparing:Clearing alam and rust from the hull.
☞ Others:Breaking frozen mud.

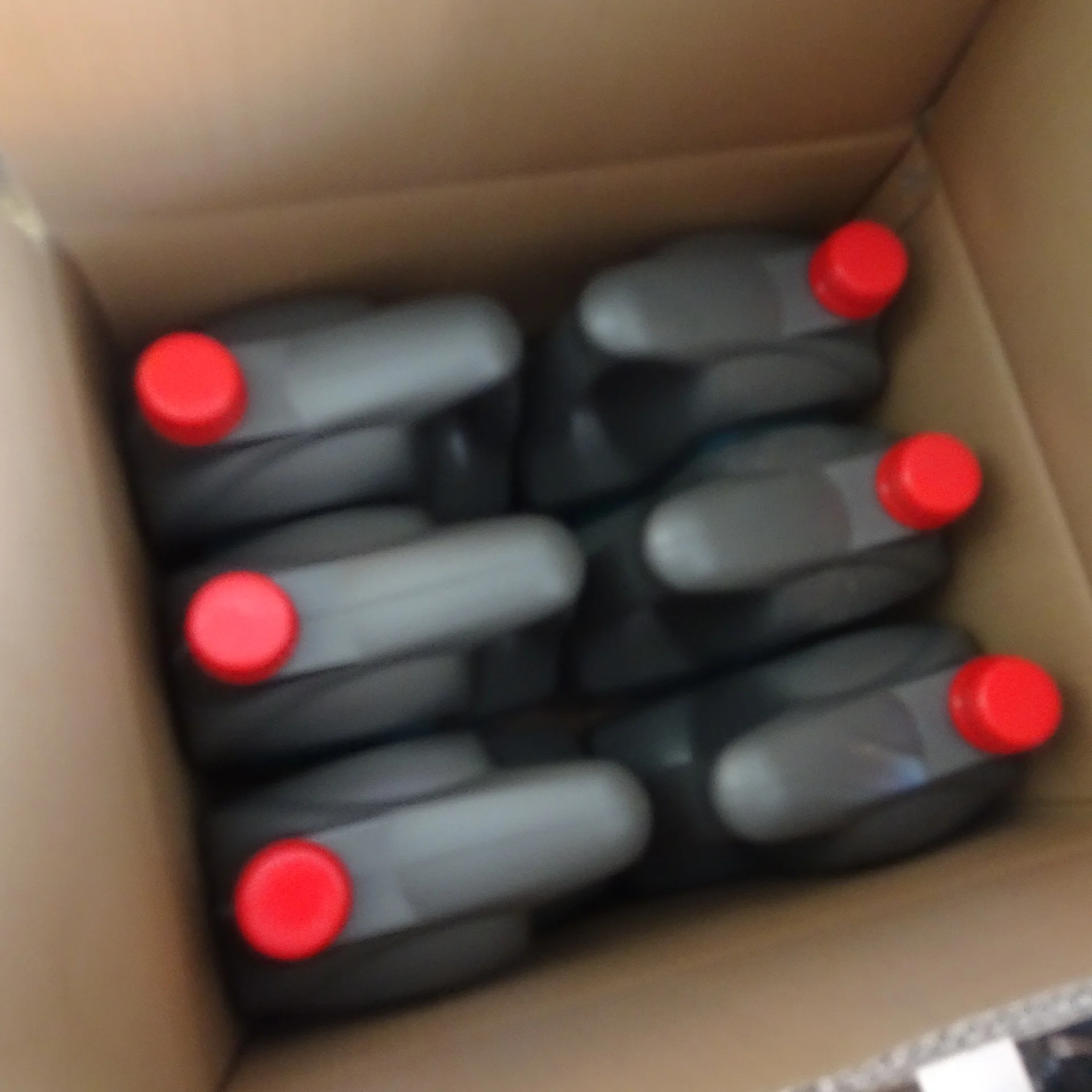

2.Packing and delivery

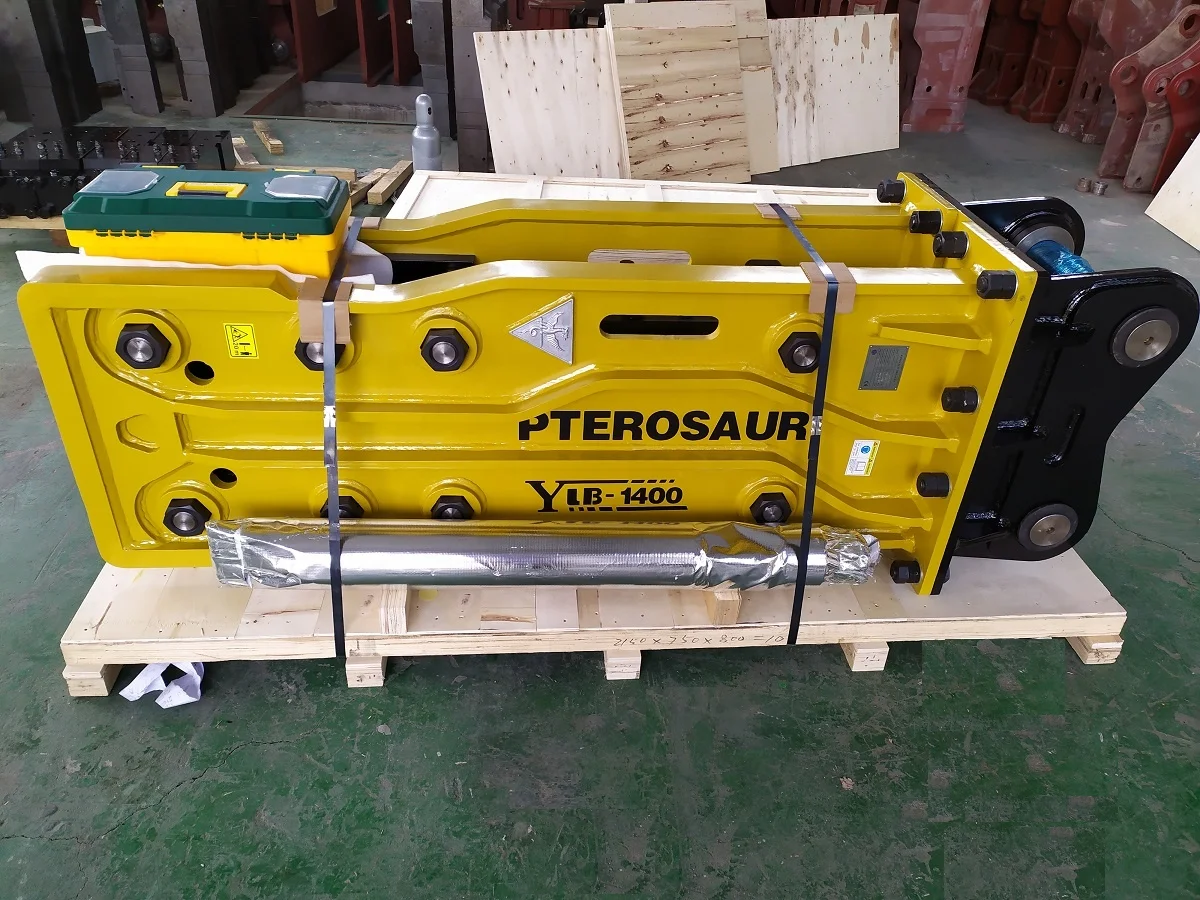

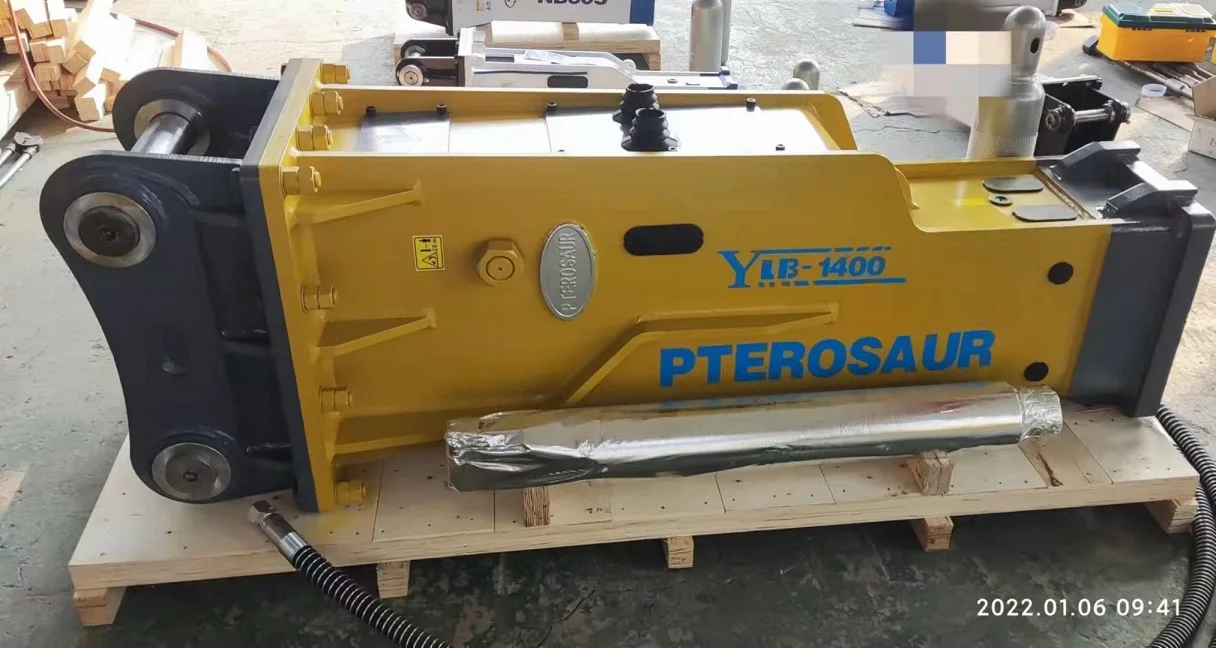

1.Packing:
①Inner is stretch film
②Outside is export wooden case
③ As per customer's request
3. After sales feedback
4. Company information
Certification
Exhibition Show
Our Customers
Our Service
Pre-Sales Service.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory..
After-Sales Service.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
1. Are you a manufacturer?
Yes, our factory was established in 2004
2. Can you produce according to customers' design?
Sure, OEM / ODM service available. We are professional manufacturer for nearly 14 years.
3. What's the MOQ and payment terms?
MOQ is 1 set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.
4. How about delivery time?
3-7 working days after receiving the payment.
5. After-sale Service
12 months warranty for hydraulic breakers. Detailed warranty for each spare parts of hydraulic breaker as per our warranty policy.
6. Impact Test
Every hydraulic breaker will do impact test before shipment.
Похожие товары
T-Worthy вечерние сувениры светодиодная подсветка красочная Люминесцентная бабочка оплетка из оптического волокна Шпилька для
0,22 $ - 0,35 $

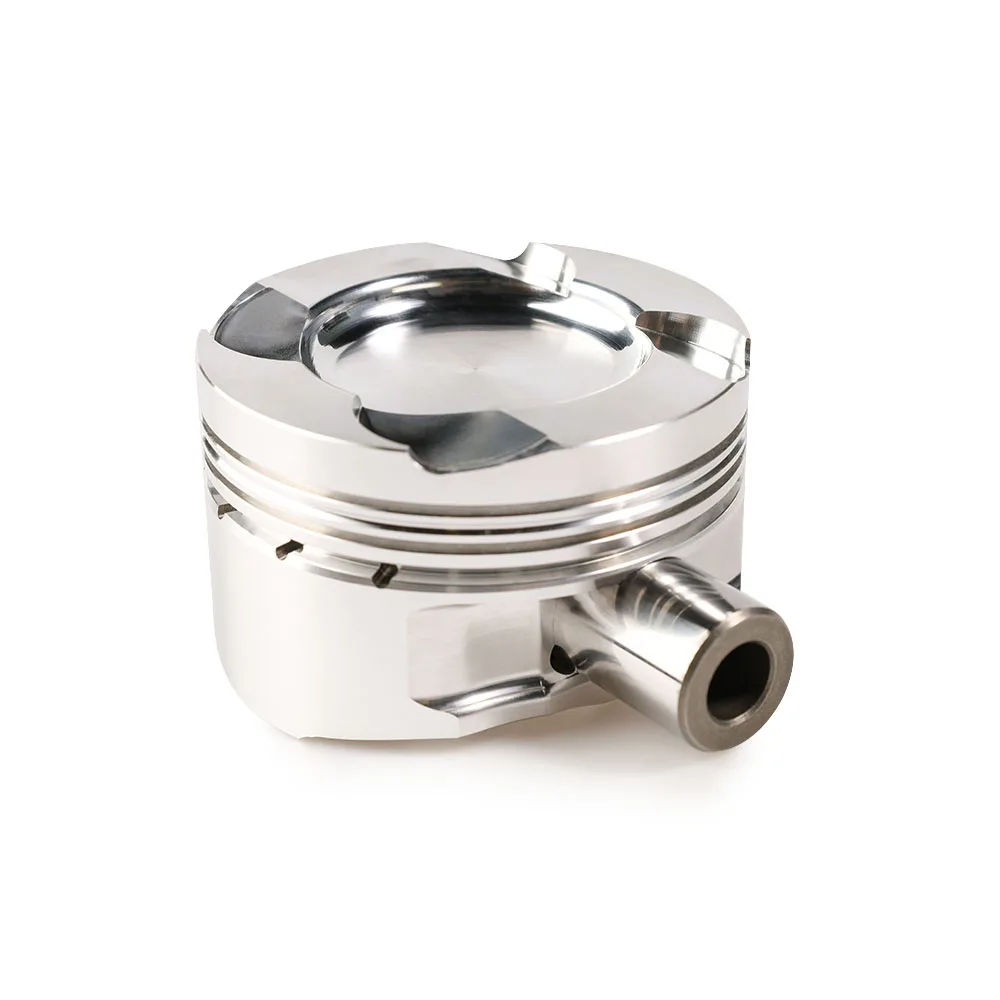

86мм кованый поршень для Chevrolet Malibu Chevy GM Ecotec engine 2.0L LTG I4
75,00 $ - 85,00 $

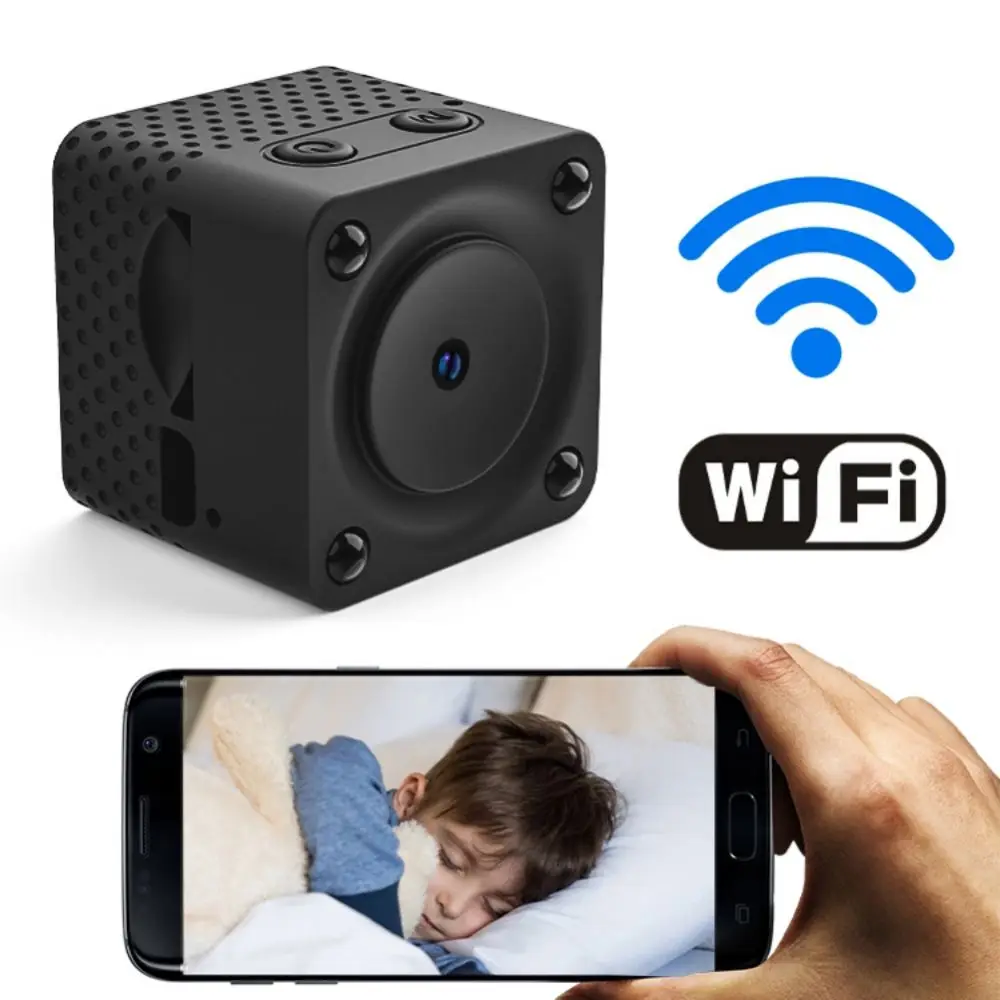

2023 хит продаж F9 модель HD 1080P WIFI камера ночного видения удаленный мониторинг видео мини-камера
6,38 $ - 7,54 $

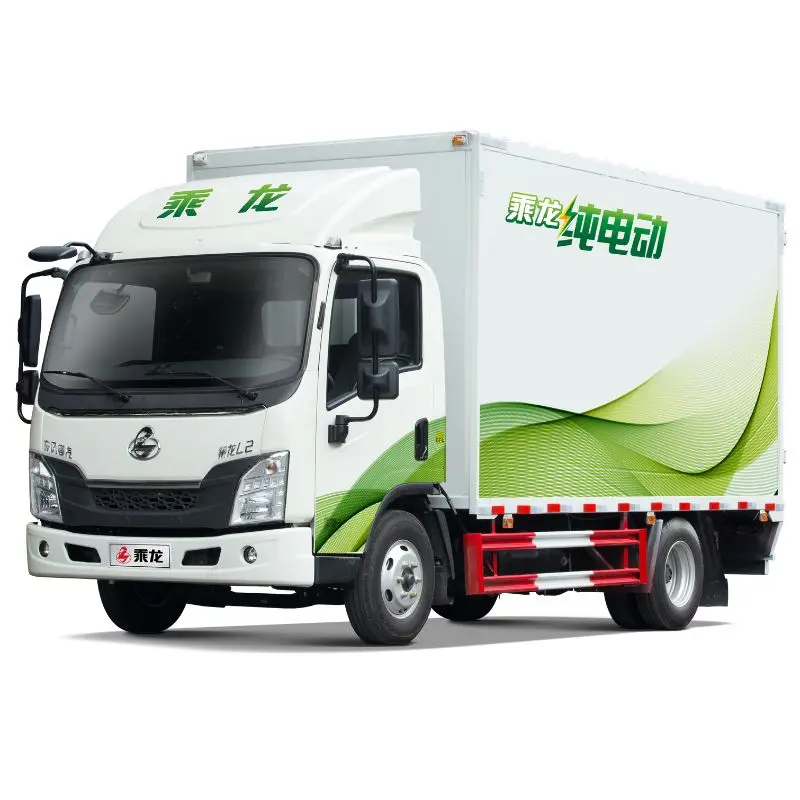

Dongfeng Chenglong EV грузовой автомобиль Dongfeng L2 4WD Электрический легкий грузовик в наличии на продажу
23 800,00 $ - 25 200,00 $

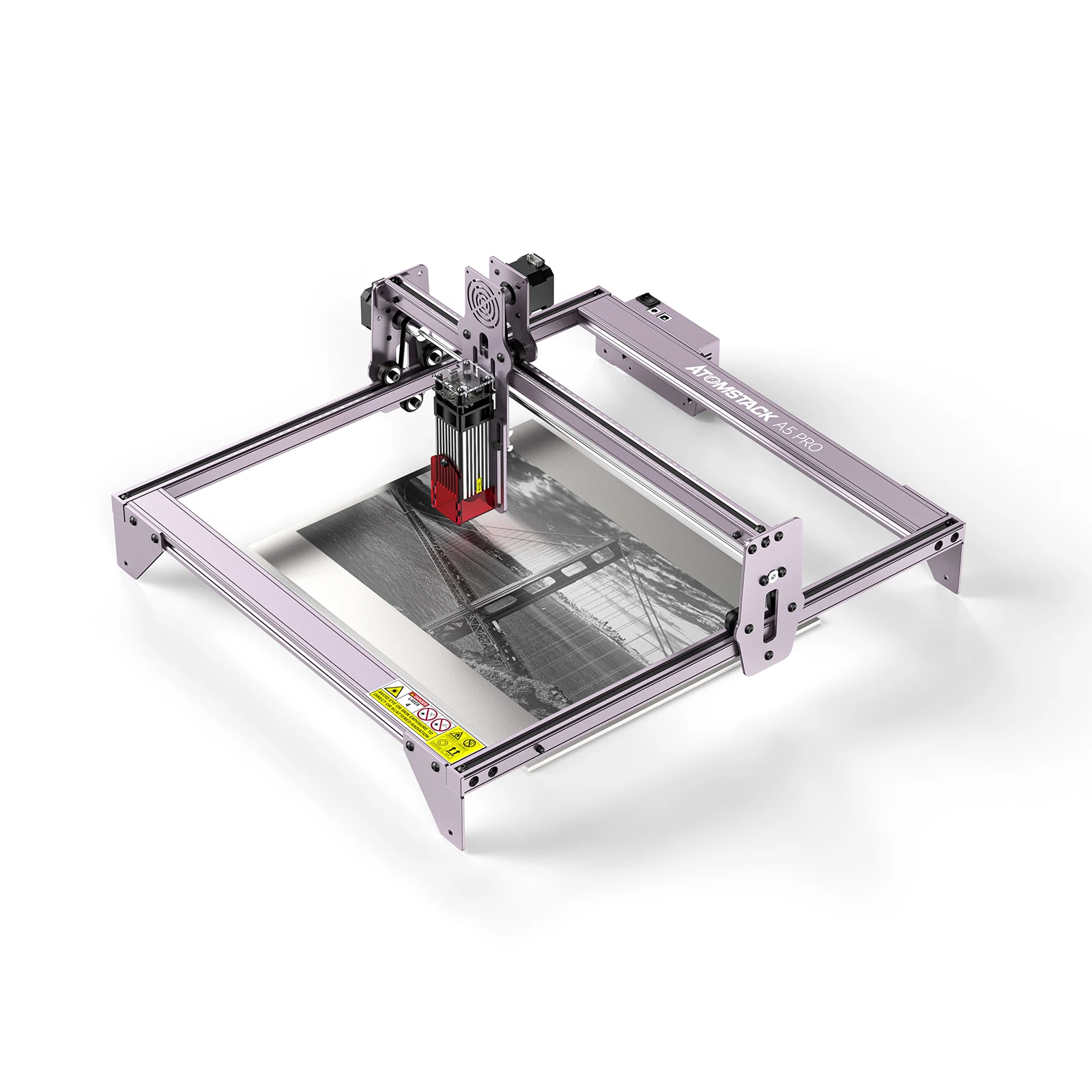

Гравировальный станок ATOMSTACK A5 Pro 40 Вт, лазерный гравер с идентификационной картой, портативный лазерный гравировальный станок для металла
Лидер продаж, серая фрикционная лента трансмиссионного масла, используемая в автомобиле Shaanxi Delong
13,00 $ - 15,00 $

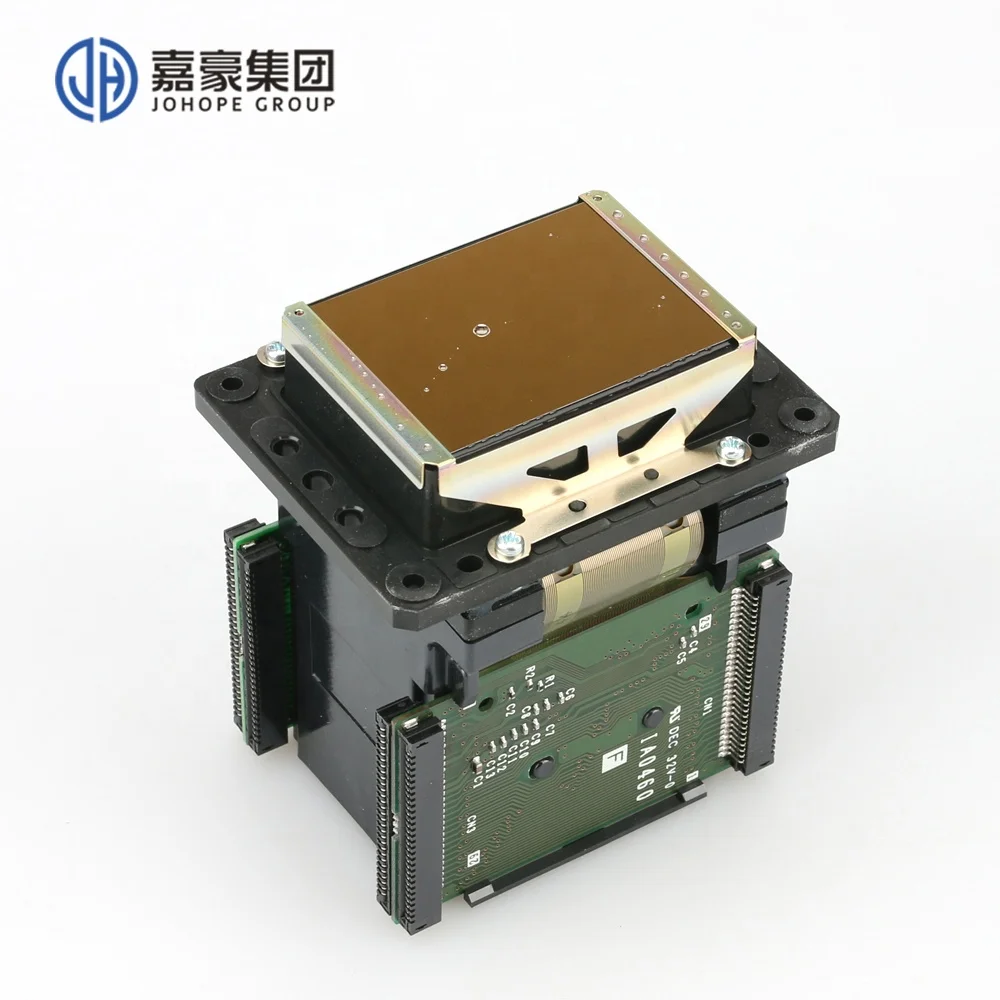

Dx7 печатающая головка оригинал для Roland VS640 RA640 RE640 печатная машина части печатные магазины рекламная компания 100%
