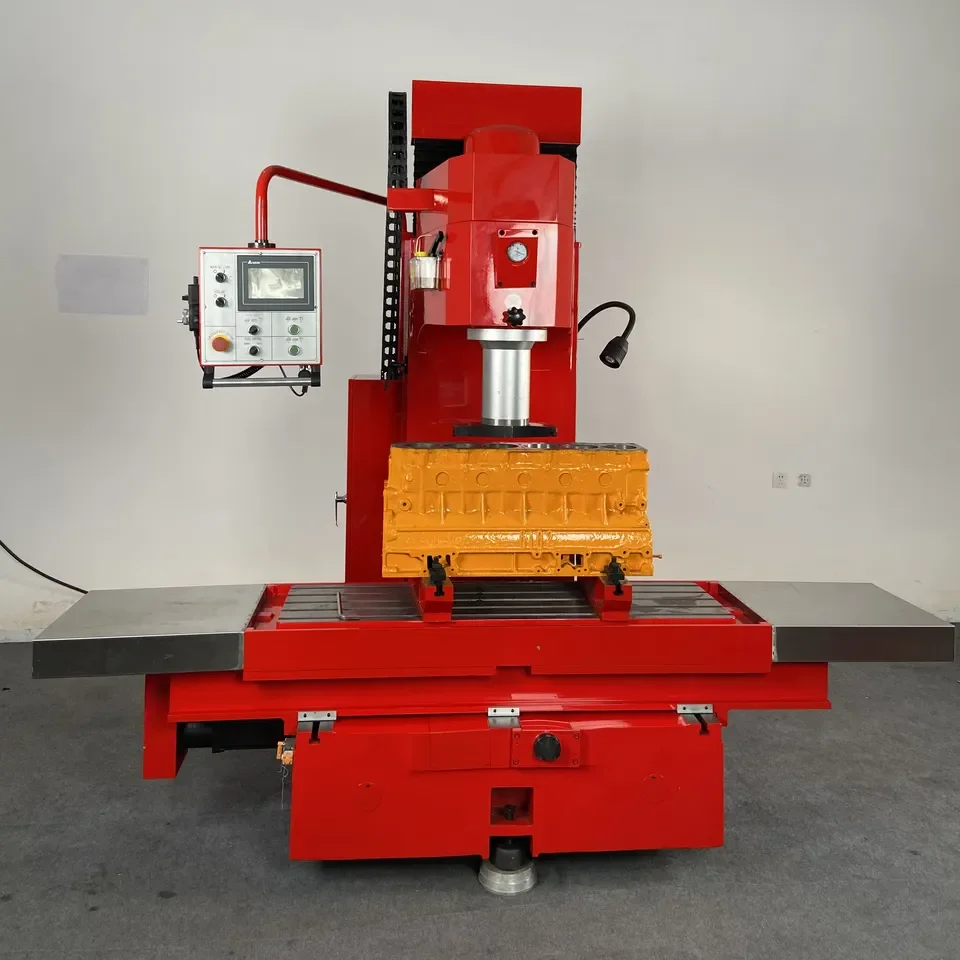

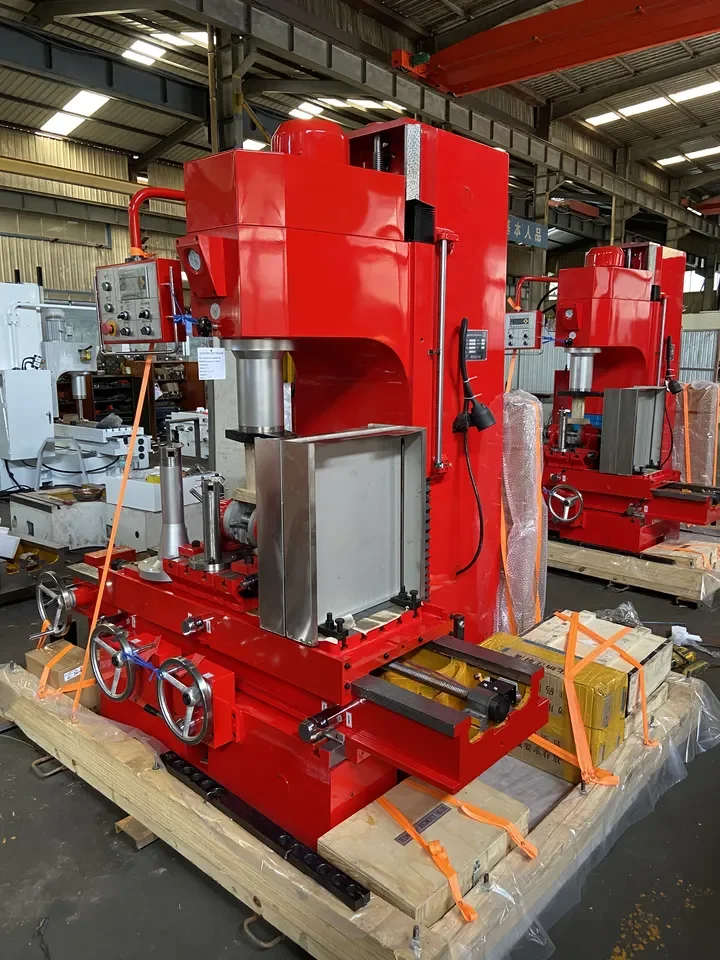

Двигатель цилиндр расточный станок TX170A вертикальный фрезерный из Китая

Сохранить в закладки 1600957123532:


Цена:16 000,00 $ - 16 700,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики









Products Description

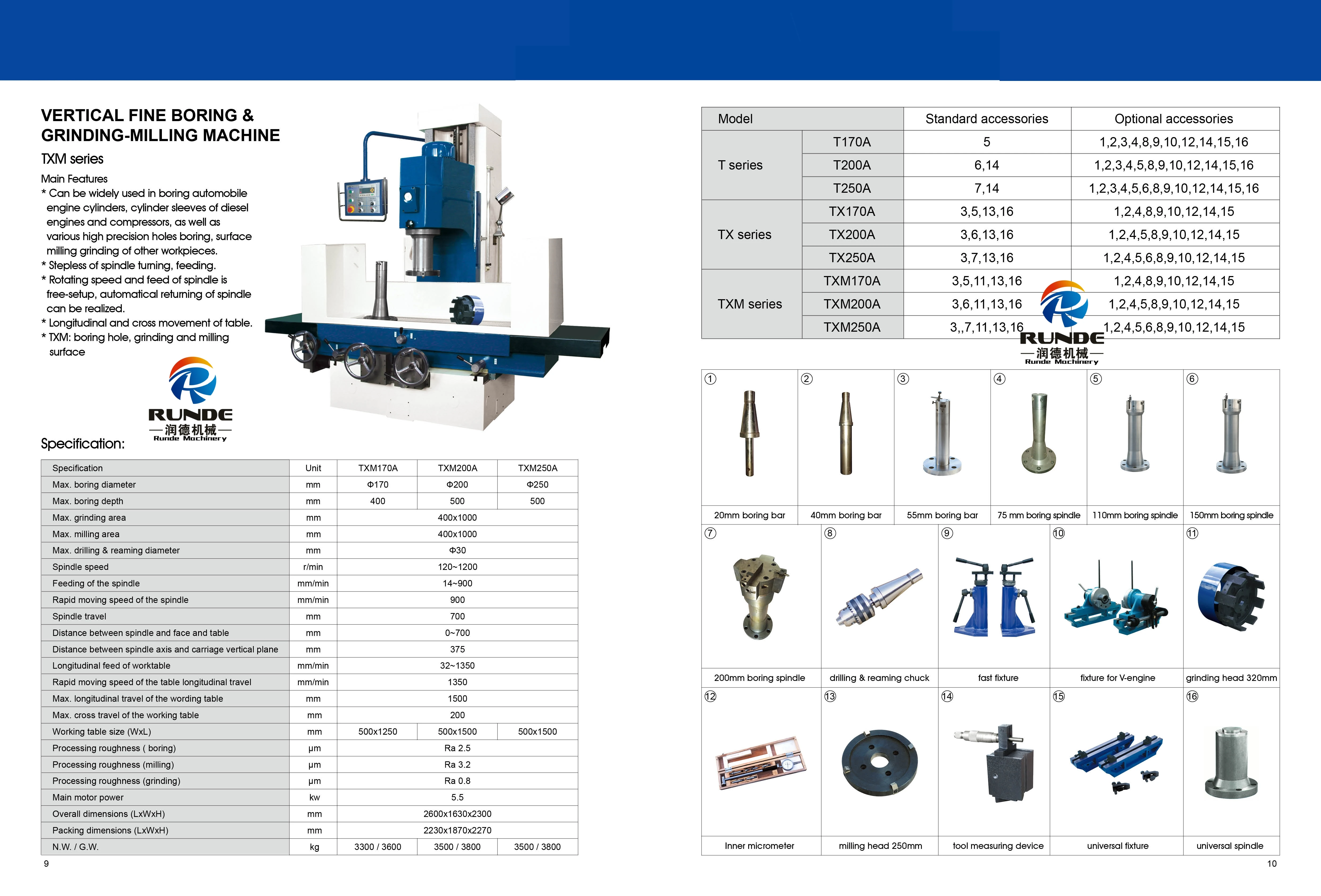

Product Paramenters







T/TX/TXM is a desgined as a heavy duty boring machine, the machine weight is over 3300kg, the machine is good at heavy duty

cutting, This makes it more accurate and faster than ordinary boring machines..

Compared with ordinary boring machines, the machine tool weighs more than 1000kg, has better stability and longer life.































































































































































































Model


T,TX,TXM170A


T,TX,TXM200A


T,TX,TXM250A


Max. Drilling and reaming diameter


Φ30mm


Max.boring depth


400mm


500mm


500mm


Max.boring diameter


Φ170mm


Φ200mm


Φ250mm


Grinding head diameter


/,/,Φ320mm


Max.Milling plane


400x1000mm


400x1250mm


400x1250mm


Milling head diameter


/,Φ320mm,Φ320mm


Max.Grinding plane


400x1000mm


400x1250mm


400x1250mm


Spindle speed(stepless)


120~1200r/min


Spindle feed (Stepless)


14~900mm/min


Longitudinal feed of worktable(Stepless)


32~1350mm/min


Spindle travel


700mm


Distance between spindle end and table


0~700mm


Dis. between spin. axis and carri.Verti plane


375mm


Size of working table (including water slot)


500x1250mm


500x1500mm


Amount of working table T slot


5


Longitudinal travel of working table


1500mm


Cross travel of working table


200mm


Spindle motor


5.5KW


Feeding motors of spindle and working table


20Nm


Overall dimension of the machine


260x163x230cm


Working space


359x173x235cm


Packing dimension of the machine


225x190x228cm


Net weight


3300kg


3500kg


Gross weight


3600kg


3800kg


Precision of boring dimension


H7


Roughness of boring surface


Ra2.5


Roughness of milling surface


Ra3.2


Roughness of grinding surface


Ra0.8


*All technical data and photos are subject to change due to designing without notice.




















Certifications

















Company Profile















Tengzhou Runde Heavy Industry Machinery Equipment Co., Ltd





Tengzhou Runde Heavy Industry Machinery Co., Ltd. strictly implements the ISO9001 quality management system from product development, manufacturing, sales, and after-sales management. The production process is smooth and efficient, and the work is rigorous and meticulous. Detailed, accurate, and advanced testing facilities are provided to ensure that each product maintains sustainable high quality. Continuously innovate, improve efficiency, and provide global customers with professional, reliable,high-quality, cost-effective products.

Our main products: CNC gantry machining center, CNC machining center, CNC milling machine, CNC lathe, CNC drilling machine and other products. Our products are widely used in automobile, motorcycle, powder metallurgy, textile machinery, plastic, rubber, ceramic products, hardware products, tableware and kitchenware, gold and silver jewelry, cold extrusion and other industries.

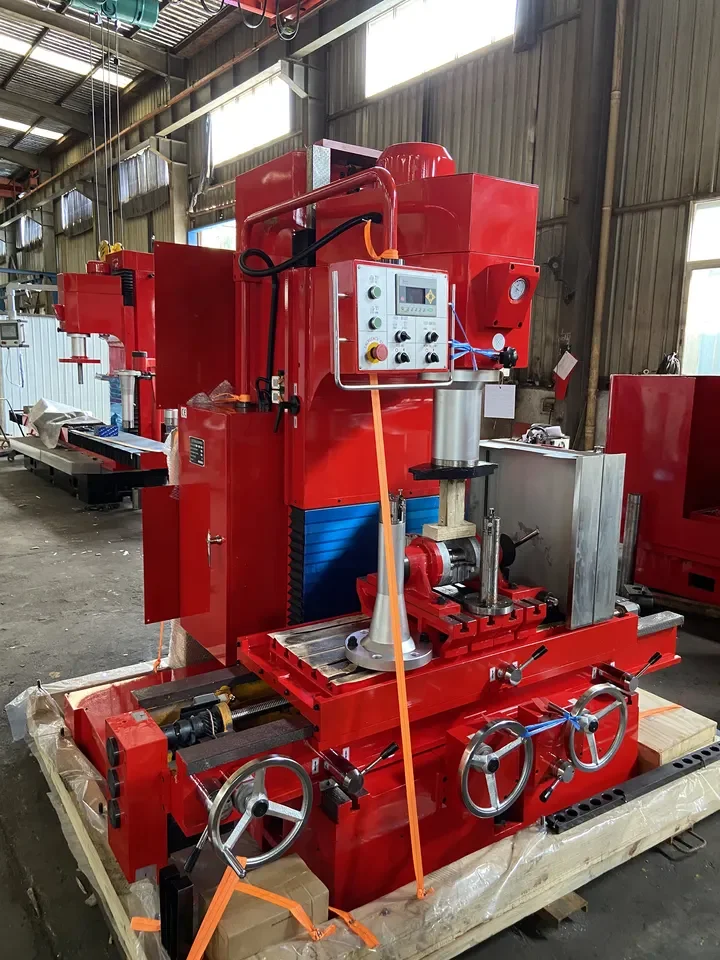

Product packaging







































FAQ







1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .



2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .




3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.




4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.




5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .




6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )
