Инвертор мощности 5 кВт 6 от 24 В до 220 инвертор неэлектрической солнечной немодулированной синусоидальной волны 80 А MPPT
32 255,91-37 552,64 ₽

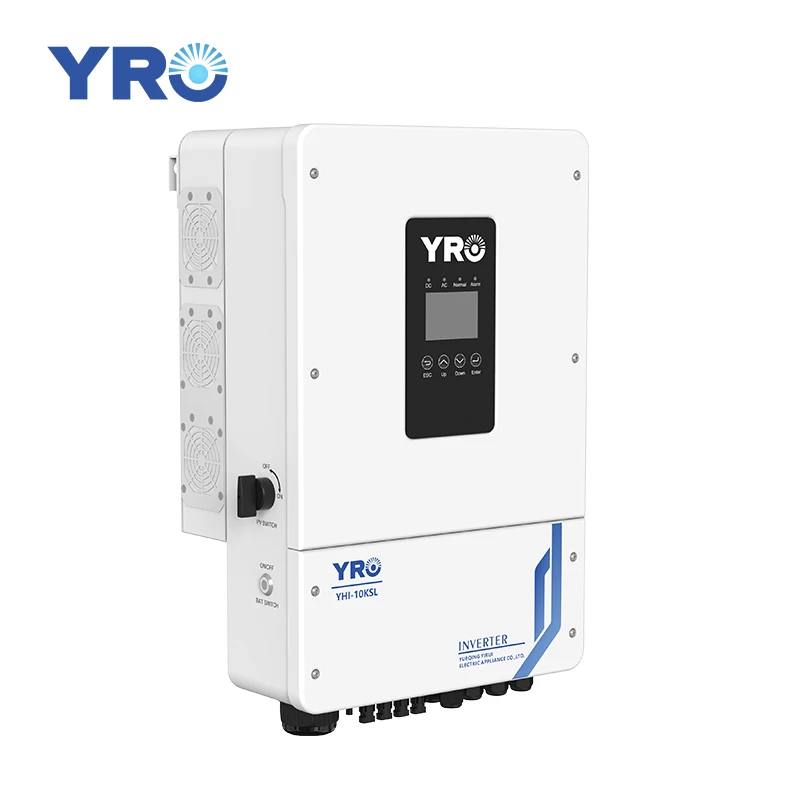

5 кВт 6 8 10 20 солнечные гибридные инверторы кВА 48 В включенный/выключенный солнечный инвертор с Wi Fi модулем
- Категория: >>>
- Поставщик: Yueqing Yirui Electric Appliance Co. Ltd.Yueqing Ltd.
Сохранить в закладки 1600957653756:
Описание и отзывы
Характеристики
Specification

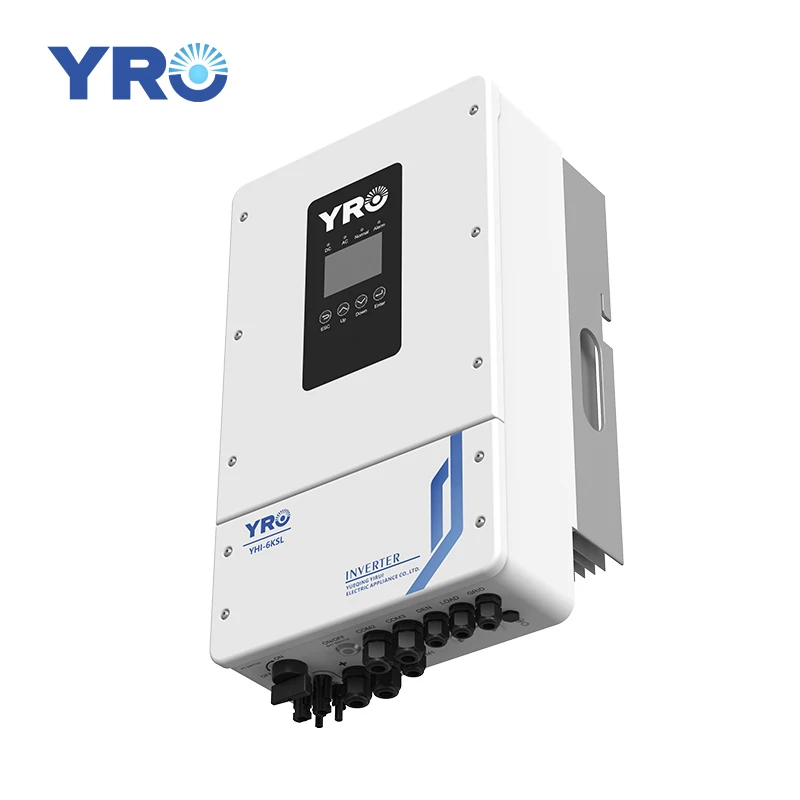

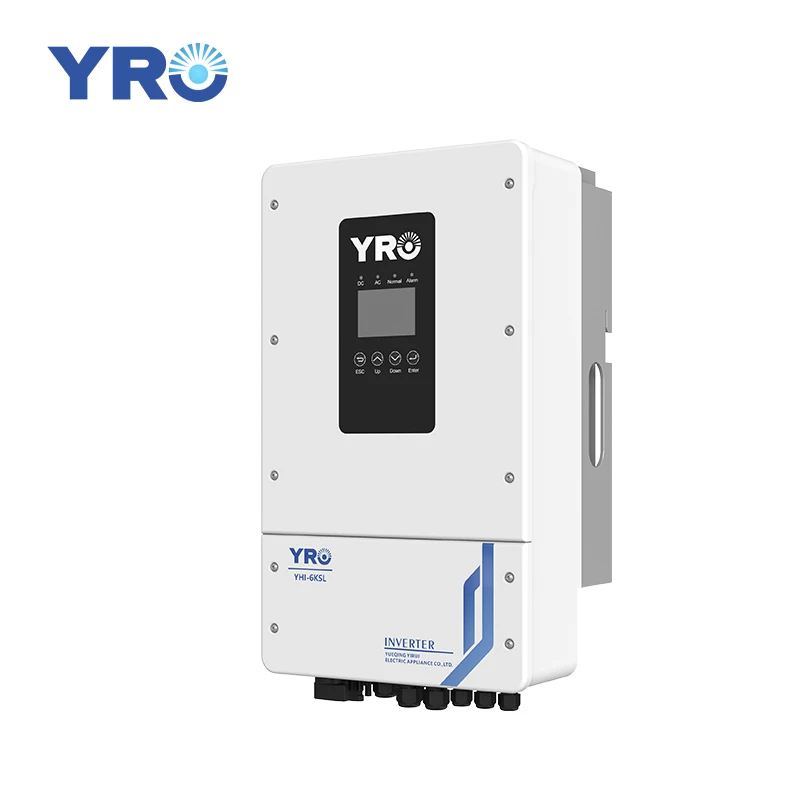

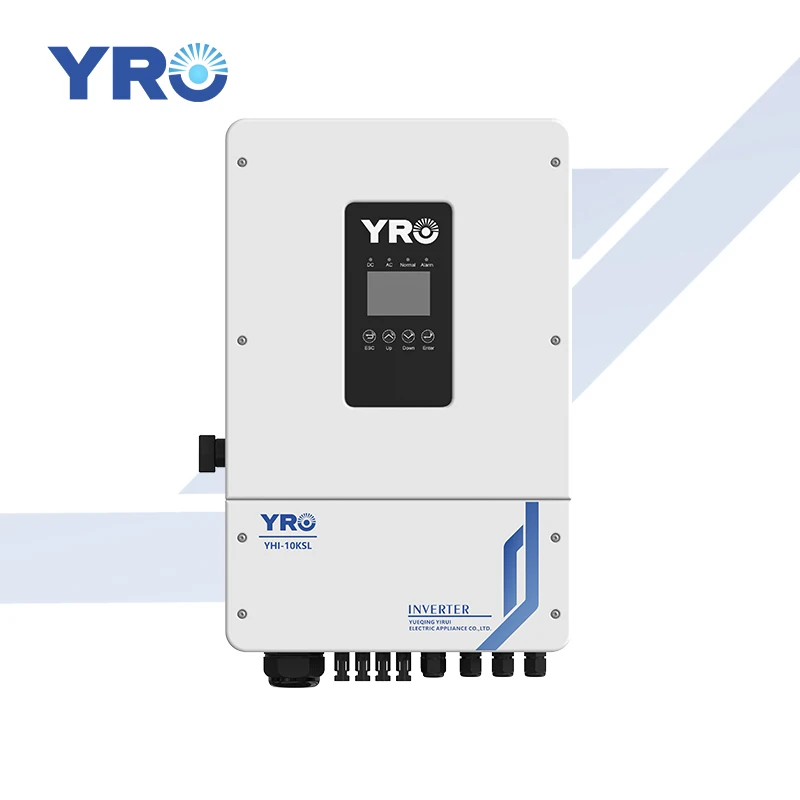

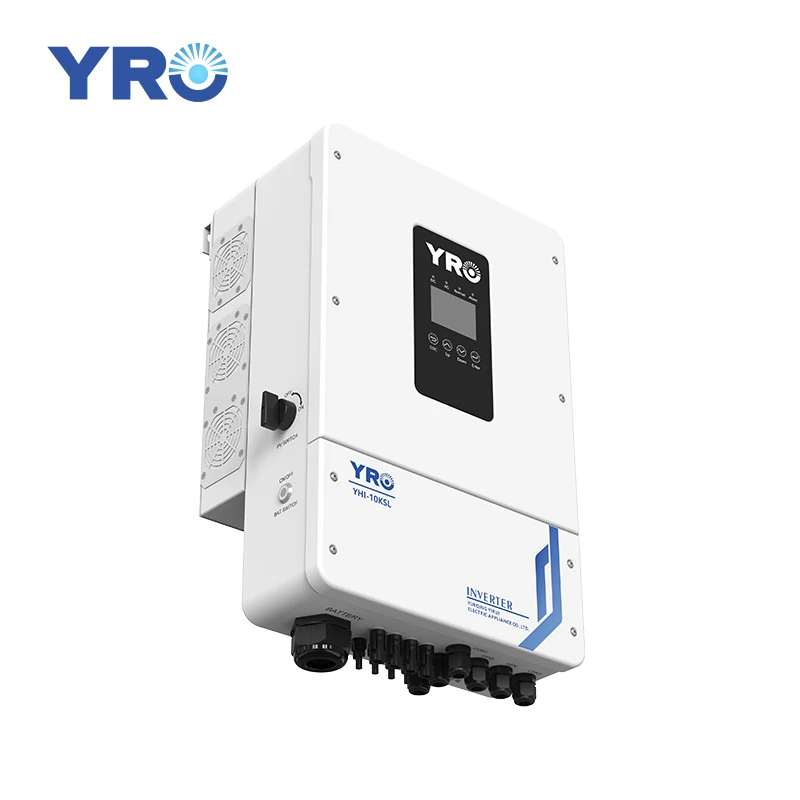

MODEL | YHI-5KSL | YHI-6KS | YHI-8KSL | YHI-10KSL | ||||
PV input | ||||||||
Vmax PV(Vdc)(absolute Max.) | 500 | 500 | 500 | 500 | ||||
Max.PVinput current /lsc PV(A) | 26+26/34+34 | 26+26/34+34 | 26+26/34+34 | 26+26/34+34 | ||||
Noof MPPT Trackers /Number input strngs | 2/2+2 | 2/2+2 | 2/2+2 | 2/2+2 | ||||
MPPT voltage range (@ fullpower)(Vdc) | 125-425(240-425) | 125-425(240-425) | 125-425(240-425) | 125-425(240-425) | ||||
Power pvMax(W) | 8800 | 10400 | 11200 | 12500 | ||||
Battery (charge/discharge) | ||||||||
Battery type | Li-ion/Lead-acid | |||||||
Battery Norma Voltage(Range)(Vdc) | 48V(40-60V) | |||||||
Max charge/discharge Current(A) | 160 | 190 | 190 | 190 | ||||
Max charge/discharge Power(W) | 7000 | 8800 | 8800 | 8800 | ||||
AC Grid (input and output) | ||||||||
Input/Output Frequency and Voltage | 50/60Hz;230Vac(single phase) | |||||||
Normal/Max.input/output current (A) | 30.5/30.5 | 35/35 | 39.2/39.2 | 43.5/43.5 | ||||
Max. cont.Power/Apparent Power (W/VA) | 7000/7000 | 8000/8000 | 9000/9000 | 10000/10000 | ||||
Power factor(adjustable) | 1.0(-0.8~+0.8) | |||||||
AC Load output (stand alone) | ||||||||
Input/Output Frequency and Voltage | 50/60Hz;230Vac (single phase) | |||||||
Nominal Current(A) | 30.5 | 35 | 39 | 43.5 | ||||
Max.cont.Power/Apparent Power (kW/kVA) | 7000/7000 | 8000/8000 | 9000/9000 | 10000/10000 | ||||
Power factor(adjustable) | 1.0(-0.8~+0.8) | |||||||
Eciency | ||||||||
Max.Effciency/Euro Effciency /MPPT Effciency | 97.60%/9700%/9990% | |||||||
Protection | ||||||||
Integrated Protection | PV Input lightning Protection/Anti-islanding Protection/DC circuit breaker/ PV String Input Reverse Polarity Protection/Insulation Resistor Detection/ Residual Current Monitoring Unit /Output Over Current Protection/ Output Shorted Protection /Output Over Voltage Protection | |||||||
Surge Protection | DC Typell/AC Typell | |||||||
Certifications and Standards | ||||||||
Grid Regulation | VDE 0126,AS4777,NRS2017G98,G99IEC61683,EC62116,IEC61727 | |||||||
Safety Regulation | IEC62109-1,EC62109-2 | |||||||
EMC | EN61000-6-1.EN61000-6-3.FCC 15class B | |||||||
General Data | ||||||||
Operating Temperature Range(C)/Protection Degree/Cooling /Noise(dB)/Protective class | -25~60C>45CDerating/IP65/Smartcooling/<30dB/ClassIv | |||||||
Weight (kg) | 30.5 | |||||||
Size (mm) | 410W×632H×238D | |||||||
Installaton Style | Wall-mounted | |||||||
Warranty | 5 years | |||||||
Company Profile
EXHIBITION CASE
Company Humanities
FAQ
Q:Are you a directly factory or trading company?
A:We are inverter manufacturer.
Q: How does your factory do regarding quality control?A: Quality is the priority. We always attach great importance to qualitycontrolling from the start to the end. All our products have gained CE, FCC, ROHS certification.
Q:What can you do?
A:1.All of our products have proceeded aging test before shipment and we guarantee safety while using our products.
2.0EM/ODM orders are warmly welcomed!
Q:Warranty and return.
A:1. Products have been tested by 48hours continuous load aging before ship out.wanrranty is 2 years
2. All the products have 2-4 years’ Guarantee. If any quality complaint , we will give out solution within 5 days. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q:ls sample available and free?
A:Sample is available, but the sample cost should be pay by you. The cost of sample wil be refund after further order
Q:Do you accept OEM business?
A:We accept OEM with your authorization.we also can ODM for you.
Q:What's the delivery time?
A:lt usually takes 7-20 days after confirming payment, but specific time should be based on tne order quantity
A:We are inverter manufacturer.
Q: How does your factory do regarding quality control?A: Quality is the priority. We always attach great importance to qualitycontrolling from the start to the end. All our products have gained CE, FCC, ROHS certification.
Q:What can you do?
A:1.All of our products have proceeded aging test before shipment and we guarantee safety while using our products.
2.0EM/ODM orders are warmly welcomed!
Q:Warranty and return.
A:1. Products have been tested by 48hours continuous load aging before ship out.wanrranty is 2 years
2. All the products have 2-4 years’ Guarantee. If any quality complaint , we will give out solution within 5 days. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q:ls sample available and free?
A:Sample is available, but the sample cost should be pay by you. The cost of sample wil be refund after further order
Q:Do you accept OEM business?
A:We accept OEM with your authorization.we also can ODM for you.
Q:What's the delivery time?
A:lt usually takes 7-20 days after confirming payment, but specific time should be based on tne order quantity
Похожие товары

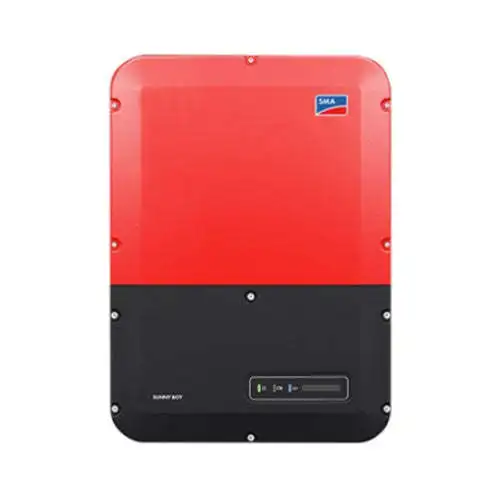

SMA Sunny Boy 3.8kW 208/240VAC струнный инвертор-SB3.8-1SP-US-41
242 885,53 ₽

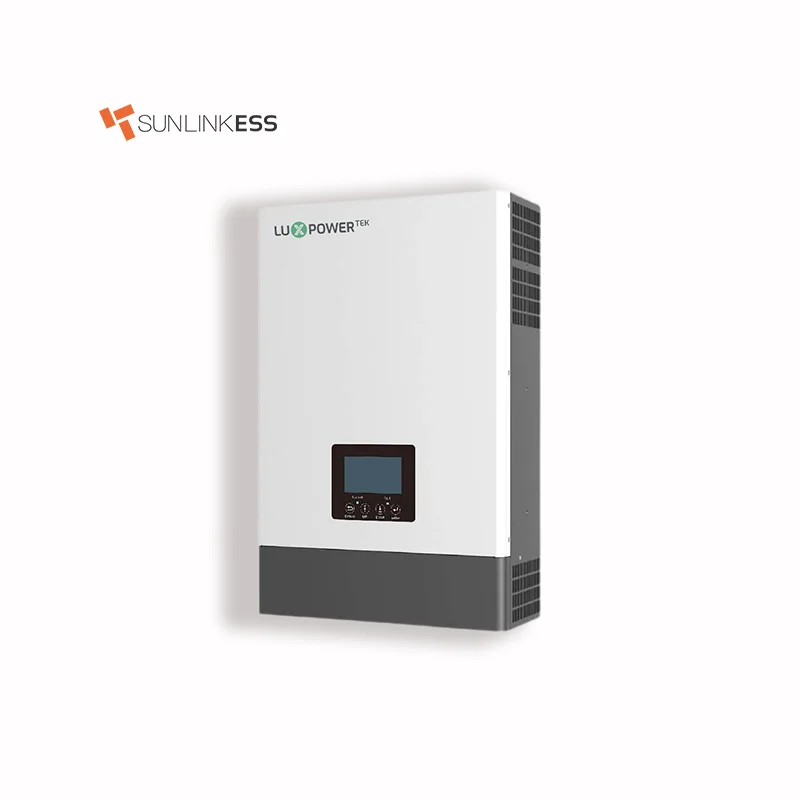

SNA 5000 Luxpower 5 кВА солнечный инвертор эко Гибридный Вт Интеллектуальный
66 113,79-82 642,24 ₽
Небольшой Инвертор солнечной энергии чистый синусоидальный инвертор SP-2200 SP-3200 SP-4200 SP-7000 для бытовой техники с завода
14 875,61-15 892,74 ₽
Solax X1-Mini однофазный строка инвертор 700W 1000W 1500W 2000W солнечный
54 543,88-58 358,14 ₽

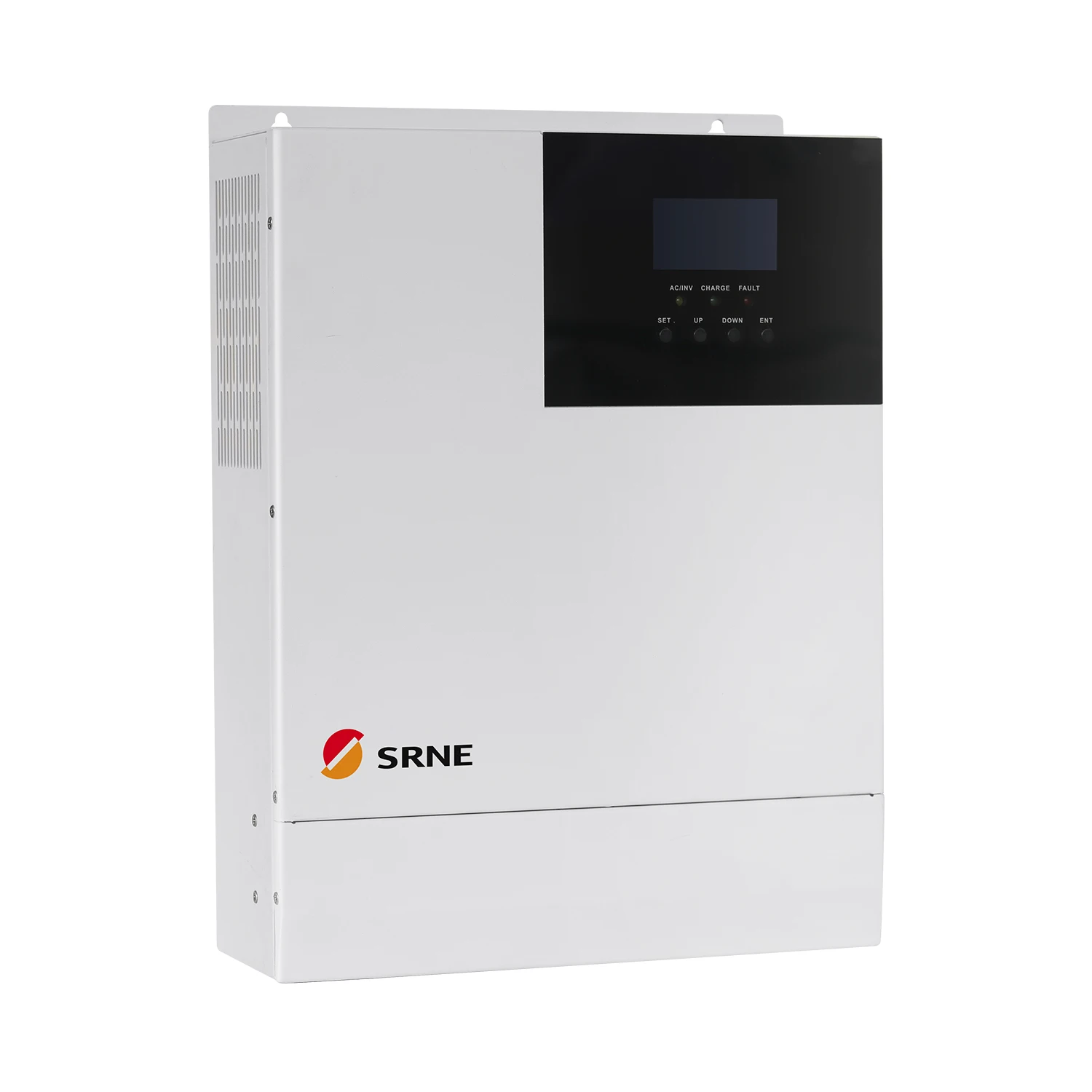

SRNE солнечный гибридный инвертор 3 кВт 5 все-в-одном от сети 24 В 48 постоянного тока до 110 переменного встроенный в MPPT солнечного заряда
