Умный Домашний напольный нагревательный сетчатый коврик с термостатом

Сохранить в закладки 1600958453541:


Цена:1 186,09-1 541,92 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description




Product name
Heating carpet infrared heating mat under floor heating mat




Material
Conductors-one or two bunch of Ni-Cr alloy
Insulation layer-FEP and TPEE,XLPE are optional
Shield:Aluminum-plastic tape+tinned copper or tinned copper braid
Outer sheath:PVC and FEP is optional
Screen:Fiberglass screen where the heating cable fixed on
Temperature control system:thermostat and other accessories
Thickness
3.6mm
Width
0.5m
Length
1-40m
Output/M2
130W,150W,200W
Total output
Customized in accordance with the room area


Details Images




T-cable or S-Cable
Heating element of the mat
Various output supplied
Thin and safe with zero EMF
Covered by strong enough sheath working under the cement for long

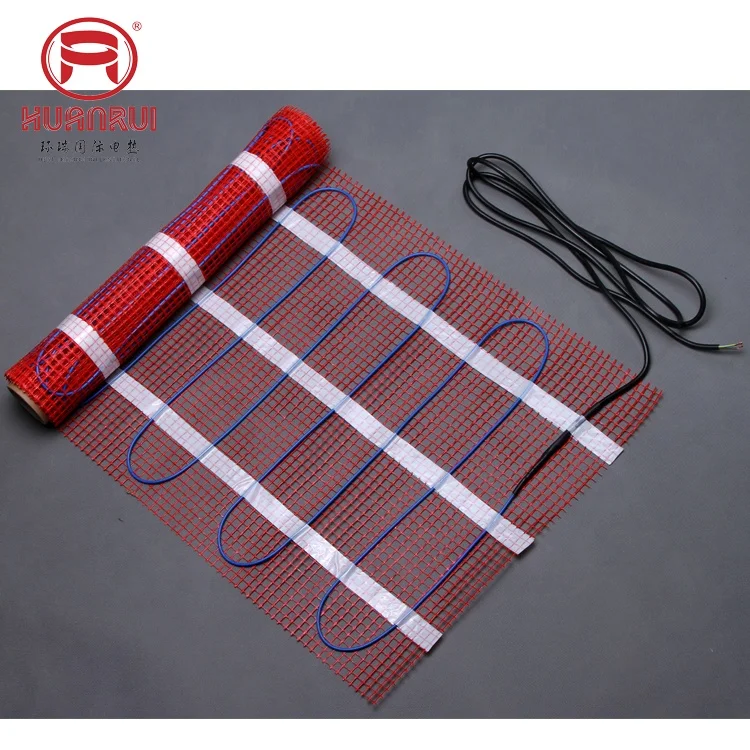

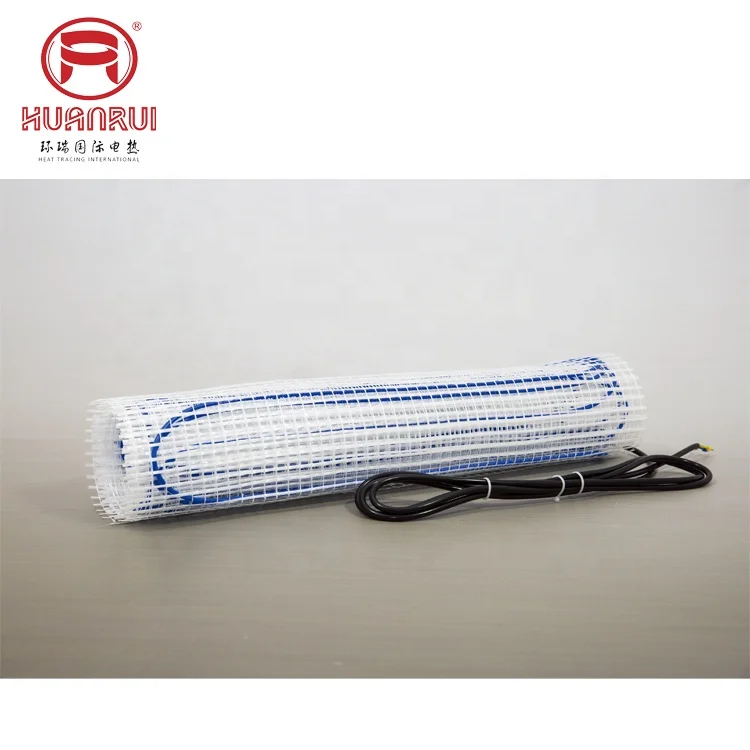

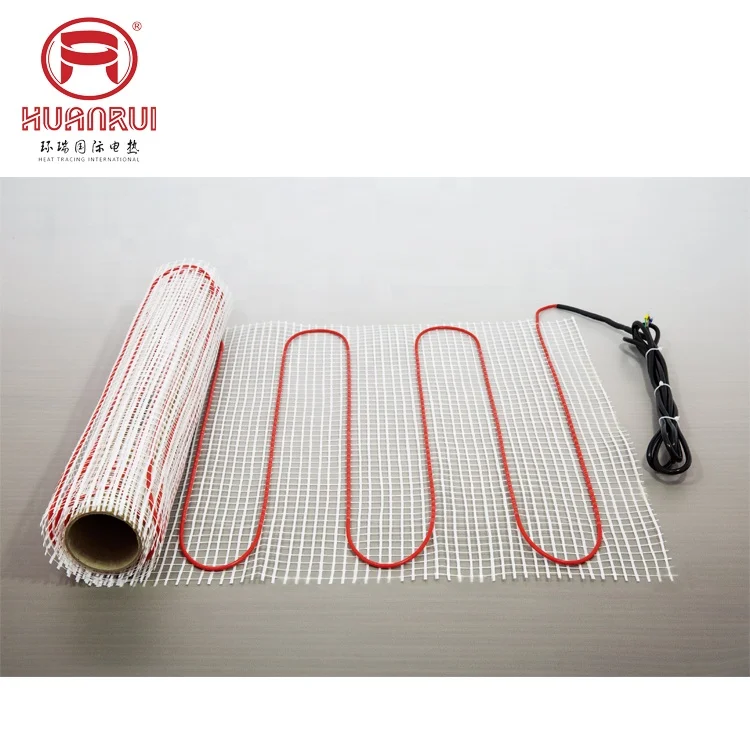

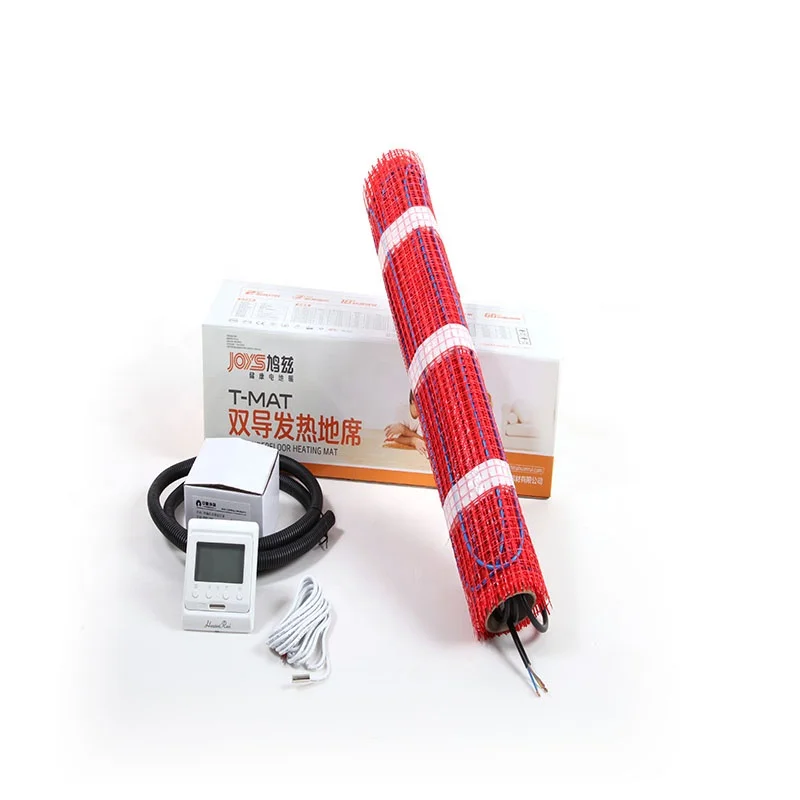

T-mat or S-mat
Convenient for installation.
Flexible and 100% screened
Width: 0.5 m self-adhesive mat
Length:different options for choice.

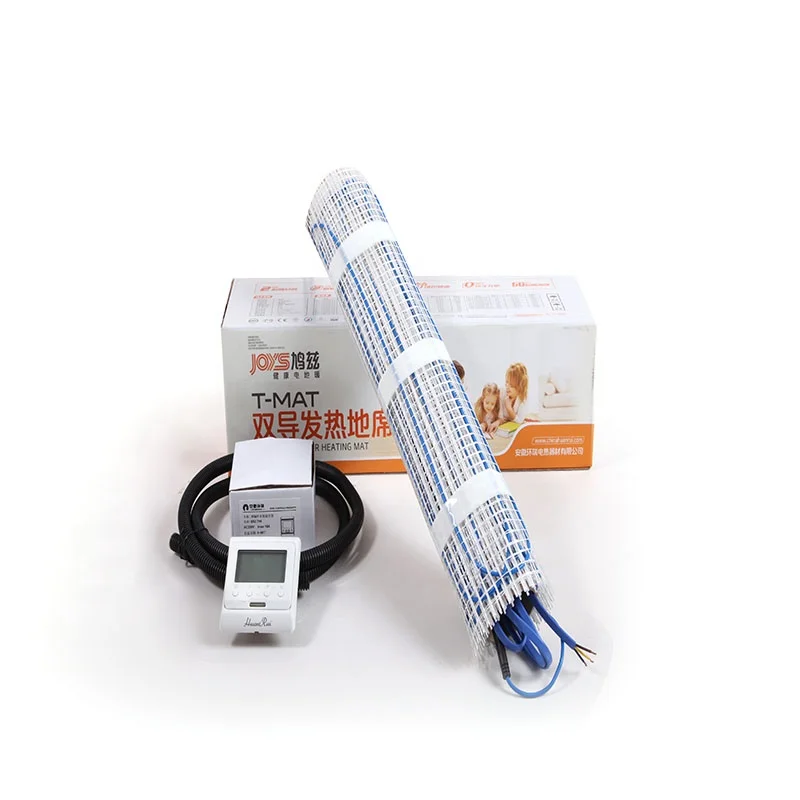

Temperature control system available

Temperature control system
Thermostat with temperature detectors,protected pipes and ect.
Keep heating until the temperature reach the set value,then stop.When the temperature drop,work again.




Product Paramenters


230V
Heating Area
Mat Dimensions
Output Power / Watts (150W/m2)
Current/Amps
Resistance/Ω
Part Number
m2
sq.ft.
m*m
in.*ft.



T-mat150-150
1
10.8
0.5*2
20*6.5
150
0.7
352.7
T-mat150-225
1.5
16.1
0.5*3
20*9.7
225
1
235.1
T-mat150-300
2
21.5
0.5*4
20*12.9
300
1.3
176.3
T-mat150-375
2.5
26.9
0.5*5
20*16.1
375
1.6
141.1
T-mat150-450
3
32.3
0.5*6
20*19.4
450
2
117.6
T-mat150-525
3.5
37.7
0.5*7
20*22.6
525
2.3
100.8
T-mat150-600
4
43.1
0.5*8
20*25.8
600
2.6
88.2
T-mat150-675
4.5
48.4
0.5*9
20*29.1
675
2.9
78.4
T-mat150-750
5
53.8
0.5*10
20*32.3
750
3.3
70.5
T-mat150-900
6
64.6
0.5*12
20*38.8
900
3.9
58.8
T-mat150-1050
7
75.3
0.5*14
20*45.2
1050
4.6
50.4
T-mat150-1200
8
86.1
0.5*16
20*51.7
1200
5.2
44.1
T-mat150-1350
9
96.9
0.5*18
20*58.1
1350
5.9
39.2
T-mat150-1500
10
107.6
0.5*20
20*64.6
1500
6.5
35.3
T-mat150-1800
12
129.2
0.5*24
20*77.5
1800
7.8
29.4


230V
Heating Area
Mat Dimensions
Output Power / Watts (200W/m2)
Current/Amps
Resistance/Ω
Part Number
m2
sq.ft.
m*m
in.*ft.



T-mat200-200
1
10.8
0.5*2
20*6.5
200
0.9
264.5
T-mat200-300
1.5
16.1
0.5*3
20*9.7
300
1.3
176.3
T-mat200-400
2
21.5
0.5*4
20*12.9
400
1.7
132.3
T-mat200-500
2.5
26.9
0.5*5
20*16.1
500
2.2
105.8
T-mat200-600
3
32.3
0.5*6
20*19.4
600
2.6
88.2
T-mat200-700
3.5
37.7
0.5*7
20*22.6
700
3
75.6
T-mat200-800
4
43.1
0.5*8
20*25.8
800
3.5
66.1
T-mat200-900
4.5
48.4
0.5*9
20*29.1
900
3.9
58.8
T-mat200-1000
5
53.8
0.5*10
20*32.3
1000
4.3
52.9
T-mat200-1200
6
64.6
0.5*12
20*38.8
1200
5.2
44.1
T-mat200-1400
7
75.3
0.5*14
20*45.2
1400
6.1
37.8
T-mat200-1600
8
86.1
0.5*16
20*51.7
1600
7
33.1
T-mat200-1800
9
96.9
0.5*18
20*58.1
1800
7.8
29.4
T-mat200-2000
10
107.6
0.5*20
20*64.6
2000
8.7
26.5
T-mat200-2400
12
129.2
0.5*24
20*77.5
2400
10.4
22


120V
Heating Area
Mat Dimensions
Output Power / Watts (12W/ft2)
Current/Amps
Resistance/Ω
Part Number
m2
sq.ft.
m*m
in.*ft.



T-mat1-120
0.93
10
0.5*1.9
20*6.1
120
1
120
T-mat1-180
1.39
15
0.5*2.8
20*9.1
180
1.5
80
T-mat1-240
1.86
20
0.5*3.7
20*12.2
240
2
60
T-mat1-300
2.32
25
0.5*4.6
20*15.2
300
2.5
48
T-mat1-360
2.79
30
0.5*5.6
20*18.3
360
3
40
T-mat1-420
3.25
35
0.5*6.5
20*21.3
420
3.5
34.29
T-mat1-480
3.72
40
0.5*7.4
20*24.4
480
4
30
T-mat1-540
4.18
45
0.5*8.3
20*27.5
540
4.5
26.67
T-mat1-600
4.65
50
0.5*9.3
20*30.5
600
5
24
T-mat1-720
5.75
60
0.5*11.1
20*36.6
720
6
20
T-mat1-840
6.5
70
0.5*13
20*42.7
840
7
17.14
T-mat1-960
7.43
80
0.5*14.9
20*48.8
960
8
15
T-mat1-1080
8.36
90
0.5*16.7
20*54.9
1080
9
13.33
T-mat1-1200
9.29
100
0.5*18.6
20*61
1200
10
12
T-mat1-1440
11.15
120
0.5*22.3
20*73.2
1440
12
10


240V
Heating Area
Mat Dimensions
Output Power / Watts (12W/ft2)
Current/Amps
Resistance/Ω
Part Number
m2
sq.ft.
m*m
in.*ft.



T-mat2-180
1.39
15
0.5*2.8
20*9.1
180
0.75
320
T-mat2-240
1.86
20
0.5*3.7
20*12.2
240
1
240
T-mat2-300
2.32
25
0.5*4.6
20*15.2
300
1.25
192
T-mat2-360
2.79
30
0.5*5.6
20*18.3
360
1.5
160
T-mat2-420
3.25
35
0.5*6.5
20*21.3
420
1.75
137.14
T-mat2-480
3.72
40
0.5*7.4
20*24.4
480
2
120
T-mat2-540
4.18
45
0.5*8.3
20*27.5
540
2.25
106.67
T-mat2-600
4.65
50
0.5*9.3
20*30.5
600
2.5
96
T-mat2-720
5.57
60
0.5*11.1
20*36.6
720
3
80
T-mat2-840
6.5
70
0.5*13
20*42.7
840
3.5
68.57
T-mat2-960
7.43
80
0.5*14.9
20*48.8
960
4
60
T-mat2-1080
8.36
90
0.5*16.7
20*54.9
1080
4.5
53.33
T-mat2-1200
9.29
100
0.5*18.6
20*61
1200
5
48
T-mat2-1320
10.22
110
0.5*20.5
20*67.1
1320
5.5
43.64
T-mat2-1440
11.15
120
0.5*22.3
20*73.2
1440
6
40
T-mat2-1680
13.01
140
0.5*26
20*85.4
1680
7
34.29
T-mat2-1920
14.86
160
0.5*29.7
20*97.6
1920
8
30
T-mat2-2160
16.72
180
0.5*33.4
20*109.8
2160
9
26.67
T-mat2-2400
18.58
200
0.5*37.1
20*121.9
2400
10
24










Application


Under floor and  wall heating mat
The main application of the mat will be underfloor or wall heating source.

Designed for installation into thin adhesive beds,leveling compounds or thin screed beds beneath tiled and wooden floor finish.

150W/M2 heating mats are suitable as a primary heating source.And 200W/M2 heating mat apply to high heat loss site such as conservatories.




The above are some of our cooperative customers.
At present, we not only sell products in the China market, our products also hot sale in North America, Europe, South America, the Middle East, etc..


Are you ready to be our distributor&wholesaler?Click the link as below to contact us.

If you already have suppliers,why not give yourself more choices to reduce financial risks and increase supply stability?We can help in many ways:
A.We can prepare raw material and product stock for fast delivery.
B.Special products are available if your supplier cannot offer them.
C.More competitive price.
D.OA is acceptable after credit investigation.
E.Factory and products third part inspection is no problem.
F.Apply new certificate for you if needed




Packaging and Shipping




Recommend Products


Underfloor heating cable
Underfloor heating cable diameters from 3.6mm to 5.8mm, available for in-concrete heating, for bathroom and little rooms
Foil underfloor heating mat
Urtra thin underfloor heating mat, available for wooden floor

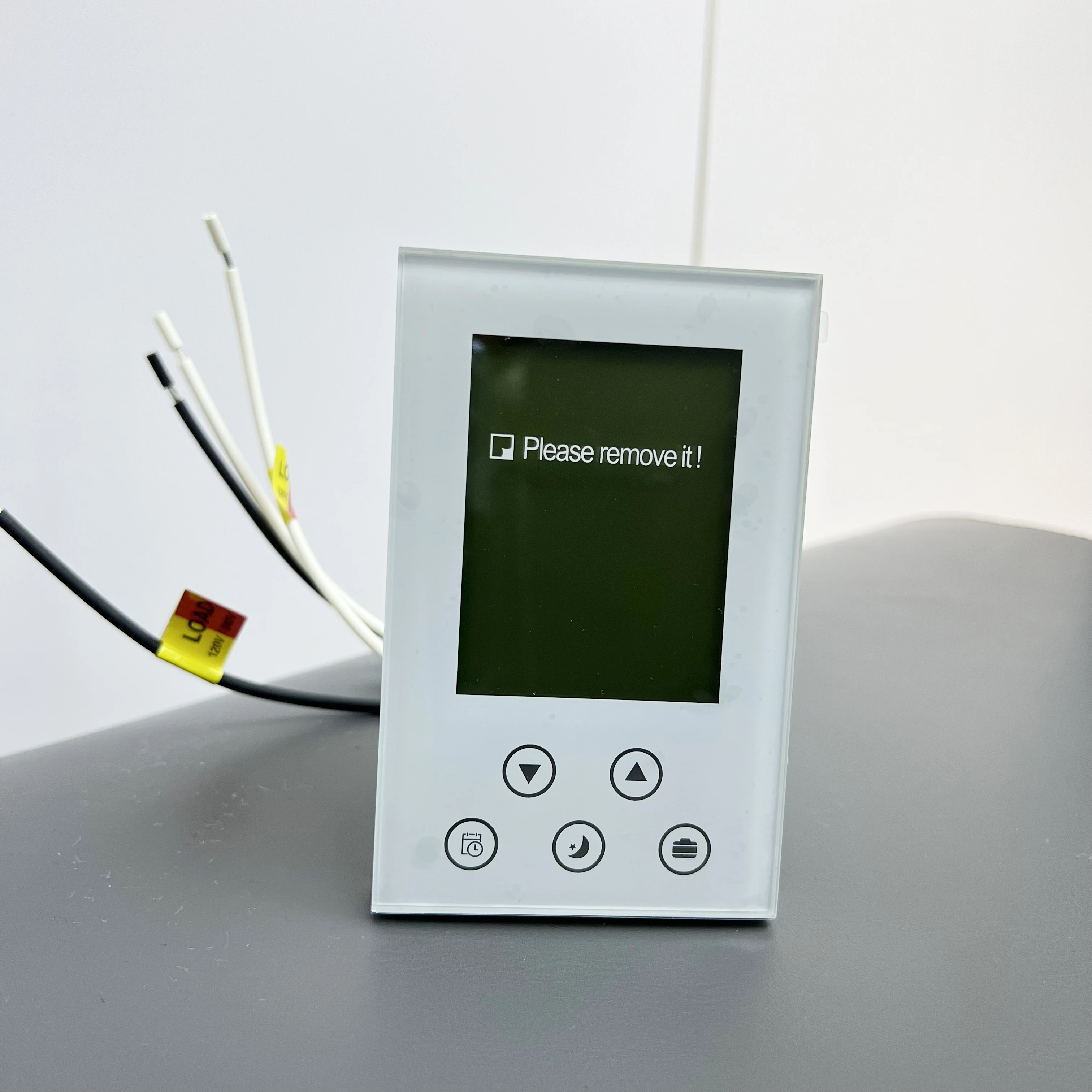

Thermostat
Manual thermostat, programmable thermostat, wifi thermostat, touch screen thermostat




Certifications




Company Profile






FAQ


Q1: - Are you manufacturer?
- Yes, our company focus on heating cable manufacturing since 2004, located in Hefei City, Anhui Province, China.
Welcome to visit our company!

Q2: - What's the MOQ?
- MOQ for self-regulating heating cable is 1000m. MOQ for electric underfloor heating mat is 2000 sqm.
The less quantity can be negotiated.

Q3: - How long the warranty will be?
- The limited warranty for self-regulating heating cable is 10 years.
Warranty for electric underfloor heating mat & cable is 25 years.
We provide warranty against all defects in factory's material, design and workmanship.

Q4: - How long the delivery time will be?
- Normally within 7-15 days, big order should be negotiated.

Q5: - What is the Payment Term?
- T/T, L/C, Western Union, PayPal, Alibaba Secure Payment, D/P, etc.
Usually by T/T 30% as deposit in advance and the balance 70% should be paid when goods ready to ship or pay against the copy of B/L.
