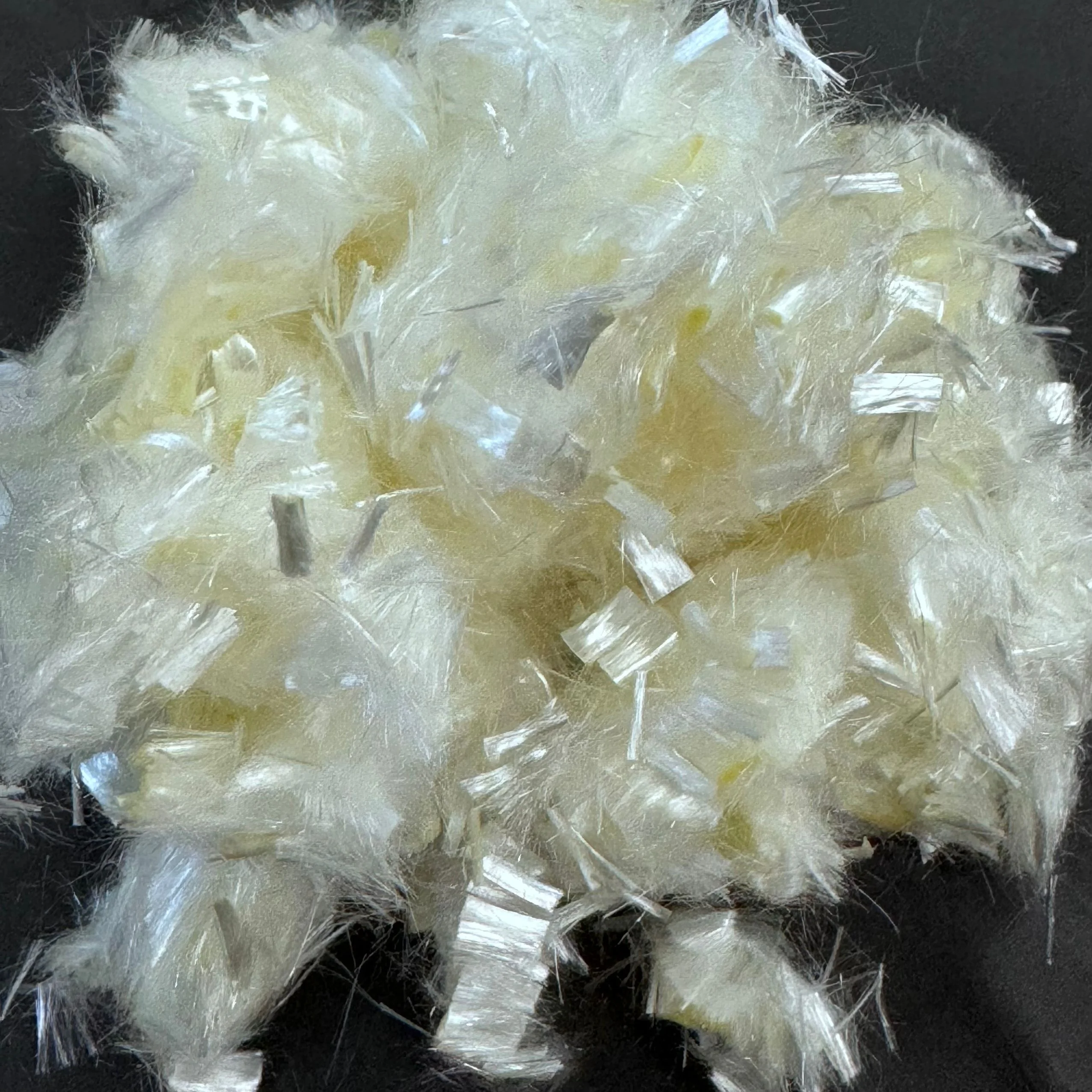

Поливиниловый спиртовой волокнистый раствор для бетона добавки ткани из ПВА волокно
- Категория: >>>
- Поставщик: Henan Botai Chemical Building Materials Co. Ltd.
Сохранить в закладки 1600958585407:
Описание и отзывы
Характеристики

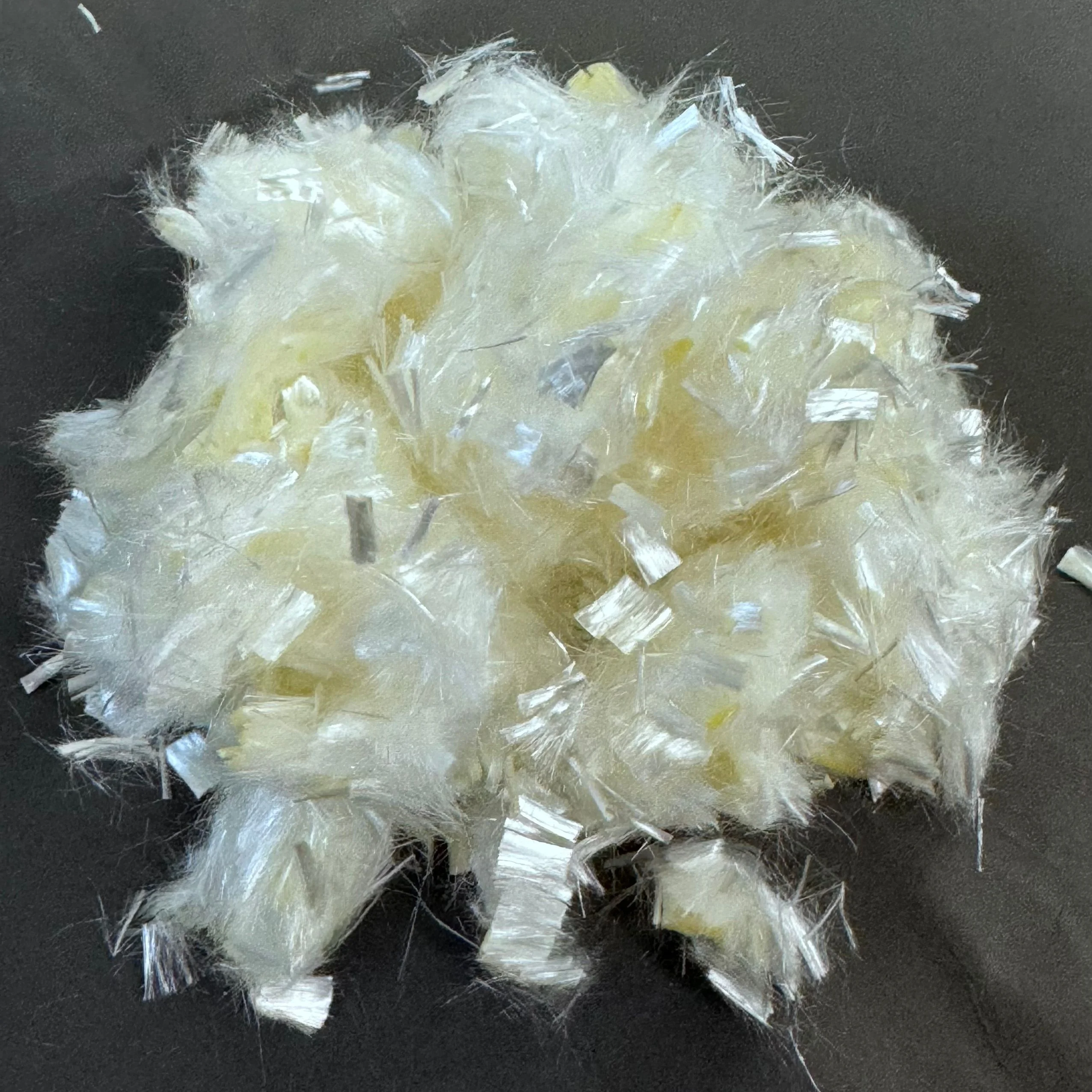

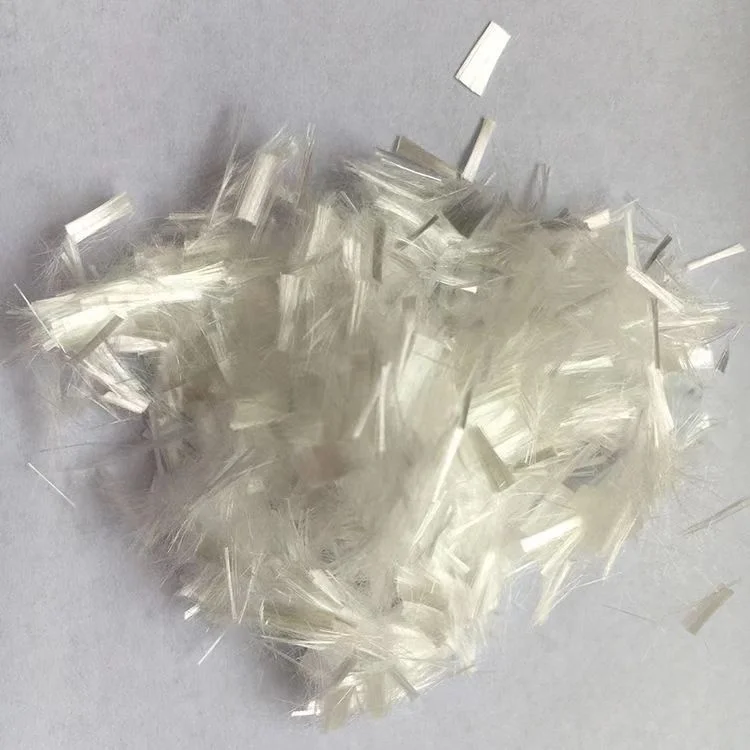

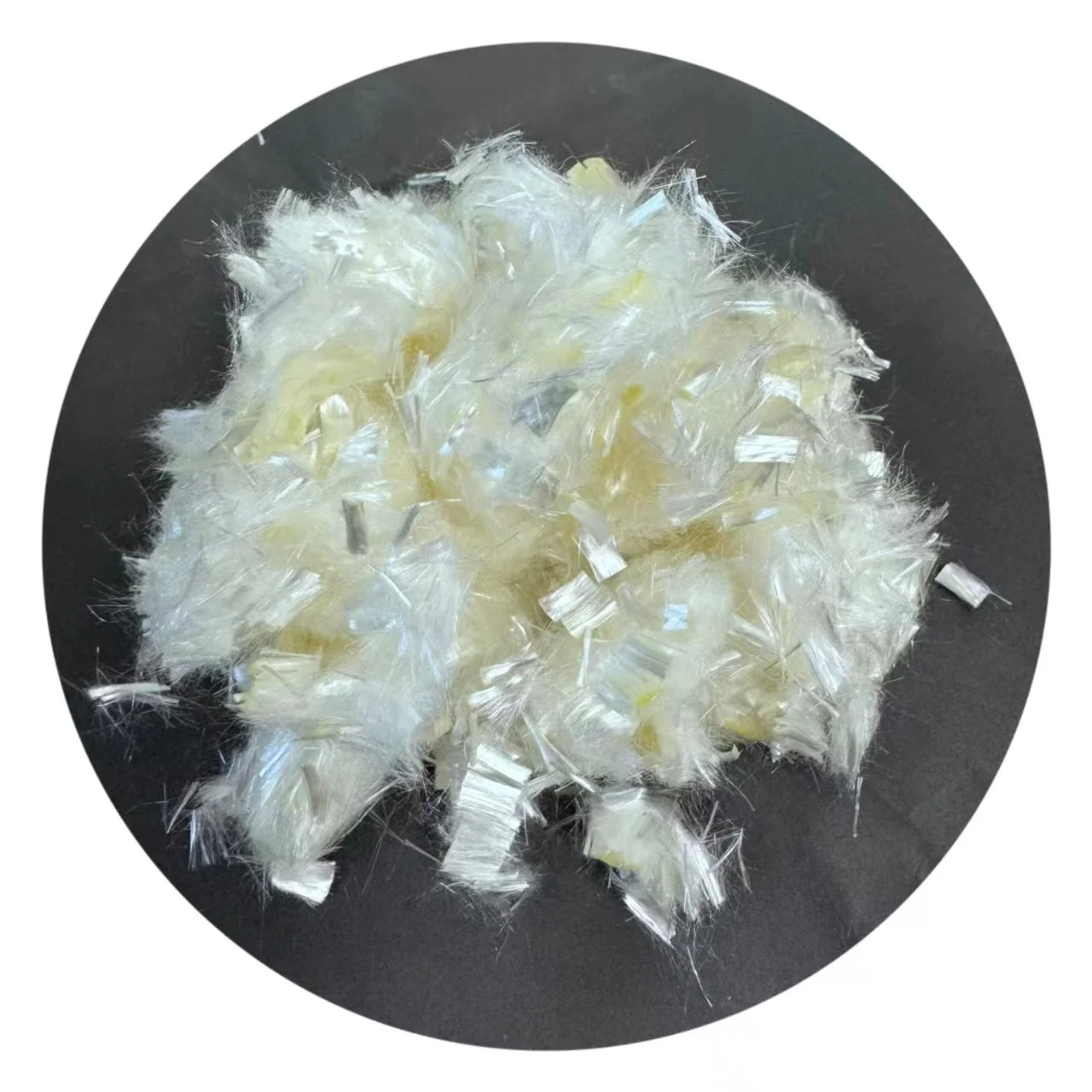

polyvinyl alcohol fiber mortar concrete admixtures pva fiber fabrics pva fiber for concrete
PVA Fibers (polyvinyl alcohol) are high-performance reinforcement fibres for concrete and mortar. PVA fibres are well-suited for a wide variety of applications because of their superior
crack-fighting properties, high modulus of elasticity, excellent tensile and molecular bond strength, and high resistance to alkali, UV, chemicals, fatigue and abrasion . DAYE PVA fibers are unique in their ability to create a molecular bond with mortar and concrete that is 300% greater than other fibres.
crack-fighting properties, high modulus of elasticity, excellent tensile and molecular bond strength, and high resistance to alkali, UV, chemicals, fatigue and abrasion . DAYE PVA fibers are unique in their ability to create a molecular bond with mortar and concrete that is 300% greater than other fibres.
PRODUCT SPECIFICATION
Technical indexes | Technical indexes | |||||||||
Item | Q- 11 | Q- 12 | Q- 13 | Q- 14 | CD-I | |||||
Linear density(dtex) | M±0.4 | M±0.4 | M±0.4 | M±0.4 | 15.0±3.0 | |||||
Breaking tenacity(cN/dtex) | ≥10.5 | ≥11 .5 | ≥12 .5 | ≥14 .0 | ≥10 .0 | |||||
Initial modulus(cN/dtex) | ≥220 | ≥260 | ≥280 | ≥320 | 230 | |||||
Elongation at break(%) | 5.0~9.0 | 5.0~9.0 | 5.0~9.0 | 5.0~9.0 | ≤9.5 | |||||
Dispersity(grade 1-6) | ≤3 | ≤3 | ≤3 | ≤3 | / | |||||
Oil content(%) | ≤0.70 | ≤0.70 | ≤0.70 | ≤0.70 | ≤0.70 | |||||
Hot water reduction(%) | ≤1.0 | ≤1.0 | ≤0.5 | ≤0.5 | / | |||||
Extrapolated onset temperature | ≥100 .0 | ≥100 .0 | ≥109 .0 | ≥109 .0 | / | |||||
Maximum temperature | Depends on buyer and seller | Depends on buyer and seller | / | |||||||
Note: M value can be negotiated by buyer and seller. Current M value is 2.0 | ||||||||||
●Main Applications:
1) Substitute asbestos to make cement panel, colorful tile , cable pipe , lightweight partition slabs without asbestos fiber etc .
2) Concrete casting in bulk, such as high-standard airport general runway , high-grade road, parking lot , dam, port pier, slabs of high-rise buildings, bridge panel, swimming pool , etc .
3) Roof processing of industrial and civil architecture , basement , wall plastering mortar.
4) Shotcrete of tunnel, culvert , channel , slope , mine wall , etc .
5)Reinforcement admixture of plaster products, magnesite items, powder construction material , rubber products and plastic goods.
6) Coastal beach, salt-alkali area and chemical corrosive field.
2) Concrete casting in bulk, such as high-standard airport general runway , high-grade road, parking lot , dam, port pier, slabs of high-rise buildings, bridge panel, swimming pool , etc .
3) Roof processing of industrial and civil architecture , basement , wall plastering mortar.
4) Shotcrete of tunnel, culvert , channel , slope , mine wall , etc .
5)Reinforcement admixture of plaster products, magnesite items, powder construction material , rubber products and plastic goods.
6) Coastal beach, salt-alkali area and chemical corrosive field.
●Working mechanism
1) Decrease layered segregation and settlement shrinkage of matrix material. Prevent initial and further crack.
2) Improve fragility of matrix material, strengthen toughness and achieve effects of reinforcing and toughening.
3) Promote compactness and ability to resist seepage of matrix material.
4) Accelerate impact resistance and intense tensile performance of matrix material.
5) Boost the ability to resist chloride penetration of matrix material.
2) Improve fragility of matrix material, strengthen toughness and achieve effects of reinforcing and toughening.
3) Promote compactness and ability to resist seepage of matrix material.
4) Accelerate impact resistance and intense tensile performance of matrix material.
5) Boost the ability to resist chloride penetration of matrix material.
Comparisons with other synthetic fibers
●Main performance:
PVA fibers have better physical and mechanical performance with more 216℃ melt point. It has high tensile strength, high modulus and low elongation at break. Due to unique ‘-OH ’ structure on PVA molecular chain , PVA fibers have good associativity with matrix material. This fibre has pretty obvious effects of reinforcing , toughening, resisting crack and preventing seepage . It is harmless to human and environment. Besides, it is recognized as an ideal material to replace asbestos with China and overseas. Polyvinyl alcohol fiber is honored as green eco-friendly product.
PVA fibers have better physical and mechanical performance with more 216℃ melt point. It has high tensile strength, high modulus and low elongation at break. Due to unique ‘-OH ’ structure on PVA molecular chain , PVA fibers have good associativity with matrix material. This fibre has pretty obvious effects of reinforcing , toughening, resisting crack and preventing seepage . It is harmless to human and environment. Besides, it is recognized as an ideal material to replace asbestos with China and overseas. Polyvinyl alcohol fiber is honored as green eco-friendly product.
●Dry break strength
Fiber type | PVA | Strong nylon | Strong polyester | Acrylic | Strong chlorine fiber | Strong polypropylene PP |
cN/dtex | 10.5~15.0 | 5.2~ 8.4 | 5.6~7.9 | 2.2~4.4 | 2.9~3 .5 | 2.6~7 . 1 |
●Dry elongation at break
Fiber type | PVA | Regular vinyl on | Nylon | Polypropylene PP | Regular chlorine fiber | Strong polyester |
cN/dtex | 5.0~9.0 | 11.5~ 16 .5 | 20~40 | 15~35 | 14~25 | 10~ 14 |
●Acid & alkali resistance
Test conditions | Strength loss(%) | ||||||||||
Rate(%) | Temperature(℃) | Time(h) | PVA | Glued fiber | Nylon | Polyester | |||||
1 | 20 | 10 | 0 | 12 | 0 | 1 | |||||
1 | 100 | 100 | 7 | 29 | 25 | 71 | |||||
40 | 20 | 10 | 0 | 100 | 18 | 4 | |||||
●Light resistance
Time(h) | Strength loss(%) | ||||||
PVA | Glued fiber | Nylon | Polyester | ||||
100 | 2.05 | 4.26 | 19.60 | 15 .70 | |||
300 | 4.93 | 7.45 | 41 .20 | 38 .60 | |||
500 | 6.98 | 25 .00 | 65 .09 | 53 .20 | |||
700 | 7. 12 | 63 .30 | 74.51 | 61 .90 | |||
●Estimating Data:
The dosage rate is dependent on the application . The general dosage range is 900g/m3 .
●Using Instruction:

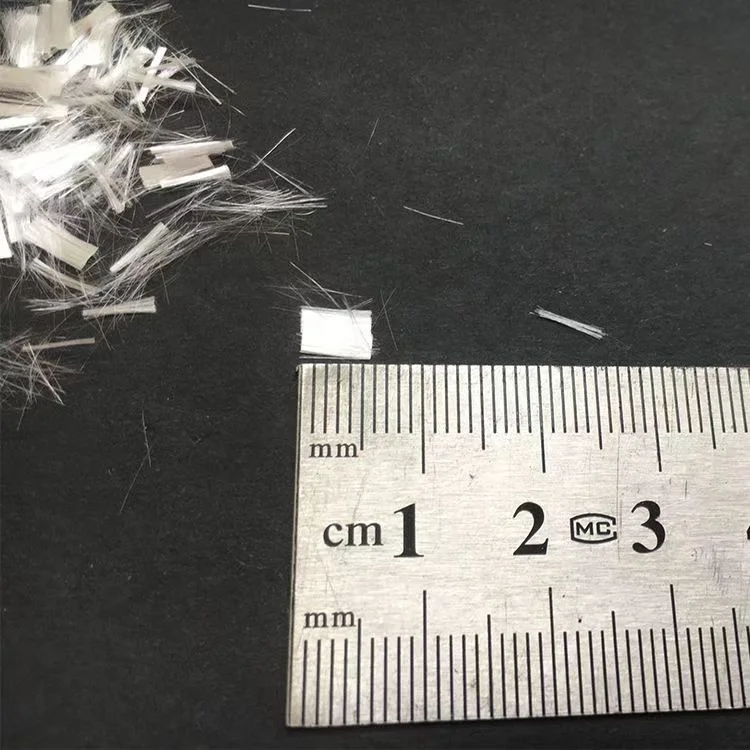

1) .Length : generally 12mm.
2).Mixing Process: Crushed stones, fibers and sands are put into the mixer in succession . After stirring for two minutes, fiber willfully spread and then add cement and water and stir normally. The addition of materials also can be put into as usual , but the stirring time should be properly prolonged to more than 4 minutes to make fiber completely mixed.
3) . Shaping & Maintenance: There is no special requirement, may prolong the vibrating time for 30s. The maintenance of the fiber concrete should be done same as the normal concrete .RECOMMEND PRODUCTS
COMPANY PROFILE
Henan Botai Chemical Building Materials Co. , Ltd.is an innovative enterprise specializing in the production, research&development and sales of redispersible polymer powder, calcium formate, cellulose ether (HPMC/HEMC/HEC) and superplasticizers (SMF /PCE Based) ,its products are mainly used in dry mortar, paints, oil drilling,feed and detergent field.
Botai currently has two large R&D centers,that are constantly committed to providing customers with the most professional technical support and formulation solutions. These R&D centers were also certified as training base of Tile inlayers, their qualification certifications made contantly contributions for the standardization and specialization of paving technology. Till now, Botai has registered more than 20 trademarks,obtained 25 patents and passed ISO9001, EU REACH, HALAL, FAMI-QS certification and so on.
After years of improvements, Botai has been formed production capacity:
VINNATE® Redispersible Polymer Powder: 15, 000Tons/Year
VAMCELL®HPMC: 10, 000Tons/Year
BOMCELL®HEMC: 5, 000Tons/Year
THYLOCELL®HEC: 5, 000Tons/Year
FORCA®& CALCIUM FORMATE: 35,000 Tons/Year
DEMACSA® SMF/PCE Superplasticizer: 5, 000 tons/year
WATER REPELLENT: 5, 000 tons/year
Botai adheres to the business philosophy of Green Chemistry ，environmental protection and sustainable development.we attache equal importance to conservation and development, energy conservation and emission reduction.insists on producing and supplying green and high-performance products for customers.
EXHIBITION & CERTIFICATIONS
Our Services
●1. Free samples:
We are willing to offer 200g free samples for your test. And the ship/express freight cost usually covered by customers. Please feel free to contact us for samples.
●2. Prompt delivery:
After confirm the order,usually within 15 days we can provide the goods on time.
●3. Reply customers:
We'd like to reply any question in 30 minutes on work day.If we are in holiday,we'll reply in 24 hours.
●4. After-sale service:
Feed back email after endusers received the cargo. We listen to the customer's comments and suggestions, for constantly developing and improving ourselves to provide better valued services.
We are willing to offer 200g free samples for your test. And the ship/express freight cost usually covered by customers. Please feel free to contact us for samples.
●2. Prompt delivery:
After confirm the order,usually within 15 days we can provide the goods on time.
●3. Reply customers:
We'd like to reply any question in 30 minutes on work day.If we are in holiday,we'll reply in 24 hours.
●4. After-sale service:
Feed back email after endusers received the cargo. We listen to the customer's comments and suggestions, for constantly developing and improving ourselves to provide better valued services.
PACKING AND STORAGE
PACKING
●·chopped PVA fibres of high tensile strength and modulus are packed by laminated bags with PET strapping. Usually 200 kgs/bag, 4- 8 bags/pallet. Every bag is labeled with a tab showing product name , grade, weight and date of manufacture .
