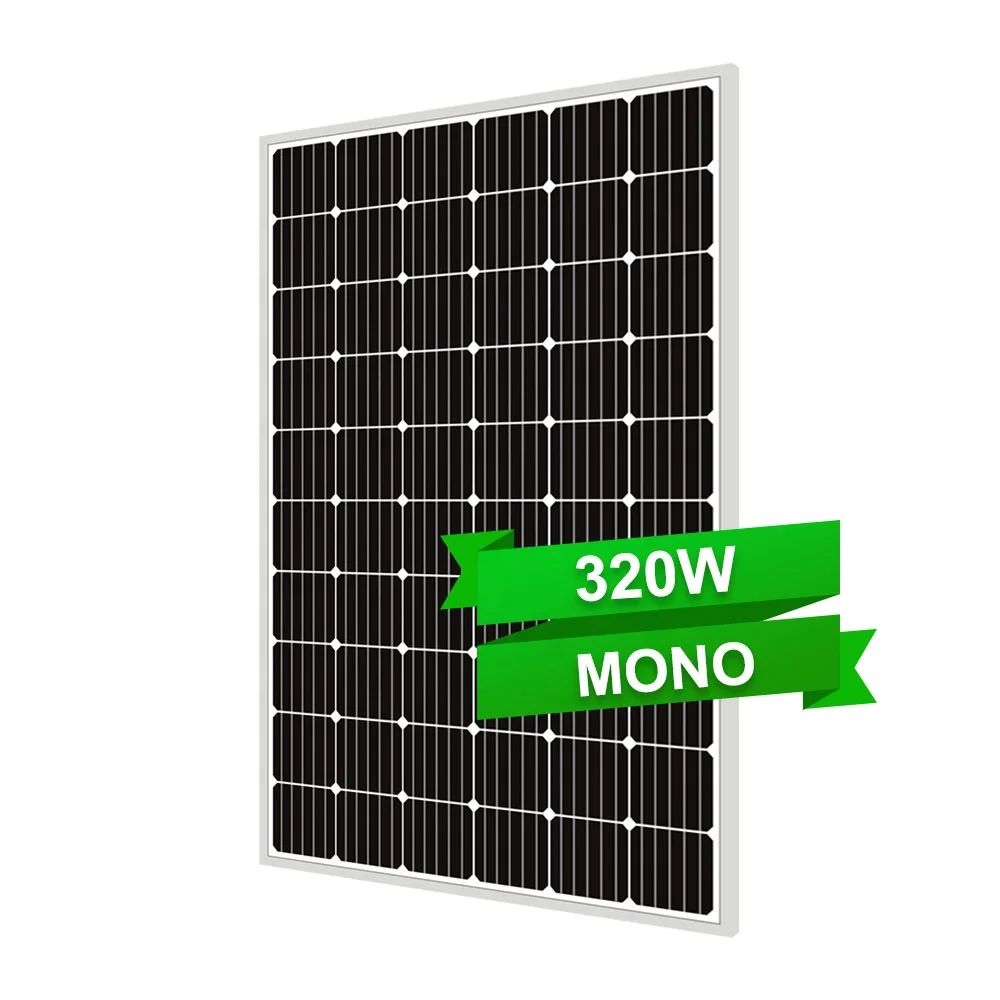

Model | TDCM300-60 | TDCM305-60 | TDCM310-60 | TDCM320-60 | |||
Rated Maximum Power(Pmax) [W] | 300 | 305 | 310 | 320 | |||
Open Circuit Voltage(Voc) [V] | 39.5 | 39.7 | 39.9 | 40.3 | |||
Maximum Power Voltage(Vmp) [V] | 32.3 | 32.6 | 32.8 | 33.2 | |||
Short Circuit Current(Isc) [A] | 9.78 | 9.87 | 9.46 | 10.12 | |||
Maximum Power Current(Imp) [A] | 9.26 | 9.36 | 9.44 | 9.64 | |||
Module Efficiency [%] | 18.30 | 18.71 | 19.40 | 19.70 | |||
Power Tolerance | 0~+5W | ||||||
Temperature Coefficient of Isc(α_Isc) | +0.058%/℃ | ||||||
Temperature Coefficient of Voc(β_Voc) | -0.330%/℃ | ||||||
Temperature Coefficient of Pmax(γ_Pmp) | -0.400%/℃ | ||||||
STC | Irradiance 1000W/m²,cell temperature 25℃, AM1.5G | ||||||
* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
* High-Efficiency PERCIUM Cells
* 93 Fingers PV Cells, Anti-Pid
* Appearance Consistency
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black/Silver Optional
* IP67 Waterproof, Closed
* 4mm2, 6mm2 Wire Size Range
* -40 ℃ to +85 ℃ Temperature Range
* Innovative full-glue-filled junction box
Container(60Cells solar panel) | 20'GP | 40'GP | 40'HC |
PCS/Pallet | 30 | 30 | 30 |
PCS/Container | 400 | 840 | 924 |
Container(72Cells solar panel) | 20'GP | 40'GP | 40'HC |
PCS/Pallet | 27 | 27 | 27 |
PCS/Container | 300 | 648 | 696 |
Transport:
Accodring to your products quantity and requirement , we will choose Security and Economical transportation for you .
Including Sea transportation ,Air transportation , Land transportation and Express .
Payment Terms | EXW | 30% T/T in advance, paid the balance before shipment | |||||
FOB | |||||||
CNF | |||||||
CIF | |||||||
LC | L/C amount above 300,000 usd, we can accept L/C at sight | ||||||
West Union | Accpetable | ||||||
Delivery Time | 7~15days after receiving payment for one container | ||||||
